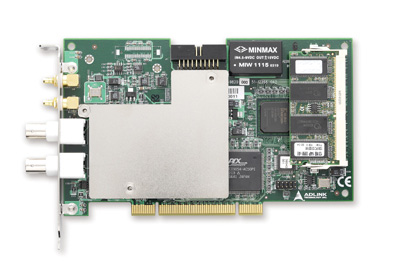

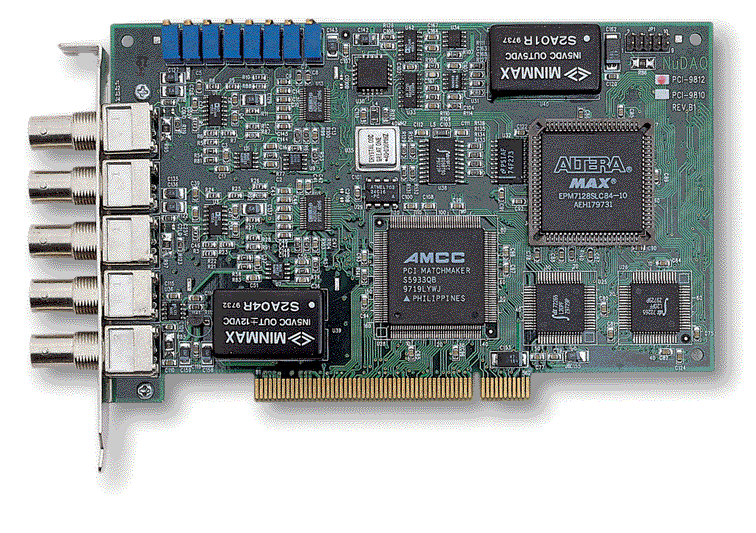

Comprehensive Product Summary: ADLINK PCI-9820W/128 High-Speed PCI Digitizer

---

### 1. Product Overview

Product Name: PCI-9820W/128
Model: PCI-9820 Series
Article Number: PCI-9820W/128
Manufacturer: ADLINK Technology Inc.
Product Type: PCI Bus Analog-to-Digital (A/D) Acquisition Card / High-Speed Digitizer
Series: NuDAQ® PCI-9820 Series
Form Factor: Half-size PCI card, 32-bit, 3.3V/5V universal signaling
Primary Function: Two-channel, simultaneous-sampling, 14-bit digitizer with onboard SDRAM memory for high-speed waveform acquisition and analysis.

The ADLINK PCI-9820W/128 is a high-performance PCI-based digitizer designed for applications requiring precise, high-speed analog signal capture. It supports dual-channel simultaneous sampling at up to 65 MS/s per channel and up to 130 MS/s in single-channel “ping-pong” mode. The card integrates deep onboard SDRAM memory (128 MB standard, expandable to 512 MB) and advanced triggering, synchronization, and calibration features, making it ideal for radar, ultrasound, RF analysis, and transient signal capture.

---

### 2. Key Features

- High-Speed Sampling:
- 65 MS/s per channel (dual-channel mode)
- 130 MS/s (single-channel ping-pong mode)
- High Resolution: 14-bit A/D conversion for precise waveform digitization.
- Deep Onboard Memory:
- 128 MB standard SODIMM SDRAM
- Expandable up to 512 MB for extended waveform recording.
- Flexible Input Configuration:
- Two simultaneous-sampled single-ended analog inputs.
- Programmable input ranges: ±1 V or ±5 V.
- Selectable input impedance: 50 Ω or 1.5 MΩ.
- Wide Bandwidth: Minimum 30 MHz (-3 dB), suitable for high-frequency signal acquisition.
- Advanced Triggering:
- Supports software, analog, digital, and SSI triggers.
- Trigger modes: pre-trigger, post-trigger, middle-trigger, delay-trigger.
- Repeated trigger acquisition with 2-cycle rearming interval.
- Multiple Device Synchronization:
- System Synchronization Interface (SSI) for timing and trigger sharing across multiple boards.
- Auto-Calibration:
- Fully automated offset and gain calibration using onboard reference DACs.
- Calibration constants stored in EEPROM.
- Efficient Data Transfer:
- Scatter-gather bus mastering DMA for high-throughput data transfer.
- 3k-sample FIFO for real-time streaming when SDRAM buffering is unnecessary.
- Software Support:
- Drivers for Windows (WD-DASK), Linux (WD-DASK/X), LabVIEW® (WD-LVIEW), and ActiveX (WD-OCX).
- Compatible with ADLINK DAQBench™ for visualization and automation.
- Compact Design: Half-size PCI card (175 mm × 107 mm).
- Plug-and-Play Configuration: Automatic IRQ and address assignment via PCI BIOS.

---

### 3. Technical Specifications

Analog Input
- Channels: 2 simultaneous-sampled, single-ended
- Resolution: 14 bits
- Sampling Rate:
- 65 MS/s per channel (dual-channel mode)
- 130 MS/s (ping-pong mode, single channel)
- Bandwidth (-3 dB): ≥30 MHz
- Input Ranges (programmable): ±1 V, ±5 V
- Input Coupling: DC
- Input Impedance (solder-selectable): 50 Ω or 1.5 MΩ
- Crosstalk: -80 dB (DC to 1 MHz)
- THD: -75 dB
- SNR: 66 dB (±5 V range), 62 dB (±1 V range)
- SFDR: 75 dB
- Overvoltage Protection:
- ±5 V range: ±14 V
- ±1 V range: ±5 V

Memory
- Onboard SDRAM: 128 MB standard, up to 512 MB optional
- FIFO Buffer: 3 k-samples
- Memory Type: 144-pin SODIMM SDRAM

Timebase System
- Internal Clock: 60 MHz
- External Clock Input: SMB connector, 50 Ω AC-coupled
- Input amplitude: 1–2 Vpp
- Frequency range: 500 kHz–65 MHz
- Overvoltage protection: 2.5 Vpp
- External Sine Wave Clock: Supported
- SSI Timebase: Synchronization across multiple boards

Triggering
- Sources: Software, analog, digital, SSI
- Modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger
- Analog Trigger:
- Source: CH0 or CH1
- Slope: Rising/falling
- Sensitivity: 256 steps across full-scale range
- Coupling: DC
- Digital Trigger:
- Source: External SMB connector
- Compatibility: 5 V TTL
- Minimum pulse width: 10 ns
- Repeated Trigger Interval: 2 timebase cycles
- Pre/Post Trigger Depth: Up to full memory capacity (128–512 MB)

Calibration
- Reference Voltage: +5.000 V
- Temperature Drift: ±2 ppm/°C
- Stability: 6 ppm/1000 hours
- Warm-up Time: 15 minutes recommended
- Calibration Storage: EEPROM (factory + 3 user banks)

General Specifications
- Dimensions: 175 mm × 107 mm (excluding connectors)
- Connectors:
- 2 × BNC (analog inputs)
- 2 × SMB (external trigger and timebase)
- SSI connector (20-pin ribbon)
- Operating Temperature: 0–50 °C
- Storage Temperature: -20–80 °C
- Humidity: 5–95% RH, non-condensing
- Power Requirements:
- +5 V @ 895 mA
- +12 V @ 295 mA
- +3.3 V @ 310 mA (128 MB) / 430 mA (512 MB)

---

### 4. Functionality

The PCI-9820W/128 operates as a high-speed digitizer for capturing analog signals and converting them into digital data for analysis. Two 14-bit pipeline ADCs simultaneously sample input signals at up to 65 MS/s per channel. In single-channel “ping-pong” mode, both ADCs interleave to achieve up to 130 MS/s sampling.

Captured data is stored in onboard SDRAM, allowing long-duration waveform recording independent of PCI bus bandwidth. Data can be transferred to host memory via scatter-gather DMA or streamed directly through the 3k-sample FIFO for real-time applications.

Use Cases and Applications:
- Radar and sonar waveform capture
- Ultrasound imaging and analysis
- RF and communication signal analysis
- Software-defined radio (SDR)
- Transient signal recording and analysis
- Automated Test Equipment (ATE)
- Automotive and aerospace testing
- Laboratory and biomedical instrumentation

Compatibility:
- PCI 32-bit, 33 MHz bus (3.3V/5V universal)
- Compatible with Windows and Linux operating systems
- Supported by ADLINK’s software suite and third-party environments (LabVIEW®, ActiveX, C/C++).

---

### 5. Components & Accessories

Included Items:
- PCI-9820 Digitizer Card
- ADLINK All-in-One Software CD
- Software Installation Guide
- User’s Manual

Optional Accessories:
- SMB-SMB-1M: 1-meter SMB-to-SMB cable
- SMB-BNC-1M: 1-meter SMB-to-BNC cable
- ACL-SSI-2: SSI bus cable for 2-device synchronization
- ACL-SSI-3: SSI bus cable for 3-device synchronization
- ACL-SSI-4: SSI bus cable for 4-device synchronization

Connectors:
- CH0, CH1: BNC connectors for analog input
- CLK IN: SMB connector for external timebase input
- TRG IO: SMB connector for external digital trigger I/O
- SSI: 20-pin header for synchronization bus

---

### 6. Installation & Setup

System Requirements:
- Available PCI slot (32-bit, 33 MHz)
- Compatible PC with Windows 98/NT/2000 or Linux
- Minimum 128 MB system RAM recommended

Installation Steps:
1. Power off the PC and discharge static electricity.
2. Insert the PCI-9820 card into an available PCI slot.
3. Secure the card and reconnect power.
4. The system BIOS automatically assigns IRQ and I/O addresses (Plug-and-Play).
5. Install drivers and software from the ADLINK CD.
6. Configure input impedance (50 Ω or 1.5 MΩ) via solder jumpers J6/J7 if required.
7. Connect analog inputs, triggers, and synchronization cables as needed.

Mounting Options:
- Standard PCI slot installation
- Compatible with desktop or industrial PCs

Configuration:
- Software-controlled input range, trigger mode, and sampling rate.
- External clock and trigger sources selectable via software.

---

### 7. Performance & Capabilities

Sampling Performance:
- Dual-channel: 65 MS/s per channel
- Single-channel (ping-pong): 130 MS/s
- Resolution: 14 bits
- Bandwidth: ≥30 MHz (-3 dB)

Data Throughput:
- Maximum internal acquisition rate: 240 MB/s (2 channels × 2 bytes × 60 MS/s)
- PCI bus transfer via DMA: up to 132 MB/s
- Scatter-gather DMA enables large, non-contiguous memory transfers.

Efficiency & Limitations:
- Real-time streaming supported for lower data rates (<80 MB/s).
- Deep memory allows long-duration captures without data loss.
- Ping-pong mode limited to CH0 for single-channel operation.

Signal Integrity:
- Crosstalk: < -80 dB
- THD: -75 dB
- SNR: up to 66 dB
- SFDR: 75 dB

Trigger Responsiveness:
- Minimum digital trigger pulse width: 10 ns
- Re-trigger interval: 2 timebase cycles
- Analog trigger resolution: 256 steps

---

### 8. Standards & Compliance

- Bus Interface: PCI 2.2 compliant (32-bit, 33 MHz, 3.3V/5V signaling)
- Electrical Safety: Designed for industrial and laboratory environments
- Environmental Compliance:
- Operating: 0–50 °C, 10–90% RH non-condensing
- Storage: -20–80 °C
- Calibration Reference: ±2 ppm/°C drift, 6 ppm/1000 hr stability
- EMC/EMI: Meets standard industrial PCI card requirements
- Software Standards:
- Windows and Linux driver support
- LabVIEW® and ActiveX compatibility

---

### 9. Additional Information

Ordering Information:
- PCI-9820D/128-0: 2-CH 65 MS/s 14-bit Digitizer with 128 MB SDRAM
- PCI-9820D/512-0: 2-CH 65 MS/s 14-bit Digitizer with 512 MB SDRAM

Warranty:
- Two-year limited warranty from ADLINK factory shipment date.
- Covers manufacturing defects and hardware failures under normal use.
- Excludes damage from misuse, improper installation, or environmental factors.

Support & Maintenance:
- Technical support via email: service@adlinktech.com
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- RMA service available with downloadable form from ADLINK’s website.
- Recommended recalibration after environmental changes or extended use.

Software Updates:
- Driver and firmware updates available through ADLINK’s support portal.
- Free evaluation versions of DAQBench and LabVIEW® drivers included.

Manufacturer Contact:
ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886-2-82265877 | Fax: +886-2-82265717
Email: service@adlinktech.com

---

### Summary

The ADLINK PCI-9820W/128 is a robust, high-speed PCI digitizer engineered for demanding data acquisition and waveform analysis tasks. With dual 14-bit ADCs, flexible triggering, deep onboard memory, and advanced synchronization capabilities, it delivers exceptional performance for scientific, industrial, and research applications. Its combination of precision, speed, and software versatility makes it a preferred choice for engineers and researchers requiring reliable, high-resolution signal capture in PCI-based systems.
