- **Dual PC/104 Connectors:** The card incorporates two PC/104 connectors, allowing direct stacking or interfacing with PC/104 modules. This dual-connector configuration supports flexible system expansion and modular integration. - **ISA AT Bus Interface:** Fully compatible with the ISA AT bus standard, ensuring reliable communication with legacy motherboards and industrial controllers. - **Bridge Functionality:** Acts as a physical and electrical interface between ISA-based systems and PC/104 modules, facilitating hybrid system configurations. - **Industrial Form Factor:** Designed with a 270 mm × 132 mm board size, conforming to standard ISA card dimensions for easy installation in industrial chassis or backplanes. - **High Reliability:** Built for industrial environments with durable PCB materials, gold-plated connectors, and robust signal integrity for long-term operation. - **Legacy System Support:** Ideal for maintaining, upgrading, or extending the life of existing ISA-based control systems by integrating modern PC/104 modules. - **Ease of Integration:** Plug-and-play compatibility with standard ISA slots and PC/104 stack connectors simplifies system design and reduces development time. - **Versatile Application Range:** Suitable for embedded control, data acquisition, automation, and industrial computing applications requiring ISA-PC/104 interoperability.

Manufacturer: Axiom

Category: PC/104

- **IEEE 802.3 Compliance:** Fully compliant with the IEEE 802.3 Ethernet standard, ensuring interoperability with standard Ethernet networks and devices. - **Dual Interface Support:** Provides both 10Base-2 (BNC coaxial) and 10Base-T (RJ45 twisted pair) connectivity options, allowing flexible deployment in various network environments. - **NE2000 Compatibility:** Hardware and driver-level compatibility with the NE2000 standard, enabling seamless integration with a wide range of operating systems and legacy software. - **PC/104 Form Factor:** Compact, stackable design conforming to the PC/104 specification, ideal for embedded and industrial applications where space and modularity are critical. - **Plug-and-Play Integration:** Designed for easy integration into PC/104 stacks without requiring extensive configuration or additional interface hardware. - **Industrial Reliability:** Built for continuous operation in embedded and industrial environments, offering stable performance under extended temperature ranges and vibration conditions (depending on manufacturer specifications). - **Low Power Consumption:** Optimized for embedded systems with limited power budgets. - **Driver Support:** Compatible with standard NE2000 drivers available for DOS, Windows, Linux, and various real-time operating systems.

Manufacturer: Axiom

Category: PC/104

- **IEEE 802.3 Compliant Ethernet Interface:** Fully conforms to the IEEE 802.3 10Base-5T standard, ensuring interoperability with standard Ethernet networks. - **PC/104 Form Factor:** Compact, stackable design optimized for embedded and industrial systems where space and modularity are critical. - **NE2000 Compatibility:** Hardware and driver-level compatibility with the NE2000 standard, simplifying integration with existing network stacks and legacy software. - **Multi-OS Support:** Compatible with multiple operating systems and network protocols, including IPX, NDIS, SCO UNIX, Windows NT, and Windows 95. - **Industrial Reliability:** Designed for embedded and industrial environments, offering stable performance under continuous operation. - **Plug-and-Play Integration:** Seamless integration into PC/104-based systems with minimal configuration required. - **Flexible Network Connectivity:** Supports 10 Mbps Ethernet communication over twisted-pair cabling, suitable for local area network (LAN) applications. - **Low Power Consumption:** Optimized for embedded systems where power efficiency is essential. - **Driver and Software Support:** Includes standard driver support for major operating systems, ensuring quick deployment.

Manufacturer: Axiom

Category: PC/104

- **Enhanced IDE Interface:** Provides a high-performance IDE interface supporting standard ATA/ATAPI devices, enabling integration of modern storage solutions into legacy or embedded PC/104 systems. - **PC/104 Form Factor:** Fully compliant with the PC/104 mechanical and electrical specifications, allowing stackable integration without the need for backplanes or card cages. - **Compact and Rugged Design:** Engineered for industrial and embedded applications where space, durability, and reliability are critical. - **High Compatibility:** Supports a wide range of operating systems and embedded controllers that utilize standard IDE protocols. - **Low Power Consumption:** Optimized for low-power embedded systems, ensuring efficient operation in constrained environments. - **Extended Temperature Range (typical for industrial modules):** Designed to operate reliably in harsh environmental conditions, often from -40°C to +85°C. - **Plug-and-Play Integration:** Simplifies system expansion by providing a direct stackable interface to existing PC/104 CPU boards. - **Enhanced Data Throughput:** Supports faster data transfer rates compared to legacy IDE modules, improving system responsiveness and storage performance. - **EMI/EMC Shielding:** Incorporates design features to minimize electromagnetic interference, ensuring stable operation in electrically noisy environments.

Manufacturer: Axiom

Category: PC/104

- **PC/104 Bus Compatibility:** Fully compliant with the PC/104 standard, ensuring mechanical and electrical compatibility with stackable embedded systems. - **SCSI Host Adapter Functionality:** Provides a complete SCSI interface for connecting multiple SCSI devices such as hard drives, CD-ROMs, tape drives, and scanners. - **Compact Form Factor:** Designed in the PC/104 footprint (90 mm × 96 mm), enabling easy integration into space-limited embedded systems. - **High Data Throughput:** Supports standard SCSI data transfer rates (typically up to 10 MB/s for SCSI-2 implementations, depending on configuration). - **Industrial-Grade Design:** Built for extended temperature operation and vibration resistance, suitable for harsh industrial environments. - **Low Power Consumption:** Optimized for embedded applications where power efficiency is essential. - **Plug-and-Play Integration:** Compatible with standard PC/104 stack configurations; no external cabling required for bus connection. - **Software Support:** Compatible with standard SCSI drivers and operating systems supporting PC/104 hardware interfaces. - **Flexible Device Support:** Capable of addressing multiple SCSI devices on a single bus, supporting both single-ended and differential signaling (depending on configuration). - **Long-Term Availability:** Designed for embedded lifecycle support, ensuring product continuity and consistent supply for industrial OEMs.

Manufacturer: Axiom

Category: PC/104

- **Dual Interface Support:** Combines a full-featured SCSI controller with an enhanced IDE (EIDE) interface, enabling simultaneous connection of multiple storage devices. - **PC/104 Form Factor:** Compact, stackable design compliant with the PC/104 standard, allowing easy integration into embedded systems without requiring a backplane. - **High-Speed Data Transfer:** Supports fast SCSI data rates and enhanced IDE transfer modes for efficient data throughput in industrial and embedded applications. - **Versatile Storage Connectivity:** Enables connection of SCSI hard drives, CD-ROMs, tape drives, and IDE/ATA devices, offering flexibility in system design. - **Industrial-Grade Reliability:** Designed for continuous operation in harsh environments, with robust electrical and mechanical characteristics. - **Low Power Consumption:** Optimized for embedded systems where power efficiency is critical. - **Plug-and-Play Compatibility:** Fully compatible with PC/104 bus architecture and standard operating systems supporting SCSI and IDE interfaces. - **Extended Temperature Range (optional):** Available in configurations suitable for industrial temperature ranges, ensuring stable performance in demanding conditions. - **Compact Integration:** Combines two essential storage interfaces on one board, reducing component count and simplifying system architecture.

Manufacturer: Axiom

Category: PC/104

- **Integrated Voice/Fax/Modem Functionality:** Combines three communication modes—voice, fax, and data—into one compact PC/104 module, reducing system complexity and component count. - **PC/104 Bus Interface:** Fully compliant with the PC/104 standard, allowing stackable integration with other PC/104 modules without requiring a backplane. - **Embedded Communication Solution:** Designed for embedded systems requiring telephony, remote data transfer, or fax capabilities. - **Industrial-Grade Design:** Ruggedized for use in industrial automation, remote monitoring, and control systems. - **Compact Form Factor:** Small footprint suitable for space-constrained embedded applications. - **Low Power Consumption:** Optimized for embedded and mobile systems where power efficiency is essential. - **Flexible Communication Protocols:** Supports standard modem protocols for data transmission and fax communication, as well as voice codecs for telephony applications. - **Plug-and-Play Integration:** Compatible with standard operating systems and communication stacks supporting serial or modem interfaces. - **Extended Temperature Range (typical for industrial PC/104 modules):** Designed to operate reliably in harsh environmental conditions.

Manufacturer: Axiom

Category: PC/104

- **Compact 3.5" Embedded Form Factor:** Measures 145 mm x 102 mm, optimized for space-constrained embedded systems. - **Low-Power Geode CPU:** Integrated **AMD Geode 300 MHz** processor provides efficient performance for control and monitoring tasks. - **Memory Support:** One **SODIMM socket** for system memory expansion, supporting standard SDRAM modules. - **Integrated VGA Controller:** Onboard **Geode VGA** graphics engine for display output, suitable for industrial HMI or kiosk applications. - **Award BIOS (2 MB):** Reliable system firmware with configurable boot and hardware settings. - **Comprehensive I/O Connectivity:** - **1 × IDE HDD interface** for storage devices - **1 × FDD interface** for legacy floppy drives - **1 × LAN port (Intel 82559 10/100 Mbps, RJ45)** for Ethernet networking - **2 × RS-232 ports** for serial communication - **2 × RS-422/485 ports** for industrial serial devices - **1 × Parallel port** for printers or legacy peripherals - **2 × USB ports** for external devices and peripherals - **PC/104+ Expansion Bus:** Enables modular expansion with additional I/O, communication, or data acquisition modules. - **Industrial Reliability:** Designed for continuous operation in embedded environments with stable thermal and electrical characteristics. - **Legacy and Modern Interface Mix:** Supports both traditional and modern connectivity standards, ensuring compatibility with a wide range of industrial equipment.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **Dual Communication Channels:** Two fully independent serial channels supporting both synchronous and asynchronous operation modes. - **Protocol Support:** Compatible with **X.21** and **X.21bis** communication standards, enabling use in telecommunications, data acquisition, and control systems. - **High Data Rate:** Supports data transmission speeds up to **2.5 Mbit/s**, suitable for high-speed serial communication applications. - **PC/104 Form Factor:** Compact and stackable design (96 mm × 90 mm) compliant with the PC/104 standard, allowing easy integration into embedded systems without requiring a backplane. - **Enhanced Serial Communication Controller (Z80230):** Utilizes the Zilog Z80230 ESCC chip, providing advanced serial control features, error detection, and efficient data handling. - **Configurable Base Addresses and Interrupts:** Offers **four selectable base I/O addresses** with corresponding **IRQ (Interrupt Request) options**, ensuring flexible system integration and resource allocation. - **Wide Operating Temperature Range:** Designed for reliable operation in standard industrial environments, with an operating temperature range of **0°C to +70°C**. - **Compact and Rugged Design:** Small footprint and durable construction suitable for embedded, mobile, and industrial computing environments. - **Low Power Consumption:** Optimized for embedded systems where power efficiency is critical. - **Ease of Integration:** Compatible with standard PC/104 bus architecture, enabling plug-and-play installation in existing PC/104 stacks.

Manufacturer: No category

Category: PC/104

- **ISA to PC/104 Interface Conversion:** Converts a 104-pin PC/104 interface to a 98-pin ISA bus, allowing PC/104 modules to communicate with standard ISA AT bus systems. - **Compact Design:** Physical dimensions of **134 mm × 33 mm**, optimized for space-constrained embedded environments. - **Lightweight Construction:** Weighs approximately **34 grams**, minimizing mechanical load on host systems. - **High Compatibility:** Designed to support standard ISA AT bus signaling and PC/104 pinout specifications, ensuring broad compatibility with industrial motherboards and expansion modules. - **Industrial-Grade Reliability:** Built with high-quality PCB materials and robust connectors to ensure stable electrical performance in demanding environments. - **Ease of Integration:** Provides a straightforward mechanical and electrical interface between legacy and embedded systems without requiring complex configuration. - **Passive Adapter Design:** No active components or firmware required—ensures long-term reliability and zero maintenance. - **Mechanical Stability:** Secure connector alignment and mounting holes for stable installation in vibration-prone industrial systems.

Manufacturer: ICOP

Category: PC/104

- **Dual RS‑422/485 Ports:** Provides two independent serial communication channels supporting both RS‑422 full‑duplex and RS‑485 half‑duplex modes. - **Automatic RS‑422/485 Detection and Switching:** SUNIX’s Auto Detect & Switch technology automatically identifies the communication mode (RS‑422 or RS‑485) without manual jumper configuration, simplifying setup and reducing downtime. - **SUNIX AHDC/CS™ Technology:** Auto Hardware Direction Control/Carrier Sense ensures precise control of RS‑485 signal direction, automatically enabling or disabling the driver based on bus activity to prevent data collisions. - **High‑Speed Communication:** Supports baud rates from 75 bps up to 921.6 Kbps, suitable for demanding real‑time and industrial control applications. - **64‑Byte Hardware FIFO:** Each port includes a 64‑byte FIFO buffer, 16C750‑compatible, ensuring smooth data flow and minimizing CPU load. - **Software Flow Control:** Supports XON/XOFF software flow control for reliable data transmission. - **Embedded 15 kV ESD Protection:** Built‑in electrostatic discharge protection safeguards the card and connected devices against transient voltage spikes. - **Compact PC/104+ Form Factor:** Designed for embedded and stackable systems, compatible with PC/104+ architecture. - **Unlimited Card Integration:** Multiple cards can be installed in a single system (limited only by available PC/104+ slots). - **Wide Temperature Range:** Operates reliably from 0°C to 70°C, with storage capability from ‑40°C to 85°C. - **Industrial‑Grade Reliability:** Engineered for continuous operation in harsh environments, with robust electrical protection and stable performance. - **Comprehensive OS Support:** Compatible with DOS, Linux (2.4/2.6 kernels), SCO OpenServer 5.06/5.07, and Microsoft Windows 2000, XP, 2003, and Vista (32/64‑bit). - **CE and FCC Class B Certified:** Meets international electromagnetic compatibility and safety standards. - **5‑Year Warranty:** Long‑term reliability backed by SUNIX’s industrial warranty program.

Manufacturer: Sunix

Category: PC/104

- **Dual Isolated RS‑422/485 Ports:** Two independent serial channels supporting RS‑422 full‑duplex and RS‑485 half‑duplex modes. - **Automatic RS‑422/485 Detection and Switching:** SUNIX Auto Detect & Switch technology automatically configures the port mode without jumpers or manual settings. - **High‑Speed Communication:** Supports baud rates from 75 bps up to 921.6 kbps with 64‑byte hardware FIFO buffers per port. - **Optical Isolation:** 2.5 kV isolation between system and serial lines for both signal and power, preventing ground loops and protecting against voltage differentials. - **Surge Protection:** 600 W peak surge suppression per IEC 61000‑4‑5 standard, safeguarding against transient overvoltage events. - **Embedded ESD Protection:** 15 kV electrostatic discharge protection on all signal lines. - **AHDC/CS™ Technology:** Automatic hardware direction control for RS‑485 2‑wire communication, ensuring precise transmit/receive switching and collision avoidance. - **Unlimited Card Expansion:** Multiple IPC‑B2002SI cards can be installed in a single system (limited only by available PC/104+ slots). - **Software Flow Control:** XON/XOFF supported for reliable data transmission. - **Wide OS Compatibility:** Drivers available for Windows 2000/XP/2003/Vista (32/64‑bit), DOS, Linux 2.4/2.6, and SCO OpenServer 5.06/5.07. - **Industrial Temperature Range:** Operates from 0 °C to 70 °C; storage from –40 °C to 85 °C. - **Compact PC/104+ Form Factor:** Designed for embedded and stackable industrial systems. - **Long‑Term Reliability:** 5‑year manufacturer warranty.

Manufacturer: Sunix

Category: PC/104

- **Four Independent Serial Ports:** Provides 4 isolated RS‑422/485 communication channels for industrial and embedded applications. - **PC/104+ (PCI/104) Bus Interface:** Fully compliant with the 32‑bit PCI/104 standard, enabling stackable embedded system integration without backplane wiring. - **High‑Speed Data Transmission:** Supports baud rates from 75 bps up to 921.6 Kbps per port, suitable for real‑time and high‑throughput serial communication. - **64‑Byte Hardware FIFO:** Each port includes a 64‑byte transmit/receive FIFO buffer, 16C750‑compatible, ensuring smooth data flow and reduced CPU overhead. - **Auto RS‑422/485 Detection and Switching:** SUNIX proprietary technology automatically detects and switches between RS‑422 full‑duplex and RS‑485 half‑duplex modes without jumper or DIP switch configuration. - **AHDC/CS™ Direction Control:** SUNIX Auto Hardware Direction Control/Carrier Sense technology automatically manages RS‑485 driver enable/disable timing, preventing data collisions and ensuring precise signal control. - **Embedded 15 kV ESD Protection:** Built‑in electrostatic discharge protection on all signal lines safeguards against transient voltage spikes and static discharge damage. - **Wide Operating Temperature Range:** Designed for industrial environments with operating temperatures from 0 °C to 70 °C and storage from −40 °C to 85 °C. - **Software Flow Control:** Supports XON/XOFF software flow control for flexible communication management. - **Unlimited System Scalability:** Up to four IPC‑B2004 cards can be installed per system, depending on available PC/104+ slots. - **Driver Support for Multiple OS:** Compatible with Windows 2000/XP/2003/Vista (32/64‑bit), DOS, Linux 2.4/2.6, and SCO OpenServer 5.06/5.07. - **Compact Industrial Design:** Small form factor (90.17 × 95.89 mm) ideal for embedded and space‑constrained systems. - **Long‑Term Reliability:** Backed by a 5‑year manufacturer warranty.

Manufacturer: Sunix

Category: PC/104

- **Four Independent Serial Ports:** Provides four isolated RS‑422/485 ports for simultaneous multi‑device communication. - **PC/104+ Bus Interface:** Fully compliant with the 32‑bit PCI/104 standard, enabling stackable embedded system integration. - **High‑Speed Communication:** Supports baud rates from 75 bps up to 921.6 Kbps for each port. - **Optical Isolation:** 2.5 kV isolation protection for all signal and power lines, preventing ground loops and electrical interference. - **Surge Protection:** 600 W peak surge protection per IEC 61000‑4‑5 standard, safeguarding against transient voltage spikes. - **ESD Protection:** Embedded 15 kV electrostatic discharge protection on all signal lines. - **Automatic RS‑422/485 Detection:** SUNIX Auto Detect and Switching technology automatically configures each port for RS‑422 full‑duplex or RS‑485 half‑duplex operation without jumpers or manual settings. - **AHDC/CS™ Direction Control:** SUNIX Auto Hardware Direction Control/Carrier Sense technology automatically manages RS‑485 signal direction, ensuring precise timing and collision avoidance. - **64‑Byte FIFO Buffer:** Hardware FIFO per port, 16C750 UART compatible, ensuring smooth data flow and reduced CPU load. - **Software Flow Control:** Supports XON/XOFF software flow control for reliable data transmission. - **Unlimited Card Expansion:** Multiple cards can be installed in a single system (limited only by available PC/104+ slots). - **Wide Temperature Range:** Operational from 0 °C to 70 °C; storage from −40 °C to 85 °C. - **Driver Support:** Compatible with Windows 2000/XP/2003/Vista (32/64‑bit), DOS, Linux 2.4/2.6, and SCO OpenServer 5.06/5.07. - **Regulatory Compliance:** CE and FCC Class B certified. - **Long‑Term Reliability:** Industrial‑grade design with a 5‑year manufacturer warranty.

Manufacturer: Sunix

Category: PC/104

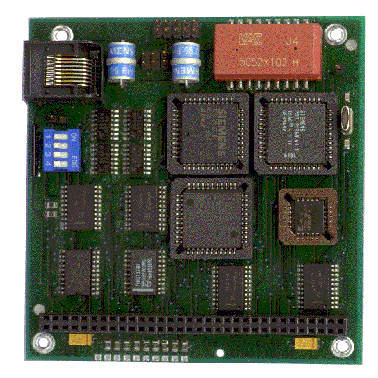

ISDN PC/104 card, D- and B-channel hardware handling with FIFO 64 byte each, 1*RJ45 8pol, 9 LEDs for status, DIP-switch for IRQ 3/5-7, S0 bus termination on board (100R, jumper), 0°-70°, 96*90mm

Manufacturer: No category

Category: PC/104

- **PC/104+ Standard Interface:** Fully compliant with the PC/104+ (PCI-based) bus architecture, enabling stackable embedded system integration. - **Four Isolated Communication Ports:** Provides four independent RS-422/RS-485 serial ports, each with galvanic isolation up to 500 VDC (typical) or 2500 Vrms (maximum), ensuring protection against ground loops and electrical noise. - **RS-422/RS-485 Selectable:** Each port can be configured via DIP switch or software to operate in RS-422 or RS-485 mode, offering flexibility for various serial communication standards. - **Auto Direction Flow Control:** Built-in automatic direction control for RS-485 communication eliminates the need for manual RTS signal handling, simplifying half-duplex communication. - **High-Speed Communication:** Supports baud rates from 50 to 115,200 bps per port, allowing concurrent high-speed data transmission across all channels. - **Intelligent UART Buffering:** Each port uses a 16C550A-compatible UART with a 16-byte FIFO buffer, reducing CPU overhead and improving data throughput. - **Multi-Card System Support:** Up to 4 PCM-2855+ modules (16 ports total) can be installed in a single system, with shared IRQ support for efficient resource utilization. - **Wide OS Compatibility:** Supports multiple operating systems including DOS, Windows 95/98, Windows NT, and QNX. Linux and UNIX drivers are available via ADLINK’s website. - **Industrial-Grade Design:** Designed for embedded and industrial environments, with an operating temperature range of 0°C to 55°C and humidity tolerance up to 95% non-condensing.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **IEEE 802.3 Ethernet Compliance:** Fully compliant with the IEEE 802.3 standard for 10 Mb/s Ethernet communication. - **Dual Interface Support:** Provides both **10Base-T (RJ-45)** and **10Base-2 (BNC)** connectors, allowing flexible deployment in twisted-pair or coaxial network environments. - **Auto-Detection Functionality:** Automatically detects the active network interface (RJ-45 or BNC) without requiring manual configuration. - **NE2000 Compatibility:** Hardware and software compatible with the industry-standard NE2000 Ethernet controller, ensuring seamless integration with existing drivers and network stacks. - **Selectable I/O Base Address:** Configurable I/O address settings at **300h (default)**, **200h**, **220h**, **240h**, **260h**, **320h**, **340h**, or **360h**, providing flexibility for system resource allocation. - **Interrupt Request (IRQ) Selection:** Supports multiple interrupt lines (**IRQ 2–5, 9, 12, 15**) for flexible system integration and conflict avoidance. - **Compact PC/104 Form Factor:** Designed for embedded and industrial systems using the PC/104 bus architecture, enabling stackable, modular system design. - **10 Mb/s Data Rate:** Provides stable 10 megabits per second Ethernet throughput suitable for control, monitoring, and data acquisition applications. - **Industrial Reliability:** Engineered for embedded environments requiring long-term reliability, low power consumption, and extended operational life.

Manufacturer: No category

Category: PC/104

- **Eight Isolated Analog Output Channels:** Each of the eight channels provides a 12-bit digital-to-analog conversion capability, allowing precise voltage output control for industrial process signals, actuator control, and instrumentation. - **12-bit Resolution:** Delivers fine granularity in output voltage levels, ensuring accurate analog signal generation suitable for control and simulation tasks. - **Channel-to-Channel Isolation:** Electrical isolation between channels and system bus enhances noise immunity and protects sensitive components from ground loops and transient voltages. - **PC/104+ Form Factor:** Fully compliant with the PC/104+ (PCI-based) embedded computing standard, enabling easy stacking with other PC/104/PC/104+ modules without backplane wiring. - **Compact Design:** Measuring only 96 mm × 90 mm, the PCM-6308V+ fits into space-constrained embedded systems and portable industrial controllers. - **Industrial-Grade Reliability:** Designed for continuous operation in industrial environments, with robust PCB design, high-quality components, and extended temperature tolerance. - **Flexible Output Ranges:** Supports configurable voltage output ranges (typical ±10 V or 0–10 V, depending on configuration), suitable for a wide range of analog control applications. - **Bus Isolation:** Isolation between the analog output circuitry and the PC/104+ bus ensures system stability and protects host electronics from electrical interference. - **Software Programmability:** Compatible with standard DAQ software libraries and drivers for Windows and Linux, enabling easy integration into control systems and custom applications. - **High Update Rate:** Optimized for fast analog output updates, supporting dynamic control and waveform generation.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **Isolated Digital I/O:** 16 isolated digital input channels and 16 isolated digital output channels, providing electrical isolation up to **2500 Vrms** between channels and system logic. - **PC/104+ Interface:** Fully compliant with the PC/104+ (PCI-based) standard, enabling stackable, modular integration into embedded systems without the need for backplanes or external cabling. - **Compact Form Factor:** Measuring **96 mm × 90 mm**, the PCM-7230+ fits within the standard PC/104+ footprint, ideal for space-constrained embedded applications. - **High Reliability:** Designed for industrial-grade operation, with robust isolation, noise immunity, and long-term durability. - **Flexible I/O Configuration:** Supports both input and output operations, allowing users to interface with sensors, switches, relays, and actuators. - **High Isolation Voltage:** Up to **2500 Vrms** isolation ensures protection against voltage surges, ground loops, and electrical interference. - **Industrial Temperature Range (typical):** Suitable for operation in demanding environments where temperature, vibration, and electrical noise are factors. - **Ease of Integration:** Compatible with standard PC/104+ stacks and supported by ADLINK’s software drivers and SDKs for various operating systems. - **Low Power Consumption:** Optimized for embedded and mobile systems where power efficiency is critical.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **48 TTL Digital I/O Lines:** Provides 48 channels of TTL-level digital input/output, configurable in groups for flexible control and monitoring. - **PC/104+ Interface:** Fully compliant with the PC/104+ (PCI-based) embedded computing standard, ensuring stackable, modular integration with other PC/104+ boards. - **Opto 22 Compatibility:** Pinout and signal configuration compatible with Opto 22 digital I/O racks and modules, simplifying system expansion and integration. - **Onboard Intel 8254 Timer/Counter:** Three 16-bit programmable counters for event counting, frequency generation, or timing control. - **32-bit Watchdog Timer:** Provides system reliability by monitoring system operation and triggering a reset or interrupt in case of software or hardware failure. - **Compact Form Factor:** Measures **96 mm x 90 mm**, conforming to the PC/104+ mechanical standard for embedded systems. - **High-Speed Digital I/O:** Supports fast TTL-level signal switching suitable for real-time control and data acquisition. - **Industrial-Grade Design:** Engineered for embedded and industrial environments with robust electrical characteristics and long-term reliability. - **Software Support:** Compatible with major operating systems and development environments; driver and library support available from ADLINK. - **Flexible Configuration:** Programmable direction control for each I/O port, allowing dynamic switching between input and output modes.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **PC/104‑Plus Bus Interface:** Fully compliant with the PC/104‑Plus (PCI‑based) stackable bus standard, supporting 32‑bit PCI signaling. - **8 Relay Outputs:** Four Form C (SPDT) and four Form A (SPST) relays for flexible switching configurations. - **8 Opto‑Isolated Digital Inputs:** Each input channel is isolated via photo‑couplers for noise immunity and safety. - **High Isolation Voltage:** 5000 Vrms channel‑to‑system isolation for digital inputs. - **LED Indicators:** On‑board LEDs display the energized status of each relay output for easy diagnostics. - **Jumper‑Selectable Input Filtering:** Each input channel can be configured individually for AC‑filtered or non‑filtered (DC) operation. - **Rotary Bus Configuration Switch:** Hardware rotary switch for assigning CLK, IDSEL, INT, REQ, and GNT signals according to module slot position in the PC/104‑Plus stack. - **Compact Form Factor:** 96 mm × 90 mm PCB dimensions suitable for embedded stack systems. - **Software Support:** Comprehensive driver and library support for Windows and DOS environments, including LabVIEW®, HP VEE™, DASYLab™, InTouch™, InControl™, ISaGRAF™, and OPC. - **Expandable Architecture:** Compatible with PCI‑7251 expansion modules (up to three) when used in PCI systems, providing up to 32 relays and 32 inputs. - **Industrial‑Grade Design:** Wide operating temperature range (0 – 60 °C) and high reliability (> 10 million relay operations).

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **PC/104+ Bus Architecture:** Fully compliant with the PC/104+ (PCI) specification, supporting modular stack installation and signal multiplexing for CLK, IDSEL, INT, REQ, and GNT lines. - **High-Resolution A/D Conversion:** 12-bit analog-to-digital converter with up to **110 kHz sampling rate** for precise signal acquisition. - **Flexible Analog Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels, selectable via jumpers (JP1, JP4). - **Dual 12-bit D/A Outputs:** Two analog output channels with configurable voltage ranges of **0–5 V** or **0–10 V**, depending on internal reference settings. - **Programmable Counter/Timer:** Integrated **8254-compatible 3-channel, 16-bit programmable counter/timer** for event counting, frequency generation, or timing control. - **Large FIFO Buffer:** 512-word A/D FIFO for efficient data throughput and reduced CPU overhead. - **Configurable Reference Voltage:** Internal or external D/A reference voltage selection (JP5), with internal reference options of **–5 V or –10 V** (JP3). - **Rotary Switch Configuration:** Hardware rotary switch for assigning PCI bus signals according to module slot position in the PC/104+ stack. - **Compact Form Factor:** Standard PC/104+ dimensions (96 mm × 90 mm) suitable for embedded and industrial environments. - **Software Compatibility:** Compatible with the same software utilities as the PCI-9112 series (excluding DI/DO functions). - **Accessory Support:** Compatible with ADLINK’s ACLD and DIN series termination and signal conditioning boards for simplified wiring and thermocouple interfacing.

Manufacturer: Adlink Technology Inc.

Category: PC/104

- **Intel 386SX-40 CPU:** The module is powered by a 40 MHz Intel 386SX processor, offering a balance between performance and low power consumption for embedded applications. - **PC/104 Form Factor:** Fully compliant with the PC/104 standard, enabling stackable, modular system design without the need for a backplane. - **1MB DRAM Memory:** Onboard DRAM provides sufficient memory for DOS-based and real-time operating systems, as well as compact embedded applications. - **Low Power Operation:** Operates from a single +5VDC supply at 350mA, ideal for battery-powered or energy-efficient systems. - **Compact and Rugged Design:** Designed for embedded and industrial environments, with robust mechanical connectors and a small footprint. - **Legacy Software Compatibility:** Supports x86 instruction set, compatible with DOS, early Windows, and real-time operating systems used in industrial control. - **Scalable System Integration:** Can be combined with other PC/104 modules such as I/O, communication, or data acquisition boards to build complete embedded systems. - **Extended Lifecycle Support:** Suitable for long-term deployment in industrial and OEM applications requiring stable hardware platforms.

Manufacturer: No category

Category: PC/104

- **Processor:** Intel 386EX running at 25 MHz, providing a balance between low power consumption and sufficient processing capability for embedded control tasks. - **Form Factor:** PC/104 standard, ensuring mechanical and electrical compatibility with a wide range of PC/104 peripheral modules. - **Memory:** 512 kB DRAM onboard, suitable for lightweight embedded operating systems or firmware-based control applications. - **Serial Interfaces:** - **COM1:** RS-232 interface for standard serial communication. - **COM2:** Configurable RS-232/RS-485 interface, allowing flexible connection to industrial devices, sensors, or communication networks. - **Interrupt Resources:** Free IRQs 5–7, 9, and 14 available for peripheral expansion or custom I/O integration. - **Power Supply:** Operates from a single +5 VDC supply at approximately 350 mA, optimized for low-power embedded environments. - **Industrial Design:** Rugged, compact, and stackable design suitable for embedded and industrial automation systems. - **Compatibility:** Fully compliant with the PC/104 bus standard, enabling easy stacking with I/O, communication, and storage modules.

Manufacturer: No category

Category: PC/104

- **Wide Input Range:** Accepts **90–264 VAC** input voltage, supporting global AC mains standards (100–240 V nominal). - **Multiple Regulated Outputs:** Provides four isolated DC outputs: - **+5 VDC @ 2 A** - **–5 VDC @ 0.3 A** - **+12 VDC @ 1 A** - **–12 VDC @ 0.3 A** - **PC/104 Form Factor:** Fully compliant with PC/104 mechanical and electrical interface specifications, allowing direct stacking with other PC/104 modules. - **Compact and Rugged Design:** Optimized for embedded and industrial environments where space, reliability, and durability are critical. - **High Efficiency and Low Ripple:** Designed to deliver stable, low-noise DC power suitable for sensitive embedded electronics. - **Universal AC Input:** Operates from standard single-phase AC mains without the need for external adapters or transformers. - **Integrated Protection:** Typically includes overvoltage, overcurrent, and short-circuit protection on all outputs (standard for industrial-grade modules). - **Plug-and-Play Integration:** Provides direct power to PC/104 CPU boards, I/O modules, and peripheral devices. - **Industrial Temperature Range (typical):** Designed for operation in extended temperature environments (exact range not specified, but typically –25°C to +70°C for similar modules).

Manufacturer: No category

Category: PC/104
