- **Four Independent Analog Output Channels:** Each channel provides 16‑bit resolution with a maximum conversion speed of 20 µs per channel. Channels are individually isolated via opto‑couplers and dedicated D/A converters. - **Configurable Output Ranges:** Selectable per channel via jumper settings: - Bipolar voltage: ±10 V - Unipolar voltage: 0 – +10 V - Current output: 0 – 20 mA - **Optical Isolation:** Complete isolation between channels and between the PC bus and output circuitry (500 Vrms isolation voltage). Ensures noise immunity and protection against ground loops. - **Simultaneous or Individual Channel Output:** Software‑selectable simultaneous update of all channels or individual channel output. - **Programmable Timer and External Trigger:** - Internal high‑precision timer adjustable in 250 ns increments (500 ns – 1,073,741,824,000 ns). - External opto‑isolated trigger input for start/stop control. - Supports internal or external sampling clocks. - **Relay‑Controlled Output Protection:** Built‑in relay (AQY221N2SX or equivalent) prevents unstable voltage output during power‑up, protecting connected devices. - **Software Support:** - Windows and Linux driver libraries (API‑PAC(W32), API‑AIO(WDM), API‑AIO(LNX)). - Diagnostic utilities and sample programs for Visual C++, Visual Basic, and gcc. - LabVIEW support via VI‑DAQ library (free download). - **High Reliability and Compliance:** - CE Marking (EMC Directive Class A) - VCCI Class A - RoHS compliant

Hersteller: Contec

Kategorie: D/A Isolated PCI

- **Dual Isolated Analog Output Channels:** Provides two independent DA channels with 12-bit resolution for precise analog signal generation. - **Expandable Architecture:** Supports up to eight DA channels when paired with the AX5301 expansion module, allowing scalable system design. - **High Electrical Isolation:** 500 VDC isolation between channels and between each channel and the PCI bus ensures signal integrity and protection against ground loops and electrical noise. - **Multiple Output Ranges:** Configurable for 0–20 mA, 4–20 mA, ±5 V, ±10 V, 0–5 V, or 0–10 V output ranges, enabling compatibility with a wide range of industrial devices and control systems. - **Integrated DC/DC Converter:** Provides isolated power for each channel, maintaining stable operation and minimizing interference. - **PCI Bus Interface:** Fully compliant with standard PCI bus specifications, supporting plug-and-play installation and automatic resource allocation. - **Compact Form Factor:** Standard PCI card dimensions (175 mm × 99 mm) suitable for installation in industrial PCs and control systems. - **Dual DB9 Connectors:** Equipped with two DB9 male connectors for secure and convenient signal interfacing. - **Industrial Reliability:** Designed for continuous operation in demanding environments, with robust isolation and durable components.

Hersteller: Axiom

Kategorie: D/A Isolated PCI

- **2 Isolated Analog Output Channels:** Provides two independent DA channels for flexible analog signal generation. - **12-bit Resolution:** Ensures fine granularity and precision in analog output control, suitable for demanding industrial applications. - **Multiple Output Ranges:** Supports configurable output ranges including 0–20 mA, 4–20 mA, ±5 V, ±10 V, 0–5 V, and 0–10 V, enabling compatibility with a wide range of sensors, actuators, and control systems. - **High Isolation Protection:** 500 VDC isolation between channels and between each channel and the PCI bus, enhancing system safety and minimizing interference. - **Integrated DC/DC Converter:** Provides isolated power for each channel, ensuring stable operation and reducing noise coupling. - **PCI Bus Interface:** Designed for easy integration into PCI-based control systems, offering plug-and-play expansion for the AX5300 main controller. - **Compact Half-Size Form Factor:** Optimized for space-constrained installations, allowing efficient use of rack or chassis space. - **Expandable System Architecture:** When used with the AX5300 main unit, supports up to eight DA channels in total, enabling scalable analog output configurations. - **Industrial-Grade Reliability:** Built for continuous operation in industrial environments, with robust electrical isolation and durable construction.

Hersteller: Axiom

Kategorie: D/A Isolated PCI

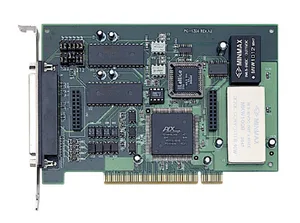

- **8 Isolated Analog Output Channels:** Supports both voltage and current outputs with 12-bit resolution. - **Flexible Output Ranges:** - Voltage: ±10 V, 0–10 V, or 0–EXTREF (user-defined). - Current: 0–20 mA, 4–20 mA, or 5–25 mA (software programmable). - **High Isolation Protection:** - Analog output isolation: 2500 Vrms. - Digital I/O isolation: 5000 Vrms. - **Fast Response:** - Voltage output settling time: 16 µs (20 V step). - Current output settling time: 17 µs (0–20 mA). - **Integrated DC/DC Converter:** Provides isolated power for analog and digital sections. - **Digital I/O Support:** 4 isolated digital inputs and 4 isolated digital outputs for control and monitoring. - **Precision Components:** - DAC: Burr-Brown DAC4814AP or equivalent. - Voltage-to-current converter: Burr-Brown XTR110 or equivalent. - **Plug and Play PCI Interface:** Automatic resource allocation via BIOS; no manual configuration required. - **Software Support:** Comprehensive driver and library support for multiple operating systems and development environments (C/C++, VB, Delphi, LabVIEW®, HP-VEE™, DASYLab™, InTouch™, ISaGRAF™, InControl™, OPC). - **Industrial-Grade Reliability:** Designed for continuous operation in harsh environments with wide temperature and humidity tolerance.

Hersteller: Adlink Technology Inc.

Kategorie: D/A Isolated PCI

- **8 Isolated Analog Output Channels:** Each channel supports bipolar ±10 V, unipolar 0–10 V, or user‑defined unipolar ranges (0–EXTREF). - **High Resolution and Accuracy:** 12‑bit resolution with ±0.2 % maximum gain error and ±1 LSB differential nonlinearity. - **Fast Settling Time:** 16 µs for a full‑scale 20 V step, ensuring rapid response in dynamic control systems. - **High Isolation:** 2500 Vrms isolation between analog outputs and the host system, protecting both the PC and connected equipment. - **Integrated DC/DC Converter:** Provides isolated ±15 V outputs for external circuitry. - **Digital I/O Capability:** Four isolated digital input channels and four isolated digital output channels (photo‑coupler type). - **Plug‑and‑Play PCI Interface:** Fully compliant with PCI Local Bus Specification Rev. 2.1, supporting automatic resource allocation. - **Software Support:** Comprehensive driver suite for Windows and DOS, including LabVIEW®, HP‑VEE, DASYLab™, InTouch™, ISaGRAF™, InControl™, and OPC Server integration. - **Flexible Configuration:** Jumper‑selectable output ranges and reference sources (internal or external). - **Initial Safe State:** All analog outputs reset to 0 V upon power‑on or reset, ensuring predictable startup behavior. - **Compact Design:** Half‑size PCI card (175 mm × 107 mm) suitable for standard industrial PCs.

Hersteller: Adlink Technology Inc.

Kategorie: D/A Isolated PCI
