- **Ethernet-to-Serial Conversion:** Converts standard RS232 serial communication to Ethernet TCP/IP, allowing remote access and control of serial devices. - **Integrated 8-bit TTL I/O:** Provides eight programmable TTL channels configurable as input or output for digital signal control or monitoring. - **Counter Functionality:** TTL inputs can function as counters supporting up to 200 Hz square wave signals. - **Protection Features:** - PTC (auto-resettable fuse) protection on TTL I/O and communication signal pins. - Over-voltage protection up to 60 VDC (max). - Over-current protection up to 50 mA (max). - **Network Flexibility:** Supports 10/100 Mbps Ethernet with auto-detection and IP reassignment capability. - **Software Integration:** Includes Windows and Linux DLL libraries (EMC74xx.dll) for easy integration into custom applications using C/C++, Visual Basic, or other Windows-based environments. - **Virtual COM Port Support:** Allows the Ethernet-connected module to appear as a local COM port to existing software, ensuring compatibility with legacy serial applications. - **DIN Rail Mounting:** Compact industrial design suitable for control cabinets and automation panels. - **High Reliability:** Designed for stable, continuous operation in industrial environments with wide operating temperature and humidity ranges.

Hersteller: JS Automation

Kategorie: Bridging IO Modules

- **Ethernet to RS422/RS485 Conversion:** Converts traditional serial communication protocols to Ethernet and vice versa, enabling network-based control of serial devices. - **8 TTL Digital I/O Channels:** Configurable as input or output, each channel supports up to 60 VDC over-voltage protection and 50 mA current protection. - **Integrated Counter Function:** Each TTL input can function as a low-frequency counter (up to 200 Hz square wave). - **Electrical Isolation:** Provides isolation between Ethernet, RS485, and TTL interfaces for enhanced noise immunity and system protection. - **Auto-Detect Ethernet Interface:** Supports 10/100 Mbps auto-switching for flexible network integration. - **Software-Selectable Serial Mode:** RS422 or RS485 mode can be configured via software commands. - **PTC Protection:** Auto-resettable fuse protection on TTL I/O and communication signal pins. - **Remote Configuration:** IP address and communication port can be reassigned remotely. - **Virtual COM Port Support:** Allows the module to appear as a standard COM port on Windows systems for legacy software compatibility. - **Compact Industrial Design:** DIN rail mountable, rugged enclosure suitable for industrial environments. - **Comprehensive Software Library:** Includes DLL-based API for Windows (EMC74xx.dll) supporting C/C++, Visual Basic, and Borland environments.

Hersteller: JS Automation

Kategorie: Bridging IO Modules

- **Dual Ethernet Ports:** Two 10/100 Mbps auto‑switching RJ45 interfaces for flexible network topology (daisy‑chain or redundant connection). - **RS232 Serial Interface:** Full‑featured RS232 port supporting baud rates from 1200 to 921.6 kbps. - **8 Configurable Digital I/O Channels:** Each bit can be independently configured as input or output; supports TTL logic levels. - **Over‑Voltage and Over‑Current Protection:** Digital inputs protected up to 60 V DC; outputs rated up to 45 V DC, 500 mA peak. - **Software Counter Function:** Inputs can serve as low‑frequency counters up to 200 Hz. - **Standalone Operation Mode:** Built‑in sequence control allows autonomous operation without Ethernet connection. - **Wide Power Supply Range:** Operates from 12 V DC to 24 V DC. - **High Reliability:** Industrial‑grade design with metal enclosure and DIN‑rail mounting. - **Flexible Configuration:** IP reassignment, software key protection, and remote firmware management. - **Cross‑Platform Software Support:** Windows and Linux DLL libraries for integration with C/C++, Visual Basic, and other environments. - **Virtual COM Port Functionality:** Emulates a standard COM port over Ethernet for legacy software compatibility. - **Compact Form Factor:** 107.6 × 135.8 × 34 mm metal housing. - **Operating Temperature Range:** 0 °C to +70 °C; storage −20 °C to +80 °C.

Hersteller: JS Automation

Kategorie: Bridging IO Modules

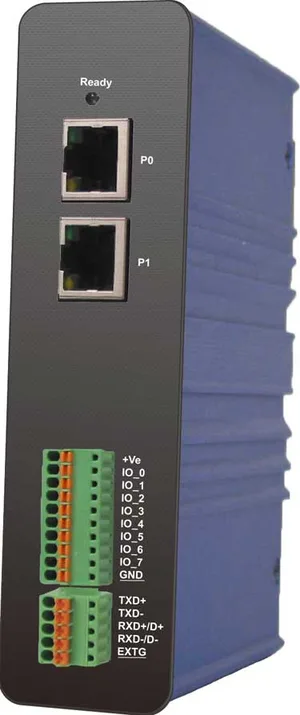

- **Dual Ethernet Ports:** Two 10/100 Mbps auto‑negotiating RJ‑45 interfaces for flexible network topology (daisy‑chain or redundant connection). - **Isolated RS‑422/485 Interface:** Magnetic coupling isolation ensures reliable communication and protection against ground loops. - **Configurable Digital I/O:** Eight TTL‑level I/O lines (IO_0–IO_7), each independently configurable as input or output. - **High Drive Capability:** Digital outputs support up to 500 mA peak current at 45 V DC maximum. - **Counter Functionality:** Each input can function as a low‑frequency counter (≤ 200 Hz). - **Wide Baud Rate Range:** 1200 bps to 921,600 bps, supporting 5–8 data bits, 1–1.5 stop bits, and parity options (None, Even, Odd). - **Software‑Selectable Serial Mode:** RS‑422 or RS‑485 operation selectable via software command. - **Over‑Voltage and Over‑Current Protection:** Inputs protected up to 60 V DC and 50 mA. - **Flexible Power Supply:** Operates from 12 V DC to 24 V DC. - **Compact Metal Enclosure:** Industrial‑grade metal housing with DIN‑rail mounting capability. - **Standalone Logic Control:** Built‑in standalone mode allows autonomous I/O control based on pre‑programmed logic sequences. - **Virtual COM Port Support:** Emulates a standard COM port over Ethernet for legacy software compatibility. - **Software Security Key:** Password‑protected configuration and control to prevent unauthorized access. - **Firmware and API Support:** Comprehensive DLL library (EMC84xx.dll) for Windows 2000 and later, supporting C/C++, Visual Basic, and Borland environments. - **Auto IP and Port Configuration:** IP reassignment and socket port modification supported via software commands. - **Diagnostics and Status LEDs:** System activity and communication indicators for quick status verification.

Hersteller: JS Automation

Kategorie: Bridging IO Modules

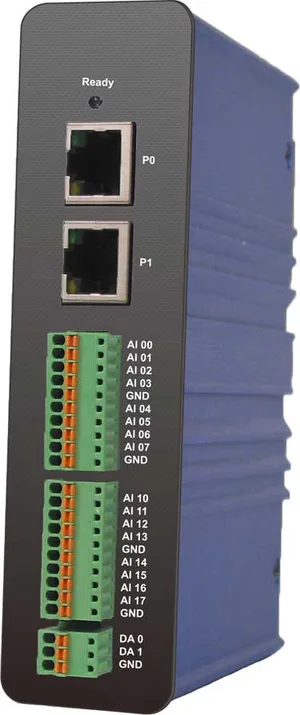

**General Capabilities** - Ethernet‑based remote analog I/O control module with web‑based configuration. - Supports both unipolar and bipolar analog input ranges. - Available in multiple variants for different resolution and input configurations: - **EMA‑8308:** 24‑bit unipolar, 8 differential / 16 single‑ended inputs, 2×12‑bit outputs. - **EMA‑8308A:** 24‑bit unipolar, 8 differential / 16 single‑ended inputs, 2×16‑bit outputs. - **EMA‑8308D:** 24‑bit bipolar, 8 differential inputs, 2×12‑bit outputs. - **EMA‑8308DA:** 24‑bit bipolar, 8 differential inputs, 2×16‑bit outputs. **Analog Input Section** - 24‑bit resolution with selectable input ranges: - Unipolar: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA. - Bipolar: ±5 V, ±10 V, 0–20 mA, 4–20 mA. - Programmable single‑ended or differential input configuration. - High common‑mode voltage tolerance up to 10 V (for EMA‑8308D/DA). - Over‑voltage protection up to 20 V DC. - Input filter bandwidths: 7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz. - Sampling rate: 10 samples/s. - Offset error: 2.5 µV typical, 5 µV max; drift 20 nV/°C. - Common‑mode rejection ratio (CMRR): 120 dB. **Analog Output Section** - Two analog output channels. - Output range: ±10 V DC. - Resolution: 12‑bit (EMA‑8308/D) or 16‑bit (EMA‑8308A/DA). - Overload protection: 50 mA (peak). - Over‑voltage protection: 20 V DC max. **Ethernet Section** - Dual 10/100 Mbps auto‑negotiating Ethernet ports (RJ‑45). - Direct web‑page control and configuration. - IP reassignment and software‑based configuration. - Software key and password protection for security. - Supports UDP communication protocol for remote I/O control. **Mechanical and Electrical** - Compact metal housing for industrial durability. - DIN‑rail mountable. - Power supply: 12–24 V DC input. - Operating temperature: 0 – 70 °C; storage: −20 – 80 °C. - Humidity: 5 – 95 % RH (non‑condensing).

Hersteller: JS Automation

Kategorie: Analog Modules

**General Highlights** - Ethernet‑based remote analog I/O control module with web interface - Dual 10/100 Mbps auto‑detecting LAN ports for flexible network integration - High‑resolution 24‑bit analog input and 16‑bit analog output - Supports both unipolar and bipolar input ranges - Differential or single‑ended input configuration (software selectable) - Over‑voltage and overload protection on all analog channels - Compact metal enclosure suitable for DIN‑rail mounting - Compatible with Windows and Linux via provided DLL libraries - Remote addressable and configurable through IP and port settings - Software security key and password protection for configuration access **Analog Input Section** - 24‑bit resolution with selectable input ranges - Configurable as 16 single‑ended or 8 differential channels - Sampling rate: 10 samples/s per channel - Input ranges: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA - High common‑mode voltage tolerance up to 10 V - Input filter bandwidths: 7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz - Over‑voltage protection up to 20 V DC **Analog Output Section** - Two 16‑bit D/A output channels - Output range: ±10 V DC - Overload protection: 50 mA (peak) - Over‑voltage protection: 20 V DC (max) **Ethernet Section** - Two RJ‑45 ports (10/100 M auto‑switching) - Web‑based configuration and control interface - IP reassignment and port configuration via software - Supports UDP communication protocol - Default IP: 192.168.0.100 Default Port: 6936

Hersteller: JS Automation

Kategorie: Analog Modules

**Analog Input Section** - 8 differential analog input channels (bi‑polar configuration). - 24‑bit resolution with high accuracy and low noise. - Input ranges: ±5 V, ±10 V, 0–20 mA, 4–20 mA. - Common‑mode voltage tolerance up to 10 V. - Over‑voltage protection up to 20 V DC (max). - Input filter options: 7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz. - Sampling rate: 10 samples per second. - Typical offset error: 2.5 µV; maximum 5 µV. - Offset drift: 20 nV/°C. - Common‑mode rejection ratio (CMRR): 120 dB. **Analog Output Section** - 2 analog output channels. - 12‑bit resolution (EMA‑8308D variant). - Output range: −10 V to +10 V DC. - Overload protection: 50 mA (peak). - Short‑circuit and over‑voltage protection up to 20 V DC. **Ethernet Communication** - Dual 10/100 Mbps auto‑switching Ethernet ports (2 × RJ‑45). - Web‑based configuration and control interface. - IP address reassignment and software key protection. - Supports UDP communication protocol for remote I/O control. - Default IP: 192.168.0.100; default port: 6936. **General Features** - Compact, rugged metal housing for industrial use. - DIN‑rail mountable design. - Power supply: 12–24 V DC input. - Operating temperature: 0 °C to +70 °C. - Storage temperature: −20 °C to +80 °C. - Humidity: 5–95 % RH (non‑condensing). - Dimensions: 107.6 (D) × 135.8 (W) × 34 (H) mm (4.3 × 5.4 × 1.4 in).

Hersteller: JS Automation

Kategorie: Analog Modules

**Analog Input Section** - 8 differential analog input channels (bi‑polar configuration) - 24‑bit resolution for high‑accuracy signal acquisition - Input ranges: ±5 V, ±10 V, 0–20 mA, 4–20 mA - Sampling rate: 10 samples per second - Common‑mode voltage tolerance up to 10 V - Over‑voltage protection up to 20 V DC (max) - Programmable input filters (7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz) - Offset error: 2.5 µV (typical), 5 µV (max) - Offset drift: 20 nV/°C - Common‑mode rejection ratio (CMRR): 120 dB **Analog Output Section** - 2 analog output channels - 16‑bit resolution (high‑precision D/A conversion) - Output range: −10 V DC to +10 V DC - Overload protection: 50 mA (peak) - Short‑circuit and over‑voltage protection (up to 20 V DC) **Ethernet Communication** - Dual 10/100 Mbps auto‑switching Ethernet ports (2 × RJ‑45) - Web‑based configuration and control interface - IP address reassignment and software‑based configuration - Supports UDP protocol for remote I/O communication - Software key and password protection for security - Compatible with Windows and Linux environments via DLL libraries **General Features** - Compact DIN‑rail mountable metal enclosure - Power supply: 12–24 V DC input - Operating temperature: 0 °C to +70 °C - Storage temperature: −20 °C to +80 °C - Humidity: 5–95 % RH (non‑condensing) - High reliability and remote addressability - Factory default IP: 192.168.0.100, port 6936

Hersteller: JS Automation

Kategorie: Analog Modules

- **Multi-Channel RTD Input:** Supports 4 independent input channels for Pt100 and Pt1000 sensors, enabling simultaneous multi-point temperature measurement. - **High-Resolution Measurement:** 24-bit ADC resolution ensures precise and stable readings, suitable for high-accuracy industrial temperature monitoring. - **Flexible Sensor Wiring:** Compatible with 2-wire, 3-wire, and 4-wire RTD connection configurations, allowing adaptation to various installation and accuracy requirements. - **Dual Ethernet Ports:** Equipped with 2×10/100Base-TX LAN interfaces for network redundancy, daisy-chaining, or segmented network configurations. - **Integrated Relay Outputs:** Includes 4 relay channels for control, alarm signaling, or process actuation, enabling direct interaction with external devices. - **Wide Operating Temperature Range:** Designed for operation from 0°C to +70°C, ensuring reliable performance in industrial and process environments. - **Industrial-Grade Construction:** Metal housing provides electromagnetic shielding and mechanical durability, suitable for harsh industrial conditions. - **DIN Rail Mounting:** Standard DIN rail mounting design simplifies installation in control cabinets and industrial panels. - **Flexible Power Supply:** Operates from a 12–24 VDC input, compatible with common industrial power systems. - **Compact Form Factor:** Space-efficient design with dimensions of 107.6 × 135.8 × 34 mm, allowing dense installation in control enclosures. - **Network-Based Data Acquisition:** Ethernet connectivity enables remote monitoring, configuration, and integration with SCADA, PLC, or IoT systems.

Hersteller: JS Automation

Kategorie: Analog Modules

- **Multi-Channel Thermocouple Input:** Supports **4 independent thermocouple input channels**, compatible with multiple thermocouple types including **S, R, B, K, N, E, J, and T**. - **High-Resolution Measurement:** Each input channel features **24-bit analog-to-digital conversion**, ensuring precise temperature measurement and high signal fidelity. - **Integrated Cold Junction Compensation (CJC):** Built-in thermocouple compensation ensures accurate readings by automatically correcting for ambient temperature variations at the connection terminals. - **Broken Sensor Detection:** The module includes **open thermocouple detection**, allowing immediate identification of disconnected or faulty sensors. - **Dual Ethernet Ports:** Equipped with **2×10/100Base-TX Ethernet interfaces**, enabling flexible network topologies such as daisy-chaining, redundant networking, or separate LAN segmentation. - **Relay Outputs:** Provides **4 relay output channels** for control, alarm signaling, or process actuation, allowing direct interface with external devices such as alarms, indicators, or actuators. - **Industrial-Grade Design:** Housed in a **metal enclosure** for electromagnetic shielding and mechanical durability, suitable for harsh industrial environments. - **Wide Power Supply Range:** Operates from a **12–24 VDC** power input, compatible with standard industrial power systems. - **DIN Rail Mounting:** Designed for **DIN rail installation**, simplifying integration into control cabinets and automation panels. - **Temperature Range:** Operational temperature from **0°C to +70°C**, with storage capability from **–20°C to +80°C**, ensuring reliability across a wide range of environmental conditions.

Hersteller: JS Automation

Kategorie: Analog Modules

**General Highlights:** - Ethernet-based analog I/O module with integrated web control interface. - Supports both single-ended and differential analog input configurations. - High-resolution 24-bit analog-to-digital conversion (ADC). - Dual-channel analog output with 12-bit or 16-bit resolution depending on model. - 10/100 Mbps auto-detect Ethernet interface with IP reassignment capability. - Web-based configuration and control without additional hardware. - DLL libraries provided for Windows and Linux for custom application development. - DIN rail mountable compact industrial design. - High reliability, remote addressability, and stable operation for industrial environments. **Analog Input Features:** - 8 differential or 16 single-ended analog input channels (model dependent). - 24-bit resolution with selectable input ranges. - Input ranges include voltage and current modes: - 0–5 V, 0–10 V, 0–20 mA, 4–20 mA (EMA7308 / EMA7308A) - ±5 V, ±10 V, 0–20 mA, 4–20 mA (EMA7308D / EMA7308DA) - Programmable input configuration (single-ended or differential). - High common-mode voltage tolerance up to 10 V (for differential models). - Over-voltage protection up to 20 VDC. - Input filter options: 7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz. - Common-mode rejection ratio (CMRR): 120 dB. - Sampling rate: 10 samples per second. - Offset error: 2.5 µV typical, 5 µV maximum. - Offset drift: 20 nV/°C. **Analog Output Features:** - 2 analog output channels. - Output range: ±10 VDC. - Resolution: - 12-bit for EMA7308 / EMA7308D. - 16-bit for EMA7308A / EMA7308DA. - Overload protection: 50 mA (peak). - Over-voltage protection: 20 VDC maximum. **Ethernet Features:** - 10/100 Mbps auto-switching Ethernet interface. - IP reassignment and port configuration supported. - Direct web-based control and monitoring. - Software API for remote configuration and data access.

Hersteller: JS Automation

Kategorie: Analog Modules

**Analog Input Section** - **High-resolution 24-bit A/D conversion** for precise analog signal measurement. - **Configurable input modes:** 16 single-ended or 8 differential channels. - **Multiple input ranges:** 0–5V, 0–10V, 0–20mA, and 4–20mA. - **Sampling rate:** 10 samples per second per channel. - **High common-mode voltage tolerance:** up to 10V. - **Excellent noise performance:** selectable input filters (7.03kHz to 879Hz). - **Over-voltage protection:** up to 20VDC maximum. - **Offset error:** 2.5µV typical, 5µV maximum. - **Offset drift:** 20nV/°C. - **Common-mode rejection ratio (CMRR):** 120dB. **Analog Output Section** - **Two independent D/A output channels.** - **16-bit resolution** for high-accuracy analog output. - **Output range:** ±10VDC. - **Overload protection:** 50mA peak. - **Over-voltage protection:** up to 20VDC maximum. **Ethernet Communication** - **10/100 Mbps auto-detecting Ethernet interface.** - **Supports IP reassignment and direct web-based configuration.** - **Remote control and monitoring via standard TCP/IP protocols.** - **Software libraries (DLLs) for Windows and Linux environments.** **General Features** - **DIN rail mountable** for industrial panel integration. - **Compact form factor:** 89 × 110 × 34 mm. - **Wide power supply range:** 12–24VDC. - **Operating temperature:** 0°C to +70°C. - **Storage temperature:** -20°C to +80°C. - **Humidity tolerance:** 5–95% RH, non-condensing. - **High reliability and remote addressability.**

Hersteller: JS Automation

Kategorie: Analog Modules

**Analog Input Features:** - **8 differential analog input channels** (bipolar configuration) - **24-bit resolution** for high-accuracy signal acquisition - **Input ranges:** ±5V, ±10V, 0–20mA, 4–20mA - **Sampling rate:** 10 samples per second - **High common-mode voltage tolerance:** up to 10V - **Over-voltage protection:** up to 20VDC maximum - **Input filter options:** 7.03 kHz, 3.52 kHz, 1.76 kHz, 879 Hz - **Excellent noise performance:** RMS noise as low as 1.5 µV at lowest filter setting - **Offset error:** 2.5 µV typical, 5 µV maximum - **Offset drift:** 20 nV/°C - **Common-mode rejection ratio (CMRR):** 120 dB **Analog Output Features:** - **2 analog output channels** - **12-bit resolution** - **Output range:** ±10VDC - **Overload protection:** 50 mA (peak) - **Over-voltage protection:** up to 20VDC **Ethernet Communication:** - **10/100 Mbps auto-detection** - **Direct web-based control interface** - **IP address re-assignment capability** - **Supports remote configuration and monitoring** - **Compatible with Windows and Linux via provided DLL libraries** **General Features:** - **DIN rail mountable** for industrial environments - **Power supply:** 12–24VDC input - **Compact design:** 89 × 110 × 34 mm - **Operating temperature:** 0°C to +70°C - **Storage temperature:** -20°C to +80°C - **Humidity tolerance:** 5–95% RH (non-condensing) - **High reliability and remote addressability**

Hersteller: JS Automation

Kategorie: Analog Modules

**Analog Input Features:** - **High-resolution 24-bit A/D conversion** for precise analog signal measurement. - **8 differential input channels** supporting bipolar voltage and current signals. - **Selectable input ranges:** - Voltage: ±5V, ±10V - Current: 0–20mA, 4–20mA - **Sampling rate:** 10 samples per second per channel. - **High common-mode voltage tolerance:** up to 10V. - **Excellent noise rejection:** 120dB common-mode rejection ratio (CMRR). - **Input filter options:** 7.03kHz, 3.52kHz, 1.76kHz, 879Hz. - **Over-voltage protection:** up to 20VDC maximum. - **Offset error:** 2.5µV typical, 5µV maximum. - **Offset drift:** 20nV/°C. **Analog Output Features:** - **2 analog output channels** with 16-bit D/A resolution. - **Output range:** ±10VDC. - **Overload protection:** 50mA peak. - **Over-voltage protection:** up to 20VDC. - **Factory preset voltage trimmers (DA0, DA1)** for calibration. **Ethernet Communication:** - **10/100 Mbps auto-detecting Ethernet interface.** - **Web-based configuration and control interface.** - **IP address reassignment and remote configuration.** - **Supports direct socket communication via DLL libraries.** **General Features:** - **DIN rail mountable** compact industrial design. - **Power supply:** 12–24VDC input. - **Operating temperature:** 0°C to +70°C. - **Storage temperature:** -20°C to +80°C. - **Humidity tolerance:** 5–95% RH, non-condensing. - **Dimensions:** 89(D) × 110(W) × 34(H) mm (3.5 × 4.33 × 1.39 in).

Hersteller: JS Automation

Kategorie: Analog Modules

- **Dual Ethernet Ports with Integrated Switch:** Two 10/100 Mbps RJ45 ports with 1.5 kV magnetic isolation allow daisy-chain or cascade connections, reducing the need for external switches and simplifying wiring in distributed installations. - **16 Digital Input Channels:** Supports NPN, PNP, and dry contact sensors with configurable DI or event counter modes. Each channel can operate independently for flexible signal acquisition. - **Push-based Active OPC Server Lite Integration:** Moxa’s free Active OPC Server Lite enables event-driven (“push”) communication with SCADA/HMI systems, reducing network bandwidth usage by up to 80% and improving I/O response times by up to sevenfold compared to traditional polling architectures. - **User-defined Modbus/TCP Addressing:** Allows flexible mapping of Modbus addresses for compatibility with existing systems and simplified integration with third-party controllers. - **MXIO Programming Library:** Provides APIs for Windows (VB/VC.NET) and Linux (C) environments, enabling custom application development and integration. - **Web-based Configuration Interface:** Built-in web console for configuration, monitoring, and firmware updates. Supports import/export of configuration files for rapid deployment and replication. - **Peer-to-Peer Communication:** Enables direct I/O signal transmission between multiple ioLogik units over Ethernet without requiring a central controller. - **Compact, Rugged Design:** DIN-rail and wall-mountable enclosure with stress-relief wiring design, suitable for industrial environments. - **Wide Operating Temperature Options:** Standard model supports -10 to +60°C; optional “-T” model supports -40 to +75°C for harsh environments.

Hersteller: Moxa

Kategorie: Digital Modules

- **Dual Ethernet Ports:** Two 10/100 Mbps RJ45 ports with 1.5 kV magnetic isolation enable daisy-chain networking, eliminating the need for external switches and simplifying network expansion. - **16 Digital Outputs:** Supports both standard DO and pulse output modes (up to 500 Hz), suitable for controlling actuators, relays, and indicators. - **Push-based Active OPC Server Lite:** Integrates seamlessly with Moxa’s Active OPC Server Lite for SCADA/HMI systems, enabling event-driven data updates that reduce network traffic by up to 80% and improve I/O response times by up to sevenfold compared to traditional polling architectures. - **User-defined Modbus/TCP Addressing:** Allows flexible mapping of Modbus addresses for compatibility with existing systems and simplified integration with third-party controllers. - **MXIO Programming Library:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C), enabling custom application development and integration. - **Web-based Configuration:** Embedded web console with import/export functionality for easy setup, backup, and replication of configurations. - **Peer-to-Peer Communication:** Supports direct I/O signal transmission between devices without requiring a central controller, reducing latency and improving reliability. - **Compact, Rugged Design:** DIN-rail and wall-mountable enclosure with stress-relief wiring support, designed for industrial environments. - **Wide Operating Temperature Range:** Standard model operates from -10°C to +60°C; optional “-T” model supports -40°C to +75°C for harsh environments.

Hersteller: Moxa

Kategorie: Digital Modules

- **Dual Ethernet Ports:** Two integrated 10/100 Mbps RJ45 Ethernet switch ports enable daisy-chain or cascade connections, reducing the need for external switches and simplifying network wiring. - **Flexible I/O Configuration:** Provides 8 digital inputs and 8 configurable digital input/output channels, supporting NPN, PNP, and dry contact sensors. - **Active OPC Server Lite Integration:** Supports Moxa’s free push-based Active OPC Server Lite software for seamless SCADA/HMI integration. Enables event-driven data updates, reducing network bandwidth by up to 80% and improving I/O response times by up to sevenfold compared to traditional polling architectures. - **User-defined Modbus/TCP Addressing:** Allows custom mapping of Modbus addresses for compatibility with existing systems and simplified integration with third-party controllers. - **MXIO Programming Library:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C/C++) environments, enabling custom application development and integration. - **Web-based Configuration:** Built-in web console with import/export functionality for easy configuration, firmware updates, and system management. - **Peer-to-Peer Communication:** Supports direct I/O signal transmission between ioLogik units without requiring a central controller, ideal for distributed control systems. - **Compact Industrial Design:** Rugged, lightweight enclosure with stress-relief wiring and DIN-rail/wall mounting options. - **Wide Operating Temperature Range:** Standard model: -10 to +60°C; optional “-T” model: -40 to +75°C for harsh environments.

Hersteller: Moxa

Kategorie: Digital Modules

- **Integrated 2-Port Ethernet Switch:** Enables daisy-chain topology, reducing the need for external switches and simplifying network wiring. Ideal for multi-drop Ethernet I/O networks. - **Dual 10/100 Mbps RJ45 Ports:** Supports auto MDI/MDI-X, allowing flexible connection to other Ethernet devices or additional ioLogik units. - **Push-Based Active OPC Server Lite Support:** Moxa’s free Active OPC Server Lite software provides event-driven (“push”) communication to SCADA/HMI systems, reducing network traffic by up to 80% and improving I/O response times up to sevenfold compared to traditional polling architectures. - **User-Defined Modbus/TCP Addressing:** Allows flexible mapping of Modbus addresses for compatibility with existing systems and simplified replication or replacement of devices. - **MXIO Programming Library:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C), enabling custom software integration and control. - **Web-Based Configuration Interface:** Built-in web console with import/export functionality for easy setup, backup, and deployment. - **Peer-to-Peer I/O Communication:** Supports direct I/O signal transmission between ioLogik units without requiring a central controller. - **Compact Industrial Design:** DIN-rail and wall-mountable vertical form factor with stress-relief wiring connectors for robust installation. - **Wide Operating Temperature Option:** Standard model supports -10 to +60°C; “-T” variant extends range to -40 to +75°C for harsh environments. - **High Reliability:** MTBF of 808,744 hours (Telcordia standard) and 2-year warranty (due to relay component lifetime).

Hersteller: Moxa

Kategorie: Digital Modules

- **Integrated 2-Port Ethernet Switch:** Enables daisy-chain topology, reducing the need for external switches and simplifying network expansion. - **8 Differential Analog Inputs:** Supports voltage (0–10 VDC) and current (4–20 mA) input modes with 16-bit resolution for precise analog signal acquisition. - **High Accuracy and Stability:** ±0.1% FSR accuracy at 25°C and ±0.3% FSR across the extended temperature range (-10 to 60°C). - **Sampling Rate:** 12 samples per second across all channels, suitable for slow to moderate analog signal monitoring. - **User-Defined Modbus/TCP Addressing:** Allows flexible mapping of I/O addresses for compatibility with existing Modbus systems. - **Active OPC Server Lite Integration:** Push-based communication architecture reduces network bandwidth usage by up to 80% and improves I/O response time by up to seven times compared to traditional polling OPC servers. - **MXIO Library Support:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C) environments, enabling custom application development. - **Web-Based Configuration Interface:** Built-in web console with import/export functionality for easy configuration, backup, and deployment. - **Peer-to-Peer Communication:** Direct I/O signal transmission between devices without requiring a central controller. - **Compact and Rugged Design:** DIN-rail and wall-mountable enclosure with stress-relief wiring support for solid industrial installations. - **Wide Power Input Range:** Operates from 12 to 36 VDC (nominal 24 VDC) with low power consumption (121 mA typical). - **Industrial-Grade Reliability:** MTBF of 474,053 hours (Telcordia standard) and compliance with IEC and FCC industrial standards.

Hersteller: Moxa

Kategorie: Digital Modules

- **Integrated 2-Port Ethernet Switch:** Enables daisy-chain or cascade network configurations without requiring external switches, reducing cabling and failure points. - **4 Analog Output Channels:** Each channel supports 0–10 VDC or 4–20 mA output ranges with 12-bit resolution and ±0.1% full-scale accuracy at 25°C. - **Flexible Power Supply:** Operates from 12 to 36 VDC (nominal 24 VDC), allowing compatibility with standard industrial power systems. - **Compact and Lightweight Design:** Dimensions of 27.8 × 124 × 84 mm and weight under 200 g facilitate DIN-rail or wall mounting in space-constrained control panels. - **High Reliability and MTBF:** Mean Time Between Failures (MTBF) of 888,656 hours (Telcordia standard), ensuring long-term operational stability. - **User-Defined Modbus/TCP Addressing:** Allows flexible mapping of I/O addresses for seamless integration with existing Modbus systems. - **Active OPC Server Lite Support:** Push-based OPC communication reduces network traffic by up to 80% and improves I/O response time by up to sevenfold compared to polling-based systems. - **MXIO Programming Library:** Provides APIs for Windows (VB/VC.NET) and Linux (C) environments, enabling custom application development. - **Web-Based Configuration Interface:** Embedded web console with import/export functionality for easy setup, backup, and replication of configurations. - **Peer-to-Peer I/O Communication:** Enables direct I/O signal transmission between devices over Ethernet without requiring a central controller. - **Industrial-Grade Design:** Operating temperature range of -10 to +60°C (standard) or -40 to +75°C (wide-temperature “-T” model), with 3 kV isolation and robust EMC compliance.

Hersteller: Moxa

Kategorie: Digital Modules

- **Integrated Dual Ethernet Switch:** Two 10/100 Mbps RJ45 ports with 1.5 kV magnetic isolation support daisy-chain or cascade connections, reducing the need for external switches and simplifying wiring. - **Multi-Function I/O Channels:** - 4 Analog Inputs (AI) with 16-bit resolution, configurable for voltage (0–10 VDC) or current (4–20 mA). - 4 Digital Inputs (DI) supporting NPN, PNP, or dry contact sensors. - 4 Digital I/O (DIO) channels configurable as input or output. - **High Accuracy and Sampling Rate:** ±0.1% FSR accuracy at 25°C, ±0.3% FSR across -10 to 60°C, with a total sampling rate of 12 samples per second across all AI channels. - **Active OPC Server Lite Integration:** Push-based communication architecture reduces network bandwidth by up to 80% and improves I/O response time by up to seven times compared to traditional polling OPC servers. - **User-Defined Modbus/TCP Addressing:** Allows flexible mapping of Modbus addresses for seamless integration with existing Modbus devices and SCADA systems. - **MXIO Library Support:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C) for custom software integration. - **Web-Based Configuration:** Embedded web console with import/export functionality for easy setup, backup, and replication. - **Peer-to-Peer Communication:** Enables direct I/O signal transmission between ioLogik units over Ethernet without a central controller. - **Compact, Rugged Design:** DIN-rail and wall-mountable enclosure with stress-relief wiring and industrial-grade environmental tolerance.

Hersteller: Moxa

Kategorie: Digital Modules

- **6 RTD Input Channels:** Supports Pt50, Pt100, Pt200, Pt500, and Pt1000 sensors for precise temperature measurement. - **High Sampling Rate:** 12 samples per second across all channels, ensuring real-time data acquisition. - **16-bit Resolution:** Provides high accuracy and fine measurement granularity. - **Built-in 2-Port Ethernet Switch:** Enables daisy-chain topology, reducing the need for external switches and simplifying wiring. - **Active OPC Server Lite Support:** Push-based architecture for SCADA integration, reducing network traffic by up to 80% and improving response time by up to 7× compared to traditional polling. - **User-defined Modbus/TCP Addressing:** Allows flexible mapping of I/O addresses for seamless integration with existing Modbus systems. - **MXIO Library Support:** Compatible with Windows, WinCE (VB/VC.NET), and Linux (C API) for custom application development. - **Web-based Configuration:** Built-in web console with import/export functionality for easy setup and replication. - **Peer-to-Peer Communication:** Direct I/O signal transmission between devices without a central controller. - **Compact and Lightweight Design:** DIN-rail and wall-mountable enclosure with stress-relief wiring support. - **Wide Operating Temperature Range:** Standard model supports -10 to +60°C; optional “-T” model supports -40 to +75°C. - **Industrial-grade Reliability:** 1.5 kV Ethernet isolation, 3 kV I/O isolation, and compliance with IEC 61000-4/6 standards.

Hersteller: Moxa

Kategorie: Digital Modules

- **Dual Ethernet Ports:** Two integrated 10/100 Mbps RJ45 ports with 1.5 kV magnetic isolation enable daisy-chain topologies, reducing the need for external switches and simplifying network wiring. - **Thermocouple Input Support:** Eight differential thermocouple input channels compatible with J, K, T, E, R, S, B, and N types, providing high-accuracy temperature measurement. - **High Resolution and Sampling Rate:** 16-bit A/D conversion with a total sampling rate of 12 samples per second across all channels. - **Wide Power Input Range:** Operates from 12 to 36 VDC (nominal 24 VDC), supporting flexible industrial power systems. - **Compact and Lightweight Design:** Dimensions of 27.8 × 124 × 84 mm and weight under 200 g, suitable for space-constrained control cabinets. - **Industrial-Grade Reliability:** Operating temperature range of -10 to +60°C (optional -40 to +75°C for -T models), 5–95% non-condensing humidity tolerance. - **Active OPC Server Lite Integration:** Push-based OPC communication reduces network traffic by up to 80% and improves I/O response time by up to seven times compared to polling-based systems. - **User-Defined Modbus/TCP Addressing:** Flexible Modbus mapping allows seamless integration with existing SCADA or PLC systems. - **MXIO Library Support:** Provides APIs for Windows, WinCE (VB/VC.NET), and Linux (C) for custom application development. - **Web-Based Configuration:** Embedded web console with import/export functionality for easy setup, backup, and replication. - **Peer-to-Peer I/O Communication:** Enables direct I/O signal transmission between devices without a central controller. - **DIN-Rail and Wall Mounting:** Dual mounting options for versatile installation in industrial panels. - **Stress-Relief Wiring Design:** Built-in strain relief for solid wiring connections up to 14 AWG.

Hersteller: Moxa

Kategorie: Digital Modules

- **Dual Ethernet Ports (2×LAN):** Two 10/100 Mbps auto‑switching RJ‑45 ports allow daisy‑chain topology, reducing the need for external switches and simplifying network wiring. - **Web‑Based Control:** Integrated web server enables direct I/O monitoring and control through any standard web browser. No dedicated software is required for basic operation. - **4 Photo‑Isolated Digital Inputs:** Each input channel is optically isolated to protect against voltage spikes and ground loops. Inputs can also function as **software counters** up to **200 Hz**. - **4 Relay Outputs:** Mechanical relay outputs rated at **3 A @ 250 VAC** or **3 A @ 30 VDC**, suitable for switching loads such as lights, solenoids, or contactors. - **Protection Features:** Built‑in **over‑voltage protection (60 VDC max)** and **over‑current protection (50 mA max)** on input channels ensure long‑term reliability in industrial environments. - **Flexible Software Integration:** Supported by **Windows and Linux DLL libraries (EMD820x.dll)** for custom application development in C/C++, Visual Basic, or other environments supporting Windows DLLs. - **Counter Functionality:** Any digital input can be configured as a counter input, supporting up to **200 pulses per second (200 Hz)** for event counting or frequency measurement. - **DIN‑Rail Mountable Metal Enclosure:** Rugged metal housing with DIN‑rail mounting for easy installation in control panels. - **Wide Operating Range:** Operates from **0 °C to +70 °C**, with storage capability from **–20 °C to +80 °C** and humidity tolerance up to **95 % RH (non‑condensing)**. - **Security and Access Control:** Software key and password protection prevent unauthorized configuration or I/O manipulation. - **IP Re‑assignment and Remote Configuration:** IP address and communication port can be changed remotely via software commands or web interface.

Hersteller: JS Automation

Kategorie: Digital Modules

- **Dual Ethernet Ports (2 × LAN):** Two 10/100 Mbps auto‑switching RJ‑45 ports enable daisy‑chain topology, simplifying network wiring and reducing switch requirements. - **8 Isolated Digital Inputs:** Photo‑isolated channels protect against electrical noise and voltage spikes. Each input supports TTL‑level logic and can function as a **software counter** up to **200 Hz**. - **8 Relay Outputs:** Independent relay channels rated at **3 A @ 250 VAC** or **3 A @ 30 VDC**, suitable for switching AC or DC loads such as lights, solenoids, or contactors. - **Built‑in Web Server:** Provides direct browser‑based configuration and control without additional software. Supports IP reassignment and remote management. - **Protection Features:** Over‑voltage protection up to **60 V DC (max)** and over‑current protection up to **50 mA (max)** on digital inputs ensure long‑term reliability. - **Software Counter Function:** Any digital input can be configured as a counter input (up to 200 Hz), enabling pulse counting for sensors or event tracking. - **Flexible Software Integration:** Includes Windows and Linux DLL libraries (**EMD820x.dll**) for integration with C/C++, Visual Basic, or other environments supporting Windows DLLs. - **DIN‑Rail Mountable Metal Enclosure:** Compact, rugged metal housing with DIN‑rail mounting for industrial control panels. - **24 V DC Power Supply:** Operates from a standard 24 V DC industrial power source. - **Operating Temperature Range:** 0 °C to +70 °C for reliable operation in industrial environments.

Hersteller: JS Automation

Kategorie: Digital Modules
