Comprehensive Product Summary – ACL‑PCIEXT‑10 PCI‑to‑PCI Extension Cable
### 1. Product Overview
Product Name: ACL‑PCIEXT‑10
Article Number: ACL‑PCIEXT‑10
Product Type: PCI‑to‑PCI Extension Cable (10 m)
Series: PCIS‑8580 PCI‑to‑PCI Extension System Accessories
Manufacturer: ADLINK Technology Inc.
Associated Systems: PCIS‑8580‑4S (4‑slot) and PCIS‑8580‑13S (13‑slot) PCI‑to‑PCI Extension Systems
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)
The ACL‑PCIEXT‑10 is a high‑performance, shielded copper extension cable designed for ADLINK’s PCIS‑8580 series PCI‑to‑PCI extension systems. It provides a robust, low‑noise, and high‑integrity connection between a host computer and an external PCI expansion chassis over a maximum distance of 10 meters. The cable is engineered to maintain full 32‑bit/33 MHz PCI bandwidth (132 MB/s) and ensure complete hardware and software transparency between the host and the remote chassis.
### 2. Key Features
- Purpose‑built PCI‑to‑PCI Extension Cable: Designed specifically for ADLINK’s PCIS‑8580 series, enabling seamless extension of the PCI bus from a host system to an external chassis.
- 10 m Transmission Distance: Supports the maximum extension length allowed by the PCIS‑8580 system, maintaining signal integrity and full PCI bandwidth.
- High‑Quality Shielded Construction: Utilizes eight pairs of shielded twisted copper wires to minimize electromagnetic interference (EMI) and crosstalk.
- DVI‑D 24‑pin Connector: Employs a robust, high‑density DVI‑D 24‑pin connector for secure mechanical coupling and reliable electrical contact.
- Full PCI Bandwidth Support: Maintains 32‑bit/33 MHz PCI throughput (132 MB/s) without degradation.
- StarFabric‑Based Signal Serialization: Works in conjunction with ADLINK’s LPCI‑8575 PCI extension card and RK‑8005/RK‑8014 chassis to serialize PCI signals into a 5 Gbps StarFabric serial link.
- Hardware and Software Transparency: Ensures that all PCI devices in the extension chassis operate as if installed directly in the host system—no additional drivers or configuration required.
- Industrial‑Grade Reliability: Designed for demanding environments such as industrial automation, test and measurement, and defense applications.
### 3. Technical Specifications
Cable Model: ACL‑PCIEXT‑10
Cable Length: 10 m
Cable Type: Shielded twisted‑pair copper cable
Number of Pairs: 8 differential pairs
Connector Type: DVI‑D 24‑pin male connectors (both ends)
Signal Type: Low‑Voltage Differential Signaling (LVDS)
Maximum Data Rate: 5 Gbps serial link (aggregate)
Supported PCI Bandwidth: 32‑bit/33 MHz (132 MB/s)
Shielding: Full‑coverage EMI shielding with twisted‑pair isolation
Operating Temperature: 0 °C – 50 °C
Storage Temperature: −20 °C – 80 °C
Relative Humidity: 10 % – 90 %, non‑condensing
Compatibility: Fully compatible with ADLINK PCIS‑8580‑4S and PCIS‑8580‑13S systems, and with LPCI‑8575 PCI extension cards.
### 4. Functionality
The ACL‑PCIEXT‑10 functions as the physical communication link between the host computer’s PCI bus and the external PCI expansion chassis in ADLINK’s PCIS‑8580 system. It transmits serialized PCI signals over a high‑speed StarFabric link, maintaining full PCI bandwidth and data integrity across distances up to 10 meters.
Operational Principle:
1. The host system contains an LPCI‑8575 PCI‑to‑StarFabric bridge card that converts parallel PCI signals into serial StarFabric frames.
2. These serialized signals are transmitted through the ACL‑PCIEXT‑10 cable using LVDS differential pairs.
3. The extension chassis (RK‑8005 or RK‑8014) receives the signals via its pre‑installed PCI bridge card, deserializes them, and reconstructs the PCI bus for the remote slots.
4. The result is a fully transparent PCI extension—devices in the remote chassis appear to the host as locally installed PCI cards.
Typical Use Cases:
- Extending PCI slots for systems with limited internal expansion capacity.
- Isolating sensitive host systems from electrically noisy or harsh environments.
- Remote test and measurement setups where instrumentation must be located away from the control PC.
- Industrial automation and manufacturing test systems requiring distributed PCI resources.
- Military and aerospace applications needing ruggedized, shielded interconnects.
Compatibility:
- Works exclusively with ADLINK’s PCIS‑8580‑series extension systems.
- Compatible with both 4‑slot (RK‑8005) and 13‑slot (RK‑8014) chassis configurations.
- Interoperable with optional shorter cables (ACL‑PCIEXT‑2, ACL‑PCIEXT‑5).
### 5. Components & Accessories
Included Items:
- One ACL‑PCIEXT‑10 cable (10 m length)
- DVI‑D 24‑pin connectors pre‑attached at both ends
- Factory‑tested for impedance and continuity
Optional Accessories:
- ACL‑PCIEXT‑2: 2 m PCI‑to‑PCI extension cable
- ACL‑PCIEXT‑5: 5 m PCI‑to‑PCI extension cable
- LPCI‑8575: PCI‑to‑StarFabric bridge card (host interface)

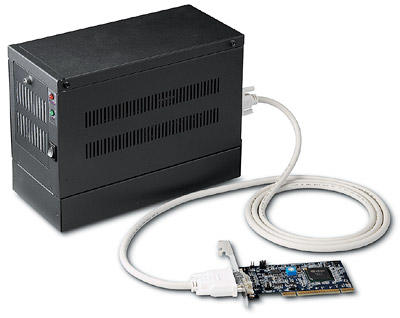

- RK‑8005: 4‑slot wall‑mount extension chassis with 200 W PSU

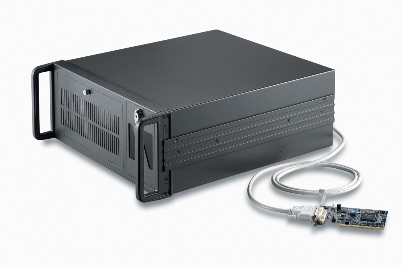

- RK‑8014: 13‑slot rack‑mount extension chassis with 400 W PSU
Connectors:
- DVI‑D 24‑pin male connectors (locking type)
- Gold‑plated contacts for low resistance and corrosion resistance
- Shielded backshells for EMI protection
### 6. Installation & Setup
Requirements:
- Host computer with an available PCI slot for the LPCI‑8575 extension card.
- ADLINK extension chassis (RK‑8005 or RK‑8014) with pre‑installed PCI bridge card.
- Proper grounding and ESD protection during installation.
Installation Steps:
1. Power off both the host computer and the extension chassis.
2. Install the LPCI‑8575 card into an available PCI slot in the host system.
3. Connect one end of the ACL‑PCIEXT‑10 cable to the DVI‑D connector on the LPCI‑8575 card.
4. Connect the other end to the DVI‑D port on the extension chassis.
5. Secure both connectors using the locking screws to prevent accidental disconnection.
6. Power on the extension chassis first, then the host computer.
7. The system automatically recognizes the extended PCI bus—no driver installation required.
Mounting & Routing Considerations:
- Avoid sharp bends or kinks in the cable; maintain a minimum bend radius of 10 × cable diameter.
- Route the cable away from high‑voltage or high‑frequency sources to minimize EMI.
- Ensure connectors are fully seated and secured before powering on.
Configuration:
- The extension operates transparently; no BIOS or OS configuration is necessary.
- The host system enumerates devices in the extension chassis as standard PCI devices.
### 7. Performance & Capabilities
Bandwidth and Throughput:
- Supports full 32‑bit/33 MHz PCI bandwidth (132 MB/s).
- Maintains complete data throughput across the 10 m link without latency penalties.
Signal Integrity:
- LVDS signaling at 622 Mbps per differential pair (4 pairs per direction).
- Aggregate serial link bandwidth: 2.5 Gbps per direction (5 Gbps total).
- Built‑in error detection and correction mechanisms ensure data integrity.
Distance and Extension Capability:
- Maximum supported cable length: 10 m (using ACL‑PCIEXT‑10).
- Shorter cables (2 m, 5 m) available for installations requiring minimal latency or compact setups.
Efficiency and Reliability:
- Shielded twisted‑pair design minimizes EMI and crosstalk.
- Optimized impedance matching for high‑speed differential signaling.
- Industrial‑grade materials ensure long‑term durability and consistent performance.
Limitations:
- Designed exclusively for ADLINK PCIS‑8580 systems; not a general‑purpose PCI cable.
- Maximum extension distance limited to 10 m per link.
- Not compatible with PCI Express (PCIe) or PXI systems without corresponding ADLINK bridge modules.
### 8. Standards & Compliance
Electrical and Interface Standards:
- PCI Local Bus Specification Revision 2.2 compliant (via system architecture)
- PCI Bridge Architecture Specification Revision 1.2 compliant
- StarFabric serial interconnect technology compliant with LVDS signaling standards
Environmental and Safety Compliance:
- Operating temperature: 0 °C – 50 °C
- Storage temperature: −20 °C – 80 °C
- Relative humidity: 10 % – 90 %, non‑condensing
- Designed for CE and FCC Class A compliant systems (as part of PCIS‑8580)
Mechanical Standards:
- DVI‑D 24‑pin connector per Digital Visual Interface (DVI) specification
- Shielded cable construction meeting industrial EMI/EMC requirements
Regulatory Compliance (System Level):
- CE and FCC Class A (for complete PCIS‑8580 system)
- RoHS compliance (manufacturer standard for ADLINK products)
### 9. Additional Information
Warranty:
- Covered under ADLINK’s standard two‑year limited warranty.
- Warranty period begins from the date of shipment from ADLINK’s factory.
- Warranty covers defects in materials and workmanship under normal use.
- Exclusions include damage from misuse, improper installation, or environmental factors.
Support and Service:
- Technical Support: service@adlinktech.com
- Sales Inquiries: service@adlinktech.com
- Telephone: +886‑2‑8226‑5877
- Fax: +886‑2‑8226‑5717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
- Website: [www.adlinktech.com](http://www.adlinktech.com)
Maintenance:
- Periodically inspect connectors for dust or oxidation; clean with appropriate contact cleaner.
- Avoid excessive mechanical stress or bending.
- Store in a dry, temperature‑controlled environment when not in use.
Product Updates and Compatibility:
- The ACL‑PCIEXT‑10 is part of a modular system; firmware or hardware updates to the LPCI‑8575 or PCIS‑8580 chassis may enhance performance or compatibility.
- ADLINK periodically releases updated documentation and drivers for associated components.
Ordering Information:
- ACL‑PCIEXT‑10: 10 m PCI‑to‑PCI extension cable (this product)
- ACL‑PCIEXT‑5: 5 m optional cable
- ACL‑PCIEXT‑2: 2 m optional cable
- PCIS‑8580‑4S: 4‑slot PCI‑to‑PCI extension system
- PCIS‑8580‑13S: 13‑slot PCI‑to‑PCI extension system
### Summary
The ADLINK ACL‑PCIEXT‑10 is a precision‑engineered, 10‑meter shielded copper cable designed to extend the PCI bus between a host computer and an external PCI expansion chassis within the PCIS‑8580 system architecture. Utilizing StarFabric high‑speed serial link technology, it ensures full PCI bandwidth, low latency, and complete transparency to the operating system and application software. Its DVI‑D 24‑pin connectors, shielded twisted‑pair construction, and industrial‑grade materials make it ideal for mission‑critical applications in automation, testing, and defense environments. When paired with ADLINK’s LPCI‑8575 bridge card and RK‑8005/RK‑8014 chassis, the ACL‑PCIEXT‑10 delivers reliable, high‑integrity PCI extension up to 10 meters, maintaining the same performance and compatibility as local PCI installations.
