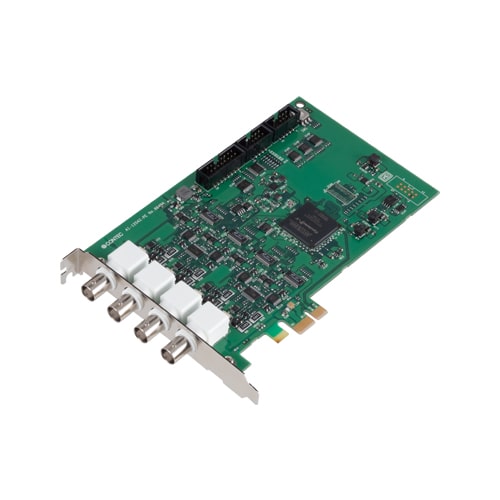

AI-1204Z-PE
PCIe AD card 10MS/s 12 Bit 4 simult.chan, 4*DI, 4*DO
770,00 EUR
inkl. Umsatzsteuer 916,30 EUR
- High-Speed Analog Input: Four simultaneous analog input channels capable of sampling at up to 10 MS/s with 12-bit resolution, ensuring accurate and synchronized data acquisition across multiple channels.
- Flexible Input Ranges: Supports both bipolar (±5 V, ±10 V) and unipolar (0–5 V, 0–10 V) voltage ranges, allowing adaptation to a wide variety of signal sources.
- Large Onboard Memory: Equipped with a 16 M-sample data FIFO or ring buffer, enabling continuous high-speed data capture without data loss.
- Digital I/O Integration: Includes 4 digital input (DI) and 4 digital output (DO) channels using LVTTL logic levels, suitable for control, triggering, or synchronization tasks.
- Counter Functionality: Built-in counter with selectable internal 4 MHz clock or external signal input, supporting event counting, frequency measurement, or timing applications.
- PCI Express Interface: High-bandwidth PCIe bus interface ensures fast data transfer between the card and host system, minimizing latency and maximizing throughput.
- Comprehensive Software Support: Compatible with Windows and Linux operating systems, with driver packages and APIs for C/C++, C-LOGGER, and LabVIEW environments.
- Compact and Lightweight Design: Measuring approximately 169.33 mm × 110.18 mm and weighing around 150 g, the card fits standard PCIe slots without requiring additional power connectors.
- Industrial-Grade Reliability: Designed for operation in environments ranging from 0 °C to 50 °C and 10–90 % relative humidity (non-condensing).
- Flexible Input Ranges: Supports both bipolar (±5 V, ±10 V) and unipolar (0–5 V, 0–10 V) voltage ranges, allowing adaptation to a wide variety of signal sources.
- Large Onboard Memory: Equipped with a 16 M-sample data FIFO or ring buffer, enabling continuous high-speed data capture without data loss.
- Digital I/O Integration: Includes 4 digital input (DI) and 4 digital output (DO) channels using LVTTL logic levels, suitable for control, triggering, or synchronization tasks.
- Counter Functionality: Built-in counter with selectable internal 4 MHz clock or external signal input, supporting event counting, frequency measurement, or timing applications.
- PCI Express Interface: High-bandwidth PCIe bus interface ensures fast data transfer between the card and host system, minimizing latency and maximizing throughput.
- Comprehensive Software Support: Compatible with Windows and Linux operating systems, with driver packages and APIs for C/C++, C-LOGGER, and LabVIEW environments.
- Compact and Lightweight Design: Measuring approximately 169.33 mm × 110.18 mm and weighing around 150 g, the card fits standard PCIe slots without requiring additional power connectors.
- Industrial-Grade Reliability: Designed for operation in environments ranging from 0 °C to 50 °C and 10–90 % relative humidity (non-condensing).
1. Product Overview
Name: PCIe AD Card 10MS/s 12 Bit 4 Simultaneous Channels
Model: AI-1204Z-PE
Series: AI-1200 Series (PCI Express Analog-to-Digital Conversion Cards)
Article Number: AI-1204Z-PE
Manufacturer: Contec Co., Ltd.
The Contec AI-1204Z-PE is a high-performance PCI Express (PCIe) analog-to-digital (AD) conversion card designed for precision data acquisition, signal measurement, and industrial automation applications. It provides four simultaneous analog input channels with 12-bit resolution and a maximum sampling rate of 10 mega-samples per second (10 MS/s). The card integrates both analog and digital I/O capabilities, offering four digital inputs and four digital outputs, as well as a counter function with internal or external clocking options. With robust driver support for Windows and Linux, and compatibility with C-LOGGER and LabVIEW environments, the AI-1204Z-PE is engineered for flexible integration into measurement, control, and monitoring systems.
2. Key Features
- High-Speed Analog Input: Four simultaneous analog input channels capable of sampling at up to 10 MS/s with 12-bit resolution, ensuring accurate and synchronized data acquisition across multiple channels.
- Flexible Input Ranges: Supports both bipolar (±5 V, ±10 V) and unipolar (0–5 V, 0–10 V) voltage ranges, allowing adaptation to a wide variety of signal sources.
- Large Onboard Memory: Equipped with a 16 M-sample data FIFO or ring buffer, enabling continuous high-speed data capture without data loss.
- Digital I/O Integration: Includes 4 digital input (DI) and 4 digital output (DO) channels using LVTTL logic levels, suitable for control, triggering, or synchronization tasks.
- Counter Functionality: Built-in counter with selectable internal 4 MHz clock or external signal input, supporting event counting, frequency measurement, or timing applications.
- PCI Express Interface: High-bandwidth PCIe bus interface ensures fast data transfer between the card and host system, minimizing latency and maximizing throughput.
- Comprehensive Software Support: Compatible with Windows and Linux operating systems, with driver packages and APIs for C/C++, C-LOGGER, and LabVIEW environments.
- Compact and Lightweight Design: Measuring approximately 169.33 mm × 110.18 mm and weighing around 150 g, the card fits standard PCIe slots without requiring additional power connectors.
- Industrial-Grade Reliability: Designed for operation in environments ranging from 0 °C to 50 °C and 10–90 % relative humidity (non-condensing).
3. Technical Specifications
- Bus Interface: PCI Express (PCIe)
- Analog Input Channels: 4 simultaneous channels
- Resolution: 12 bits
- Maximum Sampling Rate: 10 MS/s (per channel, simultaneous)
- Input Type: Analog, non-isolated
- Input Voltage Ranges:
- Bipolar: ±5 V, ±10 V
- Unipolar: 0–5 V, 0–10 V
- Input Coupling: DC
- Input Impedance: High impedance (typical for voltage measurement applications; manufacturer standard)
- Data Buffer: 16 M-sample FIFO or ring buffer configuration
- Digital I/O:
- 4 × Digital Inputs (DI)
- 4 × Digital Outputs (DO)
- Logic Level: LVTTL (Low-Voltage TTL)
- Counter:
- Internal Clock: 4 MHz
- External Clock Input: Supported
- Function: Event counting, frequency measurement, or timing control
- Connectors:
- 1 × D-SUB 37-pin female connector (primary analog and digital I/O interface)
- 1 × 16-pin pin-header connector (auxiliary or expansion interface)
- Operating Temperature: 0 °C to 50 °C
- Operating Humidity: 10 % to 90 % RH (non-condensing)
- Dimensions: 169.33 mm (L) × 110.18 mm (H)
- Weight: Approximately 150 g
- Power Supply: Supplied via PCIe bus (no external power required)
- Material: PCB with metal bracket and standard PCIe edge connector
4. Functionality
The AI-1204Z-PE functions as a high-speed analog-to-digital conversion interface for PCIe-based systems. Each of its four analog input channels operates simultaneously, ensuring time-aligned sampling across multiple signals—critical for applications such as vibration analysis, waveform capture, and multi-sensor synchronization.
The card’s analog front end supports both bipolar and unipolar voltage ranges, allowing users to measure signals centered around zero volts or strictly positive voltages. The 12-bit resolution provides a balance between precision and speed, suitable for general-purpose measurement and control systems.
Digital I/O lines (4 DI and 4 DO) enable the card to interact with external devices such as sensors, actuators, or trigger sources. The LVTTL logic levels ensure compatibility with modern digital control systems. The onboard counter can operate using an internal 4 MHz clock or an external signal, providing flexibility for timing, event counting, or frequency measurement tasks.
Typical use cases include:
- Industrial process monitoring and control
- Laboratory data acquisition and signal analysis
- Automated test equipment (ATE)
- Embedded measurement systems
- Real-time waveform capture and analysis
- Synchronization with external triggers or digital control signals
The card communicates with the host PC via the PCIe bus, ensuring high-speed data transfer and low latency. Software drivers and APIs allow users to configure sampling parameters, trigger modes, and data acquisition routines programmatically.
5. Components & Accessories
Included Items:
- AI-1204Z-PE PCIe AD card
- D-SUB 37-pin female connector interface (onboard)
- 16-pin pin-header connector (onboard)
- Driver software package for Windows and Linux
- C-LOGGER data acquisition software
- LabVIEW support library and example programs
- User manual and installation guide
Optional Accessories (available separately):
- Shielded analog input cables (D-SUB 37 to BNC or terminal block)
- Digital I/O breakout boards
- External clock or trigger cables
- Mounting brackets or retention clips for secure installation in industrial PCs
Connectors:
- D-SUB 37-pin female: Provides access to analog input channels, digital I/O lines, and counter signals.
- 16-pin pin-header: Used for auxiliary connections, external clock input, or expansion modules.
6. Installation & Setup
The AI-1204Z-PE is designed for straightforward installation into any standard PCI Express slot (x1 or higher) on a desktop or industrial PC.
Installation Steps:
1. Power off the host system and disconnect it from the power source.
2. Insert the AI-1204Z-PE card into an available PCIe slot, ensuring proper alignment with the slot connector.
3. Secure the card using the bracket screw to prevent movement during operation.
4. Reconnect power and boot the system.
5. Install the appropriate driver package for Windows or Linux, provided by Contec.
6. Verify device recognition in the operating system’s device manager or equivalent interface.
7. Configure input ranges, sampling rates, and channel assignments using the provided software tools (C-LOGGER, LabVIEW, or custom applications via API).
Mounting Options:
- Standard PCIe bracket for desktop or rackmount PCs
- Compatible with industrial PC chassis supporting full-height PCIe cards
Configuration:
- Software-based configuration of input range (bipolar/unipolar)
- Selection of sampling rate and acquisition mode (continuous, triggered, or burst)
- Setup of digital I/O direction and logic levels
- Counter mode configuration (internal/external clock, event counting, or frequency measurement)
7. Performance & Capabilities
The AI-1204Z-PE delivers a combination of speed, precision, and reliability suitable for demanding data acquisition tasks.
- Sampling Performance: Up to 10 MS/s per channel with simultaneous sampling ensures accurate time correlation between channels.
- Resolution: 12-bit quantization provides 4096 discrete levels, balancing precision and throughput.
- Data Throughput: The PCIe interface supports high-speed data transfer to host memory, enabling real-time processing or storage.
- Buffering: The 16 M-sample FIFO or ring buffer allows continuous acquisition without data loss, even during high-speed operation.
- Digital I/O Performance: LVTTL-compatible lines support fast switching and reliable signal integrity for control or synchronization.
- Counter Accuracy: The internal 4 MHz clock provides stable timing for counting and frequency measurement; external clock input allows synchronization with external systems.
- Environmental Robustness: Operates reliably within 0–50 °C and 10–90 % RH, suitable for laboratory and light industrial environments.
Limitations:
- Analog inputs are non-isolated, so care must be taken to avoid ground loops or high common-mode voltages.
- The 12-bit resolution may not be sufficient for ultra-high-precision applications requiring 16-bit or higher ADCs.
- The card is designed for voltage input only; current measurement requires external shunt resistors or conditioning circuits.
8. Standards & Compliance
- Bus Standard: PCI Express (compliant with PCIe specifications)
- Digital Logic Standard: LVTTL (Low-Voltage TTL)
- Operating System Support: Windows and Linux (driver packages provided)
- Software Compatibility: C-LOGGER, LabVIEW, and custom applications via Contec API
- Environmental Compliance: Designed for RoHS compliance (Restriction of Hazardous Substances)
- Safety and EMC: Conforms to standard PC peripheral safety and electromagnetic compatibility requirements (specific certifications per Contec documentation)
The AI-1204Z-PE adheres to industry standards for PCIe-based data acquisition hardware, ensuring interoperability with a wide range of systems and software environments.
9. Additional Information
- Warranty: Standard manufacturer warranty (typically one year; refer to Contec warranty policy) covering defects in materials and workmanship.
- Technical Support: Contec provides comprehensive technical support, including driver updates, software libraries, and application notes.
- Maintenance: The card requires minimal maintenance; periodic inspection for dust accumulation and secure connector seating is recommended.
- Firmware & Software Updates: Driver and firmware updates are available through Contec’s official website to ensure compatibility with new operating systems and software environments.
- Documentation: Detailed user manuals, pinout diagrams, and programming references are provided to facilitate integration and development.
- Lifecycle & Availability: As part of Contec’s industrial-grade product line, the AI-1204Z-PE is designed for long-term availability and stable supply for OEM and system integrator applications.
Summary
The Contec AI-1204Z-PE PCIe AD Card is a versatile, high-speed analog-to-digital conversion solution offering four simultaneous 12-bit channels at up to 10 MS/s, integrated digital I/O, and counter functionality. Its combination of performance, flexibility, and robust software support makes it ideal for laboratory measurement, industrial automation, and embedded data acquisition systems. With a compact PCIe form factor, large onboard memory, and compatibility with major operating systems and development environments, the AI-1204Z-PE provides a reliable and efficient platform for precise, synchronized signal measurement and control.
Name: PCIe AD Card 10MS/s 12 Bit 4 Simultaneous Channels
Model: AI-1204Z-PE
Series: AI-1200 Series (PCI Express Analog-to-Digital Conversion Cards)
Article Number: AI-1204Z-PE
Manufacturer: Contec Co., Ltd.
The Contec AI-1204Z-PE is a high-performance PCI Express (PCIe) analog-to-digital (AD) conversion card designed for precision data acquisition, signal measurement, and industrial automation applications. It provides four simultaneous analog input channels with 12-bit resolution and a maximum sampling rate of 10 mega-samples per second (10 MS/s). The card integrates both analog and digital I/O capabilities, offering four digital inputs and four digital outputs, as well as a counter function with internal or external clocking options. With robust driver support for Windows and Linux, and compatibility with C-LOGGER and LabVIEW environments, the AI-1204Z-PE is engineered for flexible integration into measurement, control, and monitoring systems.
2. Key Features
- High-Speed Analog Input: Four simultaneous analog input channels capable of sampling at up to 10 MS/s with 12-bit resolution, ensuring accurate and synchronized data acquisition across multiple channels.
- Flexible Input Ranges: Supports both bipolar (±5 V, ±10 V) and unipolar (0–5 V, 0–10 V) voltage ranges, allowing adaptation to a wide variety of signal sources.
- Large Onboard Memory: Equipped with a 16 M-sample data FIFO or ring buffer, enabling continuous high-speed data capture without data loss.
- Digital I/O Integration: Includes 4 digital input (DI) and 4 digital output (DO) channels using LVTTL logic levels, suitable for control, triggering, or synchronization tasks.
- Counter Functionality: Built-in counter with selectable internal 4 MHz clock or external signal input, supporting event counting, frequency measurement, or timing applications.
- PCI Express Interface: High-bandwidth PCIe bus interface ensures fast data transfer between the card and host system, minimizing latency and maximizing throughput.
- Comprehensive Software Support: Compatible with Windows and Linux operating systems, with driver packages and APIs for C/C++, C-LOGGER, and LabVIEW environments.
- Compact and Lightweight Design: Measuring approximately 169.33 mm × 110.18 mm and weighing around 150 g, the card fits standard PCIe slots without requiring additional power connectors.
- Industrial-Grade Reliability: Designed for operation in environments ranging from 0 °C to 50 °C and 10–90 % relative humidity (non-condensing).
3. Technical Specifications
- Bus Interface: PCI Express (PCIe)
- Analog Input Channels: 4 simultaneous channels
- Resolution: 12 bits
- Maximum Sampling Rate: 10 MS/s (per channel, simultaneous)
- Input Type: Analog, non-isolated
- Input Voltage Ranges:
- Bipolar: ±5 V, ±10 V
- Unipolar: 0–5 V, 0–10 V
- Input Coupling: DC
- Input Impedance: High impedance (typical for voltage measurement applications; manufacturer standard)
- Data Buffer: 16 M-sample FIFO or ring buffer configuration
- Digital I/O:
- 4 × Digital Inputs (DI)
- 4 × Digital Outputs (DO)
- Logic Level: LVTTL (Low-Voltage TTL)
- Counter:
- Internal Clock: 4 MHz
- External Clock Input: Supported
- Function: Event counting, frequency measurement, or timing control
- Connectors:
- 1 × D-SUB 37-pin female connector (primary analog and digital I/O interface)
- 1 × 16-pin pin-header connector (auxiliary or expansion interface)
- Operating Temperature: 0 °C to 50 °C
- Operating Humidity: 10 % to 90 % RH (non-condensing)
- Dimensions: 169.33 mm (L) × 110.18 mm (H)
- Weight: Approximately 150 g
- Power Supply: Supplied via PCIe bus (no external power required)
- Material: PCB with metal bracket and standard PCIe edge connector
4. Functionality
The AI-1204Z-PE functions as a high-speed analog-to-digital conversion interface for PCIe-based systems. Each of its four analog input channels operates simultaneously, ensuring time-aligned sampling across multiple signals—critical for applications such as vibration analysis, waveform capture, and multi-sensor synchronization.
The card’s analog front end supports both bipolar and unipolar voltage ranges, allowing users to measure signals centered around zero volts or strictly positive voltages. The 12-bit resolution provides a balance between precision and speed, suitable for general-purpose measurement and control systems.
Digital I/O lines (4 DI and 4 DO) enable the card to interact with external devices such as sensors, actuators, or trigger sources. The LVTTL logic levels ensure compatibility with modern digital control systems. The onboard counter can operate using an internal 4 MHz clock or an external signal, providing flexibility for timing, event counting, or frequency measurement tasks.
Typical use cases include:
- Industrial process monitoring and control
- Laboratory data acquisition and signal analysis
- Automated test equipment (ATE)
- Embedded measurement systems
- Real-time waveform capture and analysis
- Synchronization with external triggers or digital control signals
The card communicates with the host PC via the PCIe bus, ensuring high-speed data transfer and low latency. Software drivers and APIs allow users to configure sampling parameters, trigger modes, and data acquisition routines programmatically.
5. Components & Accessories
Included Items:
- AI-1204Z-PE PCIe AD card
- D-SUB 37-pin female connector interface (onboard)
- 16-pin pin-header connector (onboard)
- Driver software package for Windows and Linux
- C-LOGGER data acquisition software
- LabVIEW support library and example programs
- User manual and installation guide
Optional Accessories (available separately):
- Shielded analog input cables (D-SUB 37 to BNC or terminal block)
- Digital I/O breakout boards
- External clock or trigger cables
- Mounting brackets or retention clips for secure installation in industrial PCs
Connectors:
- D-SUB 37-pin female: Provides access to analog input channels, digital I/O lines, and counter signals.
- 16-pin pin-header: Used for auxiliary connections, external clock input, or expansion modules.
6. Installation & Setup
The AI-1204Z-PE is designed for straightforward installation into any standard PCI Express slot (x1 or higher) on a desktop or industrial PC.
Installation Steps:
1. Power off the host system and disconnect it from the power source.
2. Insert the AI-1204Z-PE card into an available PCIe slot, ensuring proper alignment with the slot connector.
3. Secure the card using the bracket screw to prevent movement during operation.
4. Reconnect power and boot the system.
5. Install the appropriate driver package for Windows or Linux, provided by Contec.
6. Verify device recognition in the operating system’s device manager or equivalent interface.
7. Configure input ranges, sampling rates, and channel assignments using the provided software tools (C-LOGGER, LabVIEW, or custom applications via API).
Mounting Options:
- Standard PCIe bracket for desktop or rackmount PCs
- Compatible with industrial PC chassis supporting full-height PCIe cards
Configuration:
- Software-based configuration of input range (bipolar/unipolar)
- Selection of sampling rate and acquisition mode (continuous, triggered, or burst)
- Setup of digital I/O direction and logic levels
- Counter mode configuration (internal/external clock, event counting, or frequency measurement)
7. Performance & Capabilities
The AI-1204Z-PE delivers a combination of speed, precision, and reliability suitable for demanding data acquisition tasks.
- Sampling Performance: Up to 10 MS/s per channel with simultaneous sampling ensures accurate time correlation between channels.
- Resolution: 12-bit quantization provides 4096 discrete levels, balancing precision and throughput.
- Data Throughput: The PCIe interface supports high-speed data transfer to host memory, enabling real-time processing or storage.
- Buffering: The 16 M-sample FIFO or ring buffer allows continuous acquisition without data loss, even during high-speed operation.
- Digital I/O Performance: LVTTL-compatible lines support fast switching and reliable signal integrity for control or synchronization.
- Counter Accuracy: The internal 4 MHz clock provides stable timing for counting and frequency measurement; external clock input allows synchronization with external systems.
- Environmental Robustness: Operates reliably within 0–50 °C and 10–90 % RH, suitable for laboratory and light industrial environments.
Limitations:
- Analog inputs are non-isolated, so care must be taken to avoid ground loops or high common-mode voltages.
- The 12-bit resolution may not be sufficient for ultra-high-precision applications requiring 16-bit or higher ADCs.
- The card is designed for voltage input only; current measurement requires external shunt resistors or conditioning circuits.
8. Standards & Compliance
- Bus Standard: PCI Express (compliant with PCIe specifications)
- Digital Logic Standard: LVTTL (Low-Voltage TTL)
- Operating System Support: Windows and Linux (driver packages provided)
- Software Compatibility: C-LOGGER, LabVIEW, and custom applications via Contec API
- Environmental Compliance: Designed for RoHS compliance (Restriction of Hazardous Substances)
- Safety and EMC: Conforms to standard PC peripheral safety and electromagnetic compatibility requirements (specific certifications per Contec documentation)
The AI-1204Z-PE adheres to industry standards for PCIe-based data acquisition hardware, ensuring interoperability with a wide range of systems and software environments.
9. Additional Information
- Warranty: Standard manufacturer warranty (typically one year; refer to Contec warranty policy) covering defects in materials and workmanship.
- Technical Support: Contec provides comprehensive technical support, including driver updates, software libraries, and application notes.
- Maintenance: The card requires minimal maintenance; periodic inspection for dust accumulation and secure connector seating is recommended.
- Firmware & Software Updates: Driver and firmware updates are available through Contec’s official website to ensure compatibility with new operating systems and software environments.
- Documentation: Detailed user manuals, pinout diagrams, and programming references are provided to facilitate integration and development.
- Lifecycle & Availability: As part of Contec’s industrial-grade product line, the AI-1204Z-PE is designed for long-term availability and stable supply for OEM and system integrator applications.
Summary
The Contec AI-1204Z-PE PCIe AD Card is a versatile, high-speed analog-to-digital conversion solution offering four simultaneous 12-bit channels at up to 10 MS/s, integrated digital I/O, and counter functionality. Its combination of performance, flexibility, and robust software support makes it ideal for laboratory measurement, industrial automation, and embedded data acquisition systems. With a compact PCIe form factor, large onboard memory, and compatibility with major operating systems and development environments, the AI-1204Z-PE provides a reliable and efficient platform for precise, synchronized signal measurement and control.
Keine Manuals/Kataloge verfügbar.
- ATUH-16(PCI) - Extra inputs 32SE/16DI for AD12-16U(PCI)-series
- ATII-8A - Isolated 8 differential inputs panel
- ATSS-16 - Sample & hold panel for 16 single ended inputs
- ATLF-8 - 8 channel signal conditioning panel
- ATP-16 - 16 BNC channel single ended, D-sub 37f
- DTP-3C - General purpose screw terminal panel, 2*22 large screw
- DTP-4C - General purpose M2.5 screw terminal panel, 4*10 screw blocks
- EPD-37A - DIN-rail mountable unit with DB-37f
