Comprehensive Product Summary – APC-3596 15" XGA Ultra Slim IP65 Stainless Steel Fanless Panel PC

---

### 1. Product Overview

Product Name: APC-3596 15" XGA Ultra Slim IP65 Stainless Steel Fanless Panel PC
Model Number: APC-3596
Series: Industrial Stainless Steel Fanless Panel PC Series
Article Number: APC-3596
Manufacturer: Aplex Technology Inc.

The APC-3596 is a rugged, industrial-grade 15-inch fanless panel PC designed for demanding environments requiring durability, hygiene, and reliability. Engineered with a stainless steel enclosure and IP65-rated protection, it is suitable for applications in food processing, pharmaceuticals, automation, and outdoor industrial control. The system integrates a 15" XGA TFT LCD display, supports Intel® Celeron® M and Pentium® M processors, and offers flexible I/O configurations for diverse connectivity requirements.

---

### 2. Key Features

- 15" XGA TFT LCD Display: High-resolution 1024 × 768 display with 400 cd/m² luminance and 50,000-hour backlight lifetime for clear visibility in industrial environments.
- Ultra Slim Stainless Steel Design: Compact and robust stainless steel chassis ensures corrosion resistance and easy cleaning, ideal for hygienic or harsh conditions.
- IP65 Waterproof Protection: Both front and rear panels are sealed to IP65 standards, providing complete protection against dust and water ingress.
- Fanless Architecture: Passive cooling design eliminates moving parts, reducing maintenance and improving reliability in dusty or vibration-prone environments.
- Flexible CPU Options: Supports Intel® Celeron® M 1.0 GHz up to Pentium® M 1.6 GHz processors, balancing performance and power efficiency.
- Expandable Memory: One 200/266-pin DDR SO-DIMM slot supporting up to 1 GB of system memory.
- Versatile I/O Configurations: Available in three configurations—Basic, Standard, and Full Function I/O—offering combinations of COM, USB, LAN, VGA, and audio ports.
- Touchscreen Options: Available with enhanced safety glass or optional analog resistive touchscreen for interactive control.
- Wide DC Power Input Range: Operates from 11 to 28 VDC, suitable for industrial power systems and mobile installations.
- VESA Mounting Compatibility: Supports VESA 75 mm mounting for flexible installation on walls, arms, or panels.
- Low Power Consumption: Energy-efficient design suitable for continuous operation in embedded and industrial applications.
- CE and FCC Class A Certified: Meets international standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

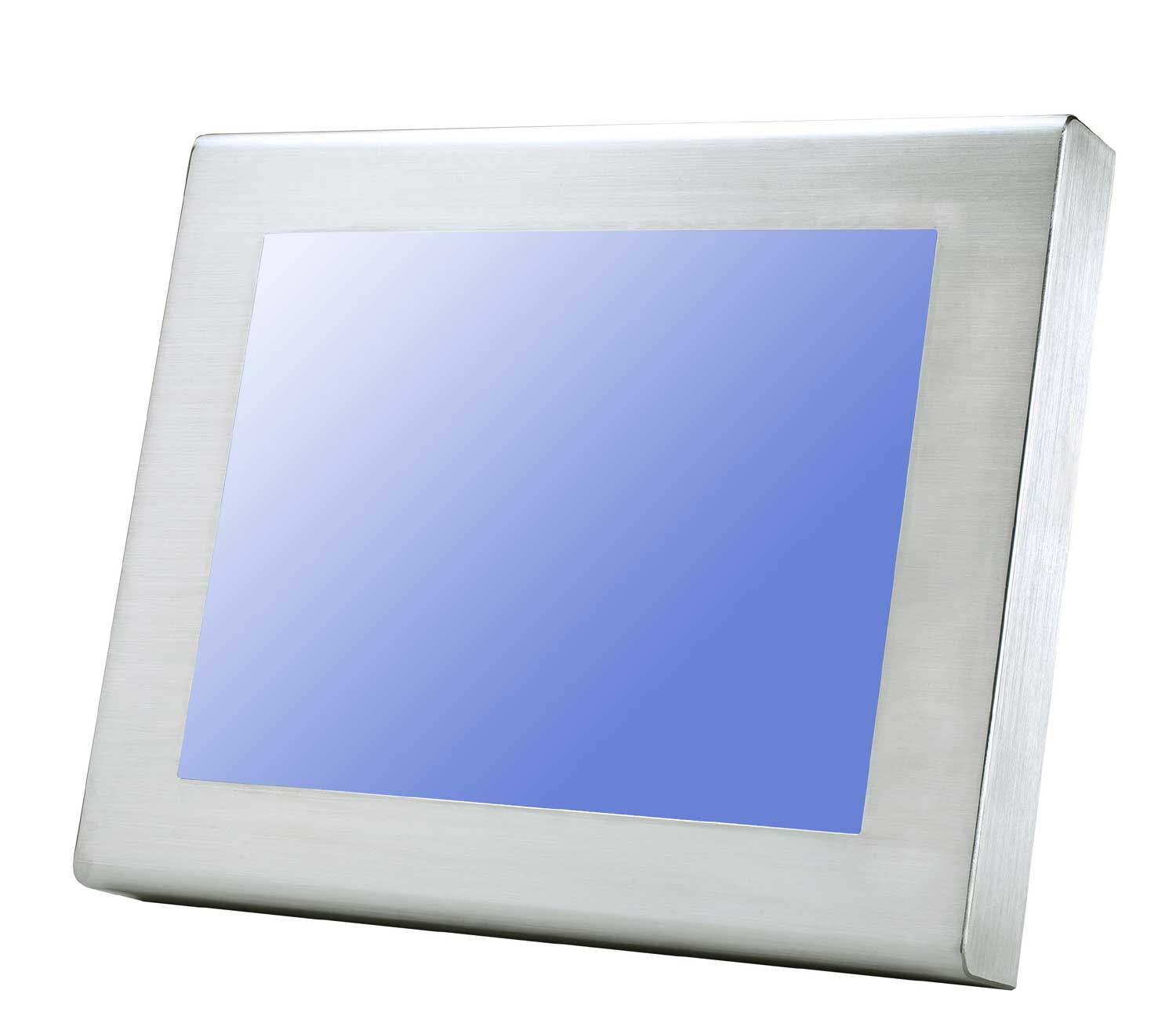

Display:
- Size: 15-inch TFT LCD
- Resolution: 1024 × 768 (XGA)
- Brightness: 400 cd/m²
- Backlight Lifetime: 50,000 hours
- Touchscreen: Optional analog resistive or enhanced safety glass

Processor (CPU):
- Intel® Celeron® M 1.0 GHz up to Intel® Pentium® M 1.6 GHz

Memory (DRAM):
- 200/266-pin DDR SO-DIMM, up to 1 GB

Storage:
- Space for 1 × 2.5" HDD
- 1 × CompactFlash (CF) slot

Expansion:
- 1 × Mini PCI slot
- Optional PCMCIA slot

I/O Interfaces:

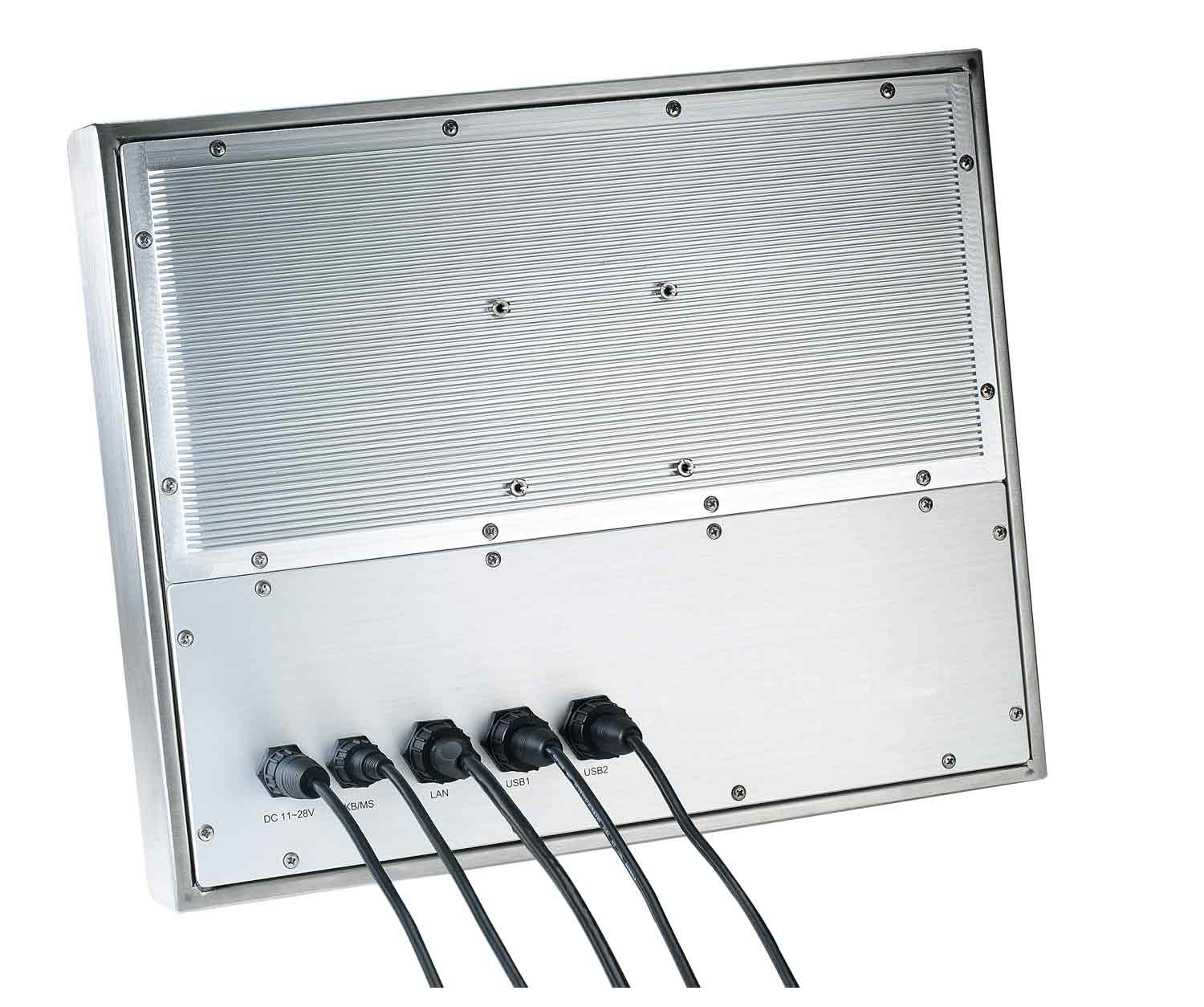

- Basic I/O:
- 1 × DC power input
- 1 × PS/2 keyboard & mouse
- 1 × Ethernet (10/100 Mbps)
- 2 × USB 2.0

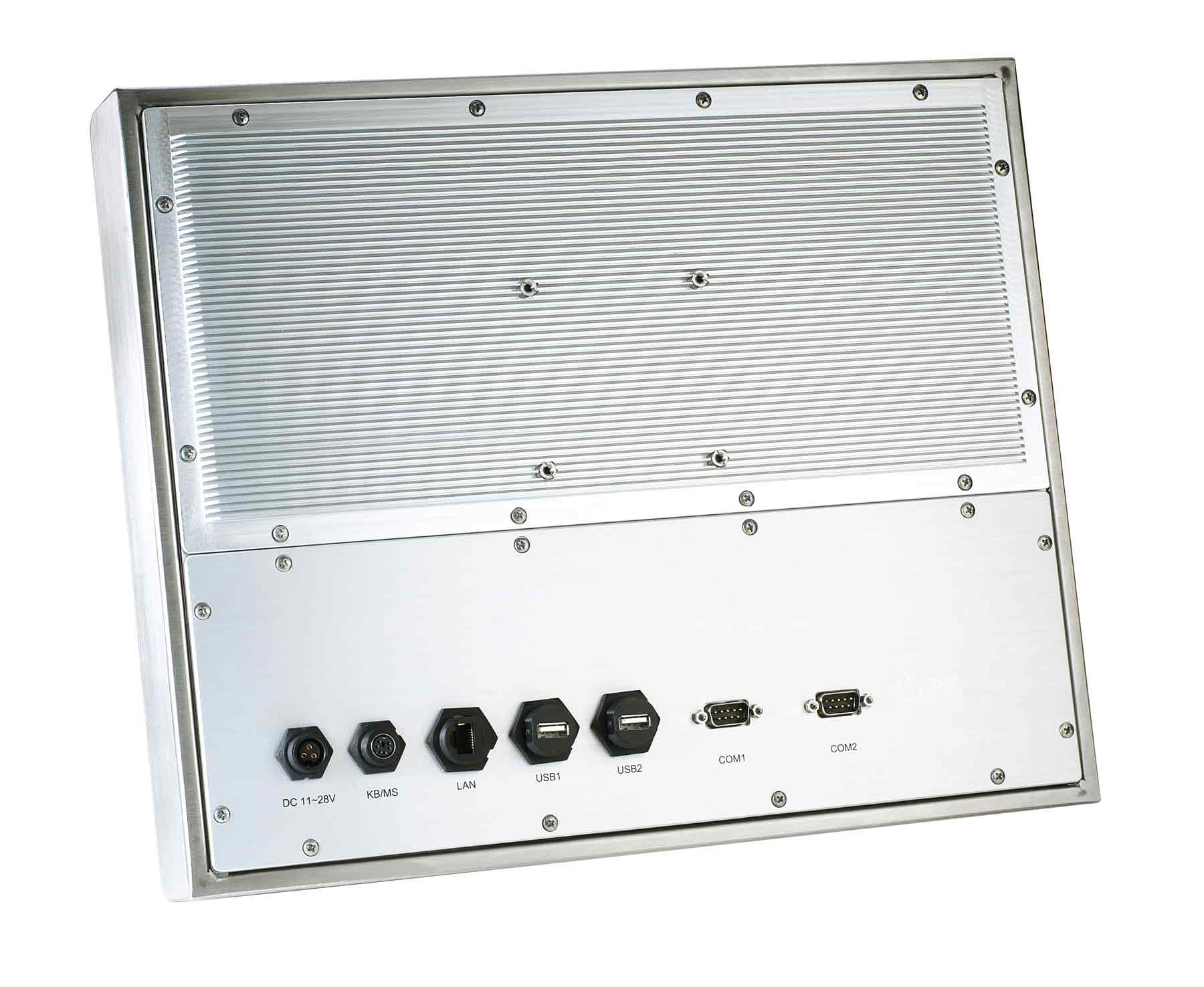

- Standard I/O:
- 1 × DC power input
- 1 × PS/2 keyboard & mouse
- 1 × Ethernet (10/100 Mbps)
- 2 × USB 2.0
- 2 × COM ports
- Full Function I/O:
- 1 × DC power input
- 1 × PS/2 keyboard & mouse
- 1 × Ethernet (10/100 Mbps)
- 2 × USB 2.0
- 2 × COM ports
- 1 × VGA output
- 1 × Audio port

Power Input:
- DC 11–28 V

Mechanical Construction:
- Material: Stainless steel enclosure
- Dimensions: 399 mm (W) × 324 mm (H) × 63 mm (D)
- Mounting: VESA 75 mm

Environmental Conditions:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 5%–90% @ 40°C, non-condensing

Ingress Protection:
- NEMA 4 / IP65 compliant front bezel (front and back sealed)

Certifications:
- CE / FCC Class A

---

### 4. Functionality

The APC-3596 operates as a fully integrated industrial panel PC, combining computing, display, and control interfaces in a single sealed unit. It is designed for environments where dust, moisture, and temperature variations are common. The fanless design ensures silent operation and long-term reliability, while the stainless steel housing provides resistance to corrosion and facilitates easy cleaning, making it suitable for food, beverage, and pharmaceutical production lines.

Typical Use Cases and Applications:
- Industrial Automation: Machine control, production monitoring, and process visualization.
- Food & Beverage Processing: Hygienic design suitable for washdown areas.
- Pharmaceutical Manufacturing: Contamination-resistant enclosure for cleanroom environments.
- Marine and Outdoor Systems: IP65 protection ensures resistance to water spray and humidity.
- Kiosk and HMI Terminals: Interactive control panels for operators and technicians.
- Transportation and Vehicle Systems: Wide DC input range supports mobile and vehicular installations.

Compatibility:
The system supports standard operating systems compatible with Intel® Celeron® M and Pentium® M architectures, including Windows Embedded, Linux, and other industrial OS distributions. The available I/O ports allow integration with PLCs, sensors, and industrial networks.

---

### 5. Components & Accessories

Included Components:
- APC-3596 Panel PC unit
- Stainless steel enclosure with integrated 15" XGA display
- DC power input connector
- Mounting brackets (VESA 75 compatible)
- User documentation and installation guide

Optional Accessories:
- Analog resistive touchscreen panel
- PCMCIA expansion module
- 2.5" HDD or SSD storage device
- CompactFlash memory card
- Power adapter (11–28 VDC external supply)
- Wall or arm mounting kits
- Additional I/O expansion cables

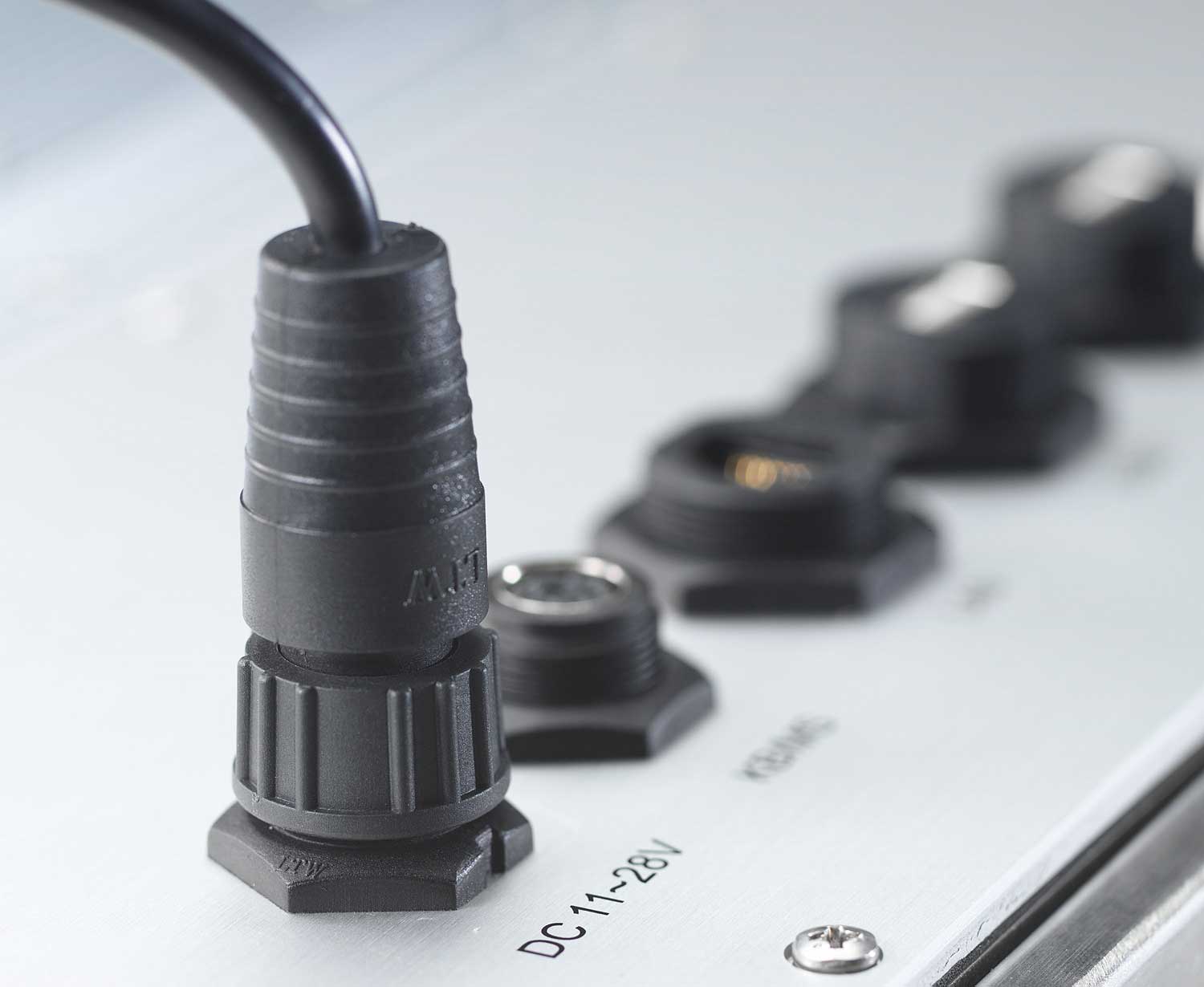

Connectors:
- DC power input jack
- PS/2 keyboard/mouse port
- Ethernet RJ-45 port (10/100 Mbps)
- USB 2.0 Type-A ports (×2)
- COM ports (RS-232/422/485 depending on configuration)
- VGA output (Full I/O version)
- Audio jack (Full I/O version)

---

### 6. Installation & Setup

Requirements:
- DC power source within 11–28 V range
- Mounting surface or bracket compatible with VESA 75 mm pattern
- Appropriate environmental conditions (0–50°C, non-condensing humidity)

Mounting Options:
- VESA 75 Mounting: Standard 75 × 75 mm pattern for wall, arm, or panel installation.
- Panel Mounting: Optional brackets for flush integration into control panels or enclosures.

Configuration Steps:
1. Secure the unit using VESA or panel mount brackets.
2. Connect DC power input and verify voltage range.
3. Attach peripheral devices (keyboard, mouse, Ethernet, USB, COM).
4. Install storage media (HDD or CF card) if required.
5. Power on and configure BIOS or OS settings.
6. Calibrate touchscreen (if equipped).

The fanless design simplifies installation by eliminating ventilation requirements, and the sealed enclosure allows for flexible orientation without concern for airflow direction.

---

### 7. Performance & Capabilities

Processing Performance:
The APC-3596 supports Intel® Celeron® M 1.0 GHz and Pentium® M 1.6 GHz CPUs, providing a balance between energy efficiency and computational capability for industrial control and HMI applications.

Memory and Storage:
Up to 1 GB DDR SO-DIMM memory ensures stable multitasking for embedded applications. The system accommodates a 2.5" HDD or SSD and a CompactFlash slot for solid-state storage, offering flexibility between performance and durability.

Display Performance:
The 15" XGA display delivers 400 cd/m² brightness, ensuring visibility under various lighting conditions. The 50,000-hour backlight lifetime supports long-term continuous operation.

Power Efficiency:
Operating on 11–28 VDC input, the system is optimized for low power consumption, suitable for 24/7 operation in industrial environments.

Environmental Robustness:
The stainless steel enclosure and IP65 sealing protect against dust, water jets, and corrosion, enabling deployment in washdown or outdoor areas.

Limitations:
- Maximum memory capacity limited to 1 GB.
- Display resolution fixed at 1024 × 768.
- No built-in wireless connectivity (requires external module).
- Operating temperature limited to 0–50°C (not suitable for extreme cold or heat without additional protection).

---

### 8. Standards & Compliance

Ingress Protection:
- IP65 (front and back) / NEMA 4 compliant front bezel for dust and water resistance.

Electrical and Safety Standards:
- CE Certified (European Conformity)
- FCC Class A (U.S. Federal Communications Commission)

Industry Standards:
- VESA 75 mounting standard
- USB 2.0, Ethernet 10/100 Mbps, and RS-232/422/485 serial communication standards

These certifications ensure the APC-3596 meets industrial-grade requirements for electromagnetic compatibility, safety, and environmental protection.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal use conditions.

Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Integration assistance and customization options are available for OEM and system integrator clients.

Maintenance:
The fanless design minimizes maintenance requirements. Periodic cleaning of the stainless steel surface and inspection of connectors are recommended. The sealed enclosure prevents dust accumulation, reducing downtime.

Software and Firmware Updates:
Compatible with standard BIOS and OS-level updates. Firmware and driver updates are available from Aplex’s support portal to ensure compatibility with new operating systems and peripheral devices.

Lifecycle and Reliability:
Designed for long-term industrial deployment, the APC-3596 offers stable performance, extended component availability, and consistent operation in continuous-use environments.

---

### Summary

The Aplex APC-3596 15" XGA Ultra Slim IP65 Stainless Steel Fanless Panel PC is a robust, hygienic, and reliable computing platform tailored for industrial and outdoor applications. Its stainless steel construction, IP65-rated sealing, and fanless architecture make it ideal for environments requiring durability, cleanliness, and silent operation. With flexible I/O configurations, wide DC power input, and support for Intel® Celeron® M and Pentium® M processors, it delivers dependable performance for automation, control, and monitoring tasks.

Engineered for longevity and compliance with CE and FCC standards, the APC-3596 represents a versatile solution for industries demanding both performance and protection in a compact, ultra-slim form factor.
