Comprehensive Product Summary – APC-3780 17" SXGA Ultra Slim Celeron M Stainless Steel Fanless Panel PC

---

### 1. Product Overview

Product Name: APC-3780
Model Number: APC-3780
Series: Ultra Slim Stainless Steel Fanless Panel PC Series
Article Number: APC-3780
Manufacturer: Aplex Technology Inc.

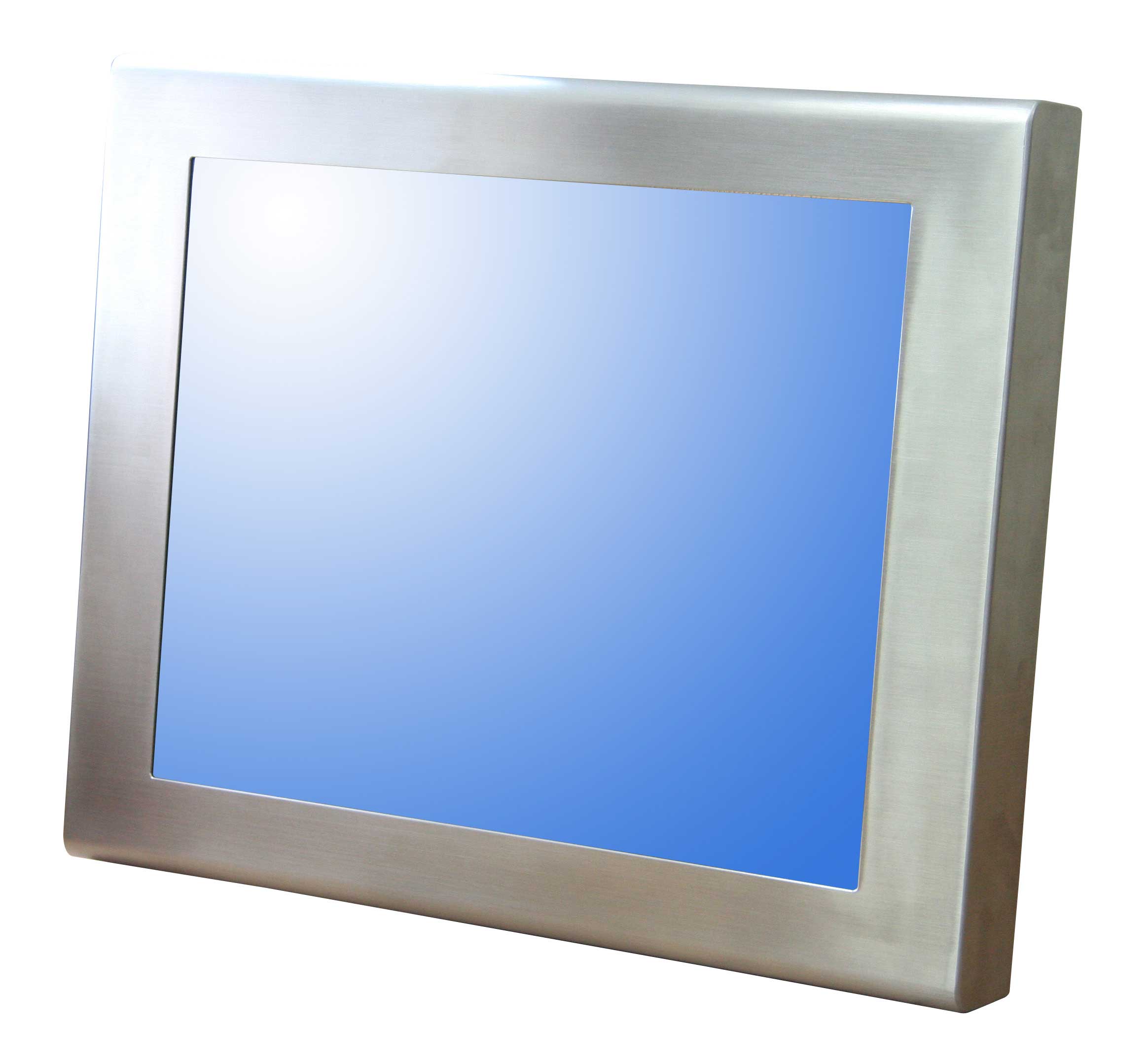

The APC-3780 is a 17-inch SXGA Ultra Slim Fanless Panel PC designed for industrial and commercial applications requiring high durability, low power consumption, and reliable performance in demanding environments. Engineered by Aplex Technology, a recognized manufacturer of industrial computing solutions, this model integrates a Celeron M processor in a stainless steel enclosure, offering a robust, hygienic, and corrosion-resistant design suitable for food processing, automation, and cleanroom environments.

---

### 2. Key Features

- 17" SXGA LCD Display: High-resolution 1280 × 1024 display providing sharp image quality and clear visibility for industrial control interfaces.
- Ultra Slim Design: Compact form factor with a depth of only 67.7 mm, enabling installation in space-constrained environments.
- Fanless Architecture: Passive cooling system ensures silent operation, reduced maintenance, and improved reliability in dusty or vibration-prone areas.
- Processor Options: Supports Intel® Celeron® M 1.0 GHz up to Pentium® 4 M 1.8 GHz, balancing performance and energy efficiency.
- Memory Capacity: Supports up to 1 GB RAM, suitable for embedded and control applications.
- Comprehensive I/O Connectivity:
- 2 × COM ports (serial communication)
- 4 × USB 2.0 ports
- 1 × VGA output
- 1 × LAN port for network connectivity
- Storage Options:
- 1 × 2.5" HDD bay for internal storage
- 1 × CompactFlash (CF) slot for solid-state storage or OS deployment
- Display Protection: Equipped with enhanced safety glass or optional resistive touch screen for interactive control and protection against impact or contamination.
- Ingress Protection: IP65-rated front panel (NEMA 4 equivalent) ensures resistance to dust, water jets, and cleaning agents, ideal for industrial and hygienic environments.
- Power Efficiency: Operates on 16–36 VDC input voltage range, supporting flexible power configurations and low energy consumption.
- Mounting Flexibility: VESA 75 mm mount compatibility for easy integration into panels, walls, or machinery.
- Certifications: Compliant with CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Specifications:
- Display Size: 17 inches (diagonal)
- Resolution: 1280 × 1024 pixels (SXGA)
- Brightness (Luminance): 300 cd/m²
- Backlight Lifetime: 50,000 hours (typical)
- Display Type: TFT LCD
- Touchscreen (Optional): Resistive touch panel available

Mechanical Specifications:
- Enclosure Material: Stainless steel (corrosion-resistant, hygienic surface)
- Dimensions: 432 mm (W) × 358 mm (H) × 67.7 mm (D)
- Weight: Not specified (approx. 6–8 kg typical for stainless steel 17" panel PCs)
- Mounting Options: VESA 75 mm standard mount
- Front Panel Rating: NEMA 4 / IP65 compliant (front side only)

Electrical Specifications:
- Power Input: DC 11–28 V (nominal operating range 16–36 VDC supported)
- Power Consumption: Low power design (exact wattage dependent on CPU configuration)

Environmental Specifications:
- Operating Temperature: 0°C to +50°C
- Storage Temperature: –20°C to +60°C
- Humidity: Typically 10–90% RH, non-condensing (standard for industrial panel PCs)

Certifications & Compliance:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The APC-3780 functions as a fully integrated industrial panel PC, combining computing, display, and control capabilities in a single sealed unit. It is designed for fanless operation, utilizing passive heat dissipation through its stainless steel chassis. This design eliminates moving parts, reducing failure points and maintenance requirements.

Typical Use Cases and Applications:
- Industrial Automation: Human-Machine Interface (HMI) for production lines, process monitoring, and control systems.
- Food & Beverage Industry: Stainless steel enclosure and IP65 front protection make it suitable for washdown environments and hygienic applications.
- Pharmaceutical Manufacturing: Ideal for cleanroom installations where contamination control is critical.
- Transportation & Logistics: Used in vehicle-mounted or warehouse control systems requiring rugged, vibration-resistant computing.
- Public Information Systems: Suitable for kiosks, terminals, and digital signage in harsh or outdoor environments.

Compatibility:
- Compatible with standard operating systems such as Windows Embedded, Linux, or other x86-based OS distributions.
- Supports standard peripheral connections via USB, COM, and LAN interfaces.
- VGA output allows connection to external displays or projectors for extended visualization.

---

### 5. Components & Accessories

Included Components:
- APC-3780 Panel PC unit
- Power connector (DC input terminal)
- Mounting brackets or screws (for VESA 75 installation)
- User manual and quick installation guide

Optional Accessories:
- Resistive Touch Screen: For interactive control and data input.
- 2.5" HDD or SSD: For internal data storage.
- CompactFlash Card: For OS installation or data logging.
- Power Adapter: External AC-to-DC adapter (if required for specific installations).
- Mounting Kits: Wall-mount or panel-mount accessories depending on installation environment.

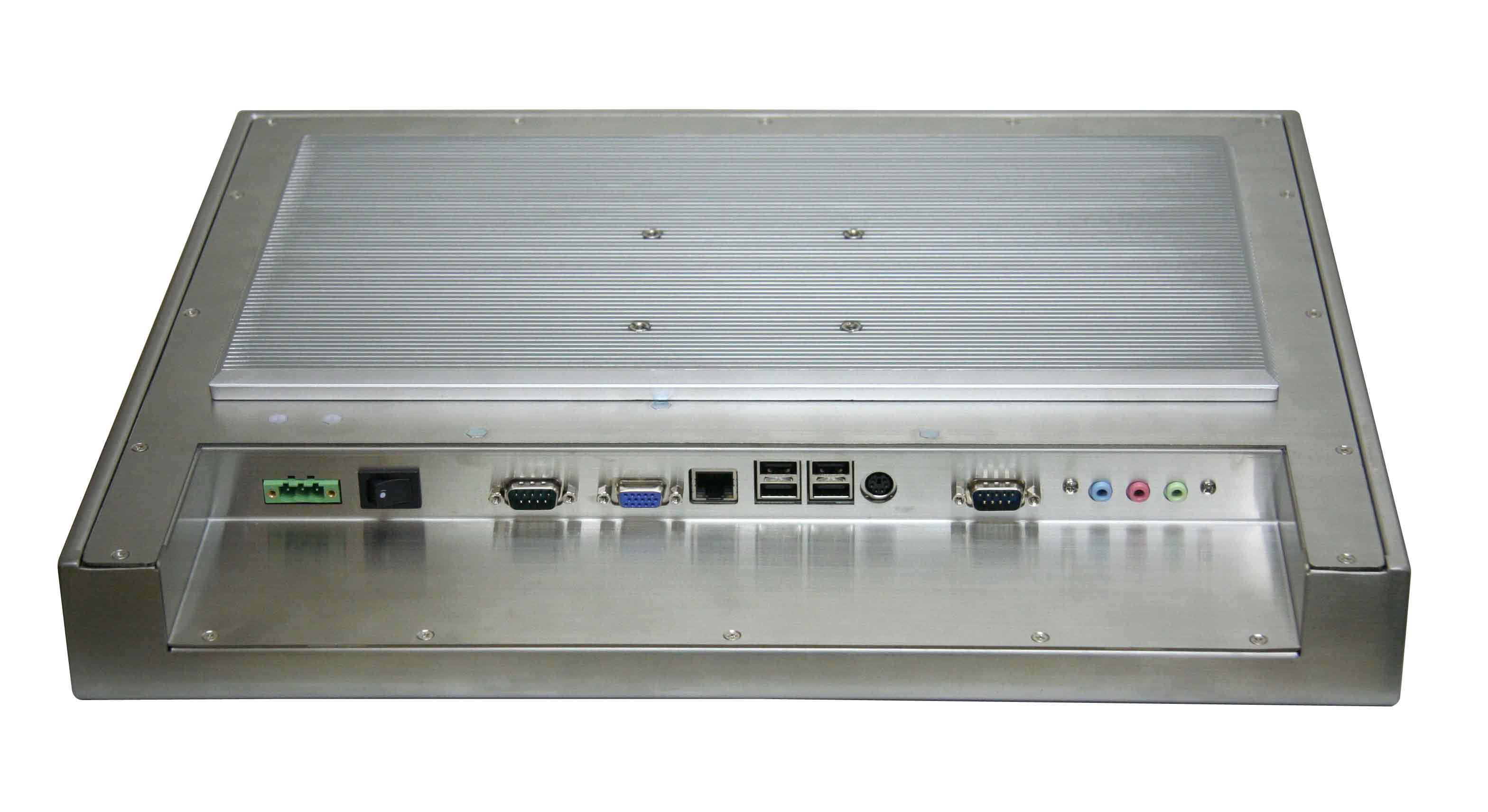

Connectors and Interfaces:
- 2 × COM ports (RS-232/422/485 configurable depending on model)
- 4 × USB 2.0 ports for peripheral devices
- 1 × VGA port for external display connection
- 1 × LAN (Ethernet) port for network communication
- 1 × DC power input terminal (11–28 VDC)

---

### 6. Installation & Setup

Installation Requirements:
- DC power source within 11–28 V range (recommended 16–36 VDC for stable operation).
- Mounting surface or bracket compatible with VESA 75 mm standard.
- Adequate ventilation space around the unit for passive heat dissipation.

Mounting Options:
- VESA 75 Mount: Standardized mounting pattern for wall, arm, or panel integration.
- Panel Mount (optional): Can be integrated into control cabinets or operator panels using mounting brackets.

Setup Procedure:
1. Secure the unit to the mounting surface using VESA 75-compatible hardware.
2. Connect DC power input to a regulated power source.
3. Attach peripherals (keyboard, mouse, USB devices) as needed.
4. Connect LAN cable for network access.
5. Power on the system and install the desired operating system or software environment.
6. Calibrate the optional touch screen if equipped.

Configuration:
- BIOS settings accessible for hardware configuration.
- Supports boot from HDD or CompactFlash.
- Compatible with remote management tools for industrial network integration.

---

### 7. Performance & Capabilities

Processing Power:
- Intel® Celeron® M 1.0 GHz (standard configuration)
- Optional upgrade to Pentium® 4 M 1.8 GHz for higher performance applications

Memory:
- Up to 1 GB RAM (DDR or DDR2 depending on motherboard configuration)

Storage:
- 1 × 2.5" HDD bay for mechanical or solid-state drives
- 1 × CompactFlash slot for embedded OS or data storage

Graphics:
- Integrated graphics controller supporting SXGA resolution (1280 × 1024)
- VGA output for external display connection

Networking:
- Integrated Ethernet LAN port for wired network connectivity

Performance Characteristics:
- Fanless Operation: Ensures silent, dust-free performance.
- Low Power Consumption: Optimized for continuous operation in industrial environments.
- Reliability: Designed for 24/7 operation with extended component lifespan.

Limitations:
- Limited memory capacity (up to 1 GB) restricts use to lightweight or embedded applications.
- No built-in wireless connectivity (requires external adapter).
- Front IP65 protection only (rear side not sealed against water ingress).

---

### 8. Standards & Compliance

Ingress Protection:
- Front Panel: IP65 / NEMA 4 compliant, resistant to dust and water jets.
- Rear Panel: Not sealed; requires installation in protected environments if exposed to moisture.

Certifications:
- CE (Conformité Européenne): Ensures compliance with European safety, health, and environmental protection standards.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.

Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of industrial mounting systems.
- RoHS Compliance (assumed for Aplex products): Restriction of Hazardous Substances for environmental safety.

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty (typically 1–2 years depending on region and distributor).
- Covers defects in materials and workmanship under normal operating conditions.

Technical Support:
- Provided by Aplex Technology and authorized distributors.
- Includes online documentation, driver downloads, and firmware updates.

Maintenance:
- Minimal maintenance required due to fanless design.
- Periodic cleaning of front panel recommended to maintain IP65 integrity.
- Ensure proper sealing of connectors in washdown environments.

Software & Updates:
- Compatible with Windows Embedded, Windows XP/7 (depending on CPU), and Linux distributions.
- BIOS and firmware updates available through manufacturer support channels.

Serviceability:
- Easy access to internal storage and memory for upgrades or replacement.
- Modular design simplifies field maintenance and component replacement.

Lifecycle & Reliability:
- Designed for long-term industrial deployment with extended availability of components.
- 50,000-hour backlight life ensures consistent display performance over years of operation.

---

### Summary

The Aplex APC-3780 is a robust, stainless steel, 17-inch fanless panel PC engineered for industrial and hygienic environments requiring reliability, durability, and low maintenance. With its Celeron M processor, SXGA display, IP65 front protection, and VESA 75 mounting, it provides a versatile solution for automation, control, and monitoring applications. Its fanless design, wide DC input range, and compliance with CE/FCC standards make it suitable for continuous operation in demanding conditions.

This model exemplifies Aplex’s commitment to delivering industrial-grade computing solutions that combine performance, efficiency, and rugged design for mission-critical applications.
