Comprehensive Product Summary – ORing CPGS‑9080‑C Industrial Managed Ethernet Switch Card
*(Approx. 12,000 characters / ~3,000 tokens)*

---

### 1. Product Overview

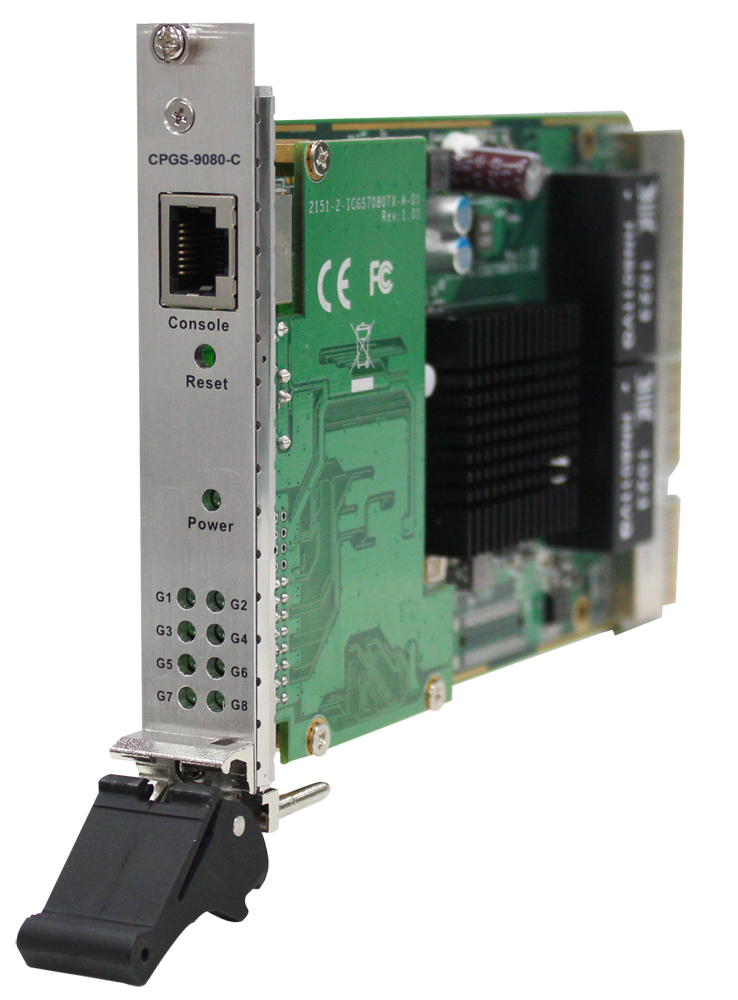

Product Name: CPGS‑9080‑C
Article Number: cPGS‑9080‑C
Series: CompactPCI 3U Industrial Managed Switch Series
Model: CPGS‑9080‑C (Version 1.0)
Manufacturer: ORing Industrial Networking Corp.
Product Type: 3U CompactPCI EN50155‑compliant 8‑port managed Gigabit Ethernet switch card

The ORing CPGS‑9080‑C is a ruggedized, high‑performance managed Ethernet switch card designed for industrial and transportation applications. It integrates eight 10/100/1000Base‑T(X) ports within a CompactPCI (cPCI) 3U, 4HP form factor and is fully compliant with EN50155 railway standards. The unit supports advanced redundancy, security, and management features, making it ideal for mission‑critical networks in rolling stock, factory automation, and vehicle systems.

---

### 2. Key Features

- EN50155 Compliance: Certified for railway and rolling stock environments, ensuring vibration, shock, and temperature resilience.
- CompactPCI 3U / 4HP Form Factor: Hot‑swappable card compatible with PICMG 2.0 CompactPCI backplanes.
- 8× Gigabit Ethernet Ports: Eight 10/100/1000Base‑T(X) ports via CompactPCI socket with auto MDI/MDIX.
- Redundant Network Technologies:
- O‑Ring proprietary redundancy with <30 ms recovery over 250 nodes.
- Open‑Ring interoperability with third‑party ring systems.
- O‑Chain multi‑ring redundancy topology.
- IEC 62439‑2 MRP (Media Redundancy Protocol) support.
- MSTP/RSTP/STP (IEEE 802.1s/w/D) compatibility.
- High‑Performance Switching: 16 Gbps switching bandwidth, 7 µs latency, 8 priority queues, 8 K MAC table.
- Jumbo Frame Support: Up to 9.6 KB frame size for high‑throughput applications.
- Energy‑Efficient Ethernet: IEEE 802.3az compliant for reduced power consumption.
- Advanced Security:
- HTTPS/SSH, SNMPv3, 802.1x, TACACS+, ACL, and RADIUS authentication.
- Device Binding (IP/MAC/Port) and DoS/DDoS auto‑prevention.
- Comprehensive Management:
- Web GUI, Telnet, CLI (RS‑232 console), and Windows utility (Open‑Vision).
- SNMP v1/v2c/v3, RMON, LLDP, Modbus TCP, and SMTP client support.
- QoS and Traffic Control: Application‑based QoS, IP‑based bandwidth management, VLAN tagging (802.1Q), and DiffServ/TOS.
- Wide Temperature Range: ‑40 °C to +70 °C operation; ‑40 °C to +85 °C storage.
- Low Power Consumption: ~6.2 W typical, powered directly from CompactPCI bus (12 V DC).
- Long‑Term Reliability: 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Ethernet Ports:
- 8 × 10/100/1000Base‑T(X) CompactPCI interface (PICMG 2.0 compliant)
- Auto‑negotiation and auto MDI/MDIX

Switching Performance:
- Switching bandwidth: 16 Gbps
- Switching latency: 7 µs
- MAC address table: 8 K entries
- Priority queues: 8
- VLANs: up to 4096
- IGMP multicast groups: 128 per VLAN
- Jumbo frame: 9.6 KB

Supported Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3x (Flow Control), 802.3ad (LACP), 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1p (CoS), 802.1Q (VLAN Tagging), 802.1x (Authentication), 802.1AB (LLDP), 802.3az (Energy‑Efficient Ethernet).

Security & Management:
- HTTPS/SSH encryption
- SNMP v1/v2c/v3, RMON
- 802.1x user authentication, TACACS+, ACL
- Device Binding (IP/MAC/Port)
- DoS/DDoS auto‑prevention
- Radius centralized password management
- DHCP Server/Client/Relay
- Modbus TCP, SMTP Client
- LLDP topology discovery

Power:
- Input: 12 V DC via CompactPCI bus
- Typical consumption: 6.2 W
- Overload current protection: Yes

Physical Characteristics:
- Dimensions: 20 (W) × 209 (D) × 130.7 (H) mm (0.79 × 8.23 × 5.15 in)
- Weight: 224 g
- Casing: IP‑30 rated metal card

Environmental:
- Operating temperature: ‑40 °C to +70 °C
- Storage temperature: ‑40 °C to +85 °C
- Humidity: 5 % – 95 % non‑condensing

LED Indicators:
- Power (green)
- Status (green)
- Ring Master (green)
- Ring (green)
- Fault (amber)
- Port Link/Activity (green per port)

Compliance & Safety:
- EMI: FCC Part 15 Class A, CISPR EN55022 Class A
- Railway: EN50155 (EN50121‑3‑2, EN55011, EN50121‑4)
- EMS: EN61000‑4‑2/3/4/5/6/8/11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1

---

### 4. Functionality

Operation Principle:
The CPGS‑9080‑C acts as a managed Layer 2 Ethernet switch within a CompactPCI system. It connects up to eight Gigabit Ethernet channels through the backplane, providing deterministic, redundant, and secure data communication for industrial control networks.

Use Cases:
- Railway and rolling stock communication systems (EN50155)
- Factory automation and process control
- Vehicle and transportation networking
- Power substations and energy systems
- Industrial SCADA and Modbus TCP networks

Compatibility:
- Fully compliant with PICMG 2.0 CompactPCI backplanes
- Interoperable with other ORing switches and third‑party devices via Open‑Ring and standard Ethernet protocols
- Supports IPv4 and IPv6 addressing

Network Redundancy:
- O‑Ring: <30 ms recovery across 250 nodes
- Open‑Ring: cross‑vendor ring interoperability
- O‑Chain: multi‑ring compound topology
- MRP: IEC 62439‑2 standard redundancy
- STP/RSTP/MSTP: IEEE 802.1D/w/s compatibility

Security & Access Control:
- Port‑based 802.1x authentication
- MAC‑based port security
- ACL filtering and rate limiting
- Device Binding (IP/MAC/Port)
- DoS/DDoS detection and blocking
- HTTPS/SSH encrypted management sessions

Quality of Service (QoS):
- 8 priority queues
- 802.1p CoS and DiffServ/TOS classification
- Application‑based QoS by TCP/UDP port
- IP‑based bandwidth management
- Storm control and traffic policing

Management Interfaces:
- Web‑based GUI (HTTP/HTTPS)
- Telnet and CLI (RS‑232 console 115200 bps, 8‑N‑1)
- SNMP v1/v2c/v3 and RMON
- Windows utility Open‑Vision for centralized monitoring
- Modbus TCP for SCADA integration

---

### 5. Components & Accessories

Included in Package:
- 1 × CPGS‑9080‑C switch card
- 1 × RS‑232 console cable (RJ‑45 to DB‑9 female)
- 1 × Quick Installation Guide
- 1 × ORing Tool CD (drivers and documentation)

Optional Accessories:
- Open‑Vision M500: Windows‑based network management suite supporting up to 500 IP devices.

Connectors:
- CompactPCI J1/J2 backplane connectors for Ethernet and power
- RJ‑45 console port for serial management

---

### 6. Installation & Setup

Requirements:
- CompactPCI 3U chassis with available slot and 12 V DC bus power
- PC with web browser or terminal software for configuration

Installation Steps:
1. Power down the CompactPCI chassis (hot‑swap supported if system allows).
2. Remove the slot cover and insert the CPGS‑9080‑C card into the cPCI connector.
3. Secure the card with bracket screws and ejection levers.
4. Connect the console cable to a PC for initial setup (115200 bps, 8‑N‑1).
5. Power on the chassis; verify Power LED = ON.
6. Access the web interface at default IP 192.168.10.1 (admin/admin).

Configuration Interfaces:
- Web GUI for system, VLAN, QoS, redundancy, and security settings.
- CLI via console or Telnet for advanced configuration.
- SNMP and Open‑Vision for centralized management.

Reset Options:
- Press Reset 2–3 s → reboot.
- Press Reset ≥ 5 s → restore factory defaults (IP 192.168.10.1).

---

### 7. Performance & Capabilities

Switching Fabric: 16 Gbps non‑blocking
Latency: 7 µs store‑and‑forward
Throughput: Wire‑speed on all 8 ports
Redundancy Recovery: <30 ms (O‑Ring)
QoS Queues: 8 hardware queues per port
Bandwidth Control: Per‑port and per‑IP rate limiting
Jumbo Frames: Up to 9.6 KB
Reliability: MTBF > 100,000 hours (typical industrial design)
Limitations: Layer 2 switching only; no routing functions

---

### 8. Standards & Compliance

Industrial & Railway:
- EN50155 (railway electronic equipment)
- EN50121‑3‑2 / EN50121‑4 (EMC for railway applications)

Electromagnetic Compatibility (EMC):
- FCC Part 15 Class A
- CISPR 22 Class A / EN55022 Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Dip/Interruption)

Environmental & Mechanical:
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑6 (Vibration)
- IEC 60068‑2‑32 (Free Fall)

Safety: EN60950‑1 (Information Technology Equipment)

Network Protocols Supported:
IPv4/IPv6, SNMP, Modbus TCP, DHCP, SMTP, LLDP, IGMP v2/v3, STP/RSTP/MSTP, MRP, O‑Ring, O‑Chain, Open‑Ring.

---

### 9. Additional Information

Warranty: 5 years limited hardware warranty covering defects in materials and workmanship.
Support: Technical assistance via support@oring‑networking.com
Maintenance: Firmware updates available through web interface or CLI; configuration backup/restore supported (XML format).
Software Utility: Open‑Vision M500 for centralized monitoring, configuration, and topology visualization.
Documentation: Comprehensive user manual and Quick Installation Guide included.
Manufacturer Contact:
ORing Industrial Networking Corp.
3F., No. 542‑2 JhongJheng Rd., Sindian District, New Taipei City 23148, Taiwan
Tel +886‑2‑2918‑1066   Fax +886‑2‑2918‑2368
Website: [www.oring‑networking.com](http://www.oring-networking.com)

---

### Summary

The ORing CPGS‑9080‑C is a compact, EN50155‑certified managed Gigabit Ethernet switch card engineered for harsh industrial and railway environments. Its 3U CompactPCI architecture, redundant ring technologies (O‑Ring, O‑Chain, MRP), and comprehensive management suite deliver high reliability and minimal downtime for mission‑critical networks. With advanced security (HTTPS, SSH, 802.1x, ACL), QoS, and Modbus TCP integration, it provides deterministic communication for automation, transportation, and control systems. The card’s wide temperature tolerance, low power draw, and 5‑year warranty make it a robust, long‑life solution for embedded industrial networking applications.
