1. Product Overview

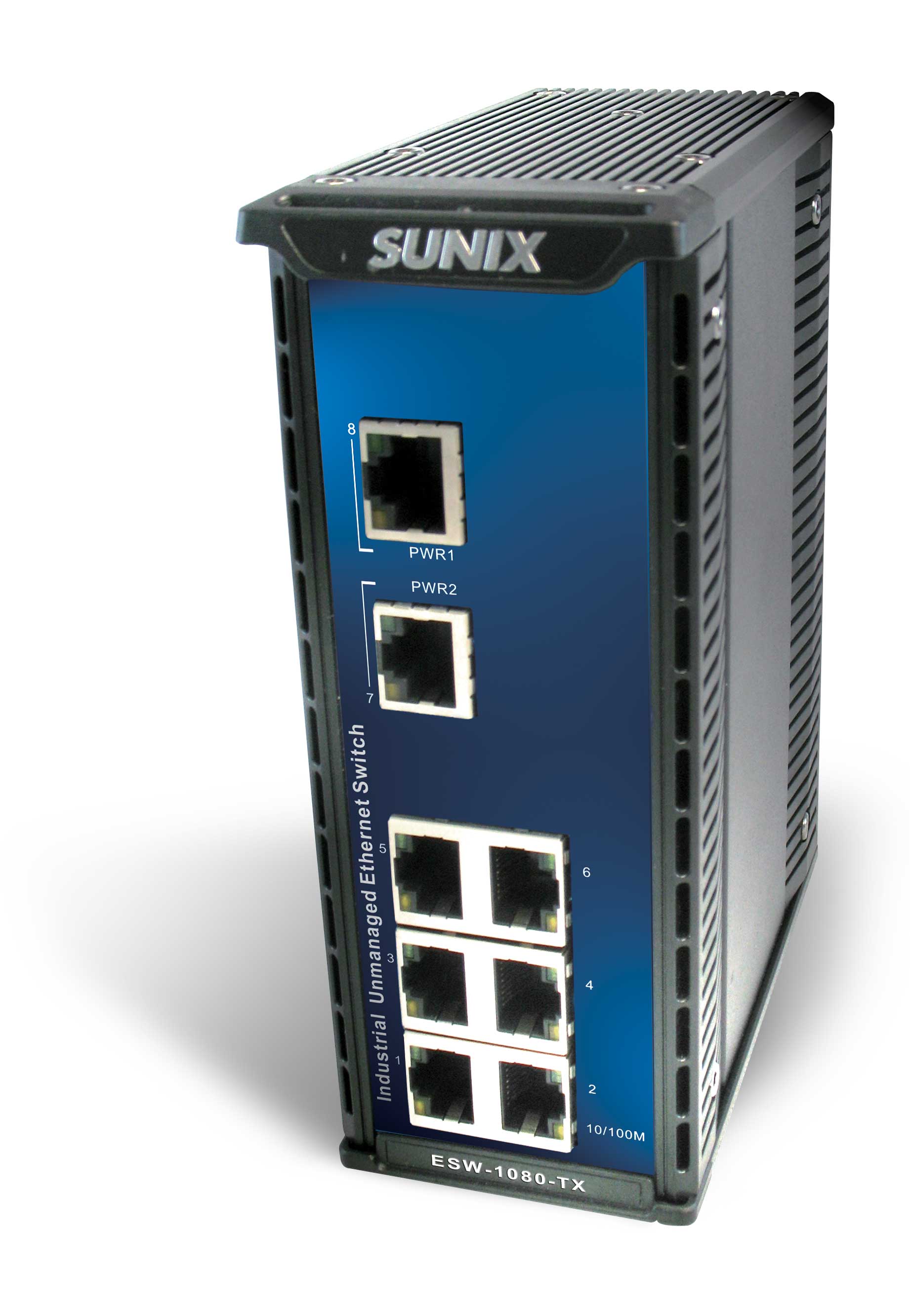

Product Name: Industrial 8-Port Fast Ethernet Switch
Model: ESW-1080-TX
Series: ESW-1080 Series (Unmanaged Industrial Ethernet Switches)
Article Number: ESW-1080-TX
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW-1080-TX is an unmanaged industrial-grade Ethernet switch designed for reliable data communication in harsh industrial environments. It belongs to the ESW-1080 Series, part of SUNIX’s comprehensive line of industrial networking solutions. The switch provides eight 10/100Base-T(X) RJ45 ports, redundant power inputs, and a configurable alarm relay output, ensuring continuous operation and high resilience in mission-critical automation networks.
2. Key Features
- Unmanaged Industrial Ethernet Switch: Plug-and-play operation with no configuration required, ideal for simple and robust network expansion in industrial environments.
- 8-Port 10/100Base-T(X) Connectivity: Provides eight RJ45 ports supporting auto-negotiation and auto MDI/MDI-X for flexible Ethernet connections.
- High Reliability for Industrial Use: Designed for continuous 24/7 operation in environments subject to vibration, shock, and temperature extremes.
- Redundant Dual Power Inputs: Supports 12–48VDC (nominal 24VDC) dual power sources for uninterrupted operation in case of power supply failure.
- Configurable Alarm Relay Output: Enables external alarm signaling for power or link failure events, enhancing system monitoring and maintenance.
- Robust Electrical Protection:
- ESD protection: 4kVDC on Ethernet ports
- Surge protection: 2000VDC on power input
- Reverse polarity protection included
- Compact Industrial Design: Rugged IP30-rated aluminum enclosure with DIN-rail mounting for easy integration into control cabinets.
- Wide Operating Temperature Range: 0°C to 60°C standard operation, suitable for most industrial and automation environments.
- Low Power Consumption: Approximately 12W (1A @ 12VDC).
- Maintenance-Free Operation: No moving parts, fanless design, and passive cooling for long-term reliability.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | ESW-1080-TX |
| Type | Unmanaged Industrial Ethernet Switch |
| Ports | 8 × 10/100Base-T(X) RJ45 |
| Transmission Speed | 10/100 Mbps (auto-negotiation) |
| Transmission Distance | Up to 100 meters (Cat5e/Cat6 UTP cable) |
| Alarm Output | 1 configurable relay output |
| Power Input | Dual 12–48VDC (nominal 24VDC) |
| Power Consumption | 1A @ 12VDC (approx. 12W) |
| Protection | ESD 4kVDC (Ethernet ports), Surge 2000VDC (power), Reverse polarity protection |
| Dimensions (W × D × H) | 30 × 68.5 × 105 mm |
| Weight | Approx. 0.4 kg (typical) |
| Enclosure | IP30-rated aluminum housing |
| Mounting | DIN-rail and wall-mountable |
| Operating Temperature | 0°C to 60°C (standard) |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Cooling | Fanless, natural convection |
| Safety Certifications | UL60950, CAN/CSA-C22.2 No.60950 |
| Hazardous Location | UL/cUL Class 1, Division 2 |
| EMC Compliance | FCC Part 15, CISPR (EN55022) Class A, CE |
| Shock Resistance | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free-Fall Test | IEC60068-2-32 |
| Warranty | 5 years |
4. Functionality
The ESW-1080-TX functions as a plug-and-play unmanaged Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. Each of its eight RJ45 ports supports 10/100 Mbps auto-negotiation and auto MDI/MDI-X, allowing flexible connection to a variety of industrial controllers, PLCs, HMIs, sensors, and networked devices without the need for crossover cables or manual configuration.
Use Cases and Applications:
- Factory Automation: Connecting PLCs, sensors, and control systems in production lines.
- Building Automation: Integrating HVAC, lighting, and access control systems.
- Transportation Systems: Reliable communication for traffic control, signaling, and monitoring.
- Utility and Energy Management: Data networking for substations, power distribution, and renewable energy systems.
- Process Control: Linking distributed control systems (DCS) and SCADA nodes.
Compatibility:
The switch is fully compatible with IEEE 802.3 and 802.3u standards, ensuring interoperability with standard Ethernet devices, including industrial PCs, routers, and managed switches. It supports both straight-through and crossover cables automatically.
5. Components & Accessories
Included Items:
- ESW-1080-TX switch unit
- Removable terminal block connector for power input and alarm relay
- DIN-rail mounting clip (pre-installed)
- Quick installation guide
Optional Accessories:
- DC power supply (12–48VDC)
- Wall-mounting brackets
- Industrial-grade Ethernet cables (Cat5e/Cat6)
- Surge protection modules for enhanced lightning protection
Connectors:
- Ethernet Ports: 8 × RJ45 (10/100Base-T(X))
- Power Input: Removable terminal block (dual input) + DC jack
- Alarm Relay: Configurable dry contact output for fault indication
6. Installation & Setup
Installation Requirements:
- Power supply: 12–48VDC regulated source
- Mounting surface: DIN-rail or flat wall panel
- Ambient temperature: 0°C to 60°C
- Humidity: 5–95% RH (non-condensing)
Mounting Options:
- DIN-Rail Mounting: The switch includes a standard DIN-rail clip for quick installation in control cabinets.
- Wall Mounting: Optional brackets allow secure wall installation in confined spaces.
Setup Procedure:
1. Attach the switch to the DIN rail or wall mount.
2. Connect the DC power supply to the removable terminal block (observe polarity).
3. Optionally connect a second power source for redundancy.
4. Connect Ethernet cables to the RJ45 ports.
5. If required, wire the alarm relay output to an external alarm or monitoring system.
6. Power on the device; link/activity LEDs indicate port status.
No software configuration is required, as the ESW-1080-TX operates in unmanaged mode.
7. Performance & Capabilities
Data Throughput:
Each port supports full-duplex 100 Mbps operation, providing an aggregate switching capacity of up to 1.6 Gbps.
Latency:
Low forwarding latency suitable for real-time industrial control applications.
Reliability:
- Continuous 24/7 operation in harsh environments.
- Redundant power input ensures uninterrupted service during power source failure.
- Relay output provides immediate fault notification.
Efficiency:
- Fanless design reduces power consumption and maintenance.
- Compact form factor optimizes cabinet space.
Limitations:
- Unmanaged operation (no VLAN, QoS, or SNMP management).
- Limited to Fast Ethernet (10/100 Mbps) speeds; not suitable for Gigabit backbone applications.
Environmental Robustness:
- Withstands vibration, shock, and electrical noise typical of industrial sites.
- IP30 enclosure protects against dust and accidental contact.
8. Standards & Compliance
The ESW-1080-TX adheres to multiple international standards for safety, electromagnetic compatibility, and environmental resilience, ensuring dependable performance in regulated industrial environments.
Electrical and Communication Standards:
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Full-duplex flow control)
Safety Certifications:
- UL60950 (Information Technology Equipment Safety)
- CAN/CSA-C22.2 No.60950 (Canadian Safety Standard)
Hazardous Location Certification:
- UL/cUL Class 1, Division 2 (for use in hazardous industrial areas)
EMC and Environmental Compliance:
- FCC Part 15 Class A (U.S. EMC standard)
- CISPR (EN55022) Class A (European EMC standard)
- CE Mark (European conformity)
- IEC60068-2-27 (Shock test)
- IEC60068-2-6 (Vibration test)
- IEC60068-2-32 (Free-fall test)
Protection Ratings:
- ESD: 4kVDC (Ethernet ports)
- Surge: 2000VDC (power input)
- Reverse polarity protection: Present
These certifications confirm the switch’s suitability for deployment in demanding industrial and mission-critical environments where reliability and compliance are essential.
9. Additional Information
Warranty:
SUNIX provides a 5-year limited warranty covering manufacturing defects and hardware failures under normal operating conditions.
Technical Support:
Comprehensive technical support is available through SUNIX’s global service network, including online resources, documentation, and direct engineering assistance.
Maintenance:
The ESW-1080-TX is designed for maintenance-free operation. Periodic inspection of power connections and environmental conditions is recommended to ensure optimal performance.
Firmware & Updates:
As an unmanaged switch, the ESW-1080-TX does not require firmware updates or configuration software.
Service Life Expectancy:
Designed for long-term industrial operation exceeding 100,000 hours MTBF (Mean Time Between Failures), depending on environmental conditions.
Environmental Considerations:
- RoHS compliant (lead-free manufacturing)
- Low power consumption reduces operational costs and environmental impact
Ordering Information:
- Model: ESW-1080-TX
- Description: Industrial 8-Port 10/100Base-T(X) Unmanaged Ethernet Switch
- Power Input: 12–48VDC dual redundant
- Mounting: DIN-rail
- Operating Temperature: 0°C to 60°C
Related Models in the ESW Series:
- ESW-1050: 5-port 10/100Base-T(X) unmanaged switch
- ESW-1041: 4-port 10/100Base-T(X) + 1-port 100Base-FX unmanaged switch
- ESW-1062: 6-port 10/100Base-T(X) + 2-port 100Base-FX unmanaged switch
These models share similar mechanical and electrical characteristics, differing primarily in port count and fiber connectivity options.
### Summary
The SUNIX ESW-1080-TX is a compact, rugged, and reliable unmanaged 8-port Fast Ethernet switch engineered for industrial automation and control networks. It provides robust performance, redundant power inputs, and electrical protection features that ensure uninterrupted communication in harsh environments. With its IP30 aluminum enclosure, DIN-rail mounting, and wide voltage input range, the ESW-1080-TX is ideal for deployment in factories, utilities, transportation systems, and other mission-critical applications requiring stable Ethernet connectivity without complex configuration.
Its combination of industrial-grade durability, redundant power design, and plug-and-play simplicity makes it a cost-effective and dependable solution for extending Ethernet networks in automation and process control systems.
End of Product Summary – ESW-1080-TX Industrial 8-Port Ethernet Switch

Product Name: Industrial 8-Port Fast Ethernet Switch
Model: ESW-1080-TX
Series: ESW-1080 Series (Unmanaged Industrial Ethernet Switches)
Article Number: ESW-1080-TX
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW-1080-TX is an unmanaged industrial-grade Ethernet switch designed for reliable data communication in harsh industrial environments. It belongs to the ESW-1080 Series, part of SUNIX’s comprehensive line of industrial networking solutions. The switch provides eight 10/100Base-T(X) RJ45 ports, redundant power inputs, and a configurable alarm relay output, ensuring continuous operation and high resilience in mission-critical automation networks.
2. Key Features
- Unmanaged Industrial Ethernet Switch: Plug-and-play operation with no configuration required, ideal for simple and robust network expansion in industrial environments.
- 8-Port 10/100Base-T(X) Connectivity: Provides eight RJ45 ports supporting auto-negotiation and auto MDI/MDI-X for flexible Ethernet connections.
- High Reliability for Industrial Use: Designed for continuous 24/7 operation in environments subject to vibration, shock, and temperature extremes.
- Redundant Dual Power Inputs: Supports 12–48VDC (nominal 24VDC) dual power sources for uninterrupted operation in case of power supply failure.
- Configurable Alarm Relay Output: Enables external alarm signaling for power or link failure events, enhancing system monitoring and maintenance.
- Robust Electrical Protection:
- ESD protection: 4kVDC on Ethernet ports
- Surge protection: 2000VDC on power input
- Reverse polarity protection included
- Compact Industrial Design: Rugged IP30-rated aluminum enclosure with DIN-rail mounting for easy integration into control cabinets.
- Wide Operating Temperature Range: 0°C to 60°C standard operation, suitable for most industrial and automation environments.
- Low Power Consumption: Approximately 12W (1A @ 12VDC).
- Maintenance-Free Operation: No moving parts, fanless design, and passive cooling for long-term reliability.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | ESW-1080-TX |
| Type | Unmanaged Industrial Ethernet Switch |
| Ports | 8 × 10/100Base-T(X) RJ45 |
| Transmission Speed | 10/100 Mbps (auto-negotiation) |
| Transmission Distance | Up to 100 meters (Cat5e/Cat6 UTP cable) |
| Alarm Output | 1 configurable relay output |
| Power Input | Dual 12–48VDC (nominal 24VDC) |
| Power Consumption | 1A @ 12VDC (approx. 12W) |
| Protection | ESD 4kVDC (Ethernet ports), Surge 2000VDC (power), Reverse polarity protection |
| Dimensions (W × D × H) | 30 × 68.5 × 105 mm |
| Weight | Approx. 0.4 kg (typical) |
| Enclosure | IP30-rated aluminum housing |
| Mounting | DIN-rail and wall-mountable |
| Operating Temperature | 0°C to 60°C (standard) |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Cooling | Fanless, natural convection |
| Safety Certifications | UL60950, CAN/CSA-C22.2 No.60950 |
| Hazardous Location | UL/cUL Class 1, Division 2 |
| EMC Compliance | FCC Part 15, CISPR (EN55022) Class A, CE |
| Shock Resistance | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free-Fall Test | IEC60068-2-32 |
| Warranty | 5 years |
4. Functionality
The ESW-1080-TX functions as a plug-and-play unmanaged Ethernet switch, automatically detecting and forwarding Ethernet frames between connected devices. Each of its eight RJ45 ports supports 10/100 Mbps auto-negotiation and auto MDI/MDI-X, allowing flexible connection to a variety of industrial controllers, PLCs, HMIs, sensors, and networked devices without the need for crossover cables or manual configuration.
Use Cases and Applications:
- Factory Automation: Connecting PLCs, sensors, and control systems in production lines.
- Building Automation: Integrating HVAC, lighting, and access control systems.
- Transportation Systems: Reliable communication for traffic control, signaling, and monitoring.
- Utility and Energy Management: Data networking for substations, power distribution, and renewable energy systems.
- Process Control: Linking distributed control systems (DCS) and SCADA nodes.
Compatibility:
The switch is fully compatible with IEEE 802.3 and 802.3u standards, ensuring interoperability with standard Ethernet devices, including industrial PCs, routers, and managed switches. It supports both straight-through and crossover cables automatically.
5. Components & Accessories
Included Items:
- ESW-1080-TX switch unit
- Removable terminal block connector for power input and alarm relay
- DIN-rail mounting clip (pre-installed)
- Quick installation guide
Optional Accessories:
- DC power supply (12–48VDC)
- Wall-mounting brackets
- Industrial-grade Ethernet cables (Cat5e/Cat6)
- Surge protection modules for enhanced lightning protection
Connectors:
- Ethernet Ports: 8 × RJ45 (10/100Base-T(X))
- Power Input: Removable terminal block (dual input) + DC jack
- Alarm Relay: Configurable dry contact output for fault indication
6. Installation & Setup
Installation Requirements:
- Power supply: 12–48VDC regulated source
- Mounting surface: DIN-rail or flat wall panel
- Ambient temperature: 0°C to 60°C
- Humidity: 5–95% RH (non-condensing)
Mounting Options:
- DIN-Rail Mounting: The switch includes a standard DIN-rail clip for quick installation in control cabinets.
- Wall Mounting: Optional brackets allow secure wall installation in confined spaces.
Setup Procedure:
1. Attach the switch to the DIN rail or wall mount.
2. Connect the DC power supply to the removable terminal block (observe polarity).
3. Optionally connect a second power source for redundancy.
4. Connect Ethernet cables to the RJ45 ports.
5. If required, wire the alarm relay output to an external alarm or monitoring system.
6. Power on the device; link/activity LEDs indicate port status.
No software configuration is required, as the ESW-1080-TX operates in unmanaged mode.
7. Performance & Capabilities
Data Throughput:
Each port supports full-duplex 100 Mbps operation, providing an aggregate switching capacity of up to 1.6 Gbps.
Latency:
Low forwarding latency suitable for real-time industrial control applications.
Reliability:
- Continuous 24/7 operation in harsh environments.
- Redundant power input ensures uninterrupted service during power source failure.
- Relay output provides immediate fault notification.
Efficiency:
- Fanless design reduces power consumption and maintenance.
- Compact form factor optimizes cabinet space.
Limitations:
- Unmanaged operation (no VLAN, QoS, or SNMP management).
- Limited to Fast Ethernet (10/100 Mbps) speeds; not suitable for Gigabit backbone applications.
Environmental Robustness:
- Withstands vibration, shock, and electrical noise typical of industrial sites.
- IP30 enclosure protects against dust and accidental contact.
8. Standards & Compliance
The ESW-1080-TX adheres to multiple international standards for safety, electromagnetic compatibility, and environmental resilience, ensuring dependable performance in regulated industrial environments.
Electrical and Communication Standards:
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Full-duplex flow control)
Safety Certifications:
- UL60950 (Information Technology Equipment Safety)
- CAN/CSA-C22.2 No.60950 (Canadian Safety Standard)
Hazardous Location Certification:
- UL/cUL Class 1, Division 2 (for use in hazardous industrial areas)
EMC and Environmental Compliance:
- FCC Part 15 Class A (U.S. EMC standard)
- CISPR (EN55022) Class A (European EMC standard)
- CE Mark (European conformity)
- IEC60068-2-27 (Shock test)
- IEC60068-2-6 (Vibration test)
- IEC60068-2-32 (Free-fall test)
Protection Ratings:
- ESD: 4kVDC (Ethernet ports)
- Surge: 2000VDC (power input)
- Reverse polarity protection: Present
These certifications confirm the switch’s suitability for deployment in demanding industrial and mission-critical environments where reliability and compliance are essential.
9. Additional Information
Warranty:
SUNIX provides a 5-year limited warranty covering manufacturing defects and hardware failures under normal operating conditions.
Technical Support:
Comprehensive technical support is available through SUNIX’s global service network, including online resources, documentation, and direct engineering assistance.
Maintenance:
The ESW-1080-TX is designed for maintenance-free operation. Periodic inspection of power connections and environmental conditions is recommended to ensure optimal performance.
Firmware & Updates:
As an unmanaged switch, the ESW-1080-TX does not require firmware updates or configuration software.
Service Life Expectancy:
Designed for long-term industrial operation exceeding 100,000 hours MTBF (Mean Time Between Failures), depending on environmental conditions.
Environmental Considerations:
- RoHS compliant (lead-free manufacturing)
- Low power consumption reduces operational costs and environmental impact
Ordering Information:
- Model: ESW-1080-TX
- Description: Industrial 8-Port 10/100Base-T(X) Unmanaged Ethernet Switch
- Power Input: 12–48VDC dual redundant
- Mounting: DIN-rail
- Operating Temperature: 0°C to 60°C
Related Models in the ESW Series:
- ESW-1050: 5-port 10/100Base-T(X) unmanaged switch
- ESW-1041: 4-port 10/100Base-T(X) + 1-port 100Base-FX unmanaged switch
- ESW-1062: 6-port 10/100Base-T(X) + 2-port 100Base-FX unmanaged switch
These models share similar mechanical and electrical characteristics, differing primarily in port count and fiber connectivity options.
### Summary
The SUNIX ESW-1080-TX is a compact, rugged, and reliable unmanaged 8-port Fast Ethernet switch engineered for industrial automation and control networks. It provides robust performance, redundant power inputs, and electrical protection features that ensure uninterrupted communication in harsh environments. With its IP30 aluminum enclosure, DIN-rail mounting, and wide voltage input range, the ESW-1080-TX is ideal for deployment in factories, utilities, transportation systems, and other mission-critical applications requiring stable Ethernet connectivity without complex configuration.
Its combination of industrial-grade durability, redundant power design, and plug-and-play simplicity makes it a cost-effective and dependable solution for extending Ethernet networks in automation and process control systems.
End of Product Summary – ESW-1080-TX Industrial 8-Port Ethernet Switch
-
