Comprehensive Product Summary: ORing IAP‑620+ Industrial Wireless Access Point

---

### 1. Product Overview

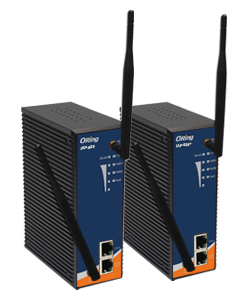

Product Name: ORing IAP‑620+
Model: IAP‑620+
Series: IAP‑620 Series (includes IAP‑620 and IAP‑620+ variants)
Article Number: IAP‑620+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Contact:
3F., No.542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Email: support@oring‑networking.com

The ORing IAP‑620+ is an industrial‑grade IEEE 802.11a/b/g/n wireless access point designed for rugged environments and mission‑critical industrial networking. It provides dual 10/100Base‑T(X) Ethernet ports with auto MDI/MDI‑X and one IEEE 802.3af‑compliant PoE Power Device (PD) port. The unit supports multiple wireless operation modes (AP, Client, Bridge, AP‑Client) and can be configured via web interface or ORing’s Open‑Vision Windows utility.

---

### 2. Key Features

- High‑Speed Wireless Connectivity: Supports IEEE 802.11a/b/g/n with data rates up to 300 Mbps (40 MHz channel).
- Dual Ethernet Ports: Two 10/100Base‑T(X) ports with switch mode for daisy‑chain topology, reducing switch port usage.
- PoE PD Functionality: ETH2 port supports IEEE 802.3af Power Device input, enabling power via Ethernet.
- Industrial Design: IP‑30 metal enclosure, DIN‑rail and wall‑mount options, designed for ‑10 °C to 60 °C operation.
- Security: WEP (64/128‑bit), WPA/WPA2 (TKIP/AES), WPA‑PSK/WPA2‑PSK, and 802.1X authentication.
- Fast Roaming: X‑Roaming technology with < 100 ms handover time.
- Redundant Power Inputs: Dual 12–48 V DC inputs with reverse polarity and overload protection.
- Event Notification: Syslog, SNMP trap, email alerts, relay output, and audible beeper.
- Management: HTTPS web interface, SNMP v1/v2, Syslog, and Open‑Vision centralized management.
- Reliability: Dual redundant Ethernet ports with recovery time < 10 ms.
- Isolation: 1 kV DC isolation for PoE PD port.
- Compliance: Fully compliant with FCC, CE, EN, and IEC industrial standards.

---

### 3. Technical Specifications

LAN Interface
- 2 × 10/100Base‑T(X) RJ‑45 ports, Auto MDI/MDI‑X
- PoE PD: IEEE 802.3af compliant (ETH2)
- Power consumption (PoE input): 8 W max
- Isolation voltage: 1000 V DC min
- Isolation resistance: ≥ 10⁸ Ω
- Supported protocols: IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP (MIB II, Private MIB), HTTPS

WLAN Interface
- Operating modes: AP, Client, Bridge, AP‑Client
- Antenna connectors: 2 × reverse SMA, external antennas (3 dBi @ 5 GHz, 2 dBi @ 2.4 GHz)
- Radio type: DSSS, OFDM
- Modulation:
- 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Frequency bands:
- US (FCC): 2.412–2.462 GHz (11 ch), 5.180–5.240 GHz & 5.745–5.825 GHz (9 ch)
- EU (ETSI): 2.412–2.472 GHz (13 ch), 5.180–5.240 GHz (4 ch)
- JP: 2.412–2.484 GHz (13 ch), 5.180–5.240 GHz (4 ch)
- CA: 2.412–2.462 GHz (11 ch), 5.180–5.825 GHz (21 ch)

Data Rates
- 802.11b: 1/2/5.5/11 Mbps
- 802.11a/g: 6/9/12/18/24/36/48/54 Mbps
- 802.11n (40 MHz): up to 300 Mbps

Transmit Power (Average)
- 802.11a: 13 dBm ± 1.5 dBm @ 54 Mbps
- 802.11b: 16 dBm ± 1.5 dBm @ 11 Mbps
- 802.11g: 14 dBm ± 1.5 dBm @ 54 Mbps
- 802.11n (2.4 G @ 20 MHz): 13 dBm ± 1.5 dBm
- 802.11n (2.4 G @ 40 MHz): 12 dBm ± 1.5 dBm
- 802.11n (5 G @ 20 MHz): 12 dBm ± 1.5 dBm
- 802.11n (5 G @ 40 MHz): 12 dBm ± 1.5 dBm

Receiver Sensitivity
- 802.11a/g: ‑68 dBm ± 2 dBm @ 54 Mbps
- 802.11b: ‑82 dBm ± 2 dBm @ 11 Mbps
- 802.11n (2.4 G @ 20 MHz, MCS15): ‑64 dBm ± 2 dBm
- 802.11n (2.4 G @ 40 MHz, MCS15): ‑60 dBm ± 2 dBm
- 802.11n (5 G @ 20 MHz, MCS15): ‑64 dBm ± 2 dBm
- 802.11n (5 G @ 40 MHz, MCS15): ‑60 dBm ± 2 dBm

Encryption & Security
- WEP (64/128‑bit)
- WPA/WPA2 (802.11i, TKIP/AES)
- WPA‑PSK/WPA2‑PSK (256‑bit key)
- 802.1X authentication
- SSID broadcast disable

Power Requirements
- Dual DC inputs: 12–48 V DC via 6‑pin terminal block
- Reverse polarity protection: Yes
- Overload protection: Yes
- Typical power consumption: 6 W

Physical Characteristics
- Dimensions (W × D × H): 54.1 × 106.1 × 145.4 mm (2.13 × 4.18 × 5.72 in)
- Weight: ≈ 800 g
- Enclosure: Metal, IP‑30 rated

Environmental
- Operating temperature: ‑10 °C to 60 °C (14 °F to 140 °F)
- Storage temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % to 95 %, non‑condensing

---

### 4. Functionality

The IAP‑620+ functions as a multi‑mode industrial wireless access point bridging wired and wireless networks. It supports:

- Access Point (AP) Mode: Provides wireless connectivity for multiple clients.
- Client Mode: Connects wired devices to another AP wirelessly.
- Bridge Mode (WDS): Establishes point‑to‑point or point‑to‑multipoint links between APs.
- AP‑Client Mode: Enables transparent bridging for multiple stations behind the AP.

Configuration is accessible via:
- Web Interface (HTTP/HTTPS) for browser‑based management.
- Open‑Vision Utility for Windows‑based discovery and configuration.
- SNMP v1/v2 for network management integration.

Use Cases:
- Industrial automation and SCADA systems.
- Transportation and rail communication networks.
- Factory floor wireless connectivity.
- Remote monitoring and control in harsh environments.

Compatibility:
- IEEE 802.11a/b/g/n compliant devices.
- Standard Ethernet infrastructure (10/100Base‑T(X)).
- PoE IEEE 802.3af PSE equipment.

---

### 5. Components & Accessories

Included Items:
1. IAP‑620+ main unit
2. 2 × WLAN antennas (reverse SMA)
3. DIN‑rail mounting kit
4. Wall‑mount kit
5. 6 × M3 × 5 screws
6. 6‑pin terminal block for power and relay connection
7. Dust cover
8. CD (manuals and Open‑Vision utility)
9. Quick Installation Guide

Optional Accessories:
- External high‑gain antennas (2.4 GHz/5 GHz)
- PoE injector (IEEE 802.3af compliant)
- Industrial power supply (12–48 V DC)

Connectors:
- 2 × RJ‑45 Ethernet ports
- 2 × reverse SMA antenna connectors
- 6‑pin terminal block (PWR1, PWR2, Relay output)
- Reset button (3 s reset, 5 s factory default)

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Integrated rear DIN‑rail clip for quick installation.
- Wall‑Mount: Detachable wall‑mount plate with screw holes.

Installation Steps (DIN‑Rail):
1. Tilt the unit and hook the metal spring onto the DIN‑rail.
2. Push until a “click” confirms secure mounting.

Installation Steps (Wall‑Mount):
1. Remove DIN‑rail kit.
2. Attach wall‑mount plate using included screws.
3. Fix the assembly to the wall surface.

Power Connection:
- Connect 12–48 V DC to PWR1 and/or PWR2 on the terminal block.
- For PoE operation, connect ETH2 to an IEEE 802.3af PSE device.

Configuration:
- Default IP via DHCP or manual assignment.
- Access web interface (default credentials: admin/admin).
- Configure SSID, security, and operation mode.

---

### 7. Performance & Capabilities

- Wireless Throughput: Up to 300 Mbps (802.11n 40 MHz).
- Roaming Performance: < 100 ms handover (X‑Roaming).
- Ethernet Redundancy: Dual ports with < 10 ms recovery time.
- PoE Isolation: 1 kV DC minimum.
- Relay Output: 1 A @ 24 V DC for alarm signaling.
- LED Indicators: Power (PWR1/PWR2/PoE), Fault, WLAN Link/Strength, Ethernet Link/Activity.
- Reliability: Designed for continuous operation in industrial environments with vibration and shock resistance per IEC 60068 standards.

Limitations:
- 10/100 Mbps Ethernet only (no Gigabit support).
- PoE input only (PD), not PoE output.
- Indoor use recommended for 5.15–5.25 GHz band per FCC rules.

---

### 8. Standards & Compliance

Wireless Standards:
IEEE 802.11a/b/g/n

Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3af (PD)

EMI/EMS Compliance:
- FCC Part 15, CISPR (EN 55022) Class A
- EN 61000‑4‑2 (ESD)
- EN 61000‑4‑3 (RS)
- EN 61000‑4‑4 (EFT)
- EN 61000‑4‑5 (Surge)
- EN 61000‑4‑6 (CS)
- EN 61000‑4‑8
- EN 61000‑4‑11

Environmental & Mechanical:
- Shock: IEC 60068‑2‑27, EN 61373
- Free Fall: IEC 60068‑2‑32
- Vibration: IEC 60068‑2‑6, EN 61373
- Rail Traffic: EN 50155
- Safety: EN 60950‑1

Regulatory Approvals:
- FCC: Part 15 Class A, RF exposure compliant (20 cm minimum distance).
- Industry Canada: ICES‑003 Class B, RSS compliant.
- CE Marking: Conforms to EMC and Low Voltage Directives.

---

### 9. Additional Information

Warranty: 3 years standard limited warranty (typical for IAP‑620 series).
Support: Email support@oring‑networking.com for technical assistance.
Maintenance:
- Periodic firmware updates available via web interface.
- Configuration backup and restore supported.
- Syslog and SNMP monitoring for preventive maintenance.

Firmware Upgrade:
- Performed via web interface (System Tools > Firmware Upgrade).
- Do not power off during upgrade.

Management Tools:
- Open‑Vision Commander: Windows utility for device discovery and configuration.
- Web Management: HTTP/HTTPS with user authentication.
- SNMP Management: Supports trap notifications and remote monitoring.

Event Handling:
- System events trigger email, SNMP trap, or relay output.
- Fault LED indicates power or link failure.

Environmental Sustainability:
- Printed on recycled paper (QIG).
- RoHS compliant materials.

---

### Summary

The ORing IAP‑620+ is a robust, feature‑rich industrial wireless access point engineered for demanding environments requiring reliable, secure, and flexible wireless connectivity. With dual Ethernet ports, PoE PD support, redundant DC inputs, and comprehensive security and management features, it is ideal for industrial automation, transportation, and remote monitoring applications. Its compliance with global EMC and safety standards, IP‑30 metal housing, and ‑10 °C to 60 °C operating range ensure long‑term stability and performance in harsh conditions.
