1. Product Overview

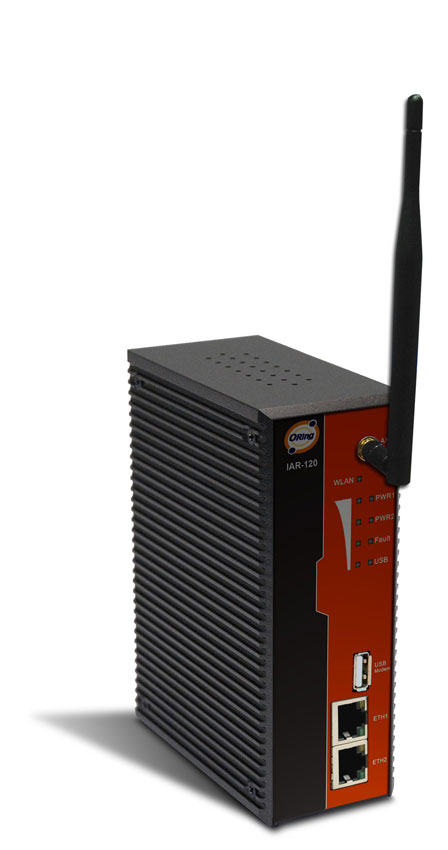

Product Name: IAR-120
Model: IAR-120
Series: Industrial Cellular VPN Router Series
Article Number: IAR-120
Manufacturer: ORing Industrial Networking Corp.
The ORing IAR-120 is an industrial-grade cellular VPN router designed to provide secure, high-performance wireless and wired network connectivity in demanding environments. It integrates 3.5G cellular communication, 802.11b/g WLAN, and dual 10/100TX Ethernet ports, offering flexible deployment options for remote monitoring, industrial automation, and mobile communication systems. The device supports multiple operation modes—Access Point (AP), Bridge, Repeater, and AP Client—allowing it to adapt to various network topologies and communication requirements. Built with a rugged metal enclosure, the IAR-120 is engineered for reliability in harsh industrial conditions, featuring wide-range power input, extended temperature tolerance, and robust mounting options.
2. Key Features
- Integrated Cellular VPN Router: Combines 3.5G cellular connectivity with VPN functionality for secure remote access and data transmission.
- Dual Ethernet Ports: Two 10/100TX LAN interfaces for flexible wired network integration and redundancy.
- Wireless LAN Support: IEEE 802.11b/g compliant WLAN interface for wireless access or bridging between networks.
- Multiple Operation Modes: Supports AP, Bridge, Repeater, and AP Client modes to accommodate diverse network configurations.
- Industrial-Grade Design: Rugged metal housing ensures durability and electromagnetic shielding in industrial environments.
- Wide Power Input Range: Operates from 12 to 48 VDC, supporting dual power inputs for redundancy and reliability.
- Low Power Consumption: Maximum power consumption of 6 W, optimizing energy efficiency for continuous operation.
- Alarm Contact Output: Includes one relay output for alarm signaling or event notification integration with external systems.
- Flexible Mounting Options: Supports both DIN rail and wall mounting, simplifying installation in control cabinets or field enclosures.
- Extended Temperature Range: Operates reliably from -10°C to +55°C, with storage capability from -20°C to +85°C.
- Compact and Lightweight: Dimensions of 52 × 106 × 144 mm and approximate weight of 800 g, suitable for space-constrained installations.
- Secure VPN Support: Enables encrypted communication channels for remote management and data protection over cellular networks.
- High Reliability for Industrial Applications: Designed for continuous operation in mission-critical systems such as SCADA, transportation, and energy management.
3. Technical Specifications
- Model: IAR-120
- Network Interfaces:
- 2 × 10/100TX Ethernet ports (RJ45)
- 1 × WLAN interface (IEEE 802.11b/g)
- 1 × Cellular interface (3.5G)
- Wireless Standards: IEEE 802.11b/g compliant
- Operation Modes: Access Point (AP), Bridge, Repeater, AP Client
- Power Supply:
- Input Voltage: 12–48 VDC (dual power inputs for redundancy)
- Maximum Power Consumption: 6 W
- Alarm Interface: 1 × Relay output (for alarm contact)
- Enclosure: Metal case for industrial durability and EMI protection
- Mounting Options: DIN rail or wall mount
- Dimensions: 52 mm (W) × 106 mm (H) × 144 mm (D)
- Weight: Approximately 800 g
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -20°C to +85°C
- Cooling: Passive (fanless) design for silent, maintenance-free operation
- Color/Finish: Industrial metallic finish (standard ORing design)
- Manufacturer: ORing Industrial Networking Corp.
4. Functionality
The IAR-120 functions as a cellular VPN router, bridging wired and wireless networks while providing secure remote connectivity through VPN tunneling. It integrates 3.5G cellular communication for wide-area network access, enabling remote sites or mobile assets to connect to central systems without relying on fixed-line infrastructure.
In Access Point mode, the device acts as a wireless hub, allowing Wi-Fi clients to connect to the LAN or cellular network. In Bridge or Repeater mode, it extends wireless coverage or connects separate network segments. The AP Client mode allows the router to connect to an existing wireless network as a client, providing Ethernet devices with wireless connectivity.
The built-in VPN functionality supports secure data transmission between remote and central networks, ensuring confidentiality and integrity of industrial data. The dual Ethernet ports can be configured for LAN/WAN separation, redundancy, or cascading to other network devices.
Typical use cases include:
- Remote monitoring and control of industrial equipment via cellular networks.
- Transportation systems requiring mobile connectivity (e.g., buses, trains, fleet management).
- Energy and utility monitoring, such as remote substations or renewable energy sites.
- Security and surveillance systems needing secure remote access.
- Temporary or mobile installations where wired infrastructure is unavailable.
The IAR-120’s flexible configuration options make it suitable for both fixed and mobile industrial networking applications.
5. Components & Accessories
Included Items:
- IAR-120 Cellular VPN Router unit
- DIN rail mounting kit
- Wall mounting brackets (optional depending on package)
- Power terminal block connector
- Quick installation guide and documentation
Optional Accessories:
- External cellular antenna (3.5G)
- External Wi-Fi antenna (802.11b/g)
- Power supply adapter (12–48 VDC, depending on installation)
- Ethernet cables (Cat5e or higher)
- Alarm relay wiring accessories
Connectors:
- 2 × RJ45 Ethernet ports (10/100TX)
- 1 × Power input terminal block (dual input)
- 1 × Relay output terminal
- 1 × Cellular antenna connector (SMA type)
- 1 × WLAN antenna connector (RP-SMA type)
6. Installation & Setup
The IAR-120 is designed for easy installation in industrial environments. It supports both DIN rail and wall mounting, allowing flexible placement in control panels, enclosures, or field cabinets.
Installation Requirements:
- Power supply: 12–48 VDC regulated source
- Adequate ventilation for passive cooling
- Cellular and WLAN antennas positioned for optimal signal reception
- Ethernet cabling (Cat5e or higher) for LAN/WAN connections
Setup Procedure:
1. Mounting: Attach the device to a DIN rail or wall using the provided hardware.
2. Power Connection: Connect the dual power inputs to independent DC sources for redundancy.
3. Network Configuration:
- Connect Ethernet cables to LAN/WAN ports.
- Attach antennas to the cellular and WLAN connectors.
4. Software Configuration:
- Access the web-based management interface via default IP address.
- Configure network parameters (IP, subnet, gateway).
- Set up WLAN mode (AP, Bridge, Repeater, or AP Client).
- Configure VPN settings (PPTP, L2TP, or IPsec depending on firmware).
- Define alarm relay behavior and event triggers.
5. Testing: Verify connectivity across Ethernet, WLAN, and cellular interfaces.
6. Deployment: Secure the device and ensure stable power and signal conditions.
The configuration interface is designed for industrial users, offering intuitive menus for network setup, VPN configuration, and system monitoring.
7. Performance & Capabilities
- Network Throughput: Optimized for 10/100 Mbps Ethernet performance with minimal latency.
- Wireless Performance:
- 802.11b: up to 11 Mbps
- 802.11g: up to 54 Mbps
- Cellular Performance: 3.5G (HSPA) connectivity for broadband mobile data access.
- VPN Performance: Hardware-assisted encryption ensures secure and efficient VPN tunneling.
- Power Efficiency: Maximum consumption of 6 W enables continuous operation with minimal energy cost.
- Reliability: Dual power inputs and industrial-grade components ensure high availability.
- Environmental Tolerance: Operates reliably in temperature ranges from -10°C to +55°C, suitable for indoor and sheltered outdoor installations.
- Limitations:
- Not designed for extreme outdoor exposure without enclosure protection.
- Cellular performance depends on network coverage and antenna placement.
- WLAN limited to 2.4 GHz band (802.11b/g).
The IAR-120 delivers stable, secure, and efficient performance for industrial communication networks, balancing speed, reliability, and energy efficiency.
8. Standards & Compliance
- Wireless Standards: IEEE 802.11b/g
- Ethernet Standards: IEEE 802.3, IEEE 802.3u (10/100TX)
- Cellular Standards: 3.5G (HSPA/UMTS)
- VPN Protocols: Supports standard VPN protocols (PPTP, L2TP, IPsec – depending on firmware version)
- Power and Safety: Compliant with industrial DC power standards (12–48 VDC)
- Environmental Compliance: Designed for industrial temperature and vibration standards
- EMC/EMI Compliance: Metal enclosure provides shielding against electromagnetic interference
- Mounting Standards: DIN rail compatibility per EN 60715 standard
- Regulatory Compliance:
- CE (Conformité Européenne)
- FCC Part 15 (for wireless communication devices)
- RoHS (Restriction of Hazardous Substances) compliant
These certifications ensure that the IAR-120 meets international standards for safety, electromagnetic compatibility, and environmental responsibility.
9. Additional Information
- Warranty: Typically covered by ORing’s standard industrial product warranty (commonly 2–5 years depending on region and distributor).
- Technical Support: ORing provides comprehensive technical support, including firmware updates, configuration assistance, and troubleshooting guides.
- Maintenance:
- Minimal maintenance required due to fanless design.
- Periodic inspection of antenna connections and power terminals recommended.
- Firmware updates available via web interface or remote management tools.
- Software Updates: Firmware upgrades periodically released to enhance VPN security, cellular compatibility, and management features.
- Service Life: Designed for long-term industrial operation with high MTBF (Mean Time Between Failures).
- Documentation: Detailed user manual, quick start guide, and configuration examples provided by manufacturer.
- Support Resources:
- Online knowledge base and FAQs
- Remote diagnostic tools
- Configuration templates for common industrial applications
Summary
The ORing IAR-120 Cellular VPN Router is a robust, feature-rich networking device engineered for industrial environments requiring secure, reliable, and flexible connectivity. Combining 3.5G cellular, 802.11b/g WLAN, and dual Ethernet interfaces, it enables seamless integration of wired and wireless networks with VPN-secured communication. Its rugged metal housing, wide power input range, and extended temperature tolerance make it ideal for mission-critical applications in automation, transportation, and remote monitoring. With multiple operation modes, redundant power design, and comprehensive management features, the IAR-120 delivers industrial-grade performance and reliability for modern connected systems.
