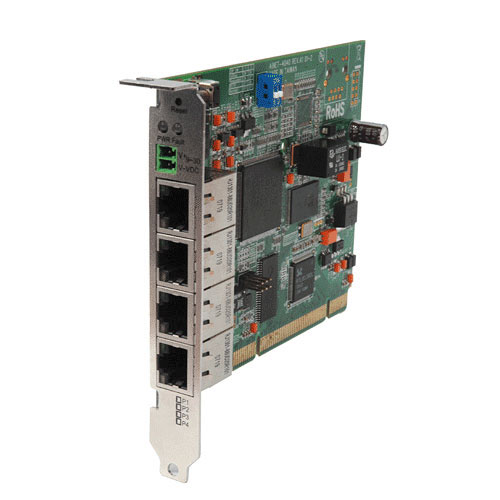

Comprehensive Product Summary – ORing ICS‑4040 Industrial Lite‑Managed PCI Ethernet Switch Card
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: ICS‑4040
Model: ICS‑4040
Series: UPCI Industrial Lite‑Managed Switch Card Series
Article Number: ICS‑4040
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing ICS‑4040 is an industrial‑grade, lite‑managed Ethernet switch card designed for integration into industrial PCs (IPCs) and embedded systems via a standard PCI bus interface. It provides four 10/100Base‑T(X) RJ‑45 ports and supports advanced redundancy technologies such as ORing’s proprietary O‑Ring protocol (recovery time <10 ms over 250 units), RSTP/STP (IEEE 802.1w/D), and Fast Recovery Mode. The card enables existing IPC systems to be upgraded to redundant Ethernet networks, ensuring continuous operation even under power or network faults.
### 2. Key Features
- Redundant Ethernet Ring Technology:
Implements ORing’s O‑Ring redundancy protocol with recovery time under 10 ms across up to 250 connected devices, ensuring minimal downtime in mission‑critical applications.
- Multiple Redundancy Protocols:
Supports RSTP/STP (IEEE 802.1w/D) and Fast Recovery Mode for flexible network topologies including Network + Device Redundant, Device Communication Redundant, and standard Ethernet switch configurations.
- Dual Power Inputs:
Operates from both PCI bus power (+5 V DC) and external DC input (9–30 V DC). The external input ensures uninterrupted operation if the host IPC shuts down.
- Relay Output for Fault Notification:
Configurable alarm relay output (1 A @ 24 V DC) for power failure or port link loss events.
- Comprehensive Management:
Web‑based configuration interface and Open‑Vision Windows utility for centralized monitoring and management of multiple ORing switches.
- Event Notification:
Supports Syslog, Email (SMTP), and SNMP traps for remote fault and system event reporting.
- SNMP and LLDP Support:
SNMP v1/v2c/v3 for secure network management and LLDP (IEEE 802.1AB) for device discovery and topology mapping.
- PCI Bus Compliance:
Fully compliant with PCI Local Bus Specification Rev 2.2, 32‑bit Bus Master architecture, and supports Wake‑on‑LAN (WOL).
- Industrial‑Grade Design:
Extended operating temperature range (‑10 °C to 60 °C), ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), and robust mechanical construction for harsh environments.
- Low Power Consumption:
Typical consumption of approximately 3.5 W, optimized for embedded and IPC applications.
- Warranty:
Backed by a 3‑year manufacturer warranty.
### 3. Technical Specifications
Technology & Standards
- IEEE 802.3 10BASE‑T
- IEEE 802.3u 100BASE‑TX
- IEEE 802.3x Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Redundancy Technologies
- ORing proprietary O‑Ring (recovery < 10 ms / 250 units)
- Coupling Ring and Dual Homing topologies
- Fast Recovery Mode with 4‑level port priority
- RSTP/STP compatibility
Interface
- PCI Bus: 32‑bit, Rev 2.2 compliant, Bus Master architecture
- Ethernet Ports: 4 × 10/100Base‑T(X) RJ‑45, Auto MDI/MDI‑X, Auto‑Negotiation
- LED Indicators:
- Power (Green = PCI Power On / Red = External Power On)
- Fault (Amber = Power Failure or Port Down)
- Link/Activity (Green / Blinking Green)
- Ring Port (Amber = Ring Active)
Performance
- Switching Bandwidth: 1.0 Gbps
- MAC Address Table: 1024 entries
- VLAN: Port‑based VLAN
- Processing: Store‑and‑Forward
- Priority Queues: 4
- Firmware Upgrade: via TFTP
Power Requirements
- PCI Power Input: +5 V DC (from PCI bus)
- External Power Input: +9 to 30 V DC via 2‑pin terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 3.5 W (max.)
Environmental Conditions
- Operating Temperature: ‑10 °C to +60 °C (14 °F to 140 °F)
- Storage Temperature: ‑40 °C to +85 °C (‑40 °F to 185 °F)
- Operating Humidity: 5 % to 95 %, non‑condensing
Mechanical
- Dimensions (W × D): 124 mm × 100 mm
- Weight: ≈ 100 g
- Mounting: PCI slot installation
Regulatory Approvals
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
### 4. Functionality
The ICS‑4040 functions as a PCI‑bus Ethernet switch card that transforms an industrial PC into a managed network node with redundancy capabilities. Once installed in a PCI slot, it provides four Fast Ethernet ports for device or network interconnection.
Operating Modes (via DIP Switch):
- O‑Ring Mode: DIP 1 = ON, DIP 2 = ON
- Fast Recovery Mode: DIP 1 = ON, DIP 2 = OFF
- RSTP Mode: DIP 1 = OFF, DIP 2 = ON
- Normal (Non‑Redundant) Mode: DIP 1 = OFF, DIP 2 = OFF
Use Cases & Applications:
- Industrial automation and control systems requiring high network availability
- Embedded systems and IPCs needing Ethernet redundancy
- SCADA, DCS, and factory automation networks
- Transportation, energy, and utility monitoring systems
- Any mission‑critical Ethernet infrastructure demanding sub‑10 ms recovery
Compatibility:
- Operating Systems: Windows 95/NT/98/2000/ME/XP/2003/Vista (32‑bit), Novell NetWare 3.x and above, Linux 2.4.x/2.6.x, Windows CE 4.0/5.0
- Supports standard Ethernet cabling (Cat 3/4/5/5e UTP, 100 m max length)
### 5. Components & Accessories
Included Items:
1. ICS‑4040 Switch Card
2. 2‑pin Terminal Block (for external power input)
3. Two RJ‑45 Dust Covers
4. Product CD (includes drivers, Open‑Vision utility, and documentation)
5. Quick Installation Guide (QIG)
Optional Accessories:
- Relay output module (1 A @ 24 V DC) for fault signaling
- Additional PCI slot brackets or mounting hardware (as required by IPC chassis)
Connectors:
- RJ‑45 Ethernet Ports: 4 × 10/100Base‑T(X)
- Power Terminal Block: 2‑pin (V+ / V–) for 9–30 V DC input
- Reset Button: 3 s press = configuration reset; 5 s press = factory default
### 6. Installation & Setup
Installation Requirements:
- Available PCI slot (32‑bit, Rev 2.2 compliant)
- External DC power source (optional, 9–30 V DC)
- Standard Ethernet cables (Cat 5 UTP recommended)
Mounting Procedure:
1. Power off the IPC or embedded system.
2. Insert the ICS‑4040 into an available PCI slot.
3. Secure the card with the chassis screw.
4. Connect Ethernet cables to the RJ‑45 ports.
5. (Optional) Connect external DC power to the terminal block for redundancy.
6. Power on the system; verify LED indicators for power and link status.
Configuration:
- Access via Web Browser (default IP 192.168.10.1, user: admin / password: admin).
- Configure IP, VLAN, redundancy mode, SNMP, and event notifications.
- Alternatively, use Open‑Vision Windows utility for centralized management.
Reset Options:
- 3 s press: Resets configuration.
- 5 s press: Restores factory defaults (option to retain IP and credentials).
### 7. Performance & Capabilities
- Switching Bandwidth: 1 Gbps
- MAC Table: 1024 entries
- Latency: < 10 ms recovery in O‑Ring mode (250 units)
- VLAN: Port‑based segmentation for traffic isolation
- Queue Management: 4 priority queues for QoS handling
- SNMP Management: v1/v2c/v3 with trap and community configuration
- Event Handling: Syslog, Email (SMTP), SNMP Trap, and Relay Output
- Security: SNMPv3 authentication, password‑protected Web access, VLAN segmentation
- Reliability: Dual power inputs and redundant ring ensure continuous operation during power or link failures.
Limitations:
- Fast Ethernet (10/100 Mbps) only; no Gigabit support.
- Lite‑managed — does not include advanced Layer 3 routing functions.
### 8. Standards & Compliance
Ethernet & Network Standards:
- IEEE 802.3 (10BASE‑T)
- IEEE 802.3u (100BASE‑TX)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (STP)
- IEEE 802.1w (RSTP)
- IEEE 802.1AB (LLDP)
PCI Compliance:
- PCI Local Bus Specification Rev 2.2
Environmental & EMC Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Mechanical Robustness: IEC 60068‑2‑27 (Shock), IEC 60068‑2‑6 (Vibration), IEC 60068‑2‑32 (Free Fall)
Safety & Reliability:
- Reverse polarity protection on power input
- ESD protection up to 4 kV DC on Ethernet ports
- Surge protection up to 2000 V DC on power input
### 9. Additional Information
Warranty: 3 Years limited hardware warranty.
Support: Technical support available via email and phone from ORing Industrial Networking Corp.
Maintenance:
- Firmware updates available via TFTP or Open‑Vision utility.
- Configuration backup and restore supported through TFTP server.
- Regular inspection of RJ‑45 connectors and terminal block recommended for industrial environments.
Software Tools:
- Open‑Vision Windows Utility for multi‑device management, topology view, and status monitoring.
- Web Management Interface for configuration of IP settings, VLANs, redundancy modes, SNMP, and alarms.
Firmware & Configuration Management:
- Backup and restore via TFTP server.
- Firmware upgrade through Web UI or TFTP.
- SNTP time synchronization and Daylight Saving configuration supported.
Event and Alarm System:
- Fault relay and LED indicators for power and port status.
- System alarms via Syslog and Email (SMTP).
- Configurable event triggers for power failure, port link down, and ring topology changes.
Network Security and Management:
- SNMP v1/v2c/v3 with community string and trap configuration.
- VLAN segmentation for traffic isolation.
- Password‑protected Web access and user authentication.
Operational Reliability:
- Dual power redundancy ensures non‑stop operation even if the host system fails.
- O‑Ring and RSTP redundancy protect against network interruptions.
- Industrial‑grade design with robust EMC and environmental tolerance.
### Summary
The ORing ICS‑4040 is a compact, industrial‑grade, lite‑managed Ethernet switch card engineered for embedded and IPC applications requiring high network reliability and redundancy. By combining PCI bus integration, dual power inputs, and sub‑10 ms recovery redundancy, it ensures continuous communication in mission‑critical environments. Its Web interface and Open‑Vision utility simplify configuration and monitoring, while comprehensive SNMP, Syslog, and Email alerts provide proactive fault management.
With compliance to major Ethernet, PCI, and EMC standards, and a robust design rated for ‑10 °C to 60 °C operation, the ICS‑4040 delivers dependable performance in industrial automation, transportation, and control systems. Its combination of redundancy, manageability, and compact PCI form factor makes it an ideal solution for upgrading existing IPCs into resilient, redundant Ethernet nodes.
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: ICS‑4040
Model: ICS‑4040
Series: UPCI Industrial Lite‑Managed Switch Card Series
Article Number: ICS‑4040
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing ICS‑4040 is an industrial‑grade, lite‑managed Ethernet switch card designed for integration into industrial PCs (IPCs) and embedded systems via a standard PCI bus interface. It provides four 10/100Base‑T(X) RJ‑45 ports and supports advanced redundancy technologies such as ORing’s proprietary O‑Ring protocol (recovery time <10 ms over 250 units), RSTP/STP (IEEE 802.1w/D), and Fast Recovery Mode. The card enables existing IPC systems to be upgraded to redundant Ethernet networks, ensuring continuous operation even under power or network faults.
### 2. Key Features
- Redundant Ethernet Ring Technology:
Implements ORing’s O‑Ring redundancy protocol with recovery time under 10 ms across up to 250 connected devices, ensuring minimal downtime in mission‑critical applications.
- Multiple Redundancy Protocols:
Supports RSTP/STP (IEEE 802.1w/D) and Fast Recovery Mode for flexible network topologies including Network + Device Redundant, Device Communication Redundant, and standard Ethernet switch configurations.
- Dual Power Inputs:
Operates from both PCI bus power (+5 V DC) and external DC input (9–30 V DC). The external input ensures uninterrupted operation if the host IPC shuts down.
- Relay Output for Fault Notification:
Configurable alarm relay output (1 A @ 24 V DC) for power failure or port link loss events.
- Comprehensive Management:
Web‑based configuration interface and Open‑Vision Windows utility for centralized monitoring and management of multiple ORing switches.
- Event Notification:
Supports Syslog, Email (SMTP), and SNMP traps for remote fault and system event reporting.
- SNMP and LLDP Support:
SNMP v1/v2c/v3 for secure network management and LLDP (IEEE 802.1AB) for device discovery and topology mapping.
- PCI Bus Compliance:
Fully compliant with PCI Local Bus Specification Rev 2.2, 32‑bit Bus Master architecture, and supports Wake‑on‑LAN (WOL).
- Industrial‑Grade Design:
Extended operating temperature range (‑10 °C to 60 °C), ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), and robust mechanical construction for harsh environments.
- Low Power Consumption:
Typical consumption of approximately 3.5 W, optimized for embedded and IPC applications.
- Warranty:
Backed by a 3‑year manufacturer warranty.
### 3. Technical Specifications
Technology & Standards
- IEEE 802.3 10BASE‑T
- IEEE 802.3u 100BASE‑TX
- IEEE 802.3x Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Redundancy Technologies
- ORing proprietary O‑Ring (recovery < 10 ms / 250 units)
- Coupling Ring and Dual Homing topologies
- Fast Recovery Mode with 4‑level port priority
- RSTP/STP compatibility
Interface
- PCI Bus: 32‑bit, Rev 2.2 compliant, Bus Master architecture
- Ethernet Ports: 4 × 10/100Base‑T(X) RJ‑45, Auto MDI/MDI‑X, Auto‑Negotiation
- LED Indicators:
- Power (Green = PCI Power On / Red = External Power On)
- Fault (Amber = Power Failure or Port Down)
- Link/Activity (Green / Blinking Green)
- Ring Port (Amber = Ring Active)
Performance
- Switching Bandwidth: 1.0 Gbps
- MAC Address Table: 1024 entries
- VLAN: Port‑based VLAN
- Processing: Store‑and‑Forward
- Priority Queues: 4
- Firmware Upgrade: via TFTP
Power Requirements
- PCI Power Input: +5 V DC (from PCI bus)
- External Power Input: +9 to 30 V DC via 2‑pin terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 3.5 W (max.)
Environmental Conditions
- Operating Temperature: ‑10 °C to +60 °C (14 °F to 140 °F)
- Storage Temperature: ‑40 °C to +85 °C (‑40 °F to 185 °F)
- Operating Humidity: 5 % to 95 %, non‑condensing
Mechanical
- Dimensions (W × D): 124 mm × 100 mm
- Weight: ≈ 100 g
- Mounting: PCI slot installation
Regulatory Approvals
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
### 4. Functionality
The ICS‑4040 functions as a PCI‑bus Ethernet switch card that transforms an industrial PC into a managed network node with redundancy capabilities. Once installed in a PCI slot, it provides four Fast Ethernet ports for device or network interconnection.
Operating Modes (via DIP Switch):
- O‑Ring Mode: DIP 1 = ON, DIP 2 = ON
- Fast Recovery Mode: DIP 1 = ON, DIP 2 = OFF
- RSTP Mode: DIP 1 = OFF, DIP 2 = ON
- Normal (Non‑Redundant) Mode: DIP 1 = OFF, DIP 2 = OFF
Use Cases & Applications:
- Industrial automation and control systems requiring high network availability
- Embedded systems and IPCs needing Ethernet redundancy
- SCADA, DCS, and factory automation networks
- Transportation, energy, and utility monitoring systems
- Any mission‑critical Ethernet infrastructure demanding sub‑10 ms recovery
Compatibility:
- Operating Systems: Windows 95/NT/98/2000/ME/XP/2003/Vista (32‑bit), Novell NetWare 3.x and above, Linux 2.4.x/2.6.x, Windows CE 4.0/5.0
- Supports standard Ethernet cabling (Cat 3/4/5/5e UTP, 100 m max length)
### 5. Components & Accessories
Included Items:
1. ICS‑4040 Switch Card
2. 2‑pin Terminal Block (for external power input)
3. Two RJ‑45 Dust Covers
4. Product CD (includes drivers, Open‑Vision utility, and documentation)
5. Quick Installation Guide (QIG)
Optional Accessories:
- Relay output module (1 A @ 24 V DC) for fault signaling
- Additional PCI slot brackets or mounting hardware (as required by IPC chassis)
Connectors:
- RJ‑45 Ethernet Ports: 4 × 10/100Base‑T(X)
- Power Terminal Block: 2‑pin (V+ / V–) for 9–30 V DC input
- Reset Button: 3 s press = configuration reset; 5 s press = factory default
### 6. Installation & Setup
Installation Requirements:
- Available PCI slot (32‑bit, Rev 2.2 compliant)
- External DC power source (optional, 9–30 V DC)
- Standard Ethernet cables (Cat 5 UTP recommended)
Mounting Procedure:
1. Power off the IPC or embedded system.
2. Insert the ICS‑4040 into an available PCI slot.
3. Secure the card with the chassis screw.
4. Connect Ethernet cables to the RJ‑45 ports.
5. (Optional) Connect external DC power to the terminal block for redundancy.
6. Power on the system; verify LED indicators for power and link status.
Configuration:
- Access via Web Browser (default IP 192.168.10.1, user: admin / password: admin).
- Configure IP, VLAN, redundancy mode, SNMP, and event notifications.
- Alternatively, use Open‑Vision Windows utility for centralized management.
Reset Options:
- 3 s press: Resets configuration.
- 5 s press: Restores factory defaults (option to retain IP and credentials).
### 7. Performance & Capabilities
- Switching Bandwidth: 1 Gbps
- MAC Table: 1024 entries
- Latency: < 10 ms recovery in O‑Ring mode (250 units)
- VLAN: Port‑based segmentation for traffic isolation
- Queue Management: 4 priority queues for QoS handling
- SNMP Management: v1/v2c/v3 with trap and community configuration
- Event Handling: Syslog, Email (SMTP), SNMP Trap, and Relay Output
- Security: SNMPv3 authentication, password‑protected Web access, VLAN segmentation
- Reliability: Dual power inputs and redundant ring ensure continuous operation during power or link failures.
Limitations:
- Fast Ethernet (10/100 Mbps) only; no Gigabit support.
- Lite‑managed — does not include advanced Layer 3 routing functions.
### 8. Standards & Compliance
Ethernet & Network Standards:
- IEEE 802.3 (10BASE‑T)
- IEEE 802.3u (100BASE‑TX)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (STP)
- IEEE 802.1w (RSTP)
- IEEE 802.1AB (LLDP)
PCI Compliance:
- PCI Local Bus Specification Rev 2.2
Environmental & EMC Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Mechanical Robustness: IEC 60068‑2‑27 (Shock), IEC 60068‑2‑6 (Vibration), IEC 60068‑2‑32 (Free Fall)
Safety & Reliability:
- Reverse polarity protection on power input
- ESD protection up to 4 kV DC on Ethernet ports
- Surge protection up to 2000 V DC on power input
### 9. Additional Information
Warranty: 3 Years limited hardware warranty.
Support: Technical support available via email and phone from ORing Industrial Networking Corp.
Maintenance:
- Firmware updates available via TFTP or Open‑Vision utility.
- Configuration backup and restore supported through TFTP server.
- Regular inspection of RJ‑45 connectors and terminal block recommended for industrial environments.
Software Tools:
- Open‑Vision Windows Utility for multi‑device management, topology view, and status monitoring.
- Web Management Interface for configuration of IP settings, VLANs, redundancy modes, SNMP, and alarms.
Firmware & Configuration Management:
- Backup and restore via TFTP server.
- Firmware upgrade through Web UI or TFTP.
- SNTP time synchronization and Daylight Saving configuration supported.
Event and Alarm System:
- Fault relay and LED indicators for power and port status.
- System alarms via Syslog and Email (SMTP).
- Configurable event triggers for power failure, port link down, and ring topology changes.
Network Security and Management:
- SNMP v1/v2c/v3 with community string and trap configuration.
- VLAN segmentation for traffic isolation.
- Password‑protected Web access and user authentication.
Operational Reliability:
- Dual power redundancy ensures non‑stop operation even if the host system fails.
- O‑Ring and RSTP redundancy protect against network interruptions.
- Industrial‑grade design with robust EMC and environmental tolerance.
### Summary
The ORing ICS‑4040 is a compact, industrial‑grade, lite‑managed Ethernet switch card engineered for embedded and IPC applications requiring high network reliability and redundancy. By combining PCI bus integration, dual power inputs, and sub‑10 ms recovery redundancy, it ensures continuous communication in mission‑critical environments. Its Web interface and Open‑Vision utility simplify configuration and monitoring, while comprehensive SNMP, Syslog, and Email alerts provide proactive fault management.
With compliance to major Ethernet, PCI, and EMC standards, and a robust design rated for ‑10 °C to 60 °C operation, the ICS‑4040 delivers dependable performance in industrial automation, transportation, and control systems. Its combination of redundancy, manageability, and compact PCI form factor makes it an ideal solution for upgrading existing IPCs into resilient, redundant Ethernet nodes.
-
Datasheet_ICS-4040_v1.4_HQ.pdf
PDF Catalog
-
ICS-4040.pdf
PDF Catalog
-
QIG_ICS4040.pdf
Manual
Kein Zubehör vorhanden.
