Comprehensive Product Summary – SUNIX IDS‑2011W Industrial Wireless Device Server
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview

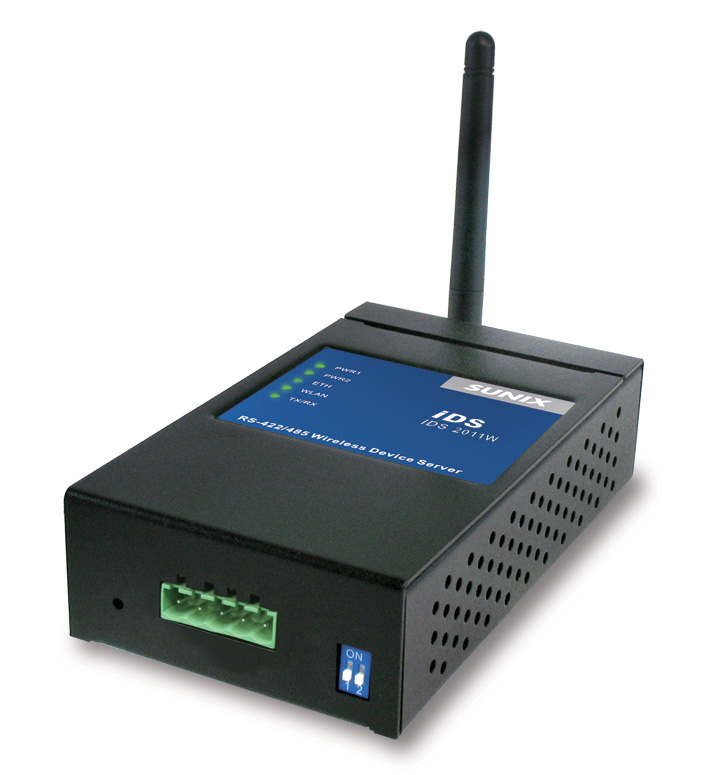

Product Name: IDS‑2011W
Article Number: IDS‑2011W
Series: IDS‑W Industrial Wireless Device Server Series
Model Type: 1‑Port RS‑422/485 to 802.11b/g WLAN & 1‑Port 10/100TX LAN Device Server
Manufacturer: SUNIX Co., Ltd.
Product Category: Industrial Wireless Device Server / Industrial Networking Equipment
The SUNIX IDS‑2011W is a compact, industrial‑grade wireless device server designed to connect RS‑422/485 serial devices to Ethernet and WLAN networks. It bridges traditional serial communication with modern TCP/IP‑based infrastructure, enabling remote monitoring, control, and data acquisition over wired or wireless networks. The unit supports IEEE 802.11b/g WLAN standards, operates in client mode, and provides a single 10/100Base‑T(X) Ethernet port for flexible deployment in industrial automation, manufacturing, and process control environments.
### 2. Key Features
- Wireless Connectivity:
Supports IEEE 802.11b/g WLAN standards with data rates up to 54 Mbps (802.11g) and 11 Mbps (802.11b). Operates in the 2.4 GHz frequency band with DSSS and OFDM modulation schemes.
- Serial‑to‑Network Bridging:
Provides one RS‑422/485 serial port (2‑wire or 4‑wire selectable) for transparent data transmission between serial devices and Ethernet/WLAN networks.
- Flexible Operation Modes:
Supports multiple communication modes including Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel.
- High Security:
Implements advanced WLAN security protocols—WEP (64/128‑bit), WPA, WPA2, and 802.1X authentication with TKIP/AES encryption. SSID broadcast can be disabled for additional protection.
- Industrial‑Grade Design:
Rugged metal enclosure (IP30 protection) with DIN‑rail and wall‑mount options. Designed for harsh environments with operating temperature range from ‑10 °C to +55 °C and humidity tolerance up to 95% RH.
- Redundant Power Inputs:
Dual 12–48 V DC power inputs via 3‑pin terminal block and DC jack, providing power redundancy and reverse polarity protection.
- Comprehensive Software Suite:
Includes SUNIX IDS‑Tools utility for Windows for device discovery, configuration, firmware updates, and monitoring. Supports HTTPS and SSH for secure management.
- Event Notification System:
Provides Syslog, SNMP trap, E‑mail, and beeper alerts for system events such as power changes, IP conflicts, or connection loss.
- High Reliability:
Built‑in 15 kV ESD protection on serial lines and 1.5 kV magnetic isolation on Ethernet port. MTBF exceeds 200,000 hours.
- Long‑Term Support:
Backed by a 5‑year manufacturer warranty and full technical support from SUNIX.
### 3. Technical Specifications
Network Interface:
- 1 × 10/100Base‑T(X) Ethernet port (RJ‑45, auto‑negotiation, auto‑MDI/MDI‑X)
- Magnetic isolation: 1.5 kV
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH
Wireless Interface:
- Standards: IEEE 802.11b/g
- Frequency Bands:
- FCC (US): 2.412 – 2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412 – 2.472 GHz (13 channels)
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK (DSSS)
- 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
- Transmission Rate: 1 – 11 Mbps (b), 6 – 54 Mbps (g)
- Transmit Power: 16 dBm
- Receiver Sensitivity:
- –81 dBm @ 11 Mbps (PER < 8%)
- –64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA
- Network Mode: Client mode
- Security: WEP 64/128‑bit, WPA/WPA2, 802.11i, 802.1X, TKIP/AES, SSID broadcast disable
Serial Communication:
- Interface: 1 × RS‑422/485 (2‑wire or 4‑wire selectable)
- Connector: 5‑pin terminal block
- Baud Rate: 110 bps – 230.4 kbps
- Data Bits: 5, 6, 7, 8
- Parity: Odd, Even, None, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑422 Signals: TxD+, TxD–, RxD+, RxD–, GND
- RS‑485 (4‑wire): TxD+, TxD–, RxD+, RxD–, GND
- RS‑485 (2‑wire): Data+, Data–, GND
- ESD Protection: 15 kV
Power Requirements:
- Input Voltage: 12 – 48 V DC (dual inputs)
- Connectors: 3‑pin removable terminal block + DC jack
- Reverse Polarity Protection: Yes
- Power Consumption: Max 7 W
Environmental Conditions:
- Operating Temperature: –10 °C to +55 °C
- Storage Temperature: –20 °C to +85 °C
- Operating Humidity: 5 % – 95 % RH (non‑condensing)
Mechanical:
- Dimensions (W × D × H): 72 × 31 × 125 mm (without connectors)
- Enclosure: Metal, IP30 protection
- Mounting: DIN‑rail and wall‑mount kits included
- Weight: Approx. 0.4 kg
Certifications & Reliability:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Mechanical: IEC60068‑2‑27 (Shock), IEC60068‑2‑32 (Free Fall), IEC60068‑2‑6 (Vibration)
- MTBF: ≥ 200,000 hours
- Warranty: 5 years
### 4. Functionality
The IDS‑2011W functions as a wireless serial device server, converting serial data from RS‑422/485 devices into TCP/IP packets for transmission over Ethernet or WLAN. It enables legacy serial equipment—such as PLCs, sensors, meters, or controllers—to communicate with modern networked systems without requiring physical cabling.
Operation Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing existing software to communicate transparently as if connected locally. Supports up to 5 simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous sessions.
- TCP Client Mode: Initiates TCP connections to a predefined server upon startup or data activity.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Creates a direct serial‑to‑serial link between two IDS devices over IP.
Use Cases & Applications:
- Industrial automation and SCADA systems
- Remote monitoring of PLCs, sensors, and meters
- Wireless data acquisition in manufacturing plants
- Integration of serial‑based instruments into Ethernet/WLAN networks
- Mobile or temporary installations where cabling is impractical
Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (VCOM driver), Linux (TTY driver)
- Configuration Interfaces: Web console (HTTPS), Serial console, IDS Utility for Windows, SSH console
### 5. Components & Accessories
Included Items:
- IDS‑2011W main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick Installation Guide (QIG)
- Software CD containing IDS‑Tools utility and drivers
- Dust cover for unused ports
Optional Accessories:
- External 12–48 V DC power adapter (not included by default)
- 2 dBi 2.4 GHz antenna with reverse SMA connector
- Replacement terminal blocks and mounting hardware
Connectors:
- 5‑pin terminal block for RS‑422/485
- RJ‑45 Ethernet port
- Reverse SMA antenna connector
- 3‑pin power terminal block + DC jack
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation:
The unit includes a rear DIN‑rail clip. To install, tilt the device, hook the metal spring onto the rail, and press until it clicks into place.
- Wall‑Mount Installation:
Remove the DIN‑rail kit, attach the wall‑mount bracket using the provided screws, and secure the assembly to the wall.
Power Connection:
Connect 12–48 V DC to either the 3‑pin terminal block (PWR1) or the DC jack (PWR2). Both inputs can be used simultaneously for redundancy.
Network Configuration:
1. Connect the Ethernet port to a PC or switch using a CAT 5/5e UTP cable.
2. Default IP address: 192.168.1.1.
3. Configure via IDS‑Tools or web interface to assign static IP or enable DHCP.
4. Set wireless parameters (SSID, channel, encryption) under WLAN settings.
Serial Configuration:
- Select RS‑422 or RS‑485 (2‑wire/4‑wire) mode via DIP switch.
- Configure baud rate, parity, stop bits, and flow control using IDS‑Tools or web interface.
Software Setup:
- Install IDS‑Tools utility on a Windows PC.
- Use the “Explore” function to discover devices on the network.
- Configure network, serial, and security settings.
- Optionally map the serial port to a virtual COM port for legacy applications.
Reset Function:
Press and hold the reset button for 5 seconds to restore factory defaults.
### 7. Performance & Capabilities
Data Throughput:
- Serial speed up to 230.4 kbps.
- WLAN throughput up to 54 Mbps (802.11g).
- Ethernet throughput up to 100 Mbps.
Connection Capacity:
- Supports up to 5 simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes.
Efficiency & Reliability:
- Optimized for low latency and high throughput modes.
- Built‑in TCP alive‑check and idle timeout functions for connection stability.
- Event notification system for real‑time status monitoring.
Limitations:
- WLAN operates in client mode only (no AP mode).
- Power adapter not included by default.
- Single serial port design limits multi‑device connectivity per unit.
### 8. Standards & Compliance
Wireless Standards:
- IEEE 802.11b/g compliant
- DSSS and OFDM modulation
- WPA/WPA2/802.1X security standards
Network Protocols:
- ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH
Electrical & Environmental Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Mechanical: IEC60068‑2‑27 (Shock), IEC60068‑2‑32 (Free Fall), IEC60068‑2‑6 (Vibration)
- Enclosure Protection: IP30
Security Compliance:
- Supports WEP 64/128‑bit, WPA, WPA2, 802.11i (AES/TKIP), and 802.1X authentication.
- HTTPS and SSH secured management interfaces.
### 9. Additional Information
Warranty & Support:
- Standard 5‑year limited hardware warranty.
- Technical support via email (info@sunix.com.tw) and website (www.sunix.com.tw).
- Firmware and driver updates available through SUNIX support portal.
Maintenance:
- Periodically check antenna connections and clean ventilation openings.
- Firmware updates can be performed via web interface or IDS‑Tools utility.
- Configuration backup and restore supported through export/import functions.
Service & Reliability:
- Designed for continuous operation in industrial environments.
- MTBF ≥ 200,000 hours ensures long‑term stability.
- Redundant power inputs and robust EMC design minimize downtime.
Manufacturer Contact:
SUNIX Co., Ltd.
Tel: +886‑2‑8913‑1987 Fax: +886‑2‑8913‑1986
Website: [www.sunix.com.tw](http://www.sunix.com.tw)
Email: info@sunix.com.tw
### Summary
The SUNIX IDS‑2011W is a high‑performance, industrial‑grade wireless device server engineered to integrate RS‑422/485 serial equipment into Ethernet and WLAN networks. Combining robust hardware design, comprehensive software management, and advanced security, it provides a reliable solution for industrial automation, remote monitoring, and data communication applications. Its dual power redundancy, extensive protocol support, and flexible mounting options make it ideal for mission‑critical environments requiring stable, secure, and scalable serial‑to‑network connectivity.
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: IDS‑2011W
Article Number: IDS‑2011W
Series: IDS‑W Industrial Wireless Device Server Series
Model Type: 1‑Port RS‑422/485 to 802.11b/g WLAN & 1‑Port 10/100TX LAN Device Server
Manufacturer: SUNIX Co., Ltd.
Product Category: Industrial Wireless Device Server / Industrial Networking Equipment
The SUNIX IDS‑2011W is a compact, industrial‑grade wireless device server designed to connect RS‑422/485 serial devices to Ethernet and WLAN networks. It bridges traditional serial communication with modern TCP/IP‑based infrastructure, enabling remote monitoring, control, and data acquisition over wired or wireless networks. The unit supports IEEE 802.11b/g WLAN standards, operates in client mode, and provides a single 10/100Base‑T(X) Ethernet port for flexible deployment in industrial automation, manufacturing, and process control environments.
### 2. Key Features
- Wireless Connectivity:
Supports IEEE 802.11b/g WLAN standards with data rates up to 54 Mbps (802.11g) and 11 Mbps (802.11b). Operates in the 2.4 GHz frequency band with DSSS and OFDM modulation schemes.
- Serial‑to‑Network Bridging:
Provides one RS‑422/485 serial port (2‑wire or 4‑wire selectable) for transparent data transmission between serial devices and Ethernet/WLAN networks.
- Flexible Operation Modes:
Supports multiple communication modes including Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel.
- High Security:
Implements advanced WLAN security protocols—WEP (64/128‑bit), WPA, WPA2, and 802.1X authentication with TKIP/AES encryption. SSID broadcast can be disabled for additional protection.
- Industrial‑Grade Design:
Rugged metal enclosure (IP30 protection) with DIN‑rail and wall‑mount options. Designed for harsh environments with operating temperature range from ‑10 °C to +55 °C and humidity tolerance up to 95% RH.
- Redundant Power Inputs:
Dual 12–48 V DC power inputs via 3‑pin terminal block and DC jack, providing power redundancy and reverse polarity protection.
- Comprehensive Software Suite:
Includes SUNIX IDS‑Tools utility for Windows for device discovery, configuration, firmware updates, and monitoring. Supports HTTPS and SSH for secure management.
- Event Notification System:
Provides Syslog, SNMP trap, E‑mail, and beeper alerts for system events such as power changes, IP conflicts, or connection loss.
- High Reliability:
Built‑in 15 kV ESD protection on serial lines and 1.5 kV magnetic isolation on Ethernet port. MTBF exceeds 200,000 hours.
- Long‑Term Support:
Backed by a 5‑year manufacturer warranty and full technical support from SUNIX.
### 3. Technical Specifications
Network Interface:
- 1 × 10/100Base‑T(X) Ethernet port (RJ‑45, auto‑negotiation, auto‑MDI/MDI‑X)
- Magnetic isolation: 1.5 kV
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH
Wireless Interface:
- Standards: IEEE 802.11b/g
- Frequency Bands:
- FCC (US): 2.412 – 2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412 – 2.472 GHz (13 channels)
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK (DSSS)
- 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
- Transmission Rate: 1 – 11 Mbps (b), 6 – 54 Mbps (g)
- Transmit Power: 16 dBm
- Receiver Sensitivity:
- –81 dBm @ 11 Mbps (PER < 8%)
- –64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA
- Network Mode: Client mode
- Security: WEP 64/128‑bit, WPA/WPA2, 802.11i, 802.1X, TKIP/AES, SSID broadcast disable
Serial Communication:
- Interface: 1 × RS‑422/485 (2‑wire or 4‑wire selectable)
- Connector: 5‑pin terminal block
- Baud Rate: 110 bps – 230.4 kbps
- Data Bits: 5, 6, 7, 8
- Parity: Odd, Even, None, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑422 Signals: TxD+, TxD–, RxD+, RxD–, GND
- RS‑485 (4‑wire): TxD+, TxD–, RxD+, RxD–, GND
- RS‑485 (2‑wire): Data+, Data–, GND
- ESD Protection: 15 kV
Power Requirements:
- Input Voltage: 12 – 48 V DC (dual inputs)
- Connectors: 3‑pin removable terminal block + DC jack
- Reverse Polarity Protection: Yes
- Power Consumption: Max 7 W
Environmental Conditions:
- Operating Temperature: –10 °C to +55 °C
- Storage Temperature: –20 °C to +85 °C
- Operating Humidity: 5 % – 95 % RH (non‑condensing)
Mechanical:
- Dimensions (W × D × H): 72 × 31 × 125 mm (without connectors)
- Enclosure: Metal, IP30 protection
- Mounting: DIN‑rail and wall‑mount kits included
- Weight: Approx. 0.4 kg
Certifications & Reliability:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Mechanical: IEC60068‑2‑27 (Shock), IEC60068‑2‑32 (Free Fall), IEC60068‑2‑6 (Vibration)
- MTBF: ≥ 200,000 hours
- Warranty: 5 years
### 4. Functionality
The IDS‑2011W functions as a wireless serial device server, converting serial data from RS‑422/485 devices into TCP/IP packets for transmission over Ethernet or WLAN. It enables legacy serial equipment—such as PLCs, sensors, meters, or controllers—to communicate with modern networked systems without requiring physical cabling.
Operation Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing existing software to communicate transparently as if connected locally. Supports up to 5 simultaneous host connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous sessions.
- TCP Client Mode: Initiates TCP connections to a predefined server upon startup or data activity.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Creates a direct serial‑to‑serial link between two IDS devices over IP.
Use Cases & Applications:
- Industrial automation and SCADA systems
- Remote monitoring of PLCs, sensors, and meters
- Wireless data acquisition in manufacturing plants
- Integration of serial‑based instruments into Ethernet/WLAN networks
- Mobile or temporary installations where cabling is impractical
Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (VCOM driver), Linux (TTY driver)
- Configuration Interfaces: Web console (HTTPS), Serial console, IDS Utility for Windows, SSH console
### 5. Components & Accessories
Included Items:
- IDS‑2011W main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick Installation Guide (QIG)
- Software CD containing IDS‑Tools utility and drivers
- Dust cover for unused ports
Optional Accessories:
- External 12–48 V DC power adapter (not included by default)
- 2 dBi 2.4 GHz antenna with reverse SMA connector
- Replacement terminal blocks and mounting hardware
Connectors:
- 5‑pin terminal block for RS‑422/485
- RJ‑45 Ethernet port
- Reverse SMA antenna connector
- 3‑pin power terminal block + DC jack
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation:
The unit includes a rear DIN‑rail clip. To install, tilt the device, hook the metal spring onto the rail, and press until it clicks into place.
- Wall‑Mount Installation:
Remove the DIN‑rail kit, attach the wall‑mount bracket using the provided screws, and secure the assembly to the wall.
Power Connection:
Connect 12–48 V DC to either the 3‑pin terminal block (PWR1) or the DC jack (PWR2). Both inputs can be used simultaneously for redundancy.
Network Configuration:
1. Connect the Ethernet port to a PC or switch using a CAT 5/5e UTP cable.
2. Default IP address: 192.168.1.1.
3. Configure via IDS‑Tools or web interface to assign static IP or enable DHCP.
4. Set wireless parameters (SSID, channel, encryption) under WLAN settings.
Serial Configuration:
- Select RS‑422 or RS‑485 (2‑wire/4‑wire) mode via DIP switch.
- Configure baud rate, parity, stop bits, and flow control using IDS‑Tools or web interface.
Software Setup:
- Install IDS‑Tools utility on a Windows PC.
- Use the “Explore” function to discover devices on the network.
- Configure network, serial, and security settings.
- Optionally map the serial port to a virtual COM port for legacy applications.
Reset Function:
Press and hold the reset button for 5 seconds to restore factory defaults.
### 7. Performance & Capabilities
Data Throughput:
- Serial speed up to 230.4 kbps.
- WLAN throughput up to 54 Mbps (802.11g).
- Ethernet throughput up to 100 Mbps.
Connection Capacity:
- Supports up to 5 simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes.
Efficiency & Reliability:
- Optimized for low latency and high throughput modes.
- Built‑in TCP alive‑check and idle timeout functions for connection stability.
- Event notification system for real‑time status monitoring.
Limitations:
- WLAN operates in client mode only (no AP mode).
- Power adapter not included by default.
- Single serial port design limits multi‑device connectivity per unit.
### 8. Standards & Compliance
Wireless Standards:
- IEEE 802.11b/g compliant
- DSSS and OFDM modulation
- WPA/WPA2/802.1X security standards
Network Protocols:
- ICMP, IP, TCP, UDP, DHCP, BootP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH
Electrical & Environmental Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Mechanical: IEC60068‑2‑27 (Shock), IEC60068‑2‑32 (Free Fall), IEC60068‑2‑6 (Vibration)
- Enclosure Protection: IP30
Security Compliance:
- Supports WEP 64/128‑bit, WPA, WPA2, 802.11i (AES/TKIP), and 802.1X authentication.
- HTTPS and SSH secured management interfaces.
### 9. Additional Information
Warranty & Support:
- Standard 5‑year limited hardware warranty.
- Technical support via email (info@sunix.com.tw) and website (www.sunix.com.tw).
- Firmware and driver updates available through SUNIX support portal.
Maintenance:
- Periodically check antenna connections and clean ventilation openings.
- Firmware updates can be performed via web interface or IDS‑Tools utility.
- Configuration backup and restore supported through export/import functions.
Service & Reliability:
- Designed for continuous operation in industrial environments.
- MTBF ≥ 200,000 hours ensures long‑term stability.
- Redundant power inputs and robust EMC design minimize downtime.
Manufacturer Contact:
SUNIX Co., Ltd.
Tel: +886‑2‑8913‑1987 Fax: +886‑2‑8913‑1986
Website: [www.sunix.com.tw](http://www.sunix.com.tw)
Email: info@sunix.com.tw
### Summary
The SUNIX IDS‑2011W is a high‑performance, industrial‑grade wireless device server engineered to integrate RS‑422/485 serial equipment into Ethernet and WLAN networks. Combining robust hardware design, comprehensive software management, and advanced security, it provides a reliable solution for industrial automation, remote monitoring, and data communication applications. Its dual power redundancy, extensive protocol support, and flexible mounting options make it ideal for mission‑critical environments requiring stable, secure, and scalable serial‑to‑network connectivity.
-
WirelessSolutions.pdf
PDF Catalog
-
IDS-3011W.pdf
Manual
-
IDS_quick_start.pdf
Manual
Kein Zubehör vorhanden.
