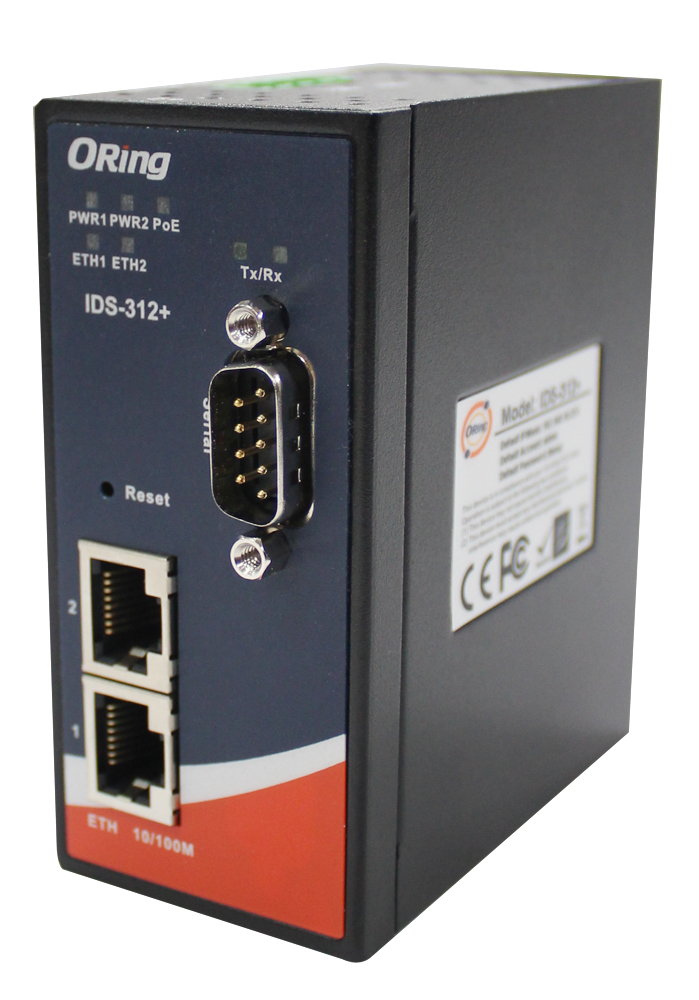

Comprehensive Product Summary – ORing IDS‑312+ Industrial Device Server
### 1. Product Overview
Product Name: IDS‑312+
Model: IDS‑312+
Series: IDS‑312(+)/322(+)/342(+) Industrial Device Server Series
Article Number: IDS‑312+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Headquarters: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
- Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014
- Technical Support: support@oring-networking.com
- Sales: sales@oring-networking.com
The ORing IDS‑312+ is a compact, industrial‑grade Ethernet‑to‑serial device server designed to connect legacy serial equipment to modern Ethernet networks. It provides one RS‑232/422/485 serial port and two 10/100Base‑T(X) Ethernet ports, one of which supports IEEE 802.3af Power‑over‑Ethernet (PoE PD). The device is engineered for high reliability, redundant networking, and secure data transmission in harsh industrial environments.
### 2. Key Features
- Multi‑Protocol Serial‑to‑Ethernet Conversion:
Supports RS‑232, RS‑422, and RS‑485 interfaces through a DB9 male connector, enabling flexible integration with a wide range of serial devices.
- Dual Ethernet Ports with Redundancy:
Two 10/100Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X support provide Ethernet redundancy and recovery time under 10 ms, ensuring continuous operation.
- PoE PD Functionality:
One Ethernet port (ETH1) supports IEEE 802.3af PoE PD input, allowing the device to be powered directly via Ethernet cabling—ideal for installations where power outlets are limited.
- Advanced Security:
Integrated HTTPS, SSH, and SSL encryption, IP access control, and IP whitelist functions safeguard data integrity and prevent unauthorized access.
- Flexible Operation Modes:
Supports Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes. Up to five simultaneous host connections are supported for redundancy and data sharing.
- Comprehensive Event Notification:
System events can trigger alerts via Syslog, SNMP trap, email, relay output, or beeper, ensuring proactive monitoring and maintenance.
- Industrial‑Grade Design:
Rugged IP‑30 metal enclosure, DIN‑rail and wall‑mount options, and wide operating temperature range (‑40 °C to 70 °C) make it suitable for demanding industrial environments.
- Redundant Power Inputs:
Dual 12–48 VDC power inputs on a 6‑pin terminal block provide power redundancy and protection against power failure.
- Software Management Tools:
Includes DS‑Tool Windows utility for device discovery, configuration, firmware updates, and monitoring. Web‑based, Telnet, SSH, and SNMP management interfaces are also supported.
- High Compatibility:
Compatible with Windows NT/2000/XP/2003/Vista/7 (32/64‑bit) and Linux (fixed TTY driver available).
### 3. Technical Specifications
Physical Ports
- Ethernet: 2 × 10/100Base‑T(X) RJ‑45 ports (auto MDI/MDI‑X)
- PoE: IEEE 802.3af‑compliant PD on ETH1
- Input interface: IEEE 802.3af standard
- Overload & short‑circuit protection
- Isolation voltage: 1000 VDC min
- Isolation resistance: 10⁸ Ω min
- Serial: 1 × DB9 male connector
- Modes: RS‑232/422/485 selectable
- Baud rate: 110 bps – 460.8 kbps
- Data bits: 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop bits: 1, 1.5, 2
- Flow control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Network Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP
LED Indicators
- PWR1/PWR2/PoE: Green = Power on
- ETH1/ETH2: Green = Link/Activity at 100 Mbps
- TX/RX: Green = Transmitting, Red = Receiving
- PoE: Green = Power supplied via Ethernet
Power
- Input: Dual 12–48 VDC via 6‑pin terminal block
- Power consumption: 3.36 W typical
- Protection: Overload current and reverse polarity protection
- PoE PD: IEEE 802.3af compliant
Physical Characteristics
- Enclosure: Metal, IP‑30 protection
- Dimensions: 45 (W) × 81 (D) × 95 (H) mm
- Weight: 313 g
- Mounting: DIN‑rail or wall‑mount
Environmental Conditions
- Operating temperature: ‑40 °C to 70 °C (‑40 °F to 158 °F)
- Storage temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Approvals
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
Warranty: 5 years
### 4. Functionality
The IDS‑312+ acts as a transparent bridge between serial and Ethernet networks. It converts serial data from RS‑232/422/485 devices into TCP/IP packets for transmission over Ethernet and vice versa. This enables legacy serial equipment—such as PLCs, sensors, barcode scanners, and industrial controllers—to communicate over modern IP networks.
Supported Operation Modes:
- Virtual COM: Maps the serial port to a virtual COM port on a host PC, allowing software to communicate as if directly connected. Supports up to 5 simultaneous host connections.
- TCP Server: Waits for incoming TCP connections from clients; supports 5 simultaneous connections.
- TCP Client: Initiates TCP connections to a defined server upon startup or data activity.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel: Creates a transparent serial link between two device servers over Ethernet.
Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring of serial instruments
- Building management and access control
- Transportation and traffic control systems
- Energy and utility data acquisition
Compatibility:
- Operating systems: Windows NT/2000/XP/2003/Vista/7 (32/64‑bit), Linux (TTY driver)
- Network: IPv4 TCP/IP networks with DHCP or static addressing
### 5. Components & Accessories
Included Items:
- IDS‑312+ device server unit
- DIN‑rail mounting kit
- Wall‑mount brackets
- Quick installation guide
- Terminal block connector for power input
- Warranty documentation
Optional Accessories:
- External DC power supply (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)
- DB9 serial cables (RS‑232/422/485)
- PoE injector or PoE‑enabled switch
Connectors:
- 2 × RJ‑45 Ethernet ports
- 1 × DB9 male serial port
- 6‑pin terminal block (PWR1, PWR2, Relay)
- Grounding screw
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach the included DIN‑rail kit to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall Mount: Use the L‑shaped brackets and screws provided to secure the device to a wall or panel.
Wiring Guidelines:
- Disconnect power before wiring.
- Use separate routing paths for power and signal cables to minimize EMI.
- Ground the device properly using the grounding screw to reduce electrical noise.
- For redundant power, connect both PWR1 and PWR2 inputs to independent DC sources.
Ethernet Cabling:
- 10BASE‑T: Cat 3/4/5 UTP, 100 m max
- 100BASE‑TX: Cat 5/5e UTP, 100 m max
- Supports auto MDI/MDI‑X crossover detection
Serial Connection:
- DB9 male connector pinout supports RS‑232/422/485 modes.
- Configure interface type via software.
Initial Configuration:
- Default IP: 192.168.10.2
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username: admin / Password: admin
Configuration Tools:
- DS‑Tool Utility: Windows‑based software for device discovery, configuration, firmware updates, and monitoring.
- Web Interface: Accessible via browser (HTTP/HTTPS).
- Telnet/SSH Console: Command‑line configuration and diagnostics.
- SNMP: Remote management and monitoring integration.
### 7. Performance & Capabilities
- Serial Data Rate: 110 bps – 460.8 kbps
- Ethernet Throughput: 10/100 Mbps full/half‑duplex
- Redundancy Recovery Time: < 10 ms
- Simultaneous Host Connections: Up to 5
- Buffer Size: 4 KB per port
- Data Packing: Configurable delimiters (00–FF Hex) and flush intervals (0–65535 s)
- Performance Modes: Throughput (high‑speed) or Latency (low‑delay)
- Event Notification: Syslog, SNMP trap, Email, Relay, Beeper
- Reliability: Dual power inputs, PoE PD, industrial‑grade EMC protection
Limitations:
- Single serial port (for multi‑port applications, IDS‑322+ or IDS‑342+ models are available).
- IPv4 only (no IPv6 support).
- Web interface limited to basic configuration; advanced settings via DS‑Tool or SSH.
### 8. Standards & Compliance
Electrical & Safety Standards:
- EN 60950‑1 (Safety of IT Equipment)
- IEEE 802.3 / 802.3u (Ethernet Standards)
- IEEE 802.3af (Power over Ethernet PD)
EMC & Environmental Compliance:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Ingress Protection: IP‑30 metal enclosure
RoHS Compliance: Yes (lead‑free manufacturing)
### 9. Additional Information
Warranty: 5 years from invoice date.
Covers defects in materials and workmanship under normal use. Excludes damage from misuse, improper installation, or unauthorized modification.
Maintenance:
- Periodically inspect power and Ethernet connections.
- Keep ventilation openings clear of dust.
- Firmware updates available via DS‑Tool or Web interface.
Firmware & Software Updates:
- Latest firmware downloadable from ORing’s website.
- DS‑Tool supports group firmware updates for multiple devices.
Support & Documentation:
- Comprehensive user manual and quick start guide included.
- Technical support available via email and online resources.
Service Life & Reliability:
- Designed for continuous 24/7 industrial operation.
- Mean Time Between Failures (MTBF) optimized through solid‑state design and redundant power architecture.
### Summary
The ORing IDS‑312+ is a robust, compact, and feature‑rich industrial device server that bridges serial and Ethernet communication seamlessly. With dual Ethernet ports, PoE PD capability, redundant DC power inputs, and comprehensive management interfaces, it ensures reliable connectivity for mission‑critical industrial automation systems. Its wide temperature tolerance, IP‑30 metal housing, and compliance with international EMC and safety standards make it ideal for deployment in factories, utilities, transportation, and energy sectors.
By combining advanced networking features, strong security, and flexible configuration options, the IDS‑312+ delivers dependable performance and long‑term operational stability in demanding industrial environments.
### 1. Product Overview
Product Name: IDS‑312+
Model: IDS‑312+
Series: IDS‑312(+)/322(+)/342(+) Industrial Device Server Series
Article Number: IDS‑312+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Headquarters: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
- Tel: +886‑2‑2218‑1066 | Fax: +886‑2‑2218‑1014
- Technical Support: support@oring-networking.com
- Sales: sales@oring-networking.com
The ORing IDS‑312+ is a compact, industrial‑grade Ethernet‑to‑serial device server designed to connect legacy serial equipment to modern Ethernet networks. It provides one RS‑232/422/485 serial port and two 10/100Base‑T(X) Ethernet ports, one of which supports IEEE 802.3af Power‑over‑Ethernet (PoE PD). The device is engineered for high reliability, redundant networking, and secure data transmission in harsh industrial environments.
### 2. Key Features
- Multi‑Protocol Serial‑to‑Ethernet Conversion:
Supports RS‑232, RS‑422, and RS‑485 interfaces through a DB9 male connector, enabling flexible integration with a wide range of serial devices.
- Dual Ethernet Ports with Redundancy:
Two 10/100Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X support provide Ethernet redundancy and recovery time under 10 ms, ensuring continuous operation.
- PoE PD Functionality:
One Ethernet port (ETH1) supports IEEE 802.3af PoE PD input, allowing the device to be powered directly via Ethernet cabling—ideal for installations where power outlets are limited.
- Advanced Security:
Integrated HTTPS, SSH, and SSL encryption, IP access control, and IP whitelist functions safeguard data integrity and prevent unauthorized access.
- Flexible Operation Modes:
Supports Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes. Up to five simultaneous host connections are supported for redundancy and data sharing.
- Comprehensive Event Notification:
System events can trigger alerts via Syslog, SNMP trap, email, relay output, or beeper, ensuring proactive monitoring and maintenance.
- Industrial‑Grade Design:
Rugged IP‑30 metal enclosure, DIN‑rail and wall‑mount options, and wide operating temperature range (‑40 °C to 70 °C) make it suitable for demanding industrial environments.
- Redundant Power Inputs:
Dual 12–48 VDC power inputs on a 6‑pin terminal block provide power redundancy and protection against power failure.
- Software Management Tools:
Includes DS‑Tool Windows utility for device discovery, configuration, firmware updates, and monitoring. Web‑based, Telnet, SSH, and SNMP management interfaces are also supported.
- High Compatibility:
Compatible with Windows NT/2000/XP/2003/Vista/7 (32/64‑bit) and Linux (fixed TTY driver available).
### 3. Technical Specifications
Physical Ports
- Ethernet: 2 × 10/100Base‑T(X) RJ‑45 ports (auto MDI/MDI‑X)
- PoE: IEEE 802.3af‑compliant PD on ETH1
- Input interface: IEEE 802.3af standard
- Overload & short‑circuit protection
- Isolation voltage: 1000 VDC min
- Isolation resistance: 10⁸ Ω min
- Serial: 1 × DB9 male connector
- Modes: RS‑232/422/485 selectable
- Baud rate: 110 bps – 460.8 kbps
- Data bits: 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop bits: 1, 1.5, 2
- Flow control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Network Protocols
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP
LED Indicators
- PWR1/PWR2/PoE: Green = Power on
- ETH1/ETH2: Green = Link/Activity at 100 Mbps
- TX/RX: Green = Transmitting, Red = Receiving
- PoE: Green = Power supplied via Ethernet
Power
- Input: Dual 12–48 VDC via 6‑pin terminal block
- Power consumption: 3.36 W typical
- Protection: Overload current and reverse polarity protection
- PoE PD: IEEE 802.3af compliant
Physical Characteristics
- Enclosure: Metal, IP‑30 protection
- Dimensions: 45 (W) × 81 (D) × 95 (H) mm
- Weight: 313 g
- Mounting: DIN‑rail or wall‑mount
Environmental Conditions
- Operating temperature: ‑40 °C to 70 °C (‑40 °F to 158 °F)
- Storage temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing
Regulatory Approvals
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1
Warranty: 5 years
### 4. Functionality
The IDS‑312+ acts as a transparent bridge between serial and Ethernet networks. It converts serial data from RS‑232/422/485 devices into TCP/IP packets for transmission over Ethernet and vice versa. This enables legacy serial equipment—such as PLCs, sensors, barcode scanners, and industrial controllers—to communicate over modern IP networks.
Supported Operation Modes:
- Virtual COM: Maps the serial port to a virtual COM port on a host PC, allowing software to communicate as if directly connected. Supports up to 5 simultaneous host connections.
- TCP Server: Waits for incoming TCP connections from clients; supports 5 simultaneous connections.
- TCP Client: Initiates TCP connections to a defined server upon startup or data activity.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel: Creates a transparent serial link between two device servers over Ethernet.
Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring of serial instruments
- Building management and access control
- Transportation and traffic control systems
- Energy and utility data acquisition
Compatibility:
- Operating systems: Windows NT/2000/XP/2003/Vista/7 (32/64‑bit), Linux (TTY driver)
- Network: IPv4 TCP/IP networks with DHCP or static addressing
### 5. Components & Accessories
Included Items:
- IDS‑312+ device server unit
- DIN‑rail mounting kit
- Wall‑mount brackets
- Quick installation guide
- Terminal block connector for power input
- Warranty documentation
Optional Accessories:
- External DC power supply (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)
- DB9 serial cables (RS‑232/422/485)
- PoE injector or PoE‑enabled switch
Connectors:
- 2 × RJ‑45 Ethernet ports
- 1 × DB9 male serial port
- 6‑pin terminal block (PWR1, PWR2, Relay)
- Grounding screw
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail: Attach the included DIN‑rail kit to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall Mount: Use the L‑shaped brackets and screws provided to secure the device to a wall or panel.
Wiring Guidelines:
- Disconnect power before wiring.
- Use separate routing paths for power and signal cables to minimize EMI.
- Ground the device properly using the grounding screw to reduce electrical noise.
- For redundant power, connect both PWR1 and PWR2 inputs to independent DC sources.
Ethernet Cabling:
- 10BASE‑T: Cat 3/4/5 UTP, 100 m max
- 100BASE‑TX: Cat 5/5e UTP, 100 m max
- Supports auto MDI/MDI‑X crossover detection
Serial Connection:
- DB9 male connector pinout supports RS‑232/422/485 modes.
- Configure interface type via software.
Initial Configuration:
- Default IP: 192.168.10.2
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username: admin / Password: admin
Configuration Tools:
- DS‑Tool Utility: Windows‑based software for device discovery, configuration, firmware updates, and monitoring.
- Web Interface: Accessible via browser (HTTP/HTTPS).
- Telnet/SSH Console: Command‑line configuration and diagnostics.
- SNMP: Remote management and monitoring integration.
### 7. Performance & Capabilities
- Serial Data Rate: 110 bps – 460.8 kbps
- Ethernet Throughput: 10/100 Mbps full/half‑duplex
- Redundancy Recovery Time: < 10 ms
- Simultaneous Host Connections: Up to 5
- Buffer Size: 4 KB per port
- Data Packing: Configurable delimiters (00–FF Hex) and flush intervals (0–65535 s)
- Performance Modes: Throughput (high‑speed) or Latency (low‑delay)
- Event Notification: Syslog, SNMP trap, Email, Relay, Beeper
- Reliability: Dual power inputs, PoE PD, industrial‑grade EMC protection
Limitations:
- Single serial port (for multi‑port applications, IDS‑322+ or IDS‑342+ models are available).
- IPv4 only (no IPv6 support).
- Web interface limited to basic configuration; advanced settings via DS‑Tool or SSH.
### 8. Standards & Compliance
Electrical & Safety Standards:
- EN 60950‑1 (Safety of IT Equipment)
- IEEE 802.3 / 802.3u (Ethernet Standards)
- IEEE 802.3af (Power over Ethernet PD)
EMC & Environmental Compliance:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Ingress Protection: IP‑30 metal enclosure
RoHS Compliance: Yes (lead‑free manufacturing)
### 9. Additional Information
Warranty: 5 years from invoice date.
Covers defects in materials and workmanship under normal use. Excludes damage from misuse, improper installation, or unauthorized modification.
Maintenance:
- Periodically inspect power and Ethernet connections.
- Keep ventilation openings clear of dust.
- Firmware updates available via DS‑Tool or Web interface.
Firmware & Software Updates:
- Latest firmware downloadable from ORing’s website.
- DS‑Tool supports group firmware updates for multiple devices.
Support & Documentation:
- Comprehensive user manual and quick start guide included.
- Technical support available via email and online resources.
Service Life & Reliability:
- Designed for continuous 24/7 industrial operation.
- Mean Time Between Failures (MTBF) optimized through solid‑state design and redundant power architecture.
### Summary
The ORing IDS‑312+ is a robust, compact, and feature‑rich industrial device server that bridges serial and Ethernet communication seamlessly. With dual Ethernet ports, PoE PD capability, redundant DC power inputs, and comprehensive management interfaces, it ensures reliable connectivity for mission‑critical industrial automation systems. Its wide temperature tolerance, IP‑30 metal housing, and compliance with international EMC and safety standards make it ideal for deployment in factories, utilities, transportation, and energy sectors.
By combining advanced networking features, strong security, and flexible configuration options, the IDS‑312+ delivers dependable performance and long‑term operational stability in demanding industrial environments.
-
.webp)
Datasheet_IDS-312(+).pdf
PDF Catalog
_322(+)_342(+).webp)
Kein Zubehör vorhanden.
