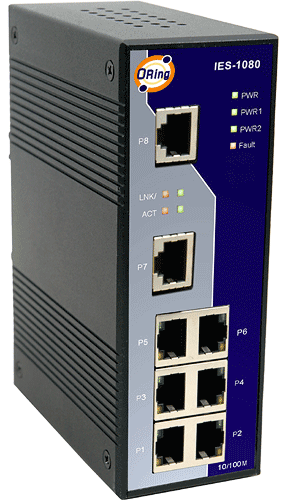

Comprehensive Product Summary – ORing IES‑1080 Industrial Unmanaged 8‑Port Ethernet Switch

---

### 1. Product Overview

Product Name: IES‑1080
Model Number: IES‑1080
Series: IES‑1000 / IES‑1080/1062 Series
Article Number: IES‑1080
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Unmanaged 8‑Port 10/100Base‑T(X) Ethernet Switch
Product Category: Industrial Ethernet Switches

The ORing IES‑1080 is a rugged, industrial‑grade unmanaged Ethernet switch designed for reliable data communication in harsh environments. It provides eight 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto MDI/MDIX capability, housed in a compact IP30‑rated metal enclosure suitable for DIN‑rail or panel mounting. The switch supports triple redundant DC power inputs, extended operating temperature, and robust electromagnetic protection, making it ideal for mission‑critical industrial networking applications.

---

### 2. Key Features

- 8×10/100Base‑T(X) RJ‑45 Ports:
All ports support auto‑negotiation and auto MDI/MDIX for flexible connection to any Ethernet device.

- Triple Redundant Power Inputs:
Equipped with two DC terminal block inputs and one DC power jack input (12–48 VDC), ensuring uninterrupted operation during power source failure.

- Wide Operating Temperature Range:
Designed for extreme industrial conditions, operating reliably from –40 °C to +70 °C.

- Rugged IP30 Metal Housing:
Provides mechanical protection against dust and accidental contact, suitable for industrial control cabinets.

- DIN‑Rail and Panel Mounting Options:
Flexible installation for control panels, enclosures, or wall‑mounted configurations.

- High Immunity to Electrical Disturbances:
ESD protection up to 4 kV on Ethernet ports and surge protection up to 2000 VDC on power inputs.

- Low Power Consumption:
Typical power usage of approximately 4 W, optimizing energy efficiency in continuous operation.

- Store‑and‑Forward Switching Architecture:
Ensures reliable data transmission with error checking and minimal latency.

- Compact Industrial Design:
Dimensions of 52 (W) × 106 (D) × 144 (H) mm, optimized for space‑constrained installations.

- High Reliability and Long Service Life:
Designed for 24/7 operation with a 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Ethernet Interface:
- 8 × 10/100Base‑T(X) RJ‑45 ports
- Auto‑negotiation and auto MDI/MDIX supported
- Compliance with IEEE 802.3 (10Base‑T), IEEE 802.3u (100Base‑TX), and IEEE 802.3x (Flow Control) standards

Switching Performance:
- Switching Method: Store‑and‑Forward
- MAC Address Table: 2048 entries
- Packet Buffer Memory: Internal (optimized for industrial traffic)
- Transmission Speed: 10/100 Mbps full/half duplex per port

Power System:
- Power Inputs: Triple redundant (2 × terminal block, 1 × DC jack)
- Input Voltage Range: 12–48 VDC (terminal block), 12–45 VDC (power jack)
- Power Consumption: ~4 W typical
- Protection: Reverse polarity and overload current protection
- Surge Protection: 2000 VDC on power line

Mechanical Design:
- Enclosure: IP30‑rated metal housing
- Dimensions: 52 (W) × 106 (D) × 144 (H) mm (2.05 × 4.17 × 5.67 in.)
- Weight: Approximately 666–709 g
- Mounting: DIN‑rail and panel mounting supported

Environmental Conditions:
- Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
- Storage Temperature: –40 °C to +85 °C (–40 °F to +185 °F)
- Operating Humidity: 5 %–95 % non‑condensing

Protection and Immunity:
- ESD Protection: EN61000‑4‑2, ±4 kV contact discharge
- EFT/Surge: EN61000‑4‑4/‑5 compliant
- EMC Immunity: EN61000‑4‑3 (RS), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32

LED Indicators:
- Power LEDs (PWR1, PWR2, PWR3): Green
- Fault Indicator: Amber (indicates power failure)
- Port Link/Activity: Green (link/activity)
- Port Duplex/Collision: Amber (duplex/collision status)

---

### 4. Functionality

The IES‑1080 operates as an unmanaged Layer 2 Ethernet switch, automatically forwarding Ethernet frames between connected devices without user configuration. Each port supports auto‑negotiation for speed and duplex mode, simplifying integration with existing networks.

Typical Use Cases:
- Industrial automation and control systems
- Factory floor Ethernet I/O connectivity
- IP camera and surveillance networks
- Transportation and traffic control systems
- Power substation and utility monitoring
- Building automation and environmental monitoring

Operation Principle:
The switch uses a store‑and‑forward mechanism to buffer and verify incoming frames before forwarding them to the appropriate destination port. This ensures data integrity and minimizes packet loss in electrically noisy environments.

Compatibility:
- Fully compatible with standard Ethernet devices (IEEE 802.3 compliant)
- Supports both straight‑through and crossover cables via auto MDI/MDIX
- Works seamlessly with unmanaged or managed switches, routers, and industrial controllers

---

### 5. Components & Accessories

Included Items:
- IES‑1080 switch unit
- DIN‑rail mounting kit (45 mm rail)
- Wall‑mounting kit (brackets and screws)
- Quick Installation Guide (QIG)
- Dust covers for RJ‑45 ports

Optional Accessories:
- External DC power supply (12–48 VDC)
- Panel mounting screws (M3 × 5 mm)
- Additional DIN‑rail clips or wall brackets
- Protective enclosures for outdoor or hazardous environments

Connectors:
- Ethernet Ports: 8 × RJ‑45 (shielded)
- Power Terminal Block: 7‑pin removable terminal block for dual DC inputs and relay output
- Power Jack: 1 × DC barrel connector (12–45 VDC)
- Relay Output: 1 A @ 24 VDC capacity for power failure alarm

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Mounting:
Attach the included DIN‑rail clip to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Panel/Wall Mounting:
Use the provided wall‑mount brackets and screws to secure the unit on a flat surface.

Power Connection:
- Connect DC power to the 7‑pin terminal block (V1+, V1–, V2+, V2–, GND).
- Optionally connect a third power source via the DC jack (12–45 VDC).
- The relay output can be wired to an external alarm system to signal power failure.

Configuration:
- As an unmanaged switch, no software configuration is required.
- Simply connect Ethernet devices to the RJ‑45 ports; the switch automatically detects link speed and duplex mode.

Grounding:
- Connect the frame ground terminal to the system ground to ensure EMC compliance and safety.

Startup:
- Upon power‑up, the Power LEDs illuminate.
- Link/Activity LEDs indicate network connectivity and data transmission.

---

### 7. Performance & Capabilities

Switching Capacity:
- 1.6 Gbps backplane bandwidth (8 × 100 Mbps full duplex)

Forwarding Rate:
- 148,810 pps per port at 100 Mbps
- 14,881 pps per port at 10 Mbps

Latency:
- < 10 µs typical for 64‑byte frames

MAC Address Table:
- 2048 entries, supporting small to medium‑scale industrial networks

Reliability Features:
- Triple redundant power inputs ensure continuous operation during power source failure.
- Relay output provides immediate alarm signaling for power loss.
- Surge and ESD protection safeguard against transient voltages and static discharge.

Power Efficiency:
- Typical consumption of 4 W enables low‑heat operation and long‑term stability.

Limitations:
- As an unmanaged switch, it does not support VLANs, QoS, or SNMP management.
- Designed for Fast Ethernet (10/100 Mbps); no Gigabit ports on this model.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3x (Flow Control)

EMC & Environmental Standards:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Voltage Dips/Interruptions)
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32
- Safety: EN60950‑1 (Information Technology Equipment Safety)

Certifications:
- CE Marking
- FCC Class A
- EN60950 Safety Approval

These certifications confirm that the IES‑1080 meets international standards for electromagnetic compatibility, electrical safety, and industrial reliability.

---

### 9. Additional Information

Warranty:
- 5‑year limited hardware warranty from ORing Industrial Networking Corp.

Support & Maintenance:
- Technical support available via email (support@oring‑networking.com) and phone (+886‑2‑2218‑1066).
- Firmware updates are not applicable (unmanaged device).
- Routine maintenance includes periodic inspection of power connections and cleaning of ventilation openings.

Manufacturer Contact:
- ORing Industrial Networking Corp.
No. 3, Lane 879, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
Tel: +886‑2‑2218‑1066
Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](http://www.oring-networking.com)

Product Lifecycle & Reliability:
The IES‑1080 is engineered for continuous 24/7 operation in industrial automation systems. Its fanless design, low power consumption, and extended temperature tolerance ensure long‑term reliability in demanding environments such as manufacturing plants, substations, and transportation systems.

Maintenance Recommendations:
- Ensure stable DC power supply within the specified range.
- Maintain proper grounding to prevent ESD damage.
- Periodically verify LED indicators for power and link status.
- Clean dust from housing and connectors to maintain optimal heat dissipation.

Environmental Responsibility:
- RoHS‑compliant materials used in construction.
- Device and packaging are recyclable.
- Printed documentation uses recycled paper.

---

### Summary

The ORing IES‑1080 Industrial Unmanaged 8‑Port Ethernet Switch is a robust, cost‑effective networking solution for industrial automation and control systems. It combines rugged mechanical design, triple redundant power inputs, and wide‑temperature operation to deliver reliable Ethernet connectivity in harsh environments. With its IP30 metal housing, ESD and surge protection, and simple plug‑and‑play functionality, the IES‑1080 ensures stable communication between industrial devices such as PLCs, sensors, IP cameras, and controllers.

Its compliance with international EMC and safety standards, along with a 5‑year warranty, underscores ORing’s commitment to quality and reliability. The IES‑1080 is ideally suited for applications requiring dependable, maintenance‑free Ethernet connectivity without the complexity of managed switch configuration.
