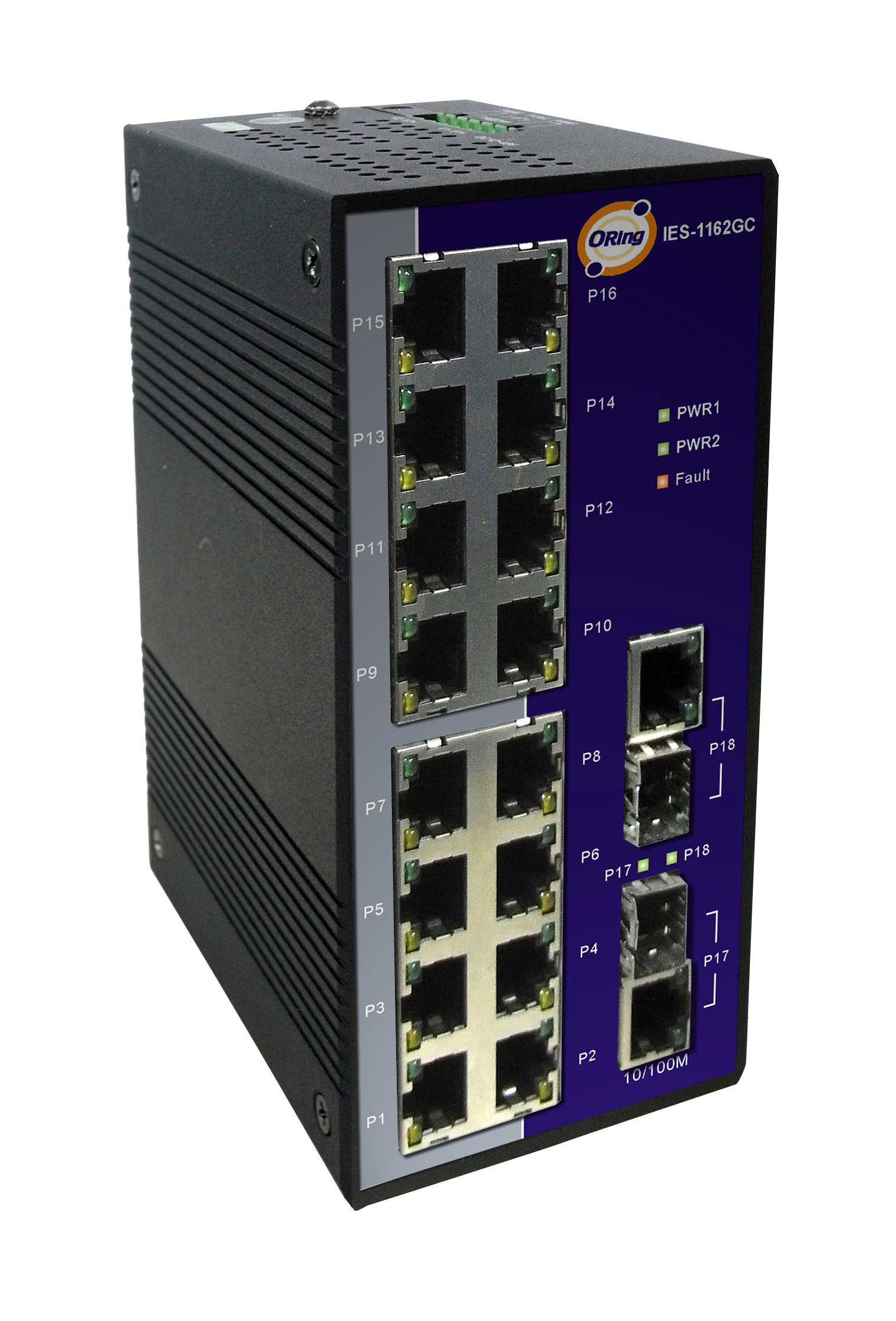

Comprehensive Product Summary – ORing IES‑1162GC Industrial Unmanaged Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial Unmanaged Ethernet Switch
Model: IES‑1162GC
Series: IES‑1000 Series (Industrial Unmanaged Switches)
Article Number: IES‑1162GC
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
Telephone: +886‑2‑2918‑3036
Fax: +886‑2‑2918‑3084

The ORing IES‑1162GC is an industrial‑grade, unmanaged Ethernet switch designed for rugged environments requiring reliable, high‑performance network connectivity. It provides 18 total ports, including 16 Fast Ethernet (10/100Base‑T(X)) and 2 Gigabit combo ports (RJ‑45/SFP), enabling flexible copper and fiber connectivity. The unit is housed in a robust IP‑30 metal enclosure and supports DIN‑rail or panel mounting, making it ideal for industrial automation, transportation, and surveillance applications.

---

### 2. Key Features

- 18‑Port Configuration:
16 × 10/100Base‑T(X) RJ‑45 ports and 2 × Gigabit combo ports (RJ‑45 + SFP socket).
- Auto MDI/MDI‑X:
All RJ‑45 ports support automatic crossover detection, eliminating the need for crossover cables.
- Gigabit Combo Ports:
Two combo ports support either copper (1000Base‑T) or fiber (1000Base‑X via SFP).
- Store‑and‑Forward Architecture:
Ensures reliable data transmission with error checking and buffering.
- High Switching Capacity:
7.2 Gbps backplane bandwidth for non‑blocking data throughput.
- Large Packet Buffer:
1 Mbit buffer memory for efficient traffic handling.
- 8192 MAC Address Table:
Supports large‑scale network deployments.
- Relay Output Alarm:
Provides fault indication for power failure or port link loss.
- Redundant Power Inputs:
Dual 12–48 V DC inputs on terminal block plus an auxiliary DC jack for uninterrupted operation.
- Surge and ESD Protection:
4 kV ESD protection on Ethernet ports and 2 kV surge protection on power inputs.
- Wide Operating Temperature:
‑40 °C to +70 °C for harsh industrial environments.
- Rugged IP‑30 Metal Housing:
Provides mechanical protection and electromagnetic shielding.
- LED Indicators:
Comprehensive LED panel for power, fault, link/activity, and duplex status.
- Mounting Flexibility:
DIN‑rail and wall‑mount options included.
- Maintenance‑Free Operation:
Unmanaged design for plug‑and‑play deployment.
- Long‑Term Reliability:
5‑year manufacturer warranty.

---

### 3. Technical Specifications

Physical Ports
- 16 × 10/100Base‑T(X) RJ‑45 ports (Auto MDI/MDI‑X)
- 2 × Gigabit combo ports (RJ‑45 + SFP socket, 1000Base‑T/1000Base‑X)

Switching Technology
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X))
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- Store‑and‑Forward switching
- Switching bandwidth: 7.2 Gbps
- Switching latency: 9 µs
- MAC address table: 8192 entries
- Packet buffer: 1 Mbit
- Priority queues: 4

LED Indicators
- Power: 2 × Green LEDs (PWR1, PWR2)
- Fault: 1 × Amber LED (power failure or port fault)
- RJ‑45 Ports:
- Green: Link/Activity
- Amber: Duplex/Collision or 100 Mbps indicator
- Gigabit Ports:
- Green: Link/Activity
- Amber: 100 Mbps indicator
- SFP Ports:
- Green: Link/Activity

Power Requirements
- Dual DC inputs: 12–48 V DC via 6‑pin terminal block
- Auxiliary DC jack: 12–45 V DC
- Power consumption: 9 W (typical)
- Overload current protection: Present
- Reverse polarity protection: Present (terminal block)
- Surge protection: 2000 V DC

Mechanical Design
- Enclosure: IP‑30 rated metal housing
- Dimensions (W × D × H): 72 × 105 × 152 mm (2.83 × 4.17 × 5.98 in)
- Weight: 1010 g
- Mounting: DIN‑rail and panel mount

Environmental Conditions
- Operating temperature: ‑40 °C to +70 °C (‑40 °F to +158 °F)
- Storage temperature: ‑40 °C to +85 °C (‑40 °F to +185 °F)
- Operating humidity: 5 %–95 % (non‑condensing)

---

### 4. Functionality

The IES‑1162GC operates as an unmanaged Layer 2 Ethernet switch, automatically learning MAC addresses and forwarding packets based on destination addresses. It uses a store‑and‑forward mechanism to ensure error‑free transmission and supports auto‑negotiation for speed and duplex mode on all copper ports.

Typical Use Cases:
- Industrial automation networks connecting PLCs, sensors, and controllers.
- IP surveillance systems linking multiple IP cameras and NVRs.
- Transportation and traffic control systems requiring rugged networking.
- Energy and utility monitoring systems.
- Factory floor or outdoor enclosures with wide temperature variations.

Compatibility:
- Compatible with standard Ethernet devices (IEEE 802.3 compliant).
- SFP slots support 1000Base‑X transceivers (multi‑mode or single‑mode).
- Works with ORing SFP1G optical transceivers and DR‑series power supplies.

---

### 5. Components & Accessories

Included in Package:
- IES‑1162GC switch unit × 1
- DIN‑rail mounting kit × 1
- Quick installation guide × 1

Optional Accessories:
- Wall‑mount kit × 1
- SFP1G series 1 Gbps optical transceivers (multi‑mode/single‑mode)
- DR‑45 series 45 W DC power supply
- DR‑75 series 75 W DC power supply
- DR‑120 series 120 W DC power supply

Connectors:
- RJ‑45 connectors for copper Ethernet ports
- SFP sockets for fiber modules
- 6‑pin terminal block for dual DC power and relay output
- DC power jack for auxiliary input

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Mounting:
The switch includes a pre‑installed DIN‑rail clip. To mount, hook the upper part of the clip onto the rail and press until it clicks into place.
- Wall Mounting (optional):
Remove the DIN‑rail clip and attach the wall‑mount bracket using six screws (included in the optional kit).

Power Connection:
- Connect two independent DC power sources (12–48 V DC) to the terminal block for redundancy.
- Optionally connect a third DC source (12–45 V DC) via the power jack.
- The relay output (1 A @ 24 V DC) can be wired to an external alarm system for fault indication.

Network Cabling:
- 10/100Base‑T(X): Cat. 5e or better UTP cable, up to 100 m.
- 1000Base‑T: Cat. 5e/6 UTP cable, up to 100 m.
- 1000Base‑X (SFP): Fiber optic cable per transceiver specification (multi‑mode up to 550 m, single‑mode up to 10 km typical).

Configuration:
As an unmanaged switch, no software configuration is required. The device automatically detects link speed, duplex mode, and cable type.

---

### 7. Performance & Capabilities

- Switching Fabric: 7.2 Gbps non‑blocking bandwidth.
- Forwarding Rate: Wire‑speed forwarding on all ports.
- Latency: 9 µs typical.
- Packet Buffer: 1 Mbit shared memory.
- MAC Table: 8192 entries with automatic learning and aging.
- Flow Control: IEEE 802.3x full‑duplex and back‑pressure in half‑duplex.
- Reliability:
- Redundant power inputs ensure continuous operation.
- Relay alarm output for immediate fault notification.
- Surge and ESD protection for industrial reliability.
- Efficiency:
Low power consumption (9 W typical) with fanless design for silent, maintenance‑free operation.
- Limitations:
As an unmanaged switch, it does not support VLANs, QoS, or SNMP management; configuration and monitoring are not available.

---

### 8. Standards & Compliance

Ethernet Standards Supported:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X))
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)

Environmental & Safety Compliance:
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS Immunity:
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (CS)
- EN61000‑4‑8 (Magnetic Field)
- EN61000‑4‑11 (Dip/Interruption)
- Shock: IEC 60068‑2‑27
- Free Fall: IEC 60068‑2‑32
- Vibration: IEC 60068‑2‑6
- Safety: EN60950 (Information Technology Equipment Safety)
- Ingress Protection: IP‑30 (dust‑protected metal enclosure)

These certifications ensure the IES‑1162GC meets industrial EMC and safety requirements for deployment in factories, substations, and transportation systems.

---

### 9. Additional Information

Warranty:
5‑year limited hardware warranty covering manufacturing defects and component reliability.

Support & Maintenance:
- Technical support via email and phone from ORing Industrial Networking Corp.
- Firmware updates are not applicable (unmanaged device).
- Routine maintenance limited to periodic inspection of power and cabling connections.

Ordering Information:
| Model | Description |
|--------|--------------|
| IES‑1162GC | Industrial 18‑port unmanaged Ethernet switch with 16 × 10/100Base‑T(X) and 2 × Gigabit combo ports (RJ‑45/SFP socket) |

Model Code Breakdown:
- 16: Number of 10/100 TX ports
- 2: Number of additional ports
- GC: Gigabit combo (RJ‑45 + SFP)

Manufacturer’s Note:
All specifications are subject to change without prior notice.

---

### Summary

The ORing IES‑1162GC is a robust, high‑performance unmanaged industrial Ethernet switch engineered for mission‑critical applications requiring reliable connectivity under extreme conditions. With 18 total ports, redundant power inputs, and comprehensive protection features, it ensures continuous network operation in environments subject to vibration, electrical noise, and temperature extremes. Its IP‑30 metal housing, ‑40 °C to +70 °C operating range, and industrial EMC compliance make it suitable for automation, transportation, and surveillance systems. The combination of Gigabit combo ports and Fast Ethernet interfaces provides flexible network expansion while maintaining cost efficiency and simplicity of deployment.

Backed by a 5‑year warranty and ORing’s proven industrial networking expertise, the IES‑1162GC delivers dependable, maintenance‑free Ethernet switching for demanding industrial infrastructures.
