Comprehensive Product Summary – ORing IES‑150B Industrial Unmanaged 5‑Port Ethernet Switch

---

### 1. Product Overview

Product Name: IES‑150B
Model Number: IES‑150B
Series: Industrial Unmanaged Ethernet Switch Series
Article Number: IES‑150B
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Unmanaged 5‑Port 10/100Base‑T(X) Ethernet Switch (Mini Type, Extended Temperature)
Version: Unmanaged Ethernet Switch v1.0 (March 2010)

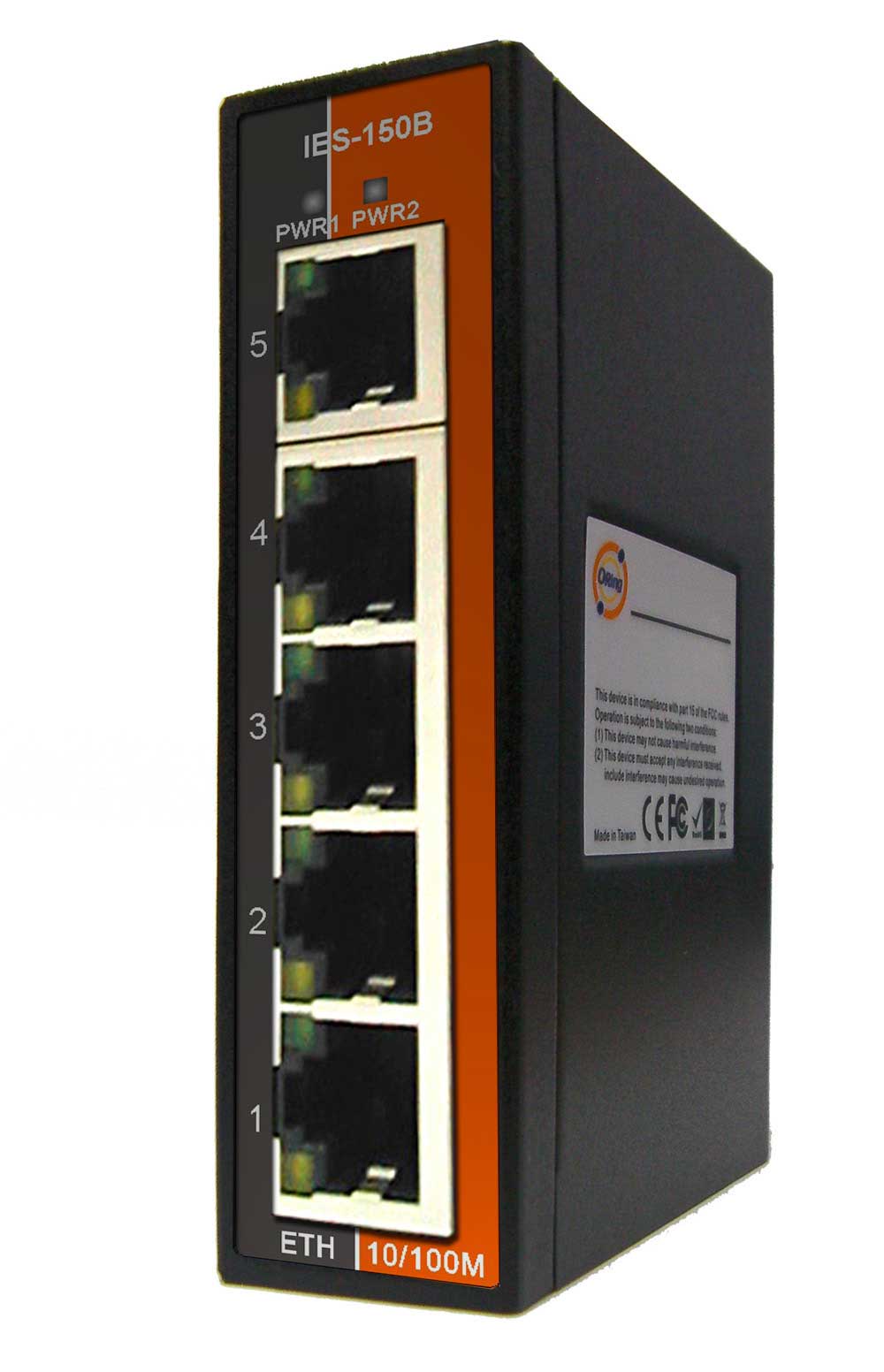

The ORing IES‑150B is a compact, rugged, and reliable unmanaged Ethernet switch designed for industrial networking environments. It provides five 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X functionality, enabling seamless connectivity between Ethernet devices in harsh or space‑constrained installations. The unit’s IP‑30 rated metal enclosure, extended operating temperature range, and redundant power inputs make it suitable for mission‑critical applications in automation, transportation, and industrial control systems.

---

### 2. Key Features

- Five 10/100Base‑T(X) Ports: Provides five RJ‑45 ports supporting 10/100 Mbps Ethernet with auto‑negotiation and auto‑MDI/MDI‑X for flexible device interconnection.
- Unmanaged Operation: Plug‑and‑play functionality with no configuration required, ideal for simple network expansion.
- Compact Mini Housing: Extremely small footprint (26.1 × 70 × 95 mm) allows installation in tight control cabinets or space‑limited enclosures.
- Rugged Industrial Design: IP‑30 rated metal housing ensures mechanical durability and protection against dust and debris.
- Extended Temperature Range: Operates reliably from ‑40°C to +70°C, suitable for outdoor or factory‑floor environments.
- Redundant Power Inputs: Dual 12–48 VDC power inputs on a 4‑pin terminal block provide power redundancy and system reliability.
- Electrical Protection:
- ESD protection up to 4 kV DC on Ethernet ports.
- Surge protection up to 2000 VDC on power input.
- Overload current and reverse polarity protection included.
- Store‑and‑Forward Switching: Ensures error‑free packet transmission with IEEE 802.3x flow control.
- DIN‑Rail and Wall Mounting: Flexible installation options for industrial panels or enclosures.
- Low Power Consumption: Typical power draw of only 3 W, minimizing heat generation and energy use.
- LED Indicators: Dual power LEDs and per‑port link/activity and duplex/collision indicators for easy status monitoring.
- High Reliability: Designed for continuous operation in demanding industrial environments with a 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Ethernet Ports:
- 5 × 10/100Base‑T(X) RJ‑45 ports
- Auto‑negotiation and Auto‑MDI/MDI‑X supported
- IEEE 802.3 (10Base‑T), IEEE 802.3u (100Base‑T(X)), IEEE 802.3x (Flow Control) compliant

Switching Technology:
- Store‑and‑Forward architecture
- Full‑duplex and half‑duplex operation supported

LED Indicators:
- Power: 2 × Green LEDs (PWR1, PWR2)
- Port Status: Green (Link/Activity), Amber (Duplex/Collision)

Power Supply:
- Dual redundant 12–48 VDC inputs via 4‑pin terminal block
- Power consumption: 3 W (typical)
- Overload current protection: Present
- Reverse polarity protection: Present

Physical Characteristics:
- Enclosure: IP‑30 rated metal housing
- Dimensions: 26.1 (W) × 70 (D) × 95 (H) mm (1.03 × 2.76 × 3.74 in)
- Weight: 205 g

Environmental Conditions:
- Operating Temperature: ‑40°C to +70°C (‑40°F to +158°F)
- Storage Temperature: ‑40°C to +85°C (‑40°F to +185°F)
- Operating Humidity: 5% to 95% RH, non‑condensing

Regulatory and Safety Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC60068‑2‑27
- Free Fall: IEC60068‑2‑32
- Vibration: IEC60068‑2‑6
- Safety: EN60950‑1

Warranty: 5 years

---

### 4. Functionality

The IES‑150B functions as an unmanaged Layer 2 Ethernet switch, automatically forwarding Ethernet frames between connected devices without user configuration. It uses store‑and‑forward packet processing to ensure data integrity and supports both full‑duplex and half‑duplex communication modes.

Typical Use Cases:
- Connecting Ethernet I/O modules, PLCs, and HMIs in industrial automation systems.
- Linking IP cameras and network video recorders in surveillance networks.
- Expanding Ethernet connectivity in transportation, energy, or utility control systems.
- Integrating multiple unmanaged switches in distributed control networks.

Compatibility:
The switch is fully compatible with standard Ethernet devices supporting IEEE 802.3/802.3u/802.3x protocols. It can interoperate with managed or unmanaged switches, routers, and industrial controllers from various vendors.

Operation:
Once powered, the switch automatically detects link speed and duplex mode for each port. Data packets are buffered and forwarded using store‑and‑forward logic, ensuring error‑checked transmission. Flow control prevents packet loss under heavy traffic conditions.

---

### 5. Components & Accessories

Included Items (Standard Package):
1. IES‑150B Industrial 5‑Port Unmanaged Ethernet Switch
2. Quick Installation Guide (QIG)
3. 4‑Pin Terminal Block for power input
4. DIN‑Rail Mounting Kit
5. Wall‑Mount Kit
6. Dust Covers for RJ‑45 ports
7. Mounting Screws (M3 × 3 mm)

Optional Accessories (Sold Separately):
- DR‑45 Series: 45 W DIN‑Rail Power Supply
- DR‑75 Series: 75 W DIN‑Rail Power Supply
- DR‑120 Series: 120 W DIN‑Rail Power Supply

Connectors and Pinouts:
- RJ‑45 (8‑pin, MDI) Port Pinout:
1: Tx+ 2: Tx– 3: Rx+ 6: Rx–
- RJ‑45 (8‑pin, MDI‑X) Port Pinout:
1: Rx+ 2: Rx– 3: Tx+ 6: Tx–
- Power Terminal Block:
- V1+, V1– (Power Input 1)
- V2+, V2– (Power Input 2)
- Frame Ground (FG) connection

Cabling:
- Supports standard Cat5e or higher twisted‑pair Ethernet cables.
- Straight‑through or cross‑over wiring supported depending on connected device type.

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Mounting:
Attach the included DIN‑rail clip to the rear panel and snap the unit onto a standard 35 mm DIN‑rail.
- Wall Mounting:
Use the supplied wall‑mount bracket and screws to secure the switch to a flat surface or control panel.

Power Connection:
- Connect dual DC power sources (12–48 VDC) to the 4‑pin terminal block.
- Ensure correct polarity (V+ and V–) and secure wiring to prevent vibration loosening.
- The device supports redundant power input; if one source fails, the other maintains operation.

Ethernet Connection:
- Connect Ethernet devices using standard RJ‑45 cables.
- The switch automatically detects link speed (10/100 Mbps) and duplex mode.
- LED indicators confirm link status and activity.

Startup:
- Once powered, the Power LEDs (PWR1, PWR2) illuminate.
- Each active port’s Link/Activity LED (green) and Duplex LED (amber) indicate operational status.
- No software configuration is required.

Installation Environment:
- Mount in a well‑ventilated area within the specified temperature and humidity range.
- Avoid exposure to direct sunlight, corrosive gases, or strong electromagnetic interference.
- Maintain clearance for cable routing and heat dissipation.

---

### 7. Performance & Capabilities

Switching Performance:
- Architecture: Store‑and‑Forward
- Bandwidth: 10/100 Mbps per port, full‑duplex capable
- Flow Control: IEEE 802.3x compliant (full‑duplex)
- Collision Handling: CSMA/CD (half‑duplex)
- Latency: Low, suitable for real‑time industrial communication
- Packet Integrity: Frame check sequence (FCS) verification ensures error‑free forwarding

Power Efficiency:
- Typical consumption of 3 W reduces thermal load and supports fanless operation.
- Dual power redundancy enhances uptime and reliability.

Environmental Robustness:
- Operates in extreme temperature conditions (‑40°C to +70°C).
- Withstands vibration, shock, and free‑fall per IEC60068 standards.
- IP‑30 enclosure provides mechanical protection in dusty or industrial environments.

Limitations:
- Unmanaged design means no VLAN, QoS, or SNMP management features.
- Limited to Fast Ethernet (10/100 Mbps) speeds; no Gigabit support.
- No fiber or SFP uplink ports.

Despite these limitations, the IES‑150B excels in simplicity, reliability, and cost‑effectiveness for small‑scale or edge industrial networks.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X))
- IEEE 802.3x (Flow Control)

Electromagnetic Compatibility (EMC):
- EMI:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EMS:
- EN61000‑4‑2 (Electrostatic Discharge)
- EN61000‑4‑3 (Radiated Susceptibility)
- EN61000‑4‑4 (Electrical Fast Transient/Burst)
- EN61000‑4‑5 (Surge Immunity)
- EN61000‑4‑6 (Conducted Susceptibility)
- EN61000‑4‑8 (Power Frequency Magnetic Field)
- EN61000‑4‑11 (Voltage Dips and Interruptions)

Mechanical and Environmental Tests:
- Shock: IEC60068‑2‑27
- Vibration: IEC60068‑2‑6
- Free Fall: IEC60068‑2‑32

Safety Certification:
- EN60950‑1 (Information Technology Equipment Safety)

Ingress Protection:
- IP‑30 rated enclosure (protection against solid objects >2.5 mm, no water protection)

Quality and Reliability:
- Designed and manufactured under ORing’s industrial quality standards.
- Complies with CE and FCC requirements for industrial environments.

---

### 9. Additional Information

Warranty:
- 5‑year limited hardware warranty covering manufacturing defects and component reliability.

Technical Support:
- ORing Industrial Networking Corp. provides global technical support via email and phone.
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Email: support@oring-networking.com
- Tel: +886‑2‑2918‑3036
- Fax: +886‑2‑2918‑3084

Maintenance:
- The switch is fanless and requires minimal maintenance.
- Periodically inspect for dust accumulation and ensure secure cable connections.
- Verify power redundancy and LED indicators during routine system checks.

Firmware and Updates:
- As an unmanaged switch, the IES‑150B does not require firmware updates or configuration software.
- Hardware revisions are backward‑compatible within the same model series.

Reliability and Lifecycle:
- Designed for continuous 24/7 operation in industrial environments.
- Mean Time Between Failures (MTBF) optimized through solid‑state design and passive cooling.
- Suitable for long‑term deployment in automation, transportation, and energy systems.

Ordering Information:
- Model: IES‑150B
- Description: Industrial 5‑Port Mini Type Unmanaged Ethernet Switch with 5 × 10/100Base‑T(X) Ports
- Mounting Accessories: DIN‑Rail and Wall‑Mount Kits included
- Optional Power Supplies: DR‑45, DR‑75, DR‑120 Series (sold separately)

---

### Summary

The ORing IES‑150B is a compact, industrial‑grade unmanaged Ethernet switch engineered for reliability, simplicity, and durability. With five 10/100Base‑T(X) ports, redundant 12–48 VDC power inputs, and an IP‑30 metal enclosure, it delivers dependable network connectivity in harsh environments. Its extended temperature tolerance (‑40°C to +70°C), low power consumption, and compliance with international EMC and safety standards make it ideal for industrial automation, transportation, and surveillance applications.

The IES‑150B’s plug‑and‑play operation eliminates configuration complexity, while its small form factor enables flexible installation in space‑restricted control panels. Backed by a 5‑year warranty and ORing’s industrial networking expertise, the IES‑150B provides a cost‑effective, maintenance‑free solution for expanding Ethernet connectivity in demanding industrial networks.
