1. Product Overview
Product Name: IES-P3073GC-HV
Model: IES-P3073GC-HV
Series: IES-P3073GC Series
Article Number: IES-P3073GC-HV
Manufacturer: ORing Industrial Networking Corp.

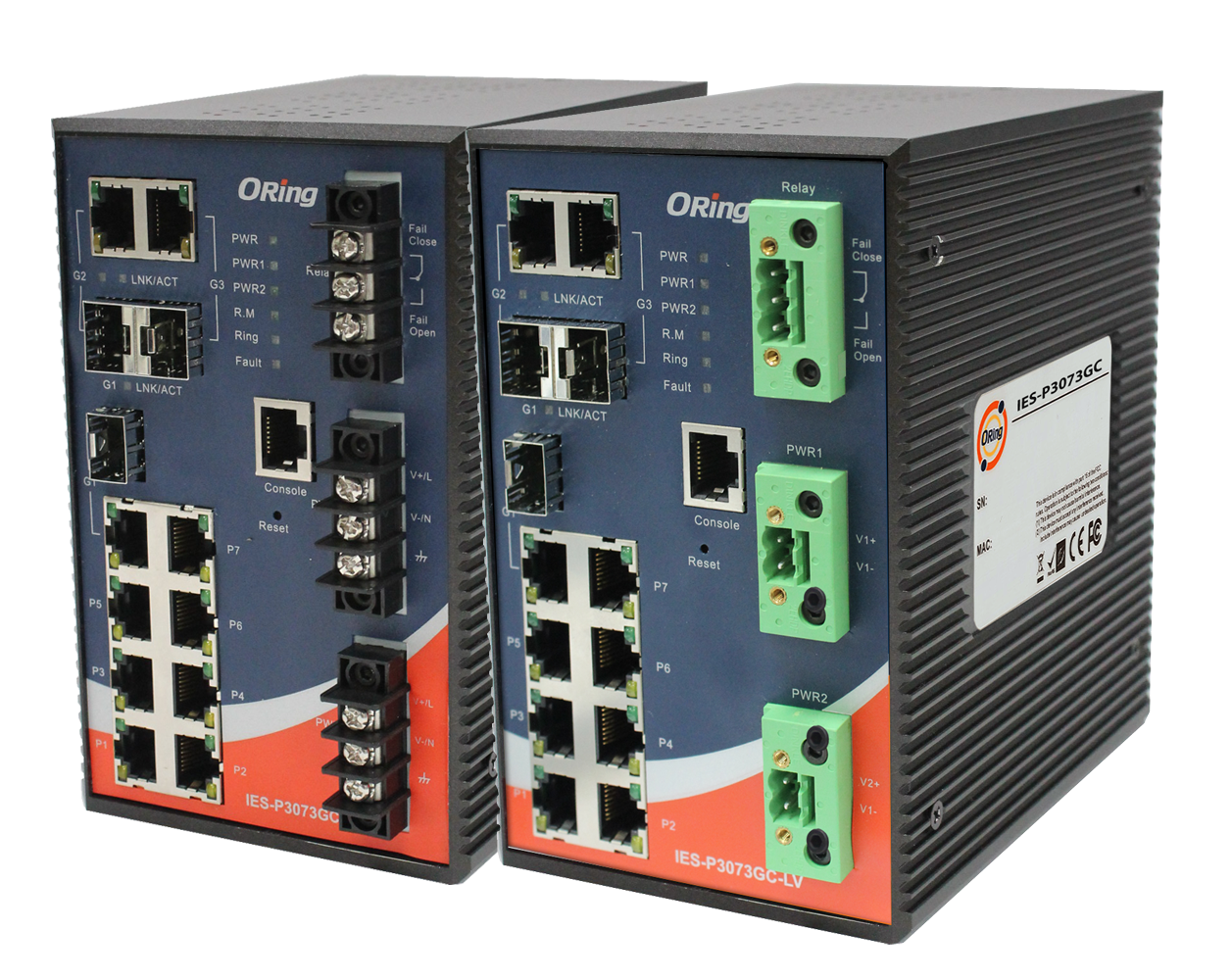

The ORing IES-P3073GC-HV is a high-voltage model within the IES-P3073GC series of managed industrial Ethernet switches. It is designed for mission-critical applications in harsh industrial environments, including power substations, transportation systems, and railway networks. The switch complies with IEC 61850-3 and IEEE 1613 standards for power automation and EN50155 for railway applications, ensuring high reliability under extreme temperature, vibration, and electromagnetic conditions.
2. Key Features
- Industrial-grade Managed Switch: Designed for rugged environments with extended operating temperature (-40°C to +85°C) and IP-30 metal enclosure.
- High Port Density: 7 × 10/100Base-T(X) RJ-45 ports and 3 × Gigabit combo ports (10/100/1000Base-T(X) RJ-45 + 100/1000Base-X SFP).
- Dual Power Input: Supports 85–264 VAC or 88–373 VDC redundant power inputs for high-voltage applications.
- Advanced Network Redundancy: Supports O-Ring, Open-Ring, O-Chain, MRP, and STP/RSTP/MSTP with recovery times under 10 ms for up to 250 nodes.
- Comprehensive Management: Web-based GUI, Telnet, RS-232 console, SNMP v1/v2c/v3, and ORing’s Open-Vision utility.
- Security and Control: IEEE 802.1x authentication, MAC-based port security, RADIUS management, SNMPv3 encryption, and IP/MAC filtering.
- Time Synchronization: Supports SNTP and IEEE 1588 PTP Client for precise clock synchronization.
- Event Notification: Fault relay output, Syslog, and SMTP email alerts for system monitoring.
- Smart Grid and Railway Compliance: IEC 61850-3, IEEE 1613, and EN50155 certifications ensure suitability for power automation and rolling stock systems.
3. Technical Specifications
- Ethernet Standards:
IEEE 802.3 (10Base-T), 802.3u (100Base-TX/FX), 802.3z (1000Base-X), 802.3ab (1000Base-T), 802.3x (Flow Control), 802.3ad (LACP), 802.1D (STP), 802.1p (CoS), 802.1Q (VLAN), 802.1w (RSTP), 802.1s (MSTP), 802.1x (Authentication), 802.1AB (LLDP).
- Switching Performance:
- Switching Bandwidth: 7.4 Gbps
- Switching Latency: 7 µs
- MAC Table: 8192 entries
- VLANs Supported: 4096
- IGMP Multicast Groups: 1024
- Priority Queues: 4
- Processing Type: Store-and-Forward
- Physical Characteristics:
- Dimensions: 96.4 (W) × 145.5 (D) × 154 (H) mm (3.8 × 5.73 × 6.06 in)
- Weight: 1935 g
- Enclosure: IP-30 rated metal housing
- Power:
- Input Voltage: Dual 85–264 VAC / 88–373 VDC
- Power Consumption: 12 W (typical)
- Protection: Overload current and reverse polarity protection
- Environmental:
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
- Regulatory Compliance:
- Power Automation: IEC 61850-3, IEEE 1613
- Railway: EN50155, EN50121-3-2, EN50121-4
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2/3/4/5/6/8/11
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
4. Functionality
The IES-P3073GC-HV functions as a fully managed Layer 2 industrial Ethernet switch, providing flexible network configuration, redundancy, and monitoring. It supports both copper and fiber connections through its combo ports, enabling mixed media networks.
Use Cases:
- Power substations and smart grid automation (IEC 61850-3 compliant)
- Railway and rolling stock communication systems (EN50155 compliant)
- Industrial automation and SCADA networks
- Transportation and traffic control systems
Management Interfaces:
- Web browser (HTTP/HTTPS)
- Telnet and CLI via RS-232 console (9600 bps, 8N1)
- SNMP v1/v2c/v3 for remote monitoring
- ORing Open-Vision centralized management software
Compatibility:
- Supports standard Ethernet devices (PCs, PLCs, routers, servers, IP cameras)
- Auto MDI/MDI-X for all RJ-45 ports
- SFP slots compatible with 100/1000Base-X transceivers (multi/single-mode)
5. Components & Accessories
Package Contents:
- IES-P3073GC-HV switch unit
- DIN-rail mounting kit
- Wall-mount kit
- Console cable (RJ-45 to DB9)
- Power cables (for HV model) × 2
- Quick Installation Guide (QIG)
- Product CD (manuals and utilities)
Optional Accessories:
- SFP transceivers (100/1000Base-X, multi/single-mode)
- ORing Open-Vision network management software
Connectors:
- 7 × RJ-45 (10/100Base-T(X))
- 3 × Combo ports (RJ-45 + SFP)
- 1 × RS-232 console port
- 2 × 3-pin terminal blocks for power input
- 1 × 3-pin terminal block for fault relay
6. Installation & Setup
Mounting Options:
- DIN-Rail Mounting: Attach the DIN-rail kit to the rear panel and slide onto the rail until it clicks securely.
- Wall Mounting: Attach wall-mount brackets using six screws, mark and drill holes, then fasten the unit with a 2 mm gap for sliding adjustment.
Power Wiring:
1. Insert positive/negative wires into V+/V- terminals.
2. Tighten the wire-clamp screws to secure connections.
3. Connect redundant power sources to PWR1 and PWR2 terminals.
Network Setup:
- Default IP: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Default Gateway: 192.168.10.254
- Default Login: admin / admin
Reset Functions:
- Press Reset for 2–3 seconds to reboot.
- Press for 5 seconds to restore factory defaults.
Grounding:
Connect the ground screw to a grounding surface to minimize EMI.
7. Performance & Capabilities
- Redundancy:
- O-Ring recovery <10 ms (Fast Ethernet) / <30 ms (Gigabit)
- Supports up to 250 nodes per ring
- O-Chain for multi-ring expansion
- MRP (IEC 62439-2) with recovery <80 ms for 50 devices
- STP/RSTP/MSTP for loop prevention
- QoS & Traffic Management:
- IEEE 802.1p Class of Service (4 priority queues)
- TOS/DiffServ and DSCP prioritization
- Port-based and VLAN-based QoS
- Rate limiting and traffic shaping
- Security:
- IEEE 802.1x port-based authentication
- RADIUS centralized management
- SNMPv3 encrypted access
- MAC filtering and static MAC forwarding
- IP Guard and MAC blacklist
- DHCP snooping and relay agent with Option 82
- Multicast & VLAN:
- IGMP v2/v3 snooping
- MVR (Multicast VLAN Registration)
- VLAN tagging (802.1Q), Q-in-Q, and GVRP
- Up to 4096 VLANs
- Diagnostics & Monitoring:
- Syslog and SMTP email alerts
- Fault relay output (1A @ 24VDC)
- SNMP traps and event logging
- Port statistics, MAC table, and traffic counters
- Ping and loop guard utilities
- Time Synchronization:
- SNTP client for network time
- IEEE 1588 PTP Client for sub-microsecond accuracy
8. Standards & Compliance
- Industrial Standards: IEC 61850-3, IEEE 1613 (Power Automation)
- Railway Standards: EN50155, EN50121-3-2, EN50121-4
- EMC/EMI: FCC Part 15, CISPR 22 Class A, EN55022, EN55011
- Environmental: EN61000-4-2/3/4/5/6/8/11 (ESD, RS, EFT, Surge, CS, Power Frequency)
- Mechanical: IEC60068-2-6 (Vibration), IEC60068-2-27 (Shock), IEC60068-2-32 (Free Fall)
- Safety: EN60950-1 (Electrical Safety)
These certifications ensure the switch’s suitability for deployment in high-reliability industrial and transportation networks where electromagnetic interference, vibration, and temperature extremes are common.
9. Additional Information
- Warranty: 5 years limited warranty covering defects in materials and workmanship.
- Support:
- Technical Support: support@oring-networking.com
- Sales Contact: sales@oring-networking.com
- Website: [www.oring-networking.com](https://www.oring-networking.com)
- Maintenance:
- Firmware updates via TFTP or local upload
- Configuration backup/restore via TFTP or local PC
- SNMP and Syslog for remote diagnostics
- Software Tools:
- ORing Open-Vision for centralized management, monitoring, and configuration
- CLI and Web GUI for local configuration
- Safety Notes:
- Ensure adequate airflow and ambient temperature compliance.
- Avoid mechanical stress during installation.
- Follow electrical codes for wiring and grounding.
Summary
The ORing IES-P3073GC-HV is a robust, high-voltage managed industrial Ethernet switch engineered for demanding environments such as power substations and railway systems. With 7 Fast Ethernet and 3 Gigabit combo ports, dual redundant power inputs, and comprehensive Layer 2 management features, it ensures reliable, secure, and high-performance network connectivity. Its compliance with IEC 61850-3, IEEE 1613, and EN50155 standards, combined with advanced redundancy technologies (O-Ring, O-Chain, MRP), makes it ideal for mission-critical industrial automation and transportation networks requiring continuous uptime and precise control.
