- High-Speed Wireless Connectivity:
Supports IEEE 802.11b/g/n with data rates up to 300 Mbps, ensuring fast and stable wireless communication.
- Multiple Operating Modes:
Configurable as Access Point (AP), Client, Bridge, Repeater, or AP-Client, providing flexibility for various network topologies.
- Dual Gigabit Ethernet Ports:
Two 10/100/1000Base-T(X) RJ45 ports with Auto MDI/MDIX for high-speed wired connections and daisy-chain capability.
- PoE PD Support:
One port (ETH2) supports IEEE 802.3af Power Device (PD) specification, allowing power input via Ethernet.
- Advanced Security:
Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), WPA/WPA2-Enterprise, and 802.1X authentication. SSID broadcast can be disabled for enhanced security.
- Fast Roaming:
X-Roaming technology with roaming latency under 60 ms ensures seamless handoff between access points.
- Event Notification System:
Supports Syslog, Email, SNMP Trap, Relay output, and Beeper alerts for system events and faults.
- Digital I/O Support:
4 Digital Inputs (DI) and 4 Digital Outputs (DO) via 5-pin terminal blocks for integration with industrial control systems.
- Rugged Industrial Design:
IP-30-rated metal enclosure, DIN-rail and wall-mount options, and extended temperature tolerance for harsh environments.
- Secure Management:
Web-based configuration via HTTP/HTTPS, SNMP, and ORing’s Open-Vision utility for centralized management.
Supports IEEE 802.11b/g/n with data rates up to 300 Mbps, ensuring fast and stable wireless communication.
- Multiple Operating Modes:
Configurable as Access Point (AP), Client, Bridge, Repeater, or AP-Client, providing flexibility for various network topologies.
- Dual Gigabit Ethernet Ports:
Two 10/100/1000Base-T(X) RJ45 ports with Auto MDI/MDIX for high-speed wired connections and daisy-chain capability.
- PoE PD Support:
One port (ETH2) supports IEEE 802.3af Power Device (PD) specification, allowing power input via Ethernet.
- Advanced Security:
Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), WPA/WPA2-Enterprise, and 802.1X authentication. SSID broadcast can be disabled for enhanced security.
- Fast Roaming:
X-Roaming technology with roaming latency under 60 ms ensures seamless handoff between access points.
- Event Notification System:
Supports Syslog, Email, SNMP Trap, Relay output, and Beeper alerts for system events and faults.
- Digital I/O Support:
4 Digital Inputs (DI) and 4 Digital Outputs (DO) via 5-pin terminal blocks for integration with industrial control systems.
- Rugged Industrial Design:
IP-30-rated metal enclosure, DIN-rail and wall-mount options, and extended temperature tolerance for harsh environments.
- Secure Management:
Web-based configuration via HTTP/HTTPS, SNMP, and ORing’s Open-Vision utility for centralized management.

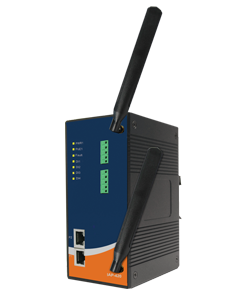

Comprehensive Product Summary – ORing IGAP-420+ Industrial Rugged Access Point
### 1. Product Overview
Product Name: IGAP-420+
Model: IGAP-420+
Series: IGAP-420 Series
Article Number: IGAP-420+
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Rugged Wireless Access Point
Version: 1.0
The ORing IGAP-420+ is a high-performance industrial-grade wireless access point designed for demanding environments requiring reliable, secure, and flexible wireless connectivity. It supports IEEE 802.11b/g/n standards and integrates dual Gigabit Ethernet ports with one IEEE 802.3af-compliant PoE PD port. The device is engineered for industrial automation, transportation, and mission-critical wireless networking applications, offering robust construction, redundant power inputs, and multiple operation modes.
### 2. Key Features
- High-Speed Wireless Connectivity:
Supports IEEE 802.11b/g/n with data rates up to 300 Mbps, ensuring fast and stable wireless communication.
- Multiple Operating Modes:
Configurable as Access Point (AP), Client, Bridge, Repeater, or AP-Client, providing flexibility for various network topologies.
- Dual Gigabit Ethernet Ports:
Two 10/100/1000Base-T(X) RJ45 ports with Auto MDI/MDIX for high-speed wired connections and daisy-chain capability.
- PoE PD Support:
One port (ETH2) supports IEEE 802.3af Power Device (PD) specification, allowing power input via Ethernet.
- Advanced Security:
Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), WPA/WPA2-Enterprise, and 802.1X authentication. SSID broadcast can be disabled for enhanced security.
- Fast Roaming:
X-Roaming technology with roaming latency under 60 ms ensures seamless handoff between access points.
- Event Notification System:
Supports Syslog, Email, SNMP Trap, Relay output, and Beeper alerts for system events and faults.
- Digital I/O Support:
4 Digital Inputs (DI) and 4 Digital Outputs (DO) via 5-pin terminal blocks for integration with industrial control systems.
- Rugged Industrial Design:
IP-30-rated metal enclosure, DIN-rail and wall-mount options, and extended temperature tolerance for harsh environments.
- Secure Management:
Web-based configuration via HTTP/HTTPS, SNMP, and ORing’s Open-Vision utility for centralized management.
### 3. Technical Specifications
Network Interfaces:
- 2 × 10/100/1000Base-T(X) RJ45 ports (Auto MDI/MDIX)
- 1 × PoE PD port (IEEE 802.3af compliant)
- 2 × Reverse SMA antenna connectors
Wireless Standards:
IEEE 802.11b/g/n (2.4 GHz band)
Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Frequency Bands:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
Transmission Rates:
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (20 MHz): up to 130 Mbps
- 802.11n (40 MHz): up to 300 Mbps
Transmit Power:
- 802.11b: 17 dBm ±1.5 dBm @11 Mbps
- 802.11g: 16 dBm ±1.5 dBm @54 Mbps
- 802.11n HT20: 15 dBm ±1.5 dBm @MCS7
- 802.11n HT40: 14 dBm ±1.5 dBm @MCS7
Receiver Sensitivity:
- 802.11b: -85 dBm ±2 dBm @11 Mbps
- 802.11g: -76 dBm ±2 dBm @54 Mbps
- 802.11n HT20: -75 dBm ±2 dBm @MCS7
- 802.11n HT40: -72 dBm ±2 dBm @MCS7
Encryption & Security:
- WEP (64/128-bit)
- WPA/WPA2-PSK (TKIP/AES)
- WPA/WPA2-Enterprise (RADIUS)
- 802.1X Authentication
- SSID broadcast disable
Protocols Supported:
ARP, BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
Power Requirements:
- Dual DC inputs: 12–48 VDC (6-pin terminal block)
- Power consumption: ~8.3 W typical
- Reverse polarity and overload protection
- PoE PD input supported (IEEE 802.3af)
Physical Characteristics:
- Dimensions: 74.3 (W) × 109.2 (D) × 153.6 (H) mm
- Weight: 1,150 g
- Enclosure: IP-30-rated metal housing
- Mounting: DIN-rail or wall-mount
Environmental Conditions:
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% (non-condensing)
### 4. Functionality
The IGAP-420+ functions as a versatile industrial wireless access point capable of operating in multiple modes:
- Access Point (AP): Provides wireless connectivity for client devices.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Establishes point-to-point or point-to-multipoint wireless bridges using WDS.
- Repeater Mode: Extends wireless coverage by relaying signals between APs.
- AP-Client Mode: Enables transparent connection for multiple clients behind the AP.
Use Cases:
- Industrial automation and SCADA systems
- Transportation and railway communication networks
- Factory floor wireless connectivity
- Remote monitoring and control systems
- Redundant wireless links in harsh environments
Compatibility:
Compatible with standard IEEE 802.11b/g/n wireless devices and Ethernet-based industrial equipment. Supports integration with ORing’s Open-Vision management suite for centralized monitoring.
### 5. Components & Accessories
Included Items:
- IGAP-420+ main unit
- 2 × WLAN antennas (Reverse SMA connectors)
- DIN-rail mounting kit
- Wall-mount kit
- 5-pin terminal blocks for DI/DO connections
- Quick Installation Guide (QIG)
- CD with documentation and utilities
Optional Accessories:
- External high-gain antennas
- PoE injector (IEEE 802.3af compliant)
- Industrial-grade power supply (12–48 VDC)
Connectors:
- 2 × RJ45 Ethernet ports
- 2 × Reverse SMA antenna connectors
- 2 × 5-pin terminal blocks (DI/DO)
- 6-pin terminal block for power input
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation:
Attach the integrated DIN-rail clip to the rail and press until it clicks into place.
- Wall Mounting:
Remove the DIN-rail bracket, attach the wall-mount plate using the provided screws, and secure the unit to the wall.
Power Connection:
- Connect dual DC inputs (12–48 VDC) to the 6-pin terminal block.
- Alternatively, power the device via PoE PD port (ETH2).
- Ensure correct polarity and secure grounding.
Configuration:
- Access via web browser (HTTP/HTTPS) or ORing Open-Vision utility.
- Default login: admin / admin.
- Supports DHCP or static IP configuration.
- Wireless settings include SSID, channel, security type, and encryption.
- Supports firmware upgrades and configuration backup/restore.
### 7. Performance & Capabilities
- Wireless Throughput: Up to 300 Mbps (802.11n, 40 MHz channel width)
- Roaming Performance: <60 ms handoff time (X-Roaming)
- Power Efficiency: Typical consumption 8.3 W
- Relay Output: 1A @ 24 VDC for alarm signaling
- Digital I/O: 4 DI and 4 DO for industrial control integration
- Reliability: Redundant power inputs and PoE PD ensure continuous operation
- LED Indicators:
- PWR1/PWR2 (Power status)
- PoE (Power over Ethernet status)
- ETH1/ETH2 (Link/Activity, Speed)
- WLAN (Link/Activity)
- Fault (Error indication)
Limitations:
- Operates only in 2.4 GHz band (no 5 GHz support)
- IP-30 rating (not waterproof)
- Indoor or sheltered industrial environments recommended
### 8. Standards & Compliance
Wireless Standards:
IEEE 802.11b/g/n compliant
Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE PD)
EMI/EMS Compliance:
- FCC Part 15 Class A
- EN55022 Class A
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (CS)
- EN61000-4-8, EN61000-4-11
Environmental & Safety:
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
Regulatory Approvals:
- FCC (US)
- CE (Europe)
- Industry Canada (IC)
- RoHS compliant
RF Exposure Compliance:
Meets FCC and IC RF exposure limits for an uncontrolled environment. Minimum 20 cm separation required between antenna and personnel.
### 9. Additional Information
Warranty:
3-year limited warranty covering defects in materials and workmanship. Extended warranty options available for select regions.
Maintenance:
- Periodic inspection of antenna connections and power terminals recommended.
- Firmware updates available via ORing’s support portal.
- Configuration backup and restore supported through web interface.
Support & Contact:
Manufacturer: ORing Industrial Networking Corp.
Address: 3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Tel: +886-2-2218-1066
Fax: +886-2-2218-1014
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
Software Tools:
- Open-Vision Utility: Windows-based management software for device discovery, configuration, and monitoring.
- Web Interface: Embedded management portal supporting HTTPS for secure configuration.
Firmware & Updates:
Firmware upgrades can be performed via the web interface. During upgrade, power must remain stable to prevent corruption.
Documentation:
- Quick Installation Guide (QIG)
- User Manual (IGAP-420/620/6620 Series)
- Compliance and Safety Statements
### Summary
The ORing IGAP-420+ is a robust, feature-rich industrial wireless access point engineered for high reliability and flexibility in mission-critical environments. With dual Gigabit Ethernet ports, PoE PD capability, and comprehensive wireless security, it bridges the gap between wired and wireless industrial networks. Its rugged IP-30 metal housing, redundant power inputs, and extended temperature range make it ideal for deployment in factories, transportation systems, and outdoor enclosures. The device’s support for multiple operation modes, fast roaming, and advanced management tools ensures seamless integration into complex industrial infrastructures while maintaining high performance and security standards.
### 1. Product Overview
Product Name: IGAP-420+
Model: IGAP-420+
Series: IGAP-420 Series
Article Number: IGAP-420+
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Rugged Wireless Access Point
Version: 1.0
The ORing IGAP-420+ is a high-performance industrial-grade wireless access point designed for demanding environments requiring reliable, secure, and flexible wireless connectivity. It supports IEEE 802.11b/g/n standards and integrates dual Gigabit Ethernet ports with one IEEE 802.3af-compliant PoE PD port. The device is engineered for industrial automation, transportation, and mission-critical wireless networking applications, offering robust construction, redundant power inputs, and multiple operation modes.
### 2. Key Features
- High-Speed Wireless Connectivity:
Supports IEEE 802.11b/g/n with data rates up to 300 Mbps, ensuring fast and stable wireless communication.
- Multiple Operating Modes:
Configurable as Access Point (AP), Client, Bridge, Repeater, or AP-Client, providing flexibility for various network topologies.
- Dual Gigabit Ethernet Ports:
Two 10/100/1000Base-T(X) RJ45 ports with Auto MDI/MDIX for high-speed wired connections and daisy-chain capability.
- PoE PD Support:
One port (ETH2) supports IEEE 802.3af Power Device (PD) specification, allowing power input via Ethernet.
- Advanced Security:
Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), WPA/WPA2-Enterprise, and 802.1X authentication. SSID broadcast can be disabled for enhanced security.
- Fast Roaming:
X-Roaming technology with roaming latency under 60 ms ensures seamless handoff between access points.
- Event Notification System:
Supports Syslog, Email, SNMP Trap, Relay output, and Beeper alerts for system events and faults.
- Digital I/O Support:
4 Digital Inputs (DI) and 4 Digital Outputs (DO) via 5-pin terminal blocks for integration with industrial control systems.
- Rugged Industrial Design:
IP-30-rated metal enclosure, DIN-rail and wall-mount options, and extended temperature tolerance for harsh environments.
- Secure Management:
Web-based configuration via HTTP/HTTPS, SNMP, and ORing’s Open-Vision utility for centralized management.
### 3. Technical Specifications
Network Interfaces:
- 2 × 10/100/1000Base-T(X) RJ45 ports (Auto MDI/MDIX)
- 1 × PoE PD port (IEEE 802.3af compliant)
- 2 × Reverse SMA antenna connectors
Wireless Standards:
IEEE 802.11b/g/n (2.4 GHz band)
Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
Frequency Bands:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
Transmission Rates:
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (20 MHz): up to 130 Mbps
- 802.11n (40 MHz): up to 300 Mbps
Transmit Power:
- 802.11b: 17 dBm ±1.5 dBm @11 Mbps
- 802.11g: 16 dBm ±1.5 dBm @54 Mbps
- 802.11n HT20: 15 dBm ±1.5 dBm @MCS7
- 802.11n HT40: 14 dBm ±1.5 dBm @MCS7
Receiver Sensitivity:
- 802.11b: -85 dBm ±2 dBm @11 Mbps
- 802.11g: -76 dBm ±2 dBm @54 Mbps
- 802.11n HT20: -75 dBm ±2 dBm @MCS7
- 802.11n HT40: -72 dBm ±2 dBm @MCS7
Encryption & Security:
- WEP (64/128-bit)
- WPA/WPA2-PSK (TKIP/AES)
- WPA/WPA2-Enterprise (RADIUS)
- 802.1X Authentication
- SSID broadcast disable
Protocols Supported:
ARP, BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
Power Requirements:
- Dual DC inputs: 12–48 VDC (6-pin terminal block)
- Power consumption: ~8.3 W typical
- Reverse polarity and overload protection
- PoE PD input supported (IEEE 802.3af)
Physical Characteristics:
- Dimensions: 74.3 (W) × 109.2 (D) × 153.6 (H) mm
- Weight: 1,150 g
- Enclosure: IP-30-rated metal housing
- Mounting: DIN-rail or wall-mount
Environmental Conditions:
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% (non-condensing)
### 4. Functionality
The IGAP-420+ functions as a versatile industrial wireless access point capable of operating in multiple modes:
- Access Point (AP): Provides wireless connectivity for client devices.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Establishes point-to-point or point-to-multipoint wireless bridges using WDS.
- Repeater Mode: Extends wireless coverage by relaying signals between APs.
- AP-Client Mode: Enables transparent connection for multiple clients behind the AP.
Use Cases:
- Industrial automation and SCADA systems
- Transportation and railway communication networks
- Factory floor wireless connectivity
- Remote monitoring and control systems
- Redundant wireless links in harsh environments
Compatibility:
Compatible with standard IEEE 802.11b/g/n wireless devices and Ethernet-based industrial equipment. Supports integration with ORing’s Open-Vision management suite for centralized monitoring.
### 5. Components & Accessories
Included Items:
- IGAP-420+ main unit
- 2 × WLAN antennas (Reverse SMA connectors)
- DIN-rail mounting kit
- Wall-mount kit
- 5-pin terminal blocks for DI/DO connections
- Quick Installation Guide (QIG)
- CD with documentation and utilities
Optional Accessories:
- External high-gain antennas
- PoE injector (IEEE 802.3af compliant)
- Industrial-grade power supply (12–48 VDC)
Connectors:
- 2 × RJ45 Ethernet ports
- 2 × Reverse SMA antenna connectors
- 2 × 5-pin terminal blocks (DI/DO)
- 6-pin terminal block for power input
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation:
Attach the integrated DIN-rail clip to the rail and press until it clicks into place.
- Wall Mounting:
Remove the DIN-rail bracket, attach the wall-mount plate using the provided screws, and secure the unit to the wall.
Power Connection:
- Connect dual DC inputs (12–48 VDC) to the 6-pin terminal block.
- Alternatively, power the device via PoE PD port (ETH2).
- Ensure correct polarity and secure grounding.
Configuration:
- Access via web browser (HTTP/HTTPS) or ORing Open-Vision utility.
- Default login: admin / admin.
- Supports DHCP or static IP configuration.
- Wireless settings include SSID, channel, security type, and encryption.
- Supports firmware upgrades and configuration backup/restore.
### 7. Performance & Capabilities
- Wireless Throughput: Up to 300 Mbps (802.11n, 40 MHz channel width)
- Roaming Performance: <60 ms handoff time (X-Roaming)
- Power Efficiency: Typical consumption 8.3 W
- Relay Output: 1A @ 24 VDC for alarm signaling
- Digital I/O: 4 DI and 4 DO for industrial control integration
- Reliability: Redundant power inputs and PoE PD ensure continuous operation
- LED Indicators:
- PWR1/PWR2 (Power status)
- PoE (Power over Ethernet status)
- ETH1/ETH2 (Link/Activity, Speed)
- WLAN (Link/Activity)
- Fault (Error indication)
Limitations:
- Operates only in 2.4 GHz band (no 5 GHz support)
- IP-30 rating (not waterproof)
- Indoor or sheltered industrial environments recommended
### 8. Standards & Compliance
Wireless Standards:
IEEE 802.11b/g/n compliant
Ethernet Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE PD)
EMI/EMS Compliance:
- FCC Part 15 Class A
- EN55022 Class A
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (CS)
- EN61000-4-8, EN61000-4-11
Environmental & Safety:
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
Regulatory Approvals:
- FCC (US)
- CE (Europe)
- Industry Canada (IC)
- RoHS compliant
RF Exposure Compliance:
Meets FCC and IC RF exposure limits for an uncontrolled environment. Minimum 20 cm separation required between antenna and personnel.
### 9. Additional Information
Warranty:
3-year limited warranty covering defects in materials and workmanship. Extended warranty options available for select regions.
Maintenance:
- Periodic inspection of antenna connections and power terminals recommended.
- Firmware updates available via ORing’s support portal.
- Configuration backup and restore supported through web interface.
Support & Contact:
Manufacturer: ORing Industrial Networking Corp.
Address: 3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)
Tel: +886-2-2218-1066
Fax: +886-2-2218-1014
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
Software Tools:
- Open-Vision Utility: Windows-based management software for device discovery, configuration, and monitoring.
- Web Interface: Embedded management portal supporting HTTPS for secure configuration.
Firmware & Updates:
Firmware upgrades can be performed via the web interface. During upgrade, power must remain stable to prevent corruption.
Documentation:
- Quick Installation Guide (QIG)
- User Manual (IGAP-420/620/6620 Series)
- Compliance and Safety Statements
### Summary
The ORing IGAP-420+ is a robust, feature-rich industrial wireless access point engineered for high reliability and flexibility in mission-critical environments. With dual Gigabit Ethernet ports, PoE PD capability, and comprehensive wireless security, it bridges the gap between wired and wireless industrial networks. Its rugged IP-30 metal housing, redundant power inputs, and extended temperature range make it ideal for deployment in factories, transportation systems, and outdoor enclosures. The device’s support for multiple operation modes, fast roaming, and advanced management tools ensures seamless integration into complex industrial infrastructures while maintaining high performance and security standards.
-
DataSheet_IGAP-420_420+_V1.0.pdf
PDF Catalog
Kein Zubehör vorhanden.
