Comprehensive Product Summary: ORing IGAR-1062+-4G Industrial IEEE 802.11 a/b/g/n 4G Cellular Router

---

### 1. Product Overview

Product Name: IGAR-1062+-4G
Article Number: IGAR-1062+-4G
Series: IGAR Series Industrial Wireless AP Routers
Manufacturer: ORing Industrial Networking Corp.
Model Type: Industrial IEEE 802.11 a/b/g/n 4G LTE Cellular Router with Dual Gigabit Ethernet Ports
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com

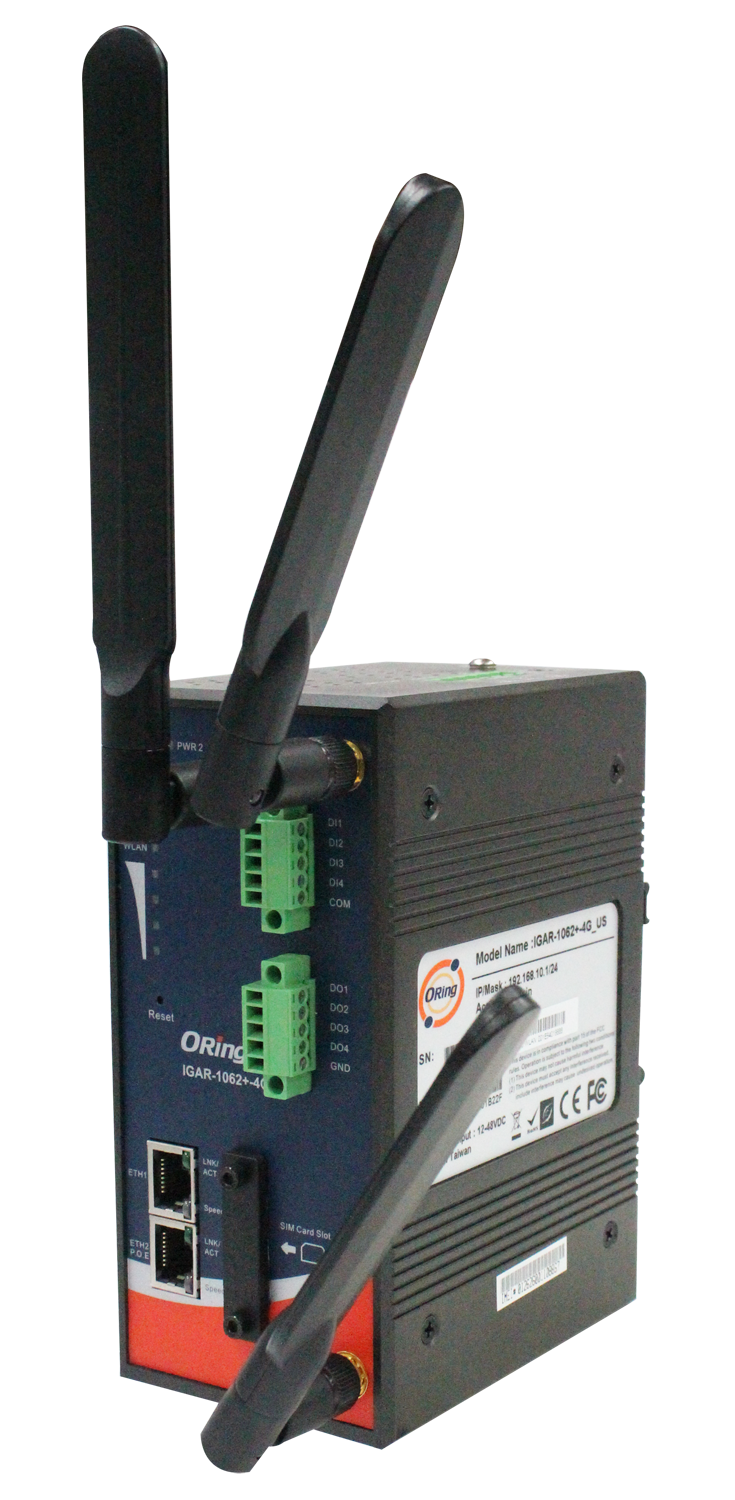

The ORing IGAR-1062+-4G is a rugged, industrial-grade wireless access point router designed for reliable connectivity in demanding environments. It integrates IEEE 802.11 a/b/g/n wireless networking with 4G LTE cellular connectivity and dual 10/100/1000Base-T(X) Ethernet ports, providing flexible WAN/LAN configurations. The device supports Power over Ethernet (PoE) PD functionality, redundant DC power inputs, and a robust IP-30 metal enclosure suitable for DIN-rail or wall mounting.

---

### 2. Key Features

- High-Speed Wireless Connectivity: Supports IEEE 802.11 a/b/g/n standards with data rates up to 300 Mbps.
- Integrated 4G LTE Modem: Built-in cellular module supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE for global coverage.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) RJ-45 ports with auto MDI/MDI-X for LAN/WAN flexibility.
- PoE PD Support: ETH2 (WAN port) compliant with IEEE 802.3af Power Device specification, enabling power input via PoE switches.
- Redundant Power Inputs: Dual 12–48 VDC inputs on a 6-pin terminal block with reverse polarity protection.
- Industrial Design: IP-30-rated metal housing, vibration and shock resistance per IEC60068 standards.
- Advanced Security: Supports WEP, WPA/WPA2-PSK (TKIP/AES), 802.1X authentication, MAC/IP filtering, and firewall protection.
- VPN Support: Integrated OpenVPN and PPTP VPN server/client for secure remote access.
- Comprehensive Management: Web-based GUI, HTTPS, SNMP v1/v2, Syslog, and email/SNMP trap event notifications.
- Flexible WAN Options: Dynamic/Static IP, PPPoE, 3G/4G modem dial-up, or wireless client mode.
- Event and Alarm System: Supports Syslog, email alerts, SNMP traps, relay output, and digital I/O for event signaling.
- Mounting Options: DIN-rail and wall-mount kits included for flexible installation.
- Warranty: 5-year limited hardware warranty.

---

### 3. Technical Specifications

Physical Dimensions: 74.3 (W) × 109.2 (D) × 153.6 (H) mm
Weight: Approximately 800 g
Casing: IP-30-rated metal enclosure
Power Input: Dual DC 12–48 VDC via 6-pin terminal block
Power Consumption: 11 W typical
Reverse Polarity Protection: Present
Isolation Voltage: 1000 VDC minimum
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +85°C
Operating Humidity: 5%–95% non-condensing

Ethernet Interface:
- 2 × 10/100/1000Base-T(X) RJ-45 ports
- Auto MDI/MDI-X, auto-negotiation
- PoE PD on ETH2 (WAN port) compliant with IEEE 802.3af

Wireless Interface:
- IEEE 802.11 a/b/g/n compliant
- Frequency Bands:
- FCC (US): 2.412–2.462 GHz (11 channels), 5.180–5.240 GHz & 5.745–5.825 GHz (9 channels)
- CE (EU): 2.412–2.472 GHz (13 channels), 5.180–5.240 GHz (4 channels)
- Modulation: DSSS, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
- Data Rates:
- 802.11b: 1–11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: up to 300 Mbps (40 MHz BW)
- Transmit Power:
- 802.11b: 17 dBm ±1.5 dBm @11 Mbps
- 802.11g: 16 dBm ±1.5 dBm @54 Mbps
- 802.11n HT20: 15 dBm ±1.5 dBm @MCS7
- 802.11n HT40: 14 dBm ±1.5 dBm @MCS7
- Receiver Sensitivity:
- 802.11b: -85 dBm ±2 dBm
- 802.11g: -76 dBm ±2 dBm
- 802.11n HT20: -75 dBm ±2 dBm
- 802.11n HT40: -72 dBm ±2 dBm
- Antennas: 2 × 2 dBi detachable antennas (reverse SMA connectors)

Cellular Interface:
- Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE
- Frequency Bands:
- US: LTE 700/1700/2100 MHz; UMTS 800/850/1900/2100 MHz; GSM 850/900/1800/1900 MHz
- EU: LTE 800/900/1800/2100/2600 MHz; UMTS 900/2100 MHz; GSM 900/1800/1900 MHz
- SIM Card Slot: 1 × standard SIM slot
- Antenna Connectors: 1 × SMA (LTE), 1 × reverse SMA (Wi-Fi)

LED Indicators:
- PWR1/PWR2 (Green): Power status
- ETH1/ETH2 (Green/Amber): Link/activity and speed
- WLAN (Green): Wireless link/activity
- WAN (Green): Modem ready
- Fault (Red): Power or link failure

---

### 4. Functionality

The IGAR-1062+-4G functions as a multi-interface industrial router combining wired, wireless, and cellular connectivity. It supports multiple WAN modes—Dynamic/Static IP, PPPoE, 3G/4G modem, and wireless client—allowing flexible deployment in remote or mobile environments. The integrated VPN (OpenVPN, PPTP) ensures secure data transmission between remote sites.

Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring and control in utilities and transportation
- Mobile network access for field equipment
- Redundant WAN connectivity for mission-critical systems
- Secure remote access for distributed industrial networks

Compatibility:
- Compatible with standard Ethernet devices, PoE switches, and industrial controllers.
- Supports standard web browsers for configuration (HTTP/HTTPS).
- Works with SNMP-based network management systems.

---

### 5. Components & Accessories

Included Items:
- IGAR-1062+-4G router unit
- 2 × Wi-Fi antennas (2 dBi, reverse SMA)
- 1 × LTE antenna (SMA)
- 6-pin terminal block for power input
- DIN-rail mounting kit
- Wall-mount bracket and screws
- Quick Installation Guide (QIG)
- Product CD with documentation

Optional Accessories:
- External high-gain antennas
- PoE Ethernet switches (ORing IPS series)
- Industrial-grade power supplies

Connectors:
- 2 × RJ-45 Ethernet ports
- 1 × SIM card slot
- 1 × 6-pin terminal block (power and DI/DO)
- 1 × reset button
- 2 × antenna connectors (Wi-Fi and LTE)

---

### 6. Installation & Setup

Mounting Options:
- DIN-Rail Installation: Attach the integrated DIN-rail clip to a standard 35 mm rail.
- Wall Mounting: Use the included wall-mount bracket and six screws.

Powering the Device:
- Connect 12–48 VDC to the terminal block (V+, V-).
- Alternatively, power via PoE on ETH2 (WAN port).

Initial Configuration:
1. Connect a PC to ETH1 (LAN port).
2. Access the web interface at http://192.168.10.1.
3. Default credentials: admin / admin.
4. Configure WAN type (Dynamic IP, PPPoE, or 4G modem).
5. Set wireless SSID, channel, and security (WEP/WPA/WPA2).
6. Save and reboot to apply settings.

Network Management:
- Web-based GUI (HTTP/HTTPS)
- SNMP v1/v2 for remote monitoring
- Syslog and email alerts for event reporting
- Firmware upgrade via web interface

---

### 7. Performance & Capabilities

Wireless Throughput: Up to 300 Mbps (802.11n, 40 MHz channel width)
Ethernet Throughput: Full Gigabit performance on both ports
Cellular Data Rate: Dependent on LTE network (up to 100 Mbps downlink typical)
VPN Performance: Supports OpenVPN and PPTP tunnels with encryption
Routing Performance: Enhanced by HNAT (Hardware Network Address Translation) for optimized LAN-to-WAN throughput
Reliability Features:
- Dual power input redundancy
- Fault relay output (1A @ 24VDC)
- Watchdog and auto-restart functions
Limitations:
- Operating temperature limited to -10°C to +60°C
- Single SIM slot (no dual SIM redundancy)

---

### 8. Standards & Compliance

Wireless Standards: IEEE 802.11 a/b/g/n
Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE PD)
Safety & EMC Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
RF Compliance:
- FCC and Industry Canada (RSS standards)
- CE/ETSI for European operation
Environmental Compliance: RoHS-compliant construction

---

### 9. Additional Information

Warranty:
- 5-year limited hardware warranty covering defects in materials and workmanship.
- Excludes damage from misuse, unauthorized modification, or improper installation.

Maintenance & Support:
- Firmware updates available via ORing website.
- Technical support via email and online resources.
- Configuration backup and restore supported through web interface.

Firmware & Software Updates:
- Web-based firmware upgrade utility.
- Configuration export/import for rapid deployment.
- HTTPS-secured management sessions.

Event & Monitoring Tools:
- Syslog server integration
- SNMP traps (up to 4 trap destinations)
- Email notifications (SMTP configuration)
- Relay output and digital I/O for external alarms

Environmental Durability:
- Designed for industrial automation, transportation, and outdoor enclosures.
- IP-30 metal housing ensures protection against dust and mechanical impact.

Manufacturer Contact:
ORing Industrial Networking Corp.
3F., No.542-2, JhongJheng Rd., Sindian District, New Taipei City 23148, Taiwan
Tel: +886-2-2218-1066 | Fax: +886-2-2218-1014

---

### Summary

The ORing IGAR-1062+-4G is a robust, feature-rich industrial wireless and cellular router engineered for mission-critical connectivity in harsh environments. Combining dual Gigabit Ethernet ports, IEEE 802.11 a/b/g/n wireless networking, and integrated 4G LTE cellular communication, it provides flexible and secure network access for industrial automation, remote monitoring, and mobile applications. With redundant power inputs, PoE PD capability, advanced VPN and firewall features, and comprehensive management tools, the IGAR-1062+-4G delivers high reliability, security, and performance for industrial networking infrastructures.
