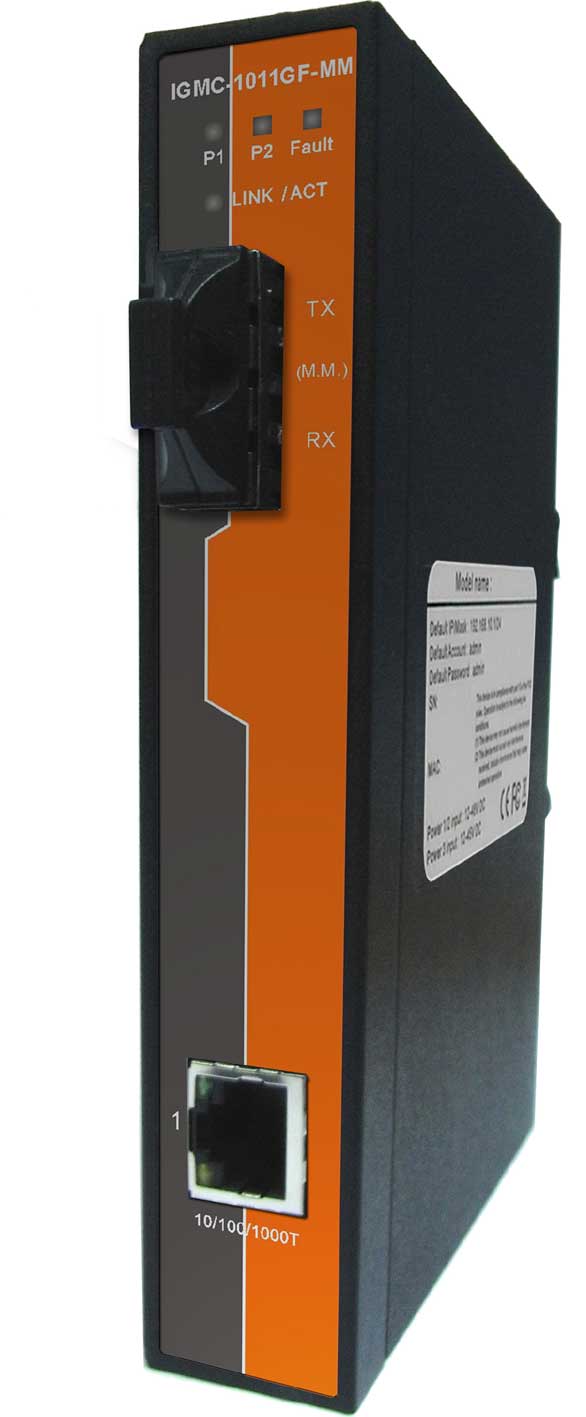

Comprehensive Product Summary – IGMC-1011GF-MM-SC Industrial Gigabit Ethernet to Fiber Media Converter

---

### 1. Product Overview

Product Name: Industrial Gigabit Ethernet to Fiber Media Converter
Model: IGMC-1011GF-MM-SC

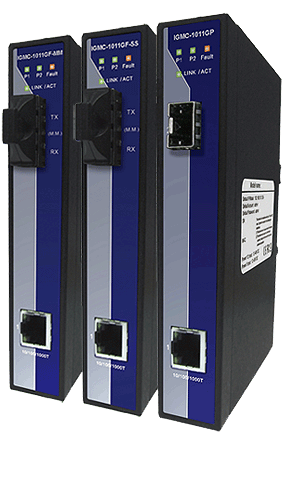

Series: IGMC-1011GF / IGMC-1011GP Industrial Media Converter Series
Article Number: IGMC-1011GF-MM-SC
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial-grade unmanaged Gigabit Ethernet to fiber media converter
Version: v1.3 / March 2010

The IGMC-1011GF-MM-SC is a rugged, industrial-grade media converter designed to provide seamless conversion between copper-based Gigabit Ethernet (10/100/1000Base-T(X)) and fiber-optic Gigabit Ethernet (1000Base-X) networks. It is part of ORing’s IGMC series, engineered for high reliability, extended temperature operation, and robust performance in harsh industrial environments. The model supports multi-mode fiber with an SC connector and is optimized for applications requiring stable, long-distance data transmission over optical fiber.

---

### 2. Key Features

- Gigabit Ethernet Conversion: Converts 10/100/1000Base-T(X) copper Ethernet to 1000Base-X fiber Ethernet.
- Multi-Mode Fiber Support: Equipped with a 1000Base-SX multi-mode fiber port (850 nm wavelength, SC connector) supporting transmission distances up to 550 meters.
- Auto-Negotiation and Auto-MDI/MDI-X: Automatically detects link speed and cable type for simplified installation.
- Dual Power Inputs: Redundant 12–48 VDC power inputs via a 6-pin terminal block ensure continuous operation even if one power source fails.
- Relay Output Alarm: Configurable relay output (1A at 24 VDC) for power failure or fault condition notification.
- Rugged Industrial Design: IP-30 rated metal enclosure for protection against dust and mechanical impact.
- Wide Operating Temperature Range: Designed for extreme environments, operating from -40°C to +70°C.
- DIN-Rail and Wall Mounting: Flexible installation options for industrial control cabinets or panels.
- Low Power Consumption: Typical power usage of only 3.5 W for energy-efficient operation.
- Comprehensive LED Indicators: Provides clear visual status for power, link/activity, and fault conditions.
- High Reliability: Designed for continuous operation in mission-critical industrial networks.
- Standards Compliance: Fully compliant with IEEE 802.3 Ethernet standards and international EMC and safety regulations.
- 5-Year Warranty: Long-term reliability backed by ORing’s extended warranty coverage.

---

### 3. Technical Specifications

Physical Ports:
- 1 × 10/100/1000Base-T(X) RJ45 port (auto-negotiation, auto-MDI/MDI-X)
- 1 × 1000Base-SX multi-mode fiber port (SC connector, 850 nm wavelength, up to 550 m distance)

Ethernet Standards:
- IEEE 802.3 for 10Base-T
- IEEE 802.3u for 100Base-T(X)
- IEEE 802.3ab for 1000Base-T
- IEEE 802.3z for 1000Base-X

Jumbo Frame Support: Up to 10,240 bytes

LED Indicators:
- Power: Green (Power 1, Power 2)
- Fault: Amber (Power failure or alarm condition)
- RJ45 Port: Green (Link/Activity), Amber (100 Mbps indicator)
- Fiber Port: Green (Link/Activity)

Relay Output:
- 1A at 24 VDC capacity
- Enable/disable via DIP switch

Power Requirements:
- Dual 12–48 VDC inputs (redundant)
- 6-pin terminal block connection
- Power consumption: 3.5 W (typical)
- Overload current protection: Present
- Reverse polarity protection: Present

Enclosure:
- Material: Metal, IP-30 rated
- Mounting: DIN-rail and wall-mount capable

Dimensions:
- Width: 33 mm
- Depth: 95 mm
- Height: 144.3 mm
- Weight: Approx. 400 g

Environmental Conditions:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Operating Humidity: 5% to 95% (non-condensing)

---

### 4. Functionality

The IGMC-1011GF-MM-SC functions as a transparent Layer 1 media converter, bridging copper-based Ethernet networks with fiber-optic infrastructure. It automatically detects the data rate and duplex mode of connected devices, ensuring seamless communication between dissimilar media types.

How It Works:
- The RJ45 port connects to standard Ethernet devices such as switches, routers, or industrial controllers.
- The SC fiber port connects to a fiber-optic network, extending the communication distance and providing immunity to electromagnetic interference (EMI).
- The converter automatically negotiates link parameters and forwards Ethernet frames between copper and fiber interfaces without altering data content.
- The built-in relay output can trigger alarms or external devices in case of power failure or link loss, enhancing system reliability.

Use Cases and Applications:
- Industrial automation and control systems
- Transportation and traffic monitoring networks
- Power and utility communication systems
- Oil, gas, and mining operations
- Factory floor networking and SCADA systems
- Long-distance data transmission in EMI-prone environments
- Integration of legacy copper networks with modern fiber infrastructure

Compatibility:
- Compatible with standard Ethernet devices supporting 10/100/1000 Mbps speeds
- Works with multi-mode fiber (850 nm) using SC connectors
- Interoperable with other ORing industrial networking products and third-party Ethernet equipment

---

### 5. Components & Accessories

Included Items:
- IGMC-1011GF-MM-SC media converter unit
- Quick Installation Guide
- DIN-rail mounting kit
- Wall-mount kit

Optional Accessories (sold separately):
- SFP1G Series: 1 Gbps SFP optical transceivers (for other models in the series)
- DR-45 Series: 45 W DIN-rail power supply
- DR-75 Series: 75 W DIN-rail power supply
- DR-120 Series: 120 W DIN-rail power supply

Connectors:
- RJ45 connector for copper Ethernet
- SC connector for fiber-optic cable
- 6-pin terminal block for dual DC power input and relay output

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 12–48 VDC (redundant inputs recommended)
- Mounting surface: DIN-rail or flat panel
- Fiber cable: Multi-mode 50/125 µm or 62.5/125 µm, SC connector
- Ethernet cable: Cat5e or higher, up to 100 meters

Mounting Options:
- DIN-Rail Mounting: Standard 35 mm DIN-rail clip included for quick installation in control cabinets.
- Wall Mounting: Optional wall-mount brackets allow installation on flat surfaces.

Configuration:
- Plug-and-play operation; no software configuration required.
- DIP switch for enabling/disabling relay output function.
- LED indicators provide immediate visual feedback for link and power status.

Setup Steps:
1. Mount the converter on a DIN-rail or wall surface.
2. Connect the DC power inputs to the terminal block.
3. Attach the Ethernet cable to the RJ45 port.
4. Connect the fiber cable to the SC port.
5. Verify LED indicators for proper operation.

---

### 7. Performance & Capabilities

Speed and Throughput:
- Supports full-duplex Gigabit Ethernet operation (1 Gbps)
- Auto-negotiation ensures optimal link speed and duplex mode
- Jumbo frame support up to 10,240 bytes for high-performance data transfer

Capacity and Efficiency:
- Capable of handling high-bandwidth industrial data streams
- Low latency and minimal packet loss due to hardware-based forwarding
- Energy-efficient design with typical power consumption of 3.5 W

Reliability and Redundancy:
- Dual power inputs provide uninterrupted operation during power source failure
- Relay output enables external alarm integration for fault monitoring
- IP-30 enclosure ensures mechanical protection and long-term durability

Limitations:
- Designed for point-to-point fiber connections (no switching or routing functions)
- Multi-mode fiber distance limited to 550 meters (for longer distances, single-mode version IGMC-1011GF-SS-SC is recommended)

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3z (1000Base-X)

Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11

Environmental and Mechanical Tests:
- Shock: IEC60068-2-27
- Free Fall: IEC60068-2-32
- Vibration: IEC60068-2-6

Safety Compliance:
- EN60950-1 (Information Technology Equipment Safety Standard)

Ingress Protection:
- IP-30 rated enclosure

Certifications:
- CE
- FCC
- RoHS compliant

These certifications ensure that the IGMC-1011GF-MM-SC meets international standards for safety, electromagnetic compatibility, and environmental performance, making it suitable for deployment in regulated industrial sectors.

---

### 9. Additional Information

Warranty:
- 5-year limited warranty covering manufacturing defects and hardware reliability.

Support:
- Comprehensive technical documentation and installation guides available from ORing Industrial Networking.
- Technical support via ORing’s global service network.

Maintenance:
- No moving parts; minimal maintenance required.
- Periodic inspection of fiber connectors and power terminals recommended.
- Firmware updates not applicable (unmanaged device).

Product Lifecycle and Updates:
- Long-term availability for industrial applications.
- Backward compatibility with existing ORing industrial networking infrastructure.

Ordering Information:
- Model: IGMC-1011GF-MM-SC
- Description: Industrial Gigabit Ethernet to fiber media converter with 1×10/100/1000Base-T(X) and 1×1000Base-SX multi-mode fiber (850 nm, SC connector).
- Operating Temperature: -40°C to +70°C
- Alternative Models:
- IGMC-1011GF-SS-SC (Single-mode, 1310 nm, 10 km distance)
- IGMC-1011GP (SFP port version for flexible fiber module selection)

---

### Summary

The ORing IGMC-1011GF-MM-SC is a robust, industrial-grade Gigabit Ethernet to fiber media converter engineered for high-performance data transmission in demanding environments. It bridges copper and fiber networks, offering reliable, interference-free communication over extended distances. With its IP-30 metal housing, dual redundant power inputs, wide temperature tolerance, and relay alarm output, it is ideally suited for mission-critical industrial automation, transportation, and utility applications.

Its compliance with IEEE Ethernet standards, EMC and safety certifications, and long-term warranty make it a dependable choice for system integrators and industrial network engineers seeking a durable and efficient media conversion solution. The IGMC-1011GF-MM-SC exemplifies ORing’s commitment to rugged excellence and reliable industrial networking performance.
