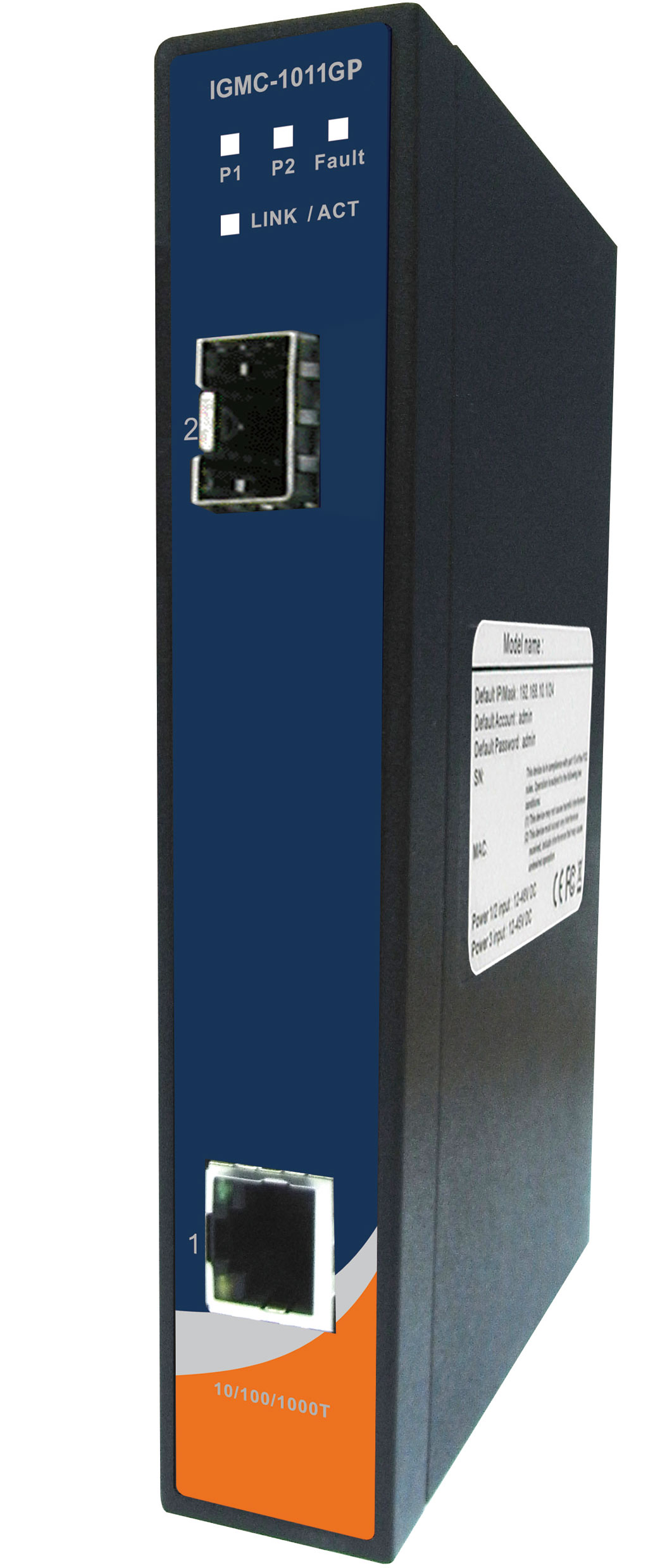

PRODUCT SUMMARY – IGMC‑1011GP INDUSTRIAL GIGABIT MEDIA CONVERTER

1. PRODUCT OVERVIEW
- Product Name: IGMC‑1011GP
- Model: IGMC‑1011GP (Gigabit Ethernet to Fiber Media Converter)
- Series: IGMC‑1011GF / IGMC‑1011GP Industrial Media Converter Series
- Article Number: IGMC‑1011GP
- Manufacturer: ORing Industrial Networking Corp.
- Product Type: Industrial Gigabit Media Converter (10/100/1000Base‑T(X) to 1000Base‑X SFP)
- General Description: Slim‑type industrial Ethernet‑to‑fiber converter supporting 1× 10/100/1000Base‑T(X) RJ45 port and 1× 1000Base‑X SFP interface, designed for harsh, mission‑critical environments.

2. KEY FEATURES
- Provides media conversion between 10/100/1000Base‑T(X) copper and 1000Base‑X fiber (via SFP module).
- Auto‑negotiation and auto‑MDI/MDI‑X for the copper Ethernet port.
- Supports multi‑mode or single‑mode fiber through compatible SFP transceivers.
- Wide input power range: dual redundant 12–48 VDC via 6‑pin terminal block.
- Power alarm relay output rated 1 A at 24 VDC, with DIP‑switch‑selectable alarm behavior.
- Rugged IP‑30 metal enclosure designed for industrial environments.
- Slim‑type model with compact form factor for dense cabinet installations.
- Extended operating temperature specification:
– Standard series spec: −10 to 60 °C
– Extended series spec: −40 to 70 °C (per updated datasheet).
- DIN‑rail and wall‑mount installation supported.
- Low power consumption (~3.5 W).
- Supports jumbo frames up to 10240 bytes (per full specs).
- FCC Class A, EN55022 Class A EMI compliance; EN61000‑4‑2/3/4/5/6/8/11 EMC immunity certification.
- Reverse polarity protection and overload current protection included.

3. TECHNICAL SPECIFICATIONS
- Dimensions:
– Slim type: 33 mm (W) × 95 mm (D) × 144.3 mm (H)
– Alternate spec note: 26.1 mm (W) × 94.9 mm (D) × 144.3 mm (H) (variation depending on revision)
- Weight: ~380 g (IGMC‑1011GP), 400 g for GF variants
- Enclosure: IP‑30 rated metal housing
- Power Input: Dual 12–48 VDC, 6‑pin terminal block
- Power Consumption: Typ. 3.5 W
- Overload Current Protection: Present
- Reverse Polarity Protection: Present
- Ports:
– 1× 10/100/1000Base‑T(X) RJ45
– 1× 1000Base‑X SFP slot
- Fiber Compatibility:
– Multi‑mode 50/125 µm up to 2 km
– Single‑mode 9/125 µm up to 120 km (depending on SFP module)
- Environmental:
– Operating Temperature: −40 to 70 °C (extended), otherwise −10 to 60 °C
– Storage Temperature: −40 to 85 °C
– Humidity: 5–95% non‑condensing
- Indicators:
– Power (green ×2)
– Fault (yellow/amber)
– RJ45 Port: Link/Activity (green), speed/duplex indicator (yellow)
– Fiber/SFP Port: Link/Activity (green)
- Jumbo Frame Support: 10240 bytes
- Fault Relay Output:
– Capacity: 1 A @ 24 VDC
– DIP switch configurable for PWR1 fail, PWR2 fail, or disabled.

4. FUNCTIONALITY
- Converts copper Ethernet (10M/100M/1G) to optical 1G via SFP.
- Supports seamless auto‑negotiation and MDI/MDI‑X adjustment for plug‑and‑play operation.
- Enables long‑distance fiber uplinks for industrial systems such as:
– Factory automation
– Transportation networks
– Power utilities and substations
– Security/surveillance networks
– Intelligent traffic systems
– Remote fiber backbones
- Compatible with ORing 1G SFP modules (multi‑mode, single‑mode, long‑haul, etc.).
- Relay alarms allow integration with monitoring systems to detect power failures.

5. COMPONENTS & ACCESSORIES
Included:
- IGMC‑1011GP unit
- Quick Installation Guide
- DIN‑rail mounting kit
- Wall‑mount kit (for slim type models)
- Terminal blocks (3‑pin and 6‑pin depending on model)

Optional Accessories (sold separately):
- SFP1G series (1 Gbps optical transceivers)
- DR‑45 / DR‑75 / DR‑120 DIN‑rail power supplies
- Dust covers for RJ45 and SFP ports
- Screws and additional mounting hardware

6. INSTALLATION & SETUP
- Mounting Options: DIN‑rail or wall‑mount.
- Power connection via 6‑pin terminal block providing dual redundant inputs.
- DIP switch for relay alarm configuration:
– Relay disabled
– PWR1 failure alarm enabled
– PWR2 failure alarm enabled
- Front‑panel LEDs assist with diagnostics (link, activity, speed, fault).
- Compatible with SC‑connected fiber (when using GF variants) or any LC‑terminated SFP module (for GP version).
- Auto‑MDI/MDI‑X eliminates crossover cable requirements.
- Supports both straight‑through and crossover cabling depending on device.

7. PERFORMANCE & CAPABILITIES
- Supports full‑duplex gigabit throughput across copper and fiber interfaces.
- Fiber reach determined by SFP module:
– Multi‑mode up to 550 m or 2 km
– Single‑mode from 10 km to 120 km
- Temperature tolerance suited for harsh industrial locations.
- IP‑30 housing withstands mechanical stress, vibration, and electromagnetic interference.
- Jumbo frames allow interoperability with modern high‑bandwidth networks.
- Low power draw (3.5 W typical) ensures efficient operation in panel installations.
- Relay alarm supports real‑time fault response within industrial control systems.

8. STANDARDS & COMPLIANCE
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X), 100Base‑FX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)

EMI / EMC:
- FCC Part 15 Class A
- CISPR EN55022 Class A

Immunity Tests (EN61000‑4‑x):
- ESD (‑2)
- RS (‑3)
- EFT (‑4)
- Surge (‑5)
- CS (‑6)
- Magnetic field (‑8)
- Voltage dips/interruptions (‑11)

Mechanical Tests:
- Shock: IEC60068‑2‑27
- Free fall: IEC60068‑2‑32
- Vibration: IEC60068‑2‑6

Safety Certification:
- EN60950 / EN60950‑1

9. ADDITIONAL INFORMATION
- Warranty: 5 years (standard ORing industrial warranty).
- Maintenance:
– Periodic inspection of terminal blocks, fiber connectors, and SFP cages recommended.
– Update SFP transceivers as needed depending on optical budget.
- Support:
– ORing technical support via email and website.
- Documentation:
– Quick Installation Guide (QIG) included.
– Full datasheet available from ORing.
