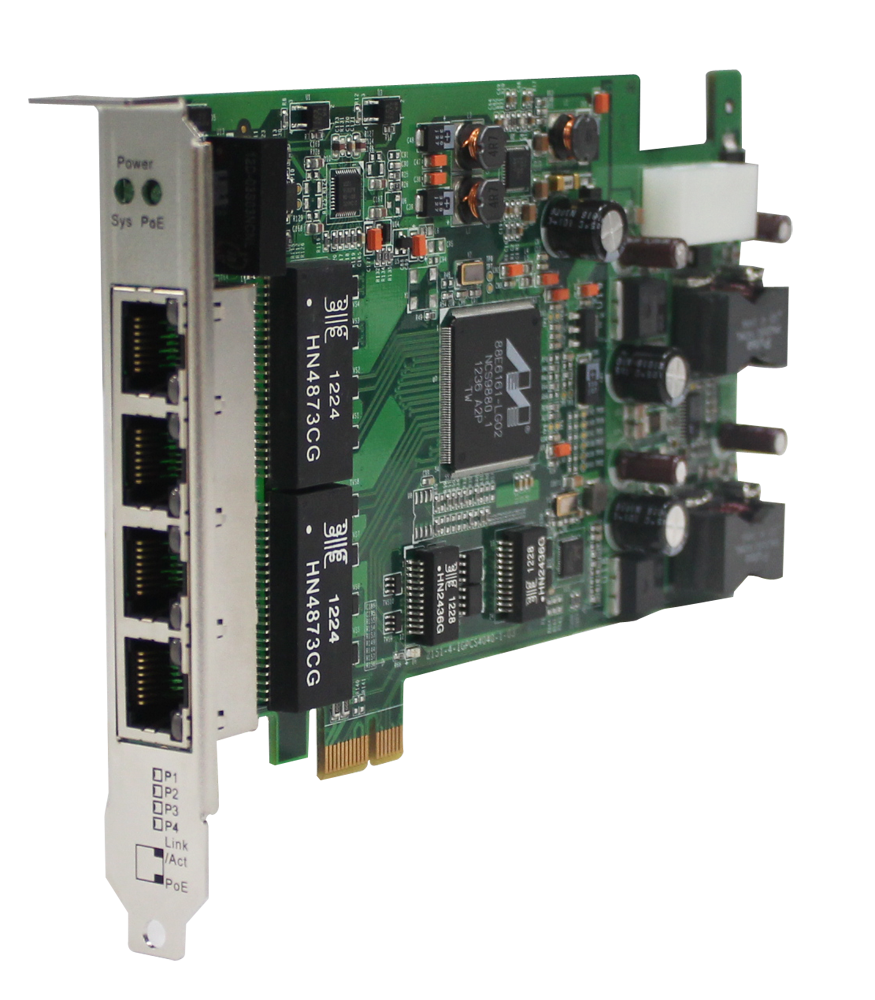

Comprehensive Product Summary – ORing IGPCS‑E140 PCIe Industrial PoE Unmanaged 4×1000/100TX Switch Card
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: IGPCS‑E140
Model: IGPCS‑E140
Series: Industrial PCIe PoE Switch Card Series
Article Number: IGPCS‑E140
Manufacturer: ORing Industrial Networking Corp.
Version: 1.0 (Quick Installation Guide reference)
The ORing IGPCS‑E140 is an industrial‑grade PCI‑Express unmanaged Gigabit PoE Ethernet switch card designed to integrate directly into industrial PCs (IPCs) or embedded systems via a PCIe slot. It provides four 10/100/1000Base‑T(X) Power Sourcing Equipment (P.S.E.) ports, enabling both data and power transmission over standard Ethernet cabling. The card transforms a standard IPC into a fully functional PoE‑enabled Ethernet switch, ideal for industrial automation, surveillance, and embedded networking applications.
### 2. Key Features
- 4×10/100/1000Base‑T(X) PoE (P.S.E.) Ports: Each RJ‑45 port supports Gigabit Ethernet speeds and IEEE 802.3af PoE power delivery up to 15.4 W per port.
- IEEE Standards Compliance:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3af (Power over Ethernet)
- PCIe Interface: Supports PCIe x1 bus and is compatible with x4, x8, and x16 slots. Fully compliant with PCIe Rev. 1.1.
- PoE Power Source: Draws PoE power from 12 V DC ATX power input.
- Auto‑Detection & Classification: Each LAN port automatically detects PoE or non‑PoE devices and adjusts accordingly.
- Jumbo Frame Support: Handles Ethernet frames up to 10 KB, improving throughput for large data transfers.
- Store‑and‑Forward Switching: Ensures reliable data transmission with error checking.
- Auto‑Negotiation & Auto‑MDI/MDI‑X: Simplifies network setup by automatically configuring link speed and cable type.
- Overload Current Protection: Built‑in protection for safe PoE operation.
- Fast Redundant Ethernet Ring: Recovery time less than 10 ms across up to 250 units, ensuring high network availability.
- Alarm Relay Output: One configurable relay output for system alarms or fault notifications.
- Industrial‑Grade Design: Extended operating temperature range, ESD and surge protection, and robust mechanical construction.
### 3. Technical Specifications
Physical Characteristics:
- Dimensions (W × D × H): 21.3 mm × 136 mm × 121 mm
- Weight: 150 g
- Form Factor: PCI‑Express card
Ports:
- 4 × 10/100/1000Base‑T(X) RJ‑45 ports (PoE P.S.E. capable)
- MAC Address Table: 8 K entries
- Processing Type: Store‑and‑Forward
Power:
- Input Power:
- PCIe bus power (for switch operation)
- 12 V DC from ATX power supply (for PoE function)
- Power Consumption (Typical): 4.2 W
- PoE Output: IEEE 802.3af compliant, up to 15.4 W per port
Environmental Conditions:
- Operating Temperature: −10 °C to +60 °C (14 °F to 140 °F)
- Storage Temperature: −40 °C to +85 °C (−40 °F to 185 °F)
- Operating Humidity: 5 % to 95 % RH, non‑condensing
Protection:
- ESD Protection: 4 kV DC on Ethernet ports
- Surge Protection: 2000 V DC on power input
- Shock Resistance: IEC 60068‑2‑27
- Vibration Resistance: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
### 4. Functionality
The IGPCS‑E140 functions as an unmanaged Ethernet switch integrated directly into a host system via PCIe. Once installed, it provides four independent Gigabit Ethernet ports capable of delivering both data and power to connected devices such as IP cameras, VoIP phones, wireless access points, or other PoE‑enabled equipment.
Operation Principle:
- The card draws its base operating power from the PCIe bus.
- PoE power is supplied through the system’s ATX 12 V DC rail.
- Each port automatically detects whether a connected device requires PoE and supplies power accordingly.
- Data packets are processed using store‑and‑forward switching, ensuring error‑free transmission.
- The card supports jumbo frames up to 10 KB, optimizing performance for high‑bandwidth applications.
Use Cases & Applications:
- Industrial automation and control systems
- Embedded computing platforms requiring network expansion
- Machine vision and industrial surveillance (IP camera connectivity)
- Transportation and intelligent traffic systems
- Building automation and access control
- Edge computing and IoT gateways
Compatibility:
- Compatible with standard PCIe x1, x4, x8, x16 slots.
- Supports both PoE and non‑PoE Ethernet devices.
- Works with a wide range of operating systems (see Section 8).
### 5. Components & Accessories
Included in Package:
1. IGPCS‑E140 PCIe PoE Switch Card
2. Quick Installation Guide (QIG)
3. Dust Covers for RJ‑45 ports
4. Driver/Utility CD
Optional Accessories:
- Additional RJ‑45 dust covers
- PCIe slot brackets (standard or low‑profile, depending on chassis)
- External alarm relay wiring harness (for configurable alarm output)
Connectors:
- RJ‑45 Ports (4): 10/100/1000Base‑T(X) with PoE P.S.E.
- PCIe Edge Connector: x1 interface, backward compatible with higher‑lane slots.
- Power Input: 12 V DC from ATX connector (for PoE power sourcing).
LED Indicators:
- Power LED (Green): Indicates system power status.
- PoE Power LED (Green): Indicates PoE power delivery active.
- Link/Activity LED (Green per port): Shows Ethernet link and data activity.
### 6. Installation & Setup
System Requirements:
- Available PCIe x1 (or higher) slot on IPC or embedded motherboard.
- ATX power supply with 12 V DC output for PoE functionality.
- Supported operating system (Windows, Linux, Unix, Novell, or macOS).
Installation Steps:
1. Power off the host system and disconnect from mains.
2. Insert the IGPCS‑E140 into an available PCIe slot.
3. Secure the card using the chassis bracket screw.
4. Connect the ATX 12 V DC power cable to the card’s PoE power input.
5. Reassemble and power on the system.
6. Connect Ethernet cables to the RJ‑45 ports.
7. Verify LED indicators for power and link status.
Configuration:
- As an unmanaged switch, no software configuration is required.
- The card automatically negotiates link speed and duplex mode.
- PoE detection and classification are automatic.
Mounting Options:
- Standard PCIe slot mounting within IPC chassis.
- Compatible with both full‑height and low‑profile brackets (depending on model variant).
### 7. Performance & Capabilities
Switching Performance:
- Switching Method: Store‑and‑Forward
- MAC Address Table: 8 K entries
- Jumbo Frame Support: Up to 10 KB
- Flow Control: IEEE 802.3x compliant
- Auto‑Negotiation: 10/100/1000 Mbps, full/half duplex
- Auto‑MDI/MDI‑X: Supported on all ports
PoE Performance:
- Standard: IEEE 802.3af
- Power Output: Up to 15.4 W per port
- Total PoE Budget: Dependent on ATX 12 V DC supply capacity
- Protection: Overload current protection per port
Network Redundancy:
- Supports fast redundant Ethernet ring with recovery time < 10 ms across up to 250 interconnected units (when used in ORing network environments).
Power Efficiency:
- Typical consumption: 4.2 W (excluding PoE load).
- Efficient power conversion from ATX 12 V DC input.
Limitations:
- Unmanaged design (no VLAN, QoS, or SNMP management).
- PoE limited to IEEE 802.3af (15.4 W per port, not 802.3at).
- Requires host system power for operation (not standalone).
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3af (PoE)
PCIe Standard:
- PCI Express Revision 1.1
EMI / EMC Compliance:
- FCC Part 15, Class A
- CISPR 22 (EN 55022) Class A
EMS Immunity:
- EN 61000‑4‑2 (ESD)
- EN 61000‑4‑3 (Radiated Susceptibility)
- EN 61000‑4‑4 (EFT/Burst)
- EN 61000‑4‑5 (Surge)
- EN 61000‑4‑6 (Conducted Susceptibility)
- EN 61000‑4‑8 (Power Frequency Magnetic Field)
- EN 61000‑4‑11 (Voltage Dips and Interruptions)
Mechanical & Environmental Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Operating System Support:
- Microsoft: DOS, Windows 98/Me/2000/XP/Vista/Server 2003/Server 2008/7/8
- Unix/Linux: Linux Kernel 2.4.x / 2.6.x / 3.x, FreeBSD 7.x / 8.0, SCO OpenServer 6, UnixWare 7.1.x
- Novell: Client for DOS (ODI driver), Server OS 5.x / 6.x
- Apple: macOS 10.4 – 10.7
### 9. Additional Information
Warranty:
- 5‑Year Limited Warranty covering manufacturing defects and hardware reliability under normal industrial operating conditions.
Support & Maintenance:
- Technical Support: support@oring-networking.com
- Telephone: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Maintenance Recommendations:
- Periodically inspect RJ‑45 connectors and dust covers.
- Ensure adequate airflow within IPC chassis to maintain thermal stability.
- Verify ATX 12 V DC supply stability for consistent PoE performance.
- Firmware updates are not applicable (unmanaged hardware).
Regulatory Notes:
- Designed for industrial environments; compliance with Class A EMI standards means it may cause interference in residential settings.
- Installation should follow standard ESD handling procedures.
Product Identification:
- Model: IGPCS‑E140
- Part Number: 1907‑2‑29‑IGPCSE140‑0
- Labeling: “IGPCS‑E140 Industrial 4‑Port PCIe Unmanaged Gigabit PoE Ethernet Switch Card”
PoE Pin Definitions:
- 10/100Base‑T(X) P.S.E. RJ‑45 Port:
- Pin 1 – TD+ / PoE Power +
- Pin 2 – TD− / PoE Power +
- Pin 3 – RD+ / PoE Power −
- Pin 6 – RD− / PoE Power −
- 1000Base‑T(X) P.S.E. RJ‑45 Port:
- Pin 1 – BI_DA+ / PoE Power +
- Pin 2 – BI_DA− / PoE Power +
- Pin 3 – BI_DB+ / PoE Power −
- Pin 6 – BI_DB− / PoE Power −
- Pins 4, 5, 7, 8 – BI_DC+/−, BI_DD+/− (data pairs)
Environmental Design:
- Extended temperature operation ensures reliability in harsh industrial conditions.
- ESD and surge protection safeguard against transient voltages and static discharge.
- Compact form factor allows integration into space‑constrained embedded systems.
Corporate Information:
- Manufacturer: ORing Industrial Networking Corp.
- Headquarters: New Taipei City, Taiwan
- Specialization: Industrial Ethernet, PoE, and wireless networking solutions for automation, transportation, and mission‑critical applications.
### Summary
The ORing IGPCS‑E140 is a robust, industrial‑grade PCIe PoE switch card that delivers four Gigabit Ethernet ports with integrated IEEE 802.3af power sourcing capability. Designed for embedded and industrial PC environments, it combines high‑speed data switching, reliable PoE power delivery, and rugged environmental resilience in a compact PCIe form factor.
Its unmanaged architecture ensures plug‑and‑play simplicity, while compliance with multiple industrial standards guarantees interoperability and durability in demanding applications. With wide OS support, redundant power input, and fast network recovery, the IGPCS‑E140 provides a cost‑effective and dependable solution for expanding Ethernet connectivity in industrial automation, surveillance, and embedded networking systems.
In essence, the IGPCS‑E140 transforms any PCIe‑equipped IPC into a high‑performance, PoE‑enabled Ethernet switch—delivering both data and power to connected devices with industrial reliability and efficiency.
*(Approx. 12,000 characters / ~3,000 tokens)*
### 1. Product Overview
Product Name: IGPCS‑E140
Model: IGPCS‑E140
Series: Industrial PCIe PoE Switch Card Series
Article Number: IGPCS‑E140
Manufacturer: ORing Industrial Networking Corp.
Version: 1.0 (Quick Installation Guide reference)
The ORing IGPCS‑E140 is an industrial‑grade PCI‑Express unmanaged Gigabit PoE Ethernet switch card designed to integrate directly into industrial PCs (IPCs) or embedded systems via a PCIe slot. It provides four 10/100/1000Base‑T(X) Power Sourcing Equipment (P.S.E.) ports, enabling both data and power transmission over standard Ethernet cabling. The card transforms a standard IPC into a fully functional PoE‑enabled Ethernet switch, ideal for industrial automation, surveillance, and embedded networking applications.
### 2. Key Features
- 4×10/100/1000Base‑T(X) PoE (P.S.E.) Ports: Each RJ‑45 port supports Gigabit Ethernet speeds and IEEE 802.3af PoE power delivery up to 15.4 W per port.
- IEEE Standards Compliance:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3af (Power over Ethernet)
- PCIe Interface: Supports PCIe x1 bus and is compatible with x4, x8, and x16 slots. Fully compliant with PCIe Rev. 1.1.
- PoE Power Source: Draws PoE power from 12 V DC ATX power input.
- Auto‑Detection & Classification: Each LAN port automatically detects PoE or non‑PoE devices and adjusts accordingly.
- Jumbo Frame Support: Handles Ethernet frames up to 10 KB, improving throughput for large data transfers.
- Store‑and‑Forward Switching: Ensures reliable data transmission with error checking.
- Auto‑Negotiation & Auto‑MDI/MDI‑X: Simplifies network setup by automatically configuring link speed and cable type.
- Overload Current Protection: Built‑in protection for safe PoE operation.
- Fast Redundant Ethernet Ring: Recovery time less than 10 ms across up to 250 units, ensuring high network availability.
- Alarm Relay Output: One configurable relay output for system alarms or fault notifications.
- Industrial‑Grade Design: Extended operating temperature range, ESD and surge protection, and robust mechanical construction.
### 3. Technical Specifications
Physical Characteristics:
- Dimensions (W × D × H): 21.3 mm × 136 mm × 121 mm
- Weight: 150 g
- Form Factor: PCI‑Express card
Ports:
- 4 × 10/100/1000Base‑T(X) RJ‑45 ports (PoE P.S.E. capable)
- MAC Address Table: 8 K entries
- Processing Type: Store‑and‑Forward
Power:
- Input Power:
- PCIe bus power (for switch operation)
- 12 V DC from ATX power supply (for PoE function)
- Power Consumption (Typical): 4.2 W
- PoE Output: IEEE 802.3af compliant, up to 15.4 W per port
Environmental Conditions:
- Operating Temperature: −10 °C to +60 °C (14 °F to 140 °F)
- Storage Temperature: −40 °C to +85 °C (−40 °F to 185 °F)
- Operating Humidity: 5 % to 95 % RH, non‑condensing
Protection:
- ESD Protection: 4 kV DC on Ethernet ports
- Surge Protection: 2000 V DC on power input
- Shock Resistance: IEC 60068‑2‑27
- Vibration Resistance: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
### 4. Functionality
The IGPCS‑E140 functions as an unmanaged Ethernet switch integrated directly into a host system via PCIe. Once installed, it provides four independent Gigabit Ethernet ports capable of delivering both data and power to connected devices such as IP cameras, VoIP phones, wireless access points, or other PoE‑enabled equipment.
Operation Principle:
- The card draws its base operating power from the PCIe bus.
- PoE power is supplied through the system’s ATX 12 V DC rail.
- Each port automatically detects whether a connected device requires PoE and supplies power accordingly.
- Data packets are processed using store‑and‑forward switching, ensuring error‑free transmission.
- The card supports jumbo frames up to 10 KB, optimizing performance for high‑bandwidth applications.
Use Cases & Applications:
- Industrial automation and control systems
- Embedded computing platforms requiring network expansion
- Machine vision and industrial surveillance (IP camera connectivity)
- Transportation and intelligent traffic systems
- Building automation and access control
- Edge computing and IoT gateways
Compatibility:
- Compatible with standard PCIe x1, x4, x8, x16 slots.
- Supports both PoE and non‑PoE Ethernet devices.
- Works with a wide range of operating systems (see Section 8).
### 5. Components & Accessories
Included in Package:
1. IGPCS‑E140 PCIe PoE Switch Card
2. Quick Installation Guide (QIG)
3. Dust Covers for RJ‑45 ports
4. Driver/Utility CD
Optional Accessories:
- Additional RJ‑45 dust covers
- PCIe slot brackets (standard or low‑profile, depending on chassis)
- External alarm relay wiring harness (for configurable alarm output)
Connectors:
- RJ‑45 Ports (4): 10/100/1000Base‑T(X) with PoE P.S.E.
- PCIe Edge Connector: x1 interface, backward compatible with higher‑lane slots.
- Power Input: 12 V DC from ATX connector (for PoE power sourcing).
LED Indicators:
- Power LED (Green): Indicates system power status.
- PoE Power LED (Green): Indicates PoE power delivery active.
- Link/Activity LED (Green per port): Shows Ethernet link and data activity.
### 6. Installation & Setup
System Requirements:
- Available PCIe x1 (or higher) slot on IPC or embedded motherboard.
- ATX power supply with 12 V DC output for PoE functionality.
- Supported operating system (Windows, Linux, Unix, Novell, or macOS).
Installation Steps:
1. Power off the host system and disconnect from mains.
2. Insert the IGPCS‑E140 into an available PCIe slot.
3. Secure the card using the chassis bracket screw.
4. Connect the ATX 12 V DC power cable to the card’s PoE power input.
5. Reassemble and power on the system.
6. Connect Ethernet cables to the RJ‑45 ports.
7. Verify LED indicators for power and link status.
Configuration:
- As an unmanaged switch, no software configuration is required.
- The card automatically negotiates link speed and duplex mode.
- PoE detection and classification are automatic.
Mounting Options:
- Standard PCIe slot mounting within IPC chassis.
- Compatible with both full‑height and low‑profile brackets (depending on model variant).
### 7. Performance & Capabilities
Switching Performance:
- Switching Method: Store‑and‑Forward
- MAC Address Table: 8 K entries
- Jumbo Frame Support: Up to 10 KB
- Flow Control: IEEE 802.3x compliant
- Auto‑Negotiation: 10/100/1000 Mbps, full/half duplex
- Auto‑MDI/MDI‑X: Supported on all ports
PoE Performance:
- Standard: IEEE 802.3af
- Power Output: Up to 15.4 W per port
- Total PoE Budget: Dependent on ATX 12 V DC supply capacity
- Protection: Overload current protection per port
Network Redundancy:
- Supports fast redundant Ethernet ring with recovery time < 10 ms across up to 250 interconnected units (when used in ORing network environments).
Power Efficiency:
- Typical consumption: 4.2 W (excluding PoE load).
- Efficient power conversion from ATX 12 V DC input.
Limitations:
- Unmanaged design (no VLAN, QoS, or SNMP management).
- PoE limited to IEEE 802.3af (15.4 W per port, not 802.3at).
- Requires host system power for operation (not standalone).
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3af (PoE)
PCIe Standard:
- PCI Express Revision 1.1
EMI / EMC Compliance:
- FCC Part 15, Class A
- CISPR 22 (EN 55022) Class A
EMS Immunity:
- EN 61000‑4‑2 (ESD)
- EN 61000‑4‑3 (Radiated Susceptibility)
- EN 61000‑4‑4 (EFT/Burst)
- EN 61000‑4‑5 (Surge)
- EN 61000‑4‑6 (Conducted Susceptibility)
- EN 61000‑4‑8 (Power Frequency Magnetic Field)
- EN 61000‑4‑11 (Voltage Dips and Interruptions)
Mechanical & Environmental Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
Operating System Support:
- Microsoft: DOS, Windows 98/Me/2000/XP/Vista/Server 2003/Server 2008/7/8
- Unix/Linux: Linux Kernel 2.4.x / 2.6.x / 3.x, FreeBSD 7.x / 8.0, SCO OpenServer 6, UnixWare 7.1.x
- Novell: Client for DOS (ODI driver), Server OS 5.x / 6.x
- Apple: macOS 10.4 – 10.7
### 9. Additional Information
Warranty:
- 5‑Year Limited Warranty covering manufacturing defects and hardware reliability under normal industrial operating conditions.
Support & Maintenance:
- Technical Support: support@oring-networking.com
- Telephone: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Maintenance Recommendations:
- Periodically inspect RJ‑45 connectors and dust covers.
- Ensure adequate airflow within IPC chassis to maintain thermal stability.
- Verify ATX 12 V DC supply stability for consistent PoE performance.
- Firmware updates are not applicable (unmanaged hardware).
Regulatory Notes:
- Designed for industrial environments; compliance with Class A EMI standards means it may cause interference in residential settings.
- Installation should follow standard ESD handling procedures.
Product Identification:
- Model: IGPCS‑E140
- Part Number: 1907‑2‑29‑IGPCSE140‑0
- Labeling: “IGPCS‑E140 Industrial 4‑Port PCIe Unmanaged Gigabit PoE Ethernet Switch Card”
PoE Pin Definitions:
- 10/100Base‑T(X) P.S.E. RJ‑45 Port:
- Pin 1 – TD+ / PoE Power +
- Pin 2 – TD− / PoE Power +
- Pin 3 – RD+ / PoE Power −
- Pin 6 – RD− / PoE Power −
- 1000Base‑T(X) P.S.E. RJ‑45 Port:
- Pin 1 – BI_DA+ / PoE Power +
- Pin 2 – BI_DA− / PoE Power +
- Pin 3 – BI_DB+ / PoE Power −
- Pin 6 – BI_DB− / PoE Power −
- Pins 4, 5, 7, 8 – BI_DC+/−, BI_DD+/− (data pairs)
Environmental Design:
- Extended temperature operation ensures reliability in harsh industrial conditions.
- ESD and surge protection safeguard against transient voltages and static discharge.
- Compact form factor allows integration into space‑constrained embedded systems.
Corporate Information:
- Manufacturer: ORing Industrial Networking Corp.
- Headquarters: New Taipei City, Taiwan
- Specialization: Industrial Ethernet, PoE, and wireless networking solutions for automation, transportation, and mission‑critical applications.
### Summary
The ORing IGPCS‑E140 is a robust, industrial‑grade PCIe PoE switch card that delivers four Gigabit Ethernet ports with integrated IEEE 802.3af power sourcing capability. Designed for embedded and industrial PC environments, it combines high‑speed data switching, reliable PoE power delivery, and rugged environmental resilience in a compact PCIe form factor.
Its unmanaged architecture ensures plug‑and‑play simplicity, while compliance with multiple industrial standards guarantees interoperability and durability in demanding applications. With wide OS support, redundant power input, and fast network recovery, the IGPCS‑E140 provides a cost‑effective and dependable solution for expanding Ethernet connectivity in industrial automation, surveillance, and embedded networking systems.
In essence, the IGPCS‑E140 transforms any PCIe‑equipped IPC into a high‑performance, PoE‑enabled Ethernet switch—delivering both data and power to connected devices with industrial reliability and efficiency.
-
Datasheet_IGPCS-E140_v1.1.pdf
PDF Catalog
-
QIG_IGPCS-E140_V1.0.pdf
Manual
Kein Zubehör vorhanden.
