Comprehensive Product Summary – ORing IGPS-1042GPA Industrial Unmanaged Gigabit PoE Ethernet Switch

---

### 1. Product Overview

Product Name: IGPS-1042GPA
Model: IGPS-1042GPA
Series: Industrial Unmanaged Gigabit PoE Ethernet Switch (Slim Type)
Article Number: IGPS-1042GPA
Manufacturer: ORing Industrial Networking Corp.
Version: Hardware Version 5.0 / Documentation Version 2.0 (April 2017)
Product Type: 6-Port Industrial Unmanaged Gigabit Ethernet Switch with PoE+ (Power Sourcing Equipment) capability

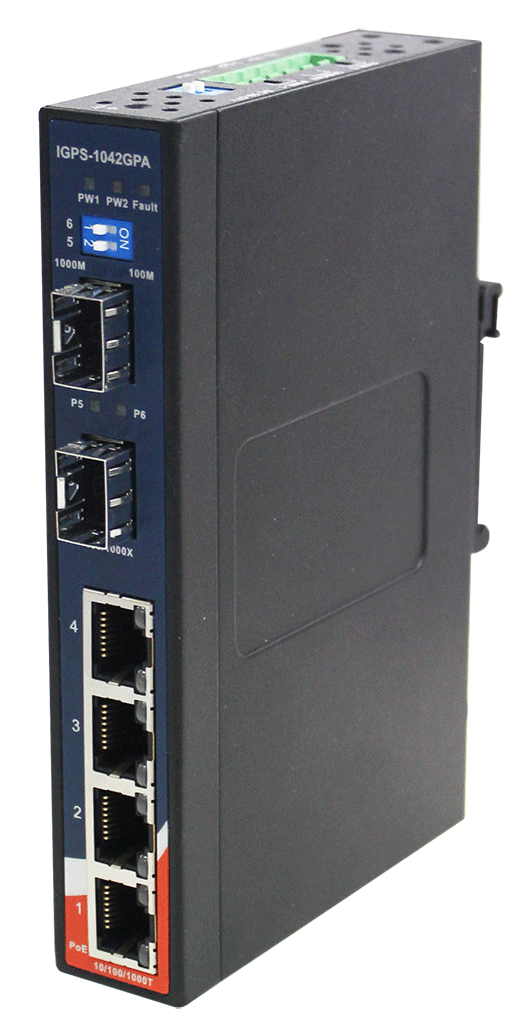

The ORing IGPS-1042GPA is a rugged, unmanaged industrial Ethernet switch designed for high-performance networking in harsh environments. It provides four Gigabit PoE+ copper ports and two dual-speed SFP fiber ports, supporting both 100 Mbps and 1 Gbps operation. The device is engineered for DIN-rail or wall mounting and features a slim IP30-rated metal enclosure, redundant power inputs, and extended temperature tolerance for reliable operation in industrial automation, transportation, and surveillance systems.

---

### 2. Key Features

- 6-Port Configuration:
- 4 × 10/100/1000Base-T(X) RJ-45 ports with PoE+ (P.S.E.) capability
- 2 × 100/1000Base-X SFP slots for fiber connectivity

- PoE+ Power Sourcing Equipment (P.S.E.):
- Compliant with IEEE 802.3at standard
- Up to 30 W per port, total PoE power budget of 120 W
- Supports power and data transmission over standard Ethernet cabling

- Dual-Speed SFP Support:
- DIP-switch selectable 100 Mbps or 1000 Mbps operation per SFP port
- Compatible with ORing SFP100 and SFP1G optical transceivers

- High Reliability and Redundancy:
- Dual 50–57 VDC power inputs on a 6-pin terminal block
- Automatic failover between power sources
- Relay output for power failure alarms (1 A @ 24 VDC)

- Industrial-Grade Design:
- IP30-rated metal housing
- Compact dimensions for space-limited installations
- DIN-rail and wall-mount options
- Extended operating temperature range: -40°C to +75°C

- Network Performance:
- Store-and-forward switching architecture
- Jumbo frame support up to 10 KBytes
- 1K MAC address table
- Auto-negotiation and auto-MDI/MDI-X support

- Comprehensive LED Indicators:
- Power (PWR1, PWR2), Fault, Link/Activity, and PoE status LEDs
- Visual feedback for network and power conditions

- Electromagnetic and Safety Compliance:
- Meets CE, FCC, EN, and UL industrial standards
- EMC, EMI, and environmental robustness verified

---

### 3. Technical Specifications

Physical Ports:
- 4 × 10/100/1000Base-T(X) RJ-45 ports with PoE+ (Auto MDI/MDIX)
- 2 × 100/1000Base-X SFP slots

Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX / 100Base-FX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3z (1000Base-X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE+ up to 30 W per port)

Performance:
- Switching Method: Store-and-Forward
- MAC Address Table: 1K entries
- Jumbo Frame: Up to 10 KBytes
- PoE Power Budget: 120 W total
- Typical Power Consumption: 7 W (excluding PoE load)

Power Input:
- Dual DC inputs: 50–57 VDC via 6-pin terminal block
- Reverse polarity and overload protection included

Relay Output:
- 1 A @ 24 VDC (for power failure alarm)

Enclosure:
- Material: Metal, IP30-rated
- Dimensions: 26.1 (W) × 94.9 (D) × 144.3 (H) mm
- Weight: 458 g

Environmental Conditions:
- Operating Temperature: -40°C to +75°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 5%–95% (non-condensing)

Reliability:
- MTBF: 910,925 hours
- Warranty: 5 years

---

### 4. Functionality

The IGPS-1042GPA functions as an unmanaged Ethernet switch with integrated PoE+ power sourcing capability. It transmits both data and electrical power over standard Cat5e/6 twisted-pair cables, enabling direct connection to PoE-powered devices such as IP cameras, wireless access points, VoIP phones, and industrial sensors.

Operational Overview:
- Each of the four RJ-45 ports can deliver up to 30 W of power to connected PoE devices.
- The two SFP slots provide flexible fiber uplink options for long-distance or EMI-sensitive connections.
- DIP-switches allow users to configure SFP port speeds (100 Mbps or 1 Gbps) and enable/disable power failure alarms.
- The switch automatically detects link speed and duplex mode, supporting plug-and-play installation without configuration.

Use Cases and Applications:
- Industrial automation and control networks
- IP surveillance systems (PoE cameras)
- Intelligent transportation systems (ITS)
- Building management and access control
- Factory floor networking and SCADA systems

Compatibility:
- Compatible with standard IEEE 802.3 Ethernet devices
- Supports both copper and fiber network topologies
- Works with ORing SFP100 (100 Mbps) and SFP1G (1 Gbps) transceivers

---

### 5. Components & Accessories

Included Items:
- IGPS-1042GPA switch unit
- DIN-rail mounting kit
- Quick Installation Guide (QIG)
- Dust covers for RJ-45 and SFP ports

Optional Accessories (sold separately):
- Wall-mount kit (for slim-type housing)
- SFP100 series (100 Mbps optical transceivers)
- SFP1G series (1 Gbps optical transceivers)
- DR/SDR/DRP 48V series DIN-rail power supplies

Connectors:
- 6-pin terminal block for dual DC power input and relay output
- RJ-45 connectors for copper Ethernet ports
- SFP slots for fiber transceivers

---

### 6. Installation & Setup

Mounting Options:
- DIN-Rail Installation:
Attach the included DIN-rail clip to the back of the unit and snap it onto a standard 35 mm DIN rail.
- Wall-Mount Installation:
Use the optional wall-mount kit and M3×3 screws to secure the device to a flat surface.

Power Connection:
- Connect dual 50–57 VDC power sources to the terminal block labeled V1+/V1– and V2+/V2–.
- The device supports redundant power input; if one source fails, the other maintains operation.
- Frame ground connection is recommended for surge protection.

DIP-Switch Configuration:
- SFP Speed Selection:
- DIP 1 & 2 ON: 100 Mbps
- DIP 1 & 2 OFF: 1000 Mbps
- Power Alarm Relay Output:
- DIP 1 ON: Enable PWR1 failure alarm
- DIP 2 ON: Enable PWR2 failure alarm

LED Indicators:
- Power LEDs (Green): Indicate PWR1 and PWR2 status
- Fault LED (Amber): Indicates power failure or alarm condition
- RJ-45 Port LEDs (Green): Link/Activity and PoE power status
- SFP Port LEDs (Green): Link/Activity status

Cabling:
- 10/100/1000Base-T(X): Standard Cat5e/6 cables, straight-through or crossover
- SFP Ports: LC-type fiber connectors (single-mode or multi-mode depending on transceiver)

---

### 7. Performance & Capabilities

Switching Performance:
- Store-and-forward architecture ensures reliable frame integrity and low latency.
- Jumbo frame support (up to 10 KB) enhances throughput for large data transfers.
- Auto-negotiation and auto-MDI/MDI-X simplify network integration.

PoE+ Power Delivery:
- IEEE 802.3at compliant, up to 30 W per port
- Total power budget: 120 W
- Ideal for powering IP cameras, wireless APs, and other PoE PDs

Redundancy and Reliability:
- Dual power inputs ensure continuous operation during power source failure.
- Relay output provides external alarm signaling for power faults.
- Designed for 24/7 operation in mission-critical environments.

Environmental Robustness:
- Operates reliably in extreme temperatures (-40°C to +75°C).
- Resistant to shock, vibration, and free fall per IEC 60068 standards.
- IP30 enclosure protects against dust and mechanical impact.

Limitations:
- Unmanaged design (no VLAN, QoS, or SNMP management features).
- PoE power limited to 120 W total across all ports.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3at

EMC / EMI Compliance:
- EN 55032, EN 55024 (CE EMC)
- FCC Part 15 Class A
- EN 55011-1, EN 50121-3-2 (EN50155 railway standard)
- EN 61000-3-2, EN 61000-3-3
- CISPR 32, C-Tick

EMS Immunity:
- IEC 61000-4-2 (ESD)
- IEC 61000-4-3 (Radiated Susceptibility)
- IEC 61000-4-4 (EFT/Burst)
- IEC 61000-4-5 (Surge)
- IEC 61000-4-6 (Conducted Susceptibility)
- IEC 61000-4-8 (Power Frequency Magnetic Field)

Environmental & Mechanical Tests:
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-31
- Vibration: IEC 60068-2-6

Safety Certifications:
- IEC 60950-1
- UL 60950-1
- EN 60950-1

Reliability:
- MTBF: 910,925 hours (Telcordia SR-332 standard)

---

### 9. Additional Information

Warranty:
5-year limited hardware warranty covering manufacturing defects and component reliability.

Support & Maintenance:
- Technical support available via ORing Industrial Networking Corp.
- Firmware updates not applicable (unmanaged device).
- Maintenance limited to periodic inspection and cleaning of connectors and ventilation openings.

Manufacturer Contact:
ORing Industrial Networking Corp.
Tel: +886-2-2218-1066
Fax: +886-2-2218-1014
Email: support@oringnet.com
Website: [www.oringnet.com](http://www.oringnet.com)

Ordering Information:
- Model: IGPS-1042GPA
- Description: Industrial 6-port slim-type unmanaged Gigabit PoE Ethernet switch with 4×10/100/1000Base-T(X) P.S.E. and 2×100/1000Base-X SFP slots

Optional Models and Accessories:
- SFP100 series (100 Mbps optical transceivers)
- SFP1G series (1 Gbps optical transceivers)
- DR/SDR/DRP 48V series DIN-rail power supplies
- Wall-mount kit for slim-type housing

---

### Summary

The ORing IGPS-1042GPA is a compact, industrial-grade unmanaged Gigabit Ethernet switch designed for high-reliability networking in demanding environments. With four PoE+ copper ports and two dual-speed SFP slots, it provides flexible connectivity for both copper and fiber networks. Its robust IP30 metal housing, extended temperature range, redundant power inputs, and comprehensive EMC/safety certifications make it ideal for mission-critical applications such as industrial automation, transportation, and surveillance. The IGPS-1042GPA delivers dependable performance, simplified installation, and long-term durability, backed by a 5-year warranty and ORing’s industrial networking expertise.
