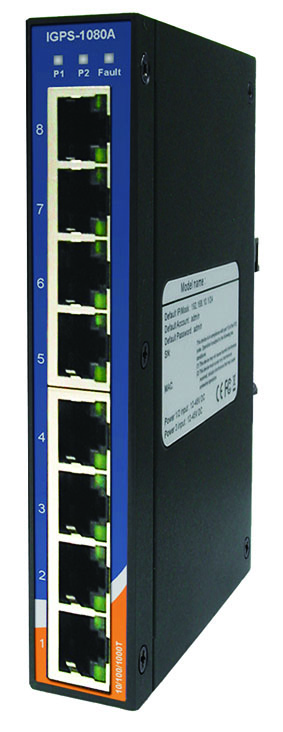

Comprehensive Product Summary – ORing IGPS‑1080A Industrial Unmanaged Gigabit PoE Switch
### 1. Product Overview
Product Name: IGPS‑1080A
Model: IGPS‑1080A
Series: Industrial Gigabit PoE Switch Series
Article Number: IGPS‑1080A
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Unmanaged 8‑Port Gigabit Ethernet PoE (Power Sourcing Equipment) Switch
Product Category: Industrial Ethernet Switches
The ORing IGPS‑1080A is a rugged, unmanaged industrial Ethernet switch designed for high‑performance networking in harsh environments. It provides eight 10/100/1000Base‑T(X) RJ‑45 ports with integrated Power Sourcing Equipment (P.S.E.) functionality compliant with IEEE 802.3at, delivering up to 30 W per port. The device supports redundant 50–57 V DC power inputs, extended operating temperature range (‑40 °C to +70 °C), and a compact IP30‑rated metal enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
- 8× 10/100/1000Base‑T(X) PoE Ports: All eight RJ‑45 ports support Gigabit Ethernet with auto‑negotiation and auto‑MDI/MDI‑X for flexible connection to various devices.
- IEEE 802.3at P.S.E. Compliance: Each port can supply up to 30 W of power to connected Powered Devices (PDs) such as IP cameras, VoIP phones, or wireless access points.
- Unmanaged Operation: Plug‑and‑play functionality with no configuration required, ideal for simple, reliable network expansion.
- Redundant Dual Power Inputs: Dual 50–57 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation; automatic failover between PWR1 and PWR2.
- Power Failure Relay Alarm: DIP‑switch‑controlled relay output (1 A @ 24 V DC) provides alarm signaling for power input failure.
- Industrial‑Grade Design: IP30‑rated metal housing, slim form factor (26.1 × 94.9 × 144.3 mm), and 390 g weight for space‑constrained installations.
- Wide Temperature Range: Operates reliably from ‑40 °C to +70 °C; storage ‑40 °C to +85 °C.
- High EMC Immunity: ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), EFT, and vibration/shock resistance per IEC 60068 standards.
- Low Power Consumption: Typical power draw of 8 W (excluding PoE load).
- LED Indicators: Power, fault, link/activity, and PoE status LEDs for quick diagnostics.
- Mounting Flexibility: Supports both DIN‑rail and wall‑mount installation.
- Long‑Term Reliability: 5‑year manufacturer warranty and compliance with CE, FCC, and EN60950‑1 safety standards.
### 3. Technical Specifications
Physical Characteristics
- Enclosure: IP30‑rated metal housing
- Dimensions: 26.1 (W) × 94.9 (D) × 144.3 (H) mm (1.03 × 3.74 × 5.68 in.)
- Weight: 390 g
- Mounting Options: DIN‑rail and wall‑mount kits included
Power System
- Input Voltage: Dual 50–57 V DC redundant inputs via 6‑pin terminal block
- Power Consumption: 8 W typical (without PD load)
- PoE Output: IEEE 802.3at compliant, up to 30 W per port
- Protection: Reverse polarity and overload current protection
- Relay Output: 1 A @ 24 V DC for power failure alarm
Environmental Conditions
- Operating Temperature: ‑40 °C to +70 °C (‑40 °F to +158 °F)
- Storage Temperature: ‑40 °C to +85 °C (‑40 °F to +185 °F)
- Operating Humidity: 5 % to 95 % non‑condensing
Network Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (Power over Ethernet, up to 30 W per port)
Performance
- Switching Architecture: Store‑and‑forward
- MAC Address Table: 2048 entries
- Transmission Method: Full‑duplex and half‑duplex auto‑negotiation
- Flow Control: IEEE 802.3x (full‑duplex) and back‑pressure (half‑duplex)
EMC & Safety Compliance
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1
### 4. Functionality
The IGPS‑1080A functions as an unmanaged Layer 2 Ethernet switch with integrated PoE power sourcing. Each of its eight RJ‑45 ports automatically detects link speed (10/100/1000 Mbps) and cable type (MDI/MDI‑X), simplifying deployment. The switch forwards Ethernet frames using store‑and‑forward architecture, ensuring error‑free transmission and minimal latency.
Power over Ethernet (PoE) Operation:
The switch injects DC power onto the Ethernet cable pairs according to IEEE 802.3at. Each port can deliver up to 30 W, enabling direct powering of PDs such as IP cameras, wireless access points, VoIP phones, or industrial sensors without separate power wiring.
Redundant Power Inputs:
Two independent DC inputs (PWR1 and PWR2) provide redundancy. If the primary input fails, the secondary input automatically maintains power. DIP‑switch‑controlled relay outputs can trigger alarms for power failure events, enabling integration with supervisory control systems.
Use Cases and Applications:
- Industrial automation and control networks
- IP surveillance systems in factories or transportation hubs
- Outdoor or remote PoE device installations
- Smart city infrastructure (traffic monitoring, environmental sensors)
- Energy and utility substations requiring high reliability
Compatibility:
The IGPS‑1080A is compatible with all IEEE 802.3‑compliant Ethernet devices and PoE‑enabled PDs. It supports standard Cat5e/Cat6 twisted‑pair cabling up to 100 m per segment.
### 5. Components & Accessories
Included Items:
- 1 × 6‑pin terminal block for DC power input
- 2 × RJ‑45 dust covers
- 3 × M3 × 3 mm round screws
- 1 × DIN‑rail mounting kit (25 mm)
- 1 × Wall‑mount kit (for slim‑type housing)
- 1 × Quick Installation Guide (QIG)
Optional Accessories:
- Additional DIN‑rail brackets or wall‑mount plates
- Industrial‑grade DC power supplies (50–57 V DC)
- Ethernet patch cables (Cat5e/Cat6)
Connectors:
- Ethernet Ports: 8 × RJ‑45 (8‑pin) connectors supporting auto‑MDI/MDI‑X
- Power Terminal Block: 6‑pin removable terminal block for dual DC inputs and relay output
- Frame Ground: Dedicated grounding screw for chassis grounding
RJ‑45 Pin Assignments:
- MDI Mode:
1 BI_DA+, 2 BI_DA‑, 3 BI_DB+, 6 BI_DB‑, 4/5 BI_DC±, 7/8 BI_DD±
- MDI‑X Mode:
1 BI_DB+, 2 BI_DB‑, 3 BI_DA+, 6 BI_DA‑, 4/5 BI_DD±, 7/8 BI_DC±
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the included DIN‑rail clip to the rear panel and snap the unit onto a standard 35 mm DIN‑rail.
- Wall‑Mount Installation: Use the provided wall‑mount kit and screws to secure the switch on a flat surface.
Power Connection:
1. Connect the positive and negative leads of the DC power source to the terminal block (V1+, V1‑, V2+, V2‑).
2. Tighten terminal screws securely.
3. Optionally connect the relay output terminals for power failure alarm signaling.
4. Connect the frame ground to an appropriate earth ground point.
DIP‑Switch Configuration:
- DIP‑1: Power‑1 failure warning (ON = enabled, OFF = disabled)
- DIP‑2: Power‑2 failure warning (ON = enabled, OFF = disabled)
- ON + ON: Both PWR1 and PWR2 failure alarms enabled
LED Indicators:
- PWR1/PWR2 (Green): Power input status
- Fault (Amber): Indicates PWR1 or PWR2 failure
- Link/Act (Green): Port link/activity status
- PoE (Green): PoE power injection active
Network Cabling:
- Straight‑Through Cable: For connecting to end devices (PCs, cameras, APs)
- Cross‑Over Cable: For connecting to other switches or hubs (if auto‑MDI/MDI‑X disabled)
- Cable Type: Cat5e or higher, up to 100 m per segment
Startup Procedure:
1. Mount the switch securely.
2. Connect DC power inputs.
3. Connect Ethernet cables to desired devices.
4. Verify LED indicators for power and link status.
5. The switch begins operation automatically—no configuration required.
### 7. Performance & Capabilities
Switching Performance:
- Architecture: Store‑and‑forward ensures frame integrity and minimizes collisions.
- Throughput: Full wire‑speed forwarding on all eight Gigabit ports.
- Latency: Low latency suitable for real‑time industrial control and video streaming.
- MAC Table: 2048 entries for efficient address learning.
PoE Performance:
- Standard: IEEE 802.3at (P.S.E.)
- Output Power: Up to 30 W per port (total PoE budget dependent on power supply capacity)
- Voltage Range: 50–57 V DC
- Protection: Over‑current and short‑circuit protection per port
Reliability & Redundancy:
- Dual power inputs with automatic failover
- Relay alarm output for power failure notification
- Reverse polarity protection prevents damage from incorrect wiring
Efficiency:
- Typical power consumption ≈ 8 W (excluding PoE load)
- Fanless design for silent, maintenance‑free operation
Limitations:
- Unmanaged—no VLAN, QoS, or SNMP management features
- No fiber uplink ports (copper only)
- PoE power budget limited by external DC supply capacity
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (Power over Ethernet, P.S.E.)
EMC & Safety Certifications:
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD ±4 kV contact, ±8 kV air), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge 2 kV), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1 (Information Technology Equipment Safety)
- Environmental Protection: IP30 enclosure rating
Regulatory Approvals:
- CE Marking
- FCC Certification
- EN60950 Safety Compliance
### 9. Additional Information
Warranty:
- 5‑year limited hardware warranty from ORing Industrial Networking Corp.
Support & Maintenance:
- Technical support via email (support@oring‑networking.com) and phone (+886‑2‑2918‑3036)
- Firmware updates not applicable (unmanaged device)
- Routine maintenance limited to periodic inspection of power connections and cleaning of ventilation openings
Manufacturer Contact:
- ORing Industrial Networking Corp.
No. 3, Lane 879, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Email: support@oring‑networking.com
Maintenance Recommendations:
- Ensure stable DC power supply within 50–57 V DC range.
- Maintain proper grounding to prevent ESD damage.
- Keep device in well‑ventilated area; avoid exposure to corrosive environments.
- Periodically verify LED indicators and relay alarm functionality.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Fanless architecture reduces mechanical wear and increases MTBF.
- Tested for vibration, shock, and free‑fall per IEC 60068 standards.
Summary of Advantages:
The IGPS‑1080A combines Gigabit Ethernet performance, PoE power delivery, and industrial‑grade reliability in a compact, cost‑effective form factor. Its unmanaged design ensures simple deployment, while redundant power inputs and wide temperature tolerance make it ideal for mission‑critical applications in automation, transportation, and surveillance networks.
In Summary:
The ORing IGPS‑1080A is an industrial‑grade, unmanaged 8‑port Gigabit PoE switch engineered for demanding environments requiring both high‑speed data connectivity and reliable power delivery over Ethernet. With IEEE 802.3at compliance, dual 50–57 V DC redundant inputs, ‑40 °C to +70 °C operation, and IP30 metal housing, it provides robust performance for industrial automation, security, and infrastructure networks. The device’s relay alarm, comprehensive EMC protection, and 5‑year warranty underscore its suitability for long‑term, maintenance‑free deployment in critical systems.
### 1. Product Overview
Product Name: IGPS‑1080A
Model: IGPS‑1080A
Series: Industrial Gigabit PoE Switch Series
Article Number: IGPS‑1080A
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Unmanaged 8‑Port Gigabit Ethernet PoE (Power Sourcing Equipment) Switch
Product Category: Industrial Ethernet Switches
The ORing IGPS‑1080A is a rugged, unmanaged industrial Ethernet switch designed for high‑performance networking in harsh environments. It provides eight 10/100/1000Base‑T(X) RJ‑45 ports with integrated Power Sourcing Equipment (P.S.E.) functionality compliant with IEEE 802.3at, delivering up to 30 W per port. The device supports redundant 50–57 V DC power inputs, extended operating temperature range (‑40 °C to +70 °C), and a compact IP30‑rated metal enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
- 8× 10/100/1000Base‑T(X) PoE Ports: All eight RJ‑45 ports support Gigabit Ethernet with auto‑negotiation and auto‑MDI/MDI‑X for flexible connection to various devices.
- IEEE 802.3at P.S.E. Compliance: Each port can supply up to 30 W of power to connected Powered Devices (PDs) such as IP cameras, VoIP phones, or wireless access points.
- Unmanaged Operation: Plug‑and‑play functionality with no configuration required, ideal for simple, reliable network expansion.
- Redundant Dual Power Inputs: Dual 50–57 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation; automatic failover between PWR1 and PWR2.
- Power Failure Relay Alarm: DIP‑switch‑controlled relay output (1 A @ 24 V DC) provides alarm signaling for power input failure.
- Industrial‑Grade Design: IP30‑rated metal housing, slim form factor (26.1 × 94.9 × 144.3 mm), and 390 g weight for space‑constrained installations.
- Wide Temperature Range: Operates reliably from ‑40 °C to +70 °C; storage ‑40 °C to +85 °C.
- High EMC Immunity: ESD protection (EN61000‑4‑2), surge protection (EN61000‑4‑5), EFT, and vibration/shock resistance per IEC 60068 standards.
- Low Power Consumption: Typical power draw of 8 W (excluding PoE load).
- LED Indicators: Power, fault, link/activity, and PoE status LEDs for quick diagnostics.
- Mounting Flexibility: Supports both DIN‑rail and wall‑mount installation.
- Long‑Term Reliability: 5‑year manufacturer warranty and compliance with CE, FCC, and EN60950‑1 safety standards.
### 3. Technical Specifications
Physical Characteristics
- Enclosure: IP30‑rated metal housing
- Dimensions: 26.1 (W) × 94.9 (D) × 144.3 (H) mm (1.03 × 3.74 × 5.68 in.)
- Weight: 390 g
- Mounting Options: DIN‑rail and wall‑mount kits included
Power System
- Input Voltage: Dual 50–57 V DC redundant inputs via 6‑pin terminal block
- Power Consumption: 8 W typical (without PD load)
- PoE Output: IEEE 802.3at compliant, up to 30 W per port
- Protection: Reverse polarity and overload current protection
- Relay Output: 1 A @ 24 V DC for power failure alarm
Environmental Conditions
- Operating Temperature: ‑40 °C to +70 °C (‑40 °F to +158 °F)
- Storage Temperature: ‑40 °C to +85 °C (‑40 °F to +185 °F)
- Operating Humidity: 5 % to 95 % non‑condensing
Network Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (Power over Ethernet, up to 30 W per port)
Performance
- Switching Architecture: Store‑and‑forward
- MAC Address Table: 2048 entries
- Transmission Method: Full‑duplex and half‑duplex auto‑negotiation
- Flow Control: IEEE 802.3x (full‑duplex) and back‑pressure (half‑duplex)
EMC & Safety Compliance
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1
### 4. Functionality
The IGPS‑1080A functions as an unmanaged Layer 2 Ethernet switch with integrated PoE power sourcing. Each of its eight RJ‑45 ports automatically detects link speed (10/100/1000 Mbps) and cable type (MDI/MDI‑X), simplifying deployment. The switch forwards Ethernet frames using store‑and‑forward architecture, ensuring error‑free transmission and minimal latency.
Power over Ethernet (PoE) Operation:
The switch injects DC power onto the Ethernet cable pairs according to IEEE 802.3at. Each port can deliver up to 30 W, enabling direct powering of PDs such as IP cameras, wireless access points, VoIP phones, or industrial sensors without separate power wiring.
Redundant Power Inputs:
Two independent DC inputs (PWR1 and PWR2) provide redundancy. If the primary input fails, the secondary input automatically maintains power. DIP‑switch‑controlled relay outputs can trigger alarms for power failure events, enabling integration with supervisory control systems.
Use Cases and Applications:
- Industrial automation and control networks
- IP surveillance systems in factories or transportation hubs
- Outdoor or remote PoE device installations
- Smart city infrastructure (traffic monitoring, environmental sensors)
- Energy and utility substations requiring high reliability
Compatibility:
The IGPS‑1080A is compatible with all IEEE 802.3‑compliant Ethernet devices and PoE‑enabled PDs. It supports standard Cat5e/Cat6 twisted‑pair cabling up to 100 m per segment.
### 5. Components & Accessories
Included Items:
- 1 × 6‑pin terminal block for DC power input
- 2 × RJ‑45 dust covers
- 3 × M3 × 3 mm round screws
- 1 × DIN‑rail mounting kit (25 mm)
- 1 × Wall‑mount kit (for slim‑type housing)
- 1 × Quick Installation Guide (QIG)
Optional Accessories:
- Additional DIN‑rail brackets or wall‑mount plates
- Industrial‑grade DC power supplies (50–57 V DC)
- Ethernet patch cables (Cat5e/Cat6)
Connectors:
- Ethernet Ports: 8 × RJ‑45 (8‑pin) connectors supporting auto‑MDI/MDI‑X
- Power Terminal Block: 6‑pin removable terminal block for dual DC inputs and relay output
- Frame Ground: Dedicated grounding screw for chassis grounding
RJ‑45 Pin Assignments:
- MDI Mode:
1 BI_DA+, 2 BI_DA‑, 3 BI_DB+, 6 BI_DB‑, 4/5 BI_DC±, 7/8 BI_DD±
- MDI‑X Mode:
1 BI_DB+, 2 BI_DB‑, 3 BI_DA+, 6 BI_DA‑, 4/5 BI_DD±, 7/8 BI_DC±
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the included DIN‑rail clip to the rear panel and snap the unit onto a standard 35 mm DIN‑rail.
- Wall‑Mount Installation: Use the provided wall‑mount kit and screws to secure the switch on a flat surface.
Power Connection:
1. Connect the positive and negative leads of the DC power source to the terminal block (V1+, V1‑, V2+, V2‑).
2. Tighten terminal screws securely.
3. Optionally connect the relay output terminals for power failure alarm signaling.
4. Connect the frame ground to an appropriate earth ground point.
DIP‑Switch Configuration:
- DIP‑1: Power‑1 failure warning (ON = enabled, OFF = disabled)
- DIP‑2: Power‑2 failure warning (ON = enabled, OFF = disabled)
- ON + ON: Both PWR1 and PWR2 failure alarms enabled
LED Indicators:
- PWR1/PWR2 (Green): Power input status
- Fault (Amber): Indicates PWR1 or PWR2 failure
- Link/Act (Green): Port link/activity status
- PoE (Green): PoE power injection active
Network Cabling:
- Straight‑Through Cable: For connecting to end devices (PCs, cameras, APs)
- Cross‑Over Cable: For connecting to other switches or hubs (if auto‑MDI/MDI‑X disabled)
- Cable Type: Cat5e or higher, up to 100 m per segment
Startup Procedure:
1. Mount the switch securely.
2. Connect DC power inputs.
3. Connect Ethernet cables to desired devices.
4. Verify LED indicators for power and link status.
5. The switch begins operation automatically—no configuration required.
### 7. Performance & Capabilities
Switching Performance:
- Architecture: Store‑and‑forward ensures frame integrity and minimizes collisions.
- Throughput: Full wire‑speed forwarding on all eight Gigabit ports.
- Latency: Low latency suitable for real‑time industrial control and video streaming.
- MAC Table: 2048 entries for efficient address learning.
PoE Performance:
- Standard: IEEE 802.3at (P.S.E.)
- Output Power: Up to 30 W per port (total PoE budget dependent on power supply capacity)
- Voltage Range: 50–57 V DC
- Protection: Over‑current and short‑circuit protection per port
Reliability & Redundancy:
- Dual power inputs with automatic failover
- Relay alarm output for power failure notification
- Reverse polarity protection prevents damage from incorrect wiring
Efficiency:
- Typical power consumption ≈ 8 W (excluding PoE load)
- Fanless design for silent, maintenance‑free operation
Limitations:
- Unmanaged—no VLAN, QoS, or SNMP management features
- No fiber uplink ports (copper only)
- PoE power budget limited by external DC supply capacity
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (Power over Ethernet, P.S.E.)
EMC & Safety Certifications:
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD ±4 kV contact, ±8 kV air), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge 2 kV), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1 (Information Technology Equipment Safety)
- Environmental Protection: IP30 enclosure rating
Regulatory Approvals:
- CE Marking
- FCC Certification
- EN60950 Safety Compliance
### 9. Additional Information
Warranty:
- 5‑year limited hardware warranty from ORing Industrial Networking Corp.
Support & Maintenance:
- Technical support via email (support@oring‑networking.com) and phone (+886‑2‑2918‑3036)
- Firmware updates not applicable (unmanaged device)
- Routine maintenance limited to periodic inspection of power connections and cleaning of ventilation openings
Manufacturer Contact:
- ORing Industrial Networking Corp.
No. 3, Lane 879, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Email: support@oring‑networking.com
Maintenance Recommendations:
- Ensure stable DC power supply within 50–57 V DC range.
- Maintain proper grounding to prevent ESD damage.
- Keep device in well‑ventilated area; avoid exposure to corrosive environments.
- Periodically verify LED indicators and relay alarm functionality.
Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Fanless architecture reduces mechanical wear and increases MTBF.
- Tested for vibration, shock, and free‑fall per IEC 60068 standards.
Summary of Advantages:
The IGPS‑1080A combines Gigabit Ethernet performance, PoE power delivery, and industrial‑grade reliability in a compact, cost‑effective form factor. Its unmanaged design ensures simple deployment, while redundant power inputs and wide temperature tolerance make it ideal for mission‑critical applications in automation, transportation, and surveillance networks.
In Summary:
The ORing IGPS‑1080A is an industrial‑grade, unmanaged 8‑port Gigabit PoE switch engineered for demanding environments requiring both high‑speed data connectivity and reliable power delivery over Ethernet. With IEEE 802.3at compliance, dual 50–57 V DC redundant inputs, ‑40 °C to +70 °C operation, and IP30 metal housing, it provides robust performance for industrial automation, security, and infrastructure networks. The device’s relay alarm, comprehensive EMC protection, and 5‑year warranty underscore its suitability for long‑term, maintenance‑free deployment in critical systems.
-
Datasheet_IGPS-1080A_v1.2_HQ.pdf
PDF Catalog
-
Datasheet_IGPS-1080A_v1.1.pdf
PDF Catalog
-
QIG IGPS1080A.PDF
Manual
-
Selection_Guide.pdf
Manual
Kein Zubehör vorhanden.
