Comprehensive Product Summary – ORing IGPS‑1411GTPA Industrial Unmanaged Gigabit PoE Switch

---

### 1. Product Overview

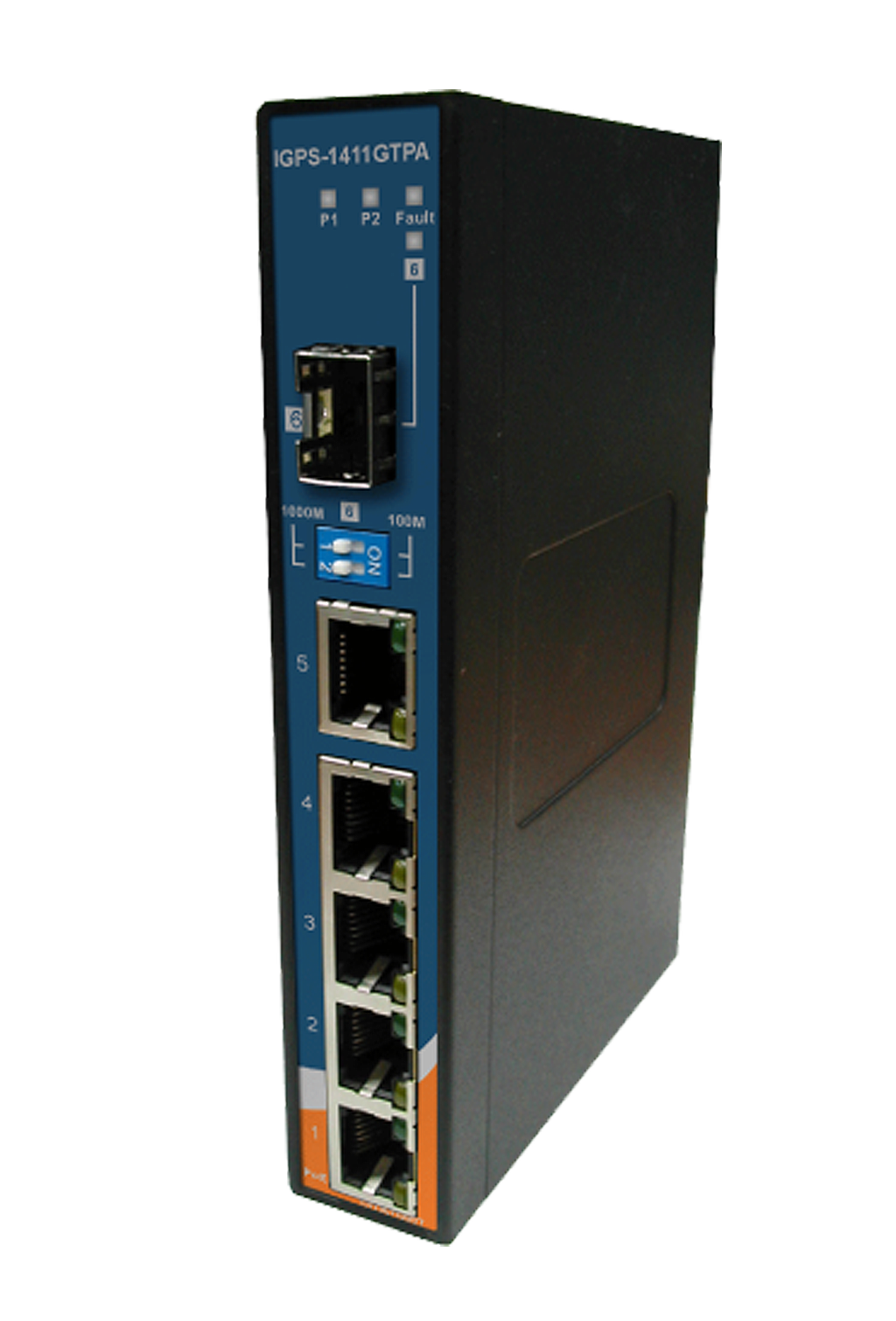

Product Name: IGPS‑1411GTPA
Model Number: IGPS‑1411GTPA
Series: IGPS Industrial Gigabit PoE Switch Series
Article Number: IGPS‑1411GTPA
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial 6‑port slim‑type unmanaged Gigabit Ethernet switch with Power‑over‑Ethernet (PoE) P.S.E. capability
Product Description:
The ORing IGPS‑1411GTPA is a rugged, unmanaged industrial Ethernet switch designed for high‑performance Gigabit networking in harsh environments. It provides four 10/100/1000Base‑T(X) PoE P.S.E. ports, one additional 10/100/1000Base‑T(X) port, and one 100/1000Base‑X SFP slot. The unit supports IEEE 802.3at PoE standards, delivering up to 30 W per port, and features redundant 50–57 VDC power inputs, IP30 metal housing, and extended operating temperature from ‑40 °C to +70 °C.

---

### 2. Key Features

- Unmanaged Industrial PoE Switch: Plug‑and‑play operation with no configuration required, ideal for industrial automation and surveillance networks.
- 6‑Port Gigabit Design:
- 4 × 10/100/1000Base‑T(X) PoE P.S.E. ports (IEEE 802.3at compliant, up to 30 W per port)
- 1 × 10/100/1000Base‑T(X) uplink port
- 1 × 100/1000Base‑X SFP slot for fiber connectivity
- High Power PoE Capability: Supports Power Sourcing Equipment (P.S.E.) function compliant with IEEE 802.3at, enabling direct powering of IP cameras, VoIP phones, and wireless access points.
- Dual Power Inputs: Redundant 50–57 VDC inputs on a 6‑pin terminal block ensure uninterrupted operation during power source failure.
- Rugged Industrial Design: Compact IP30‑rated metal enclosure with DIN‑rail and wall‑mount options; designed for vibration, shock, and electrical noise immunity.
- Wide Temperature Range: Operates reliably from ‑40 °C to +70 °C, suitable for outdoor and factory environments.
- High Reliability: Store‑and‑forward switching, 1K MAC address table, jumbo frame support up to 9 KB, and overload current protection.
- LED Indicators: Comprehensive LED panel for power, fault, link/activity, and PoE status monitoring.
- DIP Switch Configuration:
- SFP port speed selection (100 Mbps or 1000 Mbps)
- Power failure relay alarm enable/disable for PWR1 and PWR2
- Compact Slim Form Factor: Only 26.1 mm wide, ideal for space‑constrained control cabinets.
- High Immunity: ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2 kV DC on power inputs.

---

### 3. Technical Specifications

Physical Ports:
- 4 × 10/100/1000Base‑T(X) RJ‑45 ports with PoE P.S.E. (Auto MDI/MDI‑X)
- 1 × 10/100/1000Base‑T(X) RJ‑45 port (Auto MDI/MDI‑X)
- 1 × 100/1000Base‑X SFP slot

Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE, up to 30 W per port)

Switching Technology: Store‑and‑Forward
MAC Address Table: 1 K entries
Jumbo Frame Support: Up to 9 KB

Power Requirements:
- Dual DC inputs: 50 – 57 VDC via 6‑pin terminal block
- Power consumption (typical): 6.2 W (excluding PoE load)
- Overload current protection: Present
- Reverse polarity protection: Not present

PoE Power Output:
- IEEE 802.3at compliant (P.S.E.)
- Maximum 30 W per port (Ports 1–4)
- Total PoE budget dependent on power supply capacity

Relay Output:
- 1 × relay output, 1 A @ 24 VDC capacity
- Configurable via DIP switch for PWR1/PWR2 failure alarms

Enclosure: IP30‑rated metal housing
Dimensions (W × D × H): 26.1 × 94.9 × 144.3 mm (1.03 × 3.74 × 5.68 in)
Weight: 395 g

Environmental Conditions:
- Operating temperature: ‑40 °C to +70 °C (‑40 °F to +158 °F)
- Storage temperature: ‑40 °C to +85 °C (‑40 °F to +185 °F)
- Operating humidity: 5 % – 95 % (non‑condensing)

Protection:
- ESD protection: EN61000‑4‑2 (contact ±4 kV, air ±8 kV)
- Surge protection: EN61000‑4‑5 (2 kV DC power line)

---

### 4. Functionality

Operational Concept:
The IGPS‑1411GTPA functions as an unmanaged Ethernet switch with integrated PoE P.S.E. capability. It transmits both data and electrical power over standard Cat5e/6 twisted‑pair cables, enabling remote powering of PoE‑enabled devices without separate power wiring.

Use Cases and Applications:
- Industrial automation and control systems
- IP surveillance networks (PoE IP cameras)
- Wireless access point deployment
- VoIP telephony infrastructure
- Transportation and outdoor monitoring systems
- Factory floor and substation networking

Compatibility:
- Compatible with IEEE 802.3af/at PoE‑powered devices (PDs)
- Supports both copper and fiber uplinks via SFP slot
- Auto‑negotiation and Auto‑MDI/MDI‑X ensure interoperability with standard Ethernet devices

Operation:
- Plug‑and‑play unmanaged operation—no software configuration required
- Store‑and‑forward switching ensures reliable frame integrity
- DIP switches allow manual configuration of SFP speed and relay alarm functions
- Redundant power inputs automatically switch to backup supply upon primary failure

---

### 5. Components & Accessories

Included in Package:
- IGPS‑1411GTPA switch unit × 1
- Quick Installation Guide × 1
- DIN‑rail mounting kit × 1
- Wall‑mount kit × 1

Connectors:
- RJ‑45 connectors for copper Ethernet ports (8‑pin)
- SFP slot for fiber transceiver modules (LC connector type)
- 6‑pin terminal block for dual DC power input and relay output
- Grounding screw for chassis grounding

Optional Accessories:
- SFP transceivers (100Base‑FX or 1000Base‑X, single‑mode or multi‑mode)
- Industrial‑grade DC power supplies (50–57 VDC)
- DIN‑rail and wall‑mount brackets (replacement or extended versions)

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Mounting:
1. Attach the included DIN‑rail clip to the rear panel.
2. Hook the top of the clip onto the DIN‑rail and press the bottom until it clicks.
3. Ensure the unit is firmly seated and properly grounded.
- Wall Mounting:
1. Use the provided wall‑mount brackets and M3 × 3 mm screws.
2. Secure the switch to a flat, vibration‑free surface.

Power Connection:
- Connect dual 50–57 VDC power sources to the 6‑pin terminal block (V1+, V1‑, V2+, V2‑).
- The relay output terminals provide fault signaling (1 A @ 24 VDC).
- Frame ground terminal (FG) should be connected to earth ground.

Network Connection:
- Use Cat5e/6 cables for RJ‑45 ports.
- For fiber uplink, insert an appropriate SFP transceiver and connect via LC‑terminated fiber cable.

DIP Switch Configuration:
- SFP Speed Selection:
- DIP 1 = ON, DIP 2 = ON → 100 Mbps
- DIP 1 = OFF, DIP 2 = OFF → 1000 Mbps
- Relay Alarm Configuration:
- DIP 1 = ON → Enable PWR1 failure alarm
- DIP 2 = ON → Enable PWR2 failure alarm

LED Indicators:
- Power (PWR1/PWR2): Green – Power ON
- Fault: Amber – Power failure detected
- Port 1–4 (PoE): Green – Link/Activity; Green (PoE LED) – Power injected
- Port 5: Green – Link/Activity; Amber – 100 Mbps link
- SFP Port: Green – Link/Activity

---

### 7. Performance & Capabilities

Switching Performance:
- Non‑blocking wire‑speed switching on all ports
- Store‑and‑forward architecture ensures error‑free packet forwarding
- Jumbo frame support up to 9 KB enhances throughput for large data transfers

PoE Performance:
- Up to 30 W per port (IEEE 802.3at Type 2)
- Total PoE power budget dependent on external power supply capacity
- Automatic PoE detection and classification for connected PDs

Reliability & Redundancy:
- Dual DC inputs provide seamless power failover
- Relay output for remote alarm monitoring
- Overload current protection prevents damage under fault conditions

Efficiency:
- Typical power consumption 6.2 W (no PoE load)
- Low thermal footprint due to efficient design and metal housing heat dissipation

Limitations:
- Unmanaged design—no VLAN, QoS, or SNMP management features
- Reverse polarity protection not included (requires correct wiring)

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3ab (1000Base‑T)
- IEEE 802.3z (1000Base‑X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE P.S.E.)

Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11

Environmental & Mechanical Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32

Safety Compliance:
- EN60950‑1 (Safety of Information Technology Equipment)

Ingress Protection: IP30 metal enclosure

---

### 9. Additional Information

Warranty: 5 years limited manufacturer warranty

Maintenance:
- No internal serviceable parts; maintenance limited to external cleaning and inspection of connectors.
- Ensure proper grounding and dust protection in industrial environments.

Support & Documentation:
- Quick Installation Guide included in package
- Technical support available via ORing Industrial Networking Corp.
- Website: [www.oring-networking.com](http://www.oring-networking.com)
- Email: support@oring-networking.com
- Tel: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014

Firmware & Updates:
- As an unmanaged switch, no firmware updates or configuration software are required.

Ordering Information:
- Model: IGPS‑1411GTPA
- Description: Industrial 6‑port slim‑type unmanaged Gigabit PoE Ethernet switch with 4 × 10/100/1000Base‑T(X) P.S.E., 1 × 10/100/1000Base‑T(X), and 1 × 100/1000Base‑X SFP socket.

---

### Summary

The ORing IGPS‑1411GTPA is a compact, high‑reliability unmanaged industrial Gigabit PoE switch engineered for mission‑critical networking in harsh environments. With four IEEE 802.3at PoE ports delivering up to 30 W each, one Gigabit uplink, and one SFP fiber slot, it provides flexible connectivity for both copper and fiber infrastructures. Its dual DC power inputs, relay alarm output, and rugged IP30 metal housing ensure continuous operation under extreme conditions. Designed for industrial automation, surveillance, and transportation systems, the IGPS‑1411GTPA combines robust electrical protection, wide temperature tolerance, and simple plug‑and‑play deployment—making it a dependable solution for industrial Ethernet applications requiring both data and power delivery over a unified network infrastructure.
