Comprehensive Product Summary – ORing IGS-P9812GP-HV Industrial Managed Ethernet Switch
### 1. Product Overview

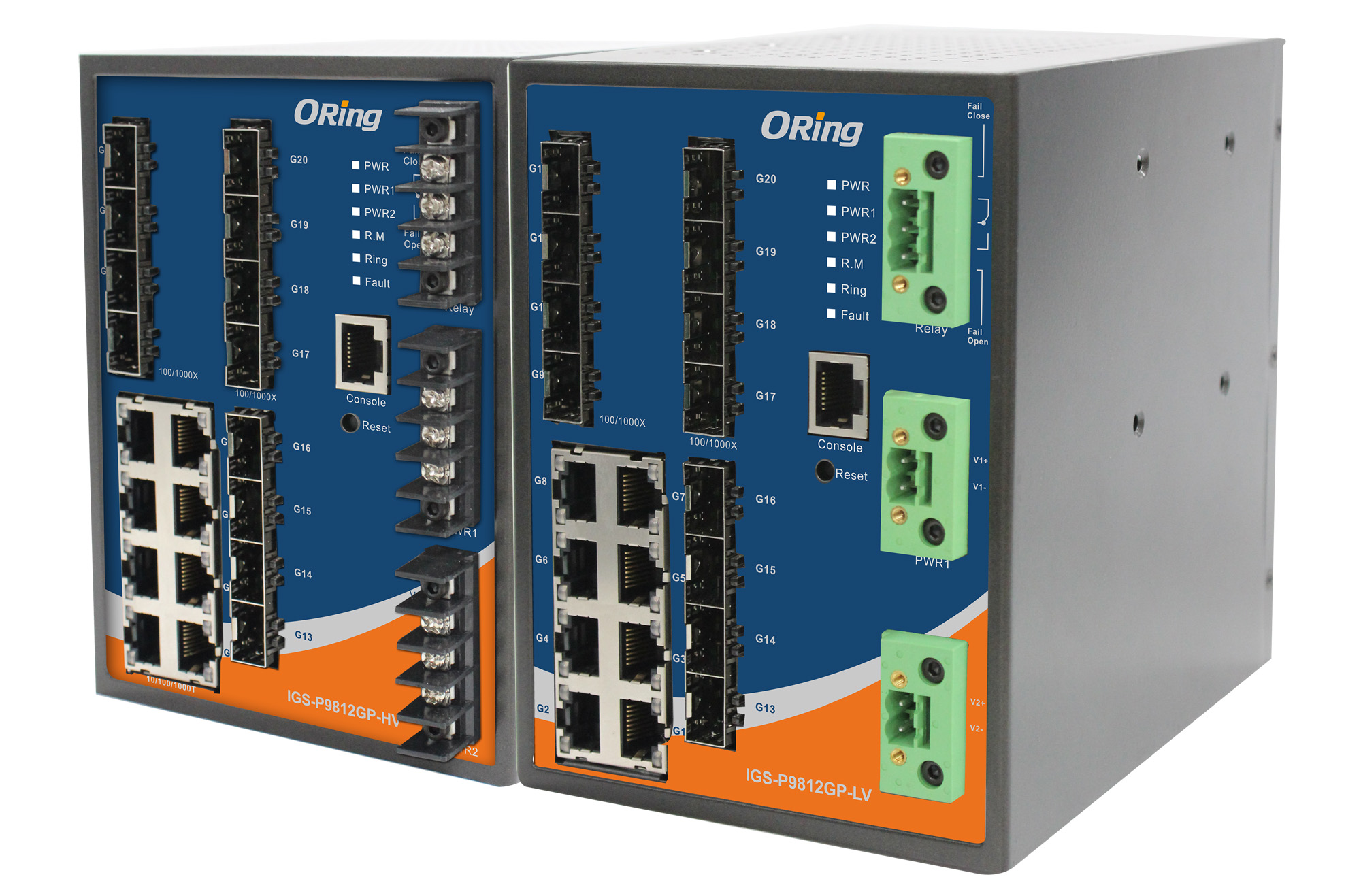

Product Name: ORing IGS-P9812GP-HV
Model: IGS-P9812GP-HV
Series: IGS-P9812GP Series
Article Number: IGS-P9812GP-HV
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Address: 3F., No.542-2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
- Tel: +886 2 2218 1066
- Fax: +886 2 2218 1014
- Email: support@oring-networking.com
Product Description:
The ORing IGS-P9812GP-HV is a high-performance, industrial-grade managed Ethernet switch designed for mission-critical applications in power substations, transportation, and smart grid environments. It complies with IEC 61850-3 and IEEE 1613 standards for substation automation and EN50155 for railway applications. The switch integrates 8 Gigabit copper ports and 12 Gigabit SFP fiber ports, providing a total of 20 managed Ethernet interfaces. It supports advanced redundancy technologies such as O-Ring, O-Chain, and MRP, ensuring network recovery times under 30 milliseconds for up to 250 connected devices.
### 2. Key Features
- High Port Density: 8 × 10/100/1000Base-T(X) RJ-45 ports and 12 × 100/1000Base-X SFP slots.
- Industrial Standards: IEC 61850-3 and IEEE 1613 compliance for substation environments; EN50155 for railway and rolling stock applications.
- Redundancy Technologies:
- O-Ring (proprietary fast recovery <30 ms)
- O-Chain for multi-ring expansion
- Open-Ring for interoperability with third-party ring systems
- MRP (IEC 62439-2 Media Redundancy Protocol)
- STP/RSTP/MSTP for standard redundancy
- Network Management: Web GUI, Telnet, CLI, SNMP v1/v2c/v3, RMON, and ORing Open-Vision centralized management.
- Security: HTTPS, SSH, SNMPv3, RADIUS, TACACS+, 802.1x authentication, ACLs, and DoS/DDoS prevention.
- Synchronization: IEEE 1588v2 Precision Time Protocol (PTP) for sub-microsecond clock synchronization.
- QoS and Traffic Control: IEEE 802.1p, DSCP-based QoS, port shaping, policing, and scheduling.
- Energy Efficiency: IEEE 802.3az Energy-Efficient Ethernet.
- Environmental Robustness: Operating temperature range from -40°C to +75°C, IP30-rated metal enclosure, and resistance to shock, vibration, and EMI.
- Dual Power Inputs: Supports 88–300 VDC or 100–240 VAC redundant power supply.
- Comprehensive Diagnostics: Cable diagnostics, SFP monitoring, system logs, and fault relay outputs.
### 3. Technical Specifications
Physical Ports:
- 8 × 10/100/1000Base-T(X) RJ-45 (Auto MDI/MDIX)
- 12 × 100/1000Base-X SFP slots
- 1 × RJ-45 console port
Switching Performance:
- Switching bandwidth: 40 Gbps
- Switching latency: 7 µs
- MAC address table: 8K entries
- Priority queues: 4
- Jumbo frame support: up to 9.6 KB
- Store-and-forward architecture
Dimensions & Weight:
- Dimensions: 115 (W) × 159 (D) × 154 (H) mm
- Weight: 1.87 kg
Enclosure: IP30-rated metal housing
Power Supply:
- Dual redundant inputs: 88–300 VDC or 100–240 VAC
- Power consumption: 24 W (typical)
- Overload and reverse polarity protection
Environmental Conditions:
- Operating temperature: -40°C to +75°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
LED Indicators:
- Power (PWR, PWR1, PWR2)
- Ring Master (R.M.)
- Ring status
- Fault
- Port Link/Activity and Speed indicators
Relay Output:
- 1A @ 24VDC, configurable for fail-open or fail-close
### 4. Functionality
Operation:
The IGS-P9812GP-HV functions as a fully managed Layer 2 Ethernet switch, providing advanced redundancy, security, and management features for industrial networks. It supports both copper and fiber connectivity, enabling flexible deployment in mixed media environments.
Use Cases:
- Power substations and smart grid automation (IEC 61850-3)
- Railway and rolling stock networks (EN50155)
- Industrial automation and SCADA systems
- Transportation and traffic control systems
- Oil, gas, and mining network infrastructures
Compatibility:
- Compatible with standard Ethernet protocols (IEEE 802.3 family)
- Interoperable with third-party network management systems via SNMP and Modbus TCP
- Supports ORing’s Open-Vision management suite for centralized monitoring
### 5. Components & Accessories
Included in Package:
- IGS-P9812GP-HV switch unit
- DIN-rail mounting kit
- Wall-mount brackets (2 pcs)
- RJ45-to-DB9 console cable
- Power cables (for HV model)
- Quick Installation Guide (QIG)
- Product CD with documentation
Optional Accessories:
- SFP transceivers (multi-mode or single-mode, LC connectors)
- DBU-01 backup unit for configuration backup/restore
- External power supplies (if required)
Connectors:
- RJ-45 for copper Ethernet
- LC connectors for SFP fiber modules
- 6-pin terminal block for power and relay connections
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation: Attach the DIN-rail kit to the rear panel and snap onto a standard 35 mm DIN rail.
- Wall Mounting: Use the included brackets and screws to secure the unit to a flat surface.
Wiring:
- Dual power inputs (V+/L, V-/N) for redundancy
- Grounding screw for EMI protection
- Relay terminals for fault signaling
Configuration Interfaces:
- Web-based GUI (default IP: 192.168.10.1, user: admin, password: admin)
- Telnet and SSH access
- RS-232 console (115200, 8, N, 1)
- SNMP and Modbus TCP for remote management
Reset Options:
- Press reset button for 3 seconds to reboot
- Hold for 5 seconds to restore factory defaults
### 7. Performance & Capabilities
Network Redundancy:
- O-Ring: Proprietary ring recovery <10 ms for up to 250 nodes
- O-Chain: Multi-ring interconnection for large-scale networks
- Open-Ring: Interoperability with other vendors’ ring protocols
- MRP: IEC 62439-2 compliant redundancy (recovery <80 ms)
- STP/RSTP/MSTP: IEEE 802.1D/w/s standard redundancy
Quality of Service (QoS):
- IEEE 802.1p priority queuing
- DSCP-based classification and translation
- Port-based scheduling (Strict Priority or Weighted Round Robin)
- Traffic shaping and policing per port
Security & Access Control:
- 802.1x port-based authentication
- RADIUS and TACACS+ integration
- Access Control Lists (ACLs) for traffic filtering
- HTTPS/SSH for secure management
- SNMPv3 encryption and authentication
- Device Binding (IP/MAC/Port)
- DoS/DDoS automatic prevention
Management & Monitoring:
- Web GUI, CLI, Telnet, SNMP, and Open-Vision utility
- LLDP for topology discovery
- Syslog and SMTP alerts
- Fault relay output for hardware alarms
- Cable diagnostics and SFP monitoring
- NTP and PTP synchronization
Performance Metrics:
- Switching capacity: 40 Gbps
- Packet forwarding rate: wire-speed on all ports
- VLANs: up to 256
- IGMP multicast groups: 128 per VLAN
- Jumbo frame: 9.6 KB
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX/FX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3z (1000Base-X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (LACP)
- IEEE 802.1p (QoS)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1w/s (RSTP/MSTP)
- IEEE 802.1x (Authentication)
- IEEE 802.1AB (LLDP)
Industrial & Environmental Standards:
- IEC 61850-3 and IEEE 1613 (Power Substation)
- EN50155 (Railway Rolling Stock)
- EN50121-3-2, EN55011, EN50121-4 (EMC)
- EN61000-4-2/3/4/5/6/8/11 (EMS Immunity)
- IEC60068-2-6 (Vibration)
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Free Fall)
- EN60950-1 (Safety)
- FCC Part 15 Class A, CISPR 22 Class A
Certifications:
- CE, FCC, EN50155, IEC 61850-3, IEEE 1613
### 9. Additional Information
Warranty:
- 5-year limited warranty covering materials and workmanship defects.
- Excludes damage from misuse, unauthorized modifications, or improper installation.
Maintenance & Support:
- Firmware updates available via web interface or Open-Vision utility.
- Configuration backup and restore supported via DBU-01 or XML file.
- Technical support via email and online resources.
Software Management Tools:
- Open-Vision: ORing’s centralized management platform for monitoring, configuration, and diagnostics.
- CLI Commands: Full command-line access for advanced configuration and scripting.
- SNMP MIB Support: For integration with third-party network management systems.
Reliability & Safety:
- Redundant power design ensures continuous operation during power source failure.
- Fault relay output for external alarm integration.
- Industrial-grade components for high MTBF and long service life.
### Summary
The ORing IGS-P9812GP-HV is a robust, high-availability managed Ethernet switch engineered for demanding industrial environments. With 20 Gigabit ports, advanced redundancy mechanisms, and compliance with IEC 61850-3 and EN50155 standards, it ensures reliable communication in power substations, transportation systems, and automation networks. Its comprehensive management suite, extensive security features, and rugged design make it ideal for mission-critical applications requiring uninterrupted network performance and long-term durability.
Key Highlights:
- 20-port Gigabit managed switch (8 RJ-45 + 12 SFP)
- Dual redundant 230V AC/DC power inputs
- IEC 61850-3 and EN50155 certified
- -40°C to +75°C operating range
- O-Ring redundancy with <30 ms recovery
- Advanced QoS, VLAN, and security management
- 5-year warranty and industrial-grade reliability
End of Product Summary – ORing IGS-P9812GP-HV
### 1. Product Overview
Product Name: ORing IGS-P9812GP-HV
Model: IGS-P9812GP-HV
Series: IGS-P9812GP Series
Article Number: IGS-P9812GP-HV
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Address: 3F., No.542-2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
- Tel: +886 2 2218 1066
- Fax: +886 2 2218 1014
- Email: support@oring-networking.com
Product Description:
The ORing IGS-P9812GP-HV is a high-performance, industrial-grade managed Ethernet switch designed for mission-critical applications in power substations, transportation, and smart grid environments. It complies with IEC 61850-3 and IEEE 1613 standards for substation automation and EN50155 for railway applications. The switch integrates 8 Gigabit copper ports and 12 Gigabit SFP fiber ports, providing a total of 20 managed Ethernet interfaces. It supports advanced redundancy technologies such as O-Ring, O-Chain, and MRP, ensuring network recovery times under 30 milliseconds for up to 250 connected devices.
### 2. Key Features
- High Port Density: 8 × 10/100/1000Base-T(X) RJ-45 ports and 12 × 100/1000Base-X SFP slots.
- Industrial Standards: IEC 61850-3 and IEEE 1613 compliance for substation environments; EN50155 for railway and rolling stock applications.
- Redundancy Technologies:
- O-Ring (proprietary fast recovery <30 ms)
- O-Chain for multi-ring expansion
- Open-Ring for interoperability with third-party ring systems
- MRP (IEC 62439-2 Media Redundancy Protocol)
- STP/RSTP/MSTP for standard redundancy
- Network Management: Web GUI, Telnet, CLI, SNMP v1/v2c/v3, RMON, and ORing Open-Vision centralized management.
- Security: HTTPS, SSH, SNMPv3, RADIUS, TACACS+, 802.1x authentication, ACLs, and DoS/DDoS prevention.
- Synchronization: IEEE 1588v2 Precision Time Protocol (PTP) for sub-microsecond clock synchronization.
- QoS and Traffic Control: IEEE 802.1p, DSCP-based QoS, port shaping, policing, and scheduling.
- Energy Efficiency: IEEE 802.3az Energy-Efficient Ethernet.
- Environmental Robustness: Operating temperature range from -40°C to +75°C, IP30-rated metal enclosure, and resistance to shock, vibration, and EMI.
- Dual Power Inputs: Supports 88–300 VDC or 100–240 VAC redundant power supply.
- Comprehensive Diagnostics: Cable diagnostics, SFP monitoring, system logs, and fault relay outputs.
### 3. Technical Specifications
Physical Ports:
- 8 × 10/100/1000Base-T(X) RJ-45 (Auto MDI/MDIX)
- 12 × 100/1000Base-X SFP slots
- 1 × RJ-45 console port
Switching Performance:
- Switching bandwidth: 40 Gbps
- Switching latency: 7 µs
- MAC address table: 8K entries
- Priority queues: 4
- Jumbo frame support: up to 9.6 KB
- Store-and-forward architecture
Dimensions & Weight:
- Dimensions: 115 (W) × 159 (D) × 154 (H) mm
- Weight: 1.87 kg
Enclosure: IP30-rated metal housing
Power Supply:
- Dual redundant inputs: 88–300 VDC or 100–240 VAC
- Power consumption: 24 W (typical)
- Overload and reverse polarity protection
Environmental Conditions:
- Operating temperature: -40°C to +75°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
LED Indicators:
- Power (PWR, PWR1, PWR2)
- Ring Master (R.M.)
- Ring status
- Fault
- Port Link/Activity and Speed indicators
Relay Output:
- 1A @ 24VDC, configurable for fail-open or fail-close
### 4. Functionality
Operation:
The IGS-P9812GP-HV functions as a fully managed Layer 2 Ethernet switch, providing advanced redundancy, security, and management features for industrial networks. It supports both copper and fiber connectivity, enabling flexible deployment in mixed media environments.
Use Cases:
- Power substations and smart grid automation (IEC 61850-3)
- Railway and rolling stock networks (EN50155)
- Industrial automation and SCADA systems
- Transportation and traffic control systems
- Oil, gas, and mining network infrastructures
Compatibility:
- Compatible with standard Ethernet protocols (IEEE 802.3 family)
- Interoperable with third-party network management systems via SNMP and Modbus TCP
- Supports ORing’s Open-Vision management suite for centralized monitoring
### 5. Components & Accessories
Included in Package:
- IGS-P9812GP-HV switch unit
- DIN-rail mounting kit
- Wall-mount brackets (2 pcs)
- RJ45-to-DB9 console cable
- Power cables (for HV model)
- Quick Installation Guide (QIG)
- Product CD with documentation
Optional Accessories:
- SFP transceivers (multi-mode or single-mode, LC connectors)
- DBU-01 backup unit for configuration backup/restore
- External power supplies (if required)
Connectors:
- RJ-45 for copper Ethernet
- LC connectors for SFP fiber modules
- 6-pin terminal block for power and relay connections
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation: Attach the DIN-rail kit to the rear panel and snap onto a standard 35 mm DIN rail.
- Wall Mounting: Use the included brackets and screws to secure the unit to a flat surface.
Wiring:
- Dual power inputs (V+/L, V-/N) for redundancy
- Grounding screw for EMI protection
- Relay terminals for fault signaling
Configuration Interfaces:
- Web-based GUI (default IP: 192.168.10.1, user: admin, password: admin)
- Telnet and SSH access
- RS-232 console (115200, 8, N, 1)
- SNMP and Modbus TCP for remote management
Reset Options:
- Press reset button for 3 seconds to reboot
- Hold for 5 seconds to restore factory defaults
### 7. Performance & Capabilities
Network Redundancy:
- O-Ring: Proprietary ring recovery <10 ms for up to 250 nodes
- O-Chain: Multi-ring interconnection for large-scale networks
- Open-Ring: Interoperability with other vendors’ ring protocols
- MRP: IEC 62439-2 compliant redundancy (recovery <80 ms)
- STP/RSTP/MSTP: IEEE 802.1D/w/s standard redundancy
Quality of Service (QoS):
- IEEE 802.1p priority queuing
- DSCP-based classification and translation
- Port-based scheduling (Strict Priority or Weighted Round Robin)
- Traffic shaping and policing per port
Security & Access Control:
- 802.1x port-based authentication
- RADIUS and TACACS+ integration
- Access Control Lists (ACLs) for traffic filtering
- HTTPS/SSH for secure management
- SNMPv3 encryption and authentication
- Device Binding (IP/MAC/Port)
- DoS/DDoS automatic prevention
Management & Monitoring:
- Web GUI, CLI, Telnet, SNMP, and Open-Vision utility
- LLDP for topology discovery
- Syslog and SMTP alerts
- Fault relay output for hardware alarms
- Cable diagnostics and SFP monitoring
- NTP and PTP synchronization
Performance Metrics:
- Switching capacity: 40 Gbps
- Packet forwarding rate: wire-speed on all ports
- VLANs: up to 256
- IGMP multicast groups: 128 per VLAN
- Jumbo frame: 9.6 KB
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX/FX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3z (1000Base-X)
- IEEE 802.3x (Flow Control)
- IEEE 802.3ad (LACP)
- IEEE 802.1p (QoS)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1w/s (RSTP/MSTP)
- IEEE 802.1x (Authentication)
- IEEE 802.1AB (LLDP)
Industrial & Environmental Standards:
- IEC 61850-3 and IEEE 1613 (Power Substation)
- EN50155 (Railway Rolling Stock)
- EN50121-3-2, EN55011, EN50121-4 (EMC)
- EN61000-4-2/3/4/5/6/8/11 (EMS Immunity)
- IEC60068-2-6 (Vibration)
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Free Fall)
- EN60950-1 (Safety)
- FCC Part 15 Class A, CISPR 22 Class A
Certifications:
- CE, FCC, EN50155, IEC 61850-3, IEEE 1613
### 9. Additional Information
Warranty:
- 5-year limited warranty covering materials and workmanship defects.
- Excludes damage from misuse, unauthorized modifications, or improper installation.
Maintenance & Support:
- Firmware updates available via web interface or Open-Vision utility.
- Configuration backup and restore supported via DBU-01 or XML file.
- Technical support via email and online resources.
Software Management Tools:
- Open-Vision: ORing’s centralized management platform for monitoring, configuration, and diagnostics.
- CLI Commands: Full command-line access for advanced configuration and scripting.
- SNMP MIB Support: For integration with third-party network management systems.
Reliability & Safety:
- Redundant power design ensures continuous operation during power source failure.
- Fault relay output for external alarm integration.
- Industrial-grade components for high MTBF and long service life.
### Summary
The ORing IGS-P9812GP-HV is a robust, high-availability managed Ethernet switch engineered for demanding industrial environments. With 20 Gigabit ports, advanced redundancy mechanisms, and compliance with IEC 61850-3 and EN50155 standards, it ensures reliable communication in power substations, transportation systems, and automation networks. Its comprehensive management suite, extensive security features, and rugged design make it ideal for mission-critical applications requiring uninterrupted network performance and long-term durability.
Key Highlights:
- 20-port Gigabit managed switch (8 RJ-45 + 12 SFP)
- Dual redundant 230V AC/DC power inputs
- IEC 61850-3 and EN50155 certified
- -40°C to +75°C operating range
- O-Ring redundancy with <30 ms recovery
- Advanced QoS, VLAN, and security management
- 5-year warranty and industrial-grade reliability
End of Product Summary – ORing IGS-P9812GP-HV
-
DataSheet_IGS-P9812GP_Series_V1.0.pdf
PDF Catalog
-
QIG_IGS-P9812GP_V1.0.pdf
Manual
Kein Zubehör vorhanden.
