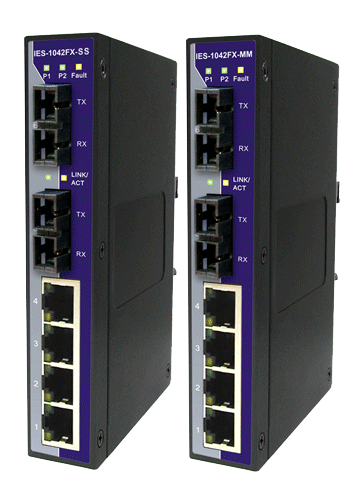

### 1. Product Overview

Product Name: Industrial Unmanaged PoE Ethernet Switch
Model: IPS‑1042‑FX‑SS‑SC‑24V
Series: IPS‑1042FX‑24V Series
Article Number: IPS‑1042‑FX‑SS‑SC‑24V
Manufacturer: ORing Industrial Networking Corp.
Product Type: 6‑port unmanaged industrial Ethernet switch with Power‑over‑Ethernet (PoE) capability and fiber uplinks

The ORing IPS‑1042‑FX‑SS‑SC‑24V is a rugged, unmanaged industrial Ethernet switch designed for harsh environments and mission‑critical applications. It provides four 10/100Base‑T(X) PoE P.S.E. (Power Sourcing Equipment) ports and two 100Base‑FX single‑mode fiber ports with SC connectors. The unit supports IEEE 802.3at PoE standard, delivering up to 30 W per port and a total PoE power budget of 120 W. It operates from a 24–36 V DC redundant power input and is housed in a compact IP‑30‑rated metal enclosure suitable for DIN‑rail or wall mounting.

---

### 2. Key Features

- 6‑Port Configuration: 4 × 10/100Base‑T(X) PoE P.S.E. ports and 2 × 100Base‑FX single‑mode fiber ports.
- PoE Power Sourcing: IEEE 802.3at compliant, up to 30 W per port, total 120 W power budget.
- Fiber Connectivity: Two single‑mode SC fiber ports supporting 1310 nm wavelength and up to 30 km transmission distance.
- Redundant Power Inputs: Dual 24–36 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation.
- Relay Output Alarm: Configurable relay output (1 A @ 24 V DC) for power failure or fault notification.
- Industrial‑Grade Design: IP‑30 metal enclosure, vibration/shock‑resistant, and wide operating temperature range (‑40 °C to 70 °C).
- Auto‑Negotiation and Auto‑MDI/MDI‑X: Simplifies connection to various Ethernet devices without crossover cables.
- Store‑and‑Forward Switching: Ensures reliable data transmission with error checking.
- Flow Control Support: IEEE 802.3x compliant for full‑duplex communication.
- LED Indicators: Power, fault, link/activity, and PoE status LEDs for quick diagnostics.
- Compact Form Factor: Slim design (41 × 94.9 × 144.3 mm) optimized for control cabinets and industrial panels.
- High Reliability: Overload current protection, surge protection, and 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Physical Ports
- 4 × 10/100Base‑T(X) RJ‑45 ports with PoE P.S.E. capability (Auto MDI/MDI‑X)
- 2 × 100Base‑FX single‑mode fiber ports (SC connectors)

Fiber Port Specifications
- Mode: Single‑mode
- Core/Cladding Diameter: 9/125 µm
- Connector Type: SC
- Wavelength: 1310 nm
- Typical Transmission Distance: 30 km
- Optical Power:
- Max. Output: ‑8 dBm
- Min. Output: ‑15 dBm
- Max. Input (Saturation): 0 dBm
- Min. Input (Sensitivity): ‑34 dBm
- Link Budget: 19 dB

Ethernet Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X), 100Base‑FX)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE, up to 30 W per port)

Switching Technology
- Store‑and‑Forward architecture
- MAC Address Table: 2048 entries

Power Requirements
- Input Voltage: 24–36 V DC (dual redundant inputs)
- Connection: 6‑pin terminal block
- Power Consumption: 5.4 – 6.48 W (excluding PoE load)
- PoE Budget: 120 W total (30 W × 4 ports)
- Protection: Overload current protection; reverse polarity protection not present

Relay Output
- 1 × relay output, 1 A @ 24 V DC capacity
- Configurable for PWR1/PWR2 failure alarms

Mechanical Characteristics
- Enclosure: IP‑30‑rated metal housing
- Dimensions (W × D × H): 41 × 94.9 × 144.3 mm (1.61 × 3.74 × 5.68 in)
- Weight: Approx. 395 – 530 g (model dependent)
- Mounting: DIN‑rail or wall‑mount

Environmental Conditions
- Operating Temperature: ‑40 °C to 70 °C (‑40 °F to 158 °F)
- Storage Temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing

---

### 4. Functionality

The IPS‑1042‑FX‑SS‑SC‑24V functions as an unmanaged Ethernet switch, automatically forwarding packets between connected devices without configuration. It integrates Power‑over‑Ethernet (PoE) technology, allowing simultaneous transmission of data and electrical power over standard Cat5e/6 cables. Each of the four RJ‑45 ports acts as a Power Sourcing Equipment (P.S.E.), capable of delivering up to 30 W to powered devices (PDs) such as IP cameras, wireless access points, or VoIP phones.

The two 100Base‑FX fiber ports provide long‑distance uplinks, enabling network extension up to 30 km over single‑mode fiber. This makes the switch ideal for distributed industrial systems, surveillance networks, and remote monitoring installations.

Typical Applications:
- Industrial automation and control systems
- IP surveillance and security networks
- Intelligent transportation systems (ITS)
- Building automation and access control
- Remote monitoring and SCADA systems
- Factory floor or outdoor network segments requiring extended fiber links

Compatibility:
- Compatible with IEEE 802.3/802.3u/802.3x/802.3at compliant devices
- Works with standard Ethernet cabling (Cat5e/Cat6) and SC‑terminated single‑mode fiber

---

### 5. Components & Accessories

Included Items:
- IPS‑1042‑FX‑SS‑SC‑24V switch unit
- 6‑pin terminal block for power input and relay output
- Dust covers for RJ‑45 ports
- DIN‑rail mounting kit
- Quick Installation Guide (QIG)

Optional Accessories (sold separately):
- Wall‑mount kit
- Additional DIN‑rail kit
- Industrial power supplies:
- DR‑45‑24 (45 W @ 24 V DC)
- DR‑75‑24 (75 W @ 24 V DC)
- DR‑120‑24 (120 W @ 24 V DC)

Connectors:
- RJ‑45 (8‑pin) for 10/100Base‑T(X) Ethernet
- SC connectors for 100Base‑FX fiber
- 6‑pin terminal block for dual DC power and relay alarm

PoE Pin Assignment (RJ‑45):
| Pin | Signal | PoE Power |
|-----|---------|-----------|
| 1 | TD+ | Power + |
| 2 | TD‑ | Power + |
| 3 | RD+ | Power – |
| 6 | RD‑ | Power – |

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Mounting: Attach the included DIN‑rail clip to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall Mounting: Use the optional wall‑mount kit with M3 × 3 screws for vertical or horizontal installation.

Power Connection:
- Connect dual DC power sources (24–36 V DC) to the 6‑pin terminal block labeled V1+/V1‑ and V2+/V2‑.
- The relay output terminals provide fault signaling when either power input fails.
- Frame ground (FG) terminal should be connected to earth ground for surge protection.

Cabling:
- Ethernet: Use Cat5e/Cat6 UTP cables up to 100 m for RJ‑45 ports.
- Fiber: Use single‑mode SC‑terminated fiber cables (9/125 µm) for up to 30 km links.

DIP Switch Configuration:
Two DIP switches control the relay alarm behavior:
- DIP‑1 ON: Enable PWR1 failure alarm
- DIP‑2 ON: Enable PWR2 failure alarm
- Both ON: Alarm triggers on either power failure
- Both OFF: Relay alarm disabled

LED Indicators:
- PWR1/PWR2 (Green): Power input status
- FAULT (Amber): Power failure or alarm condition
- RJ‑45 Port (Green): Link/Activity and PoE power status
- Fiber Port (Green): Link/Activity

No software configuration is required; the switch operates immediately upon power‑up.

---

### 7. Performance & Capabilities

Switching Performance:
- Store‑and‑forward architecture ensures reliable frame delivery with CRC error checking.
- 2048‑entry MAC address table supports efficient traffic handling in small to medium networks.
- Full‑duplex flow control (IEEE 802.3x) and half‑duplex backpressure prevent packet loss.

PoE Performance:
- IEEE 802.3at compliant (PoE+)
- 30 W maximum per port, 120 W total power budget
- Supports automatic detection of PoE‑enabled devices (PDs)
- Protects against overload and short‑circuit conditions

Fiber Transmission:
- Single‑mode SC ports support up to 30 km transmission at 1310 nm wavelength.
- Optical link budget of 19 dB ensures stable long‑distance communication.

Power Reliability:
- Dual redundant DC inputs prevent downtime during power source failure.
- Relay output provides immediate fault notification to external alarm systems.

Efficiency & Limitations:
- Typical power consumption under 6.5 W (excluding PoE load).
- Designed for 10/100 Mbps networks; does not support Gigabit Ethernet.
- Unmanaged design—no VLAN, QoS, or SNMP management features.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑T(X), 100Base‑FX)
- IEEE 802.3x (Flow Control)
- IEEE 802.3at (PoE+)

Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11

Environmental & Mechanical Tests:
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32

Safety Certification:
- EN60950‑1 (Information Technology Equipment Safety)

Ingress Protection:
- IP‑30 (protection against solid objects > 2.5 mm; no water protection)

Compliance Summary:
The IPS‑1042‑FX‑SS‑SC‑24V meets international industrial networking and safety standards, ensuring reliable operation in electrically noisy and mechanically demanding environments.

---

### 9. Additional Information

Warranty: 5 years limited manufacturer warranty covering defects in materials and workmanship.

Support & Maintenance:
- Technical support via ORing Industrial Networking Corp.
- Email: support@oring‑networking.com
- Website: [www.oring‑networking.com](http://www.oring-networking.com)
- Telephone: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014

Maintenance Recommendations:
- Periodically inspect power connections and grounding.
- Ensure adequate ventilation and avoid exposure to moisture.
- Clean fiber connectors with appropriate optical cleaning tools.
- Verify LED indicators regularly for power and link status.

Firmware/Software:
As an unmanaged switch, the IPS‑1042‑FX‑SS‑SC‑24V requires no firmware updates or configuration utilities.

Ordering Information:
- IPS‑1042‑FX‑MM‑SC‑24V: Multi‑mode version (2 km @ 1310 nm)
- IPS‑1042‑FX‑SS‑SC‑24V: Single‑mode version (30 km @ 1310 nm)

Packaging:
- Industrial switch unit
- Terminal block connector
- DIN‑rail kit
- Quick Installation Guide
- Protective dust covers

Manufacturer Address:
ORing Industrial Networking Corp.
No. 3, Lane 879, Chung‑Cheng Rd., Chung‑Ho District, New Taipei City 235, Taiwan

---
