- Compact 7U Rack-Mount Design: Optimized for 19” rack installations, providing a balance between compactness and expandability.
- Integrated 12.1” TFT LCD Display: VGA interface with 800×600 resolution, 340 cd/m² brightness, and wide viewing angles (120° horizontal / 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis meeting IP65/NEMA4 standards for dust and water resistance.
- Front-Panel Controls and Accessibility: Built-in On-Screen Display (OSD) controls, membrane keypad (60 keys + 12 function keys), and integrated touchpad for intuitive operation.
- Front I/O Access: Includes one front-accessible USB port, one 5.25” CD-ROM bay, and one 3.5” FDD bay with dust cover for easy maintenance.
- Flexible Power Options: Supports standard PS/2 power supply (250W) or optional redundant/ATX power configurations (up to 300W).
- Expansion Capability: 10-slot backplane supporting up to six full-length AT slots for system expansion and customization.
- Cooling System: Equipped with a 120×120×25 mm cooling fan and air filter for efficient thermal management.
- Optional Touchscreen: Resistive-type touch panel with RS-232 controller available for enhanced interactivity.
- Industrial Reliability: Designed for continuous operation with an LCD MTBF of 50,000 hours and robust mechanical design.
- Integrated 12.1” TFT LCD Display: VGA interface with 800×600 resolution, 340 cd/m² brightness, and wide viewing angles (120° horizontal / 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis meeting IP65/NEMA4 standards for dust and water resistance.
- Front-Panel Controls and Accessibility: Built-in On-Screen Display (OSD) controls, membrane keypad (60 keys + 12 function keys), and integrated touchpad for intuitive operation.
- Front I/O Access: Includes one front-accessible USB port, one 5.25” CD-ROM bay, and one 3.5” FDD bay with dust cover for easy maintenance.
- Flexible Power Options: Supports standard PS/2 power supply (250W) or optional redundant/ATX power configurations (up to 300W).
- Expansion Capability: 10-slot backplane supporting up to six full-length AT slots for system expansion and customization.
- Cooling System: Equipped with a 120×120×25 mm cooling fan and air filter for efficient thermal management.
- Optional Touchscreen: Resistive-type touch panel with RS-232 controller available for enhanced interactivity.
- Industrial Reliability: Designed for continuous operation with an LCD MTBF of 50,000 hours and robust mechanical design.
Comprehensive Product Summary: Acceed IWS-3000 Industrial 19” 7U Rack-Mount Workstation
### 1. Product Overview
Product Name: Industrial Workstation IWS-3000
Model: IWS-3000
Series: Industrial 19” Rack-Mount Workstation Series
Article Number: IWS-3000
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstrasse 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
Product Description:

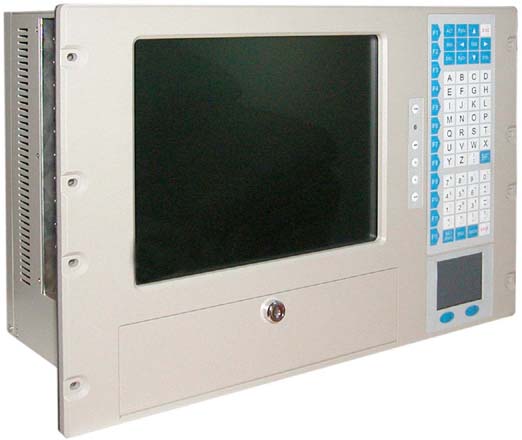

The Acceed IWS-3000 is a ruggedized 19-inch, 7U-high industrial workstation designed for demanding environments requiring reliable human-machine interface (HMI) and computing integration. It features a 12.1-inch VGA TFT LCD display, a sealed IP65/NEMA4-rated aluminum front panel, a membrane keyboard with integrated touchpad, and flexible expansion options including a 10-slot backplane. The workstation supports multiple drive bays, standard PS/2 or redundant power supplies, and is engineered for industrial automation, control, and monitoring applications.
### 2. Key Features
- Compact 7U Rack-Mount Design: Optimized for 19” rack installations, providing a balance between compactness and expandability.
- Integrated 12.1” TFT LCD Display: VGA interface with 800×600 resolution, 340 cd/m² brightness, and wide viewing angles (120° horizontal / 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis meeting IP65/NEMA4 standards for dust and water resistance.
- Front-Panel Controls and Accessibility: Built-in On-Screen Display (OSD) controls, membrane keypad (60 keys + 12 function keys), and integrated touchpad for intuitive operation.
- Front I/O Access: Includes one front-accessible USB port, one 5.25” CD-ROM bay, and one 3.5” FDD bay with dust cover for easy maintenance.
- Flexible Power Options: Supports standard PS/2 power supply (250W) or optional redundant/ATX power configurations (up to 300W).
- Expansion Capability: 10-slot backplane supporting up to six full-length AT slots for system expansion and customization.
- Cooling System: Equipped with a 120×120×25 mm cooling fan and air filter for efficient thermal management.
- Optional Touchscreen: Resistive-type touch panel with RS-232 controller available for enhanced interactivity.
- Industrial Reliability: Designed for continuous operation with an LCD MTBF of 50,000 hours and robust mechanical design.
### 3. Technical Specifications
Physical Dimensions:
- Width: 483 mm
- Height: 310 mm (7U rack height)
- Depth: 251 mm
- Weight: Approximately 15 kg
Construction Materials:
- Front Panel: Aluminum (IP65/NEMA4 compliant)
- Chassis: Heavy-duty steel
Display Specifications:
- Display Type: 12.1” XGA TFT LCD
- Resolution: 800 × 600 (VGA)
- Maximum Colors: 262K
- Brightness (Luminance): 340 cd/m²
- Viewing Angle: 120° (Horizontal) / 100° (Vertical)
- LCD MTBF: 50,000 hours
- Interface: VGA
- OSD Control: Front-panel integrated
Keyboard and Pointing Device:
- Membrane Keyboard: 60 alphanumeric keys + 12 function keys
- Touchpad: Integrated, PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door
Drive Bays:
- 1 × 5.25” CD-ROM (external, front-accessible)
- 1 × 3.5” FDD (external, front-accessible)
- 1 × 3.5” HDD (internal)
Cooling System:
- 1 × 120 × 120 × 25 mm cooling fan with air filter
Indicators:
- Power On/Off LED
- HDD Activity LED
Power Supply Options:
- Standard: 250W PS/2 power supply
- Optional: 300W ATX power supply
- Supports redundant power configurations
Backplane Options:
- Standard: 10-slot backplane (6 full-length AT slots)
- Optional: BP-10P4 backplane
Environmental Protection:
- Front Panel Rating: IP65 / NEMA4 (dust-tight and water-resistant)
### 4. Functionality
The IWS-3000 functions as a fully integrated industrial workstation designed for control, monitoring, and data acquisition tasks in manufacturing, automation, and process environments. The 12.1” TFT LCD provides clear visual output for SCADA, HMI, or diagnostic applications, while the membrane keyboard and touchpad enable direct user interaction without the need for external peripherals.
Operation:
- The system interfaces with industrial PCs or controllers via standard VGA and PS/2 connections.
- The front-panel OSD allows users to adjust display parameters such as brightness, contrast, and color settings.
- The integrated cooling system maintains optimal internal temperatures for continuous operation.
- Optional resistive touchscreen functionality allows for intuitive touch-based control, ideal for environments where keyboard/mouse use is limited.
Use Cases and Applications:
- Factory automation and process control
- Industrial monitoring and data logging
- Machine vision and inspection systems
- Transportation and logistics control centers
- Energy management and utility control rooms
- Laboratory and test bench instrumentation
Compatibility:
- Compatible with standard industrial PCs and backplane-based systems.
- Supports PS/2 keyboard and mouse interfaces, VGA video input, and standard ATX/PS2 power supplies.
- Optional touchscreen supports RS-232 interface for controller integration.
### 5. Components & Accessories
Included Components:
- IWS-3000 main chassis with integrated 12.1” TFT LCD display
- Membrane keyboard with integrated touchpad
- Front-panel OSD controls
- 250W PS/2 power supply (depending on configuration)
- Cooling fan with air filter
- LED indicators for power and HDD activity
Optional Accessories and Add-ons:
- Backplane Options:
- BP-10P4 (10-slot backplane)
- Power Supply Options:
- 250W ATX power supply
- 300W ATX power supply
- Redundant power supply configuration
- Touchscreen Option:
- Resistive touchscreen with RS-232 controller
- Drive Options:
- 5.25” CD-ROM drive
- 3.5” FDD drive
- 3.5” HDD (internal)
Connectors and Interfaces:
- VGA input for display connection
- PS/2 connectors for keyboard and touchpad
- Front-accessible USB port
- Power input (PS/2 or ATX standard)
### 6. Installation & Setup
Mounting Requirements:
- Designed for standard 19” rack installation (7U height).
- Requires appropriate rack space and ventilation clearance.
- Front panel secured with standard rack-mount screws.
Power Configuration:
- Supports both PS/2 and ATX power supplies.
- Optional redundant power supply configuration for mission-critical applications.
Drive Installation:
- Front-accessible 5.25” and 3.5” bays allow easy installation of optical and floppy drives.
- Internal 3.5” bay supports HDD installation for system storage.
Cooling and Maintenance:
- The integrated 120 mm fan with air filter ensures continuous airflow.
- The air filter can be removed and cleaned periodically to maintain cooling efficiency.
Configuration:
- Display settings adjustable via front-panel OSD.
- Keyboard and touchpad connect via PS/2 interface.
- Optional touchscreen connects via RS-232 interface.
Environmental Considerations:
- Front panel IP65/NEMA4 protection allows installation in dusty or humid environments.
- Recommended ambient operating temperature range consistent with industrial standards (typically 0–50°C, depending on system configuration).
### 7. Performance & Capabilities
Display Performance:
- 12.1” TFT LCD with 800×600 resolution provides clear, sharp image quality suitable for industrial visualization.
- 340 cd/m² brightness ensures readability in various lighting conditions.
- Wide viewing angles (120° horizontal, 100° vertical) allow flexible operator positioning.
System Expandability:
- 10-slot backplane supports multiple expansion cards for I/O, communication, or control applications.
- Six full-length AT slots accommodate legacy or specialized industrial cards.
Power Efficiency:
- 250W or 300W power supply options provide stable power delivery for internal components and expansion cards.
- Efficient cooling system maintains optimal thermal performance, reducing downtime and extending component life.
Reliability:
- LCD MTBF of 50,000 hours ensures long-term display reliability.
- Industrial-grade materials and sealed front panel protect against dust, moisture, and mechanical stress.
Limitations:
- Resolution limited to 800×600 (VGA), which may not be suitable for high-resolution graphical applications.
- Touchscreen functionality is optional and requires RS-232 interface.
- Weight (~15 kg) and 7U height require adequate rack support.
### 8. Standards & Compliance
Environmental and Protection Standards:
- IP65 / NEMA4 Front Panel: Dust-tight and protected against water jets, suitable for industrial environments.
Electrical and Safety Standards:
- Compliant with standard ATX and PS/2 power supply specifications.
- Designed to meet industrial safety and EMC requirements (specific certifications depend on configuration).
Mechanical Standards:
- 19” rack-mountable design compliant with EIA-310-D standard.
- 7U height form factor compatible with standard industrial racks and enclosures.
Quality and Reliability:
- Manufactured by Acceed GmbH under ISO-certified quality management systems.
- Components selected for industrial-grade durability and long service life.
### 9. Additional Information
Order Information:
- IWS-3000BP: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD, without backplane, without power supply.
- IWS-3000P4-300X: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD, with CBP-10P4 backplane, with 300W ATX power supply.
- IWS-3000TBP: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD and touchscreen, without backplane, without power supply.
- IWS-3000TP4-300X: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD and touchscreen, with CBP-10P4 backplane, with 300W ATX power supply.
Warranty and Support:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration).
- Technical support and service provided by Acceed GmbH.
- Spare parts and accessories available through authorized distributors.
Maintenance:
- Regular cleaning of air filter recommended to maintain cooling efficiency.
- Periodic inspection of connectors and drive bays for dust accumulation.
- Firmware and OSD settings can be updated or adjusted as required.
Product Lifecycle and Updates:
- Designed for long-term availability and support in industrial environments.
- Backward compatibility with existing Acceed backplanes and power modules.
- Optional upgrades include touchscreen integration, higher-capacity power supplies, and enhanced backplane configurations.
### Summary
The Acceed IWS-3000 Industrial 19” 7U Rack-Mount Workstation is a robust, modular, and versatile platform engineered for industrial control and monitoring applications. Its combination of a sealed IP65 aluminum front panel, integrated 12.1” TFT LCD, membrane keyboard, and touchpad provides a reliable human-machine interface suitable for harsh environments. With flexible expansion through a 10-slot backplane, multiple drive bays, and configurable power options, the IWS-3000 supports a wide range of industrial computing needs. Its durable construction, efficient cooling, and long-life components make it an ideal choice for continuous operation in manufacturing, automation, and process control systems.
Manufacturer: Acceed GmbH
Model: IWS-3000
Website: [www.acceed.com/IWS-3000](https://www.acceed.com/IWS-3000)
### 1. Product Overview
Product Name: Industrial Workstation IWS-3000
Model: IWS-3000
Series: Industrial 19” Rack-Mount Workstation Series
Article Number: IWS-3000
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstrasse 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
Product Description:
The Acceed IWS-3000 is a ruggedized 19-inch, 7U-high industrial workstation designed for demanding environments requiring reliable human-machine interface (HMI) and computing integration. It features a 12.1-inch VGA TFT LCD display, a sealed IP65/NEMA4-rated aluminum front panel, a membrane keyboard with integrated touchpad, and flexible expansion options including a 10-slot backplane. The workstation supports multiple drive bays, standard PS/2 or redundant power supplies, and is engineered for industrial automation, control, and monitoring applications.
### 2. Key Features
- Compact 7U Rack-Mount Design: Optimized for 19” rack installations, providing a balance between compactness and expandability.
- Integrated 12.1” TFT LCD Display: VGA interface with 800×600 resolution, 340 cd/m² brightness, and wide viewing angles (120° horizontal / 100° vertical).
- Rugged Construction: Aluminum front panel and steel chassis meeting IP65/NEMA4 standards for dust and water resistance.
- Front-Panel Controls and Accessibility: Built-in On-Screen Display (OSD) controls, membrane keypad (60 keys + 12 function keys), and integrated touchpad for intuitive operation.
- Front I/O Access: Includes one front-accessible USB port, one 5.25” CD-ROM bay, and one 3.5” FDD bay with dust cover for easy maintenance.
- Flexible Power Options: Supports standard PS/2 power supply (250W) or optional redundant/ATX power configurations (up to 300W).
- Expansion Capability: 10-slot backplane supporting up to six full-length AT slots for system expansion and customization.
- Cooling System: Equipped with a 120×120×25 mm cooling fan and air filter for efficient thermal management.
- Optional Touchscreen: Resistive-type touch panel with RS-232 controller available for enhanced interactivity.
- Industrial Reliability: Designed for continuous operation with an LCD MTBF of 50,000 hours and robust mechanical design.
### 3. Technical Specifications
Physical Dimensions:
- Width: 483 mm
- Height: 310 mm (7U rack height)
- Depth: 251 mm
- Weight: Approximately 15 kg
Construction Materials:
- Front Panel: Aluminum (IP65/NEMA4 compliant)
- Chassis: Heavy-duty steel
Display Specifications:
- Display Type: 12.1” XGA TFT LCD
- Resolution: 800 × 600 (VGA)
- Maximum Colors: 262K
- Brightness (Luminance): 340 cd/m²
- Viewing Angle: 120° (Horizontal) / 100° (Vertical)
- LCD MTBF: 50,000 hours
- Interface: VGA
- OSD Control: Front-panel integrated
Keyboard and Pointing Device:
- Membrane Keyboard: 60 alphanumeric keys + 12 function keys
- Touchpad: Integrated, PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door
Drive Bays:
- 1 × 5.25” CD-ROM (external, front-accessible)
- 1 × 3.5” FDD (external, front-accessible)
- 1 × 3.5” HDD (internal)
Cooling System:
- 1 × 120 × 120 × 25 mm cooling fan with air filter
Indicators:
- Power On/Off LED
- HDD Activity LED
Power Supply Options:
- Standard: 250W PS/2 power supply
- Optional: 300W ATX power supply
- Supports redundant power configurations
Backplane Options:
- Standard: 10-slot backplane (6 full-length AT slots)
- Optional: BP-10P4 backplane
Environmental Protection:
- Front Panel Rating: IP65 / NEMA4 (dust-tight and water-resistant)
### 4. Functionality
The IWS-3000 functions as a fully integrated industrial workstation designed for control, monitoring, and data acquisition tasks in manufacturing, automation, and process environments. The 12.1” TFT LCD provides clear visual output for SCADA, HMI, or diagnostic applications, while the membrane keyboard and touchpad enable direct user interaction without the need for external peripherals.
Operation:
- The system interfaces with industrial PCs or controllers via standard VGA and PS/2 connections.
- The front-panel OSD allows users to adjust display parameters such as brightness, contrast, and color settings.
- The integrated cooling system maintains optimal internal temperatures for continuous operation.
- Optional resistive touchscreen functionality allows for intuitive touch-based control, ideal for environments where keyboard/mouse use is limited.
Use Cases and Applications:
- Factory automation and process control
- Industrial monitoring and data logging
- Machine vision and inspection systems
- Transportation and logistics control centers
- Energy management and utility control rooms
- Laboratory and test bench instrumentation
Compatibility:
- Compatible with standard industrial PCs and backplane-based systems.
- Supports PS/2 keyboard and mouse interfaces, VGA video input, and standard ATX/PS2 power supplies.
- Optional touchscreen supports RS-232 interface for controller integration.
### 5. Components & Accessories
Included Components:
- IWS-3000 main chassis with integrated 12.1” TFT LCD display
- Membrane keyboard with integrated touchpad
- Front-panel OSD controls
- 250W PS/2 power supply (depending on configuration)
- Cooling fan with air filter
- LED indicators for power and HDD activity
Optional Accessories and Add-ons:
- Backplane Options:
- BP-10P4 (10-slot backplane)
- Power Supply Options:
- 250W ATX power supply
- 300W ATX power supply
- Redundant power supply configuration
- Touchscreen Option:
- Resistive touchscreen with RS-232 controller
- Drive Options:
- 5.25” CD-ROM drive
- 3.5” FDD drive
- 3.5” HDD (internal)
Connectors and Interfaces:
- VGA input for display connection
- PS/2 connectors for keyboard and touchpad
- Front-accessible USB port
- Power input (PS/2 or ATX standard)
### 6. Installation & Setup
Mounting Requirements:
- Designed for standard 19” rack installation (7U height).
- Requires appropriate rack space and ventilation clearance.
- Front panel secured with standard rack-mount screws.
Power Configuration:
- Supports both PS/2 and ATX power supplies.
- Optional redundant power supply configuration for mission-critical applications.
Drive Installation:
- Front-accessible 5.25” and 3.5” bays allow easy installation of optical and floppy drives.
- Internal 3.5” bay supports HDD installation for system storage.
Cooling and Maintenance:
- The integrated 120 mm fan with air filter ensures continuous airflow.
- The air filter can be removed and cleaned periodically to maintain cooling efficiency.
Configuration:
- Display settings adjustable via front-panel OSD.
- Keyboard and touchpad connect via PS/2 interface.
- Optional touchscreen connects via RS-232 interface.
Environmental Considerations:
- Front panel IP65/NEMA4 protection allows installation in dusty or humid environments.
- Recommended ambient operating temperature range consistent with industrial standards (typically 0–50°C, depending on system configuration).
### 7. Performance & Capabilities
Display Performance:
- 12.1” TFT LCD with 800×600 resolution provides clear, sharp image quality suitable for industrial visualization.
- 340 cd/m² brightness ensures readability in various lighting conditions.
- Wide viewing angles (120° horizontal, 100° vertical) allow flexible operator positioning.
System Expandability:
- 10-slot backplane supports multiple expansion cards for I/O, communication, or control applications.
- Six full-length AT slots accommodate legacy or specialized industrial cards.
Power Efficiency:
- 250W or 300W power supply options provide stable power delivery for internal components and expansion cards.
- Efficient cooling system maintains optimal thermal performance, reducing downtime and extending component life.
Reliability:
- LCD MTBF of 50,000 hours ensures long-term display reliability.
- Industrial-grade materials and sealed front panel protect against dust, moisture, and mechanical stress.
Limitations:
- Resolution limited to 800×600 (VGA), which may not be suitable for high-resolution graphical applications.
- Touchscreen functionality is optional and requires RS-232 interface.
- Weight (~15 kg) and 7U height require adequate rack support.
### 8. Standards & Compliance
Environmental and Protection Standards:
- IP65 / NEMA4 Front Panel: Dust-tight and protected against water jets, suitable for industrial environments.
Electrical and Safety Standards:
- Compliant with standard ATX and PS/2 power supply specifications.
- Designed to meet industrial safety and EMC requirements (specific certifications depend on configuration).
Mechanical Standards:
- 19” rack-mountable design compliant with EIA-310-D standard.
- 7U height form factor compatible with standard industrial racks and enclosures.
Quality and Reliability:
- Manufactured by Acceed GmbH under ISO-certified quality management systems.
- Components selected for industrial-grade durability and long service life.
### 9. Additional Information
Order Information:
- IWS-3000BP: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD, without backplane, without power supply.
- IWS-3000P4-300X: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD, with CBP-10P4 backplane, with 300W ATX power supply.
- IWS-3000TBP: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD and touchscreen, without backplane, without power supply.
- IWS-3000TP4-300X: 7U 19” Rack-Mount Workstation with 12.1” TFT LCD and touchscreen, with CBP-10P4 backplane, with 300W ATX power supply.
Warranty and Support:
- Standard manufacturer warranty (typically 1–2 years, depending on region and configuration).
- Technical support and service provided by Acceed GmbH.
- Spare parts and accessories available through authorized distributors.
Maintenance:
- Regular cleaning of air filter recommended to maintain cooling efficiency.
- Periodic inspection of connectors and drive bays for dust accumulation.
- Firmware and OSD settings can be updated or adjusted as required.
Product Lifecycle and Updates:
- Designed for long-term availability and support in industrial environments.
- Backward compatibility with existing Acceed backplanes and power modules.
- Optional upgrades include touchscreen integration, higher-capacity power supplies, and enhanced backplane configurations.
### Summary
The Acceed IWS-3000 Industrial 19” 7U Rack-Mount Workstation is a robust, modular, and versatile platform engineered for industrial control and monitoring applications. Its combination of a sealed IP65 aluminum front panel, integrated 12.1” TFT LCD, membrane keyboard, and touchpad provides a reliable human-machine interface suitable for harsh environments. With flexible expansion through a 10-slot backplane, multiple drive bays, and configurable power options, the IWS-3000 supports a wide range of industrial computing needs. Its durable construction, efficient cooling, and long-life components make it an ideal choice for continuous operation in manufacturing, automation, and process control systems.
Manufacturer: Acceed GmbH
Model: IWS-3000
Website: [www.acceed.com/IWS-3000](https://www.acceed.com/IWS-3000)
-
IWS-3000.pdf
Manual
Kein Zubehör vorhanden.
