- Compact 7U Rack-Mount Design:
The IWS-3000 fits standard 19-inch racks, occupying 7U of vertical space, optimizing space utilization in industrial cabinets or control centers.
- Integrated 12.1” TFT LCD Display:
A front-mounted 12.1-inch XGA TFT LCD provides clear visual output with 800×600 resolution and 340 cd/m² brightness, suitable for real-time monitoring and control applications.
- Rugged Construction:
The front panel is made of aluminum and the chassis of steel, ensuring mechanical robustness. The front panel meets IP65/NEMA 4 standards for dust and water resistance, suitable for harsh industrial environments.
- Front-Accessible Controls and Drives:
Includes front access to USB, CD-ROM, and FDD drives for convenient data transfer and maintenance without removing the unit from the rack.
- Integrated Input Devices:
Equipped with a membrane keypad (60 keys + 12 function keys) and a built-in touchpad, providing full control directly from the front panel.
- Flexible Power Options:
Supports both standard PS/2 and redundant power supply configurations, ensuring operational reliability and flexibility in system design.
- Optional Touchscreen:
Resistive touchscreen with RS-232 controller available as an option for enhanced interactivity and control.
- Efficient Cooling System:
One 120×120×25 mm cooling fan with air filter ensures stable thermal performance and long-term reliability.
- Modular Backplane Support:
Compatible with optional backplanes such as BP-10P4, allowing flexible system expansion and configuration.
The IWS-3000 fits standard 19-inch racks, occupying 7U of vertical space, optimizing space utilization in industrial cabinets or control centers.
- Integrated 12.1” TFT LCD Display:
A front-mounted 12.1-inch XGA TFT LCD provides clear visual output with 800×600 resolution and 340 cd/m² brightness, suitable for real-time monitoring and control applications.
- Rugged Construction:
The front panel is made of aluminum and the chassis of steel, ensuring mechanical robustness. The front panel meets IP65/NEMA 4 standards for dust and water resistance, suitable for harsh industrial environments.
- Front-Accessible Controls and Drives:
Includes front access to USB, CD-ROM, and FDD drives for convenient data transfer and maintenance without removing the unit from the rack.
- Integrated Input Devices:
Equipped with a membrane keypad (60 keys + 12 function keys) and a built-in touchpad, providing full control directly from the front panel.
- Flexible Power Options:
Supports both standard PS/2 and redundant power supply configurations, ensuring operational reliability and flexibility in system design.
- Optional Touchscreen:
Resistive touchscreen with RS-232 controller available as an option for enhanced interactivity and control.
- Efficient Cooling System:
One 120×120×25 mm cooling fan with air filter ensures stable thermal performance and long-term reliability.
- Modular Backplane Support:
Compatible with optional backplanes such as BP-10P4, allowing flexible system expansion and configuration.
Comprehensive Product Summary: IWS-3000-IPCS Industrial Rack Mount Workstation
### 1. Product Overview
Product Name: IWS-3000-IPCS
Model: IWS-3000
Series: IWS Industrial Workstation Series
Article Number: IWS-3000-IPCS
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstrasse 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
Product Description:

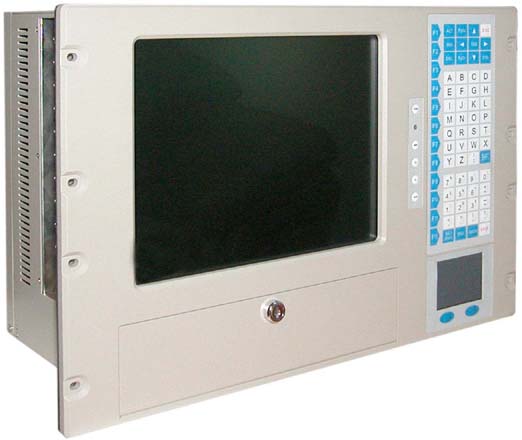

The IWS-3000-IPCS is a 19-inch, 7U rack-mount industrial workstation designed for demanding industrial and automation environments. It integrates a 12.1-inch TFT LCD display, a slot CPU (Pentium IV), 512 MB memory, and built-in storage options including HDD, CD-ROM, and FDD drives. The workstation is engineered for reliability, durability, and front-panel accessibility, making it ideal for control rooms, production monitoring, and embedded system applications.
### 2. Key Features
- Compact 7U Rack-Mount Design:
The IWS-3000 fits standard 19-inch racks, occupying 7U of vertical space, optimizing space utilization in industrial cabinets or control centers.
- Integrated 12.1” TFT LCD Display:
A front-mounted 12.1-inch XGA TFT LCD provides clear visual output with 800×600 resolution and 340 cd/m² brightness, suitable for real-time monitoring and control applications.
- Rugged Construction:
The front panel is made of aluminum and the chassis of steel, ensuring mechanical robustness. The front panel meets IP65/NEMA 4 standards for dust and water resistance, suitable for harsh industrial environments.
- Front-Accessible Controls and Drives:
Includes front access to USB, CD-ROM, and FDD drives for convenient data transfer and maintenance without removing the unit from the rack.
- Integrated Input Devices:
Equipped with a membrane keypad (60 keys + 12 function keys) and a built-in touchpad, providing full control directly from the front panel.
- Flexible Power Options:
Supports both standard PS/2 and redundant power supply configurations, ensuring operational reliability and flexibility in system design.
- Optional Touchscreen:
Resistive touchscreen with RS-232 controller available as an option for enhanced interactivity and control.
- Efficient Cooling System:
One 120×120×25 mm cooling fan with air filter ensures stable thermal performance and long-term reliability.
- Modular Backplane Support:
Compatible with optional backplanes such as BP-10P4, allowing flexible system expansion and configuration.
### 3. Technical Specifications
Mechanical & Physical:
- Form Factor: 19” rack-mount, 7U height
- Dimensions (W × H × D): 483 × 310 × 251 mm
- Front Panel Material: Aluminum (IP65/NEMA 4 compliant)
- Chassis Material: Steel
- Cooling System: One 120 × 120 × 25 mm fan with air filter
- Weight: (Not specified; estimated 12–15 kg depending on configuration)
Display:
- Display Type: 12.1” XGA TFT LCD
- Resolution: 800 × 600 pixels
- Maximum Colors: 262K colors
- Brightness (Luminance): 340 cd/m²
- Viewing Angle: 120° (Horizontal) / 100° (Vertical)
- MTBF (Mean Time Between Failures): 50,000 hours
- Interface: VGA
- Display Adjustment: On-screen display (OSD) accessible from front panel
- Optional Touchscreen: Resistive type with RS-232 controller
Input Devices:
- Membrane Keypad: 60 operational keys + 12 function keys
- Touchpad: Integrated, PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door on front panel
Indicators:
- LED Indicators: Power ON/OFF, HDD activity
Drive Bays:
- External: 1 × 5.25” CD-ROM, 1 × 3.5” FDD
- Internal: 1 × 3.5” HDD
Connectivity:
- Front USB Port: 1 × USB (front accessible)
- Touchscreen Interface (optional): RS-232
Power Supply Options:
- Standard: Supports ATX power supply
- Optional Units: 250W ATX or 300W ATX
- Redundant Power Supply: Supported
### 4. Functionality
The IWS-3000-IPCS functions as a fully integrated industrial workstation designed for rack-mounted environments. It combines computing, display, and input interfaces in a single enclosure, minimizing external cabling and simplifying installation.
Operational Workflow:
- The system’s slot CPU (Pentium IV) provides processing capability for industrial control, data acquisition, or monitoring applications.
- The integrated 12.1” TFT LCD displays system status, process data, or graphical interfaces.
- The membrane keypad and touchpad allow direct user interaction without external peripherals.
- Optional resistive touchscreen enables intuitive control for HMI (Human-Machine Interface) applications.
- Front-accessible drives (CD-ROM, FDD, USB) facilitate software updates, data logging, and maintenance.
Use Cases & Applications:
- Industrial automation and process control
- Machine vision and inspection systems
- SCADA and HMI terminals
- Embedded control systems
- Factory monitoring and data acquisition
- Transportation and infrastructure control panels
- Laboratory and test equipment interfaces
Compatibility:
- Compatible with standard PC-based operating systems (Windows, Linux, etc.)
- Supports standard VGA output and PS/2 input devices
- Modular backplane allows integration with various industrial I/O cards and expansion modules
### 5. Components & Accessories
Included Components:
- IWS-3000 main unit with integrated 12.1” TFT LCD
- Front panel with membrane keypad and touchpad
- Cooling fan with air filter
- Front-accessible USB, CD-ROM, and FDD interfaces
- Internal HDD bay
Optional Components:
- Backplane: BP-10P4 (10-slot backplane for system expansion)
- Power Supply Options:
- 250W ATX power supply
- 300W ATX power supply
- Touchscreen Option: Resistive touchscreen with RS-232 controller
- Redundant Power Supply: Supported for high-availability systems
Connectors & Interfaces:
- VGA interface for display
- PS/2 connectors for keyboard and mouse
- RS-232 interface for optional touchscreen
- USB port (front accessible)
### 6. Installation & Setup
Mounting Requirements:
- Designed for standard 19-inch rack installation
- Occupies 7U rack height (310 mm)
- Requires sufficient rear clearance for ventilation and cable connections
Setup Procedure:
1. Mount the workstation securely in the rack using standard rack screws.
2. Connect the power supply (ATX 250W or 300W, or redundant configuration).
3. Connect VGA, PS/2, and other peripheral interfaces as required.
4. Configure the display settings using the front-panel OSD controls.
5. Install operating system and software via front-accessible CD-ROM or USB.
6. (Optional) Connect RS-232 interface if touchscreen functionality is installed.
Environmental Considerations:
- Ensure adequate airflow around the cooling fan and air filter.
- Maintain clean air intake to prevent dust accumulation.
- Operate within standard industrial temperature and humidity ranges (specific values not provided).
### 7. Performance & Capabilities
Processing & Storage:
- Equipped with slot CPU (Pentium IV) and 512 MB memory (as per configuration).
- Supports internal 3.5” HDD for data storage.
- External CD-ROM and FDD for removable media access.
Display Performance:
- 12.1” TFT LCD with 800×600 resolution provides clear, stable image quality.
- 340 cd/m² brightness ensures visibility in industrial lighting conditions.
- Wide viewing angles (120° H / 100° V) suitable for multi-operator environments.
Thermal & Mechanical Performance:
- Efficient cooling via 120 mm fan with air filter maintains stable internal temperature.
- Aluminum and steel construction ensures vibration resistance and mechanical durability.
Power Efficiency:
- Supports 250W or 300W ATX power supplies, optimized for industrial reliability.
- Optional redundant power configuration enhances uptime in mission-critical applications.
Limitations:
- Resolution limited to 800×600 (XGA), suitable for control interfaces but not high-definition graphics.
- Single cooling fan may require periodic maintenance in dusty environments.
- Limited expansion without optional backplane.
### 8. Standards & Compliance
Ingress Protection:
- Front Panel: IP65 / NEMA 4 compliant — dust-tight and protected against water jets.
Mechanical Standards:
- 19-inch rack-mountable, 7U height — compliant with EIA-310 rack standards.
Electrical Standards:
- Compatible with ATX power supply specifications.
Quality & Reliability:
- LCD MTBF rated at 50,000 hours for long-term operation.
Regulatory Compliance:
- Designed to meet industrial-grade safety and EMC standards (specific certifications not listed).
### 9. Additional Information
Order Information:
- IWS-3000BP: 7U 19” Rack Mount Workstation with 12.1” TFT LCD, without backplane or power supply.
- IWS-3000P4-300X: 7U 19” Rack Mount Workstation with 12.1” TFT LCD, CBP-10P4 backplane, and 300W ATX power supply.
- IWS-3000TBP: 7U 19” Rack Mount Workstation with 12.1” TFT LCD and touchscreen, without backplane or power supply.
- IWS-3000TP4-300X: 7U 19” Rack Mount Workstation with 12.1” TFT LCD and touchscreen, CBP-10P4 backplane, and 300W ATX power supply.
Warranty & Support:
- Standard manufacturer warranty (details available from Acceed GmbH).
- Technical support and product documentation available via [www.acceed.com](https://www.acceed.com).
- Maintenance includes periodic cleaning of air filter and inspection of cooling fan.
Maintenance & Serviceability:
- Front-accessible drives and ports simplify maintenance.
- Modular design allows easy replacement of power supply, backplane, or display components.
- Air filter can be removed and cleaned to maintain cooling efficiency.
Software & Updates:
- Compatible with standard PC operating systems (Windows, Linux).
- BIOS and firmware updates available through manufacturer support.
### Summary
The Acceed IWS-3000-IPCS is a robust, modular, and highly serviceable industrial rack-mount workstation designed for demanding environments requiring integrated computing and display solutions. Its 7U 19-inch form factor, 12.1-inch TFT LCD, and IP65-rated aluminum front panel make it ideal for industrial automation, control, and monitoring applications. With flexible configuration options—including touchscreen capability, modular backplane, and redundant power supply support—the IWS-3000-IPCS delivers a balance of performance, reliability, and adaptability for mission-critical operations.
Manufacturer Contact:
Acceed GmbH
Arnoldstrasse 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
### 1. Product Overview
Product Name: IWS-3000-IPCS
Model: IWS-3000
Series: IWS Industrial Workstation Series
Article Number: IWS-3000-IPCS
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstrasse 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
Product Description:
The IWS-3000-IPCS is a 19-inch, 7U rack-mount industrial workstation designed for demanding industrial and automation environments. It integrates a 12.1-inch TFT LCD display, a slot CPU (Pentium IV), 512 MB memory, and built-in storage options including HDD, CD-ROM, and FDD drives. The workstation is engineered for reliability, durability, and front-panel accessibility, making it ideal for control rooms, production monitoring, and embedded system applications.
### 2. Key Features
- Compact 7U Rack-Mount Design:
The IWS-3000 fits standard 19-inch racks, occupying 7U of vertical space, optimizing space utilization in industrial cabinets or control centers.
- Integrated 12.1” TFT LCD Display:
A front-mounted 12.1-inch XGA TFT LCD provides clear visual output with 800×600 resolution and 340 cd/m² brightness, suitable for real-time monitoring and control applications.
- Rugged Construction:
The front panel is made of aluminum and the chassis of steel, ensuring mechanical robustness. The front panel meets IP65/NEMA 4 standards for dust and water resistance, suitable for harsh industrial environments.
- Front-Accessible Controls and Drives:
Includes front access to USB, CD-ROM, and FDD drives for convenient data transfer and maintenance without removing the unit from the rack.
- Integrated Input Devices:
Equipped with a membrane keypad (60 keys + 12 function keys) and a built-in touchpad, providing full control directly from the front panel.
- Flexible Power Options:
Supports both standard PS/2 and redundant power supply configurations, ensuring operational reliability and flexibility in system design.
- Optional Touchscreen:
Resistive touchscreen with RS-232 controller available as an option for enhanced interactivity and control.
- Efficient Cooling System:
One 120×120×25 mm cooling fan with air filter ensures stable thermal performance and long-term reliability.
- Modular Backplane Support:
Compatible with optional backplanes such as BP-10P4, allowing flexible system expansion and configuration.
### 3. Technical Specifications
Mechanical & Physical:
- Form Factor: 19” rack-mount, 7U height
- Dimensions (W × H × D): 483 × 310 × 251 mm
- Front Panel Material: Aluminum (IP65/NEMA 4 compliant)
- Chassis Material: Steel
- Cooling System: One 120 × 120 × 25 mm fan with air filter
- Weight: (Not specified; estimated 12–15 kg depending on configuration)
Display:
- Display Type: 12.1” XGA TFT LCD
- Resolution: 800 × 600 pixels
- Maximum Colors: 262K colors
- Brightness (Luminance): 340 cd/m²
- Viewing Angle: 120° (Horizontal) / 100° (Vertical)
- MTBF (Mean Time Between Failures): 50,000 hours
- Interface: VGA
- Display Adjustment: On-screen display (OSD) accessible from front panel
- Optional Touchscreen: Resistive type with RS-232 controller
Input Devices:
- Membrane Keypad: 60 operational keys + 12 function keys
- Touchpad: Integrated, PS/2 mouse interface
- Keyboard Connector: 6-pin PS/2 with dust protection door on front panel
Indicators:
- LED Indicators: Power ON/OFF, HDD activity
Drive Bays:
- External: 1 × 5.25” CD-ROM, 1 × 3.5” FDD
- Internal: 1 × 3.5” HDD
Connectivity:
- Front USB Port: 1 × USB (front accessible)
- Touchscreen Interface (optional): RS-232
Power Supply Options:
- Standard: Supports ATX power supply
- Optional Units: 250W ATX or 300W ATX
- Redundant Power Supply: Supported
### 4. Functionality
The IWS-3000-IPCS functions as a fully integrated industrial workstation designed for rack-mounted environments. It combines computing, display, and input interfaces in a single enclosure, minimizing external cabling and simplifying installation.
Operational Workflow:
- The system’s slot CPU (Pentium IV) provides processing capability for industrial control, data acquisition, or monitoring applications.
- The integrated 12.1” TFT LCD displays system status, process data, or graphical interfaces.
- The membrane keypad and touchpad allow direct user interaction without external peripherals.
- Optional resistive touchscreen enables intuitive control for HMI (Human-Machine Interface) applications.
- Front-accessible drives (CD-ROM, FDD, USB) facilitate software updates, data logging, and maintenance.
Use Cases & Applications:
- Industrial automation and process control
- Machine vision and inspection systems
- SCADA and HMI terminals
- Embedded control systems
- Factory monitoring and data acquisition
- Transportation and infrastructure control panels
- Laboratory and test equipment interfaces
Compatibility:
- Compatible with standard PC-based operating systems (Windows, Linux, etc.)
- Supports standard VGA output and PS/2 input devices
- Modular backplane allows integration with various industrial I/O cards and expansion modules
### 5. Components & Accessories
Included Components:
- IWS-3000 main unit with integrated 12.1” TFT LCD
- Front panel with membrane keypad and touchpad
- Cooling fan with air filter
- Front-accessible USB, CD-ROM, and FDD interfaces
- Internal HDD bay
Optional Components:
- Backplane: BP-10P4 (10-slot backplane for system expansion)
- Power Supply Options:
- 250W ATX power supply
- 300W ATX power supply
- Touchscreen Option: Resistive touchscreen with RS-232 controller
- Redundant Power Supply: Supported for high-availability systems
Connectors & Interfaces:
- VGA interface for display
- PS/2 connectors for keyboard and mouse
- RS-232 interface for optional touchscreen
- USB port (front accessible)
### 6. Installation & Setup
Mounting Requirements:
- Designed for standard 19-inch rack installation
- Occupies 7U rack height (310 mm)
- Requires sufficient rear clearance for ventilation and cable connections
Setup Procedure:
1. Mount the workstation securely in the rack using standard rack screws.
2. Connect the power supply (ATX 250W or 300W, or redundant configuration).
3. Connect VGA, PS/2, and other peripheral interfaces as required.
4. Configure the display settings using the front-panel OSD controls.
5. Install operating system and software via front-accessible CD-ROM or USB.
6. (Optional) Connect RS-232 interface if touchscreen functionality is installed.
Environmental Considerations:
- Ensure adequate airflow around the cooling fan and air filter.
- Maintain clean air intake to prevent dust accumulation.
- Operate within standard industrial temperature and humidity ranges (specific values not provided).
### 7. Performance & Capabilities
Processing & Storage:
- Equipped with slot CPU (Pentium IV) and 512 MB memory (as per configuration).
- Supports internal 3.5” HDD for data storage.
- External CD-ROM and FDD for removable media access.
Display Performance:
- 12.1” TFT LCD with 800×600 resolution provides clear, stable image quality.
- 340 cd/m² brightness ensures visibility in industrial lighting conditions.
- Wide viewing angles (120° H / 100° V) suitable for multi-operator environments.
Thermal & Mechanical Performance:
- Efficient cooling via 120 mm fan with air filter maintains stable internal temperature.
- Aluminum and steel construction ensures vibration resistance and mechanical durability.
Power Efficiency:
- Supports 250W or 300W ATX power supplies, optimized for industrial reliability.
- Optional redundant power configuration enhances uptime in mission-critical applications.
Limitations:
- Resolution limited to 800×600 (XGA), suitable for control interfaces but not high-definition graphics.
- Single cooling fan may require periodic maintenance in dusty environments.
- Limited expansion without optional backplane.
### 8. Standards & Compliance
Ingress Protection:
- Front Panel: IP65 / NEMA 4 compliant — dust-tight and protected against water jets.
Mechanical Standards:
- 19-inch rack-mountable, 7U height — compliant with EIA-310 rack standards.
Electrical Standards:
- Compatible with ATX power supply specifications.
Quality & Reliability:
- LCD MTBF rated at 50,000 hours for long-term operation.
Regulatory Compliance:
- Designed to meet industrial-grade safety and EMC standards (specific certifications not listed).
### 9. Additional Information
Order Information:
- IWS-3000BP: 7U 19” Rack Mount Workstation with 12.1” TFT LCD, without backplane or power supply.
- IWS-3000P4-300X: 7U 19” Rack Mount Workstation with 12.1” TFT LCD, CBP-10P4 backplane, and 300W ATX power supply.
- IWS-3000TBP: 7U 19” Rack Mount Workstation with 12.1” TFT LCD and touchscreen, without backplane or power supply.
- IWS-3000TP4-300X: 7U 19” Rack Mount Workstation with 12.1” TFT LCD and touchscreen, CBP-10P4 backplane, and 300W ATX power supply.
Warranty & Support:
- Standard manufacturer warranty (details available from Acceed GmbH).
- Technical support and product documentation available via [www.acceed.com](https://www.acceed.com).
- Maintenance includes periodic cleaning of air filter and inspection of cooling fan.
Maintenance & Serviceability:
- Front-accessible drives and ports simplify maintenance.
- Modular design allows easy replacement of power supply, backplane, or display components.
- Air filter can be removed and cleaned to maintain cooling efficiency.
Software & Updates:
- Compatible with standard PC operating systems (Windows, Linux).
- BIOS and firmware updates available through manufacturer support.
### Summary
The Acceed IWS-3000-IPCS is a robust, modular, and highly serviceable industrial rack-mount workstation designed for demanding environments requiring integrated computing and display solutions. Its 7U 19-inch form factor, 12.1-inch TFT LCD, and IP65-rated aluminum front panel make it ideal for industrial automation, control, and monitoring applications. With flexible configuration options—including touchscreen capability, modular backplane, and redundant power supply support—the IWS-3000-IPCS delivers a balance of performance, reliability, and adaptability for mission-critical operations.
Manufacturer Contact:
Acceed GmbH
Arnoldstrasse 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
-
IWS-3000.pdf
Manual
Kein Zubehör vorhanden.
