Comprehensive Product Summary – NuDAM ND‑6052 RS‑485 Isolated 5 kV Digital 8‑Input Module

---

### 1. Product Overview

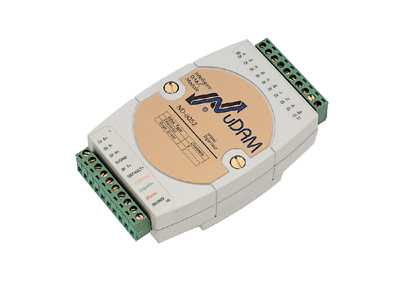

Product Name: NuDAM RS‑485 Isolated 5 kV Digital 8 Input Module
Model: ND‑6052
Series: NuDAM‑6000 Series – Digital I/O Modules
Article Number: ND‑6052
Manufacturer: ADLINK Technology Inc. (Taipei, Taiwan)

The ND‑6052 is a member of ADLINK’s NuDAM‑6000 distributed data‑acquisition and control family. It is an industrial‑grade, isolated digital input module designed for RS‑485 multi‑drop networks. The unit provides eight optically isolated input channels—six differential and two single‑ended with a common ground—offering 5 kVrms isolation protection. It is intended for robust digital signal acquisition in harsh industrial environments.

---

### 2. Key Features
- Eight Isolated Digital Inputs: Six differential channels and two single‑ended channels with common ground.
- High Isolation Voltage: 5 kVrms optical isolation between field inputs and communication circuitry for protection against high‑voltage transients and ground loops.
- RS‑485 Communication Interface: Two‑wire, half‑duplex differential bus supporting up to 115.2 kbps and 4000 ft (1200 m) transmission distance.
- Industrial‑Grade Design: Compact ABS enclosure with screw‑terminal connectors for secure wiring and DIN‑rail or panel mounting.
- Programmable Watchdog Timers:
- Internal 150 ms hardware watchdog for self‑recovery.
- Host‑programmable watchdog (100 ms – 25.5 s) to ensure safe output states if host communication fails.
- Wide Power Supply Range: Operates from +10 V DC to +30 V DC unregulated.
- Low Power Consumption: Typical 0.264 W.
- Noise Immunity: Opto‑isolation and internal filtering provide high resistance to EMI/RFI interference.
- Simple ASCII Command Protocol: Uses printable ASCII commands for configuration and data acquisition, compatible with most programming languages.
- Network Scalability: Up to 128 modules per RS‑485 segment and 256 addressable modules per network using repeaters.
- Fail‑Safe Operation: Automatic reset and safe‑value output on power failure or communication loss.
- Easy Integration: Compatible with NuDAM Administration Utility and standard RS‑485 converters (ND‑6520, ND‑6530, ND‑6531).

---

### 3. Technical Specifications
Interface:
- Communication: RS‑485, 2‑wire, half‑duplex differential
- Baud Rates: 1200, 2400, 4800, 9600, 19.2 k, 38.4 k, 57.6 k, 115.2 k bps
- Protocol: ASCII command/response

Digital Inputs:
- Channels: 8 total
- 6 × differential isolated inputs
- 2 × single‑ended inputs with common ground
- Logic Levels:
- Logic 0 = ≤ +1 V
- Logic 1 = +3.5 V to +24 V (typical operating range up to +30 V)
- Input Current: 0.5 mA typical pull‑up current
- Input Impedance: High impedance opto‑isolated circuitry
- Isolation Voltage: 5000 Vrms channel‑to‑system

Power Requirements:
- Supply Voltage: +10 V DC to +30 V DC
- Power Consumption: 0.264 W typical

Watchdog Functions:
- Internal hardware watchdog: 150 ms auto‑reset
- Host‑programmable watchdog: 100 ms – 25.5 s timeout
- Power‑failure threshold: 4.65 V

Environmental:
- Operating Temperature: –10 °C to +70 °C (typical for NuDAM series)
- Storage Temperature: –25 °C to +80 °C
- Humidity: 0 – 95 % RH non‑condensing
- Isolation Protection: 5 kVrms optical isolation

Mechanical:
- Enclosure: ABS industrial housing with internal EMI shielding
- Mounting: DIN‑rail or panel mount
- Connectors: 20‑pin screw‑terminal block
- Dimensions (typical NuDAM module): approx. 72 mm (W) × 118 mm (L) × 25 mm (H)
- Weight: approx. 150 g

---

### 4. Functionality
Operating Principle:
The ND‑6052 senses external digital signals through optically isolated input channels. Each input is converted to a logic‑level state and transmitted via the RS‑485 bus to a host controller or PC. The module’s microprocessor manages signal conditioning, isolation, and communication.

Use Cases and Applications:
- Industrial automation and process control
- Machine status monitoring and alarm systems
- Remote digital signal acquisition in distributed control networks
- Integration with PLCs, SCADA, or PC‑based control systems
- Monitoring of switches, sensors, relays, and contact closures

Compatibility:
- Fully compatible with other NuDAM‑6000 modules (analog, digital, communication).
- Operates with ADLINK ND‑6520 (RS‑232 ↔ RS‑485 converter), ND‑6530 (USB ↔ RS‑485), or ND‑6531 (addressable RS‑485 ↔ RS‑232 converter).
- Controlled via standard RS‑485 interface using ASCII commands.

---

### 5. Components & Accessories
Included Items:
- ND‑6052 module
- Detachable screw‑terminal block for field wiring
- Quick‑start and safety documentation

Optional Accessories:
- ND‑6520 RS‑232 ↔ RS‑485 converter
- ND‑6530 USB ↔ RS‑485 converter
- ND‑6510 RS‑485 repeater for extended networks
- Shielded twisted‑pair RS‑485 cables (120 Ω characteristic impedance)
- 120 Ω ± 2 % termination resistors for bus ends
- DIN‑rail mounting kit

Connectors and Pin Assignments:
| Pin | Signal | Description |
|-----|---------|-------------|
| 1 | DI5+ | Digital Input Channel 5 (+) |
| 2 | DI5– | Digital Input Channel 5 (–) |
| 3 | DI6+ | Digital Input Channel 6 (+) |
| 4 | D.GND | Digital Input Common Ground |
| 5 | DI7+ | Digital Input Channel 7 (+) |
| 6 | DEFAULT* | Initialization pin (short to GND for default state) |
| 7 | (Y) DATA+ | RS‑485 Data (+) |
| 8 | (G) DATA– | RS‑485 Data (–) |
| 9 | (R) +VS | Power Supply +10 V – +30 V |
| 10 | (B) GND | Power Ground |
| 11 | DI0+ | Digital Input Channel 0 (+) |
| 12 | DI0– | Digital Input Channel 0 (–) |
| 13 | DI1+ | Digital Input Channel 1 (+) |
| 14 | DI1– | Digital Input Channel 1 (–) |
| 15 | DI2+ | Digital Input Channel 2 (+) |
| 16 | DI2– | Digital Input Channel 2 (–) |
| 17 | DI3+ | Digital Input Channel 3 (+) |
| 18 | DI3– | Digital Input Channel 3 (–) |
| 19 | DI4+ | Digital Input Channel 4 (+) |
| 20 | DI4– | Digital Input Channel 4 (–) |

---

### 6. Installation & Setup
Requirements:
- Host computer with RS‑232 or USB port and corresponding RS‑485 converter (ND‑6520/6530/6531).
- DC power supply +10 V – +30 V DC.
- Shielded twisted‑pair RS‑485 cable (120 Ω).
- NuDAM Administration Utility software (Windows).

Mounting Options:
- DIN‑rail mounting (standard)
- Panel or wall mounting via captive hardware

Configuration Procedure:
1. Initialization:
- Short the DEFAULT* pin to GND and power on to enter default state (Address 00, 9600 bps, checksum disabled).
2. Address & Baud Rate Setup:
- Use the NuDAM Administration Utility or ASCII command `%` to assign a unique address (00–FF hex) and desired baud rate.
3. Network Wiring:
- Connect DATA+ and DATA– lines in parallel across all modules.
- Install 120 Ω termination resistors at both ends of the bus.
- Maintain correct polarity and shielding.
4. Power Connection:
- Connect +Vs (+10 V – +30 V) and GND to a regulated DC source.
5. Verification:
- Use the Administration Utility to search and verify module communication.

Typical Wiring Example:
```
Host (via ND‑6520) → RS‑485 Bus → ND‑6052 Modules
DATA+ -------------- DATA+
DATA– -------------- DATA–
+Vs ---------------- +Vs
GND ---------------- GND
```

---

### 7. Performance & Capabilities
- Input Response Time: Fast digital detection suitable for logic‑level or contact inputs.
- Isolation Protection: 5 kVrms optical isolation between field and logic circuits.
- Network Capacity: Up to 128 modules per segment; 256 modules max with repeaters.
- Communication Distance: Up to 4000 ft (1200 m) per segment.
- Data Integrity: Slew‑rate‑limited RS‑485 transceivers minimize EMI and reflections.
- Power Efficiency: 0.264 W typical consumption ensures low heat dissipation.
- Reliability: Watchdog timers and power‑failure detection guarantee safe operation.
- Limitations: Input voltage must not exceed +30 V DC; module is input‑only (no outputs).

---

### 8. Standards & Compliance
- Electrical Isolation: 5000 Vrms optical isolation (IEC 61010‑1 equivalent).
- Communication Standard: EIA RS‑485 compliant differential signaling.
- EMC/EMI: Designed for industrial noise immunity; internal shielding and filtering.
- Safety: Conforms to CE Class A industrial environment requirements.
- Environmental Protection: PCB conformal coating for humidity and chemical resistance.
- RoHS: Manufactured in compliance with lead‑free and environmental directives.

---

### 9. Additional Information
Warranty:
- One‑year limited warranty from date of purchase against defects in materials and workmanship.
- Excludes damage from misuse, modification, or operation beyond specifications.

Support & Maintenance:
- ADLINK provides NuDAM Administration Utility software for configuration, diagnostics, and calibration.
- Firmware updates and documentation available via ADLINK support channels.
- Recommended periodic inspection of wiring and terminal connections in industrial environments.

Service Policy:
- Return‑to‑factory service; defective units repaired or replaced at ADLINK’s discretion.
- Customer responsible for shipping and insurance; proof of purchase required.

Maintenance Tips:
- Use stable DC power (10–30 V).
- Employ shielded twisted‑pair cabling and proper grounding.
- Avoid installation near high‑power or magnetic sources.
- Ensure termination resistors (120 Ω) at both ends of RS‑485 bus.
- Do not connect or disconnect the DEFAULT* pin while powered.

---

### Summary
The ADLINK NuDAM ND‑6052 is a robust, isolated digital input module engineered for distributed data acquisition over RS‑485 networks. With eight optically isolated inputs, 5 kVrms protection, and comprehensive watchdog safety mechanisms, it ensures reliable digital signal monitoring in demanding industrial environments. Its low power consumption, flexible configuration, and compatibility with the NuDAM‑6000 ecosystem make it ideal for scalable automation, remote monitoring, and control applications requiring high electrical isolation and dependable communication integrity.
