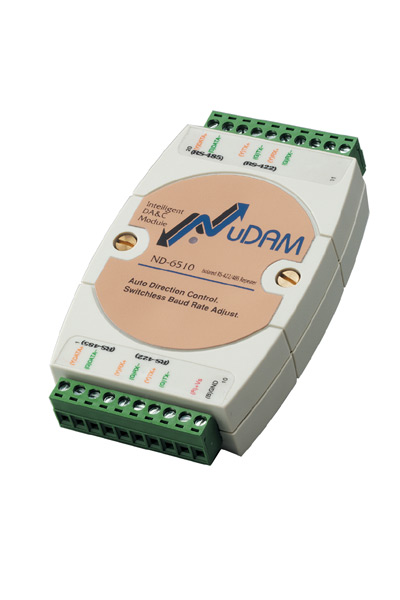

ND-6510
NuDAM RS485 Repeater Module, 1,2 to 38,4kBd
96,00 EUR
inkl. Umsatzsteuer 114,24 EUR
- RS‑422/RS‑485 Signal Repeater:
Functions as a bidirectional repeater for differential serial communication lines, regenerating and retransmitting signals to extend network length or increase node count.
- Automatic Direction Control:
Built‑in communication direction control circuitry automatically manages data flow without requiring external control signals.
- High‑Speed Transmission:
Supports baud rates from 1,200 to 115,200 bps, maintaining reliable data integrity across extended distances.
- Network Expansion Capability:
Each RS‑485 segment supports up to 128 NuDAM modules; with repeaters, the network can scale to 256 addressable modules.
- Extended Communication Distance:
Each segment can reach up to 4,000 feet (1,200 meters); repeaters can be cascaded to cover longer distances.
- Surge Protection and Isolation:
Incorporates transient voltage suppressors (TVS) and positive temperature coefficient (PTC) protection for robust operation in industrial environments.
- Low Power Consumption:
Operates efficiently with a typical power consumption of 1.104 W.
- Simple Setup and Installation:
Hardware‑based configuration via internal DIP switches; no software setup required.
- Industrial‑Grade Design:
Compact ABS enclosure with screw‑terminal connectors for secure wiring and easy DIN‑rail or panel mounting.
Functions as a bidirectional repeater for differential serial communication lines, regenerating and retransmitting signals to extend network length or increase node count.
- Automatic Direction Control:
Built‑in communication direction control circuitry automatically manages data flow without requiring external control signals.
- High‑Speed Transmission:
Supports baud rates from 1,200 to 115,200 bps, maintaining reliable data integrity across extended distances.
- Network Expansion Capability:
Each RS‑485 segment supports up to 128 NuDAM modules; with repeaters, the network can scale to 256 addressable modules.
- Extended Communication Distance:
Each segment can reach up to 4,000 feet (1,200 meters); repeaters can be cascaded to cover longer distances.
- Surge Protection and Isolation:
Incorporates transient voltage suppressors (TVS) and positive temperature coefficient (PTC) protection for robust operation in industrial environments.
- Low Power Consumption:
Operates efficiently with a typical power consumption of 1.104 W.
- Simple Setup and Installation:
Hardware‑based configuration via internal DIP switches; no software setup required.
- Industrial‑Grade Design:
Compact ABS enclosure with screw‑terminal connectors for secure wiring and easy DIN‑rail or panel mounting.
Comprehensive Product Summary – NuDAM ND‑6510 RS‑485 Repeater Module
### 1. Product Overview
Product Name: NuDAM RS‑485 Repeater Module
Model: ND‑6510
Series: NuDAM‑6000 Communication Module Series
Article Number: ND‑6510
Manufacturer: ADLINK Technology Inc. (Taiwan)
The ND‑6510 is a dedicated RS‑422/RS‑485 signal repeater designed to extend communication distance and increase the number of addressable modules in an industrial RS‑485 network. It is part of ADLINK’s NuDAM‑6000 family of distributed data acquisition and control modules, which provide modular, network‑based I/O and communication solutions for industrial automation, process control, and remote data acquisition systems.
### 2. Key Features
- RS‑422/RS‑485 Signal Repeater:
Functions as a bidirectional repeater for differential serial communication lines, regenerating and retransmitting signals to extend network length or increase node count.
- Automatic Direction Control:
Built‑in communication direction control circuitry automatically manages data flow without requiring external control signals.
- High‑Speed Transmission:
Supports baud rates from 1,200 to 115,200 bps, maintaining reliable data integrity across extended distances.
- Network Expansion Capability:
Each RS‑485 segment supports up to 128 NuDAM modules; with repeaters, the network can scale to 256 addressable modules.
- Extended Communication Distance:
Each segment can reach up to 4,000 feet (1,200 meters); repeaters can be cascaded to cover longer distances.
- Surge Protection and Isolation:
Incorporates transient voltage suppressors (TVS) and positive temperature coefficient (PTC) protection for robust operation in industrial environments.
- Low Power Consumption:
Operates efficiently with a typical power consumption of 1.104 W.
- Simple Setup and Installation:
Hardware‑based configuration via internal DIP switches; no software setup required.
- Industrial‑Grade Design:
Compact ABS enclosure with screw‑terminal connectors for secure wiring and easy DIN‑rail or panel mounting.
### 3. Technical Specifications
Interface:
- RS‑485: Differential, 2‑wire, half‑duplex
- RS‑422: Differential, 4‑wire, full‑duplex
Transmission Speed:
- Selectable baud rates: 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps
- Auto‑baudrate and parity detection supported
Data Format:
- Data bits: 5, 6, 7, or 8
- Stop bits: 1 or 2
- Parity: None, Even, or Odd
Bus Capacity:
- Maximum loading: 128 modules per RS‑485 segment
- Maximum addressable modules: 256 (with repeater)
Transmission Distance:
- Up to 4,000 ft (1,200 m) per segment
Power Requirements:
- Supply Voltage: +10 VDC to +30 VDC
- Power Consumption: 1.104 W typical
Isolation & Protection:
- TVS (Transient Voltage Suppressor) and PTC (Positive Temperature Coefficient) protection
- Surge protection on all communication lines
Connectors:
- Dual 10‑pin screw terminal blocks for RS‑422/RS‑485 I/O and power connections
Environmental:
- Operating Temperature: –10 °C to +70 °C
- Storage Temperature: –25 °C to +80 °C
- Humidity: 0–95% RH non‑condensing
Construction:
- Enclosure: Industrial ABS plastic
- Mounting: DIN‑rail or panel mount
### 4. Functionality
The ND‑6510 operates as a transparent repeater between two RS‑485 or RS‑422 network segments. It regenerates and re‑transmits differential signals, ensuring signal integrity over long distances or when the number of connected devices exceeds the electrical loading limit of a single RS‑485 bus.
Typical Use Cases:
- Extending RS‑485 communication beyond 1,200 m
- Expanding networks beyond 128 nodes
- Isolating network segments to reduce noise and interference
- Re‑driving signals in multi‑drop industrial control systems
Applications:
- Factory automation and process control
- Building management systems (BMS)
- Remote data acquisition networks
- Distributed sensor and actuator systems
- SCADA and telemetry installations
Compatibility:
- Fully compatible with other NuDAM‑6000 modules (ND‑6520, ND‑6530, ND‑6531, ND‑601x, ND‑602x, ND‑605x, ND‑606x, ND‑6080)
- Operates with any RS‑485/RS‑422 compliant device
### 5. Components & Accessories
Included Components:
- ND‑6510 repeater module
- Screw terminal connectors for data and power lines
- User documentation (NuDAM‑6000 User’s Guide)
Optional Accessories:
- DIN‑rail mounting kit
- Shielded twisted‑pair communication cables
- 120 Ω termination resistors for bus ends
- External DC power supply (+10 to +30 VDC)
Connectors and Pin Assignments:
Terminal Block 1 (RS‑485/RS‑422 Input):
1. (Y) DATA+ – RS‑485 positive line
2. (G) DATA– – RS‑485 negative line
4. TXIN+ – RS‑422 transmit input (+)
5. TXIN– – RS‑422 transmit input (–)
6. RXOUT+ – RS‑422 receive output (+)
7. RXOUT– – RS‑422 receive output (–)
9. (R) +VS – Power supply input (+10–30 VDC)
10. (B) GND – Power ground
Terminal Block 2 (RS‑485/RS‑422 Output):
14. RXIN– – RS‑422 receive input (–)
15. RXIN+ – RS‑422 receive input (+)
16. TXOUT– – RS‑422 transmit output (–)
17. TXOUT+ – RS‑422 transmit output (+)
19. (G) DATA– – RS‑485 negative line
20. (Y) DATA+ – RS‑485 positive line
### 6. Installation & Setup
Requirements:
- RS‑485 or RS‑422 network cabling (shielded twisted pair recommended)
- DC power supply (+10 to +30 VDC)
- Proper termination resistors (120 Ω ±2%) at both ends of each bus segment
Installation Procedure:
1. Power off all devices on the existing RS‑485/RS‑422 network.
2. Connect the ND‑6510 power terminals to a regulated DC supply.
3. Wire the RS‑485/RS‑422 input and output lines according to polarity and signal type.
4. Ensure correct termination at both ends of each segment.
5. Power on the repeater and verify communication continuity.
Setup:
- Configuration is hardware‑based via internal DIP switches.
- Default settings:
- Baud rate: 9,600 bps
- Data format: 8 data bits, 1 start bit, 1 stop bit, no parity
- Adjust baud rate and data format if required; all devices on the network must share identical communication parameters.
Mounting Options:
- DIN‑rail mounting for control cabinets
- Panel or wall mounting using screws
Cabling Recommendations:
- Use shielded twisted‑pair cable (AWG 22–26)
- Connect cable shields to protective earth at each connection point
- Maintain consistent polarity across all devices
### 7. Performance & Capabilities
Speed and Throughput:
- Supports up to 115.2 kbps data rate with minimal latency
- Transparent data transmission with no protocol overhead
Capacity:
- Each repeater doubles the allowable number of connected modules (up to 256 total)
- Each segment supports up to 128 NuDAM modules
Efficiency:
- Automatic direction control eliminates manual RTS/CTS handling
- Low propagation delay ensures real‑time responsiveness
Limitations:
- Each segment limited to 4,000 ft (1,200 m) without additional repeaters
- All connected devices must share identical baud rate and data format
- Requires external DC power source
Reliability Enhancements:
- Built‑in surge suppression and current limiting
- Thermal shutdown protection
- EMI‑resistant design with internal shielding
### 8. Standards & Compliance
- Electrical Interface: EIA RS‑422 / RS‑485 Standard compliant
- Isolation & Protection: TVS and PTC protection circuits
- EMC Compliance: CE Class A conformity
- Safety: Designed for industrial environments with high noise immunity
- Environmental Protection: PCB conformal coating for humidity and chemical resistance
### 9. Additional Information
Warranty:
- One‑year limited warranty from date of purchase
- Covers defects in materials and workmanship under normal use
- Excludes damage from misuse, modification, or operation beyond specifications
Support & Maintenance:
- Technical support and firmware updates available from ADLINK Technology
- Maintenance involves periodic inspection of wiring, connectors, and power supply stability
- Modules can be replaced or serviced by authorized ADLINK service centers
Service Notes:
- Always power down the network before connecting or disconnecting modules
- Use stable, regulated DC power sources
- Maintain proper shielding and grounding to minimize EMI
Product Lifecycle & Updates:
- ND‑6510 is part of the long‑term supported NuDAM‑6000 platform
- Compatible with ADLINK’s NuDAM Administration Utility for network diagnostics and configuration management
### Summary
The ADLINK NuDAM ND‑6510 RS‑485 Repeater Module is a robust, industrial‑grade communication extender designed to enhance the scalability and reliability of RS‑485/RS‑422 networks. It enables long‑distance, high‑speed, multi‑drop communication between distributed NuDAM modules or other RS‑485 devices. With automatic direction control, surge protection, and simple hardware setup, the ND‑6510 provides a cost‑effective solution for expanding industrial data acquisition and control systems. Its rugged design, wide power range, and compliance with EIA standards make it ideal for demanding automation, monitoring, and process control applications.
### 1. Product Overview
Product Name: NuDAM RS‑485 Repeater Module
Model: ND‑6510
Series: NuDAM‑6000 Communication Module Series
Article Number: ND‑6510
Manufacturer: ADLINK Technology Inc. (Taiwan)
The ND‑6510 is a dedicated RS‑422/RS‑485 signal repeater designed to extend communication distance and increase the number of addressable modules in an industrial RS‑485 network. It is part of ADLINK’s NuDAM‑6000 family of distributed data acquisition and control modules, which provide modular, network‑based I/O and communication solutions for industrial automation, process control, and remote data acquisition systems.
### 2. Key Features
- RS‑422/RS‑485 Signal Repeater:
Functions as a bidirectional repeater for differential serial communication lines, regenerating and retransmitting signals to extend network length or increase node count.
- Automatic Direction Control:
Built‑in communication direction control circuitry automatically manages data flow without requiring external control signals.
- High‑Speed Transmission:
Supports baud rates from 1,200 to 115,200 bps, maintaining reliable data integrity across extended distances.
- Network Expansion Capability:
Each RS‑485 segment supports up to 128 NuDAM modules; with repeaters, the network can scale to 256 addressable modules.
- Extended Communication Distance:
Each segment can reach up to 4,000 feet (1,200 meters); repeaters can be cascaded to cover longer distances.
- Surge Protection and Isolation:
Incorporates transient voltage suppressors (TVS) and positive temperature coefficient (PTC) protection for robust operation in industrial environments.
- Low Power Consumption:
Operates efficiently with a typical power consumption of 1.104 W.
- Simple Setup and Installation:
Hardware‑based configuration via internal DIP switches; no software setup required.
- Industrial‑Grade Design:
Compact ABS enclosure with screw‑terminal connectors for secure wiring and easy DIN‑rail or panel mounting.
### 3. Technical Specifications
Interface:
- RS‑485: Differential, 2‑wire, half‑duplex
- RS‑422: Differential, 4‑wire, full‑duplex
Transmission Speed:
- Selectable baud rates: 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps
- Auto‑baudrate and parity detection supported
Data Format:
- Data bits: 5, 6, 7, or 8
- Stop bits: 1 or 2
- Parity: None, Even, or Odd
Bus Capacity:
- Maximum loading: 128 modules per RS‑485 segment
- Maximum addressable modules: 256 (with repeater)
Transmission Distance:
- Up to 4,000 ft (1,200 m) per segment
Power Requirements:
- Supply Voltage: +10 VDC to +30 VDC
- Power Consumption: 1.104 W typical
Isolation & Protection:
- TVS (Transient Voltage Suppressor) and PTC (Positive Temperature Coefficient) protection
- Surge protection on all communication lines
Connectors:
- Dual 10‑pin screw terminal blocks for RS‑422/RS‑485 I/O and power connections
Environmental:
- Operating Temperature: –10 °C to +70 °C
- Storage Temperature: –25 °C to +80 °C
- Humidity: 0–95% RH non‑condensing
Construction:
- Enclosure: Industrial ABS plastic
- Mounting: DIN‑rail or panel mount
### 4. Functionality
The ND‑6510 operates as a transparent repeater between two RS‑485 or RS‑422 network segments. It regenerates and re‑transmits differential signals, ensuring signal integrity over long distances or when the number of connected devices exceeds the electrical loading limit of a single RS‑485 bus.
Typical Use Cases:
- Extending RS‑485 communication beyond 1,200 m
- Expanding networks beyond 128 nodes
- Isolating network segments to reduce noise and interference
- Re‑driving signals in multi‑drop industrial control systems
Applications:
- Factory automation and process control
- Building management systems (BMS)
- Remote data acquisition networks
- Distributed sensor and actuator systems
- SCADA and telemetry installations
Compatibility:
- Fully compatible with other NuDAM‑6000 modules (ND‑6520, ND‑6530, ND‑6531, ND‑601x, ND‑602x, ND‑605x, ND‑606x, ND‑6080)
- Operates with any RS‑485/RS‑422 compliant device
### 5. Components & Accessories
Included Components:
- ND‑6510 repeater module
- Screw terminal connectors for data and power lines
- User documentation (NuDAM‑6000 User’s Guide)
Optional Accessories:
- DIN‑rail mounting kit
- Shielded twisted‑pair communication cables
- 120 Ω termination resistors for bus ends
- External DC power supply (+10 to +30 VDC)
Connectors and Pin Assignments:
Terminal Block 1 (RS‑485/RS‑422 Input):
1. (Y) DATA+ – RS‑485 positive line
2. (G) DATA– – RS‑485 negative line
4. TXIN+ – RS‑422 transmit input (+)
5. TXIN– – RS‑422 transmit input (–)
6. RXOUT+ – RS‑422 receive output (+)
7. RXOUT– – RS‑422 receive output (–)
9. (R) +VS – Power supply input (+10–30 VDC)
10. (B) GND – Power ground
Terminal Block 2 (RS‑485/RS‑422 Output):
14. RXIN– – RS‑422 receive input (–)
15. RXIN+ – RS‑422 receive input (+)
16. TXOUT– – RS‑422 transmit output (–)
17. TXOUT+ – RS‑422 transmit output (+)
19. (G) DATA– – RS‑485 negative line
20. (Y) DATA+ – RS‑485 positive line
### 6. Installation & Setup
Requirements:
- RS‑485 or RS‑422 network cabling (shielded twisted pair recommended)
- DC power supply (+10 to +30 VDC)
- Proper termination resistors (120 Ω ±2%) at both ends of each bus segment
Installation Procedure:
1. Power off all devices on the existing RS‑485/RS‑422 network.
2. Connect the ND‑6510 power terminals to a regulated DC supply.
3. Wire the RS‑485/RS‑422 input and output lines according to polarity and signal type.
4. Ensure correct termination at both ends of each segment.
5. Power on the repeater and verify communication continuity.
Setup:
- Configuration is hardware‑based via internal DIP switches.
- Default settings:
- Baud rate: 9,600 bps
- Data format: 8 data bits, 1 start bit, 1 stop bit, no parity
- Adjust baud rate and data format if required; all devices on the network must share identical communication parameters.
Mounting Options:
- DIN‑rail mounting for control cabinets
- Panel or wall mounting using screws
Cabling Recommendations:
- Use shielded twisted‑pair cable (AWG 22–26)
- Connect cable shields to protective earth at each connection point
- Maintain consistent polarity across all devices
### 7. Performance & Capabilities
Speed and Throughput:
- Supports up to 115.2 kbps data rate with minimal latency
- Transparent data transmission with no protocol overhead
Capacity:
- Each repeater doubles the allowable number of connected modules (up to 256 total)
- Each segment supports up to 128 NuDAM modules
Efficiency:
- Automatic direction control eliminates manual RTS/CTS handling
- Low propagation delay ensures real‑time responsiveness
Limitations:
- Each segment limited to 4,000 ft (1,200 m) without additional repeaters
- All connected devices must share identical baud rate and data format
- Requires external DC power source
Reliability Enhancements:
- Built‑in surge suppression and current limiting
- Thermal shutdown protection
- EMI‑resistant design with internal shielding
### 8. Standards & Compliance
- Electrical Interface: EIA RS‑422 / RS‑485 Standard compliant
- Isolation & Protection: TVS and PTC protection circuits
- EMC Compliance: CE Class A conformity
- Safety: Designed for industrial environments with high noise immunity
- Environmental Protection: PCB conformal coating for humidity and chemical resistance
### 9. Additional Information
Warranty:
- One‑year limited warranty from date of purchase
- Covers defects in materials and workmanship under normal use
- Excludes damage from misuse, modification, or operation beyond specifications
Support & Maintenance:
- Technical support and firmware updates available from ADLINK Technology
- Maintenance involves periodic inspection of wiring, connectors, and power supply stability
- Modules can be replaced or serviced by authorized ADLINK service centers
Service Notes:
- Always power down the network before connecting or disconnecting modules
- Use stable, regulated DC power sources
- Maintain proper shielding and grounding to minimize EMI
Product Lifecycle & Updates:
- ND‑6510 is part of the long‑term supported NuDAM‑6000 platform
- Compatible with ADLINK’s NuDAM Administration Utility for network diagnostics and configuration management
### Summary
The ADLINK NuDAM ND‑6510 RS‑485 Repeater Module is a robust, industrial‑grade communication extender designed to enhance the scalability and reliability of RS‑485/RS‑422 networks. It enables long‑distance, high‑speed, multi‑drop communication between distributed NuDAM modules or other RS‑485 devices. With automatic direction control, surge protection, and simple hardware setup, the ND‑6510 provides a cost‑effective solution for expanding industrial data acquisition and control systems. Its rugged design, wide power range, and compliance with EIA standards make it ideal for demanding automation, monitoring, and process control applications.
