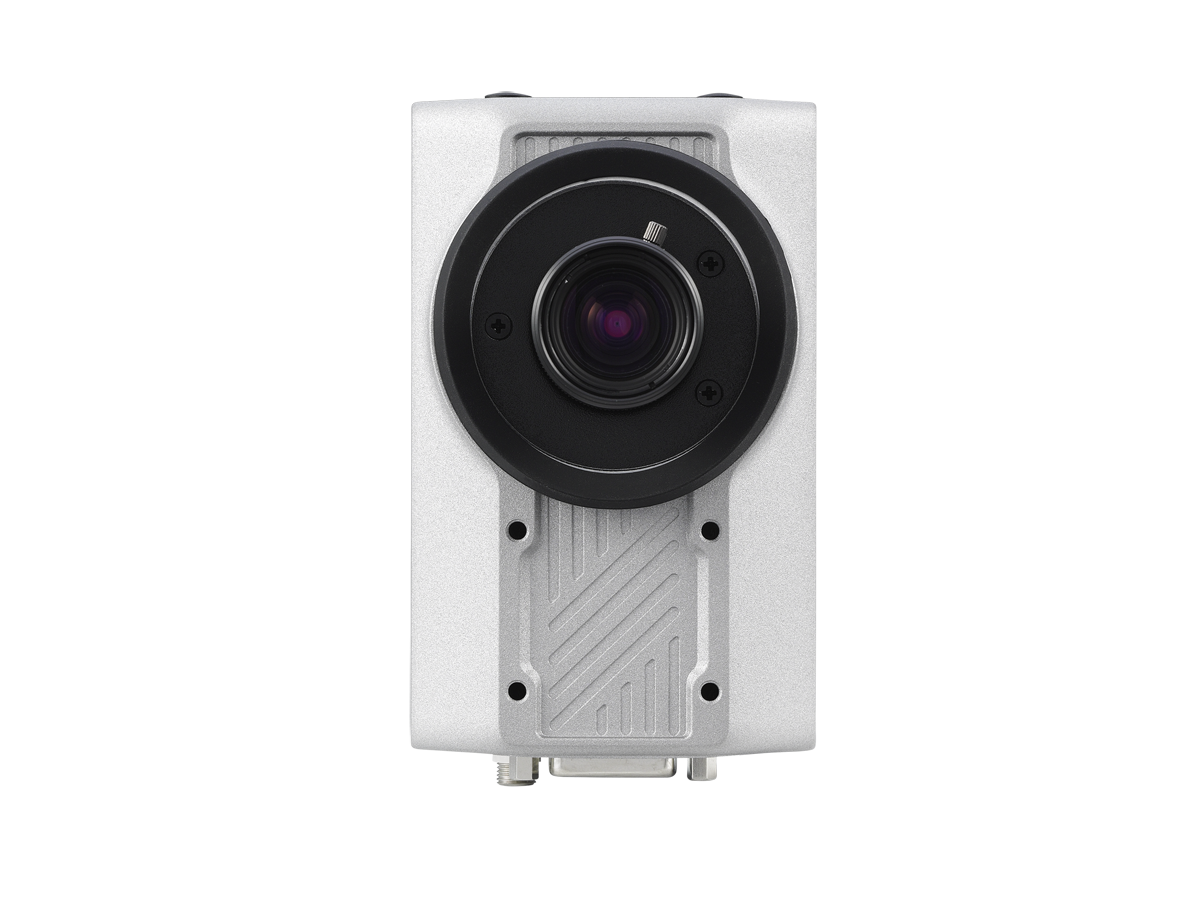

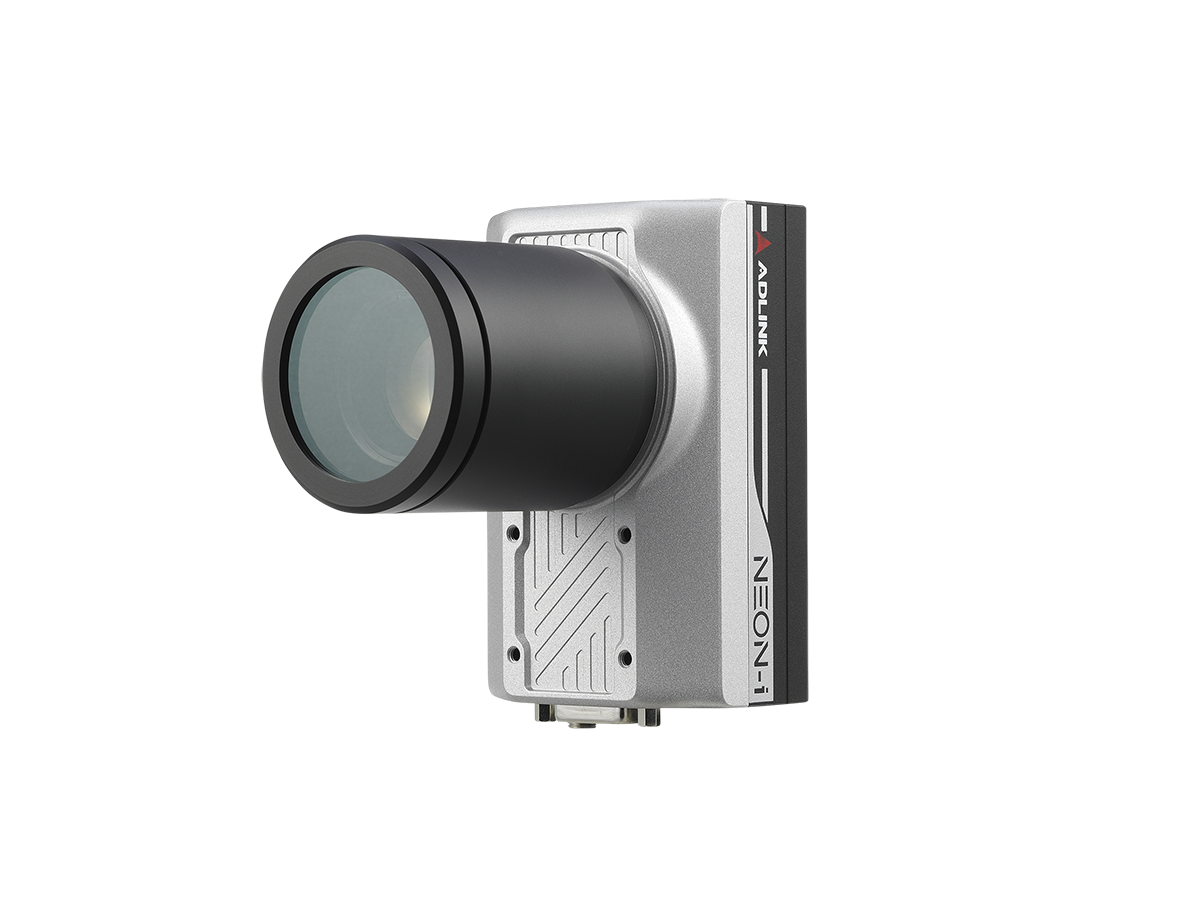

Comprehensive Product Summary: ADLINK NEON-i1000 Series Industrial AI Camera Family
### 1. Product Overview
Product Name: NEON-i1000 Series
Model Variants: NEON-i101B, NEON-i102B, NEON-i103B, NEON-i104B
Series: NEON Industrial AI Camera Family
Article Number: NEON-i1000 Series
Manufacturer: ADLINK Technology Inc.
Product Type: NVIDIA® Jetson™ TX2-based industrial AI smart camera for edge computing and deep learning inference
The ADLINK NEON-i1000 Series represents a family of compact, high-performance industrial AI cameras designed for edge computing applications. Each model integrates the NVIDIA® Jetson™ TX2 embedded computing module, providing powerful GPU-accelerated processing for real-time deep learning inference directly at the edge. The series supports multiple image sensor configurations, flexible I/O interfaces, and robust industrial-grade design, making it suitable for machine vision, automation, inspection, and AI-based visual analytics.
### 2. Key Features
- Embedded NVIDIA® Jetson™ TX2 Platform:
Each NEON-i1000 camera integrates the Jetson TX2 module, featuring a 256-core NVIDIA Pascal™ GPU, 8 GB LPDDR4 memory, and 59.7 GB/s memory bandwidth. This enables high-performance AI inference and image processing without requiring an external host PC.
- Multiple Sensor Options:
The series supports four distinct color image sensors, offering resolutions from 1.2 megapixels to 5 megapixels, with both global and rolling shutter options to accommodate various imaging requirements.
- Comprehensive I/O Integration:
Includes 4x digital inputs (one configurable as a sensor trigger), 4x digital outputs (one configurable as a strobe output), 1x UART (TXD, RXD, GND), 1x Gigabit Ethernet port, and 1x Type-C port supporting both display output and USB connectivity.
- Flexible Storage and Expansion:
Equipped with a Micro SD slot for external storage expansion, supporting data logging, model deployment, and image archiving.
- Lens Compatibility:
Supports C-mount lenses, providing flexibility for different focal lengths and optical configurations.
- Compact Industrial Design:
The ruggedized housing (123.4 × 77.57 × 72.2 mm) is optimized for industrial environments, ensuring durability and ease of installation in constrained spaces.
- Software Ecosystem:
Fully compatible with Ubuntu 18.04 and NVIDIA JetPack 4.2.1, enabling developers to leverage CUDA, cuDNN, and TensorRT for AI model deployment and optimization.
- Edge AI Capability:
Designed for deep learning inference at the edge, reducing latency and network dependency by processing data locally.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Processor Module | NVIDIA® Jetson™ TX2 |
| GPU Architecture | 256-core NVIDIA Pascal™ GPU |
| Memory | 8 GB LPDDR4 |
| Storage Expansion | 1x Micro SD slot |
| Display Output | DisplayPort via Type-C, up to 1920×1080 @ 30 fps |
| Ethernet | 1x Gigabit Ethernet (GbE) |
| UART Interface | TXD, RXD, GND |
| Digital Inputs | 4x DI (including 1x sensor trigger) |
| Digital Outputs | 4x DO (including 1x strobe output) |
| Power Supply Options | 12 VDC/48 W via DC jack or 15 V/45 W, 9 V/27 W via Type-C connector |
| Operating Temperature | 0°C to 45°C |
| Dimensions (W × H × D) | 123.4 × 77.57 × 72.2 mm |
| Lens Mount | C-mount |
| Operating System | Ubuntu 18.04 |
| Software Stack | NVIDIA JetPack 4.2.1 |
| Construction | Industrial-grade aluminum housing |
| Weight | (Not specified; estimated < 1 kg based on form factor) |
Image Sensor Options by Model:
| Model | Resolution | Sensor Size | Frame Rate | Shutter Type | Color/Mono |
|------------|----------------|-----------------|----------------|------------------|----------------|
| NEON-i101B | 1280 × 960 (1.2 MP) | 1/3" | 54 fps | Global Shutter | Color |
| NEON-i102B | 1600 × 1200 (1.9 MP) | 1/1.8" | 60 fps | Global Shutter | Color |
| NEON-i103B | 1920 × 1080 (2 MP) | 1/3.7" | 30 fps | Rolling Shutter | Color |
| NEON-i104B | 2592 × 1944 (5 MP) | 1/2.5" | 14 fps | Rolling Shutter | Color |
### 4. Functionality
The NEON-i1000 Series functions as a self-contained AI vision system, combining image acquisition, processing, and inference in a single device. The integrated Jetson TX2 module executes deep learning models locally, enabling real-time object detection, classification, and inspection tasks without reliance on cloud or external computing resources.
Typical Use Cases:
- Industrial Automation: Visual inspection, defect detection, and quality assurance in manufacturing lines.
- Logistics and Warehousing: Barcode recognition, object tracking, and package sorting.
- Smart Cities: Traffic monitoring, vehicle recognition, and pedestrian detection.
- Robotics: Vision-guided navigation and manipulation.
- Healthcare and Laboratory Automation: Sample identification and process monitoring.
Compatibility:
- Compatible with standard C-mount lenses and industrial lighting systems.
- Supports integration with PLC systems via digital I/O.
- Network connectivity via Gigabit Ethernet for data transfer and remote management.
- Software environment supports TensorFlow, PyTorch, and OpenCV through JetPack SDK.
### 5. Components & Accessories
Included Accessories:
- DB15 to 37-pin DI/O Cable: Provides access to digital input/output signals for external device integration.
- Type-C Hub: Enables connection of display, USB peripherals, and power through a single Type-C interface.
- DIN37 I/O Extension Board: Expands digital I/O connectivity for industrial control applications.
- 12V DC Power Adapter: Standard power supply for standalone operation.
Optional Accessories:
- C-mount lenses of various focal lengths.
- Mounting brackets and enclosures for specific industrial setups.
- Additional storage via Micro SD cards.
### 6. Installation & Setup
Requirements:
- Power input via 12V DC jack or USB Type-C (9V/15V supported).
- Compatible display or host system for configuration via Type-C display output.
- Ubuntu 18.04 environment for software setup and model deployment.
Mounting Options:
- Standard C-mount lens interface for optical alignment.
- Compact form factor allows direct mounting on robotic arms, conveyors, or inspection stations.
- DIN rail or bracket mounting supported via optional accessories.
Configuration Steps:
1. Connect power via DC jack or Type-C port.
2. Attach lens and adjust focus.
3. Connect to network via Gigabit Ethernet.
4. Access the device through Ubuntu 18.04 environment.
5. Deploy AI models using JetPack 4.2.1 and NVIDIA SDK tools.
6. Configure digital I/O for trigger and strobe synchronization.
### 7. Performance & Capabilities
Processing Performance:
- Powered by NVIDIA Jetson TX2, capable of up to 1.5 TFLOPS FP16 performance.
- Supports real-time inference for deep learning models such as YOLO, SSD, and ResNet.
Imaging Performance:
- High frame rate options up to 60 fps (NEON-i102B).
- Global shutter models (i101B, i102B) ideal for motion capture and high-speed inspection.
- Rolling shutter models (i103B, i104B) optimized for static or slower-moving scenes.
Data Throughput:
- Gigabit Ethernet ensures fast data transfer and remote monitoring.
- USB Type-C supports high-speed peripheral connectivity.
Efficiency:
- Low power consumption (27–48 W depending on configuration).
- Fanless design for silent operation and reduced maintenance.
Limitations:
- Operating temperature limited to 0°C–45°C; not suitable for extreme environments without additional cooling.
- Rolling shutter models less suited for high-speed motion capture.
### 8. Standards & Compliance
- Operating System Compliance: Ubuntu 18.04 LTS
- Software Stack: NVIDIA JetPack 4.2.1 (includes CUDA, cuDNN, TensorRT)
- Electrical Compliance: 12V DC / 9V / 15V power input standards
- Interface Standards: Gigabit Ethernet (IEEE 802.3), USB Type-C, UART
- Lens Mount Standard: C-mount (1" thread, 32 TPI)
- Environmental Compliance: RoHS-compliant materials
- Industrial Standards: Designed for industrial automation and machine vision applications
### 9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (typically 1–2 years; subject to ADLINK policy).
- Technical support available through ADLINK’s global service network.
- Firmware and software updates provided via JetPack and ADLINK support channels.
Maintenance:
- Minimal maintenance required due to solid-state design.
- Periodic lens cleaning and firmware updates recommended.
- Optional extended service contracts available.
Software Updates:
- Compatible with future JetPack releases for enhanced AI performance.
- Supports OTA (over-the-air) updates when connected to network infrastructure.
Documentation & Resources:
- User manual, installation guide, and SDK documentation available from ADLINK’s official website.
- Example AI models and sample code provided for rapid deployment.
### Summary
The ADLINK NEON-i1000 Series is a robust, compact, and intelligent industrial camera family built around the NVIDIA Jetson TX2 platform. It merges high-quality imaging with powerful edge AI processing, enabling real-time visual analytics directly at the point of data capture. With multiple sensor configurations, flexible I/O, and comprehensive software support, the NEON-i1000 series is ideal for a wide range of industrial and embedded vision applications—from automated inspection to smart robotics and AI-driven quality control.
Each model in the series offers a balance between resolution, frame rate, and shutter type, allowing system integrators and developers to select the optimal configuration for their specific use case. Combined with ADLINK’s industrial reliability and NVIDIA’s AI ecosystem, the NEON-i1000 series delivers a scalable, high-performance solution for next-generation edge intelligence.
