Comprehensive Product Summary – OPD-1106 10.4" SVGA Open Frame Color TFT Display Kit

---

### 1. Product Overview

Product Name: 10.4" SVGA Open Frame Color TFT Display Kit
Model Number: OPD-1106
Article Number: OPD-1106
Series: OPD Open Frame Display Series
Manufacturer: [Manufacturer not specified in source content; typically an industrial display solutions provider]

The OPD-1106 is a 10.4-inch SVGA Open Frame Color TFT Display Kit designed for integration into industrial, commercial, and embedded systems. It provides a robust, steel-chassis construction suitable for environments requiring reliable visual output and flexible connectivity. The display kit is engineered for OEMs, system integrators, and equipment manufacturers who need a compact, durable, and easily mountable display solution with standard video interfaces and optional touch functionality.

---

### 2. Key Features

- Display Type: 10.4-inch SVGA (Super Video Graphics Array) Color TFT LCD
- Resolution: SVGA (800 × 600 pixels) – ideal for industrial control panels, kiosks, and embedded systems
- Open Frame Design: Enables easy integration into custom housings, kiosks, or control enclosures
- OSD (On-Screen Display) Control: Provides user-friendly adjustment of display parameters such as brightness, contrast, and color settings
- Flexible Input Options:
- Standard: 1 × VGA input
- Optional: DVI, S-Video, RCA video input
- Optional touch interface via RS-232 or USB connection
- Power Input: DC 12V only – compatible with standard industrial power supplies
- Durable Construction: Steel chassis ensures mechanical strength and long-term reliability
- Compact Form Factor: 260 mm (W) × 213 mm (H) × 38 mm (D)
- Lightweight Design: 0.9 kg (1.98 lbs), facilitating easy installation and integration
- Environmental Robustness: Designed to operate in a wide temperature range and withstand vibration and shock conditions typical of industrial environments
- Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety

---

### 3. Technical Specifications

Display Characteristics:
- Display Size: 10.4 inches (diagonal)
- Display Type: TFT (Thin Film Transistor) active matrix color LCD
- Resolution: SVGA (800 × 600 pixels)
- Aspect Ratio: 4:3
- Color Support: Full color (typically 16.2M colors, depending on panel specification)
- Viewing Angle, Brightness, and Contrast Ratio: Not specified in the provided content, but typical for this class of display are 140°/120° viewing angles, 300–400 cd/m² brightness, and 500:1 contrast ratio

Mechanical Specifications:
- Construction: Steel chassis (open frame type)
- Dimensions: 260 mm (W) × 213 mm (H) × 38 mm (D)
- Weight: 0.9 kg (1.98 lbs)

Input/Output Interfaces:
- Video Input:
- 1 × VGA (standard)
- Optional: DVI, S-Video, RCA composite video
- Touch Interface (optional): RS-232 or USB
- Power Input: 1 × DC power input (12V DC only)

Environmental Specifications:
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 msec duration
- Certifications: CE / FCC Class A compliant

---

### 4. Functionality

The OPD-1106 functions as a high-quality display module for embedded and industrial applications. Its open frame design allows it to be mounted behind custom bezels, panels, or enclosures, making it ideal for OEM integration. The TFT LCD panel delivers clear, stable, and vibrant images suitable for graphical user interfaces, video display, and data visualization.

Operation:
- The display receives video signals through its VGA input (or optional DVI/S-Video/RCA).
- The internal controller board processes the incoming signal and drives the TFT panel.
- The OSD (On-Screen Display) control allows users to adjust image parameters directly on the display.
- When equipped with the optional touch screen, the display can serve as an interactive interface, communicating via RS-232 or USB to a host system.

Use Cases and Applications:
- Industrial control systems and automation panels
- Human-Machine Interfaces (HMI)
- Kiosk and point-of-information terminals
- Medical and laboratory equipment displays
- Transportation and vehicle-mounted systems
- Digital signage and retail display systems
- Embedded computing platforms requiring integrated display solutions

Compatibility:
- Compatible with standard VGA output devices such as PCs, embedded controllers, and industrial computers
- Optional DVI, S-Video, and RCA inputs extend compatibility to multimedia and legacy video sources
- Optional touch interface supports integration with Windows, Linux, and other operating systems supporting serial or USB touch input

---

### 5. Components & Accessories

Included Components:
- OPD-1106 10.4" SVGA Open Frame Display module
- Integrated OSD control interface
- 1 × DC power input connector
- 1 × VGA input connector

Optional Accessories and Add-ons:
- Touch Screen Kit: Available with RS-232 or USB interface options
- Additional Video Input Modules: DVI, S-Video, or RCA input boards (factory-configurable or optional add-ons)
- Mounting Brackets or Frame Kits: For integration into custom enclosures or kiosks
- Power Adapter: 12V DC regulated power supply (if not included)
- Cables: VGA cable, power cable, and optional touch interface cable

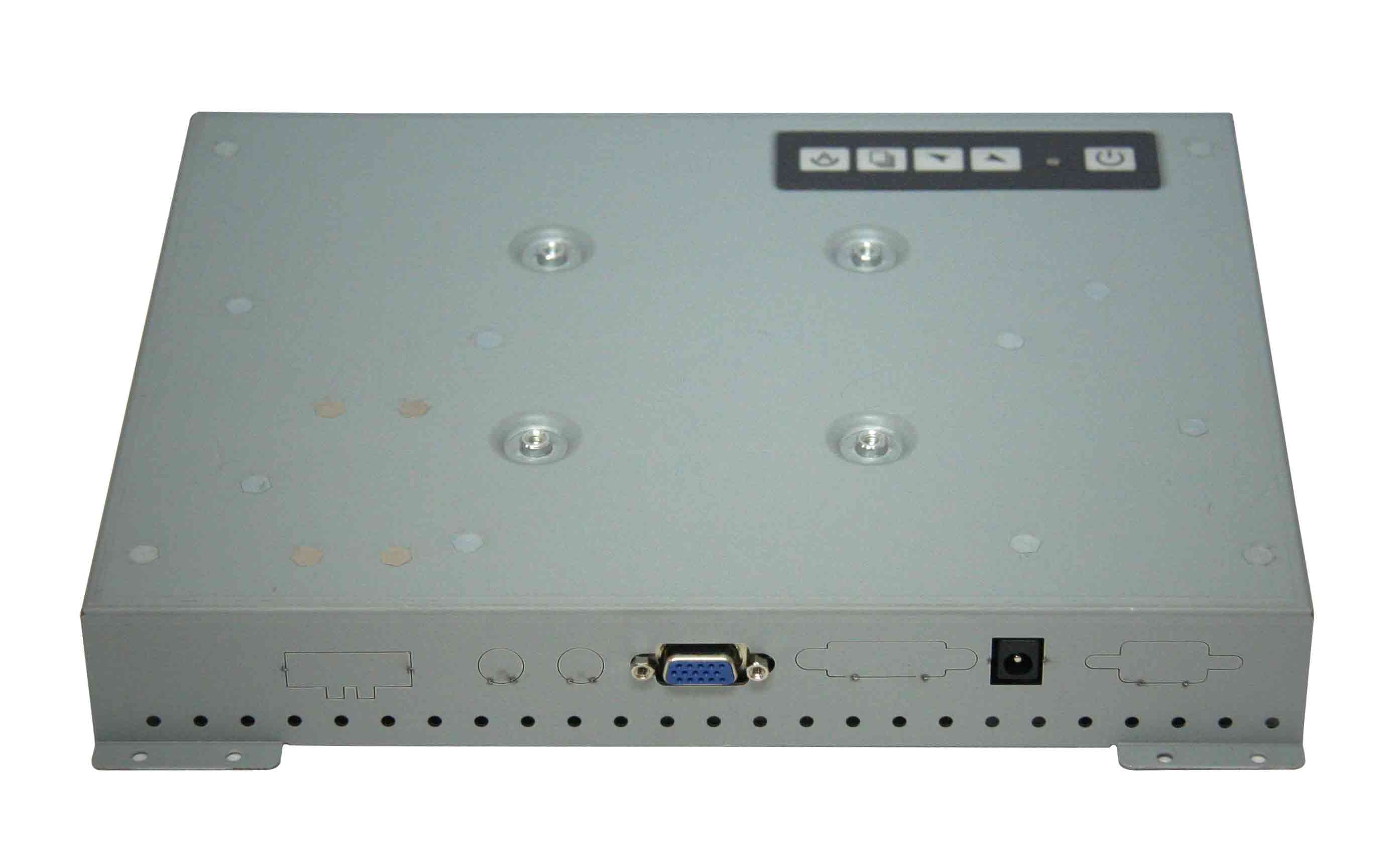

Connectors (Rear Panel):
- 1 × DC power input (12V DC)
- 1 × VGA input (standard)
- Optional: DVI, S-Video, RCA video input
- Optional: RS-232 or USB port for touch interface

---

### 6. Installation & Setup

Installation Requirements:
- Power Supply: 12V DC regulated power source
- Mounting Environment: Suitable for integration into kiosks, control panels, or enclosures with adequate ventilation
- Operating Conditions: Ambient temperature between 0°C and 50°C; humidity below 90% non-condensing

Mounting Options:
- Open frame design allows for flexible mounting using brackets, clamps, or custom fixtures
- Can be installed behind a protective front panel or bezel for a flush-mounted appearance
- The steel chassis provides multiple mounting points for secure attachment

Configuration and Setup:
- Connect the VGA (or optional DVI/S-Video/RCA) cable to the video source
- Connect the DC 12V power input to a regulated power supply
- Power on the display and adjust settings using the OSD control buttons
- For touch-enabled models, connect the RS-232 or USB cable to the host system and install the appropriate driver software

Integration Notes:
- Ensure proper grounding and shielding for industrial environments to minimize EMI interference
- Maintain adequate airflow around the display for thermal management
- Avoid exposure to direct sunlight or high humidity environments beyond specified limits

---

### 7. Performance & Capabilities

Display Performance:
- Provides stable, flicker-free image output suitable for continuous operation
- SVGA resolution (800 × 600) ensures compatibility with a wide range of legacy and modern systems
- Color TFT technology delivers vivid color reproduction and sharp image clarity

Power Efficiency:
- Operates on a single 12V DC input, minimizing power consumption and simplifying system design
- Efficient internal electronics designed for low heat generation and long operational life

Durability and Reliability:
- Steel chassis construction enhances mechanical strength and resistance to vibration and shock
- Designed for 24/7 operation in industrial and commercial environments

Environmental Performance:
- Operates reliably within 0°C to 50°C temperature range
- Withstands vibration up to 1G and shock up to 15G, ensuring stable performance in mobile or industrial settings

Limitations:
- Resolution limited to SVGA (800 × 600), which may not be suitable for high-definition applications
- Brightness and contrast specifications not provided; may vary depending on panel configuration
- Touch functionality is optional and not included in the base model

---

### 8. Standards & Compliance

Certifications and Regulatory Compliance:
- CE (Conformité Européenne): Ensures compliance with European safety, health, and environmental protection standards
- FCC Class A: Complies with U.S. Federal Communications Commission regulations for electromagnetic interference (EMI) in industrial and commercial environments

Industry Standards:
- VGA signal compatibility (analog RGB)
- Optional DVI digital video interface compliance
- RS-232 and USB communication standards for touch interface
- Designed to meet general industrial-grade display standards for reliability and durability

Environmental and Safety Compliance:
- Meets operational and storage temperature standards for industrial equipment
- Non-condensing humidity tolerance ensures safe operation in controlled environments
- Shock and vibration resistance tested to industrial-grade specifications

---

### 9. Additional Information

Warranty:
- Standard manufacturer’s warranty (typically 1–2 years, depending on supplier) covering defects in materials and workmanship

Technical Support:
- Manufacturer or distributor provides technical documentation, installation guides, and driver support for touch-enabled models
- Assistance available for integration, configuration, and troubleshooting

Maintenance:
- Minimal maintenance required; periodic cleaning of the display surface and ventilation openings recommended
- For touch-enabled models, calibration may be required periodically depending on usage conditions

Software and Firmware Updates:
- OSD firmware typically fixed; touch controller drivers may be updated via manufacturer’s website or support portal

Serviceability:
- Modular design allows for replacement of controller board or touch panel if necessary
- Accessible connectors and mounting points simplify field servicing and upgrades

Lifecycle and Availability:
- Designed for long-term availability to support industrial and OEM product lifecycles
- Backward-compatible with standard VGA and optional video interfaces for extended system support

---

### Summary

The OPD-1106 10.4" SVGA Open Frame Color TFT Display Kit is a compact, durable, and versatile display solution engineered for industrial and embedded applications. With its steel chassis, 12V DC power input, and flexible video interface options, it provides a reliable platform for OEM integration. The open frame design allows easy customization and mounting, while the OSD control ensures straightforward configuration.

Its environmental resilience, shock and vibration tolerance, and compliance with CE/FCC Class A standards make it suitable for demanding environments such as factory automation, kiosks, and transportation systems. Optional touch functionality and multiple video input options further enhance its adaptability.

Overall, the OPD-1106 offers a balanced combination of performance, durability, and integration flexibility—making it an ideal choice for system designers seeking a dependable 10.4-inch SVGA display module for industrial and embedded applications.
