Comprehensive Product Summary – OPM‑10 Open Frame LCD Monitor

---

### 1. Product Overview

Product Name: OPM‑10
Model: OPM‑10
Series: OPM Open Frame LCD Display Series
Article Number: OPM‑10
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)

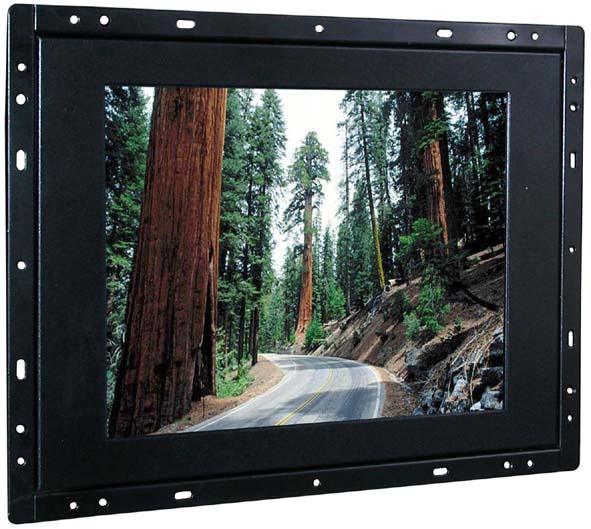

The Acceed OPM‑10 is a 10.4‑inch open‑frame LCD monitor designed for embedded, industrial, and system integration applications. It belongs to Acceed’s OPM series of open‑frame flat‑panel displays, which are engineered for reliable operation in demanding environments. The OPM‑10 provides a compact, metal‑framed display solution with a stable rear chassis and an open front design, making it ideal for integration into kiosks, control panels, industrial machines, and custom enclosures.

---

### 2. Key Features

- Display Type: 10.4‑inch SVGA TFT LCD panel
- Resolution: 800 × 600 pixels (SVGA)
- Color Depth: 262,144 colors (18‑bit color)
- Brightness: 230 cd/m² typical luminance
- Input Interface: Analog VGA input via DB‑15H connector
- Mechanical Design: Open‑frame structure with a stable metal back frame and open front for flexible integration
- Cut‑out Dimensions: 268 × 191.5 mm
- Overall Dimensions: 294.6 × 218.1 mm
- Backlight Lifetime (MTBF): 20,000 hours typical
- Mounting: Panel‑mount compatible, suitable for embedded installations
- Construction: Heavy‑duty steel chassis for durability and rigidity
- Operating System Compatibility: Compatible with standard VGA output from PCs running MS‑DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, and Windows XP
- Optional Touchscreen: Analog resistive touchscreen available on related models (e.g., OPM‑12T)
- Applications: Industrial automation, kiosks, digital signage, control systems, instrumentation, and embedded computing

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Size | 10.4 inches (diagonal) |
| Display Type | TFT Active Matrix LCD |
| Native Resolution | 800 × 600 (SVGA) |
| Maximum Colors | 262,144 (18‑bit) |
| Brightness (Luminance) | 230 cd/m² |
| Contrast Ratio | Approx. 200:1 (typical, comparable to OPM‑12) |
| Viewing Angle | Approx. +55°/‑60° horizontal, +35°/‑55° vertical (reference from OPM‑12) |
| Response Time | Approx. 20 ms rise / 35 ms decay (typical for series) |
| Pixel Pitch | Approx. 0.3075 × 0.3075 mm (typical for 10.4" SVGA panels) |
| Backlight Type | CCFL backlight |
| Backlight Lifetime (MTBF) | 20,000 hours |
| Input Signal | Analog VGA (DB‑15H connector) |
| Power Supply | External DC 12 V adapter (36 W typical) |
| Construction | Metal back frame, open front, heavy‑duty steel chassis |
| Mounting Options | Panel mount, VESA 75/100 mm compatible |
| Cut‑out Dimensions | 268 × 191.5 mm |
| Overall Dimensions (W × H) | 294.6 × 218.1 mm |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | ‑20 °C to +60 °C |
| Storage Humidity | 10% to 95% @ 40 °C, non‑condensing |
| Vibration Resistance | 10–150 Hz, 0.15 mm amplitude, 1 G, 10 cycles |
| Shock Resistance | 30 G peak acceleration, 11 ms duration |
| MTBF (System) | 20,000 hours |
| Weight | Approx. 1.5–2.0 kg (estimated based on chassis size) |

---

### 4. Functionality

The OPM‑10 operates as a stand‑alone open‑frame LCD display that connects to any standard VGA output source. It is designed for embedded integration into industrial or commercial systems where a display is required but a full monitor enclosure is not desired.

How It Works:
- The display receives analog video signals through its DB‑15H VGA connector.
- The internal controller board converts the analog signal into digital data for the TFT panel.
- The backlight system provides uniform illumination across the screen.
- The metal chassis ensures mechanical stability and effective heat dissipation.
- Optional on‑screen display (OSD) controls (on rear panel) allow adjustment of brightness, contrast, color, and image position.

Use Cases and Applications:
- Industrial Control Panels: Integration into factory automation systems and machine interfaces.
- Kiosk Terminals: Public information systems, ticketing, and vending machines.
- Digital Signage: Compact display for advertising or information display.
- Medical Equipment: Embedded visualization in diagnostic or monitoring devices.
- Instrumentation: Display interface for measurement and control systems.
- Embedded Computing: Integration with industrial PCs or embedded controllers.

Compatibility:
- Compatible with standard VGA output from PCs, embedded controllers, and industrial computers.
- Works with legacy operating systems (MS‑DOS, Windows 98/SE, NT 4.0, 2000, XP) and modern systems supporting VGA output.

---

### 5. Components & Accessories

Included Items:
- OPM‑10 open‑frame LCD monitor unit
- External 12 V DC power adapter (36 W typical)
- VGA signal cable (DB‑15 male‑to‑male, optional depending on configuration)
- Mounting brackets or screws (for panel installation)
- User manual and installation guide

Optional Add‑Ons:
- Touchscreen Kit: Analog resistive touchscreen with RS‑232 or USB controller (available on OPM‑12T and compatible with OPM‑10 upon request)
- AV Input Module: Optional composite video input board (for models supporting AV IN)
- Mounting Accessories: VESA 75/100 mm compatible brackets
- Power Supply Options: Alternative adapters or DC input cables for embedded power integration

Connectors:
- Video Input: 15‑pin D‑Sub (DB‑15H) VGA connector
- Power Input: DC jack for 12 V external adapter
- Optional Touch Interface: RS‑232 or USB connector (for touchscreen models)
- Audio Output: Not applicable for OPM‑10 (speakers available on OPM‑12 series)

---

### 6. Installation & Setup

Requirements:
- Power source: 12 V DC regulated supply (36 W minimum)
- Video source: VGA analog output (800 × 600 resolution recommended)
- Mounting surface or enclosure with cut‑out dimensions of 268 × 191.5 mm

Mounting Options:
- Panel Mount: The open‑frame design allows direct mounting behind a front panel or bezel using screws or brackets.
- VESA Mounting: Compatible with VESA 75 mm or 100 mm hole patterns for flexible installation.
- Embedded Integration: Can be installed within kiosks, cabinets, or custom housings.

Configuration:
- Connect the VGA cable to the DB‑15H input.
- Connect the DC power adapter to the power input jack.
- Power on the display and adjust image settings using the rear OSD controls (brightness, contrast, color, position, phase, and clock).
- For touchscreen models, connect the RS‑232 or USB interface and install the appropriate driver software.

Setup Notes:
- Ensure adequate ventilation for heat dissipation.
- Avoid exposure to direct sunlight or high humidity environments.
- Secure the display firmly to prevent vibration or shock damage.

---

### 7. Performance & Capabilities

Display Performance:
- The OPM‑10 delivers clear, stable SVGA resolution with 262K color depth, suitable for graphical user interfaces and data visualization.
- The 230 cd/m² brightness ensures good readability under typical indoor lighting conditions.
- The 200:1 contrast ratio provides sufficient differentiation between light and dark areas for industrial applications.
- The response time (approx. 20 ms rise / 35 ms decay) supports smooth image transitions for static and moderately dynamic content.

Electrical Performance:
- Operates on a 12 V DC supply with low power consumption (~36 W).
- Stable operation with minimal electromagnetic interference (EMI) due to shielded metal chassis.

Mechanical Performance:
- The heavy‑duty steel frame provides rigidity and protection against vibration and shock.
- The open‑frame design allows easy integration into custom housings.

Environmental Performance:
- Designed for operation in ambient temperatures from 0 °C to +45 °C.
- Withstands storage conditions from ‑20 °C to +60 °C and humidity up to 95% non‑condensing.
- Tested for vibration (10–150 Hz, 1 G) and shock (30 G, 11 ms) resistance.

Limitations:
- Not designed for outdoor use or direct sunlight readability.
- Limited brightness compared to high‑luminance industrial displays.
- No built‑in touchscreen (optional upgrade required).
- No integrated audio system (unlike OPM‑12 which includes 2 × 2 W speakers).

---

### 8. Standards & Compliance

Certifications and Compliance:
- Electrical Safety: Designed to comply with CE and FCC Class A/B standards (typical for Acceed industrial displays).
- Environmental Compliance: RoHS‑compliant materials and lead‑free manufacturing.
- Mechanical Standards: VESA 75/100 mm mounting compatibility.
- Quality Assurance: Manufactured under ISO‑certified quality management systems.

Industry Standards Supported:
- VGA analog video standard (DB‑15 connector)
- RS‑232 and USB communication standards (for optional touchscreen)
- Compatible with standard PC display protocols and timing specifications for 800 × 600 SVGA resolution.

---

### 9. Additional Information

Warranty:
- Standard manufacturer warranty: 12 months (extendable depending on region and distributor policy).
- Covers defects in materials and workmanship under normal operating conditions.

Technical Support:
- Provided by Acceed GmbH and authorized distributors.
- Support includes installation guidance, driver downloads (for touchscreen models), and troubleshooting assistance.

Maintenance:
- Periodic cleaning of the display surface with a soft, lint‑free cloth.
- Avoid use of solvents or abrasive materials.
- Ensure proper ventilation to maintain backlight longevity.
- Replace backlight after approximately 20,000 hours of operation if brightness decreases.

Firmware and Software Updates:
- The OPM‑10 itself does not require firmware updates; however, optional touchscreen controllers may have driver updates available for supported operating systems.

Serviceability:
- Modular design allows replacement of backlight or controller board if necessary.
- Accessible rear panel for maintenance and cable connections.

Product Line Context:
- The OPM‑10 is part of Acceed’s OPM series, which includes multiple screen sizes (e.g., OPM‑12, OPM‑12T) with similar mechanical and electrical design principles.
- The OPM‑12T variant adds a resistive touchscreen interface, higher brightness (300 cd/m²), and integrated speakers, demonstrating the scalability of the OPM platform.

---

### Summary

The Acceed OPM‑10 Open Frame LCD Monitor is a 10.4‑inch SVGA industrial display engineered for embedded and panel‑mount applications. It combines a robust metal chassis, open‑frame construction, and reliable TFT technology to deliver consistent performance in industrial and commercial environments. With a brightness of 230 cd/m², 262K color depth, and 20,000‑hour backlight life, it provides a dependable visual interface for control systems, kiosks, and embedded computing solutions. The analog VGA input ensures broad compatibility with legacy and modern systems, while the open‑frame design allows seamless integration into custom housings. Optional touchscreen and mounting accessories extend its versatility across a wide range of applications.

---

Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19, 40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
Email: info@acceed.com
Phone: +49 (0)211 436969‑0
