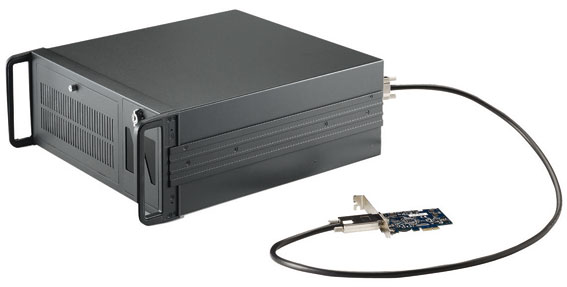

Comprehensive Product Summary: ADLINK PCES‑8581‑13S PCI Express‑to‑PCI Extension System
### 1. Product Overview
Product Name: PCIe Extension Case 13 Free Slots Complete Set
Model: PCES‑8581‑13S
Series: PCES‑8581 (available in 4‑slot and 13‑slot variants)
Article Number: PCES‑8581‑13S
Manufacturer: ADLINK Technology Inc.
Product Type: PCI Express‑to‑PCI Extension System (13‑slot configuration)
Chassis Model: RK‑8014 (19" rack‑mount industrial chassis)
Associated Host Card: PCIe‑8560 (PCI Express x1 interface)
Associated Bridge Card: PCI‑8565 (PCI‑to‑PCI bridge interface)
The ADLINK PCES‑8581‑13S is a high‑performance PCI Express‑to‑PCI expansion system designed to extend PCI connectivity from a host computer to a remote chassis. It provides 13 full‑size PCI slots in a 19‑inch rack‑mount enclosure, enabling users to control multiple PCI devices from a single host PC through a high‑speed PCI Express x1 link. The system includes a 3‑meter shielded twisted‑pair copper cable, a PCIe‑8560 host card, and a pre‑installed PCI‑8565 bridge card within the RK‑8014 chassis.
### 2. Key Features
- PCI Express‑to‑PCI Expansion: Extends PCI bus functionality from a host PC equipped with a PCI Express slot to a remote chassis containing up to 13 PCI devices.
- Transparent Operation: Fully hardware‑transparent bridge; no additional drivers or software required. PCI devices in the extension chassis behave as if installed directly in the host system.
- High‑Speed Interface: PCI Express x1 link supporting 2.5 Gbps per direction (250 MB/s throughput).
- Extended Distance: Supports remote operation up to 7 meters using shielded twisted‑pair copper cables (ACL‑EXPRESS‑1/3/7).
- Industrial‑Grade Design: Rugged 19" rack‑mount chassis with dual 120 mm ball‑bearing fans and 400 W auto‑switching power supply.
- Flexible Power Input: 85 V AC – 265 V AC universal input range with auto‑switching.
- Environmental Resilience: Designed for operation in 0 °C – 50 °C environments; suitable for high‑vibration or hazardous industrial conditions.
- Remote Power Control: Optional remote power‑on/off functionality via BP‑8014 backplane and PCI‑8565 JP1/JP2 connectors.
- Compatibility: Supports both 5 V and 3.3 V PCI buses, 32‑bit/33 MHz operation.
- Applications: Ideal for industrial automation, test and measurement, military/aerospace systems, video capture, and high‑density I/O environments.
### 3. Technical Specifications
Chassis (RK‑8014):
- Form Factor: 19" rack‑mount industrial chassis
- Dimensions: 483.5 mm (W) × 177 mm (H) × 448.5 mm (D)
- Weight: 12 kg (26.4 lb)
- Backplane: 14 × 32‑bit/33 MHz full‑size PCI slots (1 slot for extension card, 13 free PCI slots)
- Cooling: Two 120 mm ball‑bearing fans
- Power Supply:
- Input: 85 V AC – 265 V AC (auto‑switching)
- Output: 400 W total
- Construction: Heavy‑duty steel chassis with rack‑mount brackets
Host Card (PCIe‑8560):
- Compliance: PCI Express Base Specification Rev. 1.0a
- Interface: PCI Express x1 link (2.5 Gbps per direction, 250 MB/s throughput)
- Distance Support: Up to 7 m cable length
- Form Factor: Low‑profile PCIe add‑on card
- Dimensions: 69 mm (H) × 87 mm (W)
- Power Requirement: +3.3 V DC, 210 mA (max)
- Connectors: CN1 PCIe serial link connector; S1/S2 signal equalizer jumpers; D1 status LED
Bridge Card (PCI‑8565):
- Compliance:
- PCI‑to‑PCI Bridge Architecture Specification Rev. 1.2
- PCI Local Bus Specification Rev. 3.0
- Bus Support: 5 V and 3.3 V PCI bus
- Data Throughput: 32‑bit/33 MHz
- Distance Support: Up to 7 m
- Form Factor: Low‑profile PCI add‑on card
- Dimensions: 64 mm (H) × 120 mm (W)
- Power Requirement: +3.3 V DC, 720 mA
- Connectors: CN1 PCIe serial link connector; JP1 remote power‑on; JP2 spread‑spectrum clock control; D1 status LED
Extension Cable (ACL‑EXPRESS Series):
- Available Lengths: 1 m (ACL‑EXPRESS‑1), 3 m (ACL‑EXPRESS‑3), 7 m (ACL‑EXPRESS‑7)
- Construction: Shielded twisted‑pair copper cable
- Signal Bandwidth: 2.5 Gbps
- Connector Type: High‑density locking connectors with retention screws
Environmental Conditions:
- Operating Temperature: 0 °C – 50 °C
- Storage Temperature: −20 °C – 80 °C
- Relative Humidity: 10 % – 90 %, non‑condensing
### 4. Functionality
The PCES‑8581‑13S functions as a transparent PCI Express‑to‑PCI bridge system. A PCIe‑8560 card installed in the host computer communicates with the PCI‑8565 card in the remote chassis via a high‑speed differential serial link. The PCI‑8565 converts the PCIe signal into a standard PCI bus, enabling the host to control up to 13 PCI devices as if they were locally installed.
Use Cases and Applications:
- Industrial Automation: Expands I/O capacity for control systems requiring multiple PCI cards.
- Test and Measurement: Allows DAQ and control cards to be located near the device under test (DUT) while keeping the host PC in a safe environment.
- Aerospace and Defense: Supports ruggedized remote operation in high‑vibration or temperature‑extreme conditions.
- Video Capture and Processing: Provides additional PCI slots for frame grabbers and video processing boards.
- Manufacturing Test Systems: Enables high‑density PCI configurations for automated test equipment (ATE).
Compatibility:
- Works with any standard PCI Express x1 slot on the host system.
- Supports standard 32‑bit PCI cards (5 V or 3.3 V signaling).
- No driver installation required; plug‑and‑play operation.
### 5. Components & Accessories
Included in PCES‑8581‑13S Package:
- PCIe‑8560 host card (PCI Express x1)
- RK‑8014 13‑slot rack‑mount chassis
- Pre‑installed PCI‑8565 bridge card
- 14‑slot backplane (BP‑8014)
- 400 W AC power supply
- 3 m ACL‑EXPRESS‑3 cable
- AC power cord
- Wall‑mount/rack‑mount kit
- Remote power‑on cable
- User’s manual
Optional Accessories:
- ACL‑EXPRESS‑1 (1 m high‑speed cable)
- ACL‑EXPRESS‑3 (3 m high‑speed cable)
- ACL‑EXPRESS‑7 (7 m high‑speed cable)
Connectors and Jumpers (BP‑8014):
- JP2: ATX power enable connector
- JP6: ATX power OK status connector
- FAN4/FAN5/FAN6: +12 V fan connectors
- CN2: 20‑pin ATX power connector
- JP7: LED connector
### 6. Installation & Setup
Requirements:
- Host PC with available PCI Express x1 slot
- Standard AC power source (85 V – 265 V AC)
- Anti‑static handling precautions during installation
Installation Steps:
1. Install PCIe‑8560: Power off the host PC, insert the PCIe‑8560 into an available PCIe x1 slot, and secure it.
2. Install PCI Devices: Open the RK‑8014 chassis, insert PCI cards into available slots, and secure them.
3. Connect Cable: Attach the ACL‑EXPRESS cable between the PCIe‑8560 (host) and PCI‑8565 (chassis). Tighten retention screws.
4. Power Sequence:
- Power on the extension chassis first.
- Then power on the host PC.
- Reverse order for shutdown.
5. Remote Power Control (optional): Connect PCI‑8565 JP1 to BP‑8014 JP2 using the provided cable to enable synchronized power control.
Mounting Options:
- 19" rack‑mount installation (standard)
- Wall‑mount kit included for alternative configurations
Configuration:
- No software configuration required; BIOS automatically enumerates PCI devices through the bridge.
- Signal equalizer settings (S1/S2) on PCIe‑8560 can be adjusted for optimal cable length and signal integrity.
### 7. Performance & Capabilities
- Data Throughput: 2.5 Gbps per direction (PCIe x1 link)
- Bus Operation: 32‑bit/33 MHz PCI bus
- Latency: Minimal, due to transparent bridge architecture
- Capacity: Supports up to 13 PCI devices per chassis; multiple chassis can be used with separate host cards
- Cable Length Options: 1 m, 3 m, or 7 m
- Power Efficiency: 400 W PSU with auto‑switching and dual‑fan cooling ensures stable operation under full load
- Limitations:
- Only one extension chassis per PCIe‑8560 host card (point‑to‑point architecture)
- BIOS resource allocation may limit total PCI devices depending on host system chipset
- Requires host BIOS support for multiple PCI bridges (Intel 945/965 or later recommended)
### 8. Standards & Compliance
- PCI Express Base Specification: Revision 1.0a
- PCI‑to‑PCI Bridge Architecture Specification: Revision 1.2
- PCI Local Bus Specification: Revision 3.0
- Electrical Safety: Designed for industrial environments with proper grounding and shielding
- Environmental Compliance: Operates within industrial temperature and humidity ranges
- EMI Reduction: Spread‑spectrum clock control available on PCI‑8565 (JP2) to minimize electromagnetic interference
### 9. Additional Information
Warranty:
- Standard two‑year limited warranty (one year in China)
- Covers manufacturing defects; excludes damage from misuse, improper installation, or environmental factors
- RMA service available via ADLINK’s online portal (http://rma.adlinktech.com/policy/)
Support & Maintenance:
- Global technical support via regional ADLINK offices (Taiwan, USA, China, Europe, Japan, Korea, Singapore, India)
- Email support: service@adlinktech.com
- Firmware and documentation updates available on [www.adlinktech.com](http://www.adlinktech.com)
Maintenance Guidelines:
- Ensure adequate ventilation and dust‑free environment
- Periodically inspect fan operation and power supply status
- Avoid cable disconnection during operation to prevent data loss
- Follow proper ESD precautions when installing or replacing PCI cards
Safety Notes:
- Disconnect power before installation or maintenance
- Use only grounded power sources
- Do not operate in high‑humidity or wet environments
- Replace lithium batteries (if present) only with approved types
### Summary
The ADLINK PCES‑8581‑13S is a robust, high‑capacity PCI Express‑to‑PCI expansion system engineered for industrial and scientific applications requiring extensive PCI connectivity. By leveraging a transparent PCIe‑to‑PCI bridge architecture, it allows seamless integration of up to 13 PCI devices into a single host system without additional drivers or software. Its 19‑inch rack‑mount chassis, industrial‑grade power supply, and long‑distance cable options make it ideal for remote, high‑density, or hazardous environments. With compliance to PCI Express and PCI standards, flexible installation options, and comprehensive support from ADLINK, the PCES‑8581‑13S delivers reliable, scalable expansion for demanding test, measurement, and automation systems.
