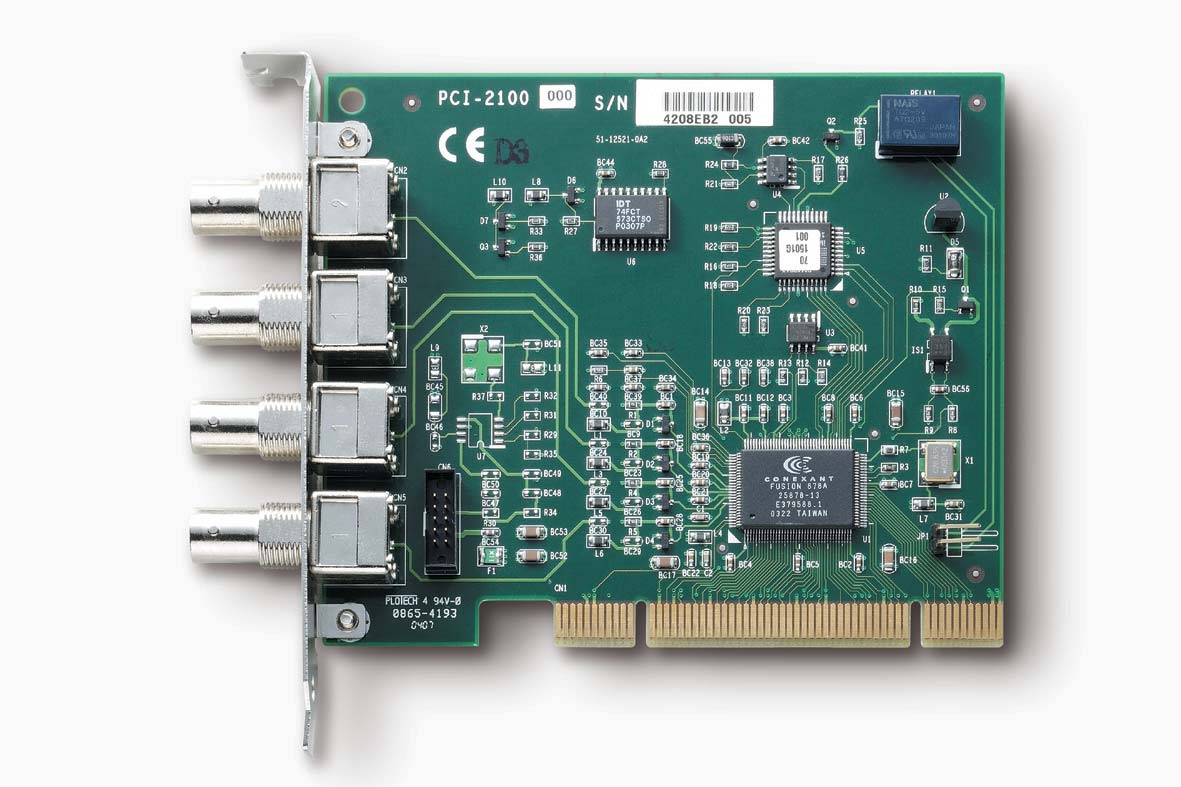

Comprehensive Product Summary – ADLINK PCI‑2100 Frame Grabber 878A PCI Image Acquisition Card
### 1. Product Overview
Product Name: PCI‑2100 Frame Grabber
Model: PCI‑2100
Series: Angelo Frame Grabber Series (RTV Series)
Article Number: PCI‑2100 / Part No. 50‑12419‑001
Manufacturer: ADLINK Technology Inc.
Chipset: Connexant 878A video decoder
Form Factor: 32‑bit PCI bus, half‑size board
Dimensions: 173 mm × 107 mm
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)
Country of Origin: Taiwan
The ADLINK PCI‑2100 is a professional‑grade PCI frame grabber card designed for real‑time, multi‑channel video acquisition. It belongs to the Angelo Frame Grabber Series, optimized for PC‑based digital video recording, machine vision, and surveillance applications. The board integrates a Connexant 878A video decoder and supports up to four simultaneous composite video inputs via BNC connectors.
### 2. Key Features
- Multi‑Channel Real‑Time Video Capture:
Supports simultaneous acquisition of up to four analog video channels in real time. Each channel can capture full‑frame color or monochrome video signals.
- Video Format Compatibility:
Accepts standard composite color formats (NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM) and monochrome formats (CCIR, EIA/RS‑170).
- Programmable Resolution and Scaling:
Supports square‑pixel resolutions (640×480 NTSC, 768×576 PAL) and broadcast resolutions. Images can be cropped or scaled down to 1/16 of original size.
- Adjustable Image Parameters:
Software‑controlled hue, brightness, contrast, and saturation (0–200%) adjustments with automatic chrominance gain control.
- Watchdog Timer:
Hardware watchdog monitors system activity and resets the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- General Purpose I/O (GPIO):
4 TTL‑compatible inputs, 4 outputs, and 4 software‑trigger lines for external synchronization, alarms, or control signals.
- Software Support:
WDM driver with DLL support for Visual C++, Visual Basic, Borland C++ Builder, and Delphi under Windows 98/NT/2000/XP.
Includes ViewCreator Utility for configuration, testing, and image capture.
- User EEPROM:
1 Kbit onboard EEPROM for user‑defined data storage.
- Channel Expansion:
Expandable up to 16 channels via onboard 10‑pin headers and ribbon cable extensions.
- Robust Design:
TTL I/O lines protected against overloads and ESD.
### 3. Technical Specifications
Physical Characteristics
- Dimensions: 173 mm (L) × 107 mm (H)
- Form Factor: 32‑bit, 33/66 MHz PCI half‑size card
- Weight: Approx. 150 g (typical)
- PCB Material: Multi‑layer FR‑4 industrial‑grade board
Video Input
- 4 composite video color digitizers
- Interface: 4 × BNC connectors (75 Ω coaxial recommended)
- Input Signal: 1.0 Vp‑p composite video
- Supported Standards: NTSC, PAL, SECAM, CCIR, EIA
- Channel Extension: Up to 16 channels via 3 × 10‑pin headers (each adds 4 channels)
Video Performance
- NTSC: 30 fps per channel (up to 120 fps total for 4 channels)
- PAL: 25 fps per channel (up to 100 fps total for 4 channels)
- Color Depth: 8‑, 16‑, 24‑, or 32‑bit RGB; YUV 4:2:2 and 4:1:1 formats
- Image Scaling: Down to 1/16 of original size
- Cropping: Programmable region of interest
Electrical Characteristics (GPIO)
- Input High Voltage: 2.0 V (min) to 5.25 V (max)
- Input Low Voltage: 0.0 V to 0.8 V
- Output High Voltage: 5.0 V @ –1.0 mA
- Output Low Voltage: –0.5 V @ 100 mA
- Power Supply: +5 V from PCI bus
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: –20°C to 70°C
- Humidity: 10%–90% non‑condensing
### 4. Functionality
Operation Principle:
The PCI‑2100 digitizes analog composite video signals from up to four cameras simultaneously. Each input is processed by the Connexant 878A decoder, converting analog signals into digital frames stored in system memory via the PCI bus. The card supports continuous or triggered acquisition, with optional scaling and color space conversion.
Use Cases:
- PC‑based digital video recorders (DVRs)
- Multi‑camera surveillance and security systems
- Industrial machine vision and inspection
- Scientific and medical imaging
- Research instrumentation requiring synchronized multi‑channel capture
Compatibility:
- Operating Systems: Windows 98, NT, 2000, XP
- Software Interfaces: Visual C++, Visual Basic, Borland C++ Builder, Delphi
- Supported APIs: ADLINK AngeloRTV function library (DLL)
- Compatible with standard PCI slots (32‑bit, 33/66 MHz)
### 5. Components & Accessories
Included Components:
- PCI‑2100 Frame Grabber Card
- User Manual (Rev. 1.00)
- Driver and Utility Software (ViewCreator)
- Installation Guide
Connectors:
- 4 × BNC video input connectors (CH0–CH3)
- 3 × 10‑pin headers for channel extension (CN2, CN3, CN5)
- 2 × 10‑pin GPIO headers (CN8, CN9)
- 2‑pin header for Watchdog Timer Reset (JP1)
Optional Accessories:
- 10‑pin ribbon cables for channel expansion (up to 16 channels total)
- Coaxial video cables (75 Ω)
- External trigger and GPIO harnesses
### 6. Installation & Setup
System Requirements:
- Available 32‑bit PCI slot (33/66 MHz)
- Pentium‑class CPU or higher
- Minimum 64 MB RAM (128 MB recommended)
- Windows 98/NT/2000/XP operating system
Installation Steps:
1. Power off the PC and remove the cover.
2. Insert the PCI‑2100 into an available PCI slot.
3. Secure the card with the retaining screw.
4. Connect video sources to the BNC inputs.
5. Power on the system; Windows Plug‑and‑Play will detect the card.
6. Install the ADLINK WDM driver when prompted.
7. Launch ViewCreator Utility to verify video input and adjust settings.
Configuration:
- Use ViewCreator to select video format (NTSC/PAL/CCIR/EIA).
- Adjust brightness, contrast, hue, and saturation.
- Define image size (FULL, CIF, QCIF).
- Configure GPIO and software triggers as needed.
### 7. Performance & Capabilities
Acquisition Speed:
- NTSC: 30 fps per channel (up to 120 fps total for 4 channels)
- PAL: 25 fps per channel (up to 100 fps total for 4 channels)
Image Processing:
- Real‑time digitization and transfer via PCI bus
- Programmable scaling and cropping
- RGB and YUV color space conversion
- Automatic chrominance gain control
Triggering & Synchronization:
- 4 software‑programmable trigger outputs (60 µs–16 ms pulse width)
- External trigger inputs via GPIO
- Software and hardware synchronization supported
Watchdog Timer:
- Programmable timeout (8, 16, or 32 seconds)
- Automatic system reset on timeout
Data Handling:
- Frame buffer accessible via API
- Supports continuous capture or frame‑by‑frame acquisition
- Image saving in BMP or TIF formats
Limitations:
- Designed for standard‑definition composite video (not HD)
- Windows‑only driver support (no native Linux support)
- Requires PCI slot (not PCIe compatible)
### 8. Standards & Compliance
- Bus Interface: PCI 2.2 compliant (32‑bit, 33/66 MHz)
- Video Standards: NTSC, PAL, SECAM, CCIR, EIA
- Electrical Safety: TTL‑compatible I/O with ESD protection
- Software Interface: WDM driver architecture for Windows
- Environmental Compliance: RoHS (depending on production year)
- EMC Compliance: Designed to meet FCC Class A / CE industrial standards
### 9. Additional Information
Warranty:
- 2‑year limited warranty from date of shipment
- Covers manufacturing defects and component failures
- Excludes damage from misuse, improper installation, or environmental factors
Technical Support:
- Email: service@adlink.com.tw
- Technical Support Divisions:
- NuDAQ: nudaq@adlink.com.tw
- NuDAM: nudam@adlink.com.tw
- NuIPC: nuipc@adlink.com.tw
- NuPRO: nupro@adlink.com.tw
- Software: sw@adlink.com.tw
- Phone: +886‑2‑82265877
- Fax: +886‑2‑82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance:
- Keep card free from dust and moisture.
- Avoid electrostatic discharge during handling.
- Use only ADLINK‑approved accessories and cables.
Software Updates:
- Updated drivers and utilities available from ADLINK’s website.
- Firmware and API libraries periodically revised for new OS compatibility.
Support Tools:
- ViewCreator Utility: GUI tool for testing, configuration, and image capture.
- AngeloRTV Function Library: Comprehensive API for C/C++/VB/Delphi development, including functions for initialization, configuration, image grabbing, GPIO control, EEPROM access, watchdog timer, and software triggers.
### Summary
The ADLINK PCI‑2100 Frame Grabber 878A PCI Image Acquisition Card is a robust, industrial‑grade solution for multi‑channel analog video capture. With its Connexant 878A chipset, four BNC inputs, and real‑time acquisition capability, it provides reliable performance for surveillance, machine vision, and scientific imaging. The card’s programmable image parameters, watchdog timer, and extensive software library make it ideal for developers and system integrators requiring precise control and high reliability in video acquisition systems.
Its combination of hardware stability, flexible software support, and expandability up to 16 channels positions the PCI‑2100 as a versatile and cost‑effective frame grabber for embedded and PC‑based imaging applications.
### 1. Product Overview
Product Name: PCI‑2100 Frame Grabber
Model: PCI‑2100
Series: Angelo Frame Grabber Series (RTV Series)
Article Number: PCI‑2100 / Part No. 50‑12419‑001
Manufacturer: ADLINK Technology Inc.
Chipset: Connexant 878A video decoder
Form Factor: 32‑bit PCI bus, half‑size board
Dimensions: 173 mm × 107 mm
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)
Country of Origin: Taiwan
The ADLINK PCI‑2100 is a professional‑grade PCI frame grabber card designed for real‑time, multi‑channel video acquisition. It belongs to the Angelo Frame Grabber Series, optimized for PC‑based digital video recording, machine vision, and surveillance applications. The board integrates a Connexant 878A video decoder and supports up to four simultaneous composite video inputs via BNC connectors.
### 2. Key Features
- Multi‑Channel Real‑Time Video Capture:
Supports simultaneous acquisition of up to four analog video channels in real time. Each channel can capture full‑frame color or monochrome video signals.
- Video Format Compatibility:
Accepts standard composite color formats (NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM) and monochrome formats (CCIR, EIA/RS‑170).
- Programmable Resolution and Scaling:
Supports square‑pixel resolutions (640×480 NTSC, 768×576 PAL) and broadcast resolutions. Images can be cropped or scaled down to 1/16 of original size.
- Adjustable Image Parameters:
Software‑controlled hue, brightness, contrast, and saturation (0–200%) adjustments with automatic chrominance gain control.
- Watchdog Timer:
Hardware watchdog monitors system activity and resets the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- General Purpose I/O (GPIO):
4 TTL‑compatible inputs, 4 outputs, and 4 software‑trigger lines for external synchronization, alarms, or control signals.
- Software Support:
WDM driver with DLL support for Visual C++, Visual Basic, Borland C++ Builder, and Delphi under Windows 98/NT/2000/XP.
Includes ViewCreator Utility for configuration, testing, and image capture.
- User EEPROM:
1 Kbit onboard EEPROM for user‑defined data storage.
- Channel Expansion:
Expandable up to 16 channels via onboard 10‑pin headers and ribbon cable extensions.
- Robust Design:
TTL I/O lines protected against overloads and ESD.
### 3. Technical Specifications
Physical Characteristics
- Dimensions: 173 mm (L) × 107 mm (H)
- Form Factor: 32‑bit, 33/66 MHz PCI half‑size card
- Weight: Approx. 150 g (typical)
- PCB Material: Multi‑layer FR‑4 industrial‑grade board
Video Input
- 4 composite video color digitizers
- Interface: 4 × BNC connectors (75 Ω coaxial recommended)
- Input Signal: 1.0 Vp‑p composite video
- Supported Standards: NTSC, PAL, SECAM, CCIR, EIA
- Channel Extension: Up to 16 channels via 3 × 10‑pin headers (each adds 4 channels)
Video Performance
- NTSC: 30 fps per channel (up to 120 fps total for 4 channels)
- PAL: 25 fps per channel (up to 100 fps total for 4 channels)
- Color Depth: 8‑, 16‑, 24‑, or 32‑bit RGB; YUV 4:2:2 and 4:1:1 formats
- Image Scaling: Down to 1/16 of original size
- Cropping: Programmable region of interest
Electrical Characteristics (GPIO)
- Input High Voltage: 2.0 V (min) to 5.25 V (max)
- Input Low Voltage: 0.0 V to 0.8 V
- Output High Voltage: 5.0 V @ –1.0 mA
- Output Low Voltage: –0.5 V @ 100 mA
- Power Supply: +5 V from PCI bus
Environmental
- Operating Temperature: 0°C to 50°C
- Storage Temperature: –20°C to 70°C
- Humidity: 10%–90% non‑condensing
### 4. Functionality
Operation Principle:
The PCI‑2100 digitizes analog composite video signals from up to four cameras simultaneously. Each input is processed by the Connexant 878A decoder, converting analog signals into digital frames stored in system memory via the PCI bus. The card supports continuous or triggered acquisition, with optional scaling and color space conversion.
Use Cases:
- PC‑based digital video recorders (DVRs)
- Multi‑camera surveillance and security systems
- Industrial machine vision and inspection
- Scientific and medical imaging
- Research instrumentation requiring synchronized multi‑channel capture
Compatibility:
- Operating Systems: Windows 98, NT, 2000, XP
- Software Interfaces: Visual C++, Visual Basic, Borland C++ Builder, Delphi
- Supported APIs: ADLINK AngeloRTV function library (DLL)
- Compatible with standard PCI slots (32‑bit, 33/66 MHz)
### 5. Components & Accessories
Included Components:
- PCI‑2100 Frame Grabber Card
- User Manual (Rev. 1.00)
- Driver and Utility Software (ViewCreator)
- Installation Guide
Connectors:
- 4 × BNC video input connectors (CH0–CH3)
- 3 × 10‑pin headers for channel extension (CN2, CN3, CN5)
- 2 × 10‑pin GPIO headers (CN8, CN9)
- 2‑pin header for Watchdog Timer Reset (JP1)
Optional Accessories:
- 10‑pin ribbon cables for channel expansion (up to 16 channels total)
- Coaxial video cables (75 Ω)
- External trigger and GPIO harnesses
### 6. Installation & Setup
System Requirements:
- Available 32‑bit PCI slot (33/66 MHz)
- Pentium‑class CPU or higher
- Minimum 64 MB RAM (128 MB recommended)
- Windows 98/NT/2000/XP operating system
Installation Steps:
1. Power off the PC and remove the cover.
2. Insert the PCI‑2100 into an available PCI slot.
3. Secure the card with the retaining screw.
4. Connect video sources to the BNC inputs.
5. Power on the system; Windows Plug‑and‑Play will detect the card.
6. Install the ADLINK WDM driver when prompted.
7. Launch ViewCreator Utility to verify video input and adjust settings.
Configuration:
- Use ViewCreator to select video format (NTSC/PAL/CCIR/EIA).
- Adjust brightness, contrast, hue, and saturation.
- Define image size (FULL, CIF, QCIF).
- Configure GPIO and software triggers as needed.
### 7. Performance & Capabilities
Acquisition Speed:
- NTSC: 30 fps per channel (up to 120 fps total for 4 channels)
- PAL: 25 fps per channel (up to 100 fps total for 4 channels)
Image Processing:
- Real‑time digitization and transfer via PCI bus
- Programmable scaling and cropping
- RGB and YUV color space conversion
- Automatic chrominance gain control
Triggering & Synchronization:
- 4 software‑programmable trigger outputs (60 µs–16 ms pulse width)
- External trigger inputs via GPIO
- Software and hardware synchronization supported
Watchdog Timer:
- Programmable timeout (8, 16, or 32 seconds)
- Automatic system reset on timeout
Data Handling:
- Frame buffer accessible via API
- Supports continuous capture or frame‑by‑frame acquisition
- Image saving in BMP or TIF formats
Limitations:
- Designed for standard‑definition composite video (not HD)
- Windows‑only driver support (no native Linux support)
- Requires PCI slot (not PCIe compatible)
### 8. Standards & Compliance
- Bus Interface: PCI 2.2 compliant (32‑bit, 33/66 MHz)
- Video Standards: NTSC, PAL, SECAM, CCIR, EIA
- Electrical Safety: TTL‑compatible I/O with ESD protection
- Software Interface: WDM driver architecture for Windows
- Environmental Compliance: RoHS (depending on production year)
- EMC Compliance: Designed to meet FCC Class A / CE industrial standards
### 9. Additional Information
Warranty:
- 2‑year limited warranty from date of shipment
- Covers manufacturing defects and component failures
- Excludes damage from misuse, improper installation, or environmental factors
Technical Support:
- Email: service@adlink.com.tw
- Technical Support Divisions:
- NuDAQ: nudaq@adlink.com.tw
- NuDAM: nudam@adlink.com.tw
- NuIPC: nuipc@adlink.com.tw
- NuPRO: nupro@adlink.com.tw
- Software: sw@adlink.com.tw
- Phone: +886‑2‑82265877
- Fax: +886‑2‑82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance:
- Keep card free from dust and moisture.
- Avoid electrostatic discharge during handling.
- Use only ADLINK‑approved accessories and cables.
Software Updates:
- Updated drivers and utilities available from ADLINK’s website.
- Firmware and API libraries periodically revised for new OS compatibility.
Support Tools:
- ViewCreator Utility: GUI tool for testing, configuration, and image capture.
- AngeloRTV Function Library: Comprehensive API for C/C++/VB/Delphi development, including functions for initialization, configuration, image grabbing, GPIO control, EEPROM access, watchdog timer, and software triggers.
### Summary
The ADLINK PCI‑2100 Frame Grabber 878A PCI Image Acquisition Card is a robust, industrial‑grade solution for multi‑channel analog video capture. With its Connexant 878A chipset, four BNC inputs, and real‑time acquisition capability, it provides reliable performance for surveillance, machine vision, and scientific imaging. The card’s programmable image parameters, watchdog timer, and extensive software library make it ideal for developers and system integrators requiring precise control and high reliability in video acquisition systems.
Its combination of hardware stability, flexible software support, and expandability up to 16 channels positions the PCI‑2100 as a versatile and cost‑effective frame grabber for embedded and PC‑based imaging applications.
-
Angelo_RTV.pdf
Manual
Kein Zubehör vorhanden.
