Comprehensive Product Summary: ADLINK PCI-3488 IEEE-488.2/488.1 GPIB Interface Card Series
### 1. Product Overview

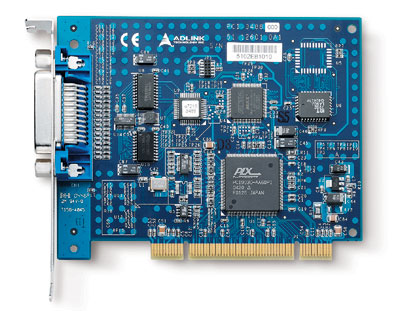

Product Name: PCI-3488 IEEE-488.2 and 488.1 (GPIB) UPCI Interface Card
Model Numbers: PCI-3488, LPCI-3488, PXI-3488
Series: ADLINK IEEE-488 GPIB Interface Card Series
Article Number: PCI-3488
Manufacturer: ADLINK Technology Inc.
Part Number: 50-17023-2010
Manual Revision: 2.01 (April 20, 2006)
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Website: [www.adlinktech.com](http://www.adlinktech.com)
The ADLINK PCI-3488 series represents a family of high-performance IEEE-488 (GPIB) interface controllers designed for PCI, low-profile PCI, and PXI/CompactPCI systems. These cards provide full compliance with IEEE-488.1 (hardware) and IEEE-488.2 (software) standards, enabling seamless communication between computers and up to 14 stand-alone instruments in automated test and measurement (ATE) environments.
### 2. Key Features
- IEEE-488.1 and IEEE-488.2 Compliance: Fully compatible with both hardware and software GPIB standards.
- High Data Throughput: Achieves up to 1.5 MB/s GPIB transfer rate using block transfer mode.
- On-Board FIFO Buffer: 1 KB FIFO memory buffers read/write operations, bridging the speed gap between the GPIB bus (~1.5 MB/s) and PCI bus (132 MB/s).
- PCI Bus Compatibility: Supports both 3.3V and 5V PCI signaling for broad system compatibility.
- PXI Compliance: PXI-3488 conforms to PXI Specification Rev. 2.0 and CompactPCI PICMG 2.0 R3.0 standards.
- Software Compatibility: Binary-compatible with NI-488.2 driver API (GPIB-32.DLL) and supports VISA libraries for maximum interoperability.
- Plug and Play: Automatic resource configuration via PCI/PXI plug-and-play architecture.
- Cross-Platform ADE Support: Works with Microsoft Visual C++/VB, Delphi, LabVIEW, LabWindows/CVI, and Agilent TestExec.
- Diagnostic Utility: Includes ADLINK GPIB Utility for interface testing and instrument communication verification.
- Compact Design: Half-size PCI and low-profile MD1 PCB options for space-constrained systems.
- Industrial Reliability: CE and FCC Class A certified for EMI/EMC compliance.
- Wide Operating Range: Designed for industrial environments with 0–55°C operating temperature and 5–95% non-condensing humidity.
### 3. Technical Specifications
GPIB Bus Properties:
- Maximum connected instruments: 14
- Maximum data transfer rate: 1.5 MB/s
- Cable length: 2 m between instruments (recommended), 20 m total
- Data transfer mode: 8-bit parallel
- Handshake: 3-wire handshake (DAV, NRFD, NDAC)
- Signal lines: 24-pin IEEE-488 standard connector
Electrical & Power Requirements:
| Model | +5V (Typical/Max) | +3.3V (Typical/Max) |
|--------|-------------------|---------------------|
| PCI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
| LPCI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
| PXI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
Environmental Conditions:
- Operating temperature: 0°C to 55°C
- Storage temperature: -20°C to 80°C
- Relative humidity: 5%–95%, non-condensing
Physical Dimensions (excluding connectors):
- PCI-3488: 134 mm × 107 mm
- LPCI-3488: 120 mm × 64.5 mm
- PXI-3488: 160 mm × 100 mm
Certifications:
- CE, FCC Class A (EMC/EMI compliance)
### 4. Functionality
The PCI-3488 series serves as a GPIB controller interface between a host computer and multiple instruments in an automated test setup. It enables the host to send commands, read data, and control instruments through the IEEE-488 bus.
Operation Principle:
- The card’s CPLD-based state machine manages data flow between the PCI controller, FIFO buffer, and GPIB bus.
- The 1 KB FIFO buffers data to prevent bottlenecks, ensuring efficient large-block transfers.
- Supports talker/listener/controller roles as defined by IEEE-488 standards.
Use Cases:
- Automated Test Equipment (ATE) systems
- Laboratory instrumentation control
- Data acquisition and measurement automation
- Industrial process monitoring
- Calibration and diagnostics systems
Compatibility:
- Compatible with Agilent I/O Library, NI VISA, and most existing instrument drivers.
- Supports VISA and GPIB-32.DLL APIs for seamless integration with legacy and modern applications.
### 5. Components & Accessories
Included Items:
- One GPIB interface card (PCI-3488, LPCI-3488, or PXI-3488)
- ADLINK All-in-One Software CD (includes drivers, utilities, and sample code)
- User’s Manual
- Low-profile bracket (included with LPCI-3488)
Optional Accessories:
- ACL-IEEE488-1: 1 m IEEE-488 cable
- ACL-IEEE488-2: 2 m IEEE-488 cable
- ACL-IEEE488-4: 4 m IEEE-488 cable
- ACL-IEEE488-8: 8 m IEEE-488 cable
Connectors:
- IEEE-488 standard 24-pin D-sub connector for GPIB bus
- PXI-3488 includes J1 IEC connectors for PXI backplane interface
### 6. Installation & Setup
Hardware Installation (PCI/LPCI):
1. Power off the computer and peripherals.
2. Open the chassis and locate a 32-bit PCI slot.
3. Discharge static electricity before handling the card.
4. Insert the card firmly into the PCI slot and secure it.
5. Replace the chassis cover and power on the system.
Hardware Installation (PXI):
1. Power off the PXI chassis.
2. Align the PXI-3488 with the card guide and slide it into the slot.
3. Push the ejector handle until the module clicks into place.
4. Tighten the front panel screw.
Cabling Guidelines:
- Maintain ≤2 m between instruments, ≤20 m total.
- Use linear, star, or hybrid topologies.
- Ensure at least 2–3 devices are powered on for stable bus operation.
Software Installation:
1. Insert the ADLINK All-in-One CD.
2. Run `Setup.exe` from `\Software Package\ADLGPIB\`.
3. Follow the InstallShield wizard and reboot after installation.
4. Use ADLINK GPIB Utility to verify connections and test communication.
Supported Operating Systems:
- Windows 98 / NT / 2000 / XP / 2003
(For other OS support, contact ADLINK.)
### 7. Performance & Capabilities
- Transfer Rate: Up to 1.5 MB/s in block transfer mode.
- Bus Throughput: Optimized via 1 KB FIFO buffer.
- PCI Bus Bandwidth: 132 MB/s theoretical maximum.
- Device Control: Up to 14 instruments per controller.
- Data Integrity: 3-wire handshake ensures reliable byte-level acknowledgment.
- Latency Reduction: FIFO buffering minimizes wait states between GPIB and PCI buses.
- Efficiency: Ideal for large-block data transfers and high-speed test automation.
- Limitations: Total cable length limited to 20 m; maximum 15 devices (including controller).
### 8. Standards & Compliance
Hardware Standards:
- IEEE-488.1 (Electrical and Mechanical Specifications)
- IEEE-488.2 (Software Protocols and Command Structures)
- PXI Specification Rev. 2.0 (PXI-3488)
- CompactPCI PICMG 2.0 R3.0 (PXI-3488)
Software Standards:
- NI-488.2 API compatibility (GPIB-32.DLL)
- VISA library support for instrument drivers
Certifications:
- CE (Conformité Européenne)
- FCC Class A (Electromagnetic Compatibility)
Environmental & Safety Compliance:
- Designed for industrial-grade reliability and EMI/EMC performance.
### 9. Additional Information
Warranty:
- Two-year limited warranty (one year for products purchased in China)
- Covers manufacturing defects and hardware failures under normal use.
- Excludes damage from misuse, environmental factors, or unauthorized repair.
- Customers responsible for shipping costs to ADLINK service centers.
Support & Service:
- Email: service@adlinktech.com
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- RMA Portal: [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy)
Maintenance:
- Handle modules on grounded anti-static mats.
- Avoid exposure to high humidity or temperature extremes.
- Use only certified IEEE-488 cables and connectors.
Software & Updates:
- Latest drivers and utilities available from ADLINK’s website.
- ADL-GPIB driver package includes:
- Diagnostic utility (GPIB Utility)
- Sample code for VC++, VB, and Delphi
- VISA and GPIB-32.DLL libraries
Trademarks:
- NI, LabVIEW, LabWindows, and CVI are trademarks of National Instruments.
- All other product names are trademarks of their respective owners.
### Summary
The ADLINK PCI-3488 series (including PCI-3488, LPCI-3488, and PXI-3488) delivers a robust, high-performance solution for IEEE-488 (GPIB) communication in automated test and measurement systems. With full IEEE-488.1/488.2 compliance, 1 KB FIFO buffering, and up to 1.5 MB/s transfer rates, these cards bridge the gap between legacy instrumentation and modern computing platforms. Their compatibility with NI-488.2 APIs, VISA libraries, and multiple ADEs ensures seamless integration into existing test environments. Certified for CE and FCC Class A standards, the PCI-3488 series combines industrial reliability, software flexibility, and plug-and-play ease of use—making it an ideal choice for engineers and system integrators seeking dependable GPIB connectivity across PCI, low-profile PCI, and PXI platforms.

### 1. Product Overview
Product Name: PCI-3488 IEEE-488.2 and 488.1 (GPIB) UPCI Interface Card
Model Numbers: PCI-3488, LPCI-3488, PXI-3488
Series: ADLINK IEEE-488 GPIB Interface Card Series
Article Number: PCI-3488
Manufacturer: ADLINK Technology Inc.
Part Number: 50-17023-2010
Manual Revision: 2.01 (April 20, 2006)
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Website: [www.adlinktech.com](http://www.adlinktech.com)
The ADLINK PCI-3488 series represents a family of high-performance IEEE-488 (GPIB) interface controllers designed for PCI, low-profile PCI, and PXI/CompactPCI systems. These cards provide full compliance with IEEE-488.1 (hardware) and IEEE-488.2 (software) standards, enabling seamless communication between computers and up to 14 stand-alone instruments in automated test and measurement (ATE) environments.
### 2. Key Features
- IEEE-488.1 and IEEE-488.2 Compliance: Fully compatible with both hardware and software GPIB standards.
- High Data Throughput: Achieves up to 1.5 MB/s GPIB transfer rate using block transfer mode.
- On-Board FIFO Buffer: 1 KB FIFO memory buffers read/write operations, bridging the speed gap between the GPIB bus (~1.5 MB/s) and PCI bus (132 MB/s).
- PCI Bus Compatibility: Supports both 3.3V and 5V PCI signaling for broad system compatibility.
- PXI Compliance: PXI-3488 conforms to PXI Specification Rev. 2.0 and CompactPCI PICMG 2.0 R3.0 standards.
- Software Compatibility: Binary-compatible with NI-488.2 driver API (GPIB-32.DLL) and supports VISA libraries for maximum interoperability.
- Plug and Play: Automatic resource configuration via PCI/PXI plug-and-play architecture.
- Cross-Platform ADE Support: Works with Microsoft Visual C++/VB, Delphi, LabVIEW, LabWindows/CVI, and Agilent TestExec.
- Diagnostic Utility: Includes ADLINK GPIB Utility for interface testing and instrument communication verification.
- Compact Design: Half-size PCI and low-profile MD1 PCB options for space-constrained systems.
- Industrial Reliability: CE and FCC Class A certified for EMI/EMC compliance.
- Wide Operating Range: Designed for industrial environments with 0–55°C operating temperature and 5–95% non-condensing humidity.
### 3. Technical Specifications
GPIB Bus Properties:
- Maximum connected instruments: 14
- Maximum data transfer rate: 1.5 MB/s
- Cable length: 2 m between instruments (recommended), 20 m total
- Data transfer mode: 8-bit parallel
- Handshake: 3-wire handshake (DAV, NRFD, NDAC)
- Signal lines: 24-pin IEEE-488 standard connector
Electrical & Power Requirements:
| Model | +5V (Typical/Max) | +3.3V (Typical/Max) |
|--------|-------------------|---------------------|
| PCI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
| LPCI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
| PXI-3488 | 400 mA / 750 mA | 400 mA / 750 mA |
Environmental Conditions:
- Operating temperature: 0°C to 55°C
- Storage temperature: -20°C to 80°C
- Relative humidity: 5%–95%, non-condensing
Physical Dimensions (excluding connectors):
- PCI-3488: 134 mm × 107 mm
- LPCI-3488: 120 mm × 64.5 mm
- PXI-3488: 160 mm × 100 mm
Certifications:
- CE, FCC Class A (EMC/EMI compliance)
### 4. Functionality
The PCI-3488 series serves as a GPIB controller interface between a host computer and multiple instruments in an automated test setup. It enables the host to send commands, read data, and control instruments through the IEEE-488 bus.
Operation Principle:
- The card’s CPLD-based state machine manages data flow between the PCI controller, FIFO buffer, and GPIB bus.
- The 1 KB FIFO buffers data to prevent bottlenecks, ensuring efficient large-block transfers.
- Supports talker/listener/controller roles as defined by IEEE-488 standards.
Use Cases:
- Automated Test Equipment (ATE) systems
- Laboratory instrumentation control
- Data acquisition and measurement automation
- Industrial process monitoring
- Calibration and diagnostics systems
Compatibility:
- Compatible with Agilent I/O Library, NI VISA, and most existing instrument drivers.
- Supports VISA and GPIB-32.DLL APIs for seamless integration with legacy and modern applications.
### 5. Components & Accessories
Included Items:
- One GPIB interface card (PCI-3488, LPCI-3488, or PXI-3488)
- ADLINK All-in-One Software CD (includes drivers, utilities, and sample code)
- User’s Manual
- Low-profile bracket (included with LPCI-3488)
Optional Accessories:
- ACL-IEEE488-1: 1 m IEEE-488 cable
- ACL-IEEE488-2: 2 m IEEE-488 cable
- ACL-IEEE488-4: 4 m IEEE-488 cable
- ACL-IEEE488-8: 8 m IEEE-488 cable
Connectors:
- IEEE-488 standard 24-pin D-sub connector for GPIB bus
- PXI-3488 includes J1 IEC connectors for PXI backplane interface
### 6. Installation & Setup
Hardware Installation (PCI/LPCI):
1. Power off the computer and peripherals.
2. Open the chassis and locate a 32-bit PCI slot.
3. Discharge static electricity before handling the card.
4. Insert the card firmly into the PCI slot and secure it.
5. Replace the chassis cover and power on the system.
Hardware Installation (PXI):
1. Power off the PXI chassis.
2. Align the PXI-3488 with the card guide and slide it into the slot.
3. Push the ejector handle until the module clicks into place.
4. Tighten the front panel screw.
Cabling Guidelines:
- Maintain ≤2 m between instruments, ≤20 m total.
- Use linear, star, or hybrid topologies.
- Ensure at least 2–3 devices are powered on for stable bus operation.
Software Installation:
1. Insert the ADLINK All-in-One CD.
2. Run `Setup.exe` from `\Software Package\ADLGPIB\`.
3. Follow the InstallShield wizard and reboot after installation.
4. Use ADLINK GPIB Utility to verify connections and test communication.
Supported Operating Systems:
- Windows 98 / NT / 2000 / XP / 2003
(For other OS support, contact ADLINK.)
### 7. Performance & Capabilities
- Transfer Rate: Up to 1.5 MB/s in block transfer mode.
- Bus Throughput: Optimized via 1 KB FIFO buffer.
- PCI Bus Bandwidth: 132 MB/s theoretical maximum.
- Device Control: Up to 14 instruments per controller.
- Data Integrity: 3-wire handshake ensures reliable byte-level acknowledgment.
- Latency Reduction: FIFO buffering minimizes wait states between GPIB and PCI buses.
- Efficiency: Ideal for large-block data transfers and high-speed test automation.
- Limitations: Total cable length limited to 20 m; maximum 15 devices (including controller).
### 8. Standards & Compliance
Hardware Standards:
- IEEE-488.1 (Electrical and Mechanical Specifications)
- IEEE-488.2 (Software Protocols and Command Structures)
- PXI Specification Rev. 2.0 (PXI-3488)
- CompactPCI PICMG 2.0 R3.0 (PXI-3488)
Software Standards:
- NI-488.2 API compatibility (GPIB-32.DLL)
- VISA library support for instrument drivers
Certifications:
- CE (Conformité Européenne)
- FCC Class A (Electromagnetic Compatibility)
Environmental & Safety Compliance:
- Designed for industrial-grade reliability and EMI/EMC performance.
### 9. Additional Information
Warranty:
- Two-year limited warranty (one year for products purchased in China)
- Covers manufacturing defects and hardware failures under normal use.
- Excludes damage from misuse, environmental factors, or unauthorized repair.
- Customers responsible for shipping costs to ADLINK service centers.
Support & Service:
- Email: service@adlinktech.com
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- RMA Portal: [http://rma.adlinktech.com/policy](http://rma.adlinktech.com/policy)
Maintenance:
- Handle modules on grounded anti-static mats.
- Avoid exposure to high humidity or temperature extremes.
- Use only certified IEEE-488 cables and connectors.
Software & Updates:
- Latest drivers and utilities available from ADLINK’s website.
- ADL-GPIB driver package includes:
- Diagnostic utility (GPIB Utility)
- Sample code for VC++, VB, and Delphi
- VISA and GPIB-32.DLL libraries
Trademarks:
- NI, LabVIEW, LabWindows, and CVI are trademarks of National Instruments.
- All other product names are trademarks of their respective owners.
### Summary
The ADLINK PCI-3488 series (including PCI-3488, LPCI-3488, and PXI-3488) delivers a robust, high-performance solution for IEEE-488 (GPIB) communication in automated test and measurement systems. With full IEEE-488.1/488.2 compliance, 1 KB FIFO buffering, and up to 1.5 MB/s transfer rates, these cards bridge the gap between legacy instrumentation and modern computing platforms. Their compatibility with NI-488.2 APIs, VISA libraries, and multiple ADEs ensures seamless integration into existing test environments. Certified for CE and FCC Class A standards, the PCI-3488 series combines industrial reliability, software flexibility, and plug-and-play ease of use—making it an ideal choice for engineers and system integrators seeking dependable GPIB connectivity across PCI, low-profile PCI, and PXI platforms.
-
