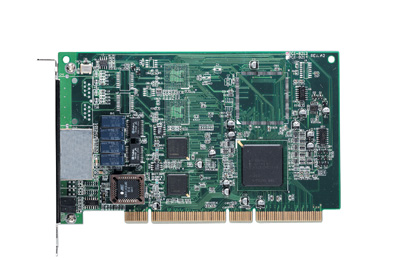

Comprehensive Product Summary – ADLINK PCI-8214 Dual-Port Ethernet PCI Card with Bypass Function
### 1. Product Overview
Product Name: PCI-8214
Model: PCI-8214
Series: PCI-821X Series (includes PCI-8213 and PCI-8214)
Article Number: PCI-8214
Manufacturer: ADLINK Technology Inc.
Product Type: Dual-Port 10/100 Mbps Ethernet PCI Card with Bypass Function
Product Category: Peripheral / Communications Cards
The ADLINK PCI-8214 is a high-performance dual-port Fast Ethernet controller card designed for industrial and embedded computing applications requiring reliable network connectivity and fault-tolerant operation. It integrates two Intel® 82559 Ethernet controllers and an Intel® 21154 PCI-to-PCI bridge, supporting 32/64-bit, 33/66 MHz PCI bus interfaces. The card’s key differentiator is its hardware-based bypass function, which maintains network connectivity even during system power loss or software failure, ensuring continuous communication in mission-critical environments.
### 2. Key Features
- Dual 10/100 Mbps Ethernet Ports:
Two independent Fast Ethernet interfaces based on Intel® 82559 controllers, supporting IEEE 802.3 and 802.3u standards for 10Base-T and 100Base-TX operation.
- Bypass Functionality:
Hardware relay-based bypass mechanism automatically connects the two Ethernet ports when system power is off or when the software watchdog timer (WDT) detects a fault. This ensures uninterrupted network traffic flow in fail-safe applications.
- Watchdog Timer (WDT):
Programmable watchdog timer monitors system health. If the system halts or fails to refresh the WDT, the card switches to bypass mode automatically.
- Intel® 21154 PCI-to-PCI Bridge:
Provides 64-bit PCI bus compatibility and efficient data throughput between the host system and Ethernet controllers.
- PXE Remote Boot Support:
Supports Intel® Preboot Execution Environment (PXE) for remote booting over the network, enabling diskless system deployment and remote management.
- Auto-Negotiation and Flow Control:
Complies with IEEE 802.3u auto-negotiation for 10/100 Mbps speed selection and IEEE 802.3x flow control for full-duplex operation.
- LED Indicators:
Each port includes dual LEDs for link/activity and speed indication (10/100 Mbps), providing clear visual status feedback.
- Operating System Support:
Compatible with DOS, Windows® 98 SE/ME/NT/2000, and Linux® operating systems. Drivers are included on the ADLINK support CD.
- Industrial Reliability:
Designed for industrial environments with extended temperature tolerance, robust EMI/EMS compliance, and long-term operational stability.
### 3. Technical Specifications
Bus Architecture:
- Standard PCI Universal Bus
- Fully compliant with PCI Revision 2.2
- Supports 32-bit and 64-bit data paths
- Operates at 33 MHz or 66 MHz PCI clock speeds
Ethernet Interface:
- Controller: Intel® 82559 Ethernet Controller (two units)
- Standards: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
- Data Transfer Rate: 10 Mbps or 100 Mbps (auto-negotiated)
- Duplex Mode: Full and half duplex supported
- Bus Mastering: True 32-bit PCI bus master operation
- Boot Protocol: Intel® PXE (Preboot Execution Environment)
- Indicators: Two LEDs per port (Link/Activity and Speed)
Power Requirements:
- Input Voltage: 5 V or 3.3 V
- Maximum Current: 1.2 A
Environmental Conditions:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
- Relative Humidity: 10% to 90% (non-condensing)
Physical Characteristics:
- Form Factor: Standard PCI half-sized card
- Connectors: Two RJ-45 Ethernet ports
- Extra Pin Header: Available for external LAN status LED connection
Compliance and Testing:
- CE Compliance:
- EMI: EN 55022 Class B
- Harmonics: EN 61000-3-2
- Voltage Fluctuations: EN 61000-3-3
- EMS: EN 50082-1:1997
- FCC Compliance:
- ANSI C63.4–1992
- CISPR PUB. 22 and FCC Part 15
### 4. Functionality
Operational Overview:
The PCI-8214 provides two independent Ethernet channels for network communication. Under normal operation, each port functions as a standard network interface. When the system is powered off or the software watchdog timer expires, the card’s relay-based bypass circuitry automatically connects the two ports, maintaining network continuity.
Bypass Function:
- Normal State: Relays are energized; ports operate independently.
- Bypass State: Relays are de-energized; ports are physically connected (bypassed).
- Control Mechanism: Managed by the onboard WDT and GPIO signals from the Intel® 21154 bridge.
- Default State: Configurable via jumpers (JP4–JP7) to either Normal or Bypass mode at power-on.
Use Cases and Applications:
- Industrial automation systems requiring high network availability
- Network appliances and firewalls with fail-safe requirements
- Embedded systems with remote management and PXE booting
- Redundant network configurations in telecom or data acquisition systems
Compatibility:
- PCI 2.2 compliant motherboards
- Operating systems: DOS, Windows 98/ME/NT/2000, Linux
- Supports Intel® Boot Agent BIOS for PXE booting
### 5. Components & Accessories
Included Items:
- PCI-8214 Ethernet card
- ADLINK Driver and Utility CD
- User Manual
Connectors and Indicators:
- CN1, CN2: RJ-45 connectors for Ethernet ports
- LED Indicators:
- ACT (Activity): Blinking indicates data transmission
- LINK: Lit when network link is established
- SPEED: Lit for 100 Mbps, off for 10 Mbps
Extra Display Connector (JP3):
Provides external LED signal outputs for:
- Channel 1 and 2 Speed LEDs
- Channel 1 and 2 Activity LEDs
- Power-On LED
- WDT Timeout LED
Optional Accessories:
- Low-profile bracket for OEM integration
- External LED panel connection via pin header
### 6. Installation & Setup
System Requirements:
- Available PCI slot (32-bit or 64-bit, 33/66 MHz)
- Compatible operating system (Windows or Linux)
- Category 5 UTP cable for 100 Mbps operation
Installation Steps:
1. Power off the system and remove the chassis cover.
2. Insert the PCI-8214 into an available PCI slot.
3. Secure the card and connect Ethernet cables to CN1 and CN2.
4. Power on the system and install drivers from the ADLINK CD.
5. Configure network settings and verify link/activity LEDs.
6. (Optional) Configure WDT and bypass parameters using provided utilities.
Jumper Settings:
- JP2: Boot ROM enable/disable
- Pins 1–2: Disable Boot ROM (default)
- Pins 2–3: Enable Boot ROM
- JP4–JP7: Default communication state (Normal or Bypass)
PXE Boot Configuration:
Enable “Boot from LAN First” in BIOS, then press Ctrl+S during POST to access Intel® Boot Agent setup. Configure boot protocol, local boot options, and power management as required.
### 7. Performance & Capabilities
Network Performance:
- Data Rate: 10/100 Mbps per port
- Full-duplex throughput up to 200 Mbps aggregate
- Auto-negotiation for optimal link speed and duplex mode
Bypass and WDT Performance:
- WDT Timeout Options: 1, 2, 4, or 8 seconds (selectable via SW1)
- Relay Switching: Mechanical relays provide physical link continuity during bypass
- GPIO Control: Four GPIO lines (GPIO0–GPIO3) manage WDT enable, disable, reload, and state switching
Software Utilities:
- ENWDT.EXE: Enable WDT (switches to bypass after timeout)
- DISWDT.EXE: Disable WDT and maintain default state
- LANWDT.EXE: Enable and continuously reload WDT (normal operation)
- NOBYPASS.EXE: Force normal state when default is bypass
Limitations:
- Bypass function limited to two ports (no cross-card bypass)
- WDT utilities for Windows NT/2000 and Linux only
- PXE boot supported on Channel 1 only
### 8. Standards & Compliance
Electrical and Mechanical Standards:
- PCI Revision 2.2 compliant
- IEEE 802.3 and 802.3u Ethernet standards
Electromagnetic Compatibility (EMC):
- CE Marking: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 50082-1:1997
- FCC Compliance: Part 15, ANSI C63.4–1992, CISPR PUB. 22
Environmental Compliance:
- RoHS-compliant manufacturing (lead-free process)
- Designed for industrial temperature and humidity ranges
Software and Driver Standards:
- Compatible with Intel® 82559 driver architecture
- Supports standard network protocols (TCP/IP, IPX/SPX, NetBEUI)
- PXE 2.0 compliant for remote boot environments
### 9. Additional Information
Warranty:
- Duration: Two-year limited warranty from date of shipment
- Coverage: Free repair for manufacturing defects within warranty period
- Exclusions:
- Damage from misuse, improper installation, or environmental factors
- Unauthorized repairs or modifications
- Products with altered or missing serial numbers
Support and Service:
- Manufacturer: ADLINK Technology Inc.
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Technical Support Contacts:
- General Service: service@adlinktech.com
- Automation Products: automation@adlinktech.com
- NuPRO/NuIPC Products: nupro@adlinktech.com, nuipc@adlinktech.com
- Telephone: +886-2-82265877
- Fax: +886-2-82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance and Updates:
- Firmware and driver updates available via ADLINK support portal
- WDT libraries and sample code provided for Windows NT/2000 and Linux
- Regular driver updates ensure compatibility with new OS versions
Documentation:
- User’s Guide (Manual Rev. 1.0, June 2002, Part No. 50-13028-110)
- Includes detailed installation, jumper configuration, WDT programming, and driver setup instructions
### Summary
The ADLINK PCI-8214 is a robust, industrial-grade dual-port Ethernet PCI card engineered for high reliability and fault-tolerant networking. Its integration of Intel® 82559 controllers and a hardware-based bypass mechanism makes it ideal for mission-critical systems where continuous network connectivity is essential. With comprehensive OS support, PXE boot capability, and programmable watchdog timer control, the PCI-8214 delivers both performance and resilience in demanding industrial and embedded applications.
Its compliance with international EMC standards, flexible PCI interface, and extensive software utilities ensure seamless integration into a wide range of systems, from automation controllers to network appliances. Backed by ADLINK’s two-year warranty and global technical support, the PCI-8214 represents a dependable solution for industrial Ethernet connectivity with built-in failover protection.
### 1. Product Overview
Product Name: PCI-8214
Model: PCI-8214
Series: PCI-821X Series (includes PCI-8213 and PCI-8214)
Article Number: PCI-8214
Manufacturer: ADLINK Technology Inc.
Product Type: Dual-Port 10/100 Mbps Ethernet PCI Card with Bypass Function
Product Category: Peripheral / Communications Cards
The ADLINK PCI-8214 is a high-performance dual-port Fast Ethernet controller card designed for industrial and embedded computing applications requiring reliable network connectivity and fault-tolerant operation. It integrates two Intel® 82559 Ethernet controllers and an Intel® 21154 PCI-to-PCI bridge, supporting 32/64-bit, 33/66 MHz PCI bus interfaces. The card’s key differentiator is its hardware-based bypass function, which maintains network connectivity even during system power loss or software failure, ensuring continuous communication in mission-critical environments.
### 2. Key Features
- Dual 10/100 Mbps Ethernet Ports:
Two independent Fast Ethernet interfaces based on Intel® 82559 controllers, supporting IEEE 802.3 and 802.3u standards for 10Base-T and 100Base-TX operation.
- Bypass Functionality:
Hardware relay-based bypass mechanism automatically connects the two Ethernet ports when system power is off or when the software watchdog timer (WDT) detects a fault. This ensures uninterrupted network traffic flow in fail-safe applications.
- Watchdog Timer (WDT):
Programmable watchdog timer monitors system health. If the system halts or fails to refresh the WDT, the card switches to bypass mode automatically.
- Intel® 21154 PCI-to-PCI Bridge:
Provides 64-bit PCI bus compatibility and efficient data throughput between the host system and Ethernet controllers.
- PXE Remote Boot Support:
Supports Intel® Preboot Execution Environment (PXE) for remote booting over the network, enabling diskless system deployment and remote management.
- Auto-Negotiation and Flow Control:
Complies with IEEE 802.3u auto-negotiation for 10/100 Mbps speed selection and IEEE 802.3x flow control for full-duplex operation.
- LED Indicators:
Each port includes dual LEDs for link/activity and speed indication (10/100 Mbps), providing clear visual status feedback.
- Operating System Support:
Compatible with DOS, Windows® 98 SE/ME/NT/2000, and Linux® operating systems. Drivers are included on the ADLINK support CD.
- Industrial Reliability:
Designed for industrial environments with extended temperature tolerance, robust EMI/EMS compliance, and long-term operational stability.
### 3. Technical Specifications
Bus Architecture:
- Standard PCI Universal Bus
- Fully compliant with PCI Revision 2.2
- Supports 32-bit and 64-bit data paths
- Operates at 33 MHz or 66 MHz PCI clock speeds
Ethernet Interface:
- Controller: Intel® 82559 Ethernet Controller (two units)
- Standards: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)
- Data Transfer Rate: 10 Mbps or 100 Mbps (auto-negotiated)
- Duplex Mode: Full and half duplex supported
- Bus Mastering: True 32-bit PCI bus master operation
- Boot Protocol: Intel® PXE (Preboot Execution Environment)
- Indicators: Two LEDs per port (Link/Activity and Speed)
Power Requirements:
- Input Voltage: 5 V or 3.3 V
- Maximum Current: 1.2 A
Environmental Conditions:
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 80°C
- Relative Humidity: 10% to 90% (non-condensing)
Physical Characteristics:
- Form Factor: Standard PCI half-sized card
- Connectors: Two RJ-45 Ethernet ports
- Extra Pin Header: Available for external LAN status LED connection
Compliance and Testing:
- CE Compliance:
- EMI: EN 55022 Class B
- Harmonics: EN 61000-3-2
- Voltage Fluctuations: EN 61000-3-3
- EMS: EN 50082-1:1997
- FCC Compliance:
- ANSI C63.4–1992
- CISPR PUB. 22 and FCC Part 15
### 4. Functionality
Operational Overview:
The PCI-8214 provides two independent Ethernet channels for network communication. Under normal operation, each port functions as a standard network interface. When the system is powered off or the software watchdog timer expires, the card’s relay-based bypass circuitry automatically connects the two ports, maintaining network continuity.
Bypass Function:
- Normal State: Relays are energized; ports operate independently.
- Bypass State: Relays are de-energized; ports are physically connected (bypassed).
- Control Mechanism: Managed by the onboard WDT and GPIO signals from the Intel® 21154 bridge.
- Default State: Configurable via jumpers (JP4–JP7) to either Normal or Bypass mode at power-on.
Use Cases and Applications:
- Industrial automation systems requiring high network availability
- Network appliances and firewalls with fail-safe requirements
- Embedded systems with remote management and PXE booting
- Redundant network configurations in telecom or data acquisition systems
Compatibility:
- PCI 2.2 compliant motherboards
- Operating systems: DOS, Windows 98/ME/NT/2000, Linux
- Supports Intel® Boot Agent BIOS for PXE booting
### 5. Components & Accessories
Included Items:
- PCI-8214 Ethernet card
- ADLINK Driver and Utility CD
- User Manual
Connectors and Indicators:
- CN1, CN2: RJ-45 connectors for Ethernet ports
- LED Indicators:
- ACT (Activity): Blinking indicates data transmission
- LINK: Lit when network link is established
- SPEED: Lit for 100 Mbps, off for 10 Mbps
Extra Display Connector (JP3):
Provides external LED signal outputs for:
- Channel 1 and 2 Speed LEDs
- Channel 1 and 2 Activity LEDs
- Power-On LED
- WDT Timeout LED
Optional Accessories:
- Low-profile bracket for OEM integration
- External LED panel connection via pin header
### 6. Installation & Setup
System Requirements:
- Available PCI slot (32-bit or 64-bit, 33/66 MHz)
- Compatible operating system (Windows or Linux)
- Category 5 UTP cable for 100 Mbps operation
Installation Steps:
1. Power off the system and remove the chassis cover.
2. Insert the PCI-8214 into an available PCI slot.
3. Secure the card and connect Ethernet cables to CN1 and CN2.
4. Power on the system and install drivers from the ADLINK CD.
5. Configure network settings and verify link/activity LEDs.
6. (Optional) Configure WDT and bypass parameters using provided utilities.
Jumper Settings:
- JP2: Boot ROM enable/disable
- Pins 1–2: Disable Boot ROM (default)
- Pins 2–3: Enable Boot ROM
- JP4–JP7: Default communication state (Normal or Bypass)
PXE Boot Configuration:
Enable “Boot from LAN First” in BIOS, then press Ctrl+S during POST to access Intel® Boot Agent setup. Configure boot protocol, local boot options, and power management as required.
### 7. Performance & Capabilities
Network Performance:
- Data Rate: 10/100 Mbps per port
- Full-duplex throughput up to 200 Mbps aggregate
- Auto-negotiation for optimal link speed and duplex mode
Bypass and WDT Performance:
- WDT Timeout Options: 1, 2, 4, or 8 seconds (selectable via SW1)
- Relay Switching: Mechanical relays provide physical link continuity during bypass
- GPIO Control: Four GPIO lines (GPIO0–GPIO3) manage WDT enable, disable, reload, and state switching
Software Utilities:
- ENWDT.EXE: Enable WDT (switches to bypass after timeout)
- DISWDT.EXE: Disable WDT and maintain default state
- LANWDT.EXE: Enable and continuously reload WDT (normal operation)
- NOBYPASS.EXE: Force normal state when default is bypass
Limitations:
- Bypass function limited to two ports (no cross-card bypass)
- WDT utilities for Windows NT/2000 and Linux only
- PXE boot supported on Channel 1 only
### 8. Standards & Compliance
Electrical and Mechanical Standards:
- PCI Revision 2.2 compliant
- IEEE 802.3 and 802.3u Ethernet standards
Electromagnetic Compatibility (EMC):
- CE Marking: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 50082-1:1997
- FCC Compliance: Part 15, ANSI C63.4–1992, CISPR PUB. 22
Environmental Compliance:
- RoHS-compliant manufacturing (lead-free process)
- Designed for industrial temperature and humidity ranges
Software and Driver Standards:
- Compatible with Intel® 82559 driver architecture
- Supports standard network protocols (TCP/IP, IPX/SPX, NetBEUI)
- PXE 2.0 compliant for remote boot environments
### 9. Additional Information
Warranty:
- Duration: Two-year limited warranty from date of shipment
- Coverage: Free repair for manufacturing defects within warranty period
- Exclusions:
- Damage from misuse, improper installation, or environmental factors
- Unauthorized repairs or modifications
- Products with altered or missing serial numbers
Support and Service:
- Manufacturer: ADLINK Technology Inc.
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Technical Support Contacts:
- General Service: service@adlinktech.com
- Automation Products: automation@adlinktech.com
- NuPRO/NuIPC Products: nupro@adlinktech.com, nuipc@adlinktech.com
- Telephone: +886-2-82265877
- Fax: +886-2-82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance and Updates:
- Firmware and driver updates available via ADLINK support portal
- WDT libraries and sample code provided for Windows NT/2000 and Linux
- Regular driver updates ensure compatibility with new OS versions
Documentation:
- User’s Guide (Manual Rev. 1.0, June 2002, Part No. 50-13028-110)
- Includes detailed installation, jumper configuration, WDT programming, and driver setup instructions
### Summary
The ADLINK PCI-8214 is a robust, industrial-grade dual-port Ethernet PCI card engineered for high reliability and fault-tolerant networking. Its integration of Intel® 82559 controllers and a hardware-based bypass mechanism makes it ideal for mission-critical systems where continuous network connectivity is essential. With comprehensive OS support, PXE boot capability, and programmable watchdog timer control, the PCI-8214 delivers both performance and resilience in demanding industrial and embedded applications.
Its compliance with international EMC standards, flexible PCI interface, and extensive software utilities ensure seamless integration into a wide range of systems, from automation controllers to network appliances. Backed by ADLINK’s two-year warranty and global technical support, the PCI-8214 represents a dependable solution for industrial Ethernet connectivity with built-in failover protection.
-
PCI-8213_Datasheet_5.pdf
PDF Catalog
-
PCI-8213_Manual_1.pdf
Manual
Kein Zubehör vorhanden.
