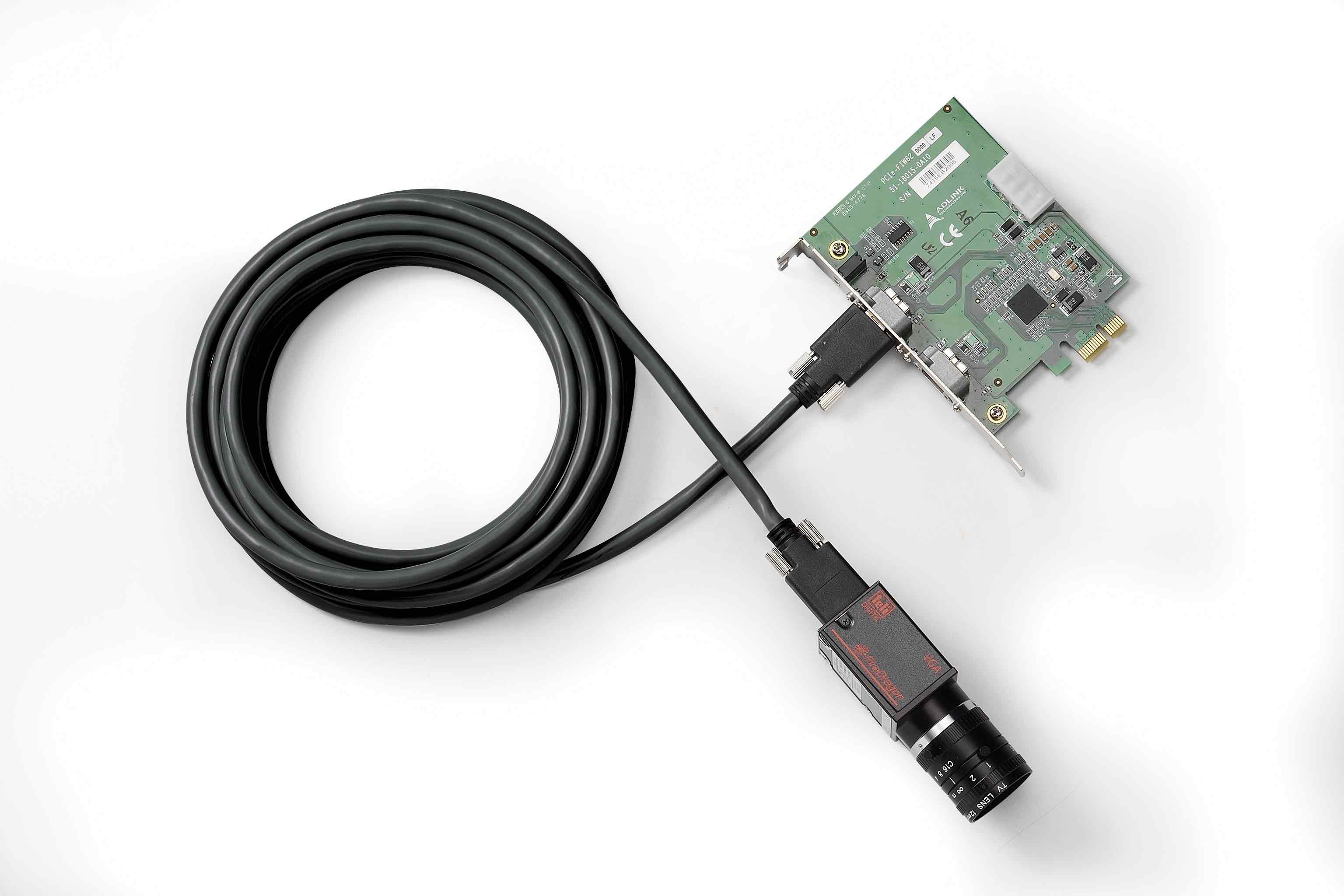

PCIe-FIW62
PCIe*1 2*Frame Grabber IEEE-1394b
170,00 EUR
inkl. Umsatzsteuer 202,30 EUR
- PCI Express® x1 Compliant: Fully compatible with PCI Express Base Specification Revision 1.1.
- Dual IEEE 1394b Ports: Two independent FireWire 800 (9-pin) ports supporting up to 800 Mb/s each.
- High-Speed Image Transfer: Optimized for real-time image acquisition and transmission in machine vision systems.
- Industrial Screw-Lock Connectors: Ensures secure and vibration-resistant cable connections.
- Channel Status LEDs: Two front-panel green LEDs indicate active camera connections for each port.
- Integrated Power Supply: 4-pin ATX connector provides +12 V power to connected IEEE 1394b cameras.
- Short-Circuit Protection: Built-in overcurrent protection for each port (1 A @ +12 V).
- Compact Half-Length Form Factor: Suitable for space-constrained industrial PCs.
- Plug-and-Play Operation: IEEE 1394b standard supports automatic device recognition and configuration.
- Software Compatibility: Supports Windows® XP, XP Embedded, and Vista (32-bit).
- User EEPROM: 2 Kbit onboard EEPROM for configuration and identification data storage.
- Dual IEEE 1394b Ports: Two independent FireWire 800 (9-pin) ports supporting up to 800 Mb/s each.
- High-Speed Image Transfer: Optimized for real-time image acquisition and transmission in machine vision systems.
- Industrial Screw-Lock Connectors: Ensures secure and vibration-resistant cable connections.
- Channel Status LEDs: Two front-panel green LEDs indicate active camera connections for each port.
- Integrated Power Supply: 4-pin ATX connector provides +12 V power to connected IEEE 1394b cameras.
- Short-Circuit Protection: Built-in overcurrent protection for each port (1 A @ +12 V).
- Compact Half-Length Form Factor: Suitable for space-constrained industrial PCs.
- Plug-and-Play Operation: IEEE 1394b standard supports automatic device recognition and configuration.
- Software Compatibility: Supports Windows® XP, XP Embedded, and Vista (32-bit).
- User EEPROM: 2 Kbit onboard EEPROM for configuration and identification data storage.
Comprehensive Product Summary – ADLINK PCIe-FIW62 IEEE 1394b Frame Grabber
### 1. Product Overview
Product Name: PCIe-FIW62
Model: PCIe-FIW62
Series: PCIe-FIW Series (IEEE 1394b PCI Express Frame Grabbers)
Article Number: PCIe-FIW62
Manufacturer: ADLINK Technology Inc.
Part Number: 50-11159-1000
Manual Revision: 2.01 (November 22, 2008)
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)
Contact: Service@adlinktech.com | Tel: +886-2-82265877 | Fax: +886-2-82265717
Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
The ADLINK PCIe-FIW62 is a two-channel IEEE 1394b (FireWire 800) frame grabber card designed for high-speed image acquisition in industrial, scientific, and medical applications. It provides a PCI Express® x1 interface and supports data transfer rates up to 800 Mb/s per channel. The card is part of ADLINK’s PCIe-FIW series, which also includes the four-channel PCIe-FIW64 model.
### 2. Key Features
- PCI Express® x1 Compliant: Fully compatible with PCI Express Base Specification Revision 1.1.
- Dual IEEE 1394b Ports: Two independent FireWire 800 (9-pin) ports supporting up to 800 Mb/s each.
- High-Speed Image Transfer: Optimized for real-time image acquisition and transmission in machine vision systems.
- Industrial Screw-Lock Connectors: Ensures secure and vibration-resistant cable connections.
- Channel Status LEDs: Two front-panel green LEDs indicate active camera connections for each port.
- Integrated Power Supply: 4-pin ATX connector provides +12 V power to connected IEEE 1394b cameras.
- Short-Circuit Protection: Built-in overcurrent protection for each port (1 A @ +12 V).
- Compact Half-Length Form Factor: Suitable for space-constrained industrial PCs.
- Plug-and-Play Operation: IEEE 1394b standard supports automatic device recognition and configuration.
- Software Compatibility: Supports Windows® XP, XP Embedded, and Vista (32-bit).
- User EEPROM: 2 Kbit onboard EEPROM for configuration and identification data storage.
### 3. Technical Specifications
Form Factor:
- Half-length PCI Express® x1 card
- Compliant with PCI Express Base Specification Revision 1.1
Dimensions:
- Width: 78.6 mm
- Length: 111.15 mm
Weight:
- Approx. 100 g (typical, without packaging)
Connectors:
- Two IEEE 1394b 9-pin screw-lock connectors
- One 4-pin ATX power connector (+5 V, +12 V, GND)
Electrical Characteristics:
- Power Consumption: 0.22 A @ +3.3 V
- Power Output to IEEE 1394b Ports: 1 A @ +12 V per port (with overcurrent protection)
Video Input:
- Differential IEEE 1394b signals via 9-pin connectors
Pinout (IEEE 1394b 9-pin):
1. TPB–
2. TPB+
3. TPA–
4. TPA+
5. TPA (R)
6. VG (Power Ground)
7. NC
8. VP (Power Voltage)
9. TPB (R)
Status Indicators:
- LED1: Port 1 active
- LED2: Port 2 active
Environmental Conditions:
- Operating Temperature: 0°C to 55°C
- Storage Temperature: 0°C to 85°C
- Relative Humidity: 5% to 90% RH (non-condensing)
### 4. Functionality
The PCIe-FIW62 functions as a high-speed frame grabber and IEEE 1394b host interface card. It enables direct connection of up to two IEEE 1394b-compliant cameras to a host PC via PCI Express. Each port supports data transfer rates of 100, 200, 400, and 800 Mb/s, allowing simultaneous acquisition from multiple cameras.
How It Works:
- The card interfaces with the host system through a PCIe x1 slot.
- Connected IEEE 1394b cameras transmit image data directly to system memory using DMA (Direct Memory Access), minimizing CPU overhead.
- The 4-pin ATX connector supplies power to cameras that draw power over the FireWire cable.
- LED indicators provide real-time connection status for each channel.
Use Cases and Applications:
- Machine Vision Inspection Systems: Automated optical inspection, defect detection, and quality control.
- Scientific Research: High-speed imaging for laboratory experiments and data acquisition.
- Medical Imaging: Integration with diagnostic imaging devices and research instrumentation.
- Industrial Automation: Real-time monitoring and process control using FireWire cameras.
Compatibility:
- Compatible with IEEE 1394b (FireWire 800) and backward-compatible with IEEE 1394a (FireWire 400) devices.
- Supports IIDC/DCAM-compliant cameras.
- Operating Systems: Windows® XP, XP Embedded, Vista (32-bit).
### 5. Components & Accessories
Included Components:
- PCIe-FIW62 frame grabber card
- User’s manual and documentation
- Driver software (via Windows built-in OHCI driver)
Optional Accessories:
- 1394b Cable (4.5 m): IEEE 1394b 9-pin cable with screw-lock connectors for secure camera connection.
Connectors:
- Two IEEE 1394b 9-pin ports (CN1, CN2)
- One 4-pin ATX power connector (CN3)
- Pin 1: +5 V
- Pin 2: GND
- Pin 3: GND
- Pin 4: +12 V
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host PC and remove the cover.
2. Locate an available PCI Express slot (x1, x4, x8, or x16).
3. Remove the slot’s blank metal plate.
4. Insert the PCIe-FIW62 card firmly into the slot.
5. Secure the card with the retaining screw.
6. Connect IEEE 1394b cameras to the card’s ports using 9-pin cables.
7. Connect the 4-pin ATX power cable if camera power is required.
8. Power on the system.
Driver Installation:
- Windows automatically installs the IEEE 1394 OHCI-compliant driver.
- Verify installation under *Device Manager → IEEE 1394 Bus Host Controllers*.
- The device should appear as “Texas Instruments OHCI Compliant IEEE 1394 Host Controller.”
- If a yellow exclamation mark appears, manually update the driver.
Windows Vista Configuration:
- Disable User Account Control (UAC) for proper operation:
- Control Panel → User Accounts → Turn User Account Control On or Off → Uncheck “Use UAC.”
- Restart the system.
Mounting Options:
- Standard PCIe bracket for desktop or industrial PC chassis.
- Half-length design suitable for compact enclosures.
### 7. Performance & Capabilities
Data Transfer Rate:
- Up to 800 Mb/s per channel (IEEE 1394b standard).
Bus Interface:
- PCI Express® x1 (supports installation in x1, x4, x8, or x16 slots).
Power Delivery:
- Provides up to 1 A @ +12 V per port for connected cameras.
Efficiency:
- DMA-based data transfer reduces CPU load and latency.
- Supports multiple device connections through FireWire daisy-chaining or hub configurations.
Limitations:
- Limited to two IEEE 1394b ports.
- No isolated digital I/O or trigger functions (available only on PCIe-FIW64).
- Windows-only driver support (no native Linux or macOS drivers).
Reliability Features:
- Screw-lock connectors prevent accidental disconnection.
- Overcurrent protection safeguards both the card and connected devices.
- LED indicators simplify troubleshooting and connection verification.
### 8. Standards & Compliance
Interface Standards:
- IEEE 1394b (FireWire 800) compliant
- IEEE 1394a and IEEE 1394-1995 backward compatibility
- IIDC/DCAM protocol support for machine vision cameras
- PCI Express Base Specification Revision 1.1 compliant
Electrical & Safety Compliance:
- Overcurrent protection on +12 V power output
- Industrial-grade design for continuous operation
Software & Driver Standards:
- OHCI (Open Host Controller Interface) compliant
- Supported by Microsoft Windows built-in IEEE 1394 driver stack
Environmental & Quality Standards:
- Designed for industrial environments (0–55°C operation)
- Manufactured under ADLINK’s ISO-certified quality management system
### 9. Additional Information
Warranty:
- Standard ADLINK limited hardware warranty (duration subject to regional policy).
Technical Support:
- Email: Service@adlinktech.com
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- Online resources: [www.adlinktech.com](http://www.adlinktech.com)
Maintenance:
- Periodically inspect connectors and cables for wear or damage.
- Ensure adequate airflow within the host system to maintain operating temperature.
- Use only ADLINK-approved accessories and cables for optimal performance.
Firmware & Software Updates:
- Firmware updates are provided through ADLINK’s support portal.
- Windows driver updates available via Microsoft Update or ADLINK’s website.
Service & RMA Procedure:
- Contact ADLINK technical support with product model, serial number, and system configuration details.
- Provide a detailed description of the issue for expedited service.
Documentation:
- User’s Manual (Rev. 2.01)
- Installation Guide and Function Library (for PCIe-FIW64 advanced features)
### Summary
The ADLINK PCIe-FIW62 is a robust, industrial-grade dual-channel IEEE 1394b frame grabber designed for high-speed image acquisition in machine vision, scientific, and medical applications. With its PCI Express® x1 interface, 800 Mb/s transfer rate, and integrated power delivery, it provides a reliable and efficient solution for connecting FireWire 800 cameras to modern PC-based systems. Its compact design, screw-lock connectors, and plug-and-play compatibility make it ideal for embedded and industrial environments requiring stable, high-throughput image data transfer.

Keywords for Technical Search:
PCIe-FIW62, ADLINK, IEEE 1394b, FireWire 800, PCI Express x1, frame grabber, machine vision, image acquisition, industrial camera interface, 800 Mb/s, 9-pin screw-lock connector, ATX power, DMA transfer, Windows XP/Vista, IIDC/DCAM, dual-channel frame grabber, ADLINK Technology Inc.
### 1. Product Overview
Product Name: PCIe-FIW62
Model: PCIe-FIW62
Series: PCIe-FIW Series (IEEE 1394b PCI Express Frame Grabbers)
Article Number: PCIe-FIW62
Manufacturer: ADLINK Technology Inc.
Part Number: 50-11159-1000
Manual Revision: 2.01 (November 22, 2008)
Manufacturer Website: [www.adlinktech.com](http://www.adlinktech.com)
Contact: Service@adlinktech.com | Tel: +886-2-82265877 | Fax: +886-2-82265717
Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
The ADLINK PCIe-FIW62 is a two-channel IEEE 1394b (FireWire 800) frame grabber card designed for high-speed image acquisition in industrial, scientific, and medical applications. It provides a PCI Express® x1 interface and supports data transfer rates up to 800 Mb/s per channel. The card is part of ADLINK’s PCIe-FIW series, which also includes the four-channel PCIe-FIW64 model.
### 2. Key Features
- PCI Express® x1 Compliant: Fully compatible with PCI Express Base Specification Revision 1.1.
- Dual IEEE 1394b Ports: Two independent FireWire 800 (9-pin) ports supporting up to 800 Mb/s each.
- High-Speed Image Transfer: Optimized for real-time image acquisition and transmission in machine vision systems.
- Industrial Screw-Lock Connectors: Ensures secure and vibration-resistant cable connections.
- Channel Status LEDs: Two front-panel green LEDs indicate active camera connections for each port.
- Integrated Power Supply: 4-pin ATX connector provides +12 V power to connected IEEE 1394b cameras.
- Short-Circuit Protection: Built-in overcurrent protection for each port (1 A @ +12 V).
- Compact Half-Length Form Factor: Suitable for space-constrained industrial PCs.
- Plug-and-Play Operation: IEEE 1394b standard supports automatic device recognition and configuration.
- Software Compatibility: Supports Windows® XP, XP Embedded, and Vista (32-bit).
- User EEPROM: 2 Kbit onboard EEPROM for configuration and identification data storage.
### 3. Technical Specifications
Form Factor:
- Half-length PCI Express® x1 card
- Compliant with PCI Express Base Specification Revision 1.1
Dimensions:
- Width: 78.6 mm
- Length: 111.15 mm
Weight:
- Approx. 100 g (typical, without packaging)
Connectors:
- Two IEEE 1394b 9-pin screw-lock connectors
- One 4-pin ATX power connector (+5 V, +12 V, GND)
Electrical Characteristics:
- Power Consumption: 0.22 A @ +3.3 V
- Power Output to IEEE 1394b Ports: 1 A @ +12 V per port (with overcurrent protection)
Video Input:
- Differential IEEE 1394b signals via 9-pin connectors
Pinout (IEEE 1394b 9-pin):
1. TPB–
2. TPB+
3. TPA–
4. TPA+
5. TPA (R)
6. VG (Power Ground)
7. NC
8. VP (Power Voltage)
9. TPB (R)
Status Indicators:
- LED1: Port 1 active
- LED2: Port 2 active
Environmental Conditions:
- Operating Temperature: 0°C to 55°C
- Storage Temperature: 0°C to 85°C
- Relative Humidity: 5% to 90% RH (non-condensing)
### 4. Functionality
The PCIe-FIW62 functions as a high-speed frame grabber and IEEE 1394b host interface card. It enables direct connection of up to two IEEE 1394b-compliant cameras to a host PC via PCI Express. Each port supports data transfer rates of 100, 200, 400, and 800 Mb/s, allowing simultaneous acquisition from multiple cameras.
How It Works:
- The card interfaces with the host system through a PCIe x1 slot.
- Connected IEEE 1394b cameras transmit image data directly to system memory using DMA (Direct Memory Access), minimizing CPU overhead.
- The 4-pin ATX connector supplies power to cameras that draw power over the FireWire cable.
- LED indicators provide real-time connection status for each channel.
Use Cases and Applications:
- Machine Vision Inspection Systems: Automated optical inspection, defect detection, and quality control.
- Scientific Research: High-speed imaging for laboratory experiments and data acquisition.
- Medical Imaging: Integration with diagnostic imaging devices and research instrumentation.
- Industrial Automation: Real-time monitoring and process control using FireWire cameras.
Compatibility:
- Compatible with IEEE 1394b (FireWire 800) and backward-compatible with IEEE 1394a (FireWire 400) devices.
- Supports IIDC/DCAM-compliant cameras.
- Operating Systems: Windows® XP, XP Embedded, Vista (32-bit).
### 5. Components & Accessories
Included Components:
- PCIe-FIW62 frame grabber card
- User’s manual and documentation
- Driver software (via Windows built-in OHCI driver)
Optional Accessories:
- 1394b Cable (4.5 m): IEEE 1394b 9-pin cable with screw-lock connectors for secure camera connection.
Connectors:
- Two IEEE 1394b 9-pin ports (CN1, CN2)
- One 4-pin ATX power connector (CN3)
- Pin 1: +5 V
- Pin 2: GND
- Pin 3: GND
- Pin 4: +12 V
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host PC and remove the cover.
2. Locate an available PCI Express slot (x1, x4, x8, or x16).
3. Remove the slot’s blank metal plate.
4. Insert the PCIe-FIW62 card firmly into the slot.
5. Secure the card with the retaining screw.
6. Connect IEEE 1394b cameras to the card’s ports using 9-pin cables.
7. Connect the 4-pin ATX power cable if camera power is required.
8. Power on the system.
Driver Installation:
- Windows automatically installs the IEEE 1394 OHCI-compliant driver.
- Verify installation under *Device Manager → IEEE 1394 Bus Host Controllers*.
- The device should appear as “Texas Instruments OHCI Compliant IEEE 1394 Host Controller.”
- If a yellow exclamation mark appears, manually update the driver.
Windows Vista Configuration:
- Disable User Account Control (UAC) for proper operation:
- Control Panel → User Accounts → Turn User Account Control On or Off → Uncheck “Use UAC.”
- Restart the system.
Mounting Options:
- Standard PCIe bracket for desktop or industrial PC chassis.
- Half-length design suitable for compact enclosures.
### 7. Performance & Capabilities
Data Transfer Rate:
- Up to 800 Mb/s per channel (IEEE 1394b standard).
Bus Interface:
- PCI Express® x1 (supports installation in x1, x4, x8, or x16 slots).
Power Delivery:
- Provides up to 1 A @ +12 V per port for connected cameras.
Efficiency:
- DMA-based data transfer reduces CPU load and latency.
- Supports multiple device connections through FireWire daisy-chaining or hub configurations.
Limitations:
- Limited to two IEEE 1394b ports.
- No isolated digital I/O or trigger functions (available only on PCIe-FIW64).
- Windows-only driver support (no native Linux or macOS drivers).
Reliability Features:
- Screw-lock connectors prevent accidental disconnection.
- Overcurrent protection safeguards both the card and connected devices.
- LED indicators simplify troubleshooting and connection verification.
### 8. Standards & Compliance
Interface Standards:
- IEEE 1394b (FireWire 800) compliant
- IEEE 1394a and IEEE 1394-1995 backward compatibility
- IIDC/DCAM protocol support for machine vision cameras
- PCI Express Base Specification Revision 1.1 compliant
Electrical & Safety Compliance:
- Overcurrent protection on +12 V power output
- Industrial-grade design for continuous operation
Software & Driver Standards:
- OHCI (Open Host Controller Interface) compliant
- Supported by Microsoft Windows built-in IEEE 1394 driver stack
Environmental & Quality Standards:
- Designed for industrial environments (0–55°C operation)
- Manufactured under ADLINK’s ISO-certified quality management system
### 9. Additional Information
Warranty:
- Standard ADLINK limited hardware warranty (duration subject to regional policy).
Technical Support:
- Email: Service@adlinktech.com
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- Online resources: [www.adlinktech.com](http://www.adlinktech.com)
Maintenance:
- Periodically inspect connectors and cables for wear or damage.
- Ensure adequate airflow within the host system to maintain operating temperature.
- Use only ADLINK-approved accessories and cables for optimal performance.
Firmware & Software Updates:
- Firmware updates are provided through ADLINK’s support portal.
- Windows driver updates available via Microsoft Update or ADLINK’s website.
Service & RMA Procedure:
- Contact ADLINK technical support with product model, serial number, and system configuration details.
- Provide a detailed description of the issue for expedited service.
Documentation:
- User’s Manual (Rev. 2.01)
- Installation Guide and Function Library (for PCIe-FIW64 advanced features)
### Summary
The ADLINK PCIe-FIW62 is a robust, industrial-grade dual-channel IEEE 1394b frame grabber designed for high-speed image acquisition in machine vision, scientific, and medical applications. With its PCI Express® x1 interface, 800 Mb/s transfer rate, and integrated power delivery, it provides a reliable and efficient solution for connecting FireWire 800 cameras to modern PC-based systems. Its compact design, screw-lock connectors, and plug-and-play compatibility make it ideal for embedded and industrial environments requiring stable, high-throughput image data transfer.
Keywords for Technical Search:
PCIe-FIW62, ADLINK, IEEE 1394b, FireWire 800, PCI Express x1, frame grabber, machine vision, image acquisition, industrial camera interface, 800 Mb/s, 9-pin screw-lock connector, ATX power, DMA transfer, Windows XP/Vista, IIDC/DCAM, dual-channel frame grabber, ADLINK Technology Inc.
-
