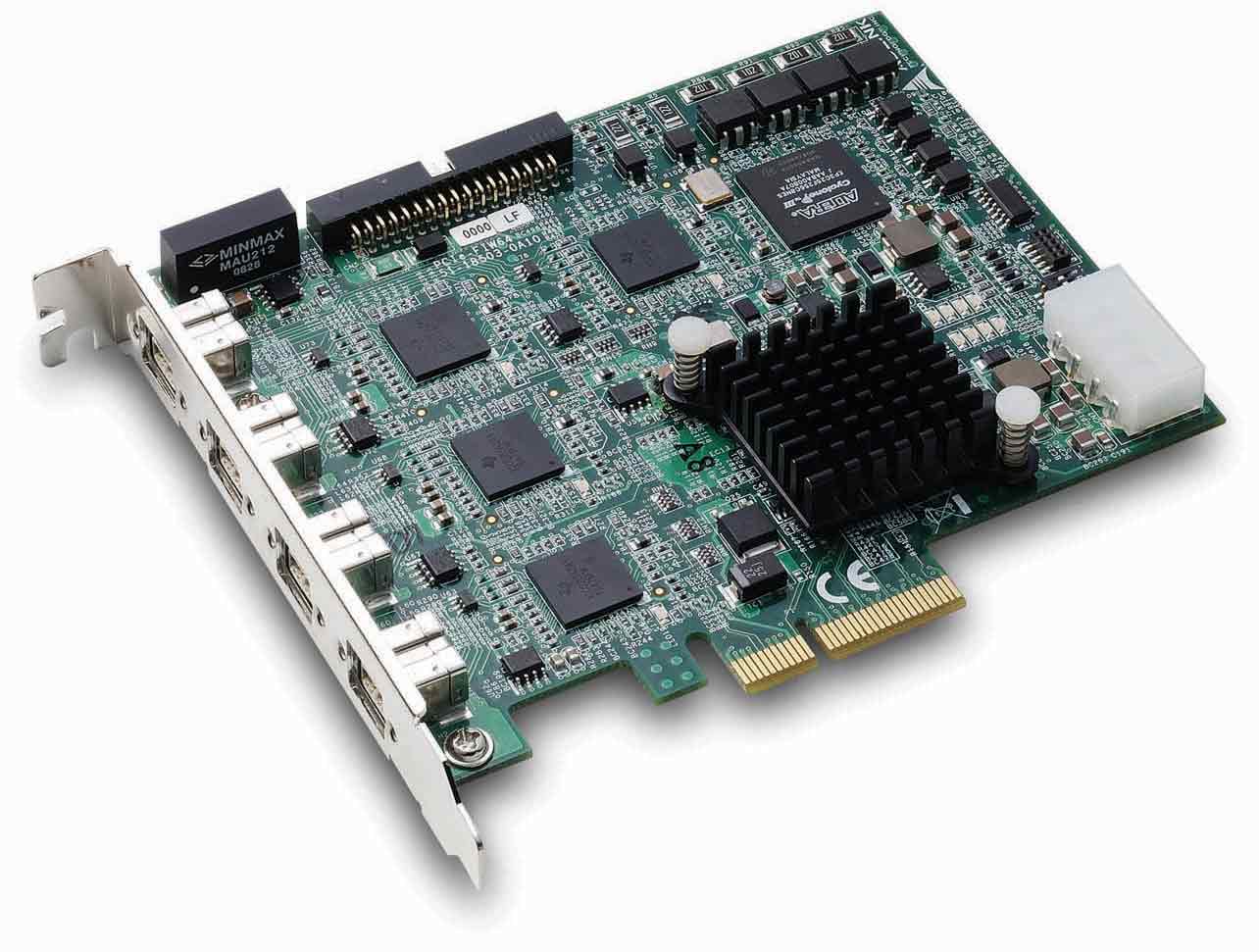

Comprehensive Product Summary – PCIe-FIW64B IEEE 1394b Frame Grabber
### 1. Product Overview
Product Name: PCIe-FIW64B
Model: PCIe-FIW64B
Series: PCIe-FIW Series (IEEE 1394b PCI Express Frame Grabber Family)
Article Number: PCIe-FIW64B
Manufacturer: ADLINK Technology Inc.
Part Number: 50-11159-1000
Revision: Manual Rev. 2.01 (November 22, 2008)
The ADLINK PCIe-FIW64B is a high-performance, four-channel IEEE 1394b (FireWire 800) frame grabber card designed for industrial and scientific imaging applications. It provides a PCI Express x4 interface and supports up to four IEEE 1394b devices simultaneously, enabling high-speed image acquisition and data transfer for machine vision, inspection, and research systems.
### 2. Key Features
- PCI Express x4 Compliant Interface:
Fully compliant with PCI Express Base Specification Revision 1.1, ensuring high bandwidth and compatibility with modern PC architectures.
- High-Speed Data Transfer:
Supports IEEE 1394b (FireWire 800) data rates up to 800 Mb/s per port, with an aggregate throughput of up to 3.2 Gb/s across four channels.
- Four Independent IEEE 1394b Ports:
Each port supports 100, 200, 400, and 800 Mb/s transfer rates and is fully compliant with IEEE P1394b-2002, IEEE 1394a-2000, and IEEE 1394-1995 standards.
- Isolated Digital I/O and Trigger Channels:
Provides four isolated digital inputs and four isolated digital outputs, as well as four isolated trigger inputs and four isolated trigger outputs, all photo-coupled for electrical isolation and noise immunity.
- Programmable Trigger Outputs:
Each trigger output supports programmable delay (0–1000 ms, 1 ms steps) and pulse width (0.1–50 ms, 0.1 ms steps), with selectable polarity and enable control.
- Industrial-Grade Connectors:
Equipped with screw-lock IEEE 1394b connectors for secure industrial connections.
- Status LEDs:
Four front-panel LEDs indicate active channel connections for easy monitoring.
- Power Supply for Cameras:
Includes a 4-pin ATX 12 V connector to supply power directly to connected IEEE 1394b cameras.
- Software and OS Support:
Compatible with Windows XP, XP Embedded, and Windows Vista (32-bit) platforms. Includes driver and function library for digital I/O and trigger control.
- Applications:
Ideal for machine vision inspection, automatic optical inspection (AOI), scientific imaging, and medical research instrumentation.
### 3. Technical Specifications
Form Factor: PCI Express x4 (Base Specification Revision 1.1 compliant)
Dimensions: 129.5 mm (W) × 111.15 mm (L)
Weight: Approx. 150 g (typical board weight)
Material: Multi-layer PCB with industrial-grade components
IEEE 1394b Ports:
- Quantity: 4
- Connector Type: 9-pin IEEE 1394b with screw lock
- Supported Speeds: 100 / 200 / 400 / 800 Mb/s
- Standards Compliance: IEEE P1394b-2002, IEEE 1394a-2000, IEEE 1394-1995
- Host Controller Interface: 1394 Open Host Controller Interface (OHCI) 1.1 / 1.2 draft compliant
Digital I/O and Trigger I/O:
- Isolated Digital Inputs: 4 channels, photo-coupled
- Input Voltage Range: 0–25 V
- Logic Low: 0–0.5 V
- Logic High: 2–25 V
- Isolated Digital Outputs: 4 channels, photo-coupled
- Load Voltage Range: 3–24 V
- Sink Current: 80 mA max
- Voltage Drop: 1.0 V max
- Leakage Current: 0.1 mA max
- Reverse Voltage Protection: –6 V
Trigger Inputs:
- 4 channels, photo-coupled
- Input Voltage Range: 0–25 V
- Logic Low: 0–0.5 V
- Logic High: 2.4–25 V
- Polarity: Positive/Negative selectable
- Minimum Pulse Width: 0.1 ms
Trigger Outputs:
- 4 channels, photo-coupled
- Load Voltage Range: 0–5 V
- Sink Current: 40 mA max
- Voltage Drop: 0.4 V max (@16 mA)
- Delay: 0–1000 ms (1 ms step)
- Pulse Width: 0.1–50 ms (0.1 ms step)
- Polarity: Positive/Negative selectable
- Enable Control: Enable/Disable
Isolation Voltage: 1000 V @ 60 seconds
Power Requirements:
- +12 V (max. 200 mA)
- +3.3 V (max. 2.5 A)
Environmental Conditions:
- Operating Temperature: 0°C to +55°C
- Operating Humidity: 5%–90% RH (non-condensing)
- Storage Temperature: 0°C to +85°C
- Storage Humidity: 0%–95% RH (non-condensing)
### 4. Functionality
The PCIe-FIW64B functions as a multi-channel IEEE 1394b frame grabber, enabling simultaneous connection and control of up to four FireWire 800 cameras. It captures high-speed image data streams and transfers them to the host system via the PCI Express x4 interface.
Operation:
- Each IEEE 1394b port can independently connect to a camera or device.
- The card’s onboard digital I/O and trigger circuits allow synchronization with external sensors, actuators, or lighting systems.
- Programmable trigger outputs can control camera exposure or strobe timing with precise delay and pulse width settings.
- The card’s isolation circuitry ensures reliable operation in electrically noisy industrial environments.
Use Cases:
- Automated optical inspection (AOI) systems
- Industrial robotics and motion control
- Scientific imaging and microscopy
- Medical imaging and diagnostics
- High-speed visual inspection and quality assurance
Compatibility:
- Compatible with IEEE 1394b-compliant cameras and devices.
- Supports Windows XP, XP Embedded, and Vista (32-bit) operating systems.
- Works with standard OHCI IEEE 1394 drivers and ADLINK’s proprietary FIW64 driver for extended I/O and trigger functionality.
### 5. Components & Accessories
Included Components:
- PCIe-FIW64B frame grabber card
- User manual and driver CD
- Software library and API documentation
- Mounting bracket and screws
Optional Accessories:
- 1394b Cable (4.5 m) – IEEE 1394b 9-pin cable with screw-lock connector
- Extension Cable Connector (D-sub 37-pin female) – for GPIO and trigger I/O access
- 4-pin ATX Power Cable – for camera power supply
Connectors:
- CN1–CN4: IEEE 1394b ports (9-pin)
- CN5: Additional 12 V power input (4-pin)
- GPIO/Trigger Connector: 34-pin header or D-sub 37-pin extension
- Status LEDs: LED19–LED22 (indicate active channel connections)
- SW1: DIP switch for Card ID selection (supports up to four cards per system)
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host PC and remove the cover.
2. Locate an available PCI Express x4, x8, or x16 slot.
3. Insert the PCIe-FIW64B card firmly into the slot.
4. Secure the card with the mounting screw.
5. Connect IEEE 1394b devices to the ports using screw-lock cables.
6. Optionally connect the 4-pin ATX power cable for camera power.
7. Power on the system.
Driver Installation:
- Windows automatically installs the OHCI IEEE 1394 driver.
- Verify installation under *Device Manager → IEEE 1394 Bus Host Controllers*.
- Install ADLINK’s FIW64 driver using FIW64_SetupDisk.exe for digital I/O and trigger functions.
- For Windows Vista, disable User Account Control (UAC) before installation.
Configuration:
- Card ID selection via DIP switch (SW1) allows up to four cards in one system.
- LEDs indicate active connections for each IEEE 1394b port.
- Trigger and I/O parameters configured via ADLINK’s software library.
### 7. Performance & Capabilities
Data Throughput:
- Up to 800 Mb/s per port (IEEE 1394b standard)
- Aggregate bandwidth up to 3.2 Gb/s across four ports
Trigger Performance:
- Delay range: 0–1000 ms (1 ms resolution)
- Pulse width: 0.1–50 ms (0.1 ms resolution)
- Minimum input pulse width: 0.1 ms
- Polarity and enable control programmable per channel
Digital I/O Performance:
- Input voltage tolerance up to 25 V
- Output sink current up to 80 mA
- Isolation voltage 1000 V for signal integrity and protection
Efficiency & Reliability:
- Low power consumption (approx. 9 W total)
- Industrial-grade isolation and protection circuits
- FireWire short-circuit protection
- Stable operation in high-vibration and EMI environments
Limitations:
- No onboard image processing (relies on host CPU)
- Windows-only driver support (no native Linux driver)
- No built-in I/O trigger input (model variant “w/o IO Trigger”)
### 8. Standards & Compliance
Electrical and Interface Standards:
- IEEE 1394b (FireWire 800)
- IEEE 1394a-2000
- IEEE 1394-1995
- IEEE P1394b-2002
- OHCI 1.1 / 1.2 Draft Compliant
- PCI Express Base Specification Revision 1.1
Safety and Isolation:
- 1000 V isolation for digital and trigger I/O
- Photo-coupled input/output protection
Environmental Compliance:
- Designed for industrial temperature and humidity ranges
- RoHS-compliant manufacturing (lead-free components)
Regulatory Compliance:
- CE and FCC Class A (industrial environment)
- Manufactured under ISO 9001 quality management standards
### 9. Additional Information
Warranty:
Standard ADLINK limited warranty (typically 2 years) covering manufacturing defects and hardware failures under normal use.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: Service@adlinktech.com
- Telephone: +886-2-82265877
- Fax: +886-2-82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance:
- Keep connectors clean and free of dust.
- Avoid electrostatic discharge during installation.
- Periodically inspect cable connections and LED indicators.
Software Updates:
- Driver and firmware updates available from ADLINK’s support portal.
- Function library includes APIs for initialization, device enumeration, trigger configuration, and error handling (e.g., FIW64_Initialize, FIW64_SetTriggerDelayTime, FIW64_GetDI, FIW64_SetDO).
Service and RMA:
ADLINK provides global service and RMA support. Customers should contact ADLINK technical support with product model, operating environment, and detailed problem description for assistance.
### Summary
The ADLINK PCIe-FIW64B is a robust, high-speed IEEE 1394b frame grabber card engineered for demanding industrial and scientific imaging applications. With four fully isolated FireWire 800 ports, programmable trigger control, and industrial-grade electrical isolation, it delivers reliable, synchronized image acquisition in multi-camera systems. Its PCI Express x4 interface ensures ample bandwidth for real-time data transfer, while its flexible I/O and trigger configuration make it ideal for integration into machine vision, inspection, and research platforms.
Designed for stability, precision, and scalability, the PCIe-FIW64B exemplifies ADLINK’s commitment to high-performance data acquisition and automation solutions.
### 1. Product Overview
Product Name: PCIe-FIW64B
Model: PCIe-FIW64B
Series: PCIe-FIW Series (IEEE 1394b PCI Express Frame Grabber Family)
Article Number: PCIe-FIW64B
Manufacturer: ADLINK Technology Inc.
Part Number: 50-11159-1000
Revision: Manual Rev. 2.01 (November 22, 2008)
The ADLINK PCIe-FIW64B is a high-performance, four-channel IEEE 1394b (FireWire 800) frame grabber card designed for industrial and scientific imaging applications. It provides a PCI Express x4 interface and supports up to four IEEE 1394b devices simultaneously, enabling high-speed image acquisition and data transfer for machine vision, inspection, and research systems.
### 2. Key Features
- PCI Express x4 Compliant Interface:
Fully compliant with PCI Express Base Specification Revision 1.1, ensuring high bandwidth and compatibility with modern PC architectures.
- High-Speed Data Transfer:
Supports IEEE 1394b (FireWire 800) data rates up to 800 Mb/s per port, with an aggregate throughput of up to 3.2 Gb/s across four channels.
- Four Independent IEEE 1394b Ports:
Each port supports 100, 200, 400, and 800 Mb/s transfer rates and is fully compliant with IEEE P1394b-2002, IEEE 1394a-2000, and IEEE 1394-1995 standards.
- Isolated Digital I/O and Trigger Channels:
Provides four isolated digital inputs and four isolated digital outputs, as well as four isolated trigger inputs and four isolated trigger outputs, all photo-coupled for electrical isolation and noise immunity.
- Programmable Trigger Outputs:
Each trigger output supports programmable delay (0–1000 ms, 1 ms steps) and pulse width (0.1–50 ms, 0.1 ms steps), with selectable polarity and enable control.
- Industrial-Grade Connectors:
Equipped with screw-lock IEEE 1394b connectors for secure industrial connections.
- Status LEDs:
Four front-panel LEDs indicate active channel connections for easy monitoring.
- Power Supply for Cameras:
Includes a 4-pin ATX 12 V connector to supply power directly to connected IEEE 1394b cameras.
- Software and OS Support:
Compatible with Windows XP, XP Embedded, and Windows Vista (32-bit) platforms. Includes driver and function library for digital I/O and trigger control.
- Applications:
Ideal for machine vision inspection, automatic optical inspection (AOI), scientific imaging, and medical research instrumentation.
### 3. Technical Specifications
Form Factor: PCI Express x4 (Base Specification Revision 1.1 compliant)
Dimensions: 129.5 mm (W) × 111.15 mm (L)
Weight: Approx. 150 g (typical board weight)
Material: Multi-layer PCB with industrial-grade components
IEEE 1394b Ports:
- Quantity: 4
- Connector Type: 9-pin IEEE 1394b with screw lock
- Supported Speeds: 100 / 200 / 400 / 800 Mb/s
- Standards Compliance: IEEE P1394b-2002, IEEE 1394a-2000, IEEE 1394-1995
- Host Controller Interface: 1394 Open Host Controller Interface (OHCI) 1.1 / 1.2 draft compliant
Digital I/O and Trigger I/O:
- Isolated Digital Inputs: 4 channels, photo-coupled
- Input Voltage Range: 0–25 V
- Logic Low: 0–0.5 V
- Logic High: 2–25 V
- Isolated Digital Outputs: 4 channels, photo-coupled
- Load Voltage Range: 3–24 V
- Sink Current: 80 mA max
- Voltage Drop: 1.0 V max
- Leakage Current: 0.1 mA max
- Reverse Voltage Protection: –6 V
Trigger Inputs:
- 4 channels, photo-coupled
- Input Voltage Range: 0–25 V
- Logic Low: 0–0.5 V
- Logic High: 2.4–25 V
- Polarity: Positive/Negative selectable
- Minimum Pulse Width: 0.1 ms
Trigger Outputs:
- 4 channels, photo-coupled
- Load Voltage Range: 0–5 V
- Sink Current: 40 mA max
- Voltage Drop: 0.4 V max (@16 mA)
- Delay: 0–1000 ms (1 ms step)
- Pulse Width: 0.1–50 ms (0.1 ms step)
- Polarity: Positive/Negative selectable
- Enable Control: Enable/Disable
Isolation Voltage: 1000 V @ 60 seconds
Power Requirements:
- +12 V (max. 200 mA)
- +3.3 V (max. 2.5 A)
Environmental Conditions:
- Operating Temperature: 0°C to +55°C
- Operating Humidity: 5%–90% RH (non-condensing)
- Storage Temperature: 0°C to +85°C
- Storage Humidity: 0%–95% RH (non-condensing)
### 4. Functionality
The PCIe-FIW64B functions as a multi-channel IEEE 1394b frame grabber, enabling simultaneous connection and control of up to four FireWire 800 cameras. It captures high-speed image data streams and transfers them to the host system via the PCI Express x4 interface.
Operation:
- Each IEEE 1394b port can independently connect to a camera or device.
- The card’s onboard digital I/O and trigger circuits allow synchronization with external sensors, actuators, or lighting systems.
- Programmable trigger outputs can control camera exposure or strobe timing with precise delay and pulse width settings.
- The card’s isolation circuitry ensures reliable operation in electrically noisy industrial environments.
Use Cases:
- Automated optical inspection (AOI) systems
- Industrial robotics and motion control
- Scientific imaging and microscopy
- Medical imaging and diagnostics
- High-speed visual inspection and quality assurance
Compatibility:
- Compatible with IEEE 1394b-compliant cameras and devices.
- Supports Windows XP, XP Embedded, and Vista (32-bit) operating systems.
- Works with standard OHCI IEEE 1394 drivers and ADLINK’s proprietary FIW64 driver for extended I/O and trigger functionality.
### 5. Components & Accessories
Included Components:
- PCIe-FIW64B frame grabber card
- User manual and driver CD
- Software library and API documentation
- Mounting bracket and screws
Optional Accessories:
- 1394b Cable (4.5 m) – IEEE 1394b 9-pin cable with screw-lock connector
- Extension Cable Connector (D-sub 37-pin female) – for GPIO and trigger I/O access
- 4-pin ATX Power Cable – for camera power supply
Connectors:
- CN1–CN4: IEEE 1394b ports (9-pin)
- CN5: Additional 12 V power input (4-pin)
- GPIO/Trigger Connector: 34-pin header or D-sub 37-pin extension
- Status LEDs: LED19–LED22 (indicate active channel connections)
- SW1: DIP switch for Card ID selection (supports up to four cards per system)
### 6. Installation & Setup
Hardware Installation Steps:
1. Power off the host PC and remove the cover.
2. Locate an available PCI Express x4, x8, or x16 slot.
3. Insert the PCIe-FIW64B card firmly into the slot.
4. Secure the card with the mounting screw.
5. Connect IEEE 1394b devices to the ports using screw-lock cables.
6. Optionally connect the 4-pin ATX power cable for camera power.
7. Power on the system.
Driver Installation:
- Windows automatically installs the OHCI IEEE 1394 driver.
- Verify installation under *Device Manager → IEEE 1394 Bus Host Controllers*.
- Install ADLINK’s FIW64 driver using FIW64_SetupDisk.exe for digital I/O and trigger functions.
- For Windows Vista, disable User Account Control (UAC) before installation.
Configuration:
- Card ID selection via DIP switch (SW1) allows up to four cards in one system.
- LEDs indicate active connections for each IEEE 1394b port.
- Trigger and I/O parameters configured via ADLINK’s software library.
### 7. Performance & Capabilities
Data Throughput:
- Up to 800 Mb/s per port (IEEE 1394b standard)
- Aggregate bandwidth up to 3.2 Gb/s across four ports
Trigger Performance:
- Delay range: 0–1000 ms (1 ms resolution)
- Pulse width: 0.1–50 ms (0.1 ms resolution)
- Minimum input pulse width: 0.1 ms
- Polarity and enable control programmable per channel
Digital I/O Performance:
- Input voltage tolerance up to 25 V
- Output sink current up to 80 mA
- Isolation voltage 1000 V for signal integrity and protection
Efficiency & Reliability:
- Low power consumption (approx. 9 W total)
- Industrial-grade isolation and protection circuits
- FireWire short-circuit protection
- Stable operation in high-vibration and EMI environments
Limitations:
- No onboard image processing (relies on host CPU)
- Windows-only driver support (no native Linux driver)
- No built-in I/O trigger input (model variant “w/o IO Trigger”)
### 8. Standards & Compliance
Electrical and Interface Standards:
- IEEE 1394b (FireWire 800)
- IEEE 1394a-2000
- IEEE 1394-1995
- IEEE P1394b-2002
- OHCI 1.1 / 1.2 Draft Compliant
- PCI Express Base Specification Revision 1.1
Safety and Isolation:
- 1000 V isolation for digital and trigger I/O
- Photo-coupled input/output protection
Environmental Compliance:
- Designed for industrial temperature and humidity ranges
- RoHS-compliant manufacturing (lead-free components)
Regulatory Compliance:
- CE and FCC Class A (industrial environment)
- Manufactured under ISO 9001 quality management standards
### 9. Additional Information
Warranty:
Standard ADLINK limited warranty (typically 2 years) covering manufacturing defects and hardware failures under normal use.
Technical Support:
- Website: [www.adlinktech.com](http://www.adlinktech.com)
- Email: Service@adlinktech.com
- Telephone: +886-2-82265877
- Fax: +886-2-82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Maintenance:
- Keep connectors clean and free of dust.
- Avoid electrostatic discharge during installation.
- Periodically inspect cable connections and LED indicators.
Software Updates:
- Driver and firmware updates available from ADLINK’s support portal.
- Function library includes APIs for initialization, device enumeration, trigger configuration, and error handling (e.g., FIW64_Initialize, FIW64_SetTriggerDelayTime, FIW64_GetDI, FIW64_SetDO).
Service and RMA:
ADLINK provides global service and RMA support. Customers should contact ADLINK technical support with product model, operating environment, and detailed problem description for assistance.
### Summary
The ADLINK PCIe-FIW64B is a robust, high-speed IEEE 1394b frame grabber card engineered for demanding industrial and scientific imaging applications. With four fully isolated FireWire 800 ports, programmable trigger control, and industrial-grade electrical isolation, it delivers reliable, synchronized image acquisition in multi-camera systems. Its PCI Express x4 interface ensures ample bandwidth for real-time data transfer, while its flexible I/O and trigger configuration make it ideal for integration into machine vision, inspection, and research platforms.
Designed for stability, precision, and scalability, the PCIe-FIW64B exemplifies ADLINK’s commitment to high-performance data acquisition and automation solutions.
-
PCIe-FIW64_Datasheet_5.pdf
PDF Catalog
-
PCIe-FIW_50-11159-1000.pdf
Manual
Kein Zubehör vorhanden.
