PCIe-PoE4+

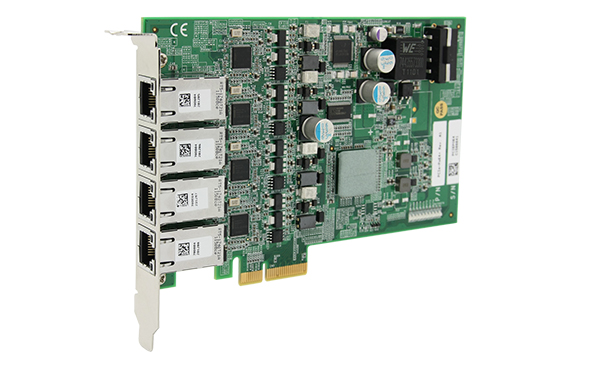

PCIe 4*GbE Video Grabber Card with PoE
290,00 EUR
inkl. Umsatzsteuer 345,10 EUR
- Four Independent Gigabit Ethernet Ports:
Equipped with four Intel® 82574L GbE controllers, each port supports full-duplex 1000 Mb/s operation, ensuring high throughput for data-intensive applications.
- Power over Ethernet (PoE) Support:
Fully compliant with IEEE 802.3af standard, each port can deliver up to 15.4 W of power to connected PoE devices such as cameras, sensors, or network modules.
- PCI Express x4 Interface:
Utilizes a PCIe x4 interface providing a total bandwidth of 1 GB/s, ensuring stable and high-speed communication between the card and host system.
- 9 kB Jumbo Frame Support:
Enables efficient transmission of large data packets, reducing CPU load and improving overall data throughput—ideal for high-resolution image acquisition.
- Link Aggregation (Teaming):
Supports link aggregation for increased bandwidth and redundancy, allowing multiple ports to operate as a single logical link.
- Extended Cable Length:
Supports CAT-5e or CAT-6 cables up to 100 meters, providing flexibility in system layout and camera placement.
- External Power Input:
Features an onboard 4-pin power connector for additional +12V input, ensuring stable PoE power delivery across all four ports.
- Industrial-Grade Design:
Designed for continuous operation in industrial environments with an operating temperature range of 0°C to 60°C (with airflow).
- Driver and Utility Support:
Includes Neousys Drivers & Utilities DVD with “One-Click” driver installation for Windows XP, Vista, and Windows 7 (32/64-bit).
Equipped with four Intel® 82574L GbE controllers, each port supports full-duplex 1000 Mb/s operation, ensuring high throughput for data-intensive applications.
- Power over Ethernet (PoE) Support:
Fully compliant with IEEE 802.3af standard, each port can deliver up to 15.4 W of power to connected PoE devices such as cameras, sensors, or network modules.
- PCI Express x4 Interface:
Utilizes a PCIe x4 interface providing a total bandwidth of 1 GB/s, ensuring stable and high-speed communication between the card and host system.
- 9 kB Jumbo Frame Support:
Enables efficient transmission of large data packets, reducing CPU load and improving overall data throughput—ideal for high-resolution image acquisition.
- Link Aggregation (Teaming):
Supports link aggregation for increased bandwidth and redundancy, allowing multiple ports to operate as a single logical link.
- Extended Cable Length:
Supports CAT-5e or CAT-6 cables up to 100 meters, providing flexibility in system layout and camera placement.
- External Power Input:
Features an onboard 4-pin power connector for additional +12V input, ensuring stable PoE power delivery across all four ports.
- Industrial-Grade Design:
Designed for continuous operation in industrial environments with an operating temperature range of 0°C to 60°C (with airflow).
- Driver and Utility Support:
Includes Neousys Drivers & Utilities DVD with “One-Click” driver installation for Windows XP, Vista, and Windows 7 (32/64-bit).
Comprehensive Product Summary: Neousys PCIe-PoE4+
### 1. Product Overview
Product Name: PCIe-PoE4+
Model: PCIe-PoE4+
Series: PCIe-PoE2+/PCIe-PoE4+ Gigabit Power over Ethernet Frame Grabber Cards
Article Number: PCIe-PoE4+
Manufacturer: Neousys Technology Inc.
Product Type: 4-Port x4 PCI Express® Gigabit Power over Ethernet (PoE) Frame Grabber Card
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys PCIe-PoE4+ is a high-performance PCI Express x4 frame grabber card designed to provide four independent Gigabit Ethernet (GbE) ports with integrated Power over Ethernet (PoE) capability. It is engineered for industrial and imaging applications requiring high-speed data transfer and reliable power delivery to connected devices such as GigE cameras. The card combines Intel® 82574L GbE controllers with IEEE 802.3af-compliant PoE functionality, offering up to 15.4 W per port and full Gigabit bandwidth over standard CAT-5e or CAT-6 cables.
### 2. Key Features
- Four Independent Gigabit Ethernet Ports:
Equipped with four Intel® 82574L GbE controllers, each port supports full-duplex 1000 Mb/s operation, ensuring high throughput for data-intensive applications.
- Power over Ethernet (PoE) Support:
Fully compliant with IEEE 802.3af standard, each port can deliver up to 15.4 W of power to connected PoE devices such as cameras, sensors, or network modules.
- PCI Express x4 Interface:
Utilizes a PCIe x4 interface providing a total bandwidth of 1 GB/s, ensuring stable and high-speed communication between the card and host system.
- 9 kB Jumbo Frame Support:
Enables efficient transmission of large data packets, reducing CPU load and improving overall data throughput—ideal for high-resolution image acquisition.
- Link Aggregation (Teaming):
Supports link aggregation for increased bandwidth and redundancy, allowing multiple ports to operate as a single logical link.
- Extended Cable Length:
Supports CAT-5e or CAT-6 cables up to 100 meters, providing flexibility in system layout and camera placement.
- External Power Input:
Features an onboard 4-pin power connector for additional +12V input, ensuring stable PoE power delivery across all four ports.
- Industrial-Grade Design:
Designed for continuous operation in industrial environments with an operating temperature range of 0°C to 60°C (with airflow).
- Driver and Utility Support:
Includes Neousys Drivers & Utilities DVD with “One-Click” driver installation for Windows XP, Vista, and Windows 7 (32/64-bit).
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Bus Interface | PCI Express x4 |
| Ethernet Controllers | 4 × Intel® 82574L |
| Ethernet Ports | 4 × RJ45 Gigabit Ethernet |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Output | Up to 15.4 W per port |
| Total PoE Power Budget | 61.6 W (4 ports × 15.4 W) |
| Supported Cable Types | CAT-5e or CAT-6 |
| Maximum Cable Length | 100 meters |
| Jumbo Frame Support | Up to 9 kB |
| Link Aggregation | Supported (teaming) |
| Power Requirements | Max. 2.4 A @ 3.3 V from PCIe bus; Max. 5.6 A @ 12 V from external 4-pin connector |
| Operating Temperature | 0°C to 60°C (with airflow) |
| Dimensions (W × H) | 167.7 mm × 111.2 mm |
| Weight | Approx. 200–250 g (typical) |
| Compliance | FCC Class A, CE compliant |
| Manufacturer | Neousys Technology Inc. |
### 4. Functionality
The PCIe-PoE4+ operates as a high-speed frame grabber and network interface card, enabling simultaneous data and power transmission over Ethernet. Each of the four ports can independently connect to a PoE-powered device (PD) such as a GigE camera, sensor, or network node. The card automatically detects and classifies connected devices before supplying power, ensuring compatibility with both PoE and non-PoE Ethernet devices.
Use Cases and Applications:
- Machine Vision and Automated Optical Inspection (AOI):
Ideal for industrial inspection systems requiring multiple high-resolution cameras.
- Surveillance and Security Systems:
Supports multiple IP cameras with centralized power and data management.
- Medical Imaging:
Provides stable, high-bandwidth connections for diagnostic imaging devices.
- Traffic Monitoring and Enforcement:
Suitable for automated license plate recognition (ALPR) and traffic control systems.
Compatibility:
- Compatible with Windows XP, Vista, and Windows 7 (32-bit and 64-bit).
- Works with standard GigE Vision cameras and other Ethernet-based imaging devices.
- Supports both PoE and non-PoE devices through automatic detection.
### 5. Components & Accessories
Included Items:
1. PCIe-PoE4+ Frame Grabber Card (1 unit)
2. Neousys Drivers & Utilities DVD (1 unit)
Optional Accessories:
- CAT-6 Ethernet cables (up to 100 m)
- 4-pin ATX power connector cable (for external +12V input)
- Mounting screws and bracket (standard PCIe form factor)
Connectors:
- 4 × RJ45 Ethernet Ports: For data and PoE output.
- 1 × 4-pin Power Connector: For external +12V input from ATX power supply.
- PCIe x4 Edge Connector: For host system interface.
### 6. Installation & Setup
System Requirements:
- Available PCI Express x4 or x16 slot on the host computer.
- ATX power supply with available 4-pin +12V connector (for PCIe-PoE4+).
- Supported operating system (Windows XP/Vista/7).
Installation Steps:
1. Power off the host computer and open the chassis.
2. Locate an available PCIe x4 (or compatible x16) slot.
3. Insert the PCIe-PoE4+ card firmly into the slot.
4. Secure the card with a mounting screw.
5. Connect the 4-pin +12V power plug from the ATX power supply to the card’s onboard connector.
6. Close the chassis and power on the system.
7. Insert the Neousys Drivers & Utilities DVD and run the “One-Click” driver installation utility.
8. Reboot the system after installation.
Configuration:
- Use the Intel® network driver settings to enable Jumbo Frames (recommended 9014 Bytes).
- Adjust Receive and Transmit Buffers to 2048 Bytes for optimal performance.
- Configure link aggregation if multiple ports are used for bandwidth scaling or redundancy.
### 7. Performance & Capabilities
Data Throughput:
- Each port supports full-duplex Gigabit Ethernet (1 Gbps per port).
- Combined total bandwidth up to 4 Gbps across all ports.
Power Delivery:
- Each port provides up to 15.4 W of PoE power, compliant with IEEE 802.3af.
- Total power budget of 61.6 W across four ports.
Efficiency:
- High data throughput with reduced CPU utilization due to Jumbo Frame support.
- Link aggregation enhances bandwidth and fault tolerance.
Limitations:
- Requires external +12V power input for full PoE functionality.
- Operating temperature limited to 0–60°C with adequate airflow.
- Designed for industrial and commercial environments (not residential).
Performance Optimization:
- Enabling Jumbo Frames and increasing buffer sizes significantly improves image data transfer rates.
- Recommended to use CAT-6 cables for maximum stability and minimal signal loss.
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A:
Meets the limits for a Class A digital device under Part 15 of the FCC Rules, suitable for commercial environments.
- CE Marking:
Complies with applicable European Union directives for electromagnetic compatibility and safety.
Industry Standards:
- IEEE 802.3 (Ethernet)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet)
- PCI Express Base Specification Revision 2.0 or later
Environmental and Safety:
- Designed for industrial-grade reliability.
- Requires proper cabling and grounding to maintain compliance.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–3 years, depending on region and distributor).
Technical Support:
- Neousys provides technical documentation, driver updates, and support via its official website.
- User manual and driver installation guides included on the Drivers & Utilities DVD.
Maintenance:
- Periodically inspect connectors and cables for wear or damage.
- Ensure adequate airflow within the host system to maintain operating temperature.
- Keep firmware and drivers updated for optimal performance and compatibility.
Software Updates:
- Updated drivers and utilities available from Neousys support portal.
- Compatible with Intel® network driver updates for 82574L controllers.
Product Lifecycle and Reliability:
- Industrial-grade components ensure long-term availability and stability.
- Designed for 24/7 operation in machine vision and automation environments.
### Summary
The Neousys PCIe-PoE4+ is a robust, high-performance PCI Express x4 frame grabber card that integrates four independent Gigabit Ethernet ports with full IEEE 802.3af Power over Ethernet support. Each port delivers up to 15.4 W of power and 1 Gbps data throughput, making it ideal for multi-camera machine vision systems, surveillance networks, and industrial automation applications. With support for 9 kB Jumbo Frames, link aggregation, and extended cable lengths up to 100 meters, the PCIe-PoE4+ ensures efficient, reliable, and scalable network connectivity.
Its industrial-grade design, combined with flexible power input options and comprehensive driver support, makes it a preferred choice for system integrators and OEMs seeking a dependable PoE-enabled GigE interface solution. The card’s compliance with FCC and CE standards further ensures safe and reliable operation in demanding commercial and industrial environments.
Manufacturer Contact:
Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Product Line: PCIe-PoE2+/PCIe-PoE4+ Series
Product Type: PCIe x4 Gigabit PoE Frame Grabber Card
Model: PCIe-PoE4+
### 1. Product Overview
Product Name: PCIe-PoE4+
Model: PCIe-PoE4+
Series: PCIe-PoE2+/PCIe-PoE4+ Gigabit Power over Ethernet Frame Grabber Cards
Article Number: PCIe-PoE4+
Manufacturer: Neousys Technology Inc.
Product Type: 4-Port x4 PCI Express® Gigabit Power over Ethernet (PoE) Frame Grabber Card
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
The Neousys PCIe-PoE4+ is a high-performance PCI Express x4 frame grabber card designed to provide four independent Gigabit Ethernet (GbE) ports with integrated Power over Ethernet (PoE) capability. It is engineered for industrial and imaging applications requiring high-speed data transfer and reliable power delivery to connected devices such as GigE cameras. The card combines Intel® 82574L GbE controllers with IEEE 802.3af-compliant PoE functionality, offering up to 15.4 W per port and full Gigabit bandwidth over standard CAT-5e or CAT-6 cables.
### 2. Key Features
- Four Independent Gigabit Ethernet Ports:
Equipped with four Intel® 82574L GbE controllers, each port supports full-duplex 1000 Mb/s operation, ensuring high throughput for data-intensive applications.
- Power over Ethernet (PoE) Support:
Fully compliant with IEEE 802.3af standard, each port can deliver up to 15.4 W of power to connected PoE devices such as cameras, sensors, or network modules.
- PCI Express x4 Interface:
Utilizes a PCIe x4 interface providing a total bandwidth of 1 GB/s, ensuring stable and high-speed communication between the card and host system.
- 9 kB Jumbo Frame Support:
Enables efficient transmission of large data packets, reducing CPU load and improving overall data throughput—ideal for high-resolution image acquisition.
- Link Aggregation (Teaming):
Supports link aggregation for increased bandwidth and redundancy, allowing multiple ports to operate as a single logical link.
- Extended Cable Length:
Supports CAT-5e or CAT-6 cables up to 100 meters, providing flexibility in system layout and camera placement.
- External Power Input:
Features an onboard 4-pin power connector for additional +12V input, ensuring stable PoE power delivery across all four ports.
- Industrial-Grade Design:
Designed for continuous operation in industrial environments with an operating temperature range of 0°C to 60°C (with airflow).
- Driver and Utility Support:
Includes Neousys Drivers & Utilities DVD with “One-Click” driver installation for Windows XP, Vista, and Windows 7 (32/64-bit).
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Bus Interface | PCI Express x4 |
| Ethernet Controllers | 4 × Intel® 82574L |
| Ethernet Ports | 4 × RJ45 Gigabit Ethernet |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Output | Up to 15.4 W per port |
| Total PoE Power Budget | 61.6 W (4 ports × 15.4 W) |
| Supported Cable Types | CAT-5e or CAT-6 |
| Maximum Cable Length | 100 meters |
| Jumbo Frame Support | Up to 9 kB |
| Link Aggregation | Supported (teaming) |
| Power Requirements | Max. 2.4 A @ 3.3 V from PCIe bus; Max. 5.6 A @ 12 V from external 4-pin connector |
| Operating Temperature | 0°C to 60°C (with airflow) |
| Dimensions (W × H) | 167.7 mm × 111.2 mm |
| Weight | Approx. 200–250 g (typical) |
| Compliance | FCC Class A, CE compliant |
| Manufacturer | Neousys Technology Inc. |
### 4. Functionality
The PCIe-PoE4+ operates as a high-speed frame grabber and network interface card, enabling simultaneous data and power transmission over Ethernet. Each of the four ports can independently connect to a PoE-powered device (PD) such as a GigE camera, sensor, or network node. The card automatically detects and classifies connected devices before supplying power, ensuring compatibility with both PoE and non-PoE Ethernet devices.
Use Cases and Applications:
- Machine Vision and Automated Optical Inspection (AOI):
Ideal for industrial inspection systems requiring multiple high-resolution cameras.
- Surveillance and Security Systems:
Supports multiple IP cameras with centralized power and data management.
- Medical Imaging:
Provides stable, high-bandwidth connections for diagnostic imaging devices.
- Traffic Monitoring and Enforcement:
Suitable for automated license plate recognition (ALPR) and traffic control systems.
Compatibility:
- Compatible with Windows XP, Vista, and Windows 7 (32-bit and 64-bit).
- Works with standard GigE Vision cameras and other Ethernet-based imaging devices.
- Supports both PoE and non-PoE devices through automatic detection.
### 5. Components & Accessories
Included Items:
1. PCIe-PoE4+ Frame Grabber Card (1 unit)
2. Neousys Drivers & Utilities DVD (1 unit)
Optional Accessories:
- CAT-6 Ethernet cables (up to 100 m)
- 4-pin ATX power connector cable (for external +12V input)
- Mounting screws and bracket (standard PCIe form factor)
Connectors:
- 4 × RJ45 Ethernet Ports: For data and PoE output.
- 1 × 4-pin Power Connector: For external +12V input from ATX power supply.
- PCIe x4 Edge Connector: For host system interface.
### 6. Installation & Setup
System Requirements:
- Available PCI Express x4 or x16 slot on the host computer.
- ATX power supply with available 4-pin +12V connector (for PCIe-PoE4+).
- Supported operating system (Windows XP/Vista/7).
Installation Steps:
1. Power off the host computer and open the chassis.
2. Locate an available PCIe x4 (or compatible x16) slot.
3. Insert the PCIe-PoE4+ card firmly into the slot.
4. Secure the card with a mounting screw.
5. Connect the 4-pin +12V power plug from the ATX power supply to the card’s onboard connector.
6. Close the chassis and power on the system.
7. Insert the Neousys Drivers & Utilities DVD and run the “One-Click” driver installation utility.
8. Reboot the system after installation.
Configuration:
- Use the Intel® network driver settings to enable Jumbo Frames (recommended 9014 Bytes).
- Adjust Receive and Transmit Buffers to 2048 Bytes for optimal performance.
- Configure link aggregation if multiple ports are used for bandwidth scaling or redundancy.
### 7. Performance & Capabilities
Data Throughput:
- Each port supports full-duplex Gigabit Ethernet (1 Gbps per port).
- Combined total bandwidth up to 4 Gbps across all ports.
Power Delivery:
- Each port provides up to 15.4 W of PoE power, compliant with IEEE 802.3af.
- Total power budget of 61.6 W across four ports.
Efficiency:
- High data throughput with reduced CPU utilization due to Jumbo Frame support.
- Link aggregation enhances bandwidth and fault tolerance.
Limitations:
- Requires external +12V power input for full PoE functionality.
- Operating temperature limited to 0–60°C with adequate airflow.
- Designed for industrial and commercial environments (not residential).
Performance Optimization:
- Enabling Jumbo Frames and increasing buffer sizes significantly improves image data transfer rates.
- Recommended to use CAT-6 cables for maximum stability and minimal signal loss.
### 8. Standards & Compliance
Regulatory Compliance:
- FCC Class A:
Meets the limits for a Class A digital device under Part 15 of the FCC Rules, suitable for commercial environments.
- CE Marking:
Complies with applicable European Union directives for electromagnetic compatibility and safety.
Industry Standards:
- IEEE 802.3 (Ethernet)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet)
- PCI Express Base Specification Revision 2.0 or later
Environmental and Safety:
- Designed for industrial-grade reliability.
- Requires proper cabling and grounding to maintain compliance.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–3 years, depending on region and distributor).
Technical Support:
- Neousys provides technical documentation, driver updates, and support via its official website.
- User manual and driver installation guides included on the Drivers & Utilities DVD.
Maintenance:
- Periodically inspect connectors and cables for wear or damage.
- Ensure adequate airflow within the host system to maintain operating temperature.
- Keep firmware and drivers updated for optimal performance and compatibility.
Software Updates:
- Updated drivers and utilities available from Neousys support portal.
- Compatible with Intel® network driver updates for 82574L controllers.
Product Lifecycle and Reliability:
- Industrial-grade components ensure long-term availability and stability.
- Designed for 24/7 operation in machine vision and automation environments.
### Summary
The Neousys PCIe-PoE4+ is a robust, high-performance PCI Express x4 frame grabber card that integrates four independent Gigabit Ethernet ports with full IEEE 802.3af Power over Ethernet support. Each port delivers up to 15.4 W of power and 1 Gbps data throughput, making it ideal for multi-camera machine vision systems, surveillance networks, and industrial automation applications. With support for 9 kB Jumbo Frames, link aggregation, and extended cable lengths up to 100 meters, the PCIe-PoE4+ ensures efficient, reliable, and scalable network connectivity.
Its industrial-grade design, combined with flexible power input options and comprehensive driver support, makes it a preferred choice for system integrators and OEMs seeking a dependable PoE-enabled GigE interface solution. The card’s compliance with FCC and CE standards further ensures safe and reliable operation in demanding commercial and industrial environments.
Manufacturer Contact:
Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Product Line: PCIe-PoE2+/PCIe-PoE4+ Series
Product Type: PCIe x4 Gigabit PoE Frame Grabber Card
Model: PCIe-PoE4+
-
PCIe-PoE4_Datasheet.pdf
PDF Catalog
Kein Zubehör vorhanden.
