1. Product Overview
Product Name: PCIe-PoE550X
Model: PCIe-PoE550X
Series: PCIe 10GbE PoE+ Network Adapter Series
Article Number: PCIe-PoE550X
Manufacturer: Neousys Technology Inc.

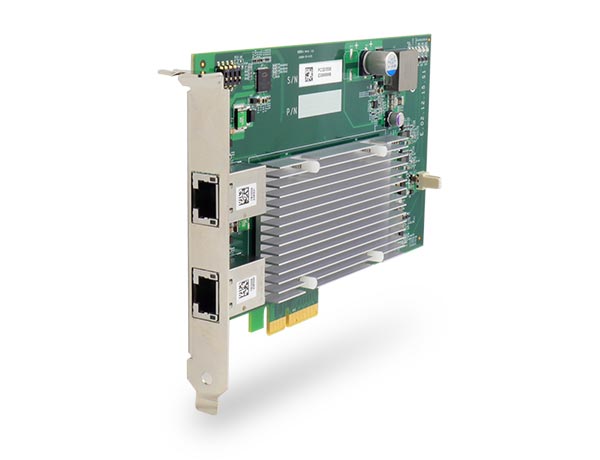

The Neousys PCIe-PoE550X is a high-performance 2-port 10 Gigabit Ethernet (10GbE) network adapter that integrates IEEE 802.3at Power over Ethernet Plus (PoE+) functionality. Designed for demanding industrial and machine vision applications, it combines advanced networking capabilities with power delivery over standard Ethernet cabling. The adapter leverages Intel® X550-AT2 controllers and a Gen3 PCI Express x4 interface, providing robust throughput, low latency, and reliable connectivity for high-bandwidth devices such as industrial cameras, sensors, and networked equipment.
2. Key Features
- Dual 10GbE Ports: Equipped with two Intel® X550-AT2 10 Gigabit Ethernet controllers, enabling simultaneous high-speed data transmission across two independent channels.
- PCI Express Gen3 x4 Interface: Ensures high data throughput and compatibility with modern industrial PCs and servers.
- IEEE 802.3at PoE+ Support: Provides up to 25.5W per port, allowing direct power delivery to connected devices such as cameras, access points, or sensors via Ethernet cables.
- Cable Compatibility:
- 10GBASE-T operation with CAT 6a cable up to 100 meters or CAT 6 cable up to 55 meters.
- NBASE-T (2.5G/5G) operation with CAT 5e or CAT 6 cables up to 100 meters.
- Backward compatible with 1000BASE-T (Gigabit Ethernet) networks.
- Advanced Networking Features:
- 15.5 KB jumbo frame support for efficient large-packet data transfer.
- NIC teaming for redundancy and load balancing.
- IEEE 1588 Precision Time Protocol (PTP) support for synchronized data acquisition and time-sensitive applications.
- Per-Port PoE+ Power Control: Software API allows individual port power on/off management for flexible device control.
- High Reliability and Signal Integrity: Optimized power design ensures stable 10G PHY operation and consistent bandwidth performance.
- Machine Vision Ready: Engineered for industrial imaging systems, enabling high-speed data transfer and power delivery to GigE Vision cameras over a single cable.
3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Bus Interface | PCI Express Gen3 x4 |
| Ethernet Ports | 2 × 10GbE ports (Intel® X550-AT2 controllers) |
| Supported Standards | IEEE 802.3an (10GBASE-T), IEEE 802.3bz (NBASE-T), IEEE 802.3ab (1000BASE-T) |
| PoE Standard | IEEE 802.3at-2009 (PoE+) |
| PoE Power Output | Up to 25.5W per port |
| Jumbo Frame Support | Up to 15.5 KB |
| Network Features | NIC teaming, IEEE 1588 PTP |
| Cable Requirements | CAT 6a (10G up to 100m), CAT 6 (10G up to 55m), CAT 6 (5G up to 100m), CAT 5e (2.5G up to 100m) |
| Power Consumption (Adapter Only) | Max. 11.5W for dual 10GbE operation |
| Power Consumption (with PoE Devices) | Max. 51W total (PoE+ load) |
| EMC Compliance | CE Class A (EN 55024/55032), FCC Class A (Part 15, Subpart B) |
| EMS Compliance | IEC 61000-4-x, Class/Level 3 |
| Operating Temperature | 0°C to 60°C (with airflow) |
| Dimensions (W × H) | 168 mm × 111.2 mm |
| Manufacturer | Neousys Technology Inc. |
4. Functionality
The PCIe-PoE550X functions as a dual-port 10GbE network interface card (NIC) with integrated PoE+ power sourcing equipment (PSE) capability. Installed in a PCI Express slot, it provides both high-speed data connectivity and electrical power through standard RJ45 Ethernet ports.
Each port can independently deliver up to 25.5 watts of power compliant with IEEE 802.3at, enabling direct connection to PoE-powered devices such as:
- Industrial GigE Vision cameras
- High-performance wireless access points
- Networked sensors and controllers
- Embedded edge computing devices
The card supports NBASE-T technology, allowing flexible operation at 10G, 5G, 2.5G, or 1G speeds depending on cable quality and network configuration. This ensures seamless integration into existing Ethernet infrastructures without requiring fiber optics or specialized cabling.
Use Cases and Applications:
- Machine Vision Systems: Power and connect multiple high-resolution cameras for real-time image acquisition and processing.
- Industrial Automation: Simplify cabling by combining data and power transmission for sensors and controllers.
- Surveillance and Security: Support high-bandwidth IP cameras with PoE+ power delivery.
- Edge Computing and AI Systems: Provide high-speed network connectivity for data-intensive applications.
- Network Infrastructure Upgrades: Enable 10GbE connectivity using existing copper cabling.
Compatibility:
The adapter is compatible with standard PCI Express x4 or higher slots and supports major operating systems that include drivers for Intel® X550-AT2 controllers. It integrates seamlessly with existing Ethernet networks and PoE-enabled devices.
5. Components & Accessories
Included Items:
- PCIe-PoE550X network adapter card
- Quick installation guide or datasheet
- Standard low-profile or full-height bracket (depending on configuration)
Optional Accessories:
- Additional PoE+ compatible Ethernet cables (CAT 6a recommended for 10G operation)
- System integration kits for machine vision setups
- API software package for PoE power control and monitoring
Connectors:
- 2 × RJ45 Ethernet ports (10GBASE-T/PoE+)
- PCIe edge connector (Gen3 x4 interface)
6. Installation & Setup
System Requirements:
- Available PCI Express Gen3 x4 (or higher) slot on host system
- Adequate system power supply to support up to 51W total consumption (including PoE load)
- Proper airflow within chassis to maintain operating temperature below 60°C
Installation Steps:
1. Power off the host system and disconnect from mains power.
2. Insert the PCIe-PoE550X card into an available PCIe x4 slot.
3. Secure the card using the bracket screw.
4. Connect CAT 6a or CAT 6 Ethernet cables to the RJ45 ports.
5. Power on the system and install the appropriate Intel® X550-AT2 drivers.
6. Configure network settings and PoE+ power management via the provided API or system software.
Mounting Options:
- Standard PCIe slot mounting in industrial PCs or servers.
- Compatible with both full-height and low-profile brackets (depending on chassis).
Configuration:
- PoE+ power can be toggled per port through software API.
- Supports NIC teaming and VLAN configuration for advanced network setups.
- Jumbo frame and IEEE 1588 features can be enabled through driver settings.
7. Performance & Capabilities
The PCIe-PoE550X delivers 10 Gigabit per second full-duplex data transfer per port, ensuring high throughput for data-intensive applications. Its Intel® X550-AT2 controllers provide hardware acceleration for checksum offloading, segmentation, and packet filtering, optimizing CPU utilization.
Performance Highlights:
- Data Rate: Up to 10 Gbps per port (20 Gbps aggregate full-duplex)
- PoE Power Output: 25.5W per port (IEEE 802.3at compliant)
- Jumbo Frame Support: Up to 15.5 KB for efficient large-packet transfers
- Latency: Optimized for real-time data streaming and low-latency communication
- Power Efficiency: 11.5W typical for dual 10GbE operation without PoE load
- Thermal Performance: Operates reliably from 0°C to 60°C with adequate airflow
Limitations:
- Maximum cable length for 10GBASE-T operation is 100 meters with CAT 6a or 55 meters with CAT 6.
- Requires sufficient system power and cooling for full PoE+ operation.
- PoE+ power delivery limited to 25.5W per port (total 51W).
8. Standards & Compliance
The PCIe-PoE550X adheres to multiple international standards for networking, safety, and electromagnetic compatibility:
Networking Standards:
- IEEE 802.3an (10GBASE-T)
- IEEE 802.3bz (NBASE-T)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3at-2009 (PoE+)
- IEEE 1588 (Precision Time Protocol)
Electromagnetic Compatibility (EMC):
- CE Class A (EN 55024 / EN 55032)
- FCC Class A (Part 15, Subpart B)
Electromagnetic Susceptibility (EMS):
- IEC 61000-4-x, Class/Level 3
Environmental Compliance:
- Designed for industrial temperature range (0°C to 60°C)
- RoHS-compliant materials and manufacturing processes
Industry Standards:
- Compatible with GigE Vision and industrial Ethernet frameworks
- Supports NBASE-T for flexible multi-gigabit operation
9. Additional Information
Warranty:
Neousys Technology provides a standard manufacturer’s warranty covering defects in materials and workmanship. Warranty terms may vary by region and distributor.
Technical Support:
Comprehensive technical support is available through Neousys’ global service network, including driver updates, firmware revisions, and integration assistance.
Maintenance:
- Periodic inspection of connectors and cables recommended for optimal performance.
- Ensure adequate airflow and dust-free environment to maintain thermal stability.
- Firmware and driver updates should be applied as released by Neousys or Intel®.
Software & Updates:
- Compatible with Intel® X550-AT2 driver packages for major operating systems (Windows, Linux).
- API tools available for PoE+ power management and monitoring.
- Supports future updates for NBASE-T and advanced Ethernet features.
Ordering Information:
- PCIe-PoE550X: 2-port 10GbE Network Adapter with IEEE 802.3at PoE+
- PCIe-10G550X: 2-port 10GbE Network Adapter (without PoE+)
Manufacturer Contact:
Neousys Technology Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Summary
The Neousys PCIe-PoE550X represents a cutting-edge solution for industrial networking and machine vision applications, combining 10 Gigabit Ethernet performance with IEEE 802.3at PoE+ power delivery in a single PCIe card. Its dual Intel® X550-AT2 controllers ensure robust, low-latency communication, while PoE+ capability simplifies system design by eliminating separate power cabling. With support for NBASE-T, IEEE 1588, and jumbo frames, it delivers exceptional flexibility and performance for modern high-speed data acquisition and control systems.
Engineered for reliability, compliance, and scalability, the PCIe-PoE550X enables next-generation industrial connectivity—powering and networking devices through a unified, high-bandwidth interface.
