Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input.
Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input. Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input. Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input. Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input.

POC-751VTC

Core i3-N305 vehicle computer with four PoE+ ports, isolated CAN and wide-range DC input.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der POC-751VTC ist ein ultrakompakter, lüfterloser Fahrzeugcomputer mit Intel Core i3-N305, acht CPU-Kernen und bis zu 16 GB DDR5-4800. Vier Gigabit-PoE+-Ports versorgen kompatible Kameras und weitere Netzwerkgeräte, während vier USB-3.2-Gen-2-Anschlüsse, zwei Displayausgänge, isolierte digitale E/A und zwei isolierte CAN-2.0-Ports umfangreiche Konnektivität bieten. Zwei gekühlte Mini-PCIe-Steckplätze ermöglichen Wi-Fi-, 4G- oder 5G-Module. Der Eingang von 8 bis 35 V DC, die integrierte Zündsteuerung, der Temperaturbereich von -40 bis 70 °C sowie E-Mark und EN-50155-EMV eignen das System für anspruchsvolle mobile Anwendungen.
Ultra-compact fanless in-vehicle computer with Intel Alder Lake Core i3-N305 (8C/8T, 1.8/3.8 GHz, 15 W), up to 16 GB DDR5-4800, Intel UHD Graphics, four GbE PoE+ ports, four USB 3.2 Gen 2 ports, dual display outputs, two isolated CAN 2.0 ports, 8-channel isolated DI and 8-channel isolated DO, two full-size mPCIe sockets, M.2 SATA storage, 8–35 V DC input and built-in ignition control. Operating range is -40°C to 70°C.
  • Processor Intel Alder Lake Core i3-N305, 8 cores/8 threads, 1.8/3.8 GHz
  • Processor TDP 15 W
  • Graphics Integrated Intel UHD Graphics with 32 EUs
  • Maximum Memory 16 GB
  • Memory Type DDR5-4800 SDRAM, one SODIMM socket
  • TPM Support TPM 2.0 supported
  • Ethernet Ports 4x Gigabit Ethernet via Intel I350-AM4
  • PoE Ports 4x IEEE 802.3at Gigabit PoE+ via RJ45
  • PoE Device Power 25 W
  • USB Ports 4x USB 3.2 Gen 2 with screw-lock
  • CAN Bus Ports 2x isolated CAN 2.0 with SocketCAN support under Linux
  • Bus Interface 4x GbE; 4x USB 3.2 Gen 2; 2x isolated CAN 2.0; serial; 2x full-size mPCIe
  • Isolated Digital Inputs 8 channels
  • Isolated Digital Outputs 8 channels
  • Digital I/O 8x isolated DI and 8x isolated DO total
  • DisplayPort Output 1x DP++, up to 4096 x 2160 at 60 Hz
  • HDMI Output 1x HDMI 1.4b, up to 3840 x 2160 at 30 Hz
  • Programmable Serial Port 1x software-programmable RS-232/422/485 (COM1)
  • Additional Serial Ports 3x 3-wire RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
  • Storage Socket 1x M.2 2280 M-key socket for SATA SSD
  • Mini PCIe Sockets 2x full-size mPCIe with conduction-cooled heatsink
  • Wireless Module Support Wi-Fi, 4G and 5G modules
  • DC Input Range 8 to 35 V DC
  • DC Input Connector 3-pin pluggable terminal block (IGN/GND/V+)
  • Ignition Control Built-in ignition power control
  • Remote Control and LED Output 1x 3-pin pluggable terminal block
  • Dimensions 176 x 116 x 64 mm
  • Weight 1.7 kg
  • Standard Mounting Horizontal wall-mount
  • Optional Mounting Vertical wall-mount
  • Form Factor Ultra-compact fanless wall-mount in-vehicle computer

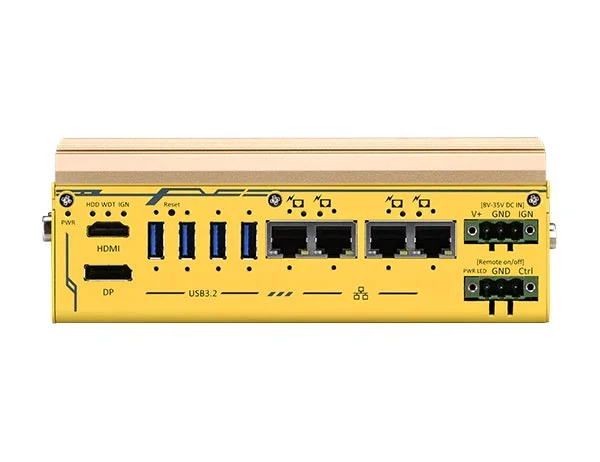

  • Connector 4x RJ45 PoE+; 4x screw-lock USB; DP++; HDMI 1.4b; serial/CAN connectors; 3-pin DC terminal block; 3-pin remote-control terminal block
  • Dimensions 176 x 116 x 64 mm (W x D x H)
  • Operating Temperature -40 to 70 °C
  • Storage Temperature -40 to 85 °C
  • Relative Humidity 10 to 90, non-condensing %
  • Vibration Compliance EN 50155:2017 / IEC 61373, Category I, Class B, body mounted
  • Shock Compliance EN 50155:2017 / IEC 61373, Category I, Class B, body mounted
  • Operating Temperature -40°C to 70°C
  • EMC Certifications E-Mark; EN 50121 (EN 50155 EMC); CE/FCC Class A per EN 55032 and EN 55035
  • Cooling Design Fanless
  • OpenVINO Support Supported through Intel UHD Graphics
  • Key Features Intel Core i3-N305 8-core processor; fanless ultra-compact design; four IEEE 802.3at PoE+ ports; four screw-lock USB 3.2 Gen 2 ports; dual isolated CAN 2.0 with SocketCAN; 8 isolated DI and 8 isolated DO; dual mPCIe expansion; 8–35 V DC input; built-in ignition control; E-Mark and EN 50155 EMC
  • Linux CAN Support SocketCAN
  • Wide-Temperature Storage Requirement Wide-temperature HDD or SSD required below 0°C and above 60°C
  • Resolution DP++: 4096 x 2160 @ 60 Hz; HDMI 1.4b: 3840 x 2160 @ 30 Hz
  • Accessories PA-60W-OW, PA-120W-OW, Cbl-DB9F-3DB9M-15CM, Cbl-DB9F-2DB9M-15CM, mPCIe-M2B, mPCIe-M2E, mPCIe-M2M, Wmkit-V-POC500, AccsyBx-FAN-POC-700

Zubehör

Ähnliche Produkte

2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core
GT-92GC
2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core

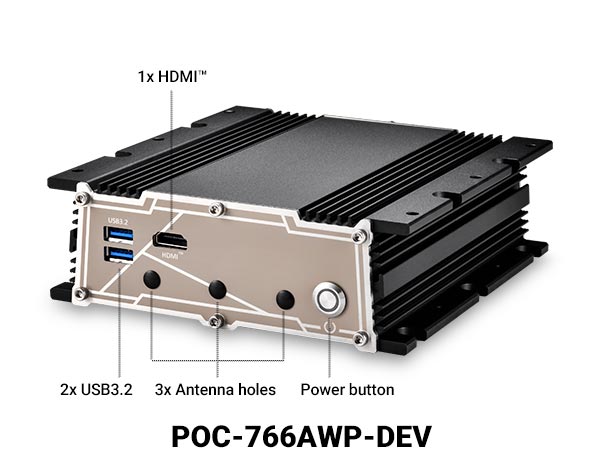

Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O.
