Comprehensive Product Summary – ADLINK PXI‑3800 PXI System Controller
### 1. Product Overview

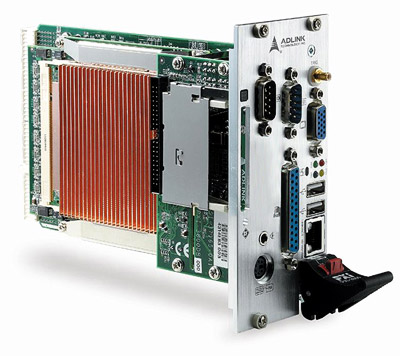

Product Name: PXI‑3800
Model: PXI‑3800 / PXI‑3800/CM13 / PXI‑3800/PM18 / PXI‑3800/PM18+
Series: PXI‑3800 Series – 3U PXI Intel® Pentium® M System Controller
Article Number: PXI‑3800
Manufacturer: ADLINK Technology Inc.
Part Number: 50‑17014‑101
Manual Revision: 2.01 (December 21, 2003)
The ADLINK PXI‑3800 is a high‑performance 3U PXI system controller designed for embedded and industrial test and measurement applications. It integrates an Intel® Pentium® M or Celeron® M processor, Intel® 855GME/6300ESB chipset, and a full complement of I/O interfaces including VGA, Gigabit Ethernet, USB 2.0, CompactFlash, IDE, and serial/parallel ports. The controller complies with PXI Specification Rev. 2.2 and PICMG 2.0/2.1 CompactPCI standards, providing a rugged, long‑life embedded computing platform for PXI instrumentation systems.
### 2. Key Features
- PXI/CompactPCI Compliance:
Fully compliant with PXI Rev. 2.2, PICMG 2.0 R3.0, and PICMG 2.1 R1.0 Hot‑Swap specifications.
- Processor Options:
Supports Intel® Pentium® M (up to 1.8 GHz) or Celeron® M CPUs with 400 MHz FSB and 1 MB/512 KB L2 cache.
- Memory:
Two 200‑pin DDR SO‑DIMM sockets supporting up to 2 GB DDR SDRAM (ECC/non‑ECC).
- Graphics:
Integrated Intel® 855GME GMCH with 64 MB dynamic video memory, 24‑bit RAMDAC (350 MHz), resolutions up to 2048 × 1536 @ 75 Hz.
- Networking:
Intel® 82545EM Gigabit Ethernet controller (10/100/1000 Mbps) with PXE remote boot support.
- Storage:
One 44‑pin EIDE connector for 2.5″ HDD (40 GB standard); two CompactFlash Type II sockets (one internal IDE, one front‑panel hot‑swappable USB‑CF).
- Front‑Panel I/O:
VGA, 2 × USB 2.0, 2 × COM (DB‑9), 1 × LPT (DB‑25), 1 × RJ‑45 GbE, PS/2 keyboard/mouse, audio out, PXI TRIG I/O, LED indicators, reset switch.
- Hot‑Swappable CF:
Front‑panel CompactFlash slot supports plug‑and‑play and hot‑swap operation.
- Watchdog Timers:
Dual WDTs (6300ESB 2‑stage and W83627HF 1‑stage) with programmable timeouts (1 s – 255 s).
- Environmental Robustness:
Operating 0 – 55 °C, storage –20 – 80 °C, vibration 0.5 G RMS operating, shock 15 G peak.
- Reliability:
Long‑life Intel embedded chipset support, low power consumption, industrial‑grade design.
- Software Compatibility:
Supports Windows 2000/XP/2003 and Linux; drivers for chipset, VGA, LAN, audio, and PXI trigger included.
### 3. Technical Specifications
Form Factor:
3U PXI/CompactPCI controller, 12 HP width (3 slots), board size 100 mm × 160 mm.
Processor / Cache:
- Intel® Pentium® M (1.1 – 1.8 GHz) or Celeron® M (1.3 GHz).
- Front Side Bus 400 MHz.
- L2 Cache: 1 MB (Pentium M) / 512 KB (Celeron M).
Chipset:
Intel® 855GME GMCH + Intel® 6300ESB ICH (I/O Controller Hub).
Memory:
- Two 200‑pin DDR SO‑DIMM sockets.
- Up to 2 GB DDR SDRAM (PC2100/PC2700, ECC optional).
- 64‑bit data interface (72‑bit with ECC).
Graphics:
- Integrated Intel 855GME graphics engine.
- 24‑bit 350 MHz RAMDAC.
- Up to 64 MB dynamic video memory.
- Resolutions: 2048 × 1536 @ 75 Hz, 1600 × 1200 @ 85 Hz.
- Front‑panel VGA (DB‑15) connector.
Ethernet:
- Intel® 82545EM Gigabit Ethernet controller.
- 10/100/1000 Mbps RJ‑45 port with activity/speed LEDs.
- PXE remote boot support.
Storage Interfaces:
- 44‑pin EIDE (ATA‑100) for 2.5″ HDD (40 GB standard).
- Two CompactFlash Type II sockets (IDE and USB‑CF).
- Optional 80 GB HDD (5400 RPM on PM18+).
USB:
- Two front‑panel USB 2.0 ports (480 Mb/s).
- One internal USB port for USB‑CF or USB‑IDE adapter.
- Over‑current protection (500 mA polyswitch).
Serial / Parallel / PS‑2:
- COM1 (RS‑232/422/485 selectable with auto‑direction), COM2 (RS‑232).
- LPT IEEE‑1284 SPP/EPP/ECP parallel port.
- PS/2 keyboard/mouse combo (Mini‑DIN‑6).
Audio:
- AC’97 2.2 stereo output with amplifier, 48 kHz sample rate.
PXI Trigger I/O:
- Front‑panel SMB connector for PXI trigger bus routing (TTL compatible).
BIOS:
- Award PnP BIOS (4 Mb Flash ROM).
- DMI support, write protection, anti‑virus, PXE boot.
- Custom OEM options (power‑on logo, remote console).
Power Requirements:
| Configuration | +5 V | +3.3 V | Total Power |
|---------------|------|--------|--------------|
| Pentium M 1.6 GHz / 512 MB RAM / 40 GB HDD | 3.976 A | 2.474 A | 28.25 W |
| Pentium M 1.1 GHz / 512 MB RAM / 40 GB HDD | 2.468 A | 2.215 A | 19.65 W |
Environmental:
- Operating Temperature: 0 – 55 °C.
- Storage Temperature: –20 – 80 °C.
- Humidity: 5 – 95 % non‑condensing.
- Shock: 15 G peak, 11 ms.
- Vibration: 0.5 G RMS operating, 1.88 G RMS non‑operating.
Certifications:
CE / FCC Class A EMC/EMI; UL‑94V0 materials.
### 4. Functionality
The PXI‑3800 serves as the system controller in a PXI chassis, occupying the leftmost system slot. It interfaces with the PXI backplane via a 32‑bit/33 MHz PCI bus, supporting up to seven bus‑master devices. The controller manages communication, synchronization, and data acquisition across PXI modules.
Use Cases & Applications:
- Automated test and measurement systems.
- Industrial data acquisition and control.
- Embedded instrumentation and signal processing.
- Portable PXI test platforms and field diagnostics.
- Research and development environments requiring deterministic triggering.
Compatibility:
Compatible with ADLINK PXI chassis (PXIS‑2506, 2556/T, 2630, 2650/T, 2680P, 2700) and other PXI 2.2‑compliant backplanes. Supports Windows 2000/XP/2003 and Linux OS.
### 5. Components & Accessories
Included Items:
- PXI‑3800 controller (pre‑installed CPU, RAM, HDD).
- PS/2 Y‑cable for keyboard and mouse.
- User’s Manual and ADLINK All‑In‑One CD (drivers and utilities).
Optional Add‑ons:
- Floppy Disk Drive module (occupies 4 slots, 16 HP).
- Rear I/O transition module (for internal signal routing).
- Additional memory modules (up to 2 GB).
- Alternate HDD or CompactFlash storage options.
Connectors:
- VGA (DB‑15), RJ‑45, 2 × USB Type A, 2 × DB‑9 (COM), DB‑25 (LPT), Mini‑DIN‑6 (PS/2), SMB (TRIG), audio jack, LED array, reset switch.
### 6. Installation & Setup
Requirements:
- PXI 2.2‑compliant chassis with system slot support.
- Power off chassis before installation.
- Observe ESD precautions and use anti‑static packaging.
Mounting Procedure:
1. Remove system slot blank panel.
2. Align PXI‑3800 with card guides and insert until resistance is felt.
3. Engage locking handle and secure front panel screws.
4. Connect I/O cables and power on the chassis.
Memory & Storage Installation:
- Two SO‑DIMM sockets (one per side of main board).
- 2.5″ HDD mounted via bracket and 44‑pin IDE cable.
- Internal CF socket (non‑hot‑swappable); front CF socket (hot‑swappable).
BIOS Configuration:
- Access Award BIOS for boot order and device settings.
- Boot options: USB‑CDROM, USB‑FDD, USB‑HDD (front CF), HDD‑1 (internal CF).
- Clear CMOS via JP7 jumper if needed.
Jumper Settings:
- JP7 – Clear CMOS.
- JP2 – CF1 Master/Slave selection.
- JP3‑JP5 – COM1 RS‑232/422/485 mode.
- JP4 – USB‑to‑CF or USB‑to‑IDE selection.
### 7. Performance & Capabilities
- Processing: Up to 1.8 GHz Pentium M with 400 MHz FSB and 1 MB L2 cache.
- Memory Bandwidth: DDR 266/333 MHz (single channel).
- Graphics: High‑resolution analog output up to 2048 × 1536 @ 75 Hz.
- Networking: 1 Gbps Ethernet throughput with PXE boot.
- Storage: ATA‑100 HDD and CF support for solid‑state operation.
- I/O Throughput: USB 2.0 480 Mb/s, serial up to 115.2 kbps.
- Watchdog Timers: Dual redundant hardware WDTs for system recovery.
- Power Efficiency: < 30 W typical at full load.
- Limitations: Single CPU socket, maximum 2 GB RAM, no native SATA support.
### 8. Standards & Compliance
- PXI Specification Rev. 2.2 – Instrumentation Extensions to CompactPCI.
- PICMG 2.0 R3.0 – CompactPCI Core Specification.
- PICMG 2.1 R1.0 – CompactPCI Hot Swap Specification.
- PCI/PCI‑X Compliance: PLX PCI‑6540 bridge (64‑bit/66 MHz).
- IEEE 802.3 Ethernet standard compliance.
- AC’97 2.2 audio specification.
- CE / FCC Class A EMC/EMI certified.
- UL‑94V0 flame‑retardant materials.
- RoHS compliance (depending on production date).
### 9. Additional Information
Ordering Information:
- PXI‑3800: Pentium M 1.6 GHz, 512 MB RAM, 40 GB HDD.
- PXI‑3800/CM13: Celeron M 1.3 GHz, 512 MB RAM, 40 GB HDD.
- PXI‑3800/PM18: Pentium M 1.8 GHz (Dothan), 512 MB RAM, 40 GB HDD.
- PXI‑3800/PM18+: Pentium M 1.8 GHz (Dothan), 2 GB RAM, 80 GB HDD (5400 RPM).
Warranty & Support:
- Two‑year limited warranty (one year in China).
- RMA service available via http://rma.adlinktech.com/policy.
- Technical support: service@adlinktech.com.
- Customer service phone: +886‑2‑82265877 (Taipei, Taiwan).
Maintenance & Updates:
- BIOS and driver updates available on ADLINK website.
- Regular firmware updates for PXI trigger and chipset drivers.
- Preventive maintenance: keep vents clear, avoid static discharge, update OS service packs for USB 2.0 support.
Safety & Handling:
- Use anti‑static precautions when handling the controller.
- Ensure proper ventilation within PXI chassis.
- Avoid mismatched rear I/O modules to prevent damage.
### Summary
The ADLINK PXI‑3800 is a compact, high‑reliability PXI system controller optimized for industrial and laboratory automation. Combining Intel® Pentium® M processing, Gigabit Ethernet, high‑resolution graphics, and dual CompactFlash support, it delivers robust performance for data acquisition and instrument control applications. Its compliance with PXI and CompactPCI standards, low power consumption, and extended environmental tolerance make it a versatile solution for embedded test systems and measurement platforms requiring long‑term availability and industrial‑grade stability.
### 1. Product Overview
Product Name: PXI‑3800
Model: PXI‑3800 / PXI‑3800/CM13 / PXI‑3800/PM18 / PXI‑3800/PM18+
Series: PXI‑3800 Series – 3U PXI Intel® Pentium® M System Controller
Article Number: PXI‑3800
Manufacturer: ADLINK Technology Inc.
Part Number: 50‑17014‑101
Manual Revision: 2.01 (December 21, 2003)
The ADLINK PXI‑3800 is a high‑performance 3U PXI system controller designed for embedded and industrial test and measurement applications. It integrates an Intel® Pentium® M or Celeron® M processor, Intel® 855GME/6300ESB chipset, and a full complement of I/O interfaces including VGA, Gigabit Ethernet, USB 2.0, CompactFlash, IDE, and serial/parallel ports. The controller complies with PXI Specification Rev. 2.2 and PICMG 2.0/2.1 CompactPCI standards, providing a rugged, long‑life embedded computing platform for PXI instrumentation systems.
### 2. Key Features
- PXI/CompactPCI Compliance:
Fully compliant with PXI Rev. 2.2, PICMG 2.0 R3.0, and PICMG 2.1 R1.0 Hot‑Swap specifications.
- Processor Options:
Supports Intel® Pentium® M (up to 1.8 GHz) or Celeron® M CPUs with 400 MHz FSB and 1 MB/512 KB L2 cache.
- Memory:
Two 200‑pin DDR SO‑DIMM sockets supporting up to 2 GB DDR SDRAM (ECC/non‑ECC).
- Graphics:
Integrated Intel® 855GME GMCH with 64 MB dynamic video memory, 24‑bit RAMDAC (350 MHz), resolutions up to 2048 × 1536 @ 75 Hz.
- Networking:
Intel® 82545EM Gigabit Ethernet controller (10/100/1000 Mbps) with PXE remote boot support.
- Storage:
One 44‑pin EIDE connector for 2.5″ HDD (40 GB standard); two CompactFlash Type II sockets (one internal IDE, one front‑panel hot‑swappable USB‑CF).
- Front‑Panel I/O:
VGA, 2 × USB 2.0, 2 × COM (DB‑9), 1 × LPT (DB‑25), 1 × RJ‑45 GbE, PS/2 keyboard/mouse, audio out, PXI TRIG I/O, LED indicators, reset switch.
- Hot‑Swappable CF:
Front‑panel CompactFlash slot supports plug‑and‑play and hot‑swap operation.
- Watchdog Timers:
Dual WDTs (6300ESB 2‑stage and W83627HF 1‑stage) with programmable timeouts (1 s – 255 s).
- Environmental Robustness:
Operating 0 – 55 °C, storage –20 – 80 °C, vibration 0.5 G RMS operating, shock 15 G peak.
- Reliability:
Long‑life Intel embedded chipset support, low power consumption, industrial‑grade design.
- Software Compatibility:
Supports Windows 2000/XP/2003 and Linux; drivers for chipset, VGA, LAN, audio, and PXI trigger included.
### 3. Technical Specifications
Form Factor:
3U PXI/CompactPCI controller, 12 HP width (3 slots), board size 100 mm × 160 mm.
Processor / Cache:
- Intel® Pentium® M (1.1 – 1.8 GHz) or Celeron® M (1.3 GHz).
- Front Side Bus 400 MHz.
- L2 Cache: 1 MB (Pentium M) / 512 KB (Celeron M).
Chipset:
Intel® 855GME GMCH + Intel® 6300ESB ICH (I/O Controller Hub).
Memory:
- Two 200‑pin DDR SO‑DIMM sockets.
- Up to 2 GB DDR SDRAM (PC2100/PC2700, ECC optional).
- 64‑bit data interface (72‑bit with ECC).
Graphics:
- Integrated Intel 855GME graphics engine.
- 24‑bit 350 MHz RAMDAC.
- Up to 64 MB dynamic video memory.
- Resolutions: 2048 × 1536 @ 75 Hz, 1600 × 1200 @ 85 Hz.
- Front‑panel VGA (DB‑15) connector.
Ethernet:
- Intel® 82545EM Gigabit Ethernet controller.
- 10/100/1000 Mbps RJ‑45 port with activity/speed LEDs.
- PXE remote boot support.
Storage Interfaces:
- 44‑pin EIDE (ATA‑100) for 2.5″ HDD (40 GB standard).
- Two CompactFlash Type II sockets (IDE and USB‑CF).
- Optional 80 GB HDD (5400 RPM on PM18+).
USB:
- Two front‑panel USB 2.0 ports (480 Mb/s).
- One internal USB port for USB‑CF or USB‑IDE adapter.
- Over‑current protection (500 mA polyswitch).
Serial / Parallel / PS‑2:
- COM1 (RS‑232/422/485 selectable with auto‑direction), COM2 (RS‑232).
- LPT IEEE‑1284 SPP/EPP/ECP parallel port.
- PS/2 keyboard/mouse combo (Mini‑DIN‑6).
Audio:
- AC’97 2.2 stereo output with amplifier, 48 kHz sample rate.
PXI Trigger I/O:
- Front‑panel SMB connector for PXI trigger bus routing (TTL compatible).
BIOS:
- Award PnP BIOS (4 Mb Flash ROM).
- DMI support, write protection, anti‑virus, PXE boot.
- Custom OEM options (power‑on logo, remote console).
Power Requirements:
| Configuration | +5 V | +3.3 V | Total Power |
|---------------|------|--------|--------------|
| Pentium M 1.6 GHz / 512 MB RAM / 40 GB HDD | 3.976 A | 2.474 A | 28.25 W |
| Pentium M 1.1 GHz / 512 MB RAM / 40 GB HDD | 2.468 A | 2.215 A | 19.65 W |
Environmental:
- Operating Temperature: 0 – 55 °C.
- Storage Temperature: –20 – 80 °C.
- Humidity: 5 – 95 % non‑condensing.
- Shock: 15 G peak, 11 ms.
- Vibration: 0.5 G RMS operating, 1.88 G RMS non‑operating.
Certifications:
CE / FCC Class A EMC/EMI; UL‑94V0 materials.
### 4. Functionality
The PXI‑3800 serves as the system controller in a PXI chassis, occupying the leftmost system slot. It interfaces with the PXI backplane via a 32‑bit/33 MHz PCI bus, supporting up to seven bus‑master devices. The controller manages communication, synchronization, and data acquisition across PXI modules.
Use Cases & Applications:
- Automated test and measurement systems.
- Industrial data acquisition and control.
- Embedded instrumentation and signal processing.
- Portable PXI test platforms and field diagnostics.
- Research and development environments requiring deterministic triggering.
Compatibility:
Compatible with ADLINK PXI chassis (PXIS‑2506, 2556/T, 2630, 2650/T, 2680P, 2700) and other PXI 2.2‑compliant backplanes. Supports Windows 2000/XP/2003 and Linux OS.
### 5. Components & Accessories
Included Items:
- PXI‑3800 controller (pre‑installed CPU, RAM, HDD).
- PS/2 Y‑cable for keyboard and mouse.
- User’s Manual and ADLINK All‑In‑One CD (drivers and utilities).
Optional Add‑ons:
- Floppy Disk Drive module (occupies 4 slots, 16 HP).
- Rear I/O transition module (for internal signal routing).
- Additional memory modules (up to 2 GB).
- Alternate HDD or CompactFlash storage options.
Connectors:
- VGA (DB‑15), RJ‑45, 2 × USB Type A, 2 × DB‑9 (COM), DB‑25 (LPT), Mini‑DIN‑6 (PS/2), SMB (TRIG), audio jack, LED array, reset switch.
### 6. Installation & Setup
Requirements:
- PXI 2.2‑compliant chassis with system slot support.
- Power off chassis before installation.
- Observe ESD precautions and use anti‑static packaging.
Mounting Procedure:
1. Remove system slot blank panel.
2. Align PXI‑3800 with card guides and insert until resistance is felt.
3. Engage locking handle and secure front panel screws.
4. Connect I/O cables and power on the chassis.
Memory & Storage Installation:
- Two SO‑DIMM sockets (one per side of main board).
- 2.5″ HDD mounted via bracket and 44‑pin IDE cable.
- Internal CF socket (non‑hot‑swappable); front CF socket (hot‑swappable).
BIOS Configuration:
- Access Award BIOS for boot order and device settings.
- Boot options: USB‑CDROM, USB‑FDD, USB‑HDD (front CF), HDD‑1 (internal CF).
- Clear CMOS via JP7 jumper if needed.
Jumper Settings:
- JP7 – Clear CMOS.
- JP2 – CF1 Master/Slave selection.
- JP3‑JP5 – COM1 RS‑232/422/485 mode.
- JP4 – USB‑to‑CF or USB‑to‑IDE selection.
### 7. Performance & Capabilities
- Processing: Up to 1.8 GHz Pentium M with 400 MHz FSB and 1 MB L2 cache.
- Memory Bandwidth: DDR 266/333 MHz (single channel).
- Graphics: High‑resolution analog output up to 2048 × 1536 @ 75 Hz.
- Networking: 1 Gbps Ethernet throughput with PXE boot.
- Storage: ATA‑100 HDD and CF support for solid‑state operation.
- I/O Throughput: USB 2.0 480 Mb/s, serial up to 115.2 kbps.
- Watchdog Timers: Dual redundant hardware WDTs for system recovery.
- Power Efficiency: < 30 W typical at full load.
- Limitations: Single CPU socket, maximum 2 GB RAM, no native SATA support.
### 8. Standards & Compliance
- PXI Specification Rev. 2.2 – Instrumentation Extensions to CompactPCI.
- PICMG 2.0 R3.0 – CompactPCI Core Specification.
- PICMG 2.1 R1.0 – CompactPCI Hot Swap Specification.
- PCI/PCI‑X Compliance: PLX PCI‑6540 bridge (64‑bit/66 MHz).
- IEEE 802.3 Ethernet standard compliance.
- AC’97 2.2 audio specification.
- CE / FCC Class A EMC/EMI certified.
- UL‑94V0 flame‑retardant materials.
- RoHS compliance (depending on production date).
### 9. Additional Information
Ordering Information:
- PXI‑3800: Pentium M 1.6 GHz, 512 MB RAM, 40 GB HDD.
- PXI‑3800/CM13: Celeron M 1.3 GHz, 512 MB RAM, 40 GB HDD.
- PXI‑3800/PM18: Pentium M 1.8 GHz (Dothan), 512 MB RAM, 40 GB HDD.
- PXI‑3800/PM18+: Pentium M 1.8 GHz (Dothan), 2 GB RAM, 80 GB HDD (5400 RPM).
Warranty & Support:
- Two‑year limited warranty (one year in China).
- RMA service available via http://rma.adlinktech.com/policy.
- Technical support: service@adlinktech.com.
- Customer service phone: +886‑2‑82265877 (Taipei, Taiwan).
Maintenance & Updates:
- BIOS and driver updates available on ADLINK website.
- Regular firmware updates for PXI trigger and chipset drivers.
- Preventive maintenance: keep vents clear, avoid static discharge, update OS service packs for USB 2.0 support.
Safety & Handling:
- Use anti‑static precautions when handling the controller.
- Ensure proper ventilation within PXI chassis.
- Avoid mismatched rear I/O modules to prevent damage.
### Summary
The ADLINK PXI‑3800 is a compact, high‑reliability PXI system controller optimized for industrial and laboratory automation. Combining Intel® Pentium® M processing, Gigabit Ethernet, high‑resolution graphics, and dual CompactFlash support, it delivers robust performance for data acquisition and instrument control applications. Its compliance with PXI and CompactPCI standards, low power consumption, and extended environmental tolerance make it a versatile solution for embedded test systems and measurement platforms requiring long‑term availability and industrial‑grade stability.
-
PXI-3800_Datasheet_10.pdf
PDF Catalog
-
PXI-3800_Manual_4.pdf
Manual
- PXIS-2506 - PXI/cPCI 1+5 4U Desk/Wall Mount Case 230VAC
Series_simg_en_1.jpg)
