Comprehensive Product Summary: PXIe-HDV62A HDMI Video & Audio Capture Card

---

### 1. Product Overview

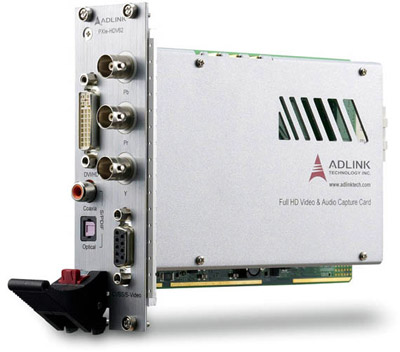

Product Name: PXIe-HDV62A
Model: HDV62A / PXIe-HDV62A
Series: HDV62 Series – High-Definition Video/Audio Capture Cards
Article Number: PXIe-HDV62A
Manufacturer: ADLINK Technology, Inc.
Form Factor: PXI Express® (PXIe) x4 compliant, Specification Rev. 1.0

The PXIe-HDV62A is a one-channel PXI Express HDMI video and audio capture card designed for high-performance, uncompressed video acquisition. It supports both digital and analog video sources, including HDMI, DVI, RGB, YPbPr, S-Video, and composite (NTSC/PAL) inputs. Developed by ADLINK Technology, the PXIe-HDV62A is engineered for applications requiring precise, real-time video and audio capture, such as medical imaging, multimedia device testing, and broadcast-quality video analysis.

---

### 2. Key Features

- Full HD Uncompressed Video: Supports 1920 × 1080p at 60 frames per second (fps) with 10-bit high-resolution analog-to-digital conversion (ADC).
- Multi-Format Video Input: Compatible with HDMI, DVI, RGB, YPbPr, S-Video, and NTSC/PAL composite signals.
- Audio Capture: Supports HDMI and S/PDIF (optical Toslink and coaxial RCA) digital audio inputs.
- High Bandwidth: 170 MHz video bandwidth for uncompressed RGB 32/30/24-bit and YCrCb 4:4:4/4:2:2 formats.
- HDCP Support: Compliant with High-Bandwidth Digital Content Protection for secure digital content capture.
- Configurable EDID: Allows user-defined Extended Display Identification Data for flexible display emulation.
- Integrated Frame Buffer: 512 MB DDR2 onboard memory for stable, high-speed data streaming.
- DirectShow SDK: Includes comprehensive software development kit with DirectShow and API support for Windows platforms.
- PXI Express Interface: Fully compliant with PXI Express Rev. 1.0, ensuring high throughput and synchronization in modular test systems.
- Direct SDK Support: Provides low-level API for C/C++, C#, and VB.NET for custom application development.
- Environmental Compliance: RoHS and WEEE compliant, reflecting ADLINK’s environmental responsibility.

---

### 3. Technical Specifications

Form Factor: PXI Express® x4 compliant
Video Input Standards:
- Digital: DVI 1.0, HDMI 1.3
- Analog: RGB, YPbPr, NTSC/PAL, S-Video

Supported Resolutions:
- HD: 720p@50/60 fps, 1080i@25/30 fps, 1080p@24/25/30/50/60 fps
- SD: 720×576@25 fps (PAL), 720×486@30 fps (NTSC)
- RGB: VGA to UXGA (640×480 to 1600×1200)
- YUV: 4:4:4 and 4:2:2 color sampling

Pixel Output Formats:
- 32-bit RGB, 30-bit RGB, 24-bit RGB
- 24-bit YCbCr 4:4:4
- 16-bit YCbCr 4:2:2
- 8-bit Monochrome (Y8)

Audio Input:
- Digital: HDMI and S/PDIF (Toslink optical and RCA coaxial)
- Sampling Rates: 16–192 kHz
- Bit Depth: 16, 20, or 24 bits
- Channels: 2.0 (stereo), 5.1, 7.1 (HDMI only)

Frame Buffer: 512 MB DDR2 SDRAM
Power Requirements: +12 V @ 0.5 A, +3.3 V @ 2 A
Dimensions: 174.62 mm (W) × 111.15 mm (L)
Operating Temperature: 0°C to 55°C
Storage Temperature: 0°C to 70°C
Humidity: 5%–90% RH (non-condensing)
Compliance: RoHS, WEEE

---

### 4. Functionality

The PXIe-HDV62A captures uncompressed high-definition video and digital audio streams from HDMI or DVI sources, as well as analog video from RGB, YPbPr, S-Video, and composite inputs. The onboard FPGA and frame buffer enable real-time color space conversion and image streaming without overloading the host CPU.

Use Cases:
- Medical Imaging: High-resolution, real-time video capture for diagnostic imaging systems.
- Multimedia Device Testing: Verification of HDMI/DVI output devices such as set-top boxes, cameras, and displays.
- Broadcast and Video Analysis: Frame-accurate capture for quality assurance and signal integrity testing.
- Scientific Imaging: High-speed acquisition for research and laboratory instrumentation.

Compatibility:
- Windows XP/Vista/7 (32/64-bit)
- Microsoft DirectX and DirectShow
- NI LabVIEW integration
- ViewCreatorPro™ utility for configuration and testing

---

### 5. Components & Accessories

Included Components:
- PXIe-HDV62A capture card
- User’s manual and driver CD
- ViewCreatorPro™ software utility

Optional Accessories:
- HDV62A I/O Bracket: Provides YPbPr, S-Video, and NTSC/PAL I/O via D-Sub9 and BNC connectors.
- DVI–DVI/VGA Cable: DVI-I to VGA and DVI-D cable for analog/digital video input.
- DB9F to S-Video & RCA Cable: D-Sub to S-Video and RCA composite cable for analog video sources.

Connectors:
- DVI-I (supports DVI-D, HDMI, and RGB with sync)
- DB9 female (YPbPr, S-Video, CVBS)
- Toslink optical and RCA coaxial (S/PDIF audio)
- 26-pin flat cable connector for auxiliary I/O

---

### 6. Installation & Setup

System Requirements:
- PXI Express slot (x4)
- Windows operating system with .NET Framework 2.0 or later
- DirectX runtime environment

Installation Steps:
1. Insert the PXIe-HDV62A into an available PXI Express slot.
2. Install the ADLINK driver package and ViewCreatorPro utility.
3. Configure video and audio input sources via software.
4. Verify device recognition in Windows Device Manager.

Mounting Options:
- Standard PXI Express chassis installation
- Optional I/O bracket for external analog connections

Configuration:
- Software-based EDID management
- Adjustable image parameters (contrast, hue, saturation, brightness)
- Cropping and scaling via ViewCreatorPro or API
- Card ID and flash selection via onboard DIP switches

---

### 7. Performance & Capabilities

Video Performance:
- Uncompressed 1080p60 capture
- 10-bit ADC for high-fidelity analog-to-digital conversion
- Real-time hardware color space conversion (RGB ↔ YCbCr)
- Frame rates up to 60 fps for HD and 30 fps for interlaced SD

Audio Performance:
- HDMI audio up to 8 channels (7.1)
- S/PDIF stereo digital audio capture
- Sampling rates up to 192 kHz

Processing & Buffering:
- FPGA-based image processing
- 512 MB DDR2 frame buffer for stable streaming
- Hardware-based synchronization and timing control

Limitations:
- No A/V synchronization between audio and video streams
- Minor frame rate reduction (<10%) possible with 30/32-bit RGB output
- HDCP-protected content may require delay before capture initialization

---

### 8. Standards & Compliance

- PXI Express Specification: Rev. 1.0 compliant
- PCI Express Interface: x4 lane configuration
- HDMI Standard: HDMI 1.3
- DVI Standard: DVI 1.0
- Audio Standard: IEC60958 (S/PDIF)
- Environmental: RoHS and WEEE compliant
- Safety: CE and FCC Class A (industrial)
- Software Standards: Microsoft DirectShow, DirectX, and LabVIEW compatibility

---

### 9. Additional Information

Warranty:
Standard ADLINK limited warranty (typically 2 years, region-dependent).

Support & Maintenance:
- Firmware and driver updates available via ADLINK website.
- Technical support through global ADLINK service centers.
- ViewCreatorPro software for diagnostics, testing, and configuration.

Maintenance Recommendations:
- Keep card and connectors free of dust and debris.
- Operate within specified temperature and humidity ranges.
- Use only ADLINK-approved accessories and cables.

Environmental Responsibility:
ADLINK adheres to EU RoHS and WEEE directives, ensuring environmentally responsible manufacturing and disposal practices.

Manufacturer Contact:
ADLINK Technology, Inc.
9F, No.166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: +886-2-8226-5877 | Email: service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)

---

### Summary

The ADLINK PXIe-HDV62A is a professional-grade, single-channel HDMI video and audio capture card designed for PXI Express systems. It delivers uncompressed 1080p60 video capture with 10-bit precision and supports a wide range of digital and analog video formats. With its integrated FPGA, 512 MB frame buffer, and DirectShow SDK, the PXIe-HDV62A provides developers and engineers with a robust, low-latency solution for high-definition video acquisition and analysis. Its compliance with PXI Express standards and support for multiple input types make it ideal for test, measurement, and imaging applications requiring reliable, high-bandwidth video capture.
