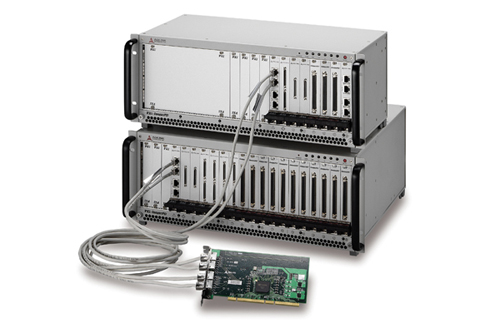

Comprehensive Product Summary: ADLINK PXIS‑2700 PXI/CompactPCI Chassis
### 1. Product Overview
Product Name: PXIS‑2700
Model Number: PXIS‑2700
Series: PXIS Series PXI/CompactPCI Chassis
Article Number: PXIS‑2700
Manufacturer: ADLINK Technology Inc.
Product Type: 18‑Slot 3U PXI/CompactPCI Instrument Chassis with Redundant Power Supply
Recommended System Controller: ADLINK PXI‑3900 Series
The ADLINK PXIS‑2700 is a high‑performance, 18‑slot PXI/CompactPCI chassis designed for modular test, measurement, and automation systems. It provides one system controller slot and 17 peripheral slots, supporting both PXI and CompactPCI modules in compliance with PXI Specification Rev. 2.2 and IEEE 1101.10 mechanical standards. The chassis integrates dual PXI‑to‑PXI bridges, a redundant 460 W + 460 W AC power subsystem, and a comprehensive system monitoring and cooling architecture for continuous, reliable operation in demanding industrial and laboratory environments.
### 2. Key Features
- PXI/CompactPCI Compatibility: Fully supports 3U PXI and CompactPCI modules, compliant with PXI Specification Rev. 2.2 and PICMG 2.0.
- 18‑Slot Architecture: One system slot and 17 peripheral slots, including a dedicated star‑trigger slot and two PXI‑to‑PXI bridges dividing the backplane into three PCI bus segments.
- Redundant Power System: Dual 460 W ATX‑form‑factor power supplies (1 + 1 redundancy) with universal 100–240 V AC input, hot‑swappable for zero‑downtime maintenance.
- Advanced Cooling: Five front‑accessible, hot‑swappable 80 × 80 × 15 mm ball‑bearing fans (31 CFM each) with filtered, forced‑air cooling and removable air filters.
- System Monitoring: Integrated alarm module with LED indicators and buzzer for power, temperature, and fan status; includes reset buttons for alarm and power events.
- Mechanical Design: 3U PXI form factor in a 4U rackmount enclosure (483 × 178 × 445 mm), 19 kg weight, IEEE 1101.10 compliant.
- Clock and Trigger Distribution: 10 MHz reference clock distributed to all peripheral slots with < 1 ns skew; three trigger bus segments and star‑trigger routing from slot 2 to slots 3–15.
- Hot‑Swappable Components: Fans and power supplies can be replaced during operation, minimizing Mean‑Time‑To‑Repair (MTTR).
- Environmental Robustness: Operates from 0 °C – 45 °C, 10 – 90 % RH; storage – 20 °C – 70 °C; shock‑resistant to 15 G, vibration‑tested to 0.5 G RMS.
- Compliance: CE, FCC Class A, EN 60950‑1 safety, EN 55022/55024 EMC standards.
### 3. Technical Specifications
Physical Characteristics
- Slots: 18 total (1 system + 17 peripheral)
- Controller Expansion Slots: 3 (left of system slot)
- Dimensions: 483 mm (W) × 178 mm (H) × 445 mm (D) without handles
- Weight: 19 kg (41.8 lb)
- Material: Aluminum alloy chassis, UL 94V‑0 rated backplane PCB
- Color: Standard beige (custom colors and logos available for OEM)
Power Supply
- Configuration: 460 W + 460 W redundant AC power modules (hot‑swappable)
- Input Voltage: 90 – 264 V AC, 47 – 63 Hz
- Input Current: 4 A RMS @ 230 V AC / 8 A RMS @ 115 V AC
- Inrush Current: 75 A RMS @ 230 V AC / 55 A RMS @ 115 V AC
- Efficiency: ≈ 65 % at full load
- Output Ratings (per module):
- +5 V @ 5 – 40 A (±5 %)
- +12 V @ 2.5 – 27 A (±5 %)
- +3.3 V @ 1 – 30 A (±5 %)
- –12 V @ 0 – 1 A (±5 %)
- +5 Vsb @ 0.1 – 2 A
- Combined +5 V + +3.3 V ≤ 50 A
- Protection: Over‑current and over‑voltage protection on +5 V, +3.3 V, +12 V rails
- Form Factor Dimensions: 195 × 356 × 99 mm (per PSU)
Cooling System
- Five 80 × 80 × 15 mm ball‑bearing fans, 31 CFM each
- Fan speed ≈ 2900 ± 300 RPM, 12 V DC @ 0.17 A each
- Noise ≈ 36 dB(A)
- Front‑accessible, hot‑swappable fan trays with removable air filter
Environmental Conditions
- Operating Temperature: 0 °C – 45 °C
- Storage Temperature: –20 °C – 70 °C
- Operating Humidity: 10 – 90 % RH (non‑condensing)
- Storage Humidity: 5 – 95 % RH (non‑condensing)
- Shock: 15 G peak, 11 ms duration
- Vibration: 0.5 G RMS (operating), 1.88 G RMS (non‑operating), 5 – 500 Hz
### 4. Functionality
The PXIS‑2700 serves as a modular platform for PXI and CompactPCI instrumentation. It provides a unified backplane architecture that supports high‑speed data transfer, synchronization, and triggering among multiple modules.
Operation Principle:
- Slot 1 acts as the system controller slot, hosting a PXI controller such as ADLINK PXI‑3900.
- Slots 2–18 accommodate peripheral modules. Slot 2 is a star‑trigger slot providing dedicated trigger lines to slots 3–15.
- The backplane distributes a 10 MHz reference clock to all slots with < 1 ns skew, ensuring precise timing synchronization.
- Two PXI‑to‑PXI bridges divide the backplane into three PCI bus segments, optimizing bandwidth and reducing loading.
- The integrated monitoring module continuously checks voltage, temperature, and fan status, activating LEDs and buzzer alarms upon fault detection.
Use Cases and Applications:
- Automated Test Equipment (ATE)
- Data Acquisition (DAQ) and Signal Measurement
- Industrial Process Control
- RF and Mixed‑Signal Testing
- Embedded System Prototyping
- Research and Development Laboratories
Compatibility:
- Supports all 3U PXI and CompactPCI modules compliant with PXI Rev. 2.2 and PICMG 2.0.
- Compatible with ADLINK PXI controllers and third‑party PXI/CompactPCI cards.
### 5. Components & Accessories
Included Items:
- PXIS‑2700 Chassis (18‑slot 3U PXI/CompactPCI)
- Dual RHH‑6460P 460 W Power Supply Modules
- Power Cord
- User’s Manual (Part No. 50‑17003‑100)
Optional Accessories:
- PXIS Spare Fan for PXIS‑2700 and PXIS‑2600 Series
- Custom backplanes (cBX‑3018L standard, OEM options available)
- Custom chassis color and logo for OEM orders
Connectors and Interfaces:
- Two AC inlets for redundant power input
- Front panel LED and Alarm RST button
- Rear panel Power RST button and PSU status LEDs
- Backplane connectors conforming to IEC‑917 and IEC 1076‑4‑101
- SMBus connector (CN2) for system management
- Jumper JP1 for 10 MHz clock source selection (internal/external)
### 6. Installation & Setup
Requirements:
- AC power source 100–240 V AC, 50–60 Hz
- Rackmount or benchtop space (4U height, 19″ width)
- Grounded electrical outlet
Installation Steps:
1. Ensure power switch is OFF.
2. Connect AC power cords to both power supply modules.
3. Install the system controller in slot 1 and secure it with screws.
4. Insert peripheral modules into slots 2–18.
5. Power ON the chassis and verify LED indicators (+3.3 V, +5 V, +12 V, –12 V).
6. Confirm fan operation and monitor LED status.
System Monitoring Indicators:
- Power LEDs (Green): ON when voltage rails active
- Temperature LED (Amber): ON normal, flashing if > threshold (50 °C default)
- Fan LED (Green): ON normal, flashing if fan failure
- Alarm LED (Red): Flashing if any alarm occurs
- Alarm Buzzer: Continuous beep on fault; reset via Alarm RST button
Grounding:
Mounting holes labeled “GND” connect to logic ground; “FGND” provide isolation from chassis ground. Isolation can be configured by removing specific mounting screws.
### 7. Performance & Capabilities
Electrical Performance:
- Total usable power: 920 W (460 W × 2 redundant)
- Stable voltage rails with ±1 % line regulation and ±5 % load regulation
- Active Power Factor Correction (PFC)
- Over‑current and over‑voltage protection on major rails
Cooling Efficiency:
- Five fans provide > 150 CFM total airflow
- Filtered air intake and bottom air path design for uniform cooling
- Hot‑swappable fans reduce downtime and maintenance costs
Backplane Architecture:
- Three independent PCI bus segments via dual bridges for optimized bandwidth
- PXI trigger bus divided into three segments (slots 1–6, 7–12, 13–18)
- Star trigger signals from slot 2 to slots 3–15
- Local bus connections between adjacent peripheral slots for side‑band communication
- 10 MHz reference clock distributed to all slots (< 1 ns skew)
Limitations:
- Operating temperature limited to 45 °C ambient
- 3U module height only (no support for 6U modules)
- Total current draw must not exceed combined power budget (+5 V + +3.3 V ≤ 50 A)
### 8. Standards & Compliance
PXI and CompactPCI Compliance:
- PXI Specification Rev. 2.2
- CompactPCI (PICMG 2.0)
- IEEE 1101.10 mechanical packaging
Safety and EMC Certifications:
- Safety: EN 60950‑1 (LVD), UL 1950/CSA 22.2 No. 950, TÜV IEC 950
- EMC/EMI: EN 55022 (Class A), EN 55024, FCC Class A, CISPR 22 Class B
- CE Mark compliant
Environmental and Material Standards:
- Backplane PCB UL 94V‑0 rated
- Connectors per IEC‑917 and IEC 1076‑4‑101
- RoHS compliance (depending on manufacture date)
### 9. Additional Information
Warranty:
- Standard two‑year manufacturer’s warranty from shipment date.
- Covers defects in materials and workmanship.
- Excludes damage from misuse, improper storage, unauthorized repair, or acts of God.
- Customers responsible for shipping to ADLINK service centers.
Maintenance:
- Periodic cleaning recommended using dry air or 75 % isopropyl alcohol solution (interior) and mild soap solution (exterior).
- Fans and power supplies are hot‑swappable for field replacement.
- Temperature alarm threshold factory set to 50 °C (adjustable to 60 °C or 70 °C on request).
Support and Service:
- ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886‑2‑8226‑5877 Fax: +886‑2‑8226‑5717
Email: service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
RMA Procedure:
- Obtain RMA number before returning products.
- Attach RMA form with detailed defect description.
- Ship prepaid by EMS with declared value ≤ US$10 per item for customs.
Safety Instructions Summary:
- Operate below 40 °C ambient.
- Disconnect both AC inlets before servicing.
- Avoid moisture and liquid ingress.
- Use qualified personnel for internal service.
- Observe proper grounding and power ratings.
### Summary
The ADLINK PXIS‑2700 is a robust, high‑capacity PXI/CompactPCI chassis engineered for precision test and measurement systems requiring high reliability, modular scalability, and continuous operation. Its 18‑slot architecture, redundant 460 W power modules, and hot‑swappable cooling system ensure maximum uptime and serviceability. With comprehensive monitoring, PXI Rev. 2.2 compliance, and broad environmental tolerance, the PXIS‑2700 is ideal for ATE, DAQ, and industrial automation applications where system stability and expandability are paramount.
### 1. Product Overview
Product Name: PXIS‑2700
Model Number: PXIS‑2700
Series: PXIS Series PXI/CompactPCI Chassis
Article Number: PXIS‑2700
Manufacturer: ADLINK Technology Inc.
Product Type: 18‑Slot 3U PXI/CompactPCI Instrument Chassis with Redundant Power Supply
Recommended System Controller: ADLINK PXI‑3900 Series
The ADLINK PXIS‑2700 is a high‑performance, 18‑slot PXI/CompactPCI chassis designed for modular test, measurement, and automation systems. It provides one system controller slot and 17 peripheral slots, supporting both PXI and CompactPCI modules in compliance with PXI Specification Rev. 2.2 and IEEE 1101.10 mechanical standards. The chassis integrates dual PXI‑to‑PXI bridges, a redundant 460 W + 460 W AC power subsystem, and a comprehensive system monitoring and cooling architecture for continuous, reliable operation in demanding industrial and laboratory environments.
### 2. Key Features
- PXI/CompactPCI Compatibility: Fully supports 3U PXI and CompactPCI modules, compliant with PXI Specification Rev. 2.2 and PICMG 2.0.
- 18‑Slot Architecture: One system slot and 17 peripheral slots, including a dedicated star‑trigger slot and two PXI‑to‑PXI bridges dividing the backplane into three PCI bus segments.
- Redundant Power System: Dual 460 W ATX‑form‑factor power supplies (1 + 1 redundancy) with universal 100–240 V AC input, hot‑swappable for zero‑downtime maintenance.
- Advanced Cooling: Five front‑accessible, hot‑swappable 80 × 80 × 15 mm ball‑bearing fans (31 CFM each) with filtered, forced‑air cooling and removable air filters.
- System Monitoring: Integrated alarm module with LED indicators and buzzer for power, temperature, and fan status; includes reset buttons for alarm and power events.
- Mechanical Design: 3U PXI form factor in a 4U rackmount enclosure (483 × 178 × 445 mm), 19 kg weight, IEEE 1101.10 compliant.
- Clock and Trigger Distribution: 10 MHz reference clock distributed to all peripheral slots with < 1 ns skew; three trigger bus segments and star‑trigger routing from slot 2 to slots 3–15.
- Hot‑Swappable Components: Fans and power supplies can be replaced during operation, minimizing Mean‑Time‑To‑Repair (MTTR).
- Environmental Robustness: Operates from 0 °C – 45 °C, 10 – 90 % RH; storage – 20 °C – 70 °C; shock‑resistant to 15 G, vibration‑tested to 0.5 G RMS.
- Compliance: CE, FCC Class A, EN 60950‑1 safety, EN 55022/55024 EMC standards.
### 3. Technical Specifications
Physical Characteristics
- Slots: 18 total (1 system + 17 peripheral)
- Controller Expansion Slots: 3 (left of system slot)
- Dimensions: 483 mm (W) × 178 mm (H) × 445 mm (D) without handles
- Weight: 19 kg (41.8 lb)
- Material: Aluminum alloy chassis, UL 94V‑0 rated backplane PCB
- Color: Standard beige (custom colors and logos available for OEM)
Power Supply
- Configuration: 460 W + 460 W redundant AC power modules (hot‑swappable)
- Input Voltage: 90 – 264 V AC, 47 – 63 Hz
- Input Current: 4 A RMS @ 230 V AC / 8 A RMS @ 115 V AC
- Inrush Current: 75 A RMS @ 230 V AC / 55 A RMS @ 115 V AC
- Efficiency: ≈ 65 % at full load
- Output Ratings (per module):
- +5 V @ 5 – 40 A (±5 %)
- +12 V @ 2.5 – 27 A (±5 %)
- +3.3 V @ 1 – 30 A (±5 %)
- –12 V @ 0 – 1 A (±5 %)
- +5 Vsb @ 0.1 – 2 A
- Combined +5 V + +3.3 V ≤ 50 A
- Protection: Over‑current and over‑voltage protection on +5 V, +3.3 V, +12 V rails
- Form Factor Dimensions: 195 × 356 × 99 mm (per PSU)
Cooling System
- Five 80 × 80 × 15 mm ball‑bearing fans, 31 CFM each
- Fan speed ≈ 2900 ± 300 RPM, 12 V DC @ 0.17 A each
- Noise ≈ 36 dB(A)
- Front‑accessible, hot‑swappable fan trays with removable air filter
Environmental Conditions
- Operating Temperature: 0 °C – 45 °C
- Storage Temperature: –20 °C – 70 °C
- Operating Humidity: 10 – 90 % RH (non‑condensing)
- Storage Humidity: 5 – 95 % RH (non‑condensing)
- Shock: 15 G peak, 11 ms duration
- Vibration: 0.5 G RMS (operating), 1.88 G RMS (non‑operating), 5 – 500 Hz
### 4. Functionality
The PXIS‑2700 serves as a modular platform for PXI and CompactPCI instrumentation. It provides a unified backplane architecture that supports high‑speed data transfer, synchronization, and triggering among multiple modules.
Operation Principle:
- Slot 1 acts as the system controller slot, hosting a PXI controller such as ADLINK PXI‑3900.
- Slots 2–18 accommodate peripheral modules. Slot 2 is a star‑trigger slot providing dedicated trigger lines to slots 3–15.
- The backplane distributes a 10 MHz reference clock to all slots with < 1 ns skew, ensuring precise timing synchronization.
- Two PXI‑to‑PXI bridges divide the backplane into three PCI bus segments, optimizing bandwidth and reducing loading.
- The integrated monitoring module continuously checks voltage, temperature, and fan status, activating LEDs and buzzer alarms upon fault detection.
Use Cases and Applications:
- Automated Test Equipment (ATE)
- Data Acquisition (DAQ) and Signal Measurement
- Industrial Process Control
- RF and Mixed‑Signal Testing
- Embedded System Prototyping
- Research and Development Laboratories
Compatibility:
- Supports all 3U PXI and CompactPCI modules compliant with PXI Rev. 2.2 and PICMG 2.0.
- Compatible with ADLINK PXI controllers and third‑party PXI/CompactPCI cards.
### 5. Components & Accessories
Included Items:
- PXIS‑2700 Chassis (18‑slot 3U PXI/CompactPCI)
- Dual RHH‑6460P 460 W Power Supply Modules
- Power Cord
- User’s Manual (Part No. 50‑17003‑100)
Optional Accessories:
- PXIS Spare Fan for PXIS‑2700 and PXIS‑2600 Series
- Custom backplanes (cBX‑3018L standard, OEM options available)
- Custom chassis color and logo for OEM orders
Connectors and Interfaces:
- Two AC inlets for redundant power input
- Front panel LED and Alarm RST button
- Rear panel Power RST button and PSU status LEDs
- Backplane connectors conforming to IEC‑917 and IEC 1076‑4‑101
- SMBus connector (CN2) for system management
- Jumper JP1 for 10 MHz clock source selection (internal/external)
### 6. Installation & Setup
Requirements:
- AC power source 100–240 V AC, 50–60 Hz
- Rackmount or benchtop space (4U height, 19″ width)
- Grounded electrical outlet
Installation Steps:
1. Ensure power switch is OFF.
2. Connect AC power cords to both power supply modules.
3. Install the system controller in slot 1 and secure it with screws.
4. Insert peripheral modules into slots 2–18.
5. Power ON the chassis and verify LED indicators (+3.3 V, +5 V, +12 V, –12 V).
6. Confirm fan operation and monitor LED status.
System Monitoring Indicators:
- Power LEDs (Green): ON when voltage rails active
- Temperature LED (Amber): ON normal, flashing if > threshold (50 °C default)
- Fan LED (Green): ON normal, flashing if fan failure
- Alarm LED (Red): Flashing if any alarm occurs
- Alarm Buzzer: Continuous beep on fault; reset via Alarm RST button
Grounding:
Mounting holes labeled “GND” connect to logic ground; “FGND” provide isolation from chassis ground. Isolation can be configured by removing specific mounting screws.
### 7. Performance & Capabilities
Electrical Performance:
- Total usable power: 920 W (460 W × 2 redundant)
- Stable voltage rails with ±1 % line regulation and ±5 % load regulation
- Active Power Factor Correction (PFC)
- Over‑current and over‑voltage protection on major rails
Cooling Efficiency:
- Five fans provide > 150 CFM total airflow
- Filtered air intake and bottom air path design for uniform cooling
- Hot‑swappable fans reduce downtime and maintenance costs
Backplane Architecture:
- Three independent PCI bus segments via dual bridges for optimized bandwidth
- PXI trigger bus divided into three segments (slots 1–6, 7–12, 13–18)
- Star trigger signals from slot 2 to slots 3–15
- Local bus connections between adjacent peripheral slots for side‑band communication
- 10 MHz reference clock distributed to all slots (< 1 ns skew)
Limitations:
- Operating temperature limited to 45 °C ambient
- 3U module height only (no support for 6U modules)
- Total current draw must not exceed combined power budget (+5 V + +3.3 V ≤ 50 A)
### 8. Standards & Compliance
PXI and CompactPCI Compliance:
- PXI Specification Rev. 2.2
- CompactPCI (PICMG 2.0)
- IEEE 1101.10 mechanical packaging
Safety and EMC Certifications:
- Safety: EN 60950‑1 (LVD), UL 1950/CSA 22.2 No. 950, TÜV IEC 950
- EMC/EMI: EN 55022 (Class A), EN 55024, FCC Class A, CISPR 22 Class B
- CE Mark compliant
Environmental and Material Standards:
- Backplane PCB UL 94V‑0 rated
- Connectors per IEC‑917 and IEC 1076‑4‑101
- RoHS compliance (depending on manufacture date)
### 9. Additional Information
Warranty:
- Standard two‑year manufacturer’s warranty from shipment date.
- Covers defects in materials and workmanship.
- Excludes damage from misuse, improper storage, unauthorized repair, or acts of God.
- Customers responsible for shipping to ADLINK service centers.
Maintenance:
- Periodic cleaning recommended using dry air or 75 % isopropyl alcohol solution (interior) and mild soap solution (exterior).
- Fans and power supplies are hot‑swappable for field replacement.
- Temperature alarm threshold factory set to 50 °C (adjustable to 60 °C or 70 °C on request).
Support and Service:
- ADLINK Technology Inc.
9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Tel: +886‑2‑8226‑5877 Fax: +886‑2‑8226‑5717
Email: service@adlinktech.com
Website: [www.adlinktech.com](http://www.adlinktech.com)
RMA Procedure:
- Obtain RMA number before returning products.
- Attach RMA form with detailed defect description.
- Ship prepaid by EMS with declared value ≤ US$10 per item for customs.
Safety Instructions Summary:
- Operate below 40 °C ambient.
- Disconnect both AC inlets before servicing.
- Avoid moisture and liquid ingress.
- Use qualified personnel for internal service.
- Observe proper grounding and power ratings.
### Summary
The ADLINK PXIS‑2700 is a robust, high‑capacity PXI/CompactPCI chassis engineered for precision test and measurement systems requiring high reliability, modular scalability, and continuous operation. Its 18‑slot architecture, redundant 460 W power modules, and hot‑swappable cooling system ensure maximum uptime and serviceability. With comprehensive monitoring, PXI Rev. 2.2 compliance, and broad environmental tolerance, the PXIS‑2700 is ideal for ATE, DAQ, and industrial automation applications where system stability and expandability are paramount.
-
PXIS-2700_Datasheet_en_1.pdf
PDF Catalog
-
PXIS-2700_Manual_1.pdf
Manual
- PXIS Spare Fan - PXIS Chassis Spare Fan for PXIS-2700 & PXIS-2600
