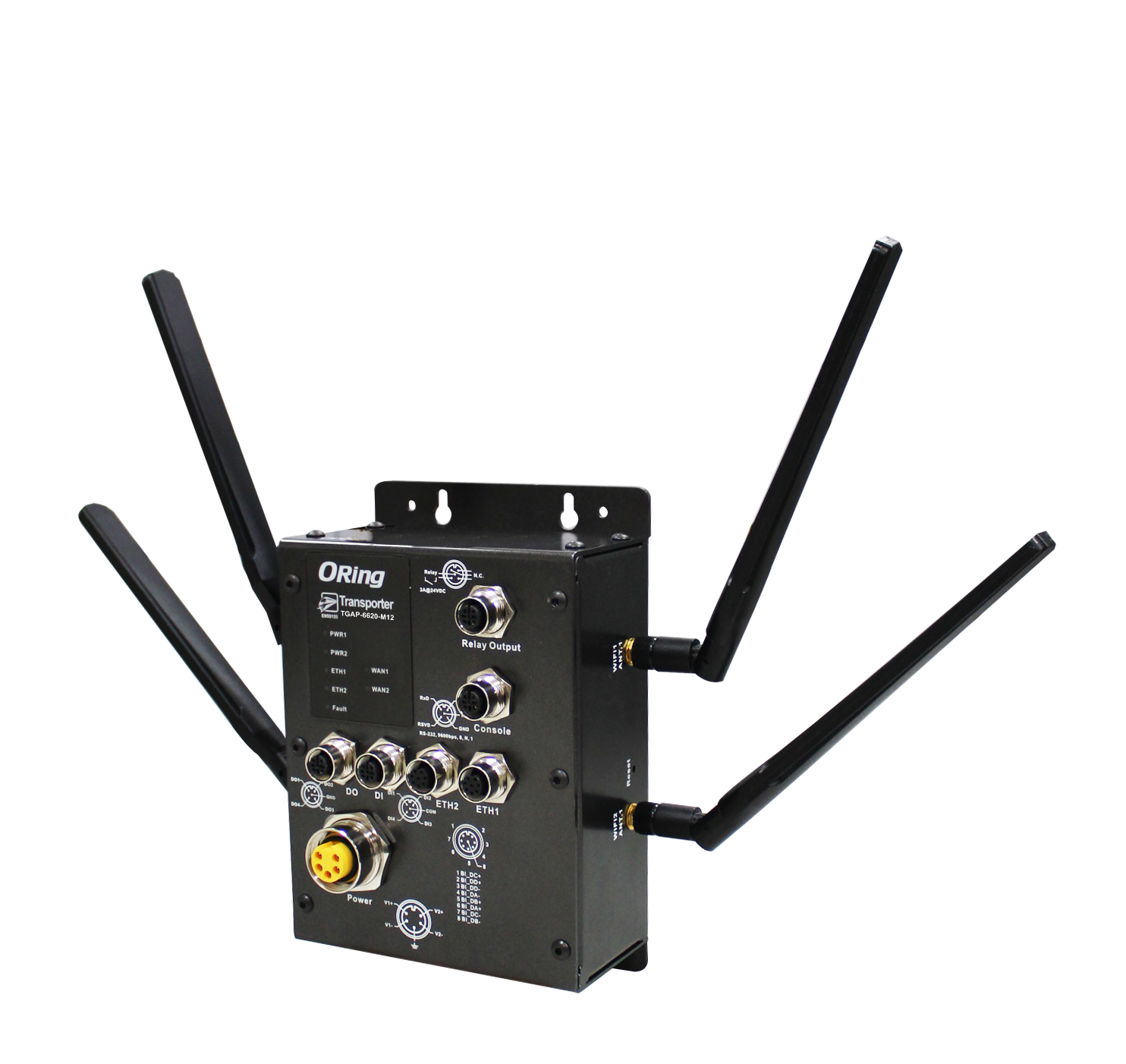

Comprehensive Product Summary – TGAP-6620-M12 Dual Wireless Access Point
### 1. Product Overview
Product Name: TGAP-6620-M12
Article Number: TGAP-6620-M12
Series: TGAP-620(+)/6620(+)-M12 Industrial Wireless Access Point Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Dual-RF Industrial Wireless Access Point with M12 connectors and EN50155 compliance
Model Variants: TGAP-620-M12 (single RF), TGAP-6620-M12 (dual RF)
Manufacturer Contact:
ORing Industrial Networking Corp., 3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan
Tel: +886-2-2218-1066 | Fax: +886-2-2218-1014
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
### 2. Key Features
- Dual-RF IEEE 802.11 a/b/g/n Wireless Modules: Supports simultaneous dual-band operation for high throughput and redundancy.
- Industrial-Grade Design: EN50155-certified for railway and rolling stock applications, resistant to vibration, shock, and temperature extremes.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) M12 ports with auto MDI/MDIX support, enabling daisy-chain topology to minimize cabling.
- Power over Ethernet (PoE PD): ETH2 port supports IEEE 802.3af PoE PD with 1kV isolation.
- Flexible Power Input: Dual redundant 12–48 VDC inputs via M23 5-pin connector.
- Rugged Enclosure: IP40-rated metal housing for industrial environments.
- Wide Temperature Range: Operating from -25°C to +70°C, storage from -40°C to +85°C.
- Multiple Operating Modes: AP, Client, Bridge, and AP-Client modes for versatile deployment.
- Advanced Security: WEP, WPA/WPA2, WPA-PSK, 802.1X authentication, TKIP/AES encryption, and MAC filtering.
- Comprehensive Management: Web-based GUI, Windows utility (Open-Vision), SNMP, Syslog, and HTTPS support.
- Event Notification: Supports Syslog, email alerts, SNMP traps, and relay output for fault indication.
- High-Speed Wireless Connectivity: Up to 300 Mbps per radio module.
- Long-Term Reliability: 5-year manufacturer warranty.
### 3. Technical Specifications
Physical Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in.)
Weight: 965 g
Enclosure: Metal, IP40 protection
Mounting Options: DIN-rail or wall-mount installation
Power Supply:
- Dual 12–48 VDC inputs via M23 5-pin connector
- Typical Power Consumption: 11 W
- PoE PD support on ETH2 (IEEE 802.3af compliant, 1kV isolation)
Environmental Conditions:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
Ethernet Interface:
- 2 × 10/100/1000Base-T(X) M12 connectors (8-pin A-coding)
- Auto MDI/MDIX support
- Cable Length: up to 100 m (Cat.5e UTP)
Digital I/O:
- 4 × Digital Inputs (DI) and 4 × Digital Outputs (DO) via M12 (5-pin A-coding)
- DI: Dry contact (On: short to GND, Off: open) or Wet contact (On: 0–3VDC, Off: 10–30VDC)
- DO: Relay output 1A @ 24VDC
Console Port:
- RS-232, M12 5-pin A-coding
- Baud Rate: 115200 bps, 8 data bits, no parity, 1 stop bit
Relay Output:
- 1 × M12 5-pin A-coded connector
- Capacity: 1A @ 24VDC
### 4. Functionality
The TGAP-6620-M12 functions as a dual-radio industrial wireless access point designed for mission-critical environments such as railway systems, transportation, and factory automation. It supports multiple operation modes:
- Access Point (AP): Central node for wireless clients.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Connects two wired networks via wireless link (WDS).
- AP-Client Mode: Combines AP and client functions for flexible network bridging.
Use Cases:
- Rolling stock and railway communication systems
- Industrial automation and SCADA networks
- Transportation and vehicle-based wireless connectivity
- Outdoor or mobile wireless infrastructure
Compatibility:
- IEEE 802.11 a/b/g/n compliant devices
- Supports standard Ethernet protocols (TCP/IP, DHCP, SNMP, RADIUS, etc.)
- Compatible with ORing’s Open-Vision management software
### 5. Components & Accessories
Package Contents:
- TGAP-6620-M12 unit
- 4 × 2.4/5 GHz antennas (reverse SMA connectors)
- 1 × CD (documentation and utilities)
- Quick Installation Guide (QIG)
Optional Accessories:
- M12 Ethernet cables (A-coded, 8-pin)
- M23 power cables
- DIN-rail mounting kit
- External antennas or RF extension cables
Connectors:
- 2 × M12 (Ethernet)
- 1 × M23 (Power)
- 1 × M12 (Relay)
- 1 × M12 (DI/DO)
- 1 × M12 (Console)
- 4 × Reverse SMA antenna connectors
### 6. Installation & Setup
Mounting:
- Wall Mount: Secure with four screws through keyhole slots; slide down and tighten for stability.
- DIN-Rail Mount: Optional bracket available for industrial panel installations.
Power Connection:
- Connect dual power inputs (V1+, V1-, V2+, V2-) via M23 connector.
- Ensure proper grounding to minimize EMI.
Network Setup:
- Default IP Address: 192.168.10.1
- Default Username/Password: admin / admin
- Configuration via web browser (HTTP/HTTPS) or Open-Vision utility.
LED Indicators:
- PWR1/PWR2: Green (power active)
- ETH1/ETH2: Green (link/activity)
- WLAN1/WLAN2: Green (wireless activity)
- Fault: Red (power or link failure)
Reset Function:
- Press and hold reset button until power LED flashes to restore factory defaults.
### 7. Performance & Capabilities
Wireless Standards: IEEE 802.11 a/b/g/n
Frequency Bands:
- 2.4 GHz: 2.412–2.472 GHz (13 channels, ETSI)
- 5 GHz: 5.180–5.240 GHz (4 channels, ETSI); 5.745–5.825 GHz (FCC)
Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g/a/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: up to 300 Mbps
Transmit Power:
- 802.11b: 18 dBm ±1.5 dBm
- 802.11g: 15 dBm ±1.5 dBm
- 802.11a/n: 12–13 dBm ±1.5 dBm
Receiver Sensitivity:
- 802.11b: -82 dBm @ 11 Mbps
- 802.11g/a: -68 dBm @ 54 Mbps
- 802.11n HT40: -60 dBm @ 300 Mbps
Security:
- WEP (64/128-bit), WPA/WPA2 (TKIP/AES), WPA-PSK (256-bit), 802.1X authentication
- SSID broadcast control, MAC filtering
Network Protocols Supported:
ARP, BOOTP, DHCP, DNS, HTTP/HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP
Performance Indicators:
- Dual-radio throughput up to 600 Mbps aggregate
- Daisy-chain Ethernet topology reduces switch port usage
- Relay output for fault detection and alarm integration
### 8. Standards & Compliance
Certifications:
- EN50155: Railway applications – electronic equipment used on rolling stock
- EN50121-3-2 / EN50121-4: Railway EMC standards
- FCC Part 15 Class A
- CISPR EN55022 Class A
- EN55011 Industrial, Scientific, and Medical Equipment
Environmental & Safety:
- Shock: IEC60068-2-27, EN61373
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
- EMC Immunity:
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (CS)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
RF Compliance:
- FCC and Industry Canada RSS standards
- CE/ETSI compliance for 2.4 GHz and 5 GHz bands
- RF exposure compliant (minimum 20 cm separation required)
### 9. Additional Information
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Maintenance:
- Periodic inspection of connectors and grounding recommended.
- Firmware updates available via ORing website.
- Configuration backup and restore supported through web interface.
Support & Updates:
- Firmware and documentation updates downloadable from [www.oring-networking.com](http://www.oring-networking.com)
- Technical support via email: support@oring-networking.com
Safety Notes:
- Ensure adequate ventilation and ambient temperature compliance.
- Maintain minimum 20 cm distance from antennas during operation.
- Avoid installation near explosive environments unless certified.
### Summary
The ORing TGAP-6620-M12 is a robust, dual-radio industrial wireless access point engineered for demanding environments such as railway and transportation systems. With EN50155 certification, dual Gigabit M12 Ethernet ports, redundant power inputs, and comprehensive wireless security, it ensures reliable, high-speed connectivity under harsh conditions. Its flexible configuration options, including AP, Client, Bridge, and AP-Client modes, make it suitable for a wide range of industrial and mobile networking applications. The device’s rugged IP40 metal housing, extended temperature tolerance, and advanced management capabilities position it as a high-performance solution for mission-critical wireless infrastructure.
### 1. Product Overview
Product Name: TGAP-6620-M12
Article Number: TGAP-6620-M12
Series: TGAP-620(+)/6620(+)-M12 Industrial Wireless Access Point Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Dual-RF Industrial Wireless Access Point with M12 connectors and EN50155 compliance
Model Variants: TGAP-620-M12 (single RF), TGAP-6620-M12 (dual RF)
Manufacturer Contact:
ORing Industrial Networking Corp., 3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan
Tel: +886-2-2218-1066 | Fax: +886-2-2218-1014
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
### 2. Key Features
- Dual-RF IEEE 802.11 a/b/g/n Wireless Modules: Supports simultaneous dual-band operation for high throughput and redundancy.
- Industrial-Grade Design: EN50155-certified for railway and rolling stock applications, resistant to vibration, shock, and temperature extremes.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) M12 ports with auto MDI/MDIX support, enabling daisy-chain topology to minimize cabling.
- Power over Ethernet (PoE PD): ETH2 port supports IEEE 802.3af PoE PD with 1kV isolation.
- Flexible Power Input: Dual redundant 12–48 VDC inputs via M23 5-pin connector.
- Rugged Enclosure: IP40-rated metal housing for industrial environments.
- Wide Temperature Range: Operating from -25°C to +70°C, storage from -40°C to +85°C.
- Multiple Operating Modes: AP, Client, Bridge, and AP-Client modes for versatile deployment.
- Advanced Security: WEP, WPA/WPA2, WPA-PSK, 802.1X authentication, TKIP/AES encryption, and MAC filtering.
- Comprehensive Management: Web-based GUI, Windows utility (Open-Vision), SNMP, Syslog, and HTTPS support.
- Event Notification: Supports Syslog, email alerts, SNMP traps, and relay output for fault indication.
- High-Speed Wireless Connectivity: Up to 300 Mbps per radio module.
- Long-Term Reliability: 5-year manufacturer warranty.
### 3. Technical Specifications
Physical Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in.)
Weight: 965 g
Enclosure: Metal, IP40 protection
Mounting Options: DIN-rail or wall-mount installation
Power Supply:
- Dual 12–48 VDC inputs via M23 5-pin connector
- Typical Power Consumption: 11 W
- PoE PD support on ETH2 (IEEE 802.3af compliant, 1kV isolation)
Environmental Conditions:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
Ethernet Interface:
- 2 × 10/100/1000Base-T(X) M12 connectors (8-pin A-coding)
- Auto MDI/MDIX support
- Cable Length: up to 100 m (Cat.5e UTP)
Digital I/O:
- 4 × Digital Inputs (DI) and 4 × Digital Outputs (DO) via M12 (5-pin A-coding)
- DI: Dry contact (On: short to GND, Off: open) or Wet contact (On: 0–3VDC, Off: 10–30VDC)
- DO: Relay output 1A @ 24VDC
Console Port:
- RS-232, M12 5-pin A-coding
- Baud Rate: 115200 bps, 8 data bits, no parity, 1 stop bit
Relay Output:
- 1 × M12 5-pin A-coded connector
- Capacity: 1A @ 24VDC
### 4. Functionality
The TGAP-6620-M12 functions as a dual-radio industrial wireless access point designed for mission-critical environments such as railway systems, transportation, and factory automation. It supports multiple operation modes:
- Access Point (AP): Central node for wireless clients.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Connects two wired networks via wireless link (WDS).
- AP-Client Mode: Combines AP and client functions for flexible network bridging.
Use Cases:
- Rolling stock and railway communication systems
- Industrial automation and SCADA networks
- Transportation and vehicle-based wireless connectivity
- Outdoor or mobile wireless infrastructure
Compatibility:
- IEEE 802.11 a/b/g/n compliant devices
- Supports standard Ethernet protocols (TCP/IP, DHCP, SNMP, RADIUS, etc.)
- Compatible with ORing’s Open-Vision management software
### 5. Components & Accessories
Package Contents:
- TGAP-6620-M12 unit
- 4 × 2.4/5 GHz antennas (reverse SMA connectors)
- 1 × CD (documentation and utilities)
- Quick Installation Guide (QIG)
Optional Accessories:
- M12 Ethernet cables (A-coded, 8-pin)
- M23 power cables
- DIN-rail mounting kit
- External antennas or RF extension cables
Connectors:
- 2 × M12 (Ethernet)
- 1 × M23 (Power)
- 1 × M12 (Relay)
- 1 × M12 (DI/DO)
- 1 × M12 (Console)
- 4 × Reverse SMA antenna connectors
### 6. Installation & Setup
Mounting:
- Wall Mount: Secure with four screws through keyhole slots; slide down and tighten for stability.
- DIN-Rail Mount: Optional bracket available for industrial panel installations.
Power Connection:
- Connect dual power inputs (V1+, V1-, V2+, V2-) via M23 connector.
- Ensure proper grounding to minimize EMI.
Network Setup:
- Default IP Address: 192.168.10.1
- Default Username/Password: admin / admin
- Configuration via web browser (HTTP/HTTPS) or Open-Vision utility.
LED Indicators:
- PWR1/PWR2: Green (power active)
- ETH1/ETH2: Green (link/activity)
- WLAN1/WLAN2: Green (wireless activity)
- Fault: Red (power or link failure)
Reset Function:
- Press and hold reset button until power LED flashes to restore factory defaults.
### 7. Performance & Capabilities
Wireless Standards: IEEE 802.11 a/b/g/n
Frequency Bands:
- 2.4 GHz: 2.412–2.472 GHz (13 channels, ETSI)
- 5 GHz: 5.180–5.240 GHz (4 channels, ETSI); 5.745–5.825 GHz (FCC)
Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g/a/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: up to 300 Mbps
Transmit Power:
- 802.11b: 18 dBm ±1.5 dBm
- 802.11g: 15 dBm ±1.5 dBm
- 802.11a/n: 12–13 dBm ±1.5 dBm
Receiver Sensitivity:
- 802.11b: -82 dBm @ 11 Mbps
- 802.11g/a: -68 dBm @ 54 Mbps
- 802.11n HT40: -60 dBm @ 300 Mbps
Security:
- WEP (64/128-bit), WPA/WPA2 (TKIP/AES), WPA-PSK (256-bit), 802.1X authentication
- SSID broadcast control, MAC filtering
Network Protocols Supported:
ARP, BOOTP, DHCP, DNS, HTTP/HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP
Performance Indicators:
- Dual-radio throughput up to 600 Mbps aggregate
- Daisy-chain Ethernet topology reduces switch port usage
- Relay output for fault detection and alarm integration
### 8. Standards & Compliance
Certifications:
- EN50155: Railway applications – electronic equipment used on rolling stock
- EN50121-3-2 / EN50121-4: Railway EMC standards
- FCC Part 15 Class A
- CISPR EN55022 Class A
- EN55011 Industrial, Scientific, and Medical Equipment
Environmental & Safety:
- Shock: IEC60068-2-27, EN61373
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1
- EMC Immunity:
- EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000-4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6 (CS)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
RF Compliance:
- FCC and Industry Canada RSS standards
- CE/ETSI compliance for 2.4 GHz and 5 GHz bands
- RF exposure compliant (minimum 20 cm separation required)
### 9. Additional Information
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Maintenance:
- Periodic inspection of connectors and grounding recommended.
- Firmware updates available via ORing website.
- Configuration backup and restore supported through web interface.
Support & Updates:
- Firmware and documentation updates downloadable from [www.oring-networking.com](http://www.oring-networking.com)
- Technical support via email: support@oring-networking.com
Safety Notes:
- Ensure adequate ventilation and ambient temperature compliance.
- Maintain minimum 20 cm distance from antennas during operation.
- Avoid installation near explosive environments unless certified.
### Summary
The ORing TGAP-6620-M12 is a robust, dual-radio industrial wireless access point engineered for demanding environments such as railway and transportation systems. With EN50155 certification, dual Gigabit M12 Ethernet ports, redundant power inputs, and comprehensive wireless security, it ensures reliable, high-speed connectivity under harsh conditions. Its flexible configuration options, including AP, Client, Bridge, and AP-Client modes, make it suitable for a wide range of industrial and mobile networking applications. The device’s rugged IP40 metal housing, extended temperature tolerance, and advanced management capabilities position it as a high-performance solution for mission-critical wireless infrastructure.
-
DataSheet_TGAP-6620+-M12_V1.1.pdf
PDF Catalog
Kein Zubehör vorhanden.
