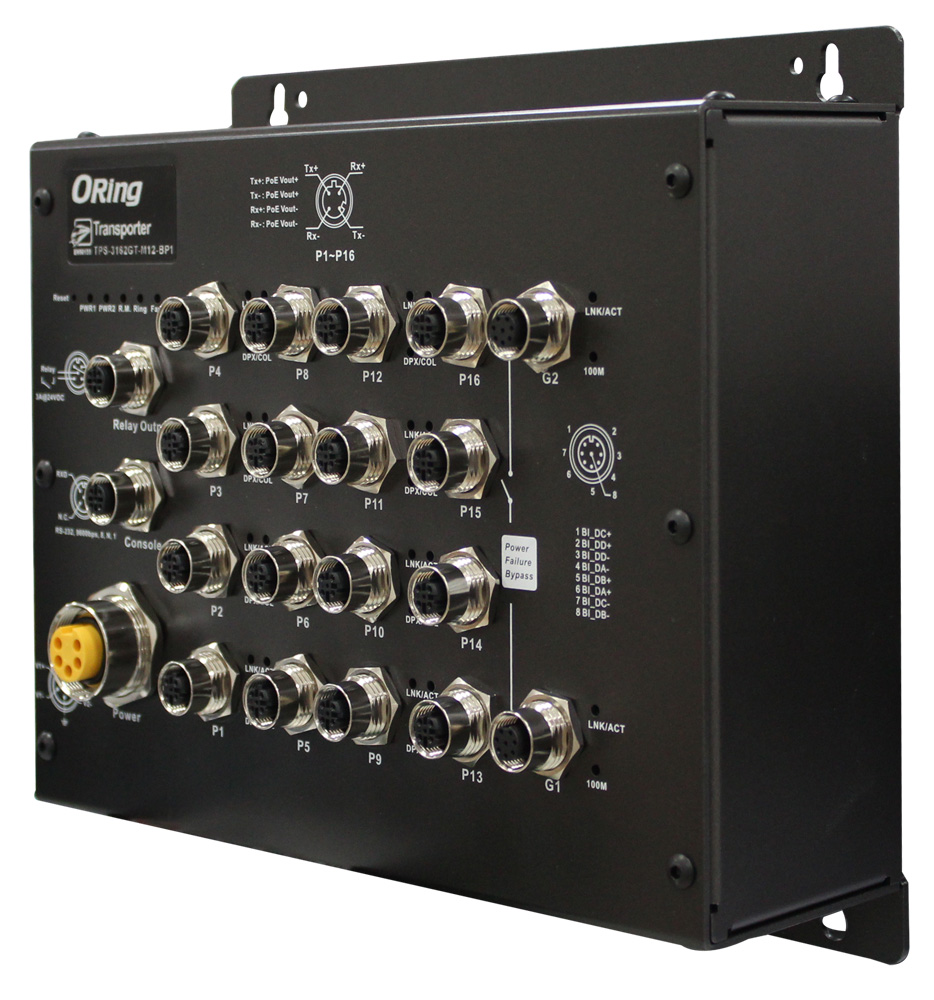

Comprehensive Product Summary – ORing TPS‑3162GT‑M12‑BP1 Industrial Managed Ethernet Switch
### 1. Product Overview
Product Name: TPS‑3162GT‑M12‑BP1
Model / Series: TPS‑3162GT‑M12‑BP1 Series (includes TPS‑3162GT‑M12‑BP1‑24V variant)
Article Number: TPS‑3162GT‑M12‑BP1
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Managed Ethernet Switch with PoE and Bypass Function
Intended Use: Harsh‑environment industrial networking, particularly railway, rolling stock, and vehicle applications
Compliance: EN50155 Railway Standard
The ORing TPS‑3162GT‑M12‑BP1 is a rugged, fully managed industrial Ethernet switch designed for mission‑critical applications requiring high reliability, redundant networking, and Power‑over‑Ethernet (PoE) capability. It features 16 Fast Ethernet PoE ports and 2 Gigabit Ethernet ports with bypass functionality, all using vibration‑resistant M12 connectors. The unit supports advanced redundancy technologies (O‑Ring, O‑Chain, MRP, MSTP/RSTP/STP) and is engineered for continuous operation in extreme environments.
### 2. Key Features
- Industrial‑grade design: EN50155‑compliant for railway and rolling stock use; IP‑40 metal enclosure; M12 connectors for shock and vibration resistance.
- High port density: 16 × 10/100Base‑T(X) PoE P.S.E. ports (IEEE 802.3af, 15.4 W per port) + 2 × 10/100/1000Base‑T(X) Gigabit ports with bypass.
- Bypass technology: Maintains network connectivity during power loss or device failure by automatically bridging the two bypass ports.
- Dual DC power inputs: Redundant 48 VDC (TPS‑3162GT‑M12‑BP1) or 12–57 VDC (TPS‑3162GT‑M12‑BP1‑24V) via M23 5‑pin connector.
- Advanced redundancy: O‑Ring (<10 ms recovery over 250 nodes), O‑Chain, Open‑Ring, MRP (IEC 62439), and MSTP/RSTP/STP support.
- Comprehensive management: Web GUI, Telnet, CLI (RS‑232 console), SNMP v1/v2c/v3, Modbus TCP, and ORing’s Open‑Vision utility.
- PoE management: Per‑port enable/disable, power scheduling, ping‑alive check, boot delay, and power prioritization.
- Security suite: 802.1x authentication, IP/MAC filtering, port security, SNMPv3 encryption, and IP Guard.
- Event and alarm system: Fault relay output (3 A @ 24 VDC), SYSLOG, SMTP e‑mail alerts, SNMP traps, and LED indicators.
- Wide temperature operation: −40 °C to +70 °C continuous; storage −40 °C to +85 °C.
- High reliability: Mean switching latency 7 µs; switching bandwidth 7.2 Gbps; 8192 MAC addresses; 4096 VLANs.
- Warranty: 5 years standard manufacturer warranty.
### 3. Technical Specifications
Physical Ports
- 16 × 10/100Base‑T(X) M12 D‑coded connectors with PoE P.S.E.
- 2 × 10/100/1000Base‑T(X) M12 A‑coded connectors (bypass‑enabled).
- 1 × RS‑232 console port (M12 A‑coded, 9600 bps, 8‑N‑1).
- 1 × M12 A‑coded 5‑pin relay output (3 A @ 24 VDC).
- 1 × M23 5‑pin female power connector for dual DC inputs.
Standards Compliance
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3x (flow control), 802.3ad (LACP), 802.1D/w/s (STP/RSTP/MSTP), 802.1p (CoS), 802.1Q (VLAN tagging), 802.1x (authentication), 802.1AB (LLDP), 802.3af (PoE).
Switch Performance
- Switching bandwidth: 7.2 Gbps
- Switching latency: 7 µs
- MAC address table: 8192 entries
- VLANs: 4096 (max)
- IGMP multicast groups: 1024
- Priority queues: 4
- Processing method: Store‑and‑Forward
Power
- Input: Dual DC 48 V (50–57 VDC range) or 12–57 VDC for ‑24V model.
- Consumption: 14.88 W (typical, excluding PoE load).
- PoE budget: 240 W total (120 W @ 12–24 VDC input for ‑24V model).
- Protection: Overload current and reverse polarity protection.
Mechanical
- Enclosure: IP‑40 metal housing
- Dimensions: 260 (W) × 91.3 (D) × 216 (H) mm
- Weight: ≈ 2.1 kg (TPS‑3162GT‑M12‑BP1), ≈ 2.22 kg (‑24V model)
- Mounting: Wall mount or DIN‑rail (optional kit)
Environmental
- Operating temperature: −40 °C to +70 °C
- Storage temperature: −40 °C to +85 °C
- Humidity: 5 % to 95 % (non‑condensing)
Regulatory Approvals
- EMI: FCC Part 15 Class A, EN55022 Class A, EN50155 (EN50121‑3‑2, EN55011, EN50121‑4)
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN60950‑1
### 4. Functionality
Operation Principle
The switch interconnects Ethernet devices in industrial networks, providing managed Layer 2 switching with PoE power sourcing. Each of the 16 Fast Ethernet ports can deliver up to 15.4 W to IEEE 802.3af PDs (IP cameras, access points, VoIP phones). Two Gigabit ports serve as uplinks or bypass links for network continuity during power loss.
Use Cases & Applications
- Railway rolling stock and onboard network systems (EN50155 certified).
- Industrial automation and control networks requiring redundant Ethernet rings.
- IP surveillance and transport monitoring systems using PoE cameras.
- Vehicle and defense applications subject to vibration and temperature extremes.
- Factory floor and outdoor network infrastructure needing rugged connectivity.
Compatibility
Interoperable with standard Ethernet devices and protocols. Supports SNMP, Modbus TCP, PTP client, and LLDP for integration with industrial control and monitoring systems.
### 5. Components & Accessories
Included Items
- TPS‑3162GT‑M12‑BP1 switch unit
- RS‑232 console cable (M12 to DB9‑F)
- Quick Installation Guide
- Wall‑mount kit
- Documentation and support information
Optional Accessories
- DIN‑rail mounting kit
- M12 Ethernet cables (D‑coded and A‑coded)
- M23 power cables
- Open‑Vision network management software
Connectors
- M12 D‑coded (4‑pin) for 10/100 PoE ports
- M12 A‑coded (8‑pin) for Gigabit ports
- M12 A‑coded (5‑pin) for relay output
- M23 (5‑pin) for dual power input
### 6. Installation & Setup
Mounting Options
- Wall mount (default): use four screws through keyhole slots (leave 2 mm gap for sliding).
- DIN‑rail mount (optional bracket).
Power Connection
- Dual redundant DC inputs via M23 connector. Tighten outer ring for secure fit.
- Ground the unit before connecting power to reduce EMI.
Network Cabling
- 10/100 ports: Cat 5 UTP, 100 m max, M12 D‑coded.
- 1000 ports: Cat 5e UTP, 100 m max, M12 A‑coded.
- Console: RS‑232 9600 bps 8‑N‑1 via M12 to DB9.
Configuration Interfaces
- Web GUI: default IP 192.168.10.1 (admin/admin).
- CLI: via RS‑232 or Telnet.
- SNMP: v1/v2c/v3 for remote monitoring.
- Open‑Vision: Windows utility for central management.
Initial Setup Steps
1. Connect power and verify PWR1/PWR2 LEDs.
2. Connect PC to any Ethernet port.
3. Access web interface and set IP address, password, and network parameters.
4. Configure redundancy (O‑Ring, MRP, etc.) and PoE settings as required.
### 7. Performance & Capabilities
Switching Capacity 7.2 Gbps non‑blocking
Latency 7 µs typical
PoE Budget 240 W total (15.4 W per port)
Recovery Time < 10 ms (O‑Ring) / < 30 ms (O‑Chain)
Reliability MTBF > 100,000 hours (typical industrial rating)
Temperature Range −40 °C to +70 °C continuous operation
Limitations PoE output limited to IEEE 802.3af (does not support 802.3at high‑power PDs).
### 8. Standards & Compliance
- Railway Standard: EN50155 (rolling stock equipment)
- EMC: EN50121‑3‑2, EN50121‑4, EN55022 Class A, FCC Part 15 Class A
- Immunity: EN61000‑4‑2/3/4/5/6/8/11
- Safety: EN60950‑1
- Environmental: IEC 60068‑2‑6 (vibration), ‑27 (shock), ‑32 (free fall)
- Ingress Protection: IP‑40 rated metal enclosure
- PoE Standard: IEEE 802.3af P.S.E.
- Network Protocols: IEEE 802.1D/w/s/p/Q/x/AB/ad/af
### 9. Additional Information
Warranty & Support
- 5‑year limited hardware warranty from invoice date.
- ORing will repair or replace defective units under normal use.
- Warranty excludes damage from misuse, improper installation, or unauthorized modification.
Maintenance & Firmware Updates
- Firmware upgrade via Web GUI or TFTP.
- Configuration backup and restore supported through TFTP or local PC.
- Regular inspection of connectors and grounding recommended for railway applications.
Technical Support Contacts
- ORing Industrial Networking Corp.
4F., No. 3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring‑networking.com](http://www.oring-networking.com)
Email: support@oring‑networking.com
### Summary
The ORing TPS‑3162GT‑M12‑BP1 is a high‑reliability, EN50155‑certified managed Ethernet switch engineered for industrial and transportation networks requiring PoE power delivery, network redundancy, and rugged environmental endurance. With 16 PoE Fast Ethernet ports, 2 Gigabit bypass ports, dual redundant power inputs, and comprehensive management and security features, it ensures continuous operation in mission‑critical applications. Its support for O‑Ring, O‑Chain, MRP, and MSTP redundancy protocols provides sub‑10 ms recovery times, while the robust M12 connectors and wide temperature range make it ideal for railway and vehicle environments. Combined with a 5‑year warranty and compliance with global industrial standards, the TPS‑3162GT‑M12‑BP1 offers a complete, long‑life solution for industrial Ethernet infrastructure.
